Part of the John Deere Repair Manuals.
This is the factory repair manual for John Deere 6415 and 6615 tractors, the book dealer techs use when a component comes out of the machine. It covers full removal, teardown and rebuild of the PowerTech 4.5L (6415) and 6.8L (6615) diesels, both SyncroPlus and PowrQuad transmissions, the MFWD front axle, differential and final drives, power steering, brakes, and the hydraulic system including the gear pump, rockshaft, SCVs and three-point hitch. You get torque values, specifications, fuel and lubricant charts, electrical repair for the alternator, starter and wiring, cab and HVAC service, plus drawings for dealer-fabricated special tools. Every procedure is step-by-step with the specs printed where you need them, not buried in an appendix.
What's Inside This John Deere 6415, 6615 Repair Manual

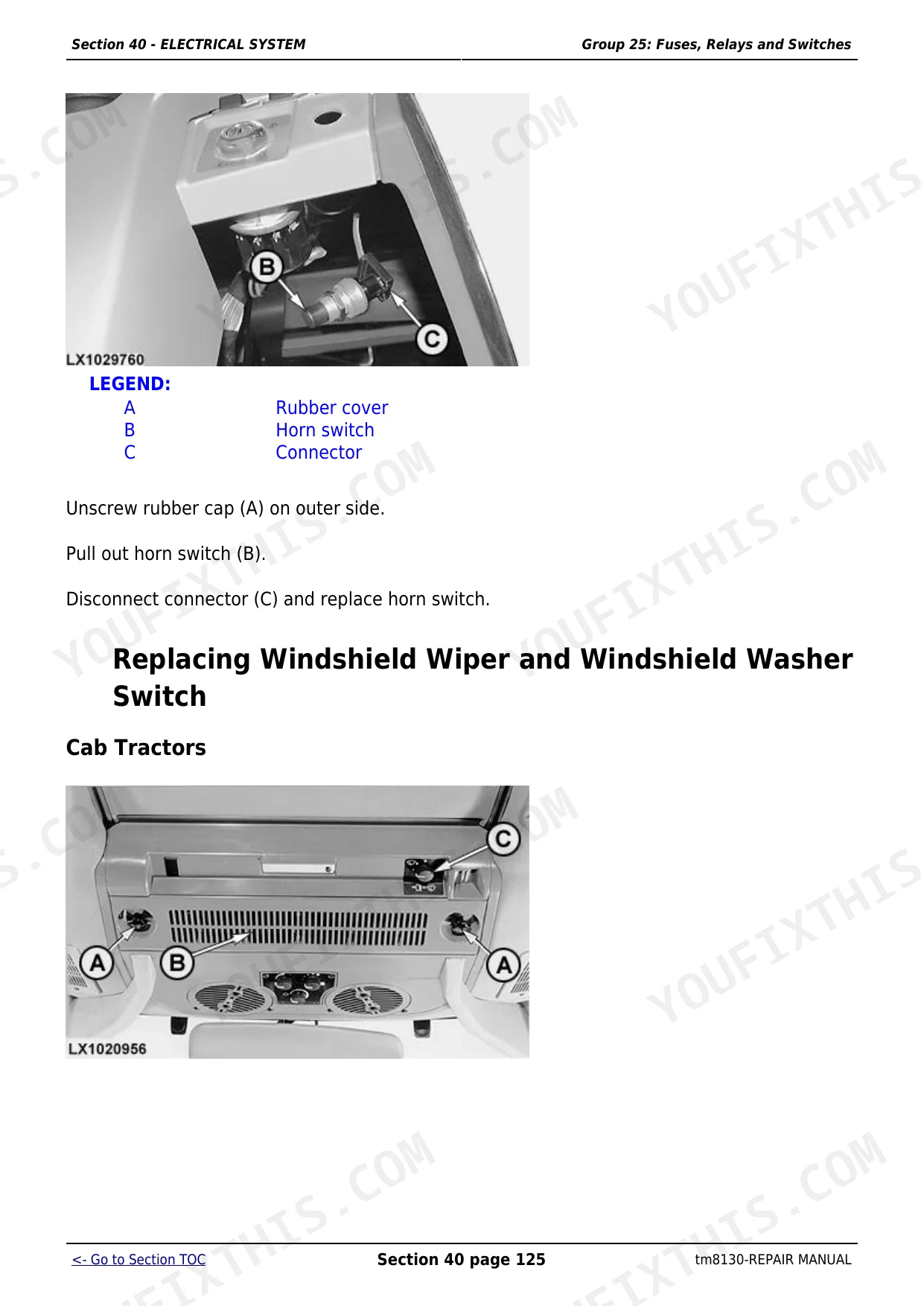

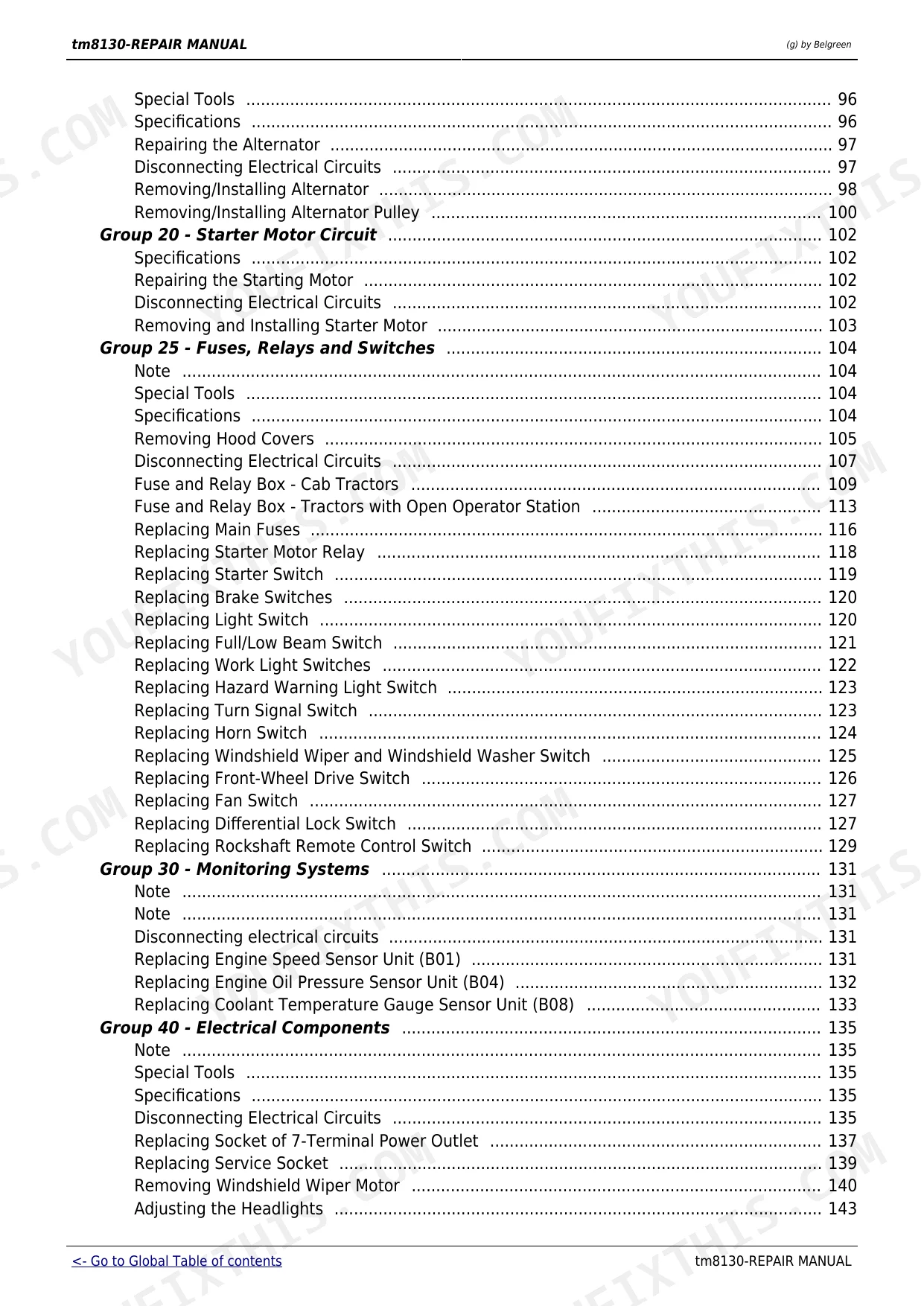

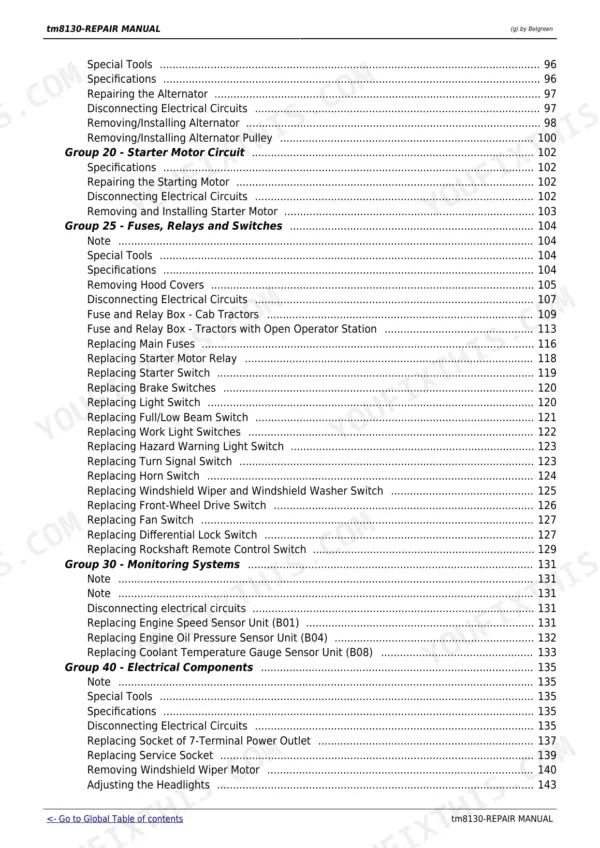

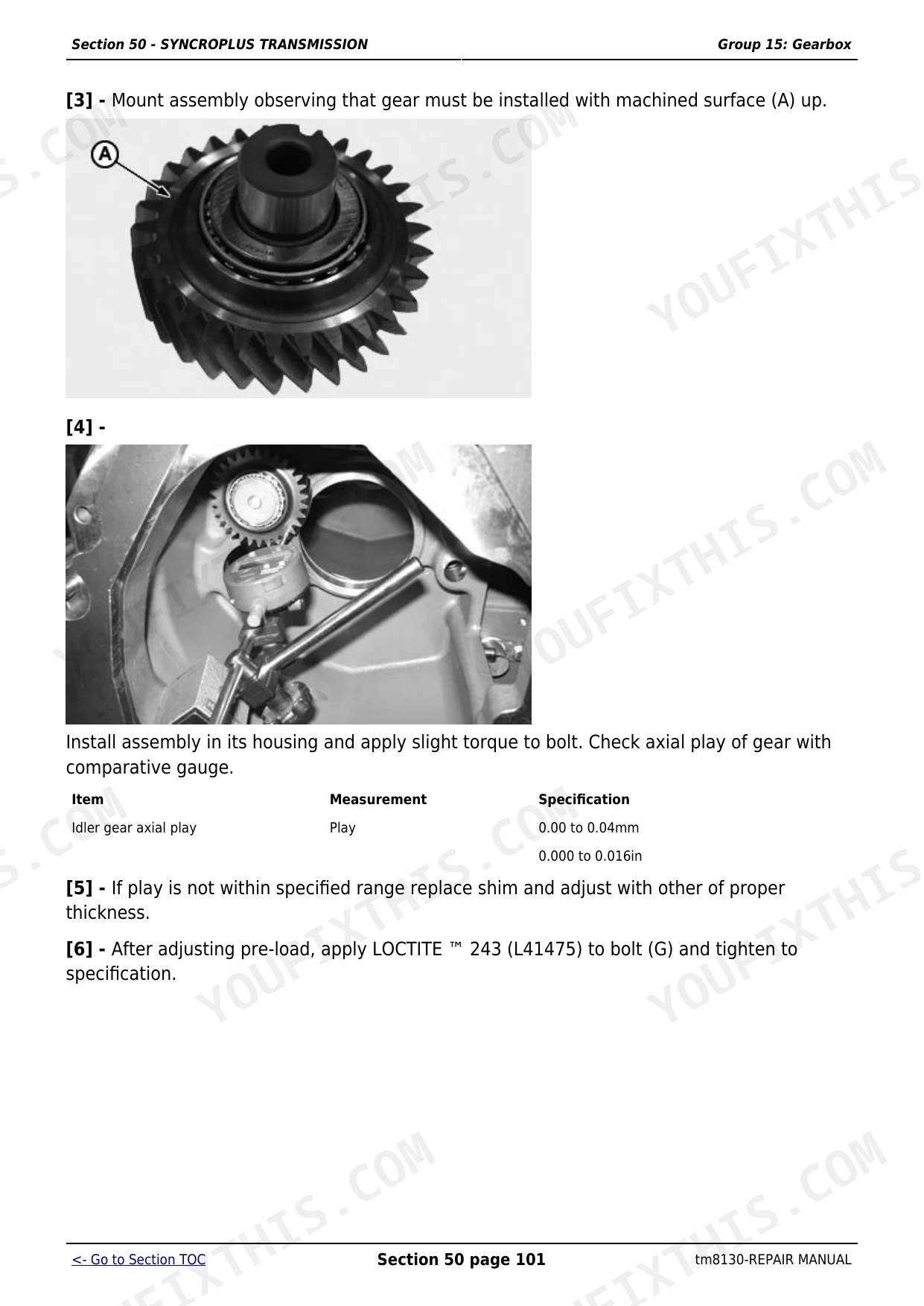

| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-28 | Safety Precautions and Decals |
| General Information | 29-65 | Machine and Engine Specifications, Torque Values, Fuel and Lubricants |
| Engine | 66-85 | PowerTech 4.5L/6.8L Diesel Engine Removal, Teardown and Rebuild |
| Fuel Systems, Air Intake, Cooling and Exhaust | 86-131 | Fuel Injection, Air Intake, Cooling and Exhaust Service |
| Electrical System | 132-281 | Alternator, Starter, Batteries, Instruments and Wiring Repair |
| SyncroPlus Transmission | 282-462 | SyncroPlus Transmission Overhaul, Clutch and Shifting |
| PowrQuad Transmission | 463-611 | PowrQuad Transmission Overhaul, Clutch Packs and Controls |
| Drive Systems | 612-786 | MFWD Front Axle, Differential, Differential Lock and Final Drives |
| Steering and Brakes | 787-848 | Power Steering and Brake System Service and Adjustment |
| Hydraulic System | 849-979 | Hydraulic Pump, Rockshaft, SCV and Three-Point Hitch Repair |
| Miscellaneous | 980-1038 | Miscellaneous Procedures and Accessories |
| Operator's Cab | 1039-1129 | HVAC, Controls and Sheet Metal |
| Special Tools (Dealer-Fabricated) | 1130-1143 | Dealer-Fabricated Special Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 6415 | ||
| Displacement | 4.5 L | p. 29 |
| Power at rated speed | 79.5 kW (108 cv) | p. 29 |
| Engine rated speed | 2300 rpm | p. 29 |
| Maximum torque | 445 N.m (328.2 lb-ft) | p. 29 |
| Speed at maximum torque | 1500 rpm | p. 29 |
| PTO Power | 66 kW (90 cv) | p. 30 |
| PTO speed / Engine speed (SyncroPlus Transmission) | 540/2100 rpm | p. 30 |
| Hydraulic Pump / Pump flow rate | Gears / 66 L/min (17.4 gpm) | p. 31 |
| 6615 | ||
| Displacement | 6.8 L | p. 29 |
| Power at rated speed | 88.5 kW (120.3 cv) | p. 29 |
| Engine rated speed | 2100 rpm | p. 29 |
| Maximum torque | 514 N.m (379.1 lb-ft) | p. 29 |
| Speed at maximum torque | 1400 rpm | p. 29 |
| PTO Power | 76 kW (103 cv) | p. 30 |
| PTO speed / Engine speed (SyncroPlus Transmission) | 540/2150 rpm | p. 30 |
| 6415, 6615 | ||
| PTO speed / Engine speed (PowerQuad Transmission) | 540 or 1000/2100 rpm | p. 30 |
| Clutch Actuation | Auto-adjustable hydraulic | p. 30 |
| Clutch Diameter of disks | 228 mm (9 in) | p. 30 |
| Creeper Transmission Speed reduction | Approximately 90% | p. 30 |
| Hydraulic System Maximum pressure | 190 kgf/cm² (200 bar; 2,900 PSI) | p. 31 |
John Deere 6415, 6615 Common Problems This Manual Covers
Transmission fails or grinds under heavy load, with unusual noise from the case and slipping during shifts.
Drain and inspect the fluid first, then follow the overhaul procedure in the SyncroPlus Transmission or PowrQuad Transmission section for your unit. Both sections walk through splitting the tractor, inspecting clutch packs, synchronizers and shafts against wear limits, and reassembling with correct torques and adjustments.
Manual Section: SyncroPlus Transmission / PowrQuad TransmissionEngine will not crank and there is no click from the starter when the key is turned.
Check battery, ground straps and start-circuit connectors, then remove the starter using the Electrical System section. It covers starter and solenoid repair, pinion gear inspection for flywheel engagement wear, and repair of the wiring and connectors that commonly corrode on these tractors.
Manual Section: Electrical SystemHydraulic pressure is low or erratic and the SCV bank or rockshaft does not respond correctly.
The Hydraulic System section covers the gear pump, rockshaft, SCVs and three-point hitch, including pressure relief adjustment against the 200 bar (2,900 PSI) system maximum. It shows how to tear down the valve bank, replace fatigued springs and worn seals, and set pressures correctly.
Manual Section: Hydraulic SystemMFWD front axle noise, differential lock not engaging, or leaking final drives.
Use the Drive Systems section for the MFWD front axle, differential, differential lock and final drives. It covers seal and bearing replacement, gear inspection, preload and backlash setup, and reassembly torques, so you can fix a leak or a lock fault without guesswork.
Manual Section: Drive SystemsFrequently Asked Questions
My 6615 transmission is slipping and making noise under load. Does this manual cover a full transmission overhaul?
Yes. There are separate sections for the SyncroPlus and PowrQuad transmissions, each with complete disassembly, inspection and reassembly procedures. The PowrQuad section covers the clutch packs and controls, the SyncroPlus section covers the clutch and shifting components. Identify which transmission your tractor has first, then work from that section. Note the traction clutch itself is a 228 mm (9 in) disk setup with auto-adjustable hydraulic actuation, and that is covered too.
Turn the key and nothing happens, not even a click. Will this manual help me fix the starter circuit?
The Electrical System section covers repair of the starter, solenoid, alternator, batteries and instruments, and this is the most common no-crank scenario on these tractors: a dead solenoid, a worn pinion gear or a corroded connector in the start circuit. For full wiring schematics and step-by-step circuit testing you would pair it with the companion Operation, Tests and Diagnosis manual, but for pulling, rebuilding or replacing the starter this book has what you need.
Does it cover both engines, the 4.5L and the 6.8L?
Yes. The Engine section covers removal, teardown and rebuild for both the PowerTech 4.5L in the 6415 (79.5 kW / 108 cv at 2300 rpm) and the 6.8L in the 6615 (88.5 kW / 120.3 cv at 2100 rpm). Fuel injection, air intake, cooling and exhaust service are in their own section, so a head job or an injection pump swap is fully documented for either model.
Are torque specs and capacities actually in the book, or do I need a separate spec sheet?
They are in the book. The General Information section carries machine and engine specifications, torque values, and fuel and lubricant recommendations, and the individual repair procedures repeat the critical torques at the step where you tighten the fastener. You will not be guessing on head bolts or final drive hardware.
Is this a printed book or a download, and what tractors exactly does it fit?
It is a digital PDF covering John Deere 6415 and 6615 utility tractors from the 2005-2008 range, delivered for immediate download. You can print individual pages for the shop bench, keep the file on a laptop or tablet, and search it by keyword instead of flipping through an index.
