This 699-page John Deere 6105E, 6120E, 6135E Repair Manual (TM608619) is built for the 2015 utility tractor lineup, and it names the family once before you're into model-specific torque and clearance calls. You get a full Engine Repair section, complete Electrical System groups, and page after page of Hydraulics procedures covering the pump, oil cooler, hitch valve, and rear selective control valve. Inside you'll also find Steering and Brakes, Drive Systems, and full Cab and Operator Station teardown groups. Torque the hydraulic pump-to-top cover socket head screws to 125 N-m, and set the main pump screws at 120 N-m before you button anything up. No more flipping through a parts-store binder hoping the numbers match your serial number. This PDF carries working bookmarks, so you jump straight from Engine Repair to Hydraulics without scrolling past 500 pages you don't need.

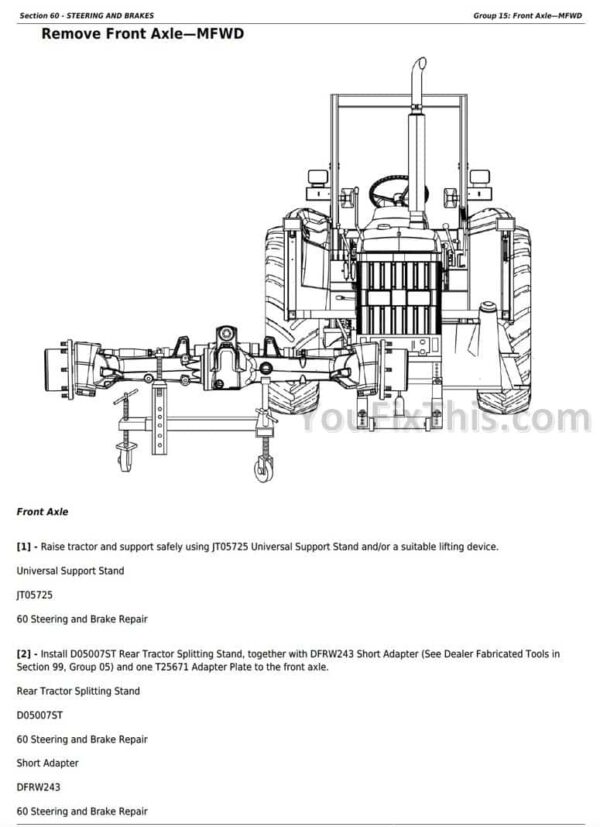

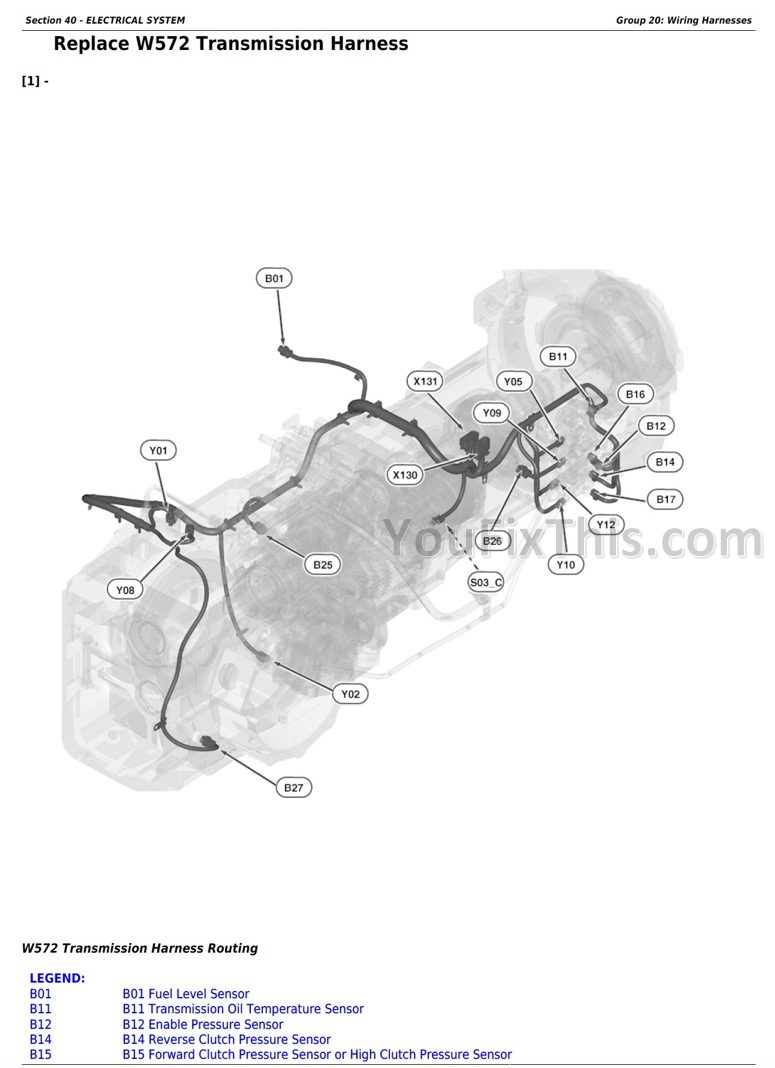

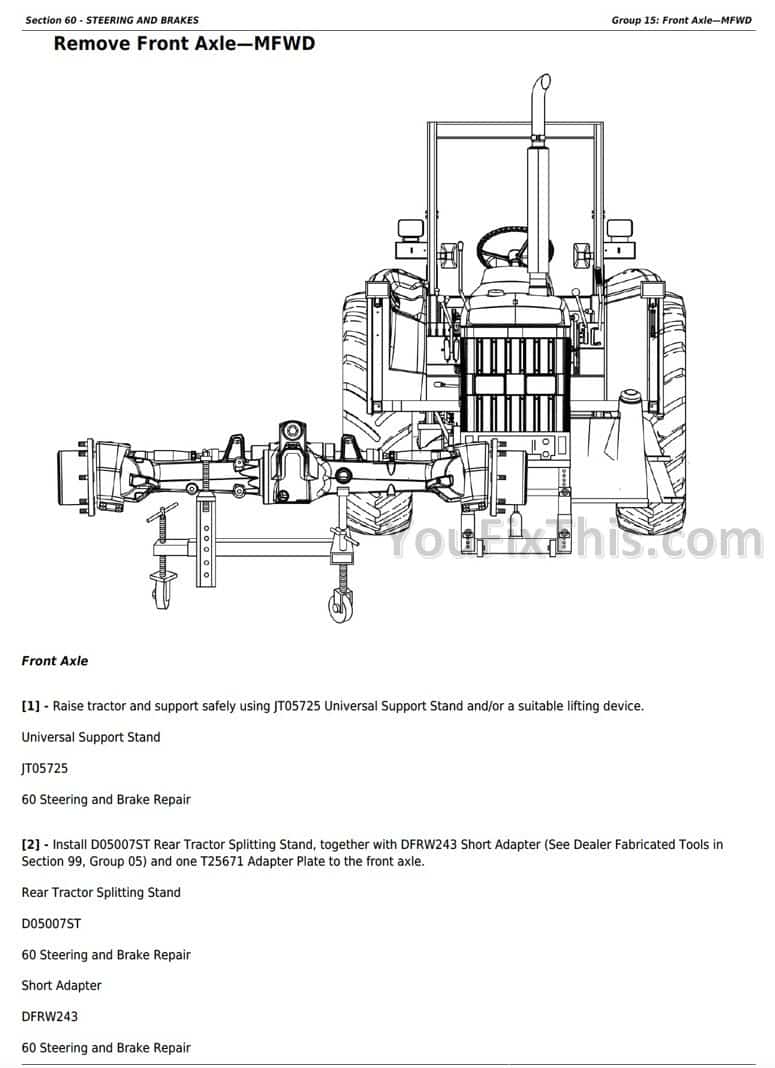

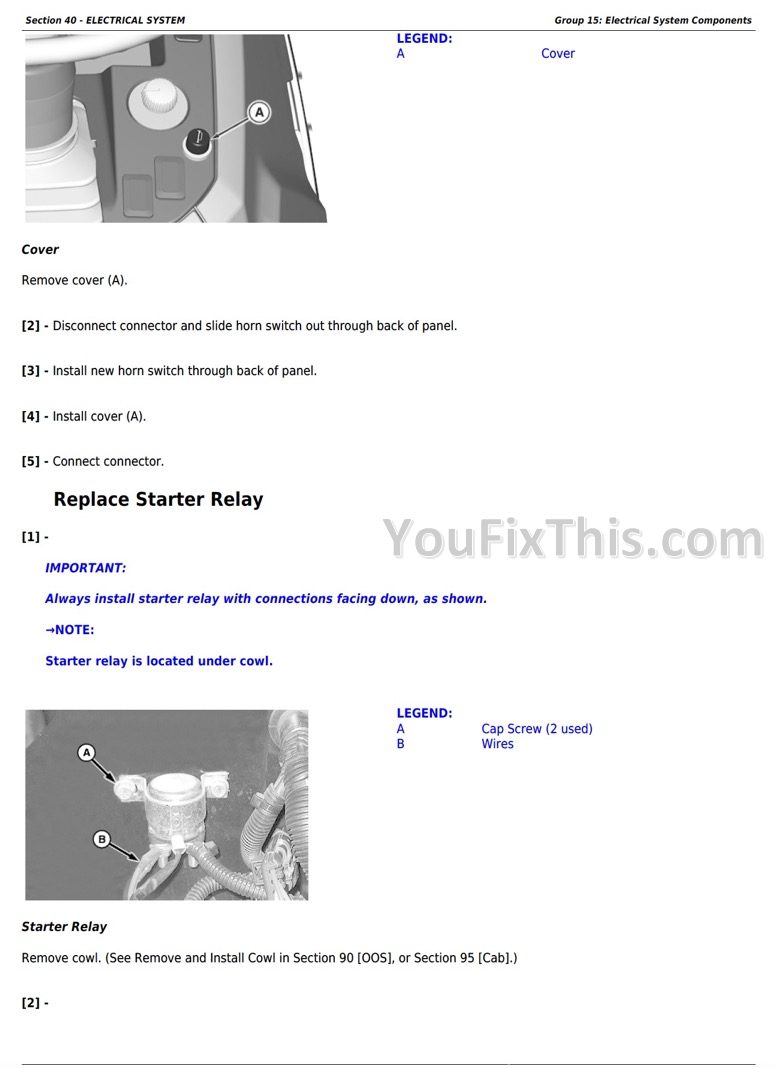

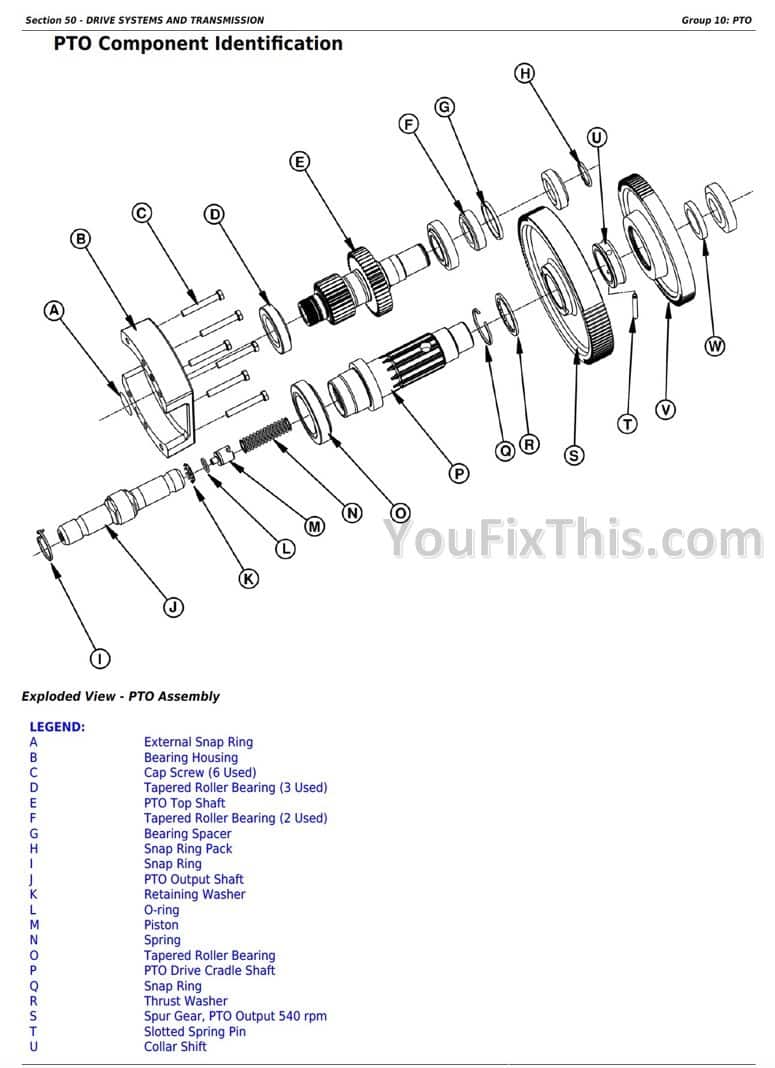

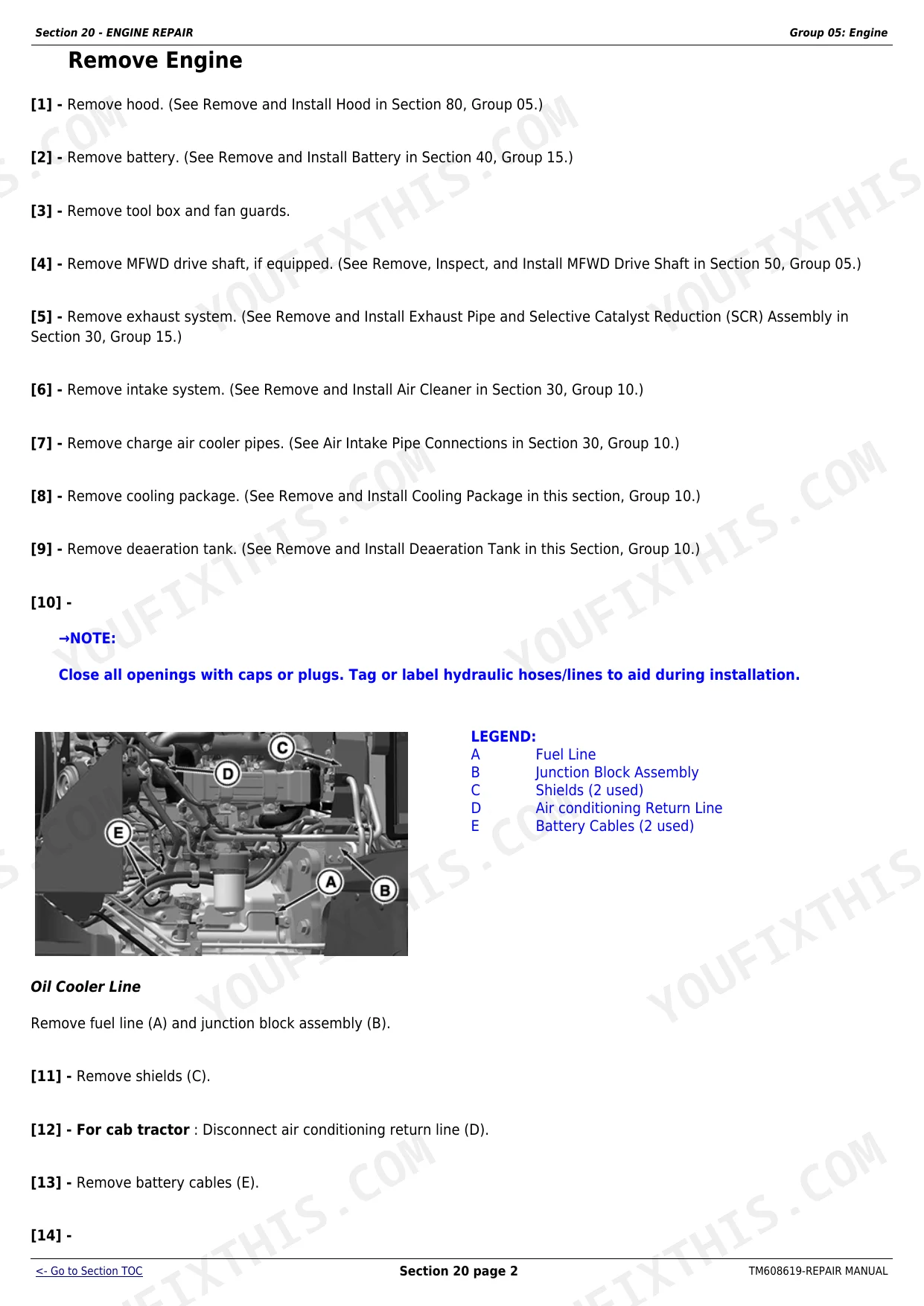

What's Inside This John Deere 6105E, 6120E, 6135E Repair Manual

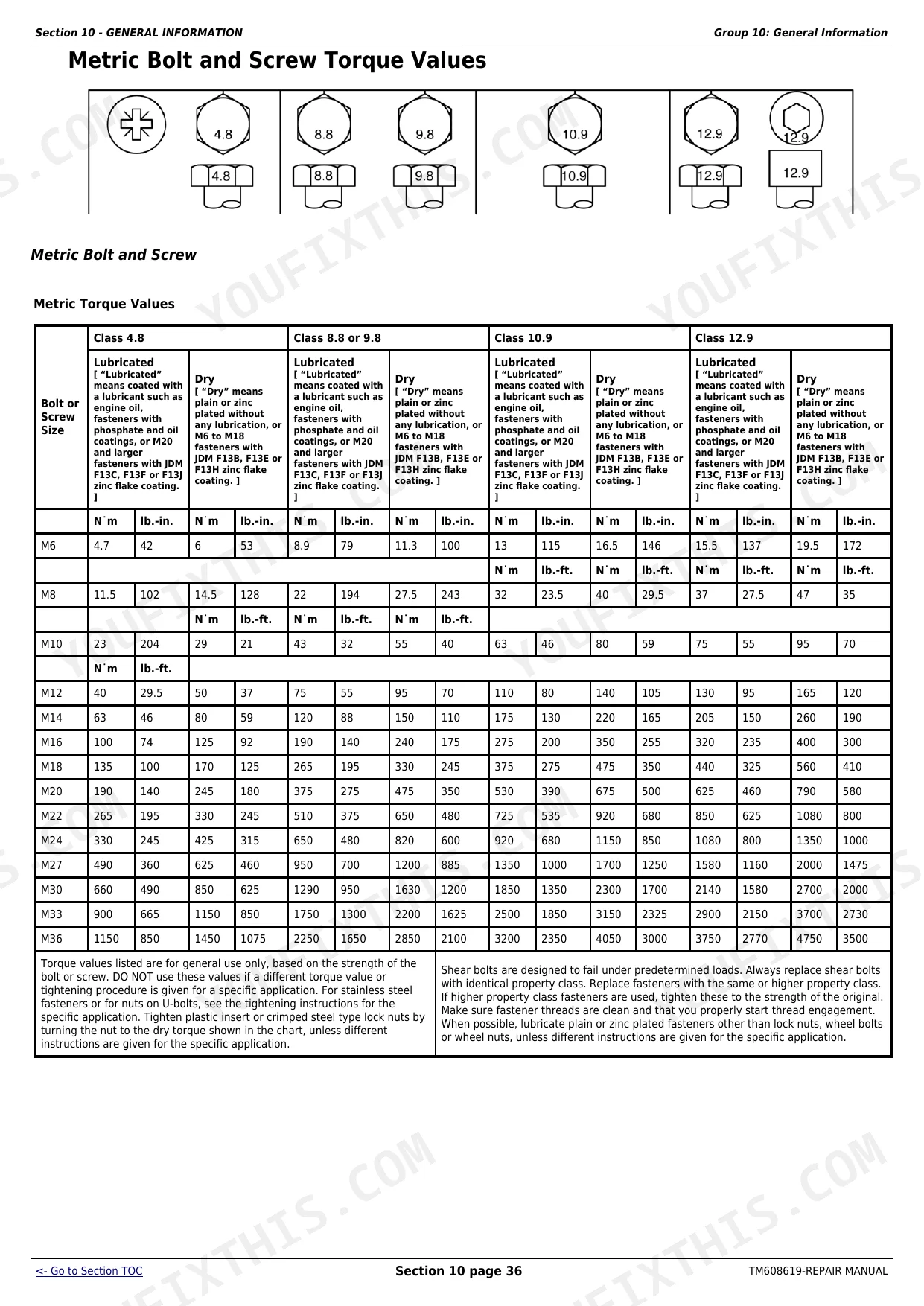

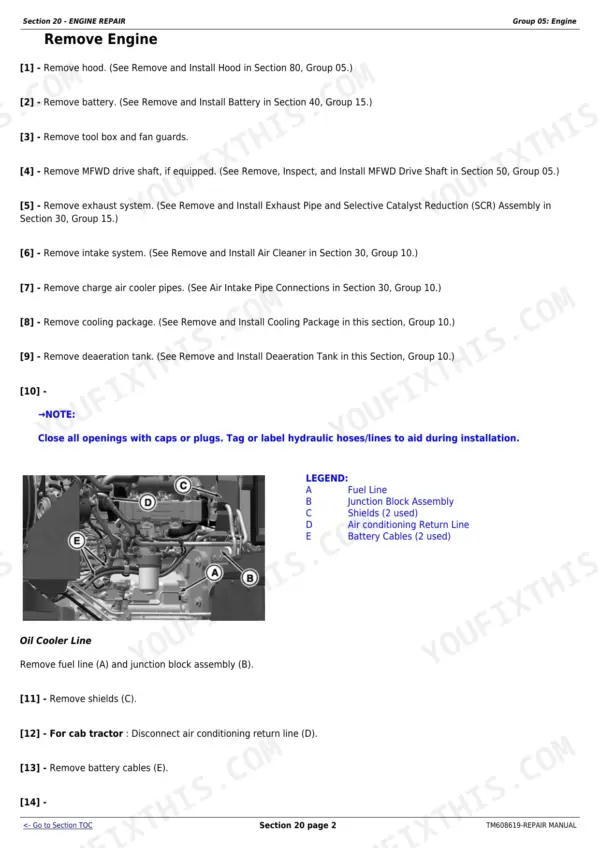

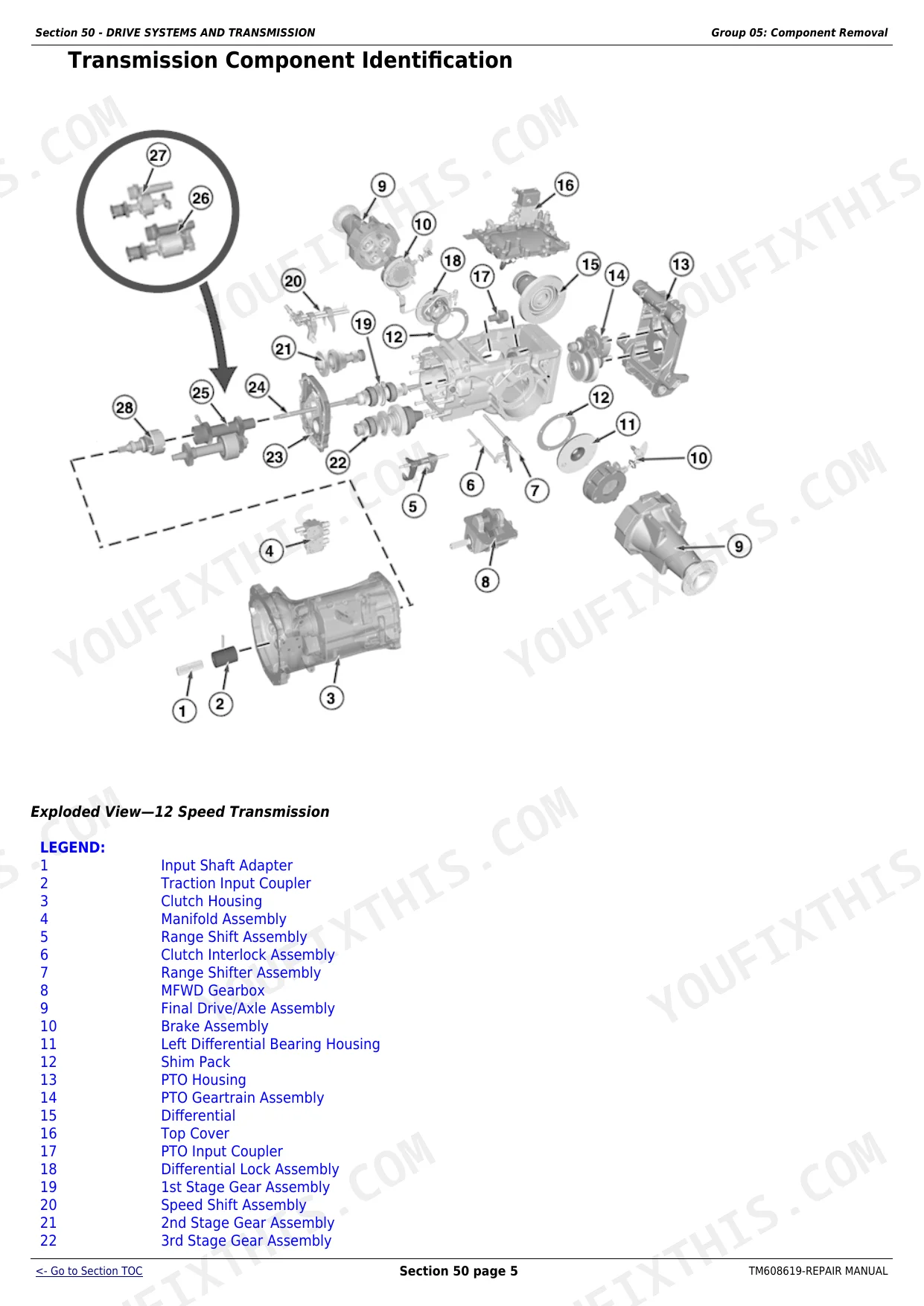

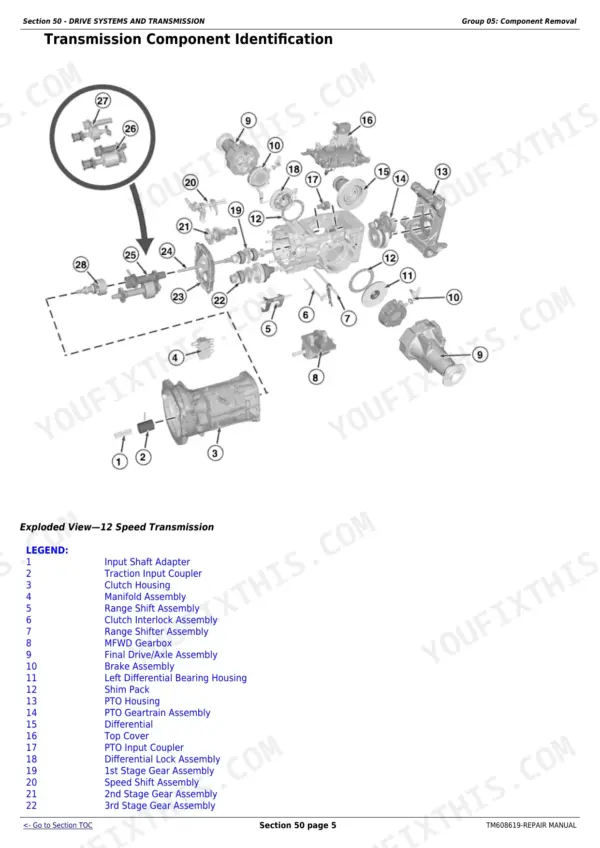

| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-92 | Safety (Recognize Safety Information, Understand Signal Words, Replace Safety Signs, Follow Safety Instructions, Work in Ventilated Area, Practice Safe Maintenance) |
| Engine Repair | 93-127 | Engine, Cooling System |
| Fuel, Air Intake, and Exhaust Systems | 128-168 | Fuel System, Air Intake System, Exhaust System |
| Electrical System | 169-303 | Charging Circuit, Starting Circuit, Electrical System Components, Wiring Harnesses |
| Drive Systems and Transmission | 304-342 | Towing, Component Removal, PTO, Clutch |
| Steering and Brakes | 343-402 | Steering Repair, Front Axle, 2WD, MFWD, Brake Repair |
| Hydraulics | 403-526 | Hydraulic Pump, Hydraulic Oil Cooler, Hitch Valve, Hydraulic Rear Selective Control Valve |
| Miscellaneous | 527-562 | Hood and Fenders, Hitch and Drawbar, Front Support |
| Open Operator Station Repair | 563-585 | Seat and Support, ROPS, Operator Platform, Cowl Repair |
| Cab, Operator Station Repair | 586-686 | Removal and Installation of Components, Air Conditioning System, Heating System, Seat |
| Special Tools | 687-699 | Dealer Fabricated Tools, Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Pump-to-Top Cover Socket Head Screws | 125 N·m (92 lb·ft) | p. 404 |
| Main Pump Screws | 120 N·m (89 lb-ft) | p. 404 |
| Fuel Tank Capacity | 168 L (44.4 gal) | p. 61 |
| DEF Concentration | 31.8–33.2% urea | p. 72 |

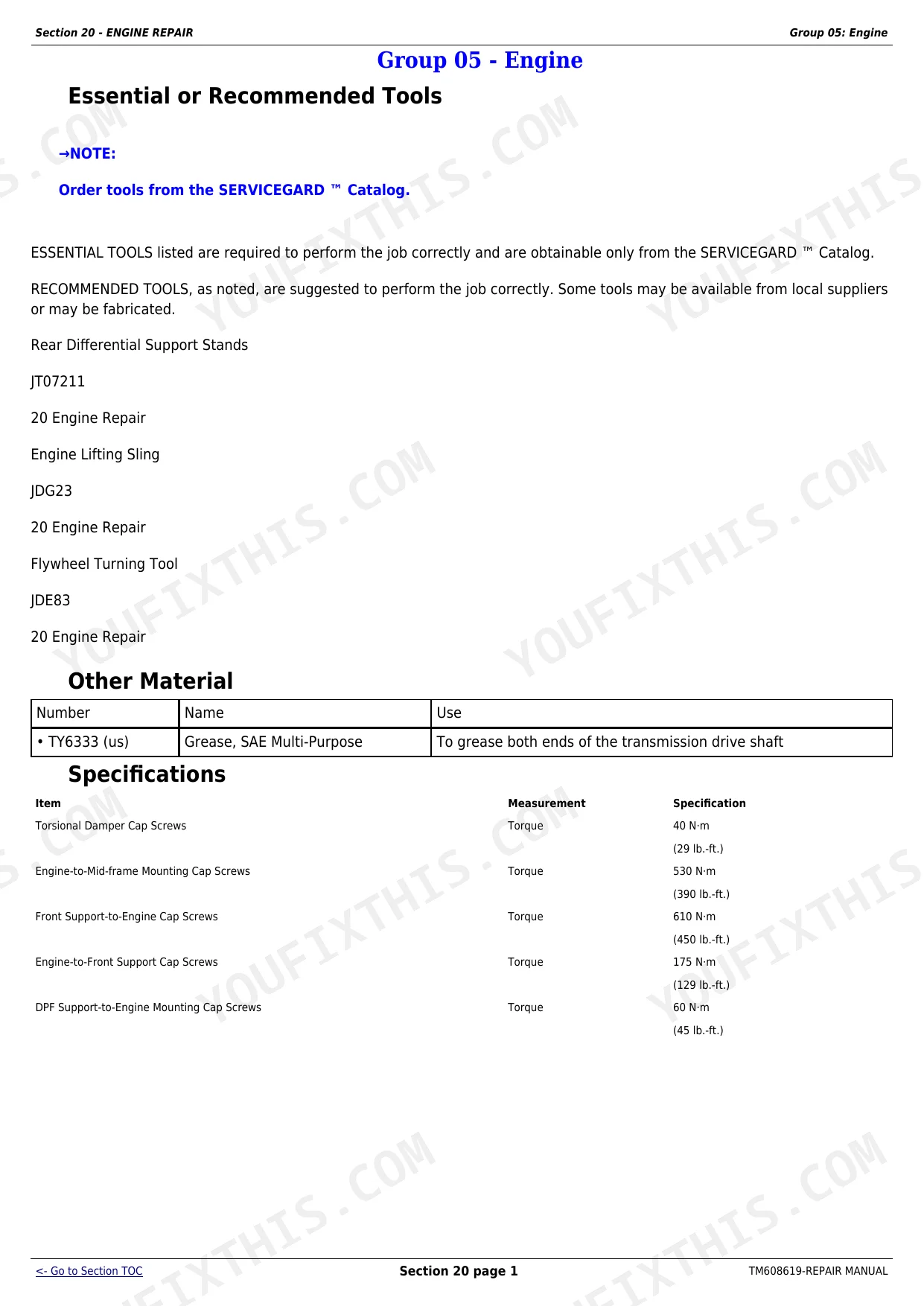

| Torsional Damper Cap Screws Torque | 40 N·m (29 lb-ft) | p. 93 |
| Radiator Pressure Test | 103 kPa (1.03 bar) (15 psi) | p. 108 |
| Cooling System Capacity–Engine (Cab) | 19.1 L (20.2 qt) | p. 108 |
| Alternator Mounting Cap Screws Torque | 55 N·m (40 lb-ft) | p. 169 |
| Starter Motor Mounting Cap Screws Torque | 50 N·m (37 lb-ft) | p. 171 |
John Deere 6105E, 6120E, 6135E Common Problems This Manual Covers
John Deere 6105E, 6120E, 6135E DEF system error code ACU-1020 and unexpected engine shutdown
Test the fluid to ensure a proper DEF concentration of 31.8–33.2% urea as specified on page 72. Drain the tank and flush the lines if the fluid is contaminated. Replace the DEF dosing unit filter to clear the fault and restore normal operation.
Manual Section: Fuel, Air Intake, and Exhaust Systems p. 72Error code ACU-1035 and severe loss of engine power under heavy load with no warning lights
Remove latch (A) and cover (B), and pull out primary air cleaner element (C) following page 142. Inspect the housing for heavy dust buildup. Pull out secondary air cleaner element (D) on page 143 and replace both filters to clear the restriction and restore airflow.
Manual Section: Fuel, Air Intake, and Exhaust Systems p. 142Contaminated fluid and old oil filters triggering hydraulic system overheating and sluggish implement response
Inspect the pump housing for leaks and tighten the hydraulic pump-to-top cover socket head screws to 125 N·m (92 lb·ft) using the sequence on page 404. Drain the contaminated fluid. Install a new oil filter and refill the reservoir to the correct level.
Manual Section: Hydraulics p. 404Incorrect linkage adjustment triggering transmission grinding during shifts and poor clutch engagement
Measure the clutch pedal linkage clearance. Adjust the interlock cable to achieve a clutch pedal free travel of 32 ± 5 mm (1-1/4 ± 3/16 in.) as shown on page 336. Tighten all locknuts securely and test the tractor for smooth gear engagement under load.
Manual Section: Drive Systems and Transmission p. 336Frequently Asked Questions
What are the torque specs for the flywheel on John Deere 6135E?
The manual specifies the torque for the Torsional Damper Cap Screws, which are installed on the engine and are part of the rotating assembly connected to the flywheel. These cap screws should be tightened to 40 N·m (29 lb.-ft.). For more detailed information, refer to the "Specifications" section on page 93. p. 93

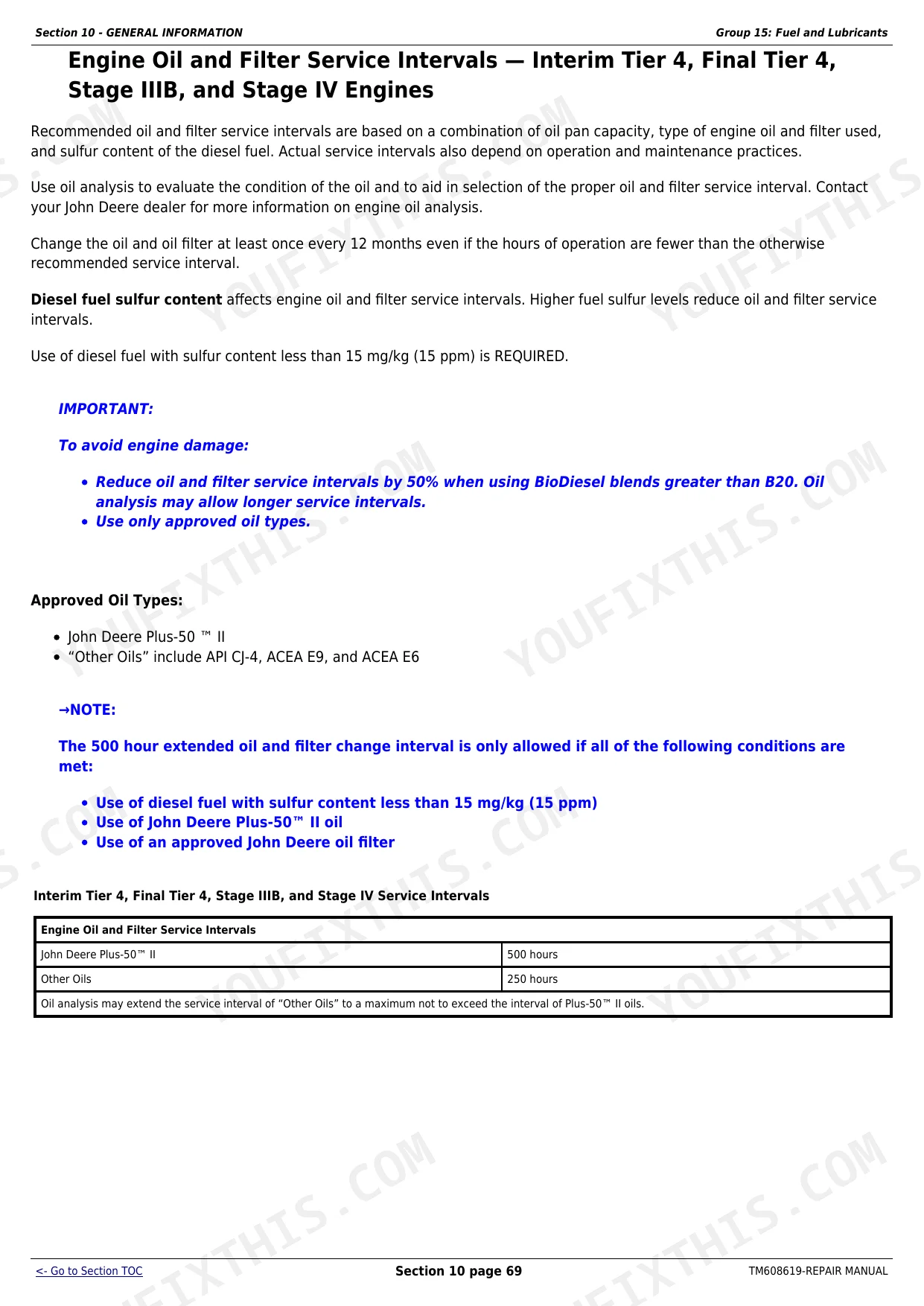

What are the recommended service intervals for engine oil and filters when using John Deere Plus-50 II oil?
When using John Deere Plus-50 II oil, the recommended service interval for engine oil and filter changes is 500 hours. For other oil types, the interval is 250 hours. Always change the oil and oil filter at least once every 12 months, even if the operational hours are fewer than the recommended interval. p. 76
What is the fuel tank capacity for the John Deere 6105E, 6120E, and 6135E tractors?

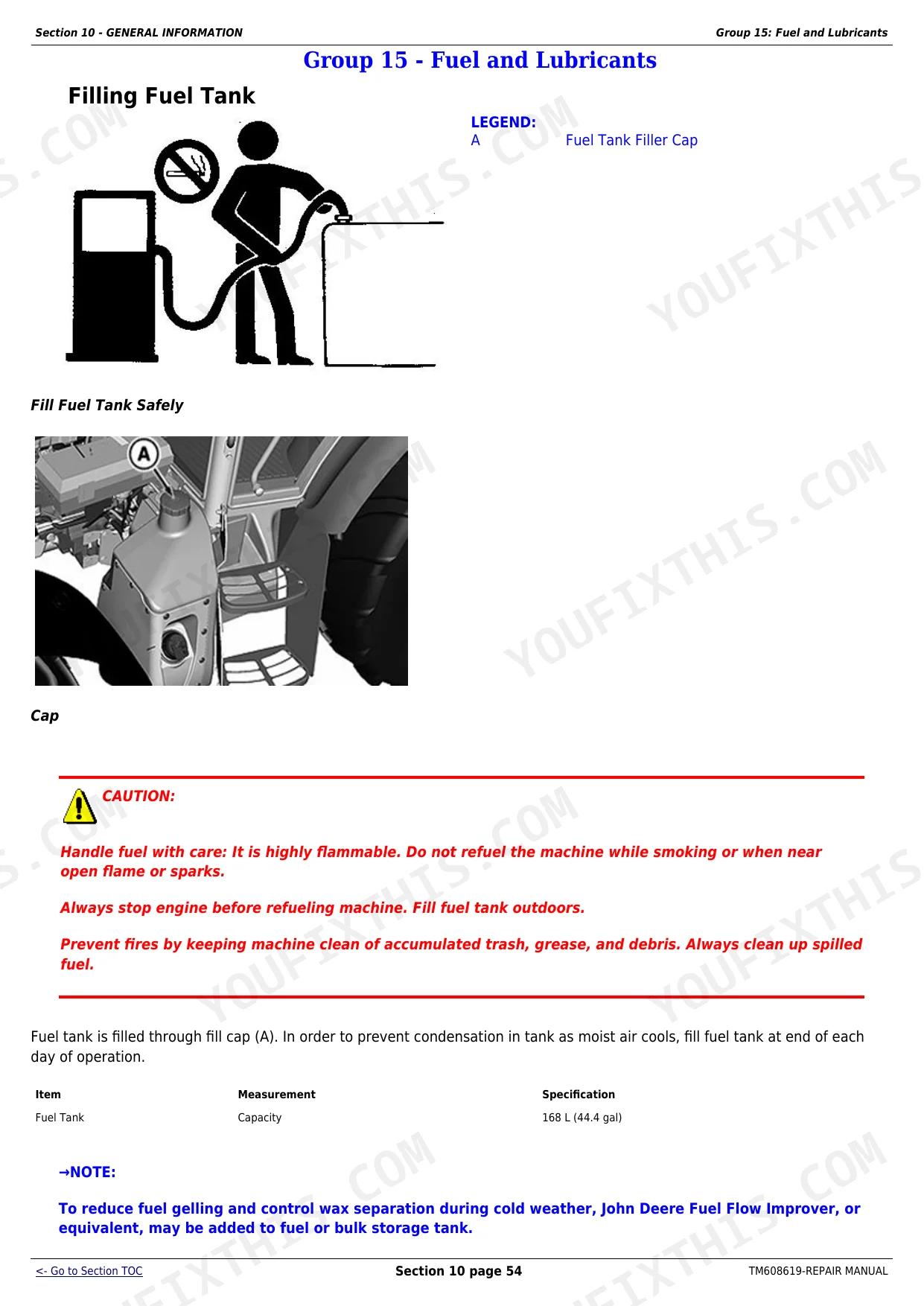

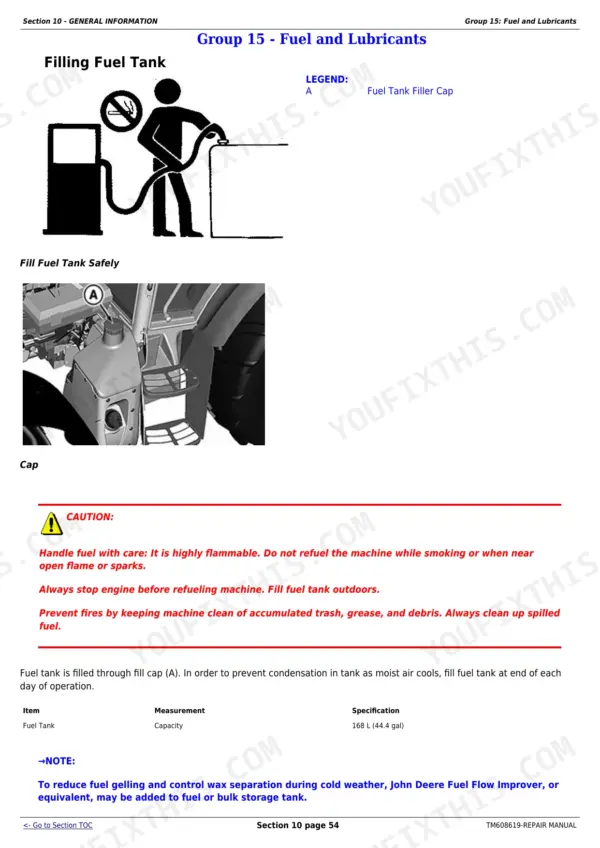

The fuel tank capacity for these tractors is 168 L (44.4 gal). It is recommended to fill the fuel tank at the end of each day of operation to prevent condensation. p. 61
What is the specified torque for the steering wheel nut?
The steering wheel nut should be tightened to a torque of 30 N·m (22 lb·ft). This specification is found in the "Specifications" section for steering repair. p. 344
What is the torque specification for the ROPS-to-Axle Mounting Cap Screws?
The ROPS-to-Axle Mounting Cap Screws should be tightened to a torque of 610 N·m (450 lb·ft). It is crucial to ensure all parts are installed correctly and tightened to the proper torque for safety. p. 568
What do I get after purchasing this John Deere 6105E, 6120E, 6135E manual?
Immediate download of the complete 699-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this John Deere 6105E, 6120E, 6135E manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
