Part of the John Deere Repair Manuals.
This is the complete John Deere factory operation, tests and diagnosis manual for the 6215, 6415, 6615 and 6715 tractors. Across 2,515 pages it covers every diagnostic and testing procedure a technician needs to work on this family: reading BCU and ECU trouble codes, running the symptom-based diagnostic trees, performing electrical component tests with exact voltage and resistance values, and executing tests and adjustments on the engine, all three available transmissions, hydraulic system and steering. Each major section includes a theory-of-operation overview alongside the step-by-step test procedures and functional schematics, so you can understand what the system should do before testing it. Wiring harnesses are documented in full, including a separate set for tractors from serial number 398656 onward.
What's Inside This John Deere 6215, 6415, 6615, 6715 Manual

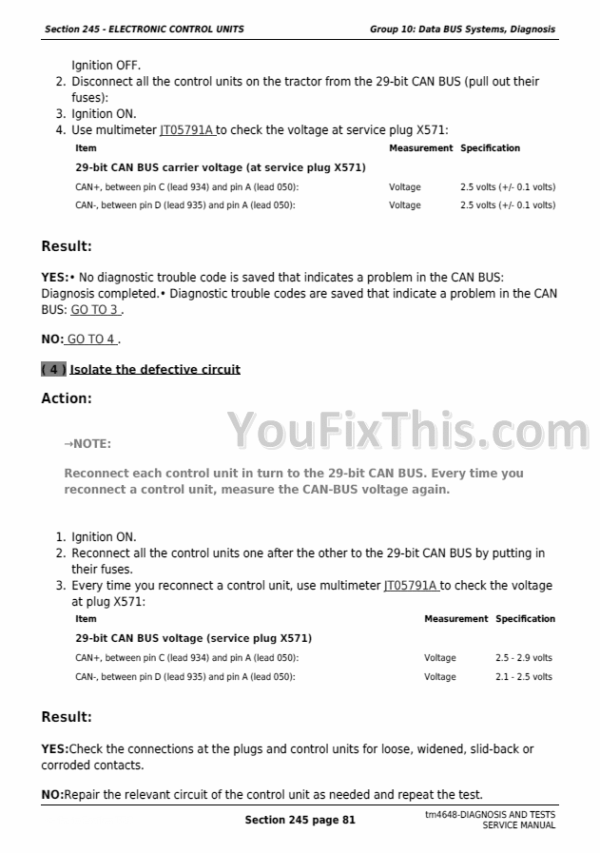

| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety Measures, General References | |
| Diagnostic Codes | Bcu Diagnostic Trouble Codes, ECU Diagnostic Trouble Codes | |
| Observable Symptoms | - | |
| System Diagnostics | Electronics Diagnostics | |
| Engine | Functional Tests, Tests and Adjustments | |
| Fuel, Air Intake and Cooling Systems | Tests and Adjustments, Theory of Operation | |
| Electrical System | Sub-System Diagnostics (Cab), Sub-System Diagnostics (Open Operator Station), Component Testing, Functional Schematics (Cab), Functional Schematics (Open Operator Station), Wiring Harnesses, Wiring Harnesses From Serial Number 398656 | |
| Electronic Control Units | Operation and General Information, Data Bus Systems Diagnosis, Bcu - Basic Control Unit, ECU - Engine Control Unit | |
| SyncroPlus Transmission | Preliminary Checks, Functional Tests, Tests and Adjustments, Theory of Operation | |
| PowrReverser Transmission | Functional Tests, Forward-Reverse Clutch Tests, Tests and Settings, Theory of Operation | |
| PowrQuad and Range Transmission | Functional Tests, Clutch-to-Clutch Shift Tests, Modulated Clutch Pressure Tests, Tests and Settings, Theory of Operation | |
| Power Train (Without Transmission) | Functional Tests, Tests and Adjustments, Theory of Operation | |
| Steering and Brakes | Introductory Checks, Operational Check-Out, Tests and Adjustments, Theory of Operation | |
| HydrAdvantage Hydraulic System | Operational Check-Out, Tests and Adjustments, Theory of Operation | |
| Operator Cab | Operator Station Check-Out, Climate Control Tests, HVAC Adjustments, Cab Pressurization Tests | |
| Special Tools | Dealer-Fabricated Special Tools, Special Tools and Test Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| BCU Operating Voltage (ignition ON, engine OFF) | 11.2 to 12.7 volts | |
| BCU Operating Voltage (engine at 1500 rpm) | 12.5 to 15.4 volts | |
| Rear PTO Solenoid (Y04) Resistance at Coil | 10-12 ohms at 20 degrees C (68 degrees F) | |
| Rear PTO Solenoid (Y04) Voltage - PTO Disengaged | 0 volts | |
| Rear PTO Solenoid (Y04) Voltage - PTO Engaged | 12 volts | |
| Rear PTO Solenoid (Y04) Current Draw - PTO Engaged | 1.0 to 1.2 amps at 20 degrees C (68 degrees F) | |
| Differential Lock Solenoid (Y05) Resistance at Coil | 10-12 ohms at 20 degrees C (68 degrees F) | |
| Differential Lock Solenoid (Y05) Current Draw - Engaged | 1.0 to 1.2 amps at 20 degrees C (68 degrees F) |
John Deere 6215, 6415, 6615, 6715 Common Problems This Manual Covers
BCU or ECU trouble code stored and warning light on with no obvious cause
Start in the Diagnostic Codes section to read the stored BCU and ECU codes, then cross-reference with the Observable Symptoms section to identify the affected system. Run the system-specific functional tests (engine, transmission, hydraulics, or electrical) in the order the manual prescribes before replacing any component - many codes are triggered by a sensor voltage out of range, not a failed actuator, and the test procedures tell you which to check first.
Manual Section: Diagnostic CodesCoolant leak inside the cab from the heater system
The Operator Cab section covers the HVAC and heater system operational check-out. Inspect the heater hose connections at the firewall and core for degraded or loose fittings, which are the most common source on 6x15 series tractors. The cab sub-system diagnostics help confirm whether the leak is at a hose joint or from the heater core itself before removing cab panels.
Manual Section: Electrical SystemHydraulic system unable to sustain continuous flow for high-demand implements such as vacuum motors
These tractors do not support continuous high-flow hydraulic output from the standard circuit without a PTO-driven auxiliary pump. The HydrAdvantage Hydraulic System section's operational check-out will confirm system flow and pressure are within spec; if both are normal, the shortfall is a capacity limitation that requires a PTO pump installation rather than a hydraulic repair.
Manual Section: HydrAdvantage Hydraulic SystemPTO or differential lock solenoid not engaging or engaging intermittently
Test the rear PTO solenoid (Y04) and differential lock solenoid (Y05) using the values in the Electronic Control Units section: coil resistance should read 10 to 12 ohms at room temperature and current draw should be 1.0 to 1.2 amps when energized at 12 volts. A reading outside those ranges points to a failed coil; a reading in range with no engagement points to the BCU output circuit or the wiring harness.
Manual Section: Electronic Control UnitsFrequently Asked Questions
How do I read and reset diagnostic trouble codes on the John Deere 6215, 6415, 6615 or 6715?
The Diagnostic Codes section covers both BCU and ECU trouble codes. You access stored codes through the BCU self-diagnostic mode, which the manual walks through step by step. After identifying and fixing the underlying fault, the same section explains how to clear the stored codes so the warning indicator goes out.

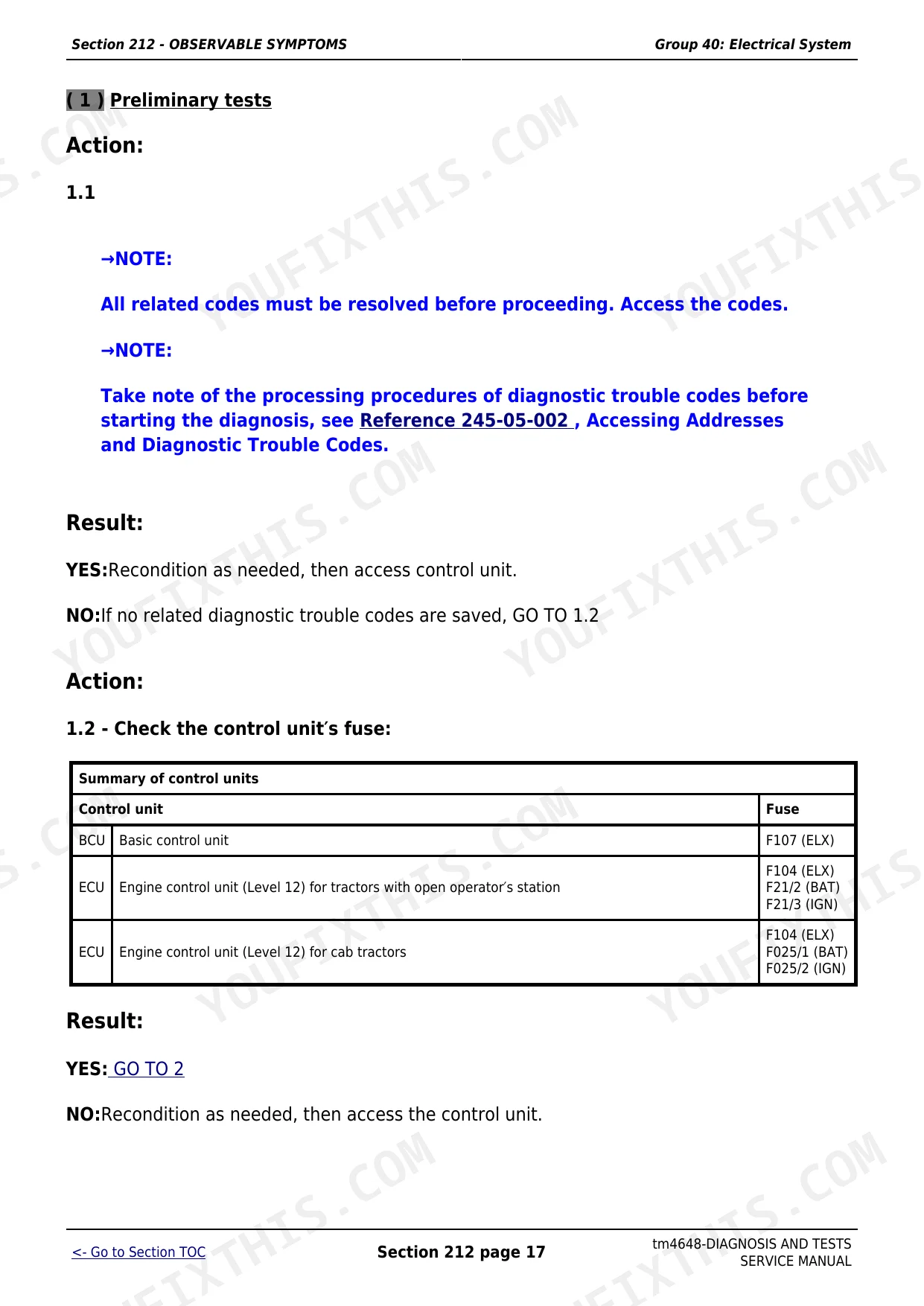

What does the BCU or ECU code mean and which system do I test first?
The Observable Symptoms and System Diagnostics sections cross-reference every BCU and ECU code to a specific system and give you a prioritized test sequence - engine, electrical, transmission, steering or hydraulics - so you start at the most likely cause rather than testing blind. Each section lists the test equipment, measurement values and pass or fail thresholds.
How do I diagnose a SyncroPlus, PowrReverser or PowrQuad transmission fault on these tractors?
Each transmission has its own dedicated section with preliminary checks, functional tests and a theory-of-operation overview. You start with the preliminary check-out to confirm fluid level and linkage, then run the functional tests using the specified pressures and speeds before moving on to the electronic controls diagnostics covered in the ECU section.
Why does the hydraulic system on the 6415 or 6615 lose pressure under load?
The HydrAdvantage Hydraulic System section provides an operational check-out procedure and pressure tests with exact specifications to isolate whether the fault is in the hydraulic pump, relief valve, or control valve. Common symptoms like inability to support continuous high-flow implements are covered in the Observable Symptoms section so you can trace the root cause before pulling components.
Are wiring diagrams and connector locations included for the cab electrical system?

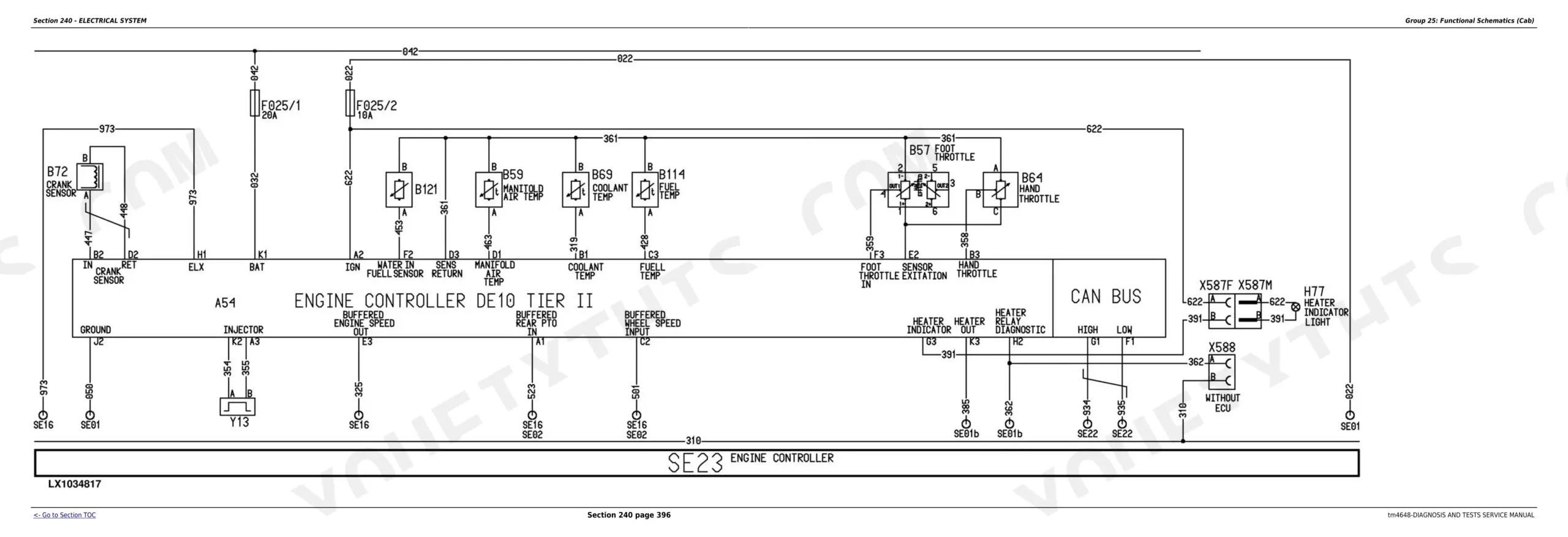

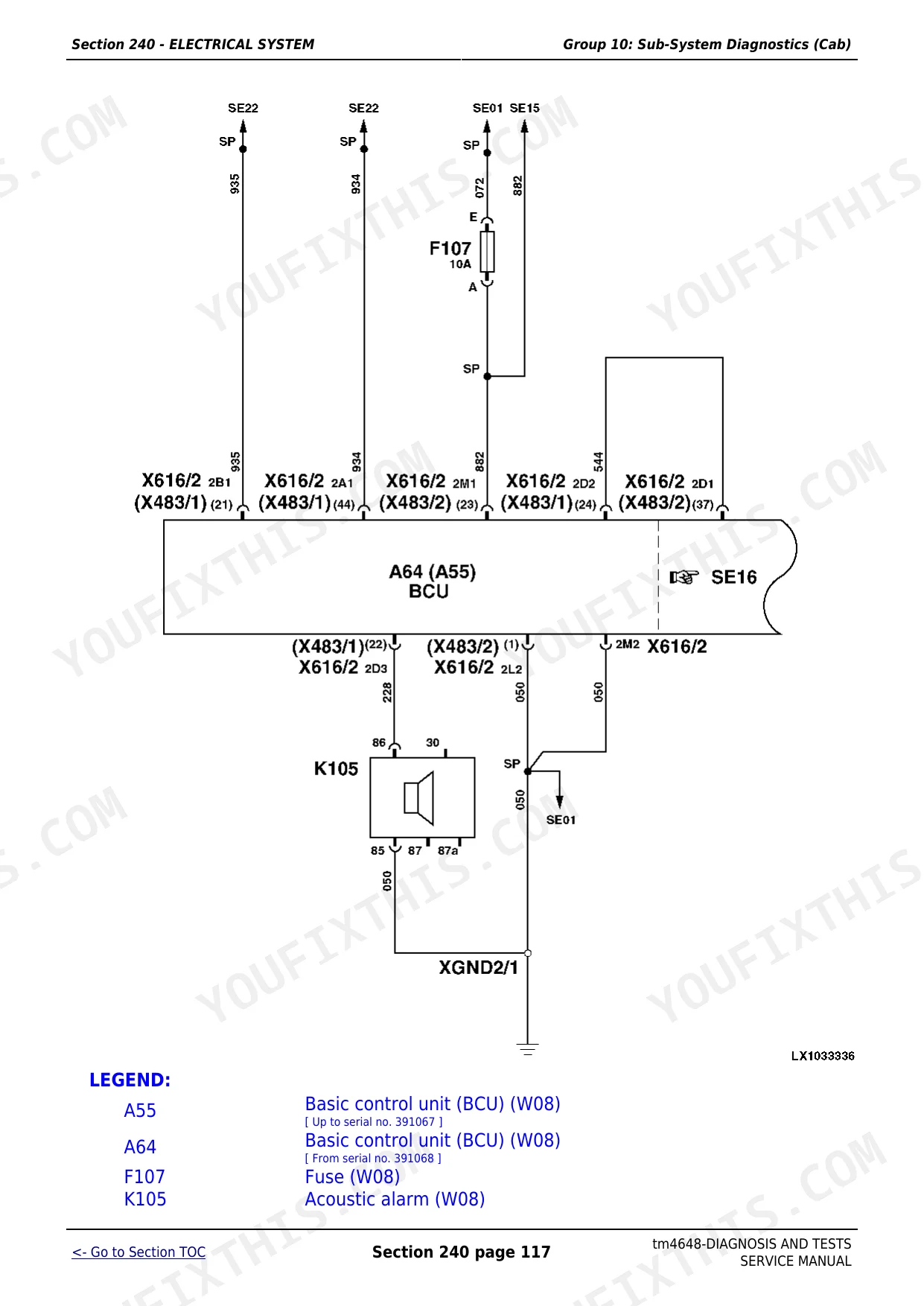

Yes. The Electrical System section includes full functional schematics for both the cab and open-operator-station configurations, component testing procedures with voltage and resistance values, and complete wiring harness documentation. A separate wiring harness section covers tractors built from serial number 398656 onward, which had revised harness routing.
Is this John Deere 6215, 6415, 6615, 6715 Operation and Test a digital download?
This is a 2515-page searchable PDF (44 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this John Deere 6215, 6415, 6615, 6715 Operation and Test printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
