All 492 pages of this John Deere 3235B technical manual PDF (OEM TM1534 FEB03) cover the full lightweight fairway mower family: 3215, 3215A, 3215B, 3225B, 3235, 3235A, and 3235B. You get complete electrical schematics with harness routing, hydrostatic power train and hydraulic circuit schematics, plus diesel engine diagnostics that run from theory of operation through full teardown and repair. Steering, brakes, and cutting-unit attachments each carry their own diagnostics, tests, and adjustment sections. Set the down pressure valve to its factory 1724 kPa (250 psi), and hold reel-to-bedknife clearance at 0.025 mm on the 22-inch standard reels. A chewed-up fairway doesn't wait for forum answers. Bookmarked with a real text layer: type the spec you need, jump straight to the page, and get your reels spinning again.
What's Inside This John Deere 3215, 3215A, 3215B, 3225B, 3235, 3235A, 3235B Manual

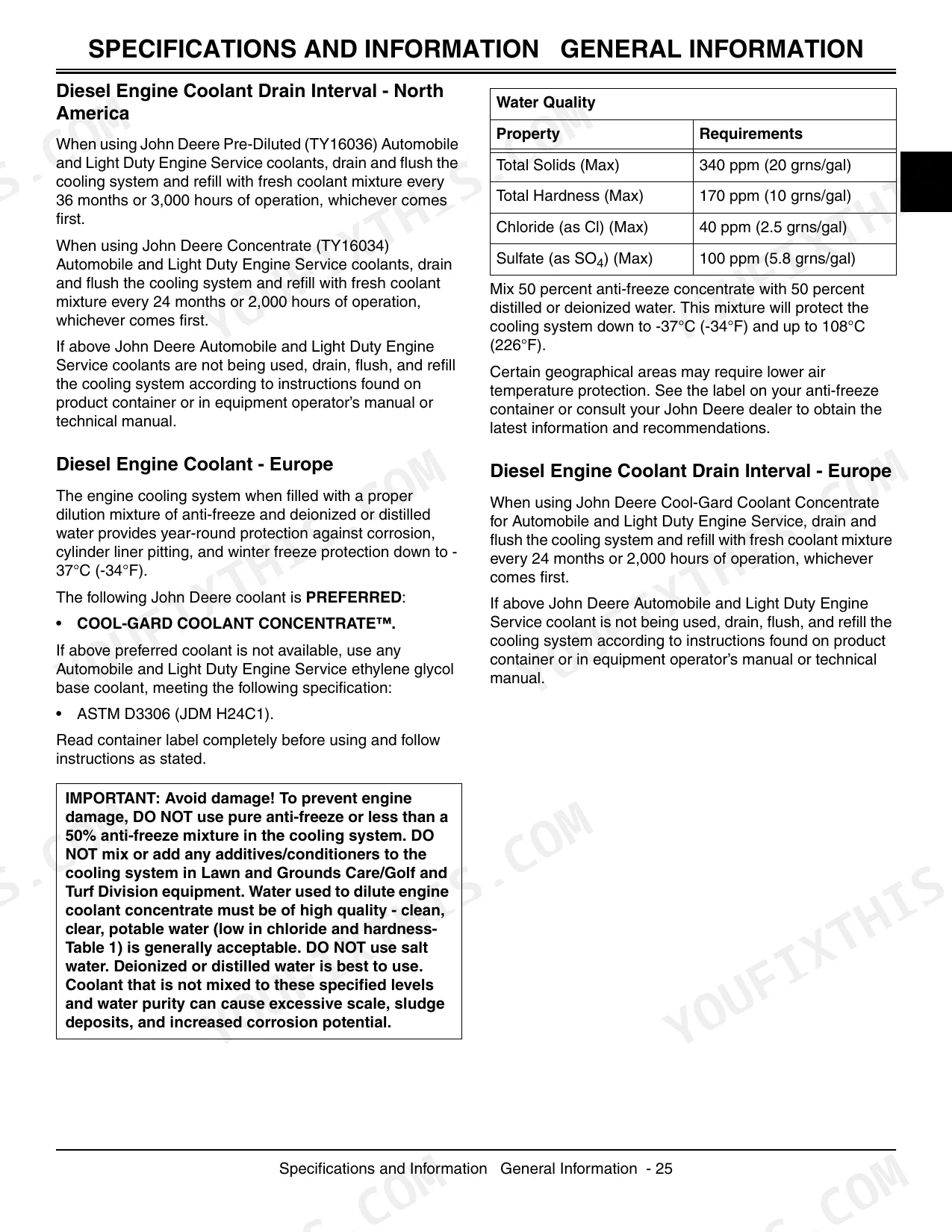

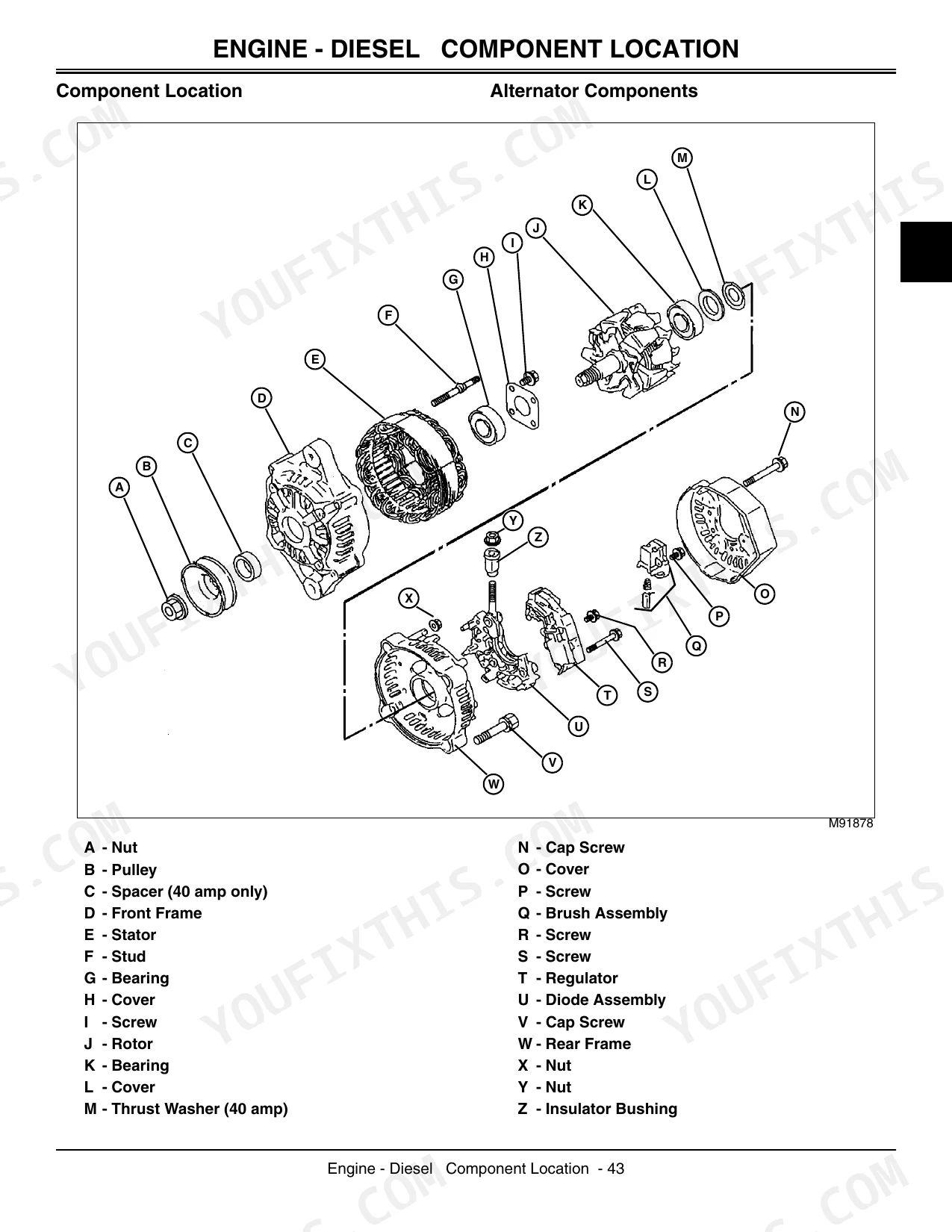

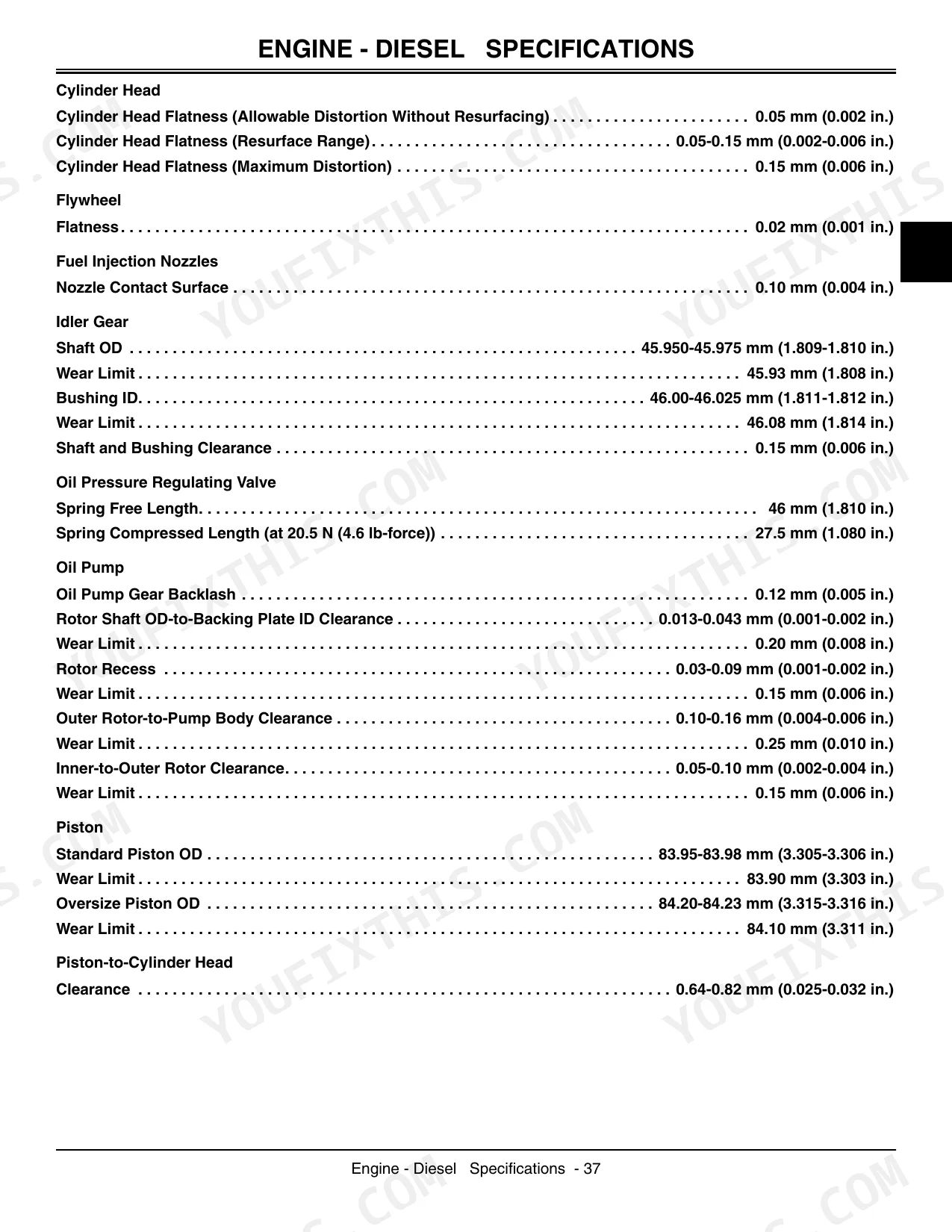

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Manual Description |
| Safety | 5-10 | Recognize Safety Information, Replace Safety Signs, Handle Fluids Safely - Avoid Fires, Use Care in Handling and Servicing Batteries, Use Care Around High-Pressure Fluid Lines |
| Specifications and Information | 11-30 | Identification and Serial Numbers, Machine Specifications, Fuel and Lubricants, Fastener Torque Values |
| Engine - Diesel | 31-130 | Yanmar 3TNE78A / 3TNE82A Diesel Engines: Specifications, Theory of Operation, Diagnostics, Fuel and Injection System, Cooling, Tests and Adjustments (Idle 950 RPM), Engine Repair |

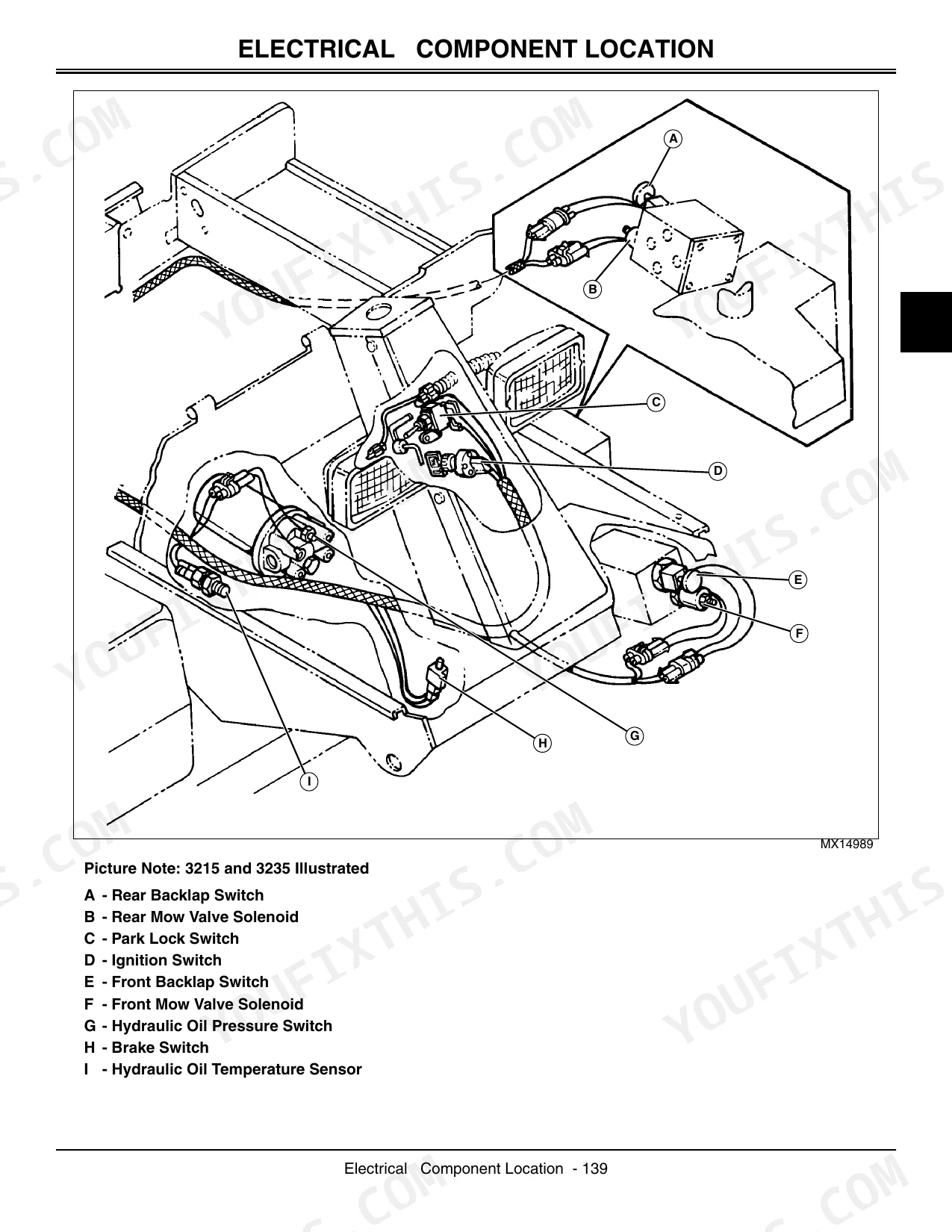

| Electrical | 131-226 | Wiring Schematics and Harnesses, Component Location, Battery and Charging Circuit, Starting and Safety Interlock Circuits, Circuit Tests, Repair |

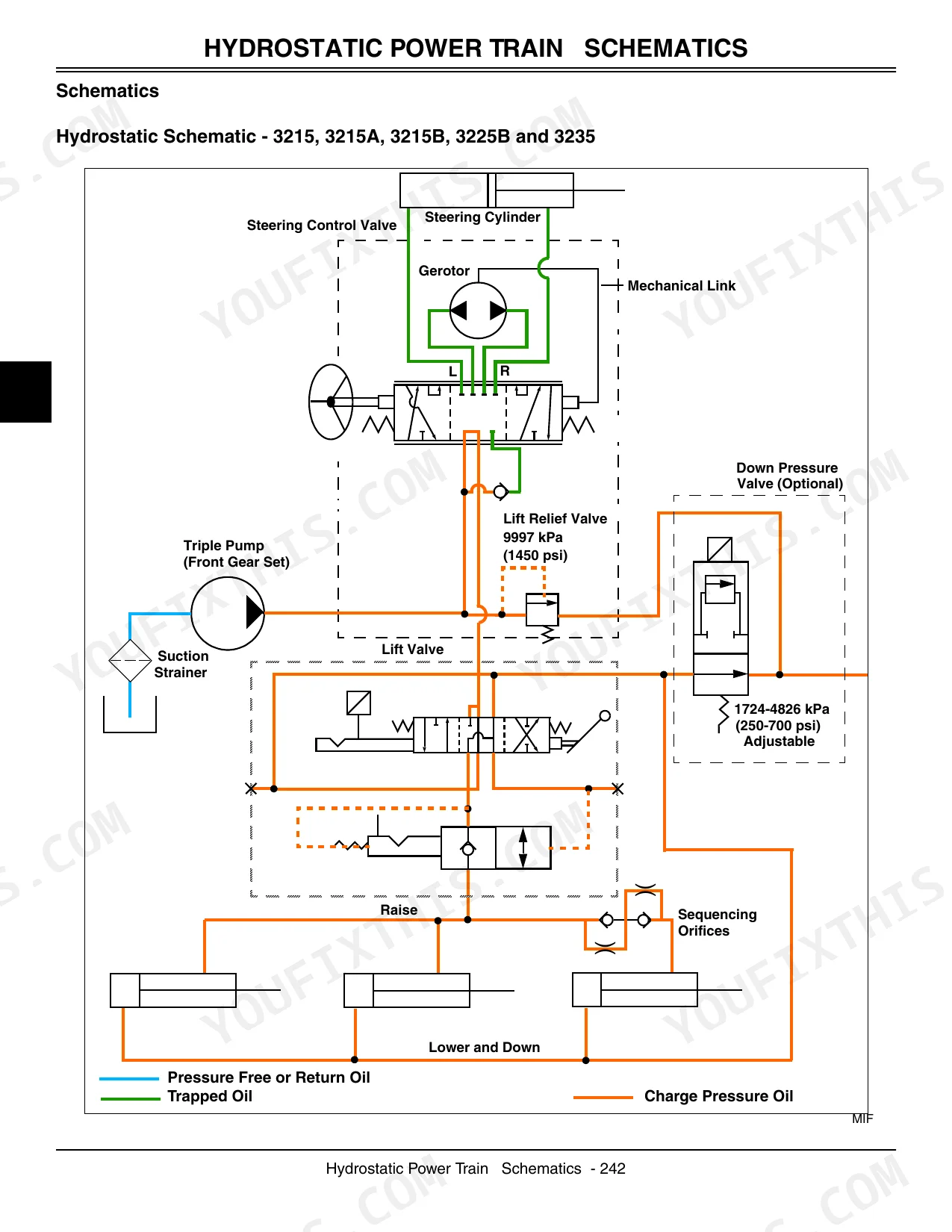

| Hydrostatic Power Train | 227-310 | Hydrostatic Schematics, Traction Pump and Wheel Motors, Theory of Operation, Charge and Relief Pressure Tests, Neutral Adjustment, Transaxle Repair |
| Hydraulics | 311-364 | Hydraulic Schematics, Mow Circuit (Relief Limit 20 684 kPa / 3000 PSI), Reel Motors and Backlapping, Down-Pressure Valve (Factory 1724 kPa / 250 PSI), Lift Circuit, Pressure Tests and Repair |
| Steering | 365-382 | Steering Control Unit Specifications, Theory of Operation, Steering Cylinder and Hoses, Diagnostics, Tests and Adjustments, Repair |
| Brakes | 383-390 | Brake Theory of Operation, Diagnostics, Brake Specifications, Pedal and Linkage Adjustment, Repair |
| Attachments | 391-482 | Cutting Units (22-In. Standard, 22-In. Heavy Duty and 2500M): Reel-to-Bed-Knife Clearance, Height-of-Cut Adjustment, Rollers and Scrapers, Backlapping, Diagnostics and Repair |
Every system also includes table of contents.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery temperature for charging | 16°C (60°F) | p. 6 |
| Battery Voltage | 12 | p. 39 |
| Mow Valve Pressure Limit | 20 684 kPa (3,000 psi) | p. 260 |
| Down Pressure Valve Factory Setting | 1724 kPa (250 psi) | p. 322 |
| Reel-to-Bed Knife Clearance - 22-In. Standard | 0.025 mm (0.001 in.) | p. 402 |
| Engine RPM at Idle | 950 ± 50 | p. 33 |
| Engine RPM at Fast Idle (No-Load) | 3150 ± 25 | p. 33 |
| Engine Oil Pressure | 345 ± 48 kPa (50 ± 7.0 psi) | p. 38 |
| Brake Rotor Minimum Thickness | 3.6 mm (0.140 in.) | p. 385 |
| Brake Rotor Nut Torque | 90 N•m (140 lb-ft) | p. 385 |
John Deere 3215, 3215A, 3215B, 3225B, 3235, 3235A, 3235B Common Problems This Manual Covers
John Deere 3215 fairway mower diesel engine won't crank or turns over slowly when key is turned
Check battery voltage and terminals before anything else; a healthy system holds 12 volts across the BCI Group 45 battery listed on page 40. Clean corrosion from the posts, load test, and charge only when electrolyte is above 16°C (60°F). If the battery passes, run the diesel no-start troubleshooting steps starting.
Manual Section: Engine - DieselEngine cranks during safety interlock test with operator off the seat and mow switch engaged
Test the seat, mow, and traction interlock switches for continuity in both positions before condemning the harness. Verify 12 volts reaches the seat switch relay, then trace the cranking circuit against the wiring diagram. Replace any switch that fails; never bypass the interlock to get through a shift.
Manual Section: Electrical System DiagnosticsHydrostatic drive feels sluggish and mower will not reach full transport speed
Verify engine speed first; a governor set below the 3150 ± 25 RPM fast idle spec on page 33 mimics a weak hydrostatic pump. Confirm the tow valve is fully closed and check reservoir oil level, then work the hydrostatic troubleshooting chart on page 260 for sluggish response and low top speed.
Manual Section: Hydrostatic Power Train Troubleshooting p. 260Streaking and poor quality of cut, one reel turns slowly under load
Adjust reel-to-bedknife clearance before chasing hydraulics; set 22-inch standard units to 0.025 mm (0.001 in.) per the spec on page 402, then confirm each blade slices paper cleanly across the full width. Inspect the bedknife for nicks and grind if lipped. If one reel still drags, swap its drive motor with a known-good unit to isolate the fault.
Manual Section: Attachments p. 402Park brake will not hold the machine on trailer ramps or slopes
Measure rotor thickness at several points and replace any rotor worn below 3.6 mm (0.140 in.) as specified on page 385. Torque the brake rotor nut to 90 N•m (140 lb-ft) on reassembly, adjust the linkage, then retest holding power on a grade. Full brake troubleshooting starts on page 383.
Manual Section: Brake System Troubleshooting p. 383Frequently Asked Questions

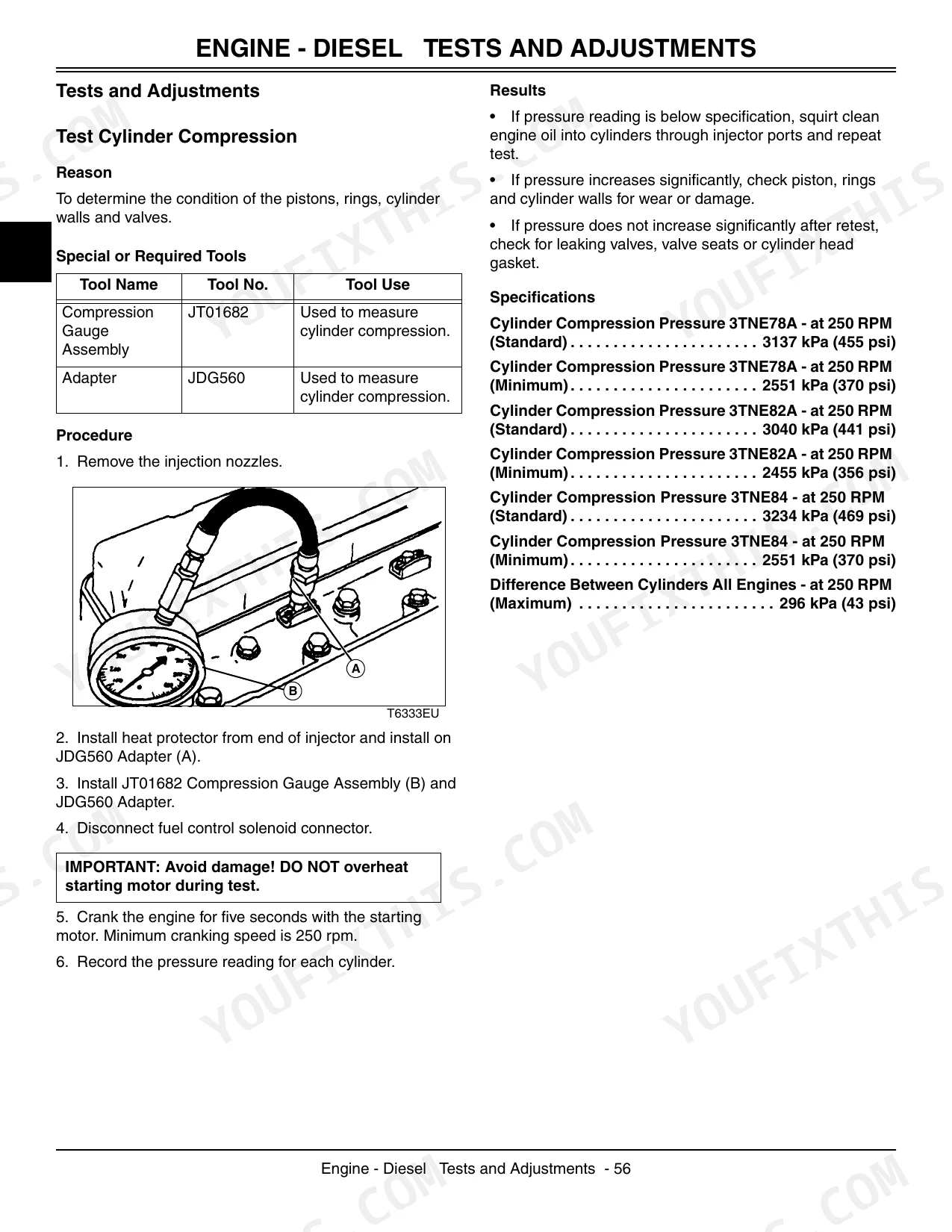

What is the standard cylinder compression pressure for the 3TNE78A engine?
The standard cylinder compression pressure for the 3TNE78A engine, measured at 250 RPM, is 3137 kPa (455 psi). The minimum acceptable pressure is 2551 kPa (370 psi). p. 34
What is the specified valve adjustment clearance for the engine?
The specified valve adjustment clearance for the engine is between 0.15-0.25 mm (0.006-0.010 in.). This clearance is crucial for proper engine operation. p. 38
What is the CCA Rating for the battery at -18°C (0°F)?
The battery's CCA Rating at -18°C (0°F) is 480 amps. The battery voltage is 12 volts and the BCI Group is 45. p. 129
What is the main relief valve setting for the 3215, 3215A, 3215B, 3225B, and 3235 hydrostatic transmissions?
For the 3215, 3215A, 3215B, 3225B, and 3235 hydrostatic transmissions, the main relief valve setting is 31026 kPa (4500 psi). This specification is important for proper system operation. p. 225
What is the specified relief valve pressure for the steering and lift hydraulic system?
The steering and lift system relief valve pressure is 13 100 ± 1380 kPa (1900 ± 200 psi). This pressure is maintained by the triple pump (front gear set) for proper steering and lift system function. p. 331
What do I get after purchasing this John Deere 3215 & variants manual?
Immediate download of the complete 492-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
