By this evening you could have the rockshaft apart on your tractor with the John Deere 4030 technical manual PDF open beside it: 580 pages of factory Technical Manual TM1055, covering gasoline and diesel models alike. Wiring diagrams trace the Delcotron charging circuit, both starting circuits, ignition, and every lighting lead, while hydraulic schematics map power steering, power brakes, and the selective control valve. The hydraulic section alone runs more than a fifth of the book, from pump tests through breakaway couplers, and the power train chapters rebuild the Perma-Clutch, Syncro-Range, and Quad-Range. Check main pump standby at 2200 to 2300 psi and set diesel intake valve clearance at 0.014 inch, straight from the printed tables. One guessed clutch spec means splitting the tractor twice. Bookmarks and a searchable text layer drop you on the right page before the coffee cools.
What's Inside This John Deere 4030 Manual
| System | Pages | Key Topics |
|---|---|---|

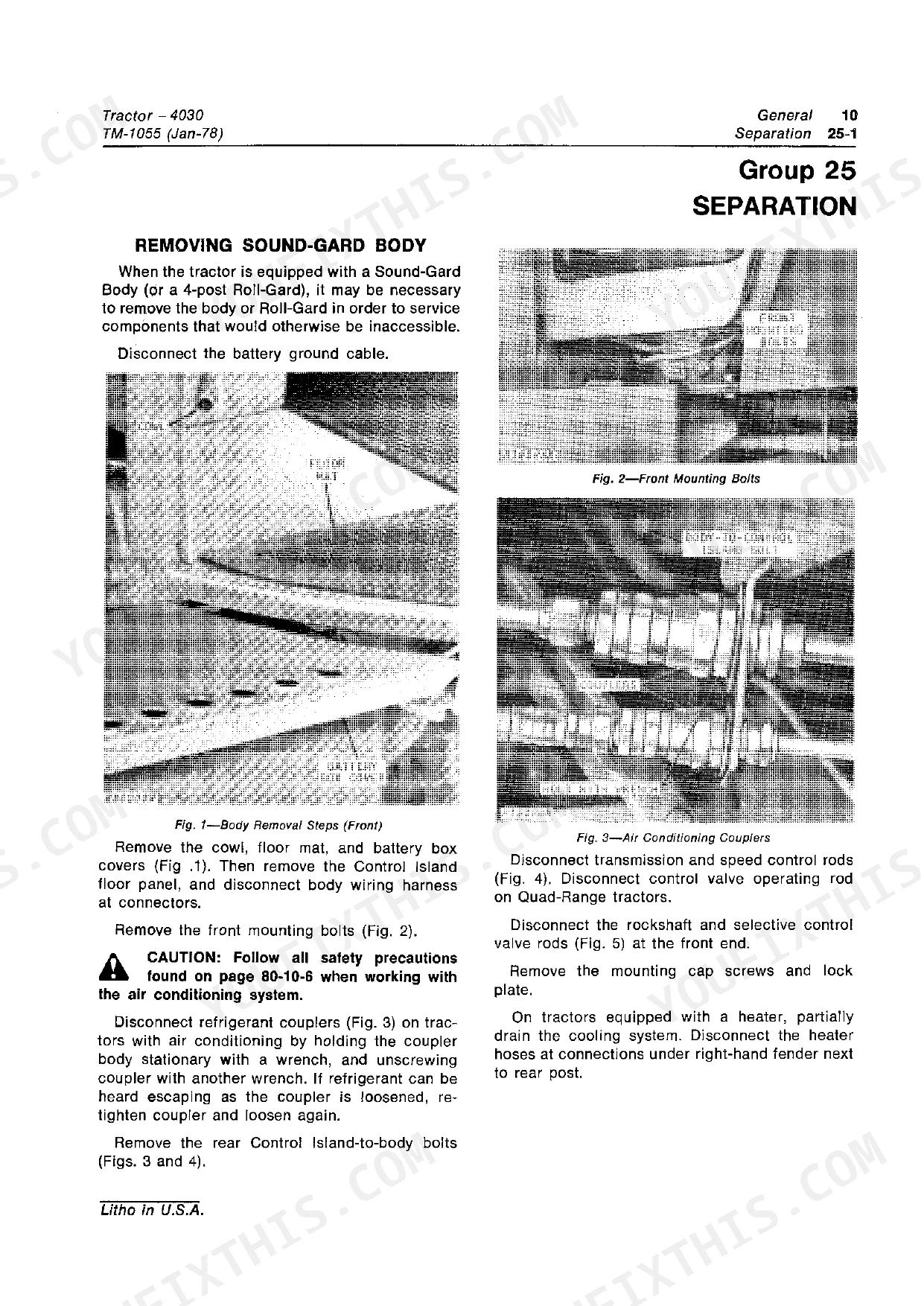

| General | 3-34 | General Tractor Specifications, Predelivery Services, Tune-Up, Lubrication, Separation |
| Basic Engine | 35-72 | Engine Diagnosis, Cylinder Head and Valves, Cylinder Block and Pistons, Crankshaft, Lubrication System, Cooling System, Gasoline Engine Governor |
| Fuel Systems | 73-106 | Diagnosing Malfunctions, Air Intake System, Diesel Fuel System, Gasoline Fuel System, Speed Control Linkage, Specifications and Special Tools |
| Electrical System | 107-276 | Information and Wiring Diagrams, Delcotron Charging Circuit, Delco-Remy Starting Circuit, John Deere Starting Circuit, Ignition System, Lighting and Accessory Circuits |
| Power Train | 277-360 | Perma-Clutch, Creeper Transmission, Syncro-Range Transmission, Quad-Range Transmission, Differential, Final Drive, PTO |
| Steering and Brakes | 361-362 | General Information |
| Hydraulic System | 363-492 | Hydraulic System Tests and Diagnosis, Reservoir and Filter, Hydraulic Pumps, Early Model Power Steering, Late Model Power Steering, Power Brakes, Rockshaft and Implement Hitches |
| Miscellaneous | 493-580 | Front Axles, Air Conditioning System, Heating System, Specifications and Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standby pressure | 2250 psi (155 Bar) | p. 7 |
| Main hydraulic pump standby pressure | 2200-2300 psi | p. 19 |
| Transmission clutch shaft O.D. at pilot bushing | 0.9995 to 1.0005 in. | p. 54 |
| Cylinder Head Cap Screw Torque | 110 ft-lbs | p. 16 |
| Valve Clearance (Diesel Intake) | 0.014 in. | p. 16 |
| Valve Clearance (Diesel Exhaust) | 0.018 in. | p. 16 |
| Hydraulic Standby Pressure | 2250 psi | p. 7 |
| Front Hub Bolt Torque | 100 ft-lbs | p. 10 |
| Rear Wheel Rim Clamp Nut Torque | 170 ft-lbs | p. 10 |
| Engine Slow Idle Speed | 800 rpm | p. 5 |
| Alternator Output (Sound-Gard Body) | 55 amp | p. 6 |
| Brake Pedal Travel (Max) | 3 in. | p. 18 |
John Deere 4030 Common Problems This Manual Covers
John Deere 4030 loses all hydraulics, remotes dead and 3-point won't lift, steering still works
Check standby pressure at the gauge port; the main pump should hold 2200 to 2300 psi, spec on page 19. If pressure is low, drain the reservoir, cut the filter open, and look for metal. Test the stroke control valve before pulling the pump; a stuck valve kills the rockshaft while steering keeps working.
Manual Section: Hydraulic System p. 363Reverse gear breaks repeatedly or A-range gear chips, transmission grinds and jumps out of gear
Drain the transmission and cut the filter open; steel flakes confirm gear damage before you split the tractor. Inspect the reverse pinion and the A-range gear for chipped teeth, and measure the clutch shaft at the pilot bushing; page 54 gives 0.9995 to 1.0005 in. Replace damaged gears in pairs so the wear pattern matches.
Manual Section: Syncro-Range Transmission Malfunctions p. 54PTO shaft starts turning the moment the engine fires, lever already in the off position
Inspect the PTO control valve for a stuck spool or broken return spring before condemning the clutch; keep everyone clear of the shaft until you find it. Remove the clutch pack and look for warped or heat-welded discs; replace the set if any are blued. Verify standby pressure reaches 2250 psi (155 Bar) afterward, spec on page 7.
Manual Section: Power Train p. 277Engine cranks but won't start in cold weather, runs uneven and down on power

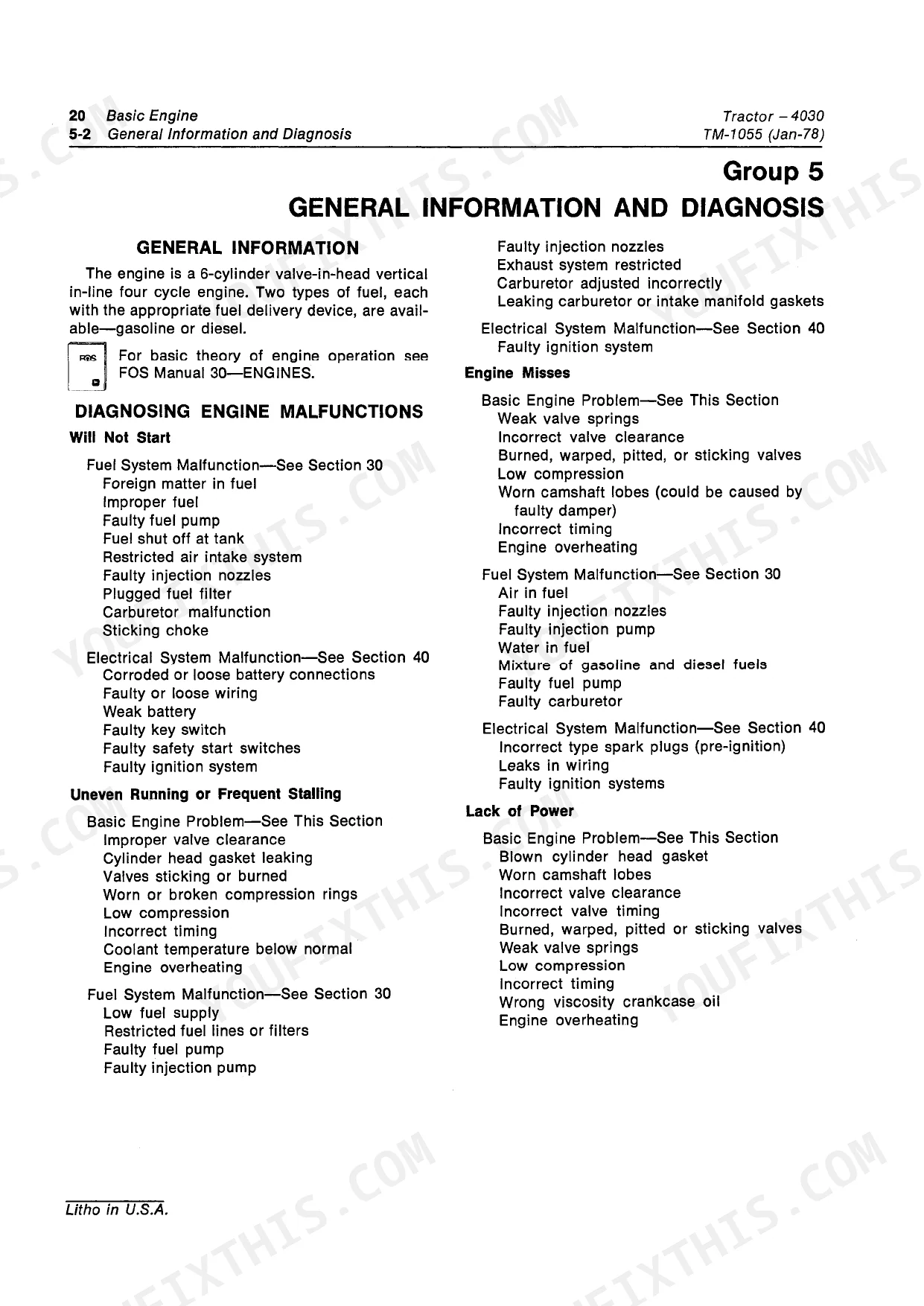

Check fuel first; bleed the injection lines and verify fuel reaches the transfer pump, then work through the engine troubleshooting procedures starting on page 36. Set valve clearance to 0.014 in. intake and 0.018 in. exhaust, specs on page 16, and confirm slow idle at 800 rpm. Sort the cold start aid now, not the morning you need to plant.
Manual Section: Engine Malfunctions p. 36Brake pedal settles slowly to the floor, one brake won't hold on hillside turns
Check pedal travel; anything past the 3 in. maximum listed on page 18 means air in the circuit or internal leakage. Bleed both brakes with the engine running, then hold steady foot pressure: a pedal that keeps settling means the brake piston seals are leaking. Replace the O-rings and packings rather than trying to adjust it away.
Manual Section: Power Brake MalfunctionsFrequently Asked Questions
What are the torque specifications for the cylinder head bolts on a John Deere 4030 tractor?
The cylinder head cap screws should be tightened evenly to 110 ft-lbs in the specified sequence. After the engine assembly is completed, the engine should be run at 1900 to 2100 rpm for one-half hour, and then the head cap screws should be retightened to 170 ft-lbs in the same sequence. p. 42
How do you check the hydraulic system pressure on a John Deere 4030 tractor?
To check system pressure, install a 0-3000 psi pressure gauge at the clutch test plug on the left side of the clutch housing. With the engine running at 1900 rpm and the high-low control valve operating arm in both forward and rear positions, the correct oil pressure is 105 to 115 psi. p. 326
What is the correct valve clearance for a John Deere 4030 diesel engine?
For a diesel engine, the intake valve clearance is 0.014 inch and the exhaust valve clearance is 0.018 inch. p. 39
What is the recommended engine oil pressure for a John Deere 4030?
The engine oil pressure should be between 25 and 40 psi when the engine is running at 1900 rpm. p. 17
What is the correct fan belt tension for a John Deere 4030?
A 20-pound force applied to the fan belt midway between the fan and alternator pulleys should result in a 1-inch deflection. p. 61
What format is this John Deere 4030 manual in?
Immediate download of the complete 580-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print just the pages I need from this John Deere 4030 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
