Part of the John Deere Repair Manuals.

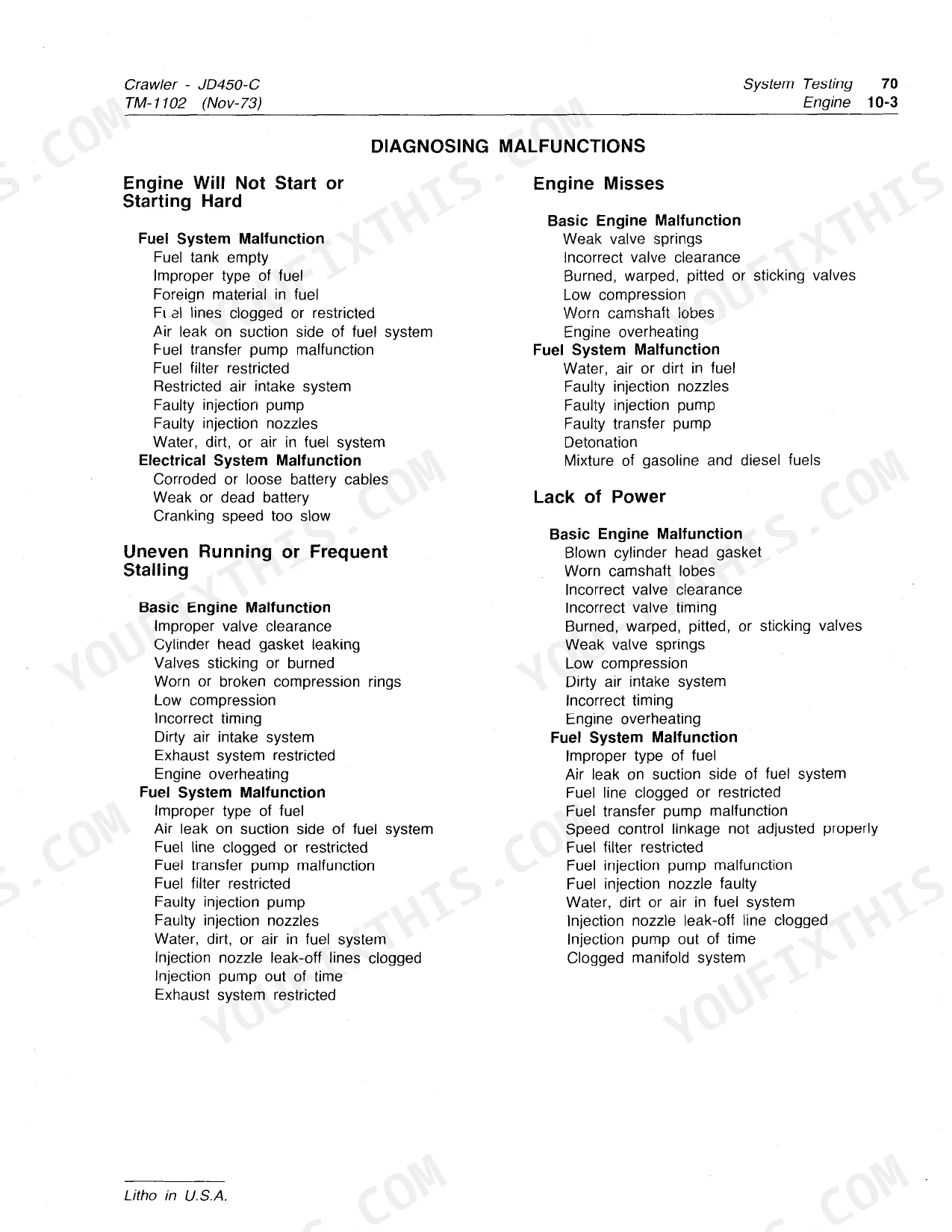

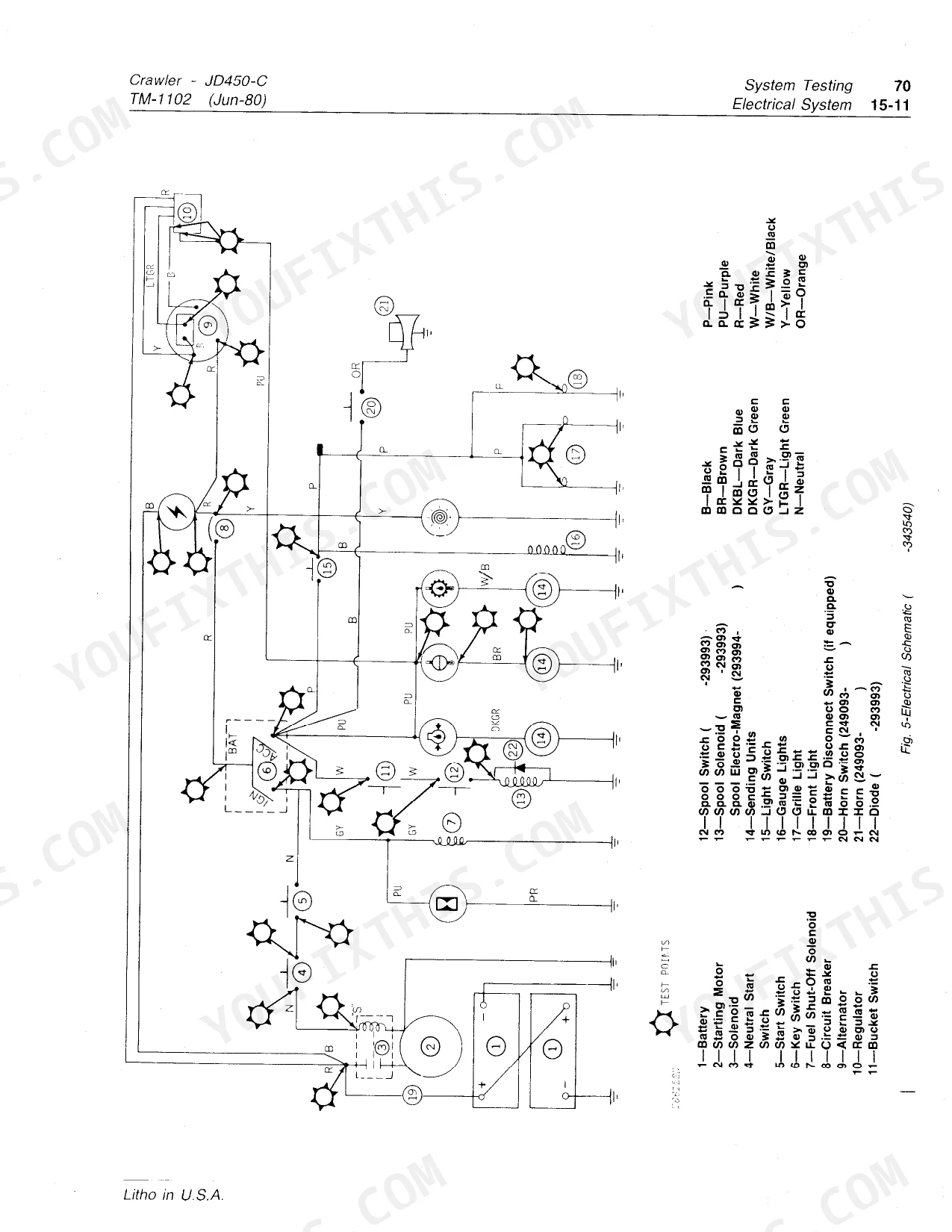

If you've been hunting for a John Deere 450c technical manual pdf, this is the factory source: all 656 pages of TM1102 covering the 450C. Inside: complete electrical wiring diagrams, hydraulic schematics tracing every circuit from the transmission and main pumps through the clutch, steering, loader, and bulldozer control valves, a full troubleshooting section spanning every major system, and dense torque specification tables for the engine, power train, and final drive. Set intake valve clearance to 0.014 in. (0.3556 mm) and exhaust to 0.018 in. (0.4572 mm); before rebuilding your undercarriage, verify link height is still above 3.19 in. (81.0 mm). Your machine is parked. Get the factory number on the first try. Bookmarked and keyword-searchable; opens on laptop, tablet, or phone.
What's Inside This John Deere 450C / 6405-6415 Series Manual

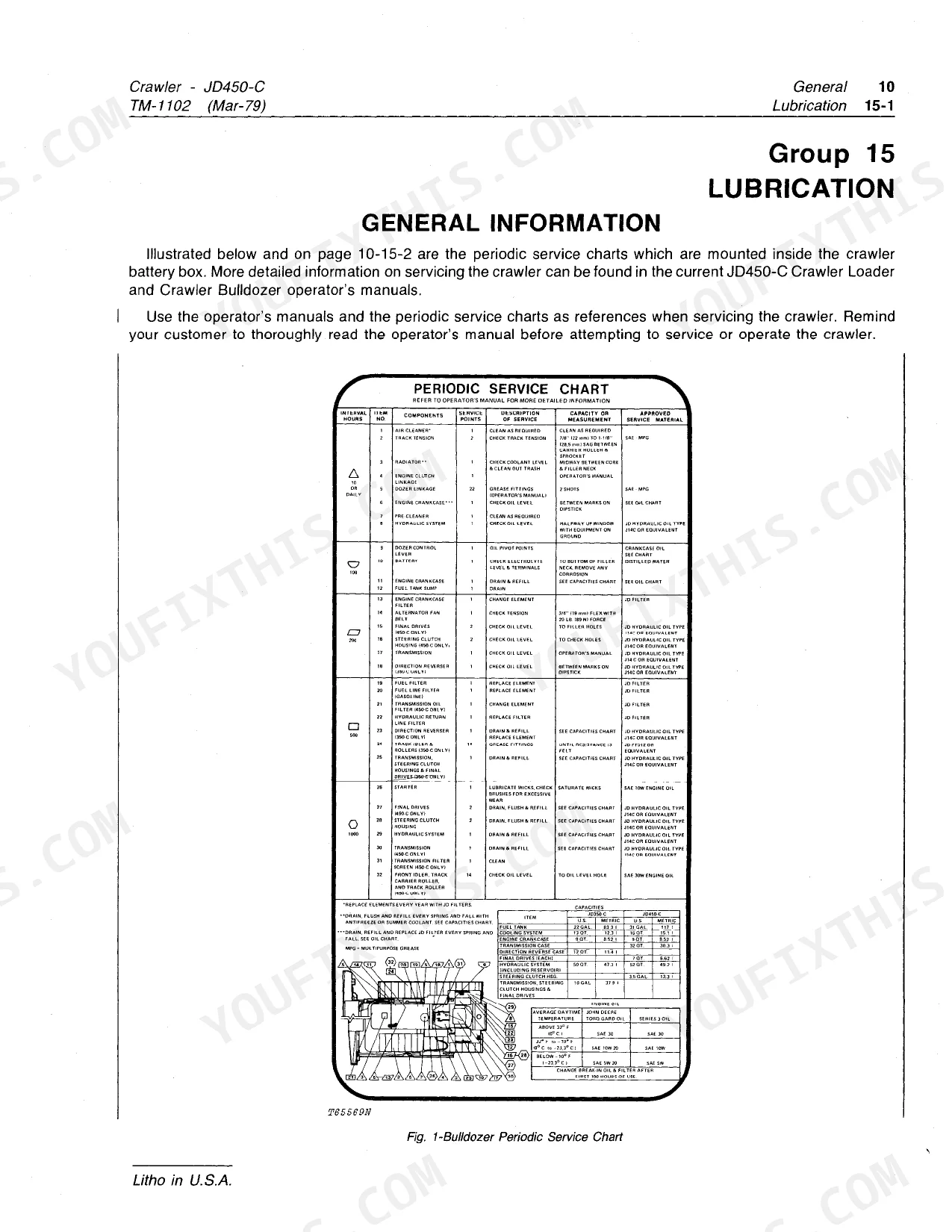

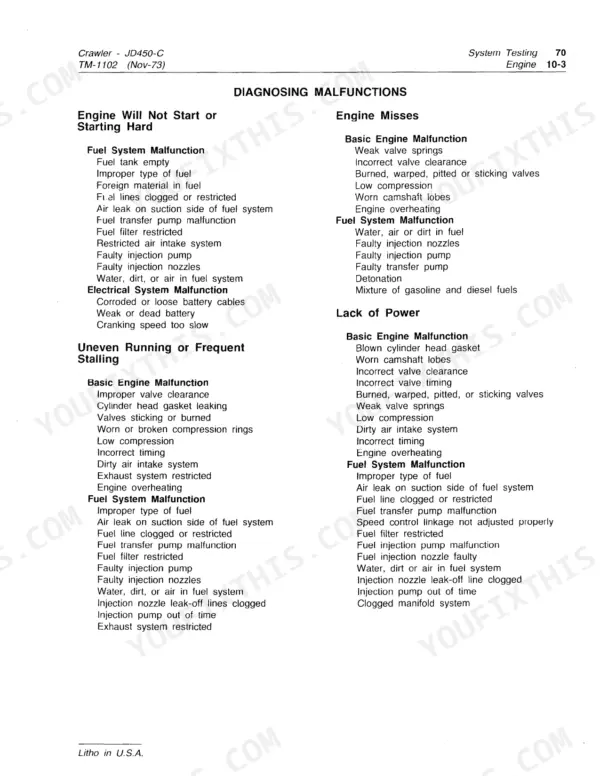

| System | Pages | Key Topics |
|---|---|---|
| General | 3-74 | Specifications, Predelivery, Delivery, And After-Sale Services, Lubrication |
| Engine | 75-152 | Removal and Installation, Basic Engine, Engine Lubrication System, Engine Cooling System, Fuel System, Speed Control Linkage, Air Intake System, Specifications and Special Tools |
| Electrical System | 153-198 | Batteries, Charging System, Starting System, Gauges and Switches, Specifications and Special Tools |

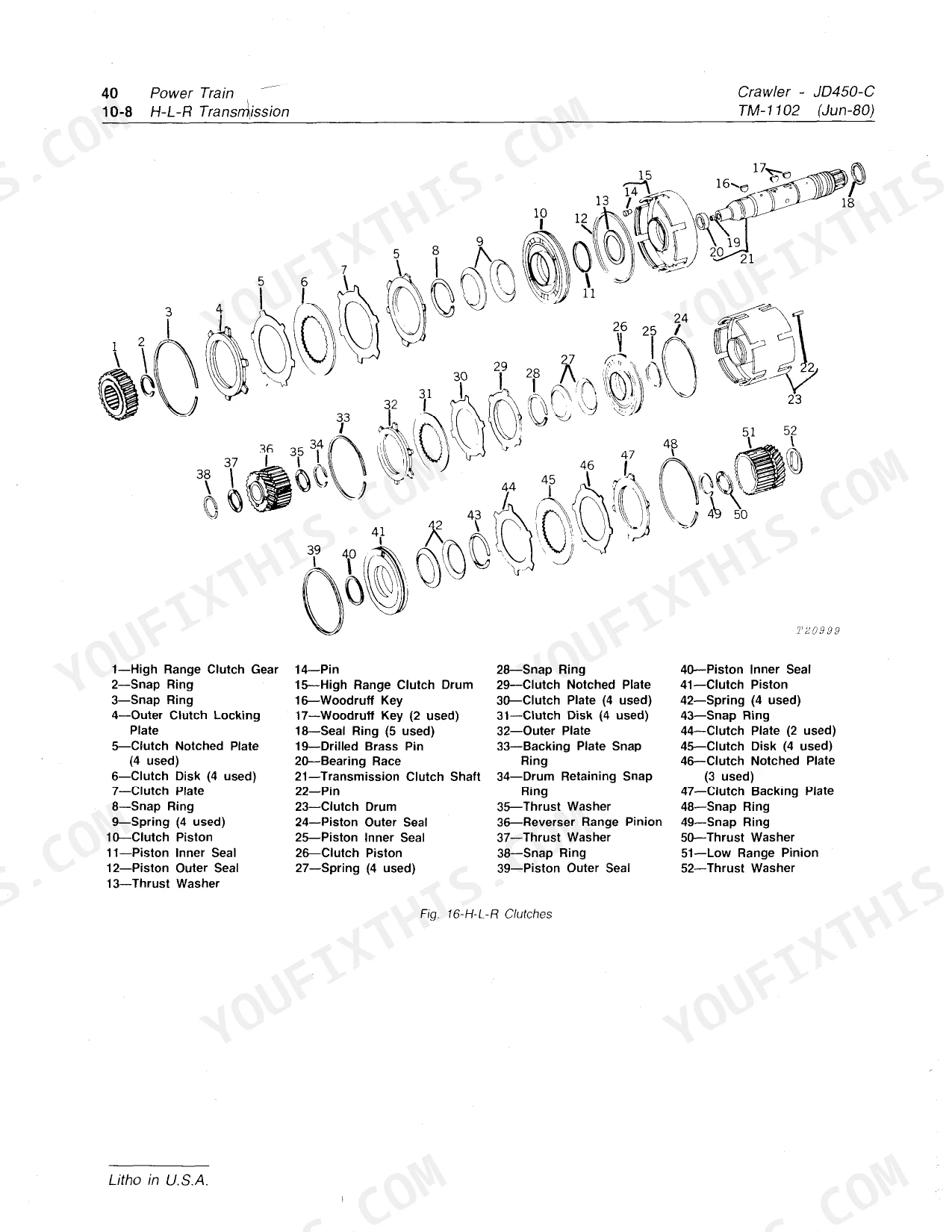

| Power Train | 199-266 | Engine Clutch Assembly, H-L-R Transmission, Steering Clutch and Brake Assembly, Final Drive Assembly, Power Take-Off and Winch Drive, Specifications and Special Tools |
| Hydraulic System | 267-400 | Transmission Pump, Main Hydraulic Pump, Winch Hydraulic Pump, Clutch Control Valve, Steering Valve, Loader Control Valve, Bulldozer Control Valve, 9250 Backhoe Control Valve |
| Miscellaneous Components | 401-520 | Tracks, Track Frame Assembly, Winch System, Winch Fairlead Assembly, Loader Frame, Boom and Bucket, Dozer Frames and Blades, Lumber Fork and Pulpwood Loader |

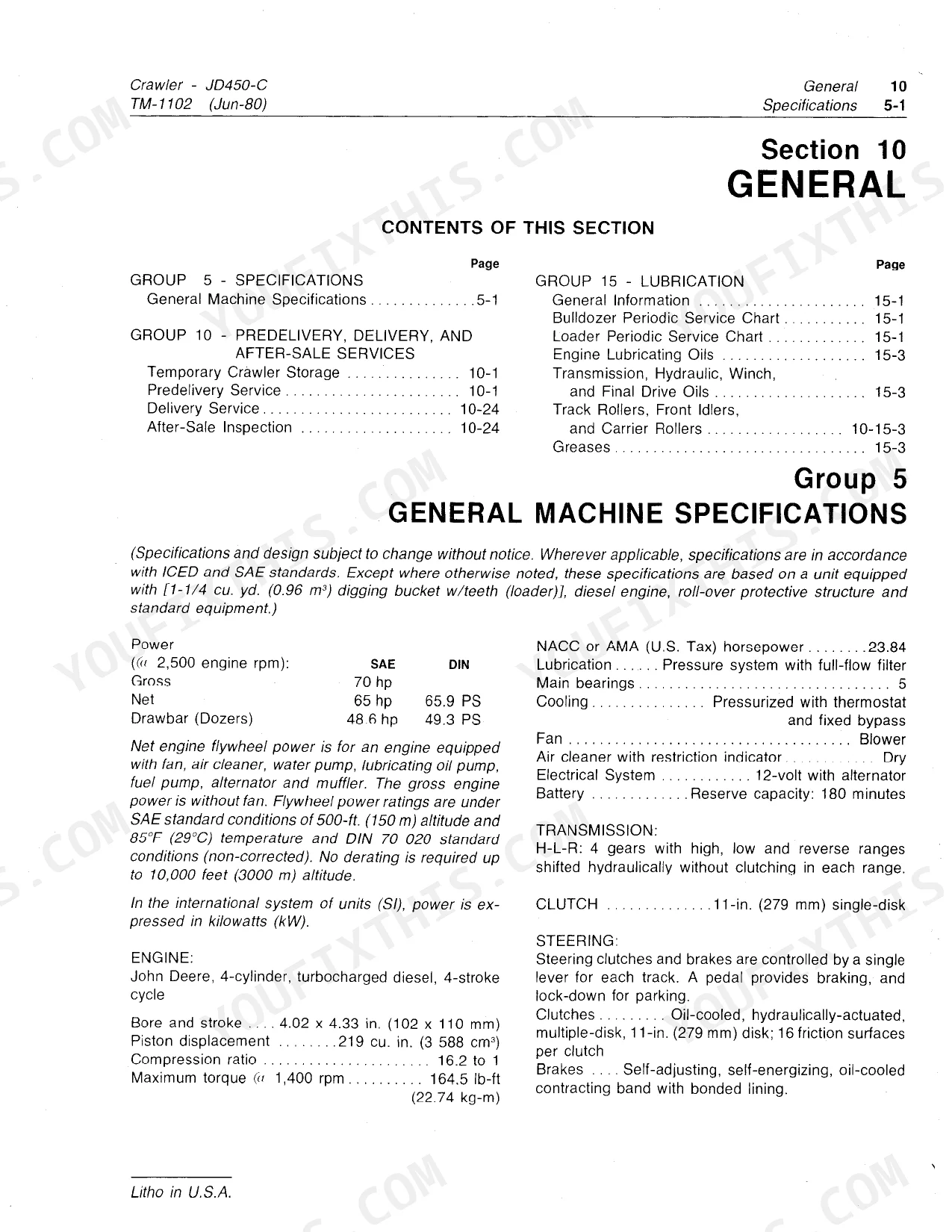

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Exhaust valve clearance | 0.018 inch (0.4572 mm) | p. 80 |
| Intake valve clearance | 0.014 inch (0.3556 mm) | p. 80 |
| Minimum recommended bushing outer diameter for rotating bushings | 1.89 in. (48.0 mm) | p. 404 |
| Minimum recommended link height for rebuilding link | 3.19 in. (81.0 mm) | p. 403 |
| Piston rings replacement | Replace with new ones | p. 86 |
| Final drive sealing faces replacement | Replace if highly polished sealing band is not uniform or is toward the inside of the seal face | p. 248 |

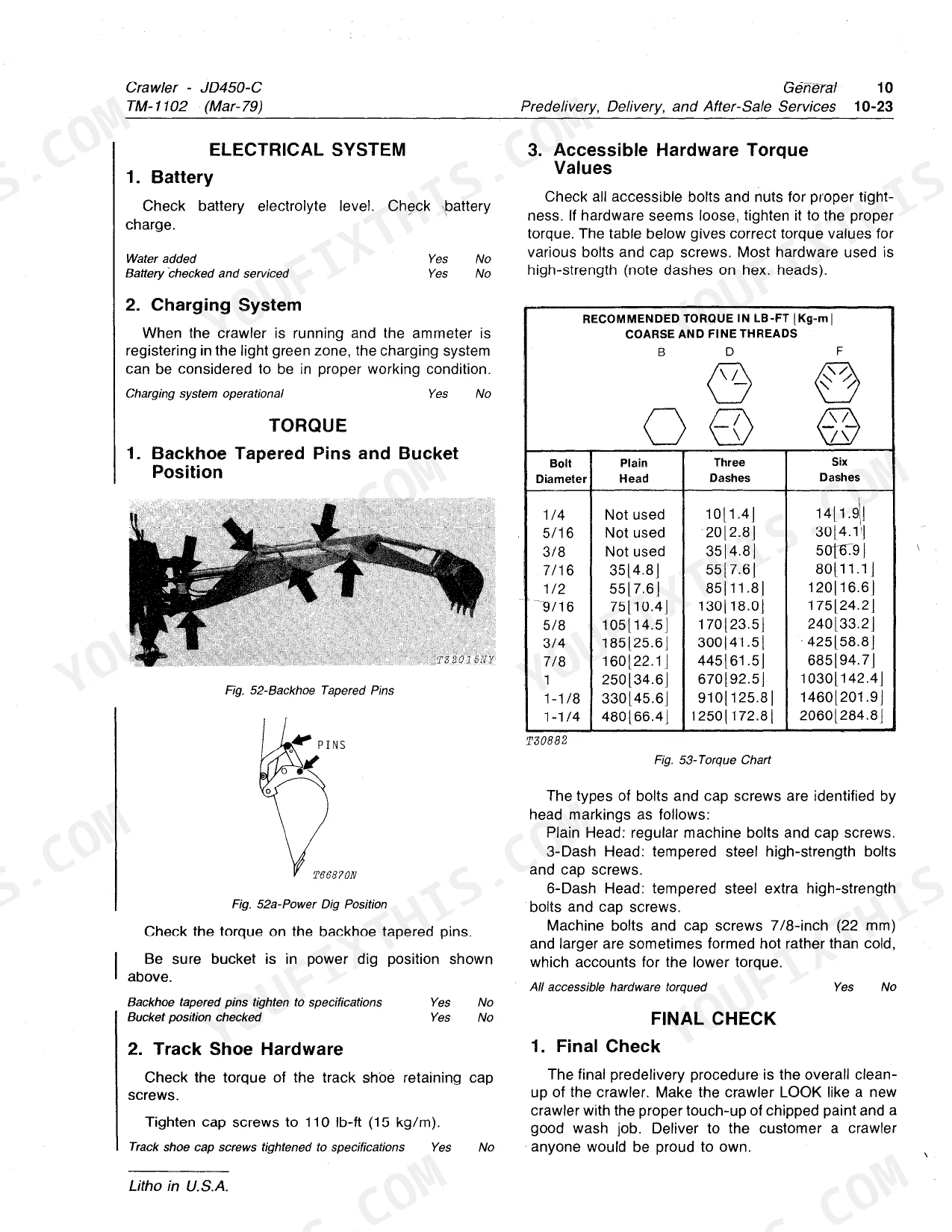

| Rear crossbar cap-to-bracket cap screws torque | 250 Ib-ft (339 N-m) | p. 449 |
| Track frame channel wear strips welding procedure | Use 5/32-inch diameter low hydrogen AWS-ASTM E-7018 covered electrode, AC or DC reversed polarity welding current [ELECTRODE POSITIVE (+)], 100 to 115 amps | p. 450 |
| Air cleaner elements replacement interval | Every 1000 hours | p. 529 |
| Engine Maximum Torque | 164.5 Ib-ft (22.74 kg-m) | p. 11 |
| Fuel Tank Capacity | 31 gal. (117.3 L) | p. 13 |
| Hydraulic System Capacity | 13 gal. (49.2 L) | p. 13 |
John Deere 450C / 6405-6415 Series Common Problems This Manual Covers
John Deere 450C crawler loses reverse drive or slips on a steep hill. p. 248
Inspect the final drive sealing faces on page 248. Replace them if the highly polished sealing band is not uniform. When reassembling, torque the H-L-R transmission pinion shaft nut to 300 Ib-ft. [41.476 kg-m] as shown on page 260.
Manual Section: H-L-R TransmissionCrawler sprocket teeth become pointed instead of flat and track chain pitch lengthens. p. 405
Measure the track wear on page 405. Rotate pins and bushings if the distance across four pins exceeds 25.67 in. (652.1 mm). Replace the drive sprocket if excessively worn, tightening F-grade cap screws to 425 Ib-ft (576 N-m) as directed on page 441.
Manual Section: TracksBroken frame rails at the steering housing attachment with failing amateur weld repairs. p. 450
Grind out old welds completely. Weld track frame channel wear strips using a 5/32-inch diameter low hydrogen AWS-ASTM E-7018 covered electrode at 100 to 115 amps per page 450. Tighten the rear crossbar cap-to-bracket cap screws to exactly 250 Ib-ft (339 N-m).

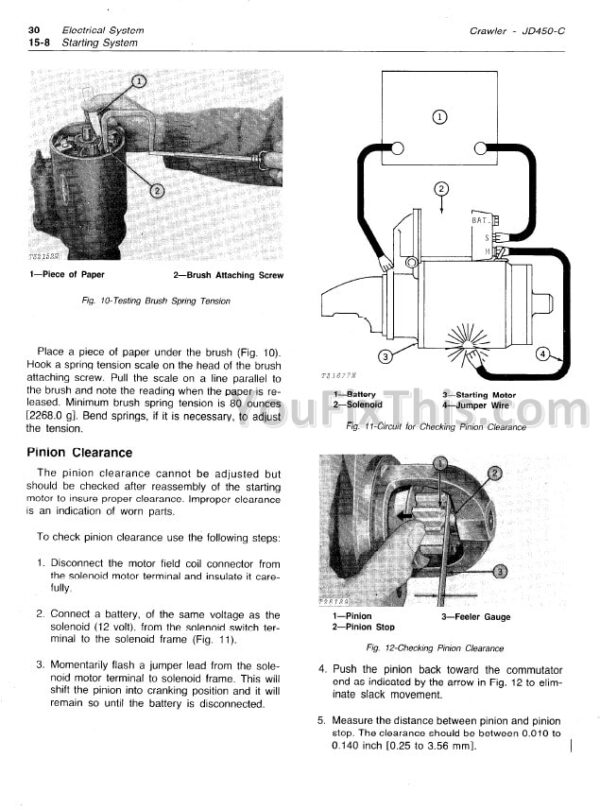

Manual Section: Track Frame AssemblyStarting motor not operating or engine cranks too slowly to fire in cold weather. p. 189
Test the battery cells with a hydrometer. Verify the full charge specific gravity reaches 1.260 as specified on page 189. If the starting system lacks power, inspect the alternator and torque the charging system brush screws to 16 to 20 lb-in. (22 to 27 N-m).
Manual Section: Starting SystemFrequently Asked Questions
What is the correct free travel for John Deere 450C clutch linkage?
The correct free travel for the John Deere 450C clutch pedal linkage should be adjusted to 3.75 inches (95.3 mm) at the clutch pad. This adjustment is made by observing the detent set screw on the clutch pedal arm and loosening or tightening it to achieve the specified free travel.
What are the replacement specifications for Sprocket teeth and bushings (due to chain pitch lengthening and wear)?
For bushings, the outside diameter of a new bushing is 2.01 in. (51.0 mm), with a minimum recommended diameter of 1.89 in. (48.0 mm) for rotating bushings. For track pitch, a new chain measures 25.19 in. (639.9 mm) across four pins, with a maximum recommended distance of 25.67 in. (652.1 mm) before rotating pins and bushings. Drive sprockets are not repairable and must be replaced if excessively worn or damaged.
How do you fix john Deere 450C crawler loses reverse drive or slips on a steep hill?
Inspect the final drive sealing faces on page 248. Replace them if the highly polished sealing band is not uniform. When reassembling, torque the H-L-R transmission pinion shaft nut to 300 Ib-ft. [41.476 kg-m] as shown on page 260.
How do you fix crawler sprocket teeth become pointed instead of flat and track chain pitch lengthens?
Measure the track wear on page 405. Rotate pins and bushings if the distance across four pins exceeds 25.67 in. (652.1 mm). Replace the drive sprocket if excessively worn, tightening F-grade cap screws to 425 Ib-ft (576 N-m) as directed on page 441.
Is this John Deere 450C & variants Technical Manual a digital download?
This is a 656-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this John Deere 450C & variants Technical Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

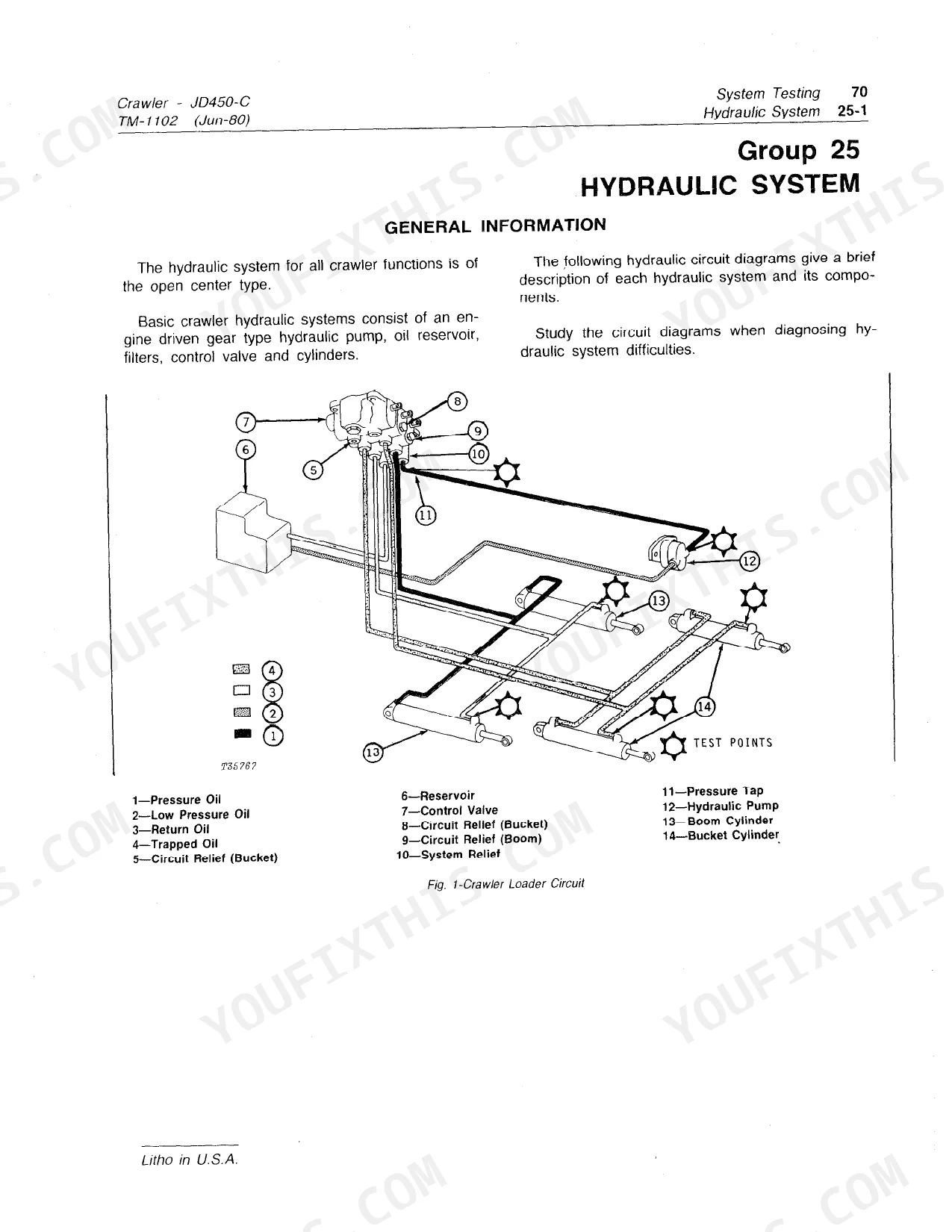

Are there hydraulic schematics in this John Deere 450C & variants manual?
Yes, a hydraulic system diagram is included showing the main circuit layout.
