This is the complete John Deere factory repair manual for the 8120T, 8220T, 8320T, 8420T and 8520T track tractors. Across 1,015 pages it covers every major system on the machine: engine remove-and-rebuild, fuel injection and cooling, the PowerShift transmission and final drives, the full hydraulic circuit with pump and valve procedures, steering and track frame service, and the electrical system with harness and fault-code diagnostics. It is the same information a John Deere dealer technician uses, with the torque values, fluid capacities and special tool numbers called out so every repair is done to spec.
What's Inside This John Deere 8120T, 8220T, 8320T, 8420T, 8520T Repair Manual

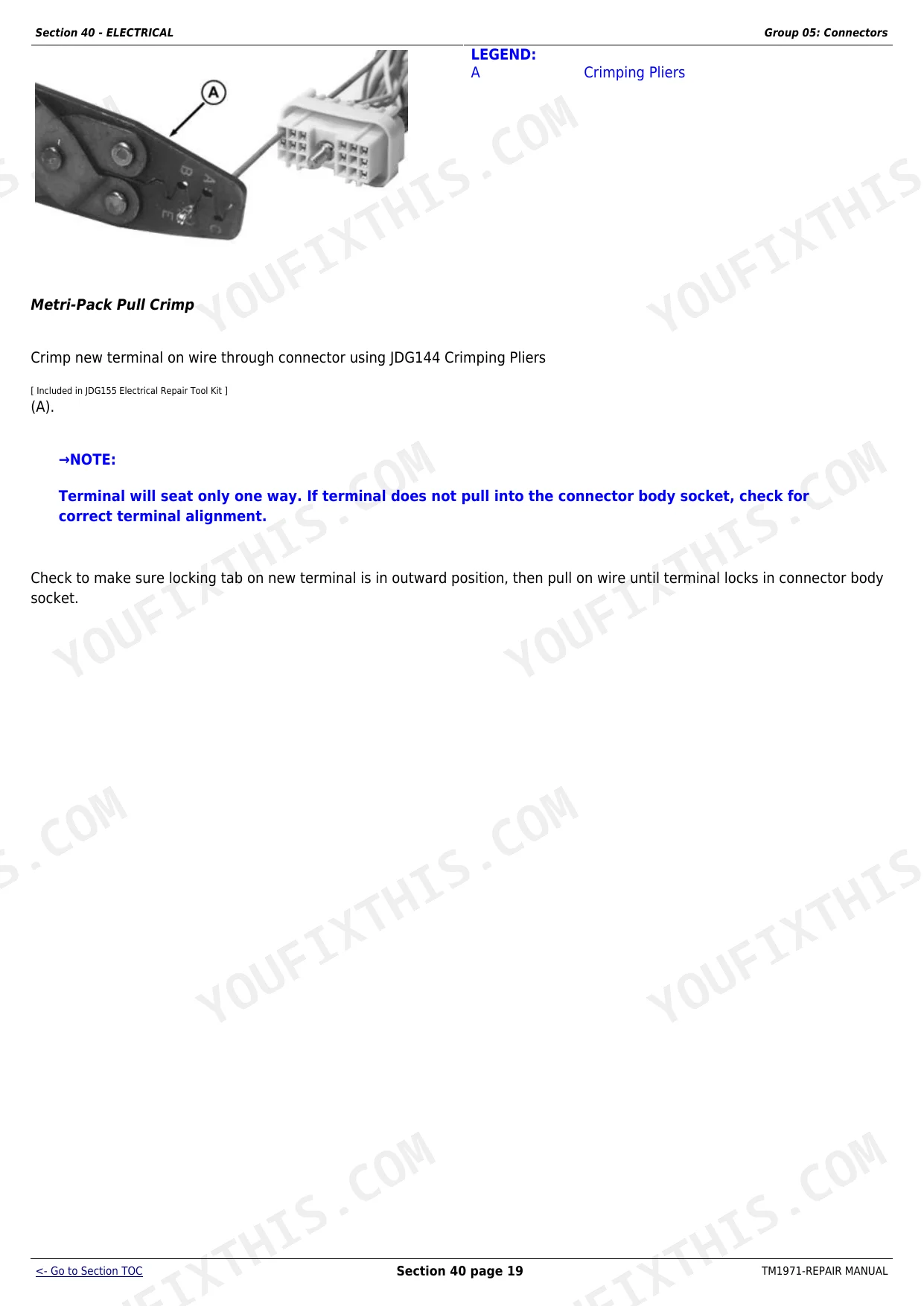

| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, Specifications, Special Tools, Tightening Torques, Identification Numbers, Fuels and Lubricants | |
| Engine | Engine Remove and Install, Cylinder Head, Pistons and Rods, Crankshaft, Camshaft, Lubrication System | |
| Fuel and Cooling Systems | Fuel Injection, Fuel Filters, Air Intake, Radiator, Fan Drive, Coolant System, Turbocharger | |
| Electrical | Batteries, Alternator, Starting Motor, Lighting, Wiring Harness, Fuses and Relays, Instrumentation, Fault Code Diagnostics | |

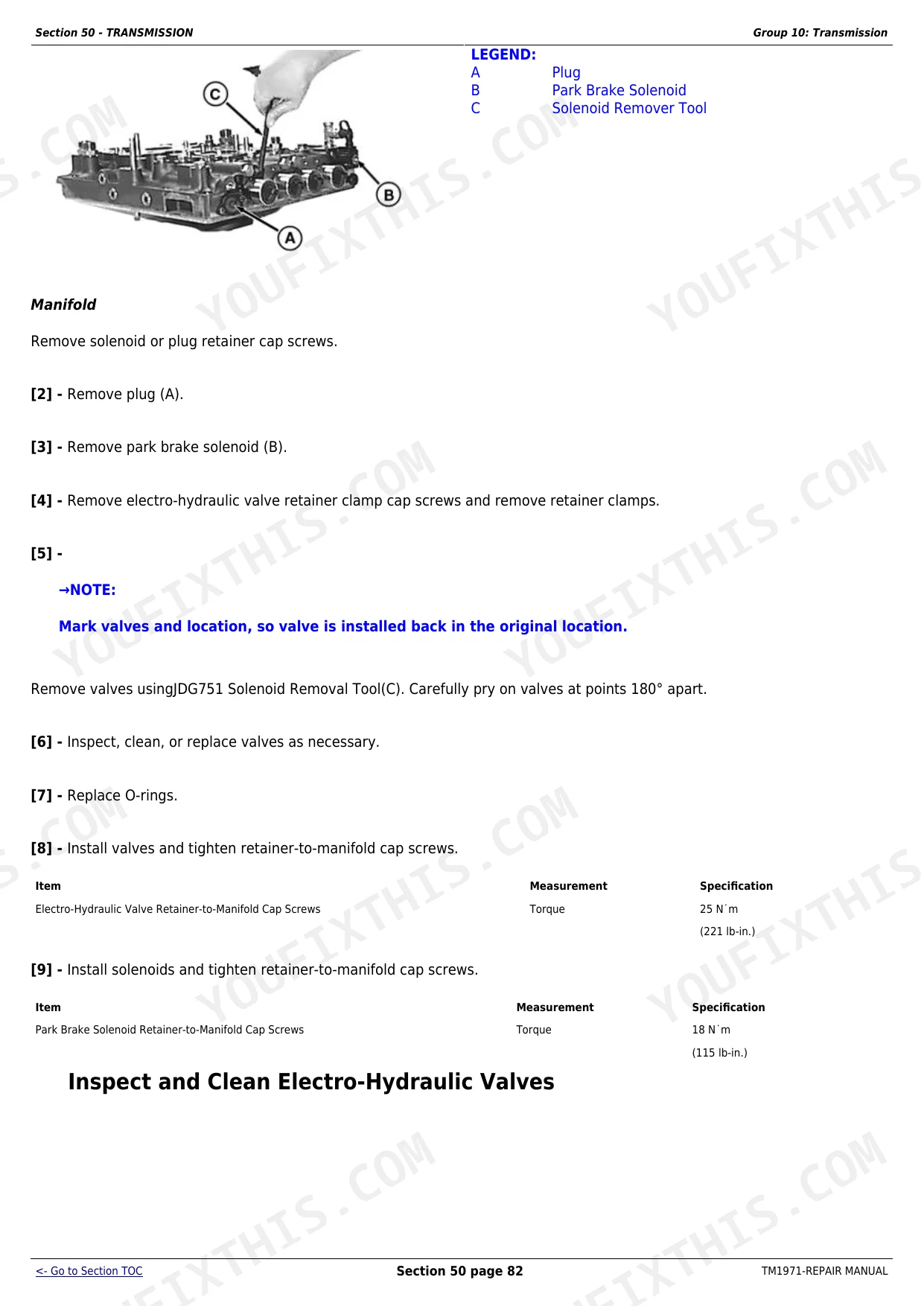

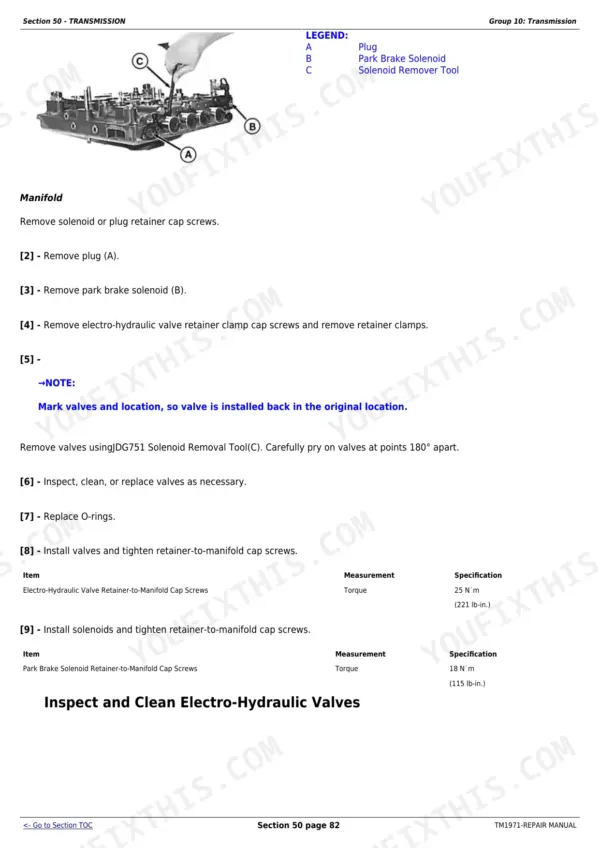

| Transmission | PowerShift Transmission, Clutch Packs, Planetary Gear Sets, Oil Pump, Transmission Control | |

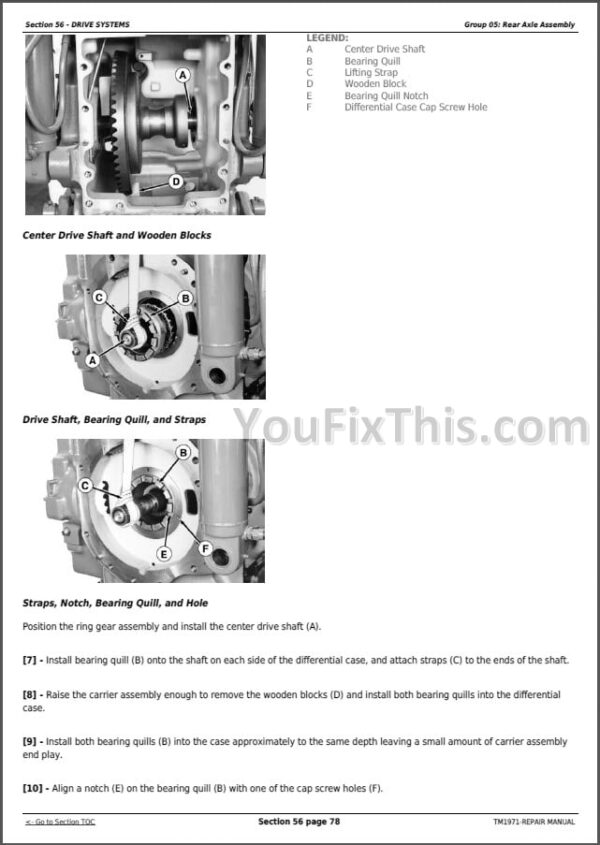

| Drive Systems | Differential, Final Drives, Track Drive Sprockets, PTO, Driveshafts | |
| Steering and Brakes | Steering Control Unit, Steering Cylinder, Steering Angle Sensors, Brakes, Parking Brake | |
| Hydraulics | Hydraulic Pump, Control Valves, Hitch Hydraulics, Selective Control Valves, Hydraulic Cylinders | |
| Miscellaneous | Frame, Drawbar, Ballast Weights, Accessories | |

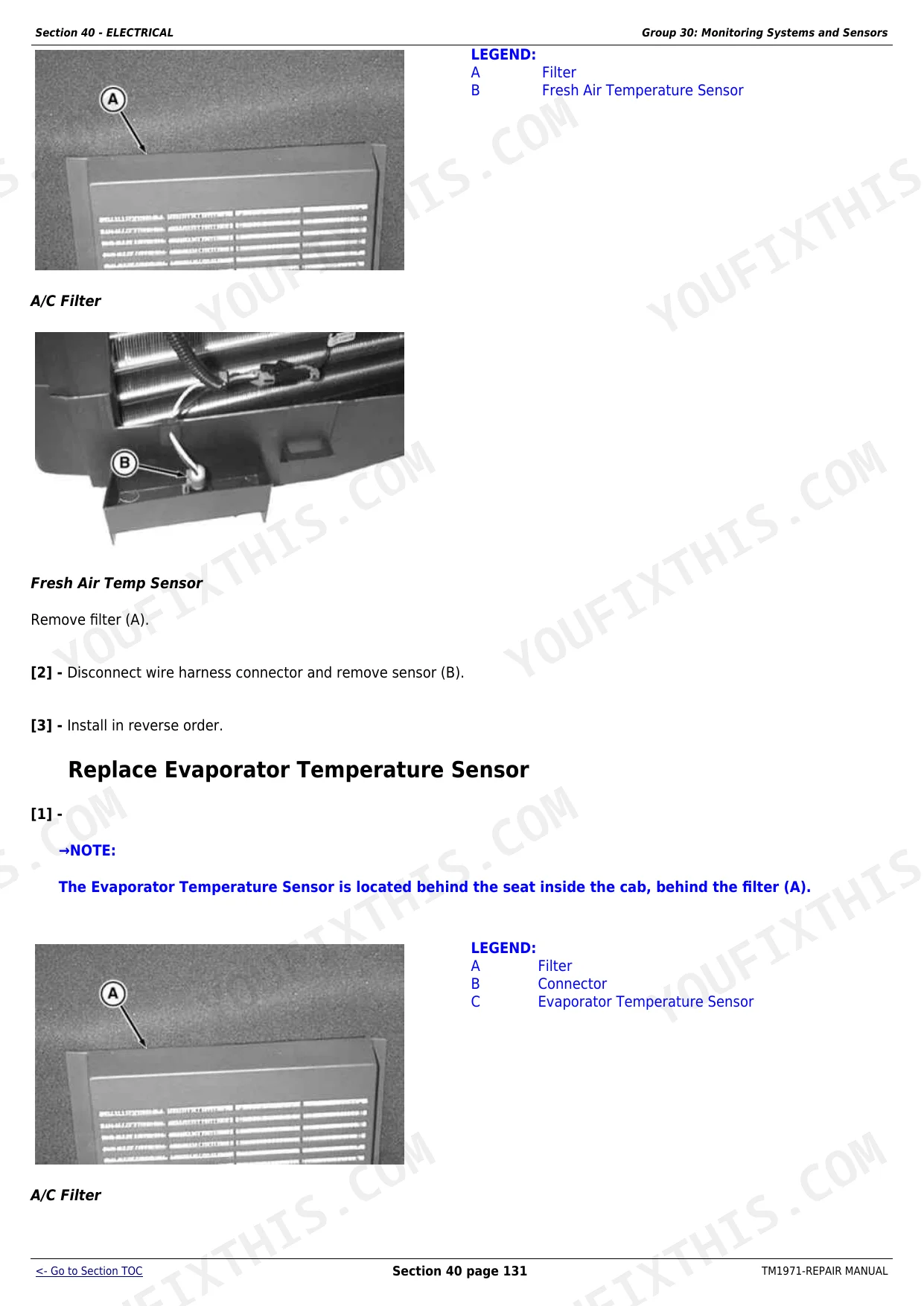

| Operator Station | Cab, HVAC System, Controls and Pedals, Seat, Instrumentation Panel | |
| Track Frame and Components | Track Frame, Track Rails, Idlers, Rollers, Track Tension, Track Chains, Track Remove and Install | |
| Dealer Fabricated Tools | Special Tool Fabrication, Tool Specifications, Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 8220T, 8320T, 8420T, 8520T | ||
| Engine Displacement (8220T-8520T) | 9 L (549 in.3) | |
| All models | ||
| Rated Engine Speed | 2100 rpm | |
| Slow Idle Speed | 890-910 rpm | |
| Fuel Tank Capacity | 492 L (130 gal) | |
| Cooling System Capacity | 40 L (10.5 gal) | |
| Transmission and Hydraulics Capacity | 246 L (65 gal) including clean-oil reservoir | |
| Hydraulic System Maximum Pressure | 20,000 kPa (200 bar) (2900 psi) | |
| Hitch Lift Capacity (with Quick Coupler) | 6894 kg (15,200 lb) | |
| Front Frame-to-Transmission Cap Screws Torque | 430 N-m (317 lb-ft) | |
| Radiator Pressure Test | 80 kPa (0.8 bar) (12 psi) | |
| Radiator Cap Pressure Test | 60-80 kPa (0.6-0.8 bar) (9-12 psi) | |
| Electrical System | 12-volt, 200 amp alternator, dual 12-volt batteries in parallel | |
John Deere 8120T, 8220T, 8320T, 8420T, 8520T Common Problems This Manual Covers
Steering becomes unresponsive or throws recurring ECU 27, 154 and 155 fault codes
Remove and bench-test the steering control unit (SSU) per the Steering and Brakes section, and check the steering angle sensor harness connectors for corrosion or water intrusion. Recalibrate the sensors after any steering component replacement. Recurring codes after a simple clear usually mean a failing sensor or a corroded connector in the SSU circuit, not a transmission or hydraulic fault.
Manual Section: Steering and BrakesCoolant loss triggering ECU 61 with no visible external leak
Pressure-test the cooling system at 80 kPa (12 psi) per the Fuel and Cooling Systems section. Inspect the coolant level sensor, the water pump seal, and the radiator core. Internal coolant loss on these engines can be traced through combustion gas testing of the coolant before pulling the head. The section covers the full pressure-test procedure and hose clamp torques (10 N-m, 88 lb-in.) for reassembly.
Manual Section: Fuel and Cooling SystemsHydraulic oil cooler (OEM RE221652) failure causing hydraulic system overheating
Remove and inspect the hydraulic oil cooler per the Hydraulics section. Check for core blockage, kinked lines and damaged fins before condemning the cooler. The Hydraulics section covers the tandem gear pump rated flow specs (charge pump 2.0 L/s at 31 gpm, primary pump 1.4 L/s at 23 gpm) so you can verify pump output after a cooler replacement and confirm the system is back in spec.
Manual Section: HydraulicsRapid wear of track rollers and rails on the 8320T and 8420T in abrasive field conditions
Inspect track tension against the factory setting in the Track Frame and Components section and check roller seals for oil loss, which accelerates wear against the rails. Replace rollers in matched sets rather than individually to avoid uneven loading. The section covers the full track remove-and-install procedure and the torque specs for track frame mounting hardware so the frame stays aligned after service.
Manual Section: Track Frame and ComponentsFrequently Asked Questions
What causes steering fault codes ECU 27, 154 and 155 on the 8420T and 8520T?
Those codes point to the steering control unit (SSU) or the steering angle sensors losing calibration or communication. The Steering and Brakes section covers removing and testing the SSU, recalibrating the steering angle sensors, and checking the harness connectors that are prone to corrosion on these tractors. Clearing the codes without fixing the root cause leads to repeat failures in the same season.
How do I diagnose ECU 61 - loss of coolant detected on a John Deere 8320T?
ECU 61 means the coolant level sensor tripped, which usually points to a leak in the cooling system or a failed sensor. The Fuel and Cooling Systems section covers pressure-testing the radiator at 80 kPa (12 psi), inspecting hose connections and the water pump, and testing the coolant level sensor before chasing an internal engine leak.
Why does the variable fan speed malfunction (ECU 56-59) and cause overheating?
Codes ECU 56 through 59 indicate the variable fan drive is not reaching the commanded speed. The Fuel and Cooling Systems section covers the fan drive viscous coupling, the fan speed sensor, and the solenoid valve that controls fan engagement. Check the drive sheave cap screw torque (320 N-m, 236 lb-ft) and the tensioner mounting screws (70 N-m, 52 lb-ft) before condemning the fan drive unit.
How often should the transmission and hydraulic fluid be changed on the 8120T-8520T?
The system holds 246 L (65 gal) including the clean-oil reservoir. The manual's General Information section lists the service intervals and approved fluid specs. Owners running in dusty or dirty conditions typically change at 1,000 hours. Using the correct fluid type is critical for PowerShift clutch pack longevity on these tractors.
Does this manual cover the track frame and undercarriage service?
Yes. Section 95 - Track Frame and Components covers removing and installing the track assembly, adjusting track tension, servicing the idlers, rollers and track rails, and replacing track chains. These tractors require regular undercarriage inspection because worn rollers accelerate track rail and chain wear, and repair costs compound quickly if service is deferred.
