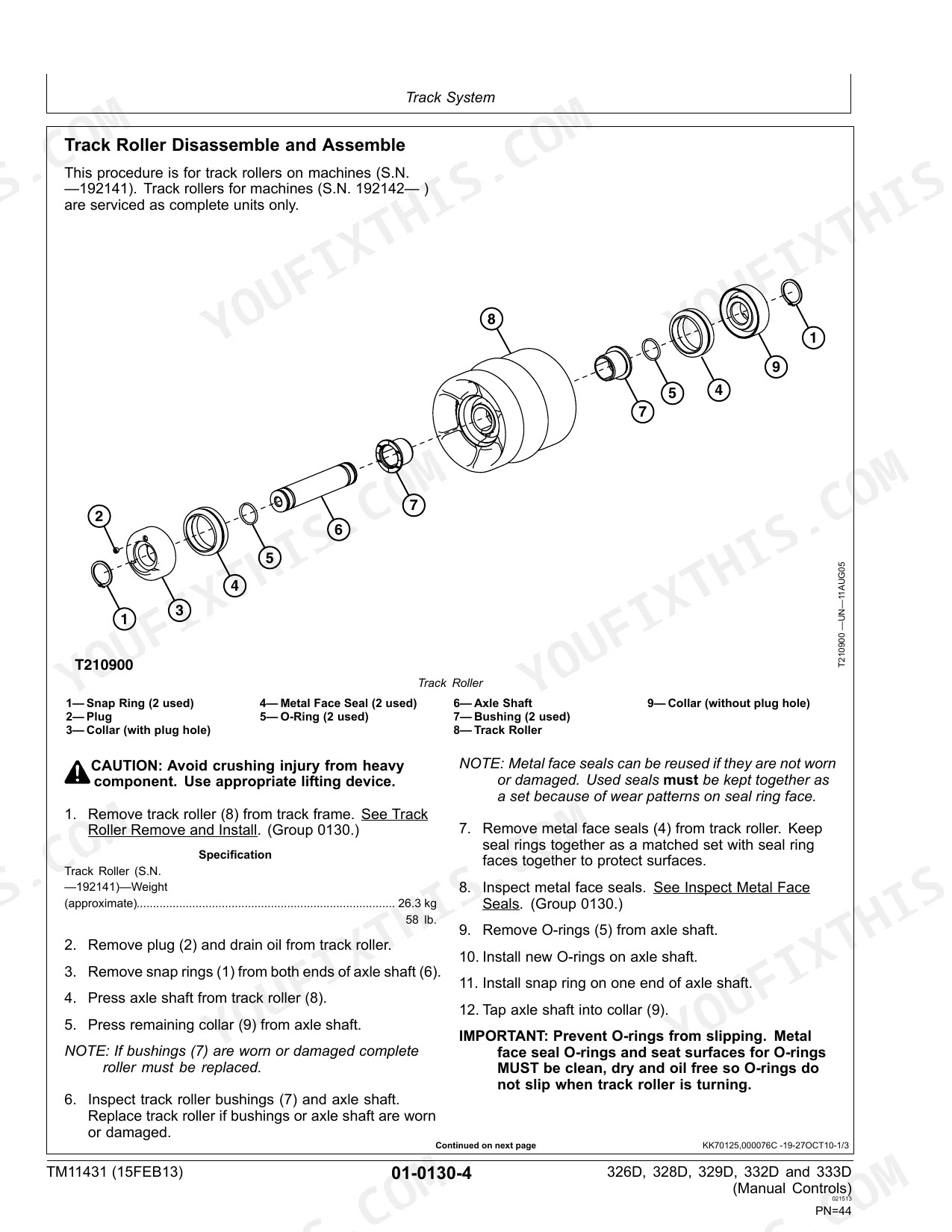

Looking for a John Deere 333D technical manual PDF? This 364-page factory Technical Manual (TM11431) covers the full D-series skid steer line: 326D, 328D, 329D, 332D, and 333D. Inside: a full torque value section, page after page of step-by-step repair procedures for the transmission, hydrostatic controls linkage, track system, axles, and main hydraulic system, plus engine removal and installation. You also get exploded views for teardown work and dealer-fabricated tool drawings, including the ST4920 track recoil spring tool. Set the 3/8-24 straight hydraulic fitting to 8 N-m and torque the dampener mounting hardware to 40 N·m (30 lb-ft). Your loader is down and the clock is running. This bookmarked PDF opens on any device; type a spec into the search bar and get wrenching.
What's Inside This John Deere 326D-333D Series Manual
| System | Pages | Key Topics |
|---|---|---|

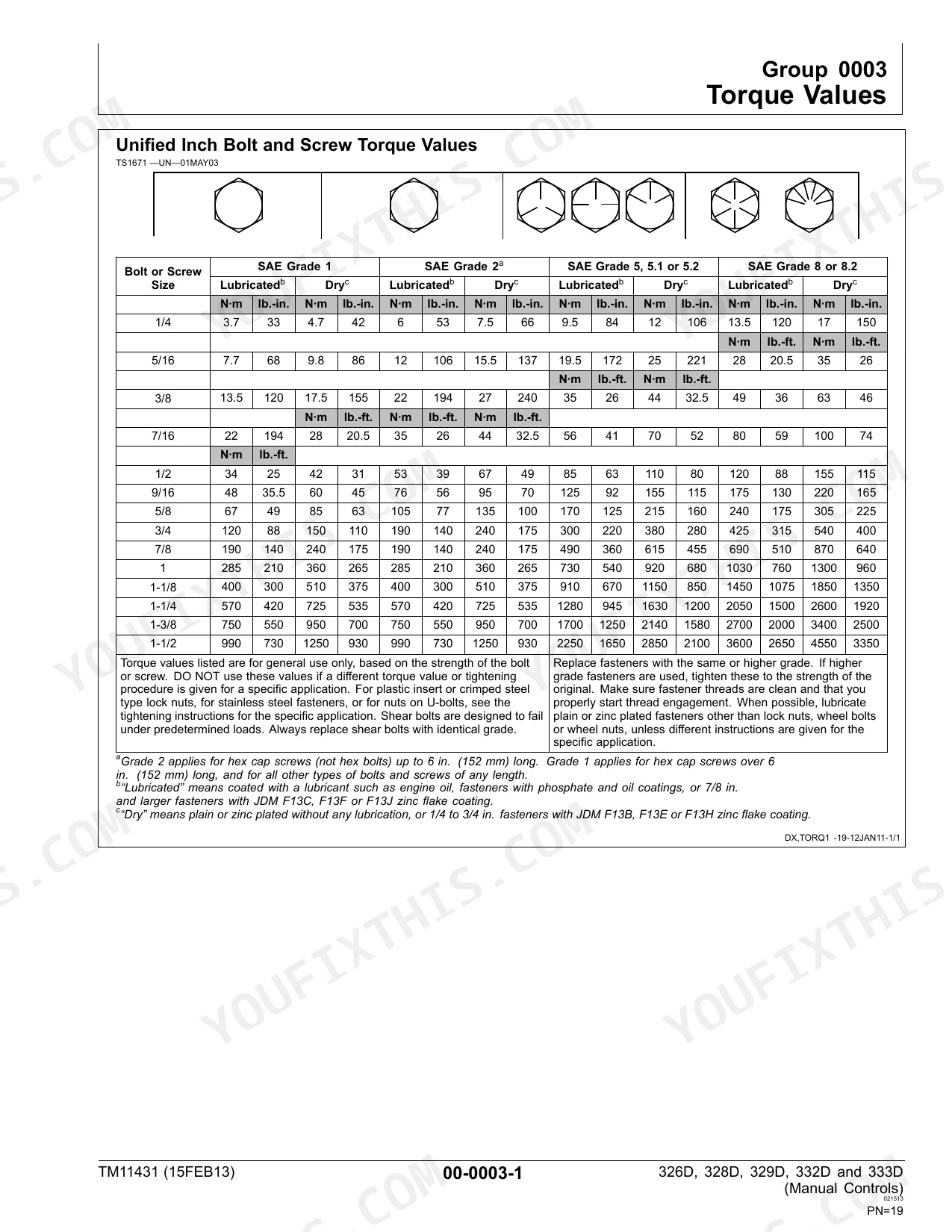

| General Information | 5-34 | Safety, Torque Values |
| Wheels or Tracks | 35-60 | Powered Wheels and Fastenings, Track System |
| Axles and Suspension Systems | 61-68 | Drive Axle Housing and Support, Axle Shaft, Bearings, And Reduction Gears |

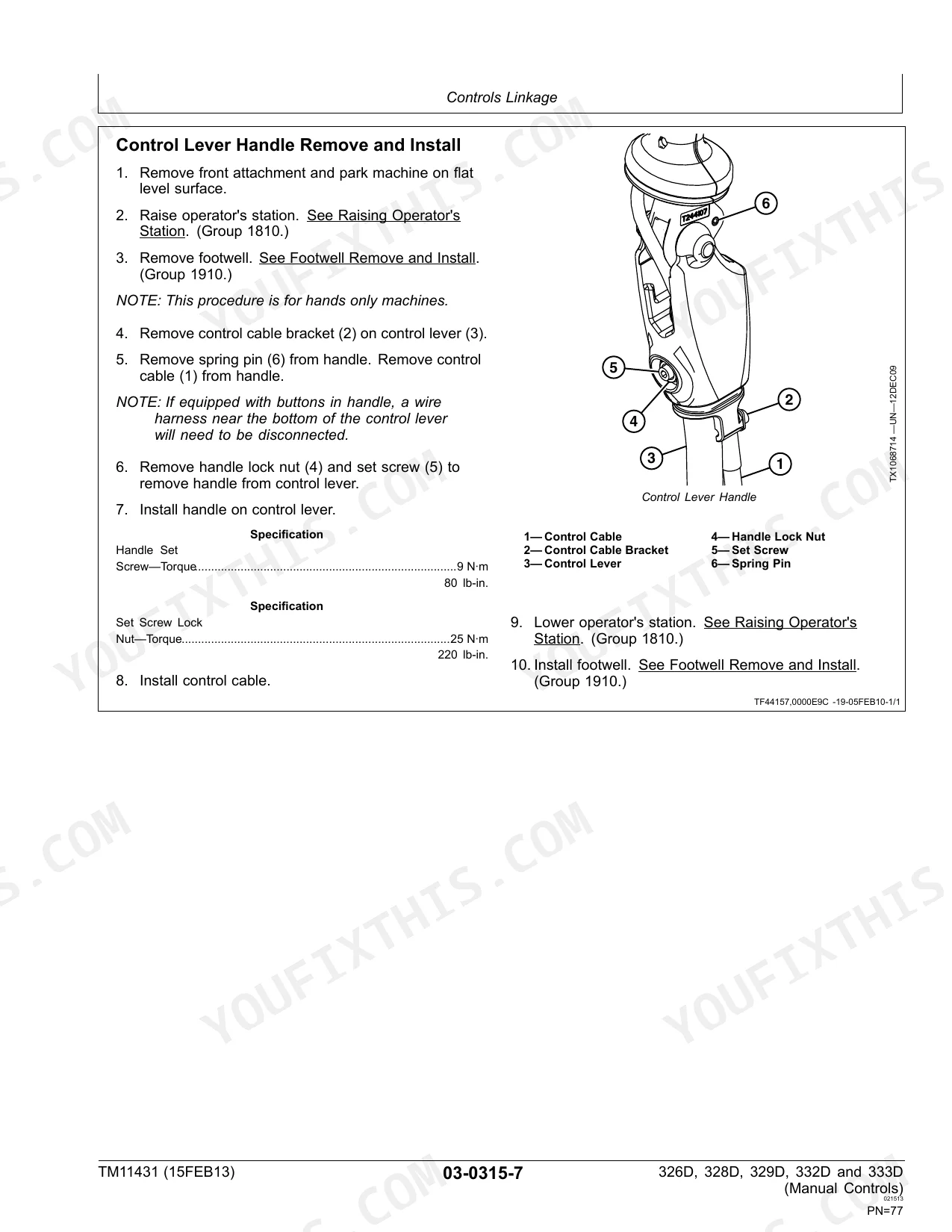

| Transmission | 69-182 | Controls Linkage, Flywheel Coupler, Hydraulic System |
| Engine | 183-190 | Removal and Installation |
| Engine Auxiliary System | 191-206 | Cooling Systems, Intake System, External Exhaust Systems, External Fuel Supply Systems |
| Frame or Supporting Structure | 207-212 | Frame Installation |
| Operator's Station | 213-250 | Removal and Installation, Operator Enclosure, Seat and Seat Belt, Heating and Air Conditioning |
| Sheet Metal and Styling | 251-256 | Hood or Engine Enclosure |
| Safety and Convenience | 257-260 | Radio |
| Main Hydraulic System | 261-286 | Hydraulic System, Section 21, Group 2160 |
| Loader | 287-340 | Attachment Coupler, Control Linkage, Loader Frame, Boom and Bucket Cylinders, Hydraulic Lines, Quick-Attach Service |
| Dealer Fabricated Tools | 341-364 | DFT1101 Boom Lifting Bracket, DFT1323 Engine Lifting Tool, Fabrication Drawings and Dimensions, Special Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Inspect hydraulic hoses periodically | at least once per year | p. 9 |
| Straight Fitting Torque (3/8-24 UNF) | 8 N-m (6 lb-ft) | p. 23 |
| Pressure Series Torque Values Tolerance | ± 10% | p. 26 |

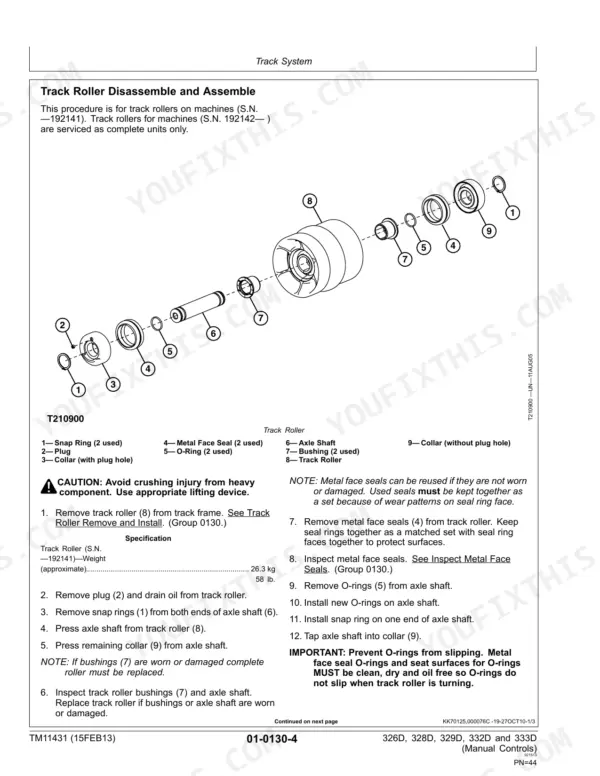

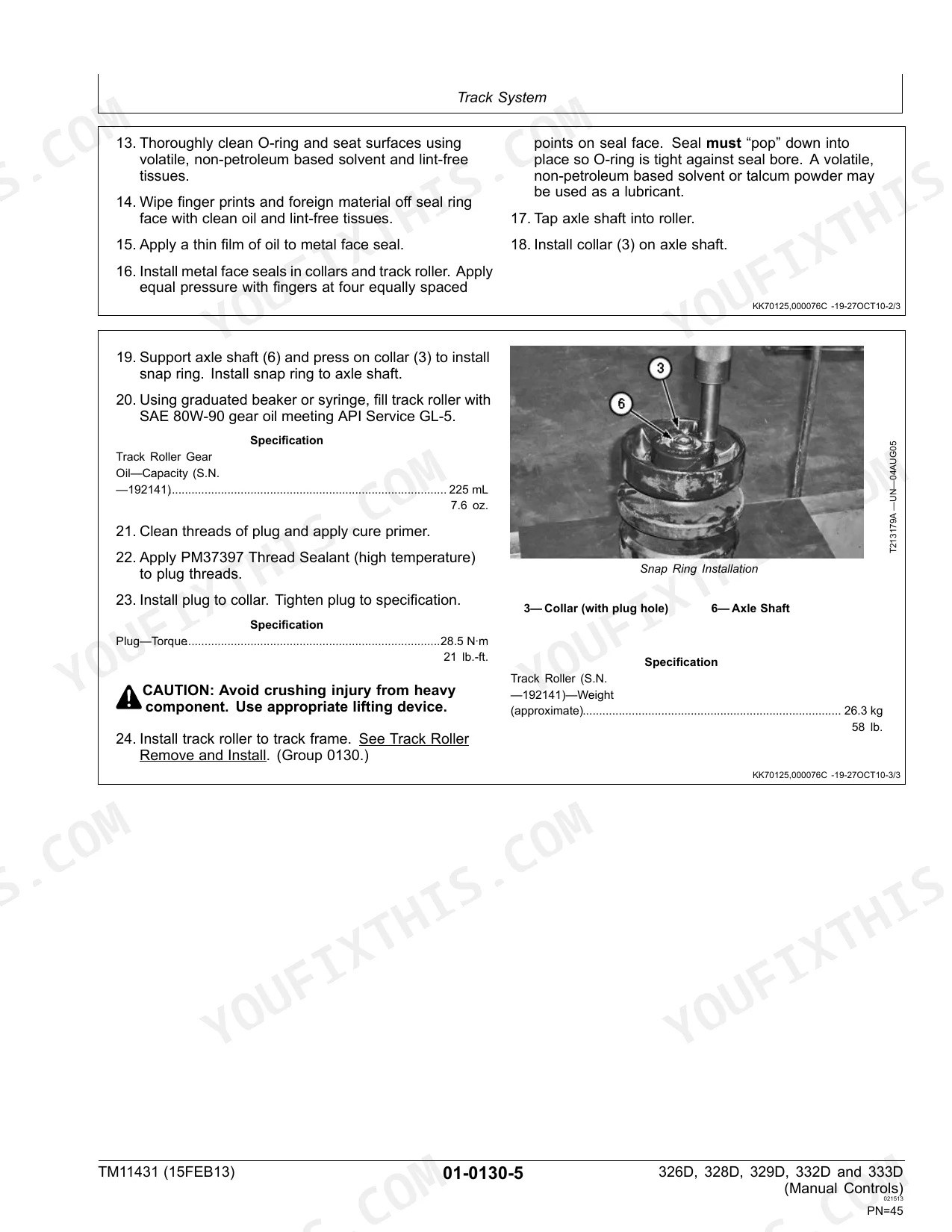

| Track Roller Gear Oil-Capacity (S.N. -192141) | 225 mL 7.6 oz. | p. 45 |
| Dampener Mounting Hardware—Torque | 40 N·m 30 lb-ft | p. 71 |
| Charge Pressure Relief Valve Pressure (minimum) | 2200 kPa 22 bar 319 psi | p. 81 |
| Engine-Weight (approximate) | 322 kg 710 lb. | p. 188 |
| Alternator belt | Remove alternator belt. | p. 243 |
| Electric Quik-Tatch™ Coupler—Weight | 79 kg 174 lb. | p. 290 |

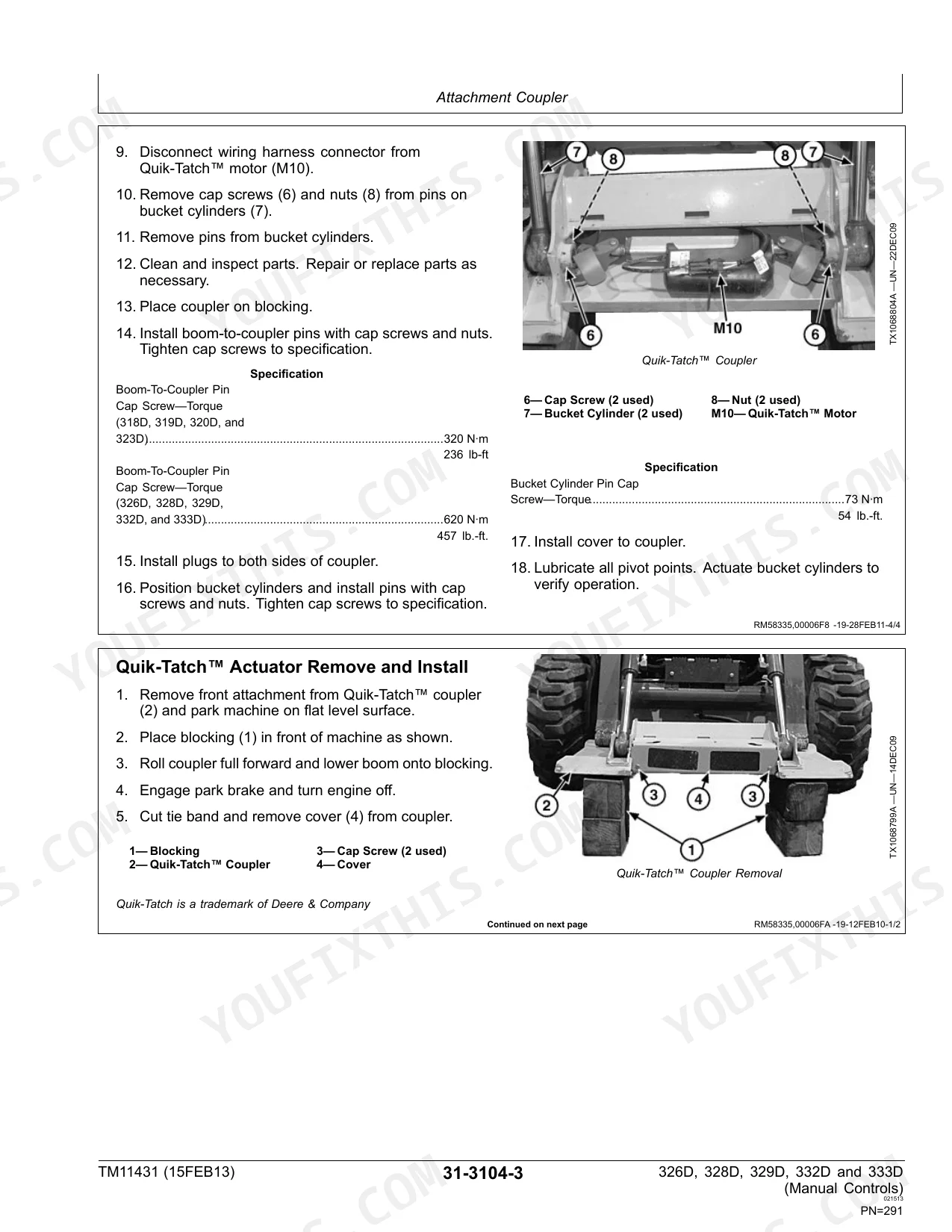

| Boom-To-Coupler Pin Cap Screw-Torque | 320 N·m 236 lb-ft | p. 291 |

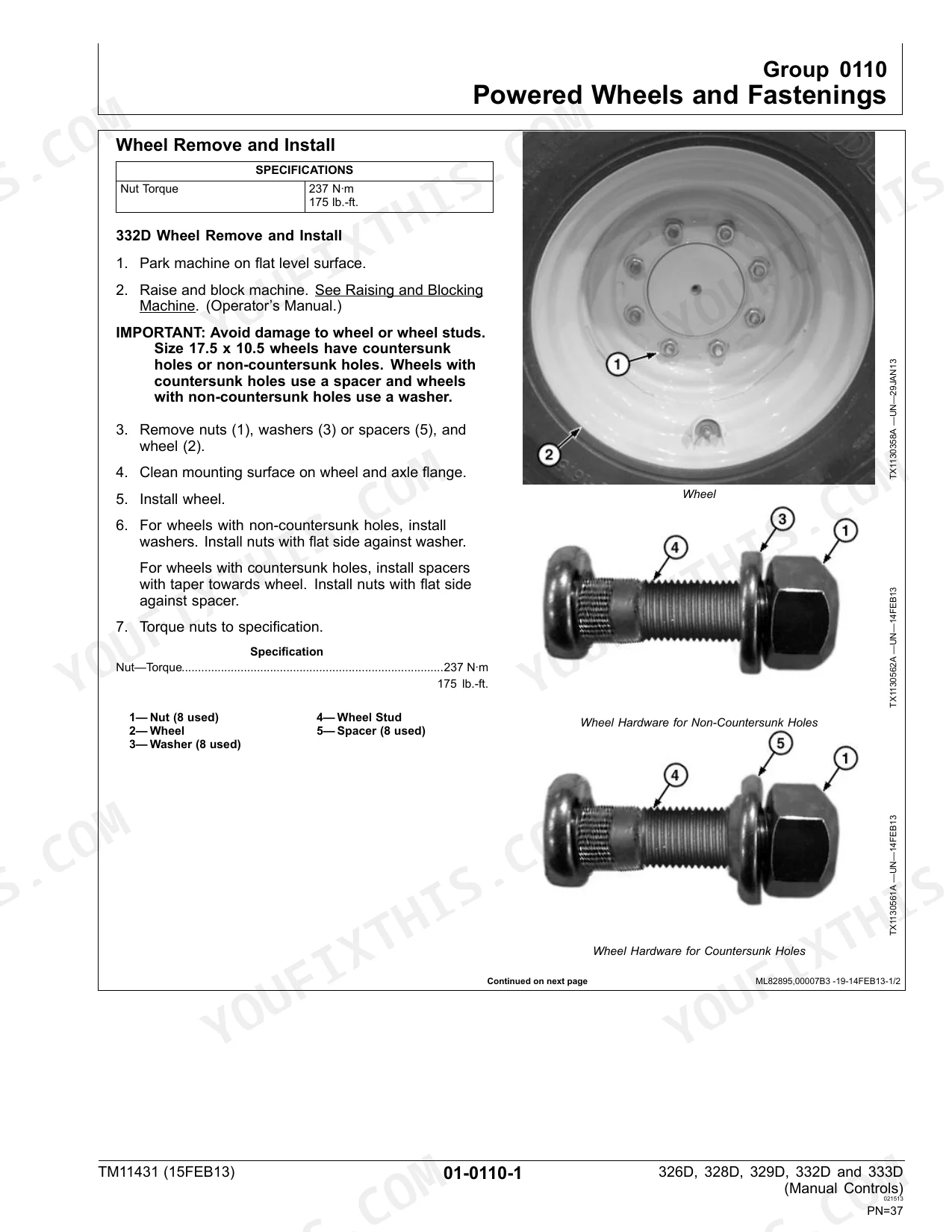

| Wheel Nut Torque | 237 N·m | p. 37 |
| Rubber Track Lug Height (minimum) | 5 mm | p. 41 |
John Deere 326D-333D Series Common Problems This Manual Covers
John Deere 326D hydraulic hose weeping at fittings, boom drifts down, oil film under machine
Shut down, drop the boom, and inspect every hose for fraying, rubbing, or wet fittings; the schedule on page 9 calls for hose inspection at least once per year. Replace damaged assemblies, never patch them. Torque 1/2 inch straight thread fittings to 49 N-m (36 lb-ft) per page 25, then cycle the boom and recheck.
Manual Section: General Information p. 9Steering feels loose and erratic, machine wanders at travel speed, hard to hold a straight line
Check the dampener rod for leakage and measure retraction and extension force following the inspection procedure on page 71. If the rod moves with no resistance or the seal weeps oil, replace the dampener; there is no rebuild. Torque the new mounting hardware to 40 N·m (30 lb-ft) and test drive at full travel speed.
Manual Section: Steering Dampener Inspection p. 71Hydrostatic drive sluggish or weak on one side, slow response when feathering the controls
Test charge pressure at operating temperature before condemning the pump. On 326D and 328D machines the charge pressure relief valve must hold a minimum of 1900 kPa, per the spec on page 81. If pressure falls short, replace the charge filter first and recheck; a starved charge circuit mimics pump failure.
Manual Section: Transmission p. 81Quick-Tach lock levers won't fully engage, bucket rocks on coupler, attachment sits loose
Verify the attachment lock plate height before blaming the coupler; aftermarket buckets often have the bottom plate welded too low. Shim the lock plate until both levers seat fully with no rocking. Inspect the coupler pivot pins while you are in there and torque the bucket cylinder pin cap screw to 73 N·m (54 lb-ft) per page 291.
Manual Section: Loader p. 291Rubber tracks slipping and wearing fast, machine loses traction on slopes and wet ground
Measure the track lug height; minimum is 5 mm per the wear spec on page 41. Below that, the tracks will not bite and replacement is the only fix. While the machine is blocked up, spin each track roller by hand, check for oil leaks, and confirm roller-to-frame cap screws are torqued to 644 N·m per page 43.
Manual Section: Wheels or Tracks p. 41Frequently Asked Questions
How do I adjust the track tension on a John Deere 329D skid steer?
To adjust the track tension, refer to the detailed procedure in "Check and Adjust Track Tension. (Group 9020-25.)". For releasing tension, the manual instructs to "Loosen track adjuster valve 1-2 turns to discharge grease from track adjuster cylinder" to allow the track to sag completely, as found on page 41. p. 41
What are the torque specifications for the engine mount cap screws on a John Deere 332D?
The torque specification for the Engine Mount Cap Screw is 320 N·m (235 lb-ft). This information is found in the "Engine Remove and Install" section, specifically when installing and torquing the engine mount cap screws. p. 188
How do I relieve the hydraulic system and what is the charge relief setting on a John Deere 332D?
To relieve hydraulic system pressure, you should follow the procedure outlined in "Hydraulic System Pressure Release. (Group 9025-25.)". For the 332D, the minimum charge pressure relief valve pressure is specified as 2200 kPa (22 bar, 319 psi). p. 81
What are the inspection and replacement guidelines for hydraulic hose assemblies?
Hydraulic hoses should be inspected periodically, at least once per year, for leakage, kinking, cuts, cracks, abrasion, blisters, corrosion, or exposed wire braid. Any worn or damaged hose assemblies must be replaced immediately with John Deere approved replacement parts. p. 9
What are the inspection and replacement guidelines for electrical wiring and connectors?
Electrical wiring and connectors should be examined frequently for damage. If abrasion or wear occurs, they must be replaced immediately. This is crucial for maintaining machine safety and function. p. 10
How quickly can I access this manual after buying?
Immediate download of the complete 364-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this John Deere 326D & variants Technical Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
