This is the factory repair manual (TM110319) for the John Deere 8235R, 8260R, 8285R, 8310R, 8335R and 8360R tractors, and it covers actual teardown work, not just service intervals. You get full overhaul procedures for the PowerTech PSS engine, fuel injection and cooling, plus dedicated sections for both the PowerShift and the AutoPowr/IVT transmissions with clutch and control valve repair. Drive coverage includes the 1300 and 1500 series MFWD axles and the Independent Link Suspension axle. Hydraulics, hydrostatic steering, service and park brakes, wiring harnesses, control units and sensors are all in here, along with specifications and the special tools list. One manual, all six models, since they share the same platform.
What's Inside This Repair Manual
| System | Pages | Key Topics |
|---|---|---|

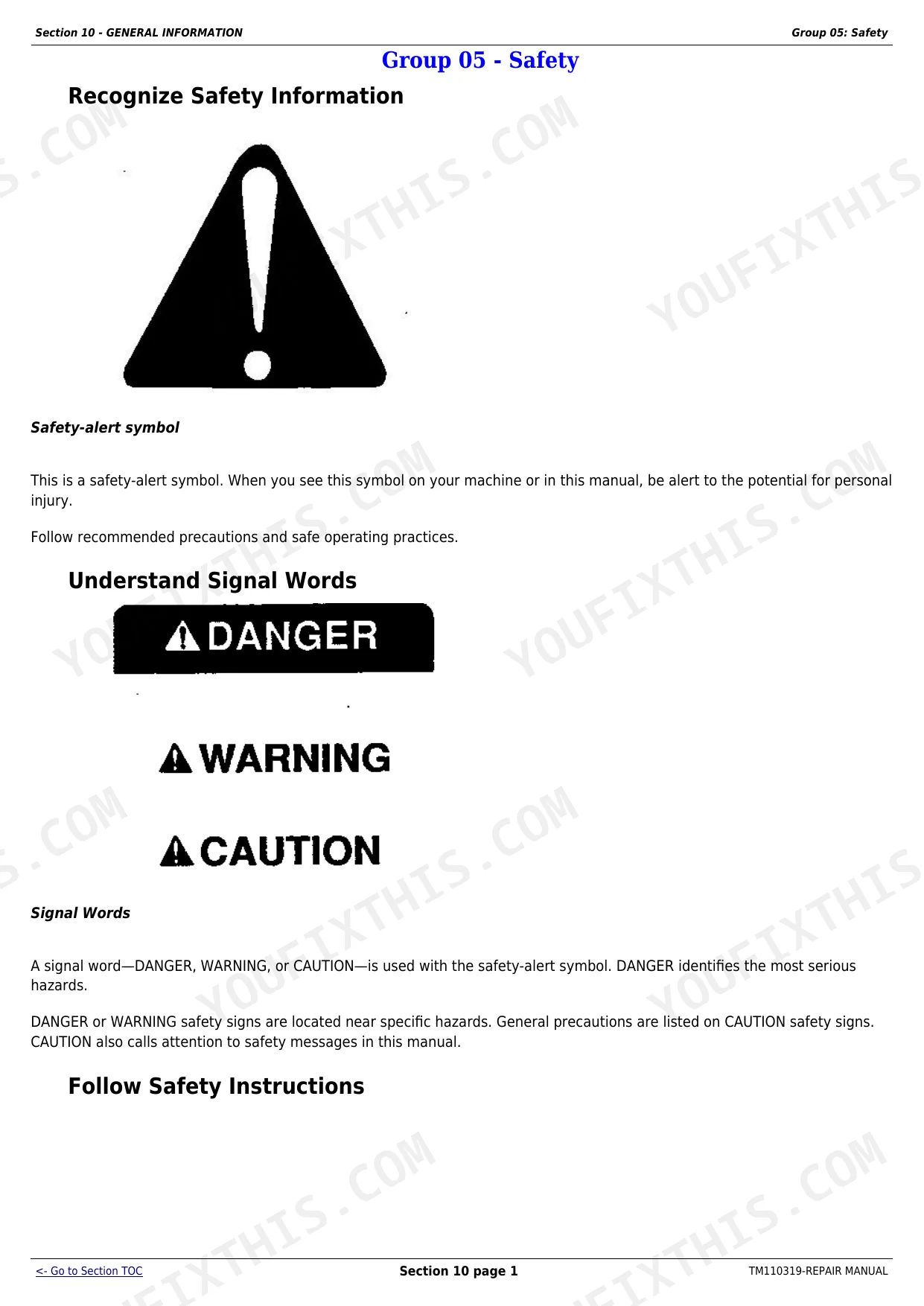

| General Information & Maintenance | 9-64 | Specifications, Maintenance intervals, Special tools |

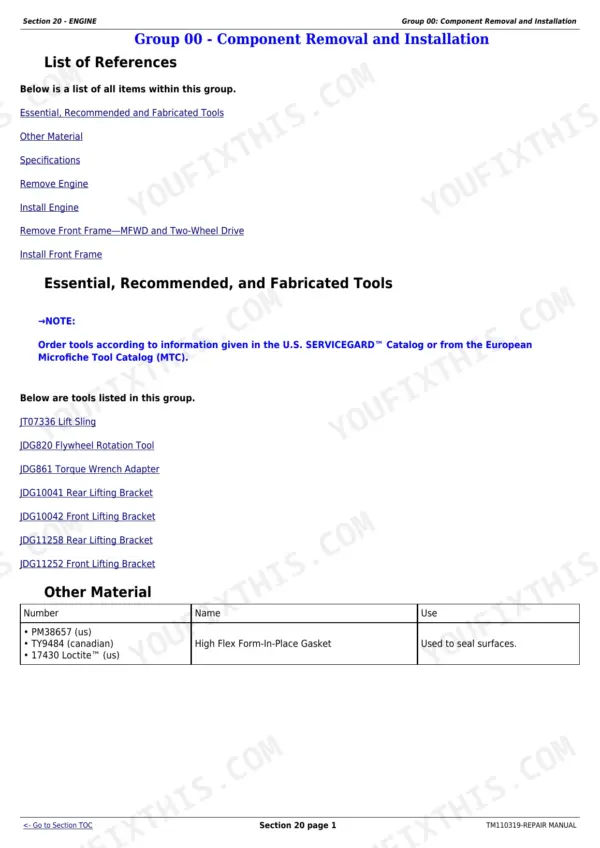

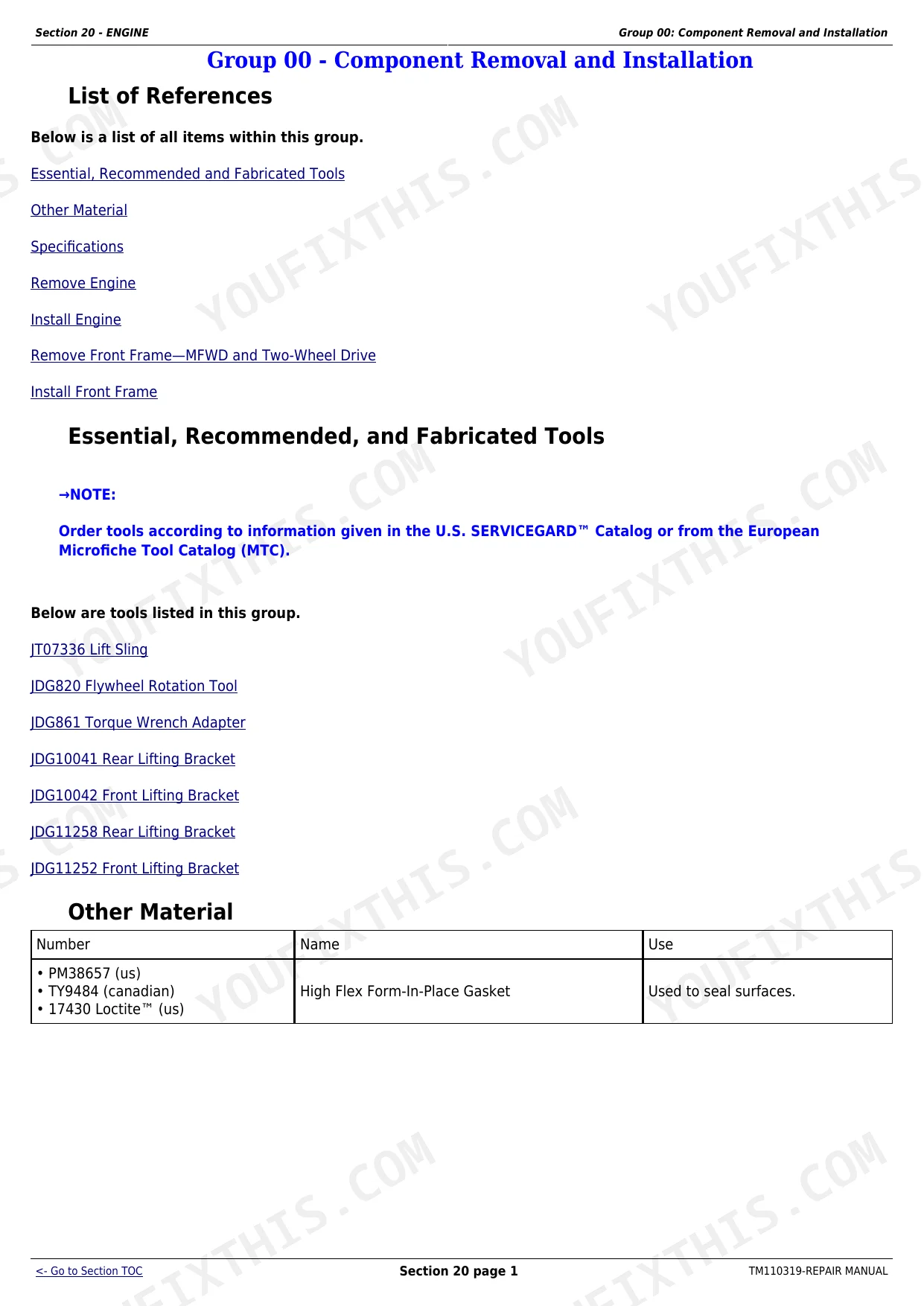

| Engine, Fuel & Cooling | 65-185 | Engine overhaul, Fuel system and injection, Cooling system |

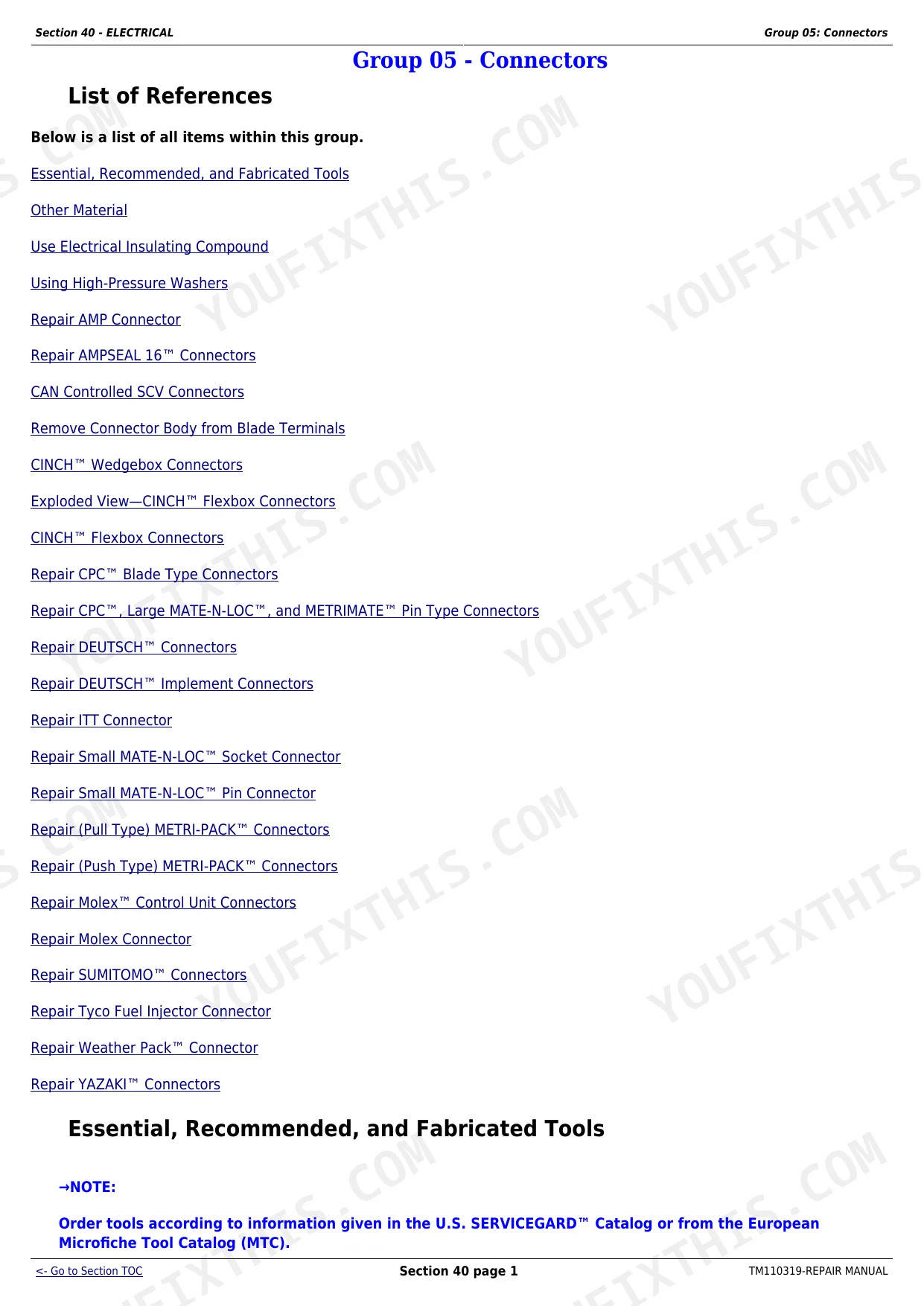

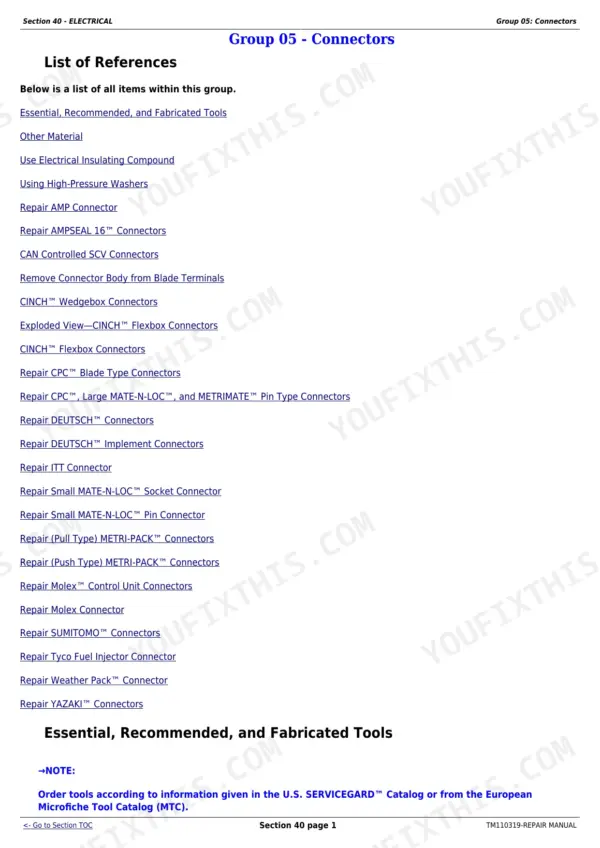

| Electrical System | 186-457 | Wiring harnesses, Control units and sensors, Lighting and instrumentation |

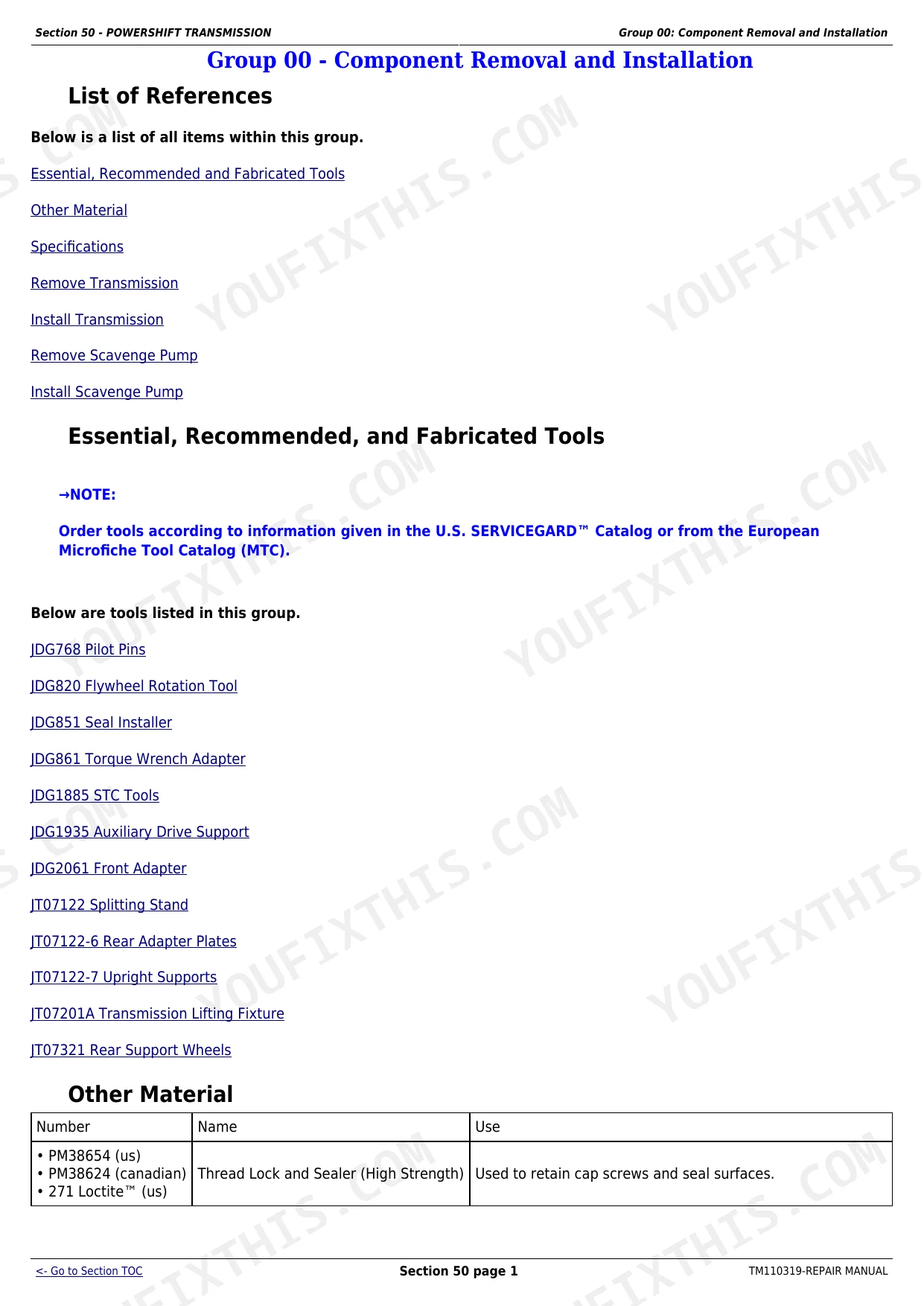

| Transmission (PowerShift & AutoPowr/IVT) | 458-821 | PowerShift transmission, AutoPowr/IVT continuously variable transmission, Clutch and control valves |

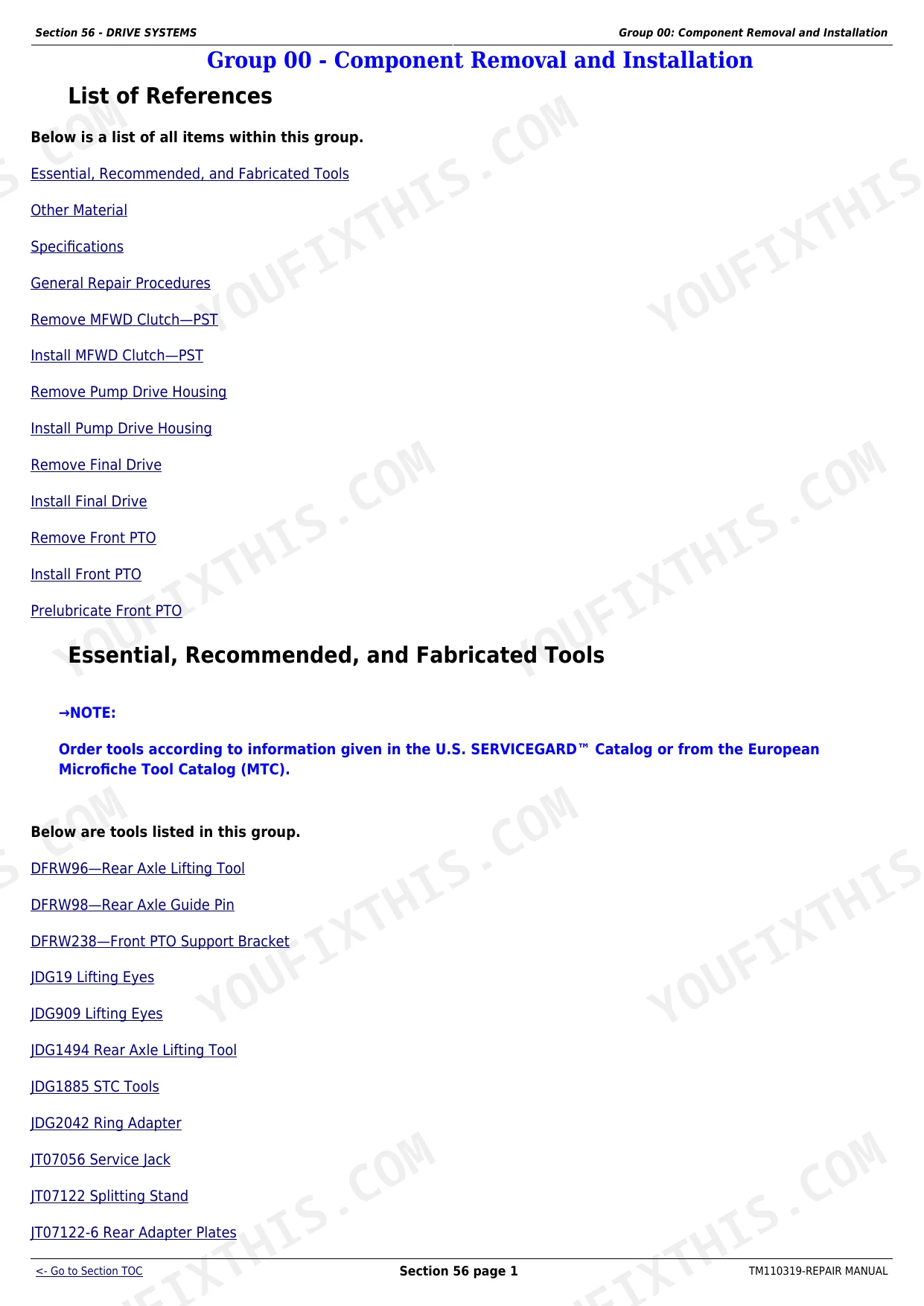

| Drive Systems & MFWD Axles | 822-1563 | Drive shafts and differentials, 1300/1500 series MFWD axles, Independent Link Suspension axle |

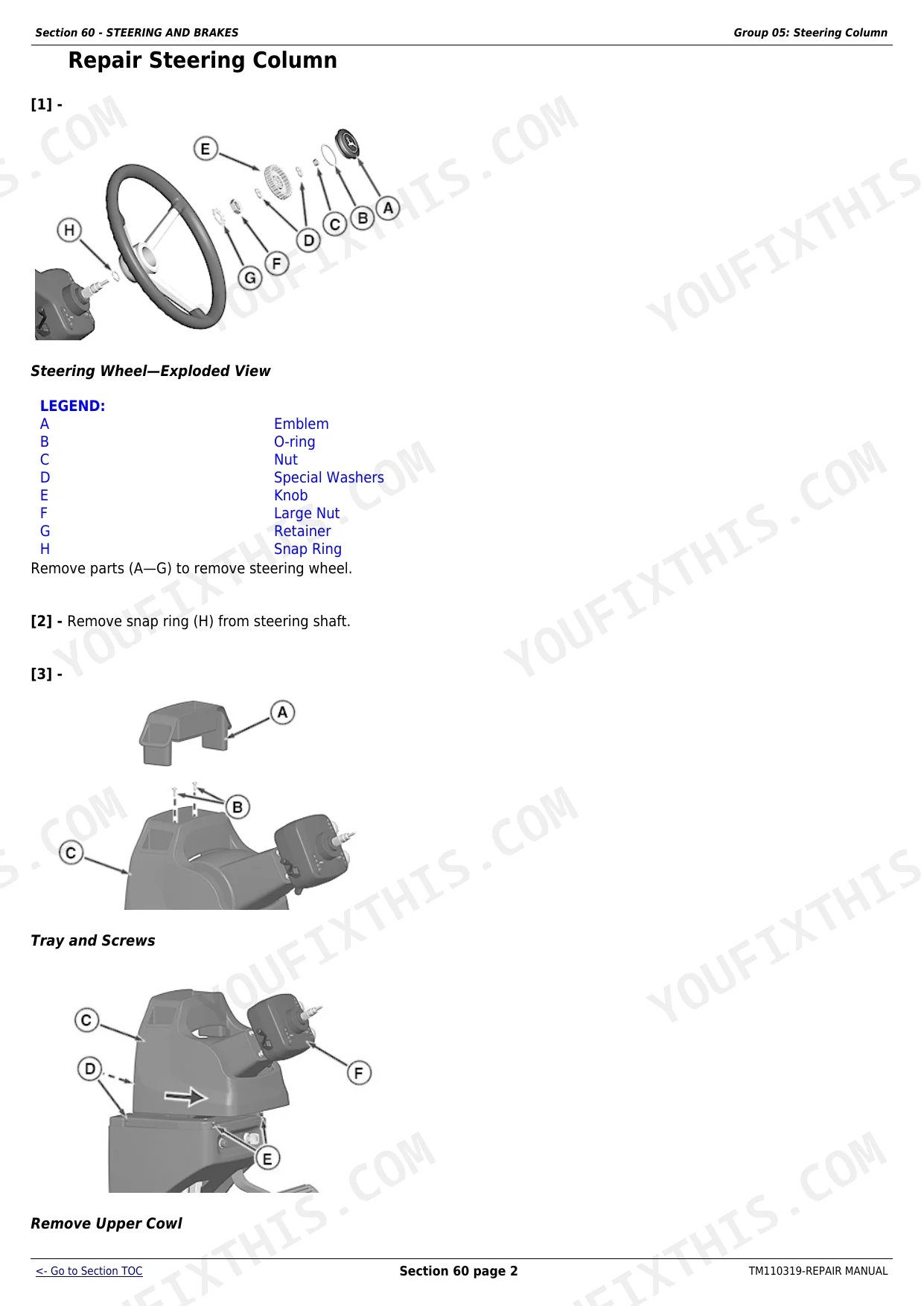

| Steering & Brakes | 1564-1668 | Hydrostatic steering, Service brakes, Park brake |

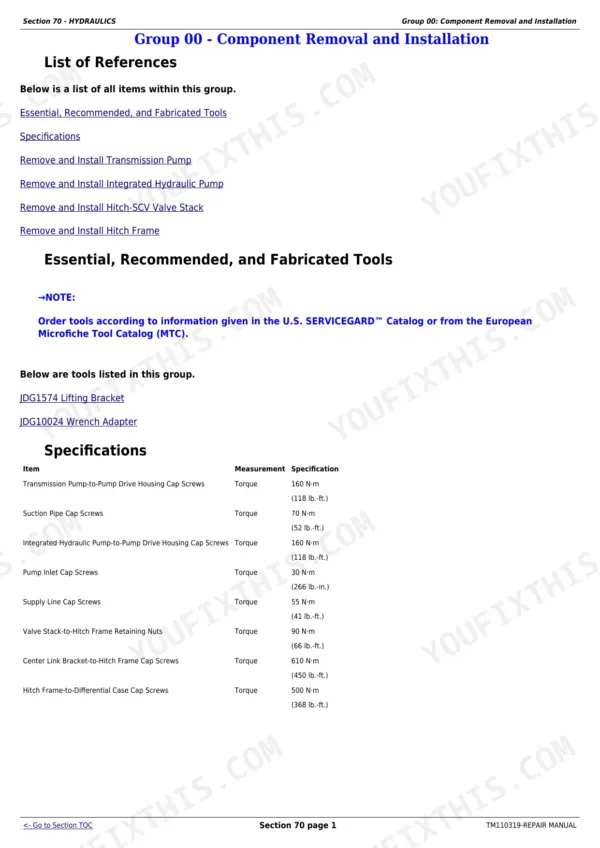

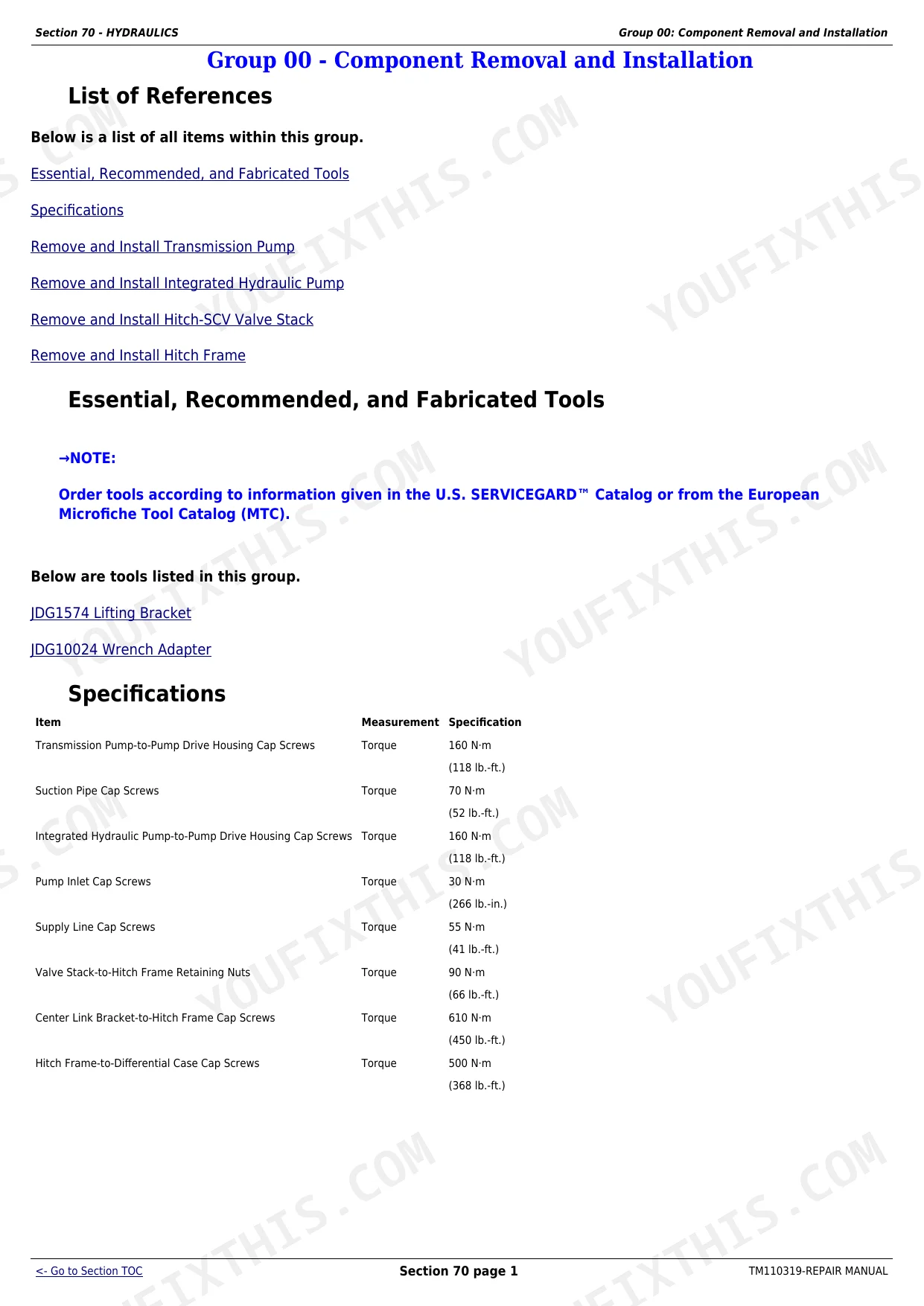

| Hydraulics | 1669-1792 | Main hydraulic pump, Selective control valves, Rockshaft and hitch control |
| Miscellaneous & Special Equipment | 1793-2105 | Cab and operator station, Special equipment and options, Reference charts |
