Part of the John Deere Repair Manuals.
This is the complete John Deere factory repair manual (TM8008) for the 6230, 6330 and 6430 Premium tractors. Across 2,069 pages it covers every major system on the machine: the 4045TL PowerTech diesel with Common Rail fuel injection, the AutoPowr/IVT and PowrQuad Plus transmissions, the PFC axial-piston hydraulic system, the AutoTrac hydrostatic steering, and the full electrical system with wiring diagrams and ECU fault codes. It is the same information a John Deere dealer technician works from, with the torque values, test pressures and fluid capacities called out so a repair is done to spec the first time.
What's Inside This John Deere 6230 Premium, 6330 Premium, 6430 Premium Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | - | |
| General Information | Dimensions and Weights, Capacities, Product Identification, Component Serial Numbers, Torque Values (Inch and Metric), Fluids and Lubricants | |
| Engine | Engine Specifications, Electronic Fuel System with Common Rail (Denso), Remove and Install, Engine Overhaul, Diesel Engine Break-In Oil, Diesel Engine Oil | |
| Fuel, Air Intake, Cooling and Exhaust System | Cooling System, Radiator, Thermostat, Coolant Additives, Diesel Fuel System, Bio-Diesel Fuel, Fuel Filters, Air Intake, Exhaust System | |
| Electrical System | Batteries, Harness and Connector Repair, Alternator, Starter Motor, Lighting, Gauges and Monitors, Wiring Diagrams | |
| Electronic Control Units | ECU Diagnostics, Fault Codes, Calibration Procedures, AutoTrac Controller, Transmission ECU | |

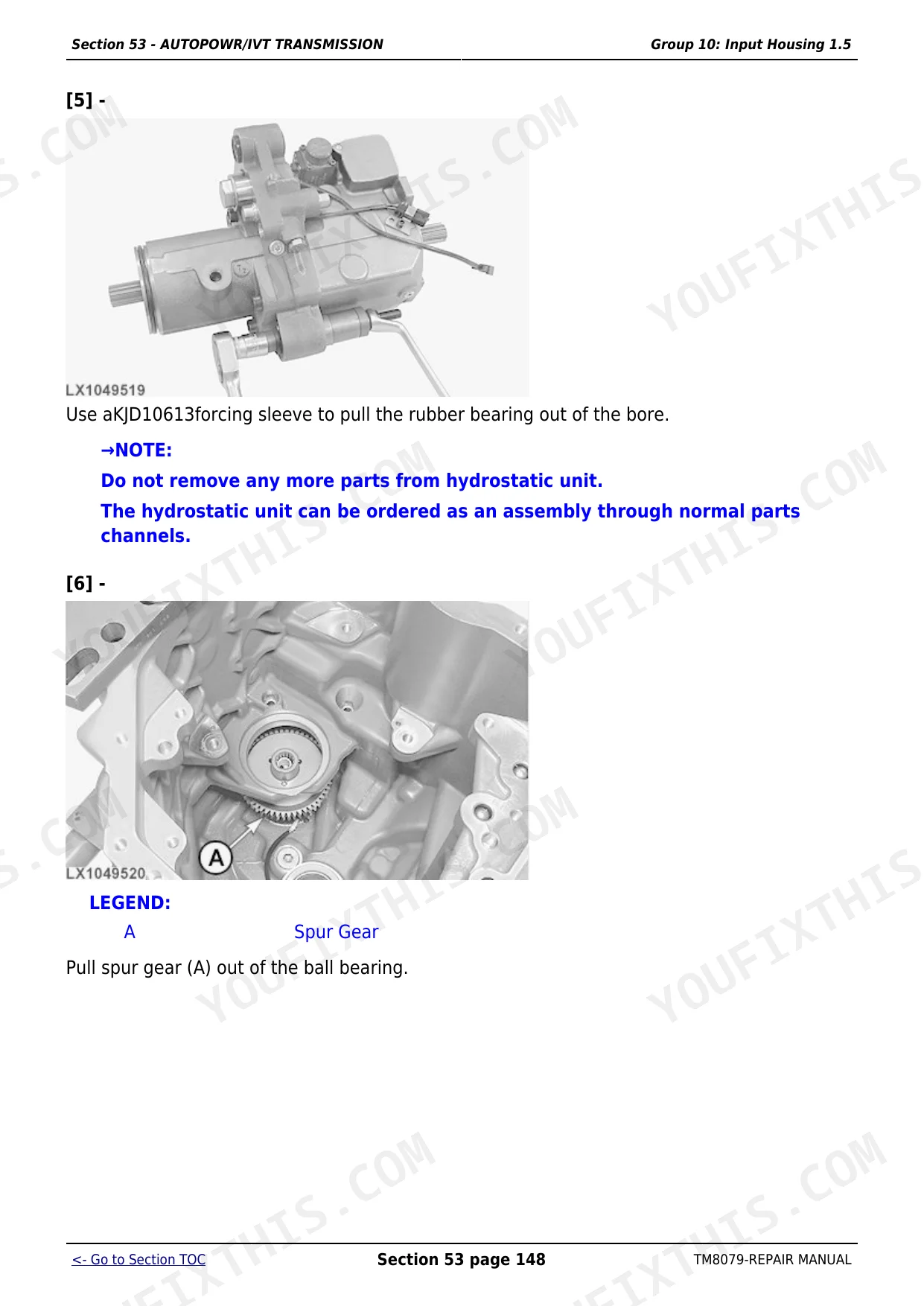

| AutoPowr/IVT Transmission | AutoPowr/IVT Transmission Removal and Installation, Disassembly and Assembly, Creeper Transmission, Transmission and Hydraulic Oil | |

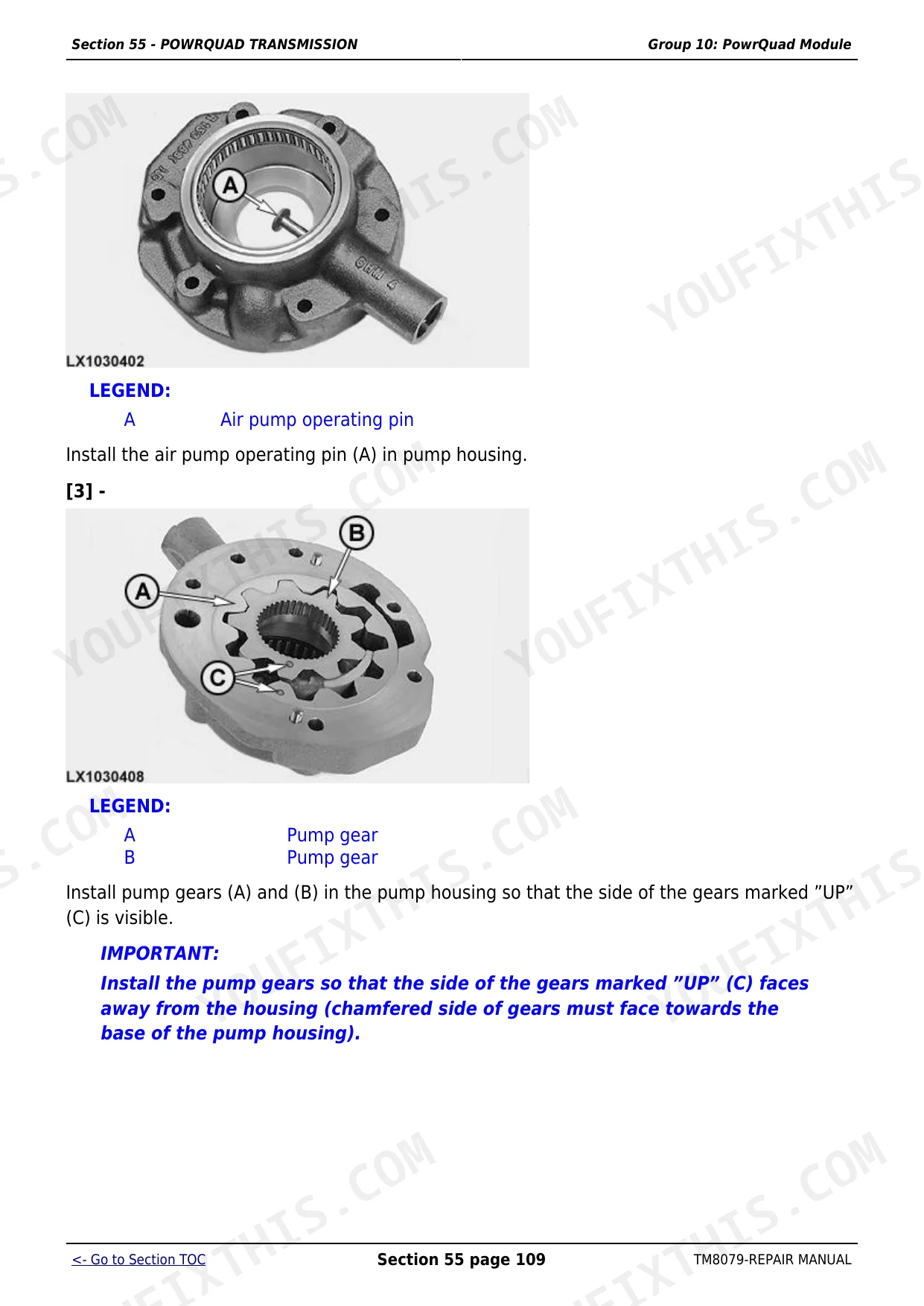

| PowrQuad Transmission | PowrQuad Plus, AutoQuad Plus, Clutch, Disassembly and Assembly | |
| Drive Train | Rear PTO, Differential Assembly, Differential Lock, Final Drives, Front-Wheel Drive, Front-Wheel Drive Axle with TLS, Front-Wheel Drive Axle Oil | |
| Steering and Brakes | Hydrostatic Steering, AutoTrac, Hydraulic Brakes, Park Lock, Steering Column | |
| Hydraulic System | Axial Piston Pump (Pfc System), Hitch, Front Hitch, Control Valves, Hydraulic Pressure Tests, Inch and Metric Fitting Torque Values | |
| Miscellaneous | Chassis, Ground Travel Speeds, Front and Rear Wheels, Tires, Ballasting | |
| Operator's Cab | Cab Suspension, Air Conditioning, Heating System, Cab Removal and Installation, Operator's Seat | |
| Special Tools | Special Tools List, Tool Specifications, Tool Usage Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 6230, 6330, 6430 Premium | ||
| Engine Model | 4045TL056 PowerTech 4.5L 4-cylinder diesel | |
| Rated Engine Speed | 2300 rpm | |
| Slow Idle Speed | 845-855 rpm | |
| Fast Idle Speed | 2455-2465 rpm | |
| Engine Cooling System | ||
| Thermostat Opening Temperature | 82 degrees C (180 degrees F) | |
| Thermostat Fully Open Temperature | 94 degrees C (202 degrees F) | |
| Cooling System | ||
| Cooling System Test Pressure | 50-60 kPa (0.5-0.6 bar; 7-8.7 psi) | |
| Radiator Cap Pressure Valve Opens At | 70-90 kPa (0.70-0.90 bar; 10-13 psi) | |
| Air Intake System | ||
| Air Cleaner Restriction Warning Switch Closes At | 5.9-6.9 kPa (59-69 mbar; 0.85-1.0 psi) | |
John Deere 6230 Premium, 6330 Premium, 6430 Premium Common Problems This Manual Covers
Tractor drops into limp mode or throws IVT fault codes during field operation
The Electronic Control Units section covers the AutoPowr/IVT transmission ECU calibration sequence and fault code table. Work through the listed calibration checks for the IVT control solenoids before pulling the transmission. Many limp-mode events trace to a low-charge-pressure condition or a failed solenoid that the calibration procedure isolates without a full teardown.
Manual Section: Electronic Control UnitsBattery drains overnight and tractor will not crank the following morning
The Electrical System section covers parasitic draw testing through the harness and connector repair procedures, and the Alternator section covers output testing to confirm whether the system is failing to charge. A common source on the 6030 Premium is a stuck starter solenoid or a chafed harness in the ignition circuit; the wiring diagrams let you trace the suspect leg without pulling the cab.
Manual Section: Electrical SystemHydraulic system overheats or loses pressure during extended loader or hitch work
Overheating points to a contaminated hydraulic filter or a worn axial piston pump failing to hold system pressure. Replace the hydraulic filter on its service interval and measure pump output pressure against the specifications in the Hydraulic System section before condemning the pump. Check the return circuit for restriction that can drive oil temperature up without an obvious external leak.
Manual Section: Hydraulic SystemEngine runs rough, loses power or smokes under load
On the 4045TL Common Rail engine, rough running with power loss most often comes from a clogged fuel pre-filter or water contamination in the fuel system. The Fuel, Air Intake, Cooling and Exhaust section covers the Common Rail fuel system service procedure including injector return-flow testing, so you can isolate a failing injector from a supply-side restriction before swapping expensive parts.
Manual Section: Fuel, Air Intake, Cooling and Exhaust SystemFrequently Asked Questions
What engine does the John Deere 6230, 6330 and 6430 Premium use?
All three models run the John Deere 4045TL056 PowerTech 4.5L 4-cylinder diesel with Common Rail fuel injection by Denso. The manual lists rated speed at 2300 rpm, slow idle at 845-855 rpm and fast idle at 2455-2465 rpm, along with oil and coolant capacities so you service the right engine without guessing.
How do I diagnose and clear IVT fault codes on a John Deere 6430 Premium?
The Electronic Control Units section covers the transmission ECU calibration procedures and fault code lookup for the AutoPowr/IVT unit. The AutoPowr/IVT Transmission section then details the valve body, clutch packs and disassembly steps so you can move from code to root cause without sending the machine to a dealer.
Why does the hydraulic loader on a 6330 Premium drop or operate slowly?
Slow or dropping loader operation usually points to a worn axial piston pump, a clogged filter, or low hydraulic pressure. The Hydraulic System section covers removing and testing the PFC axial piston pump, checking control valves and measuring system pressure so you can confirm the fault before replacing parts.
What torque specs apply to hydraulic fittings on the 6230/6330/6430 Premium?
The Hydraulic System section has separate tables for Inch Fitting Torque Values and Metric Fitting Torque Values. The General Information section also carries the master inch and metric bolt and cap screw torque charts used across all assemblies.
Does this manual cover the AutoTrac assisted steering system?
Yes. The Steering and Brakes section covers the hydrostatic steering and AutoTrac system together, and the Electronic Control Units section covers the AutoTrac controller calibration and fault codes. Both sections include the pressure tests and adjustment procedures used to set the system back to factory alignment.
