This is the factory Repair Manual (TM2267, September 2013) for John Deere 9230, 9330, 9430, 9530 and 9630 4WD articulated tractors. It walks through full teardown and reassembly for the engine, 18-speed power shift and mechanical shift transmissions, drive systems, axles, steering, hydraulics and the tractor's articulation joint (hinge and gudgeon), with the same torque values and repair steps a John Deere dealer technician uses.
What's Inside This John Deere 9230–9630 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-75 | Safety Procedures, Torque Values, Sealants and Adhesives, Dealer Predelivery Information |

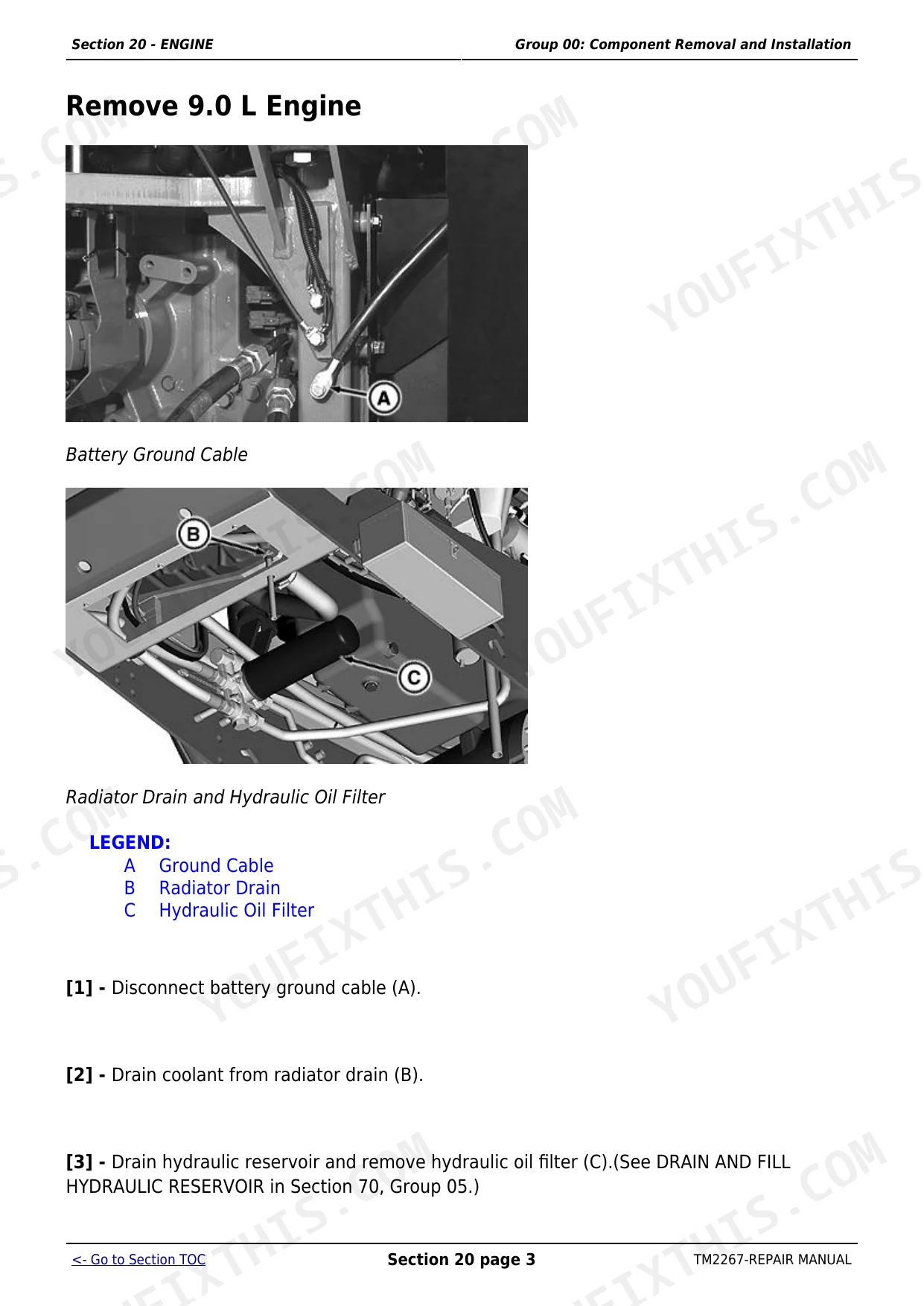

| Engine | 76-105 | Component Removal and Installation, Engine Repair (9.0L and 13.5L) |

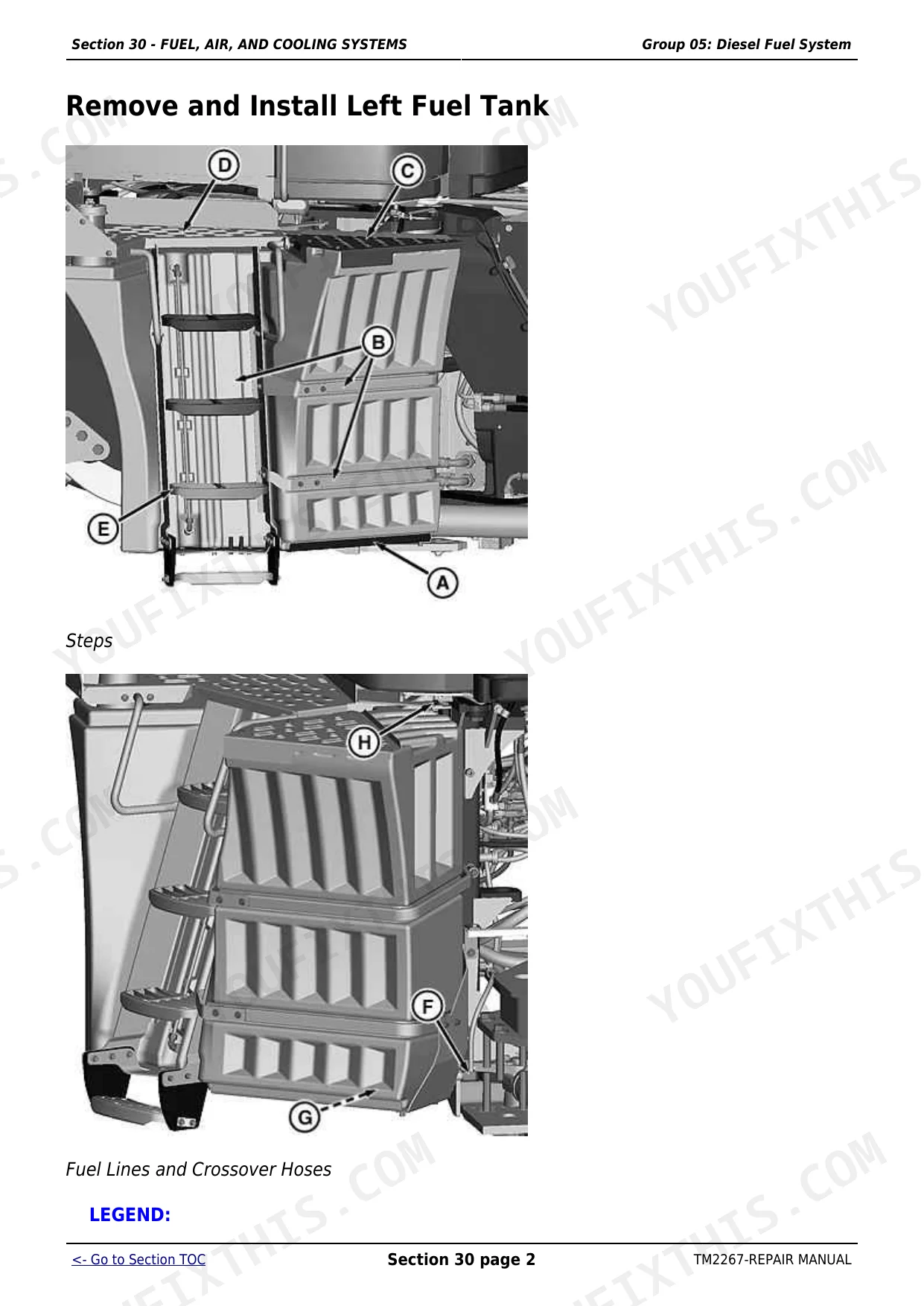

| Fuel, Air, and Cooling Systems | 106-244 | Diesel Fuel System, Air Intake and Exhaust, Engine Cooling System, Oil Coolers |

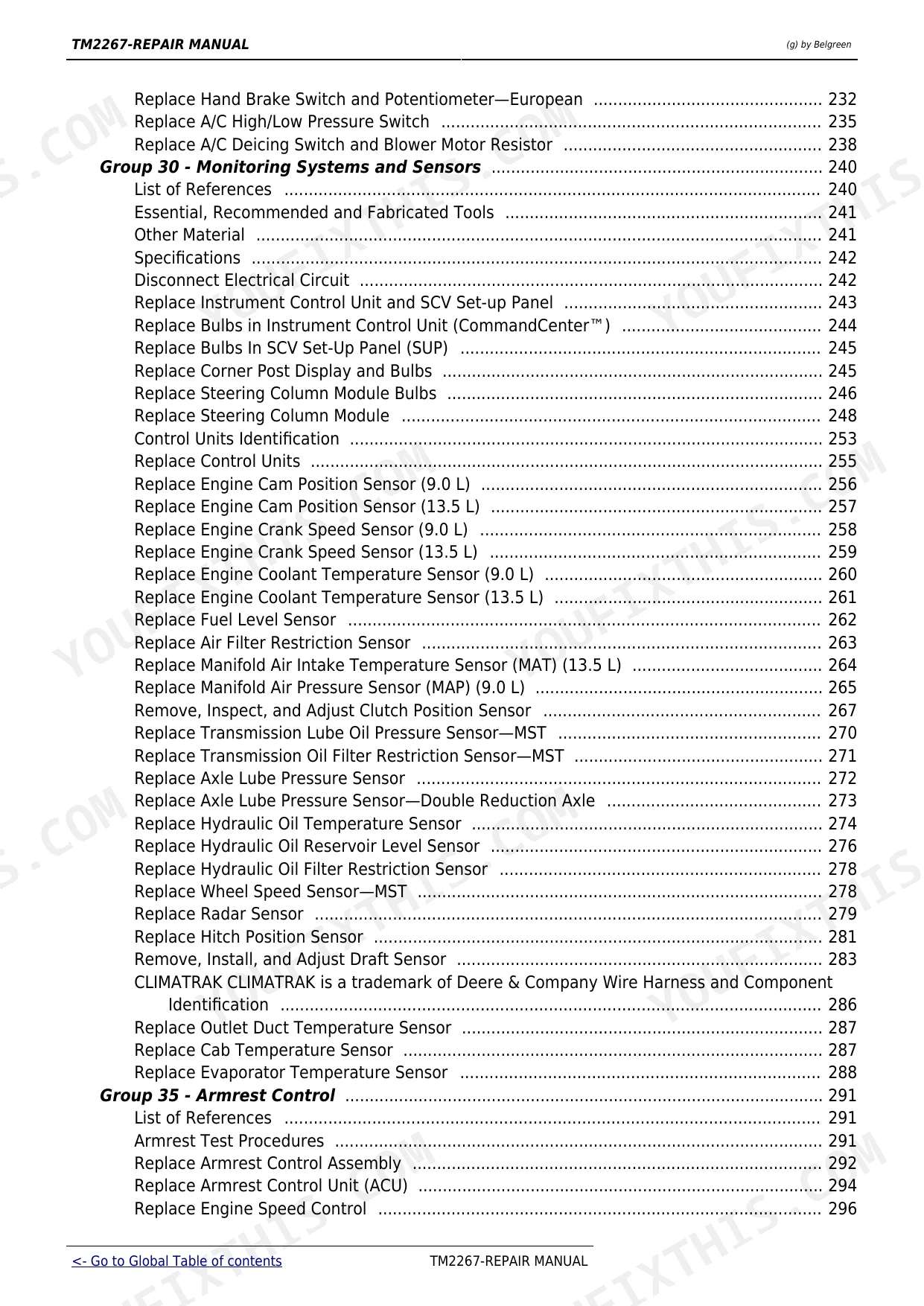

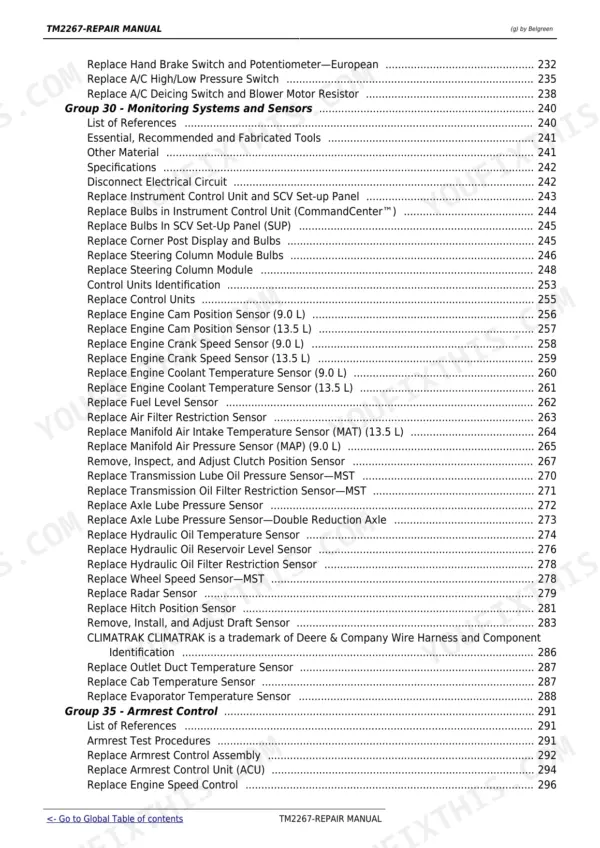

| Electrical | 245-572 | Connectors and Wiring Harnesses, Charging and Starting Circuits, Monitoring Systems and Sensors, Armrest Control |
| Transmission | 573-867 | 18-Speed Power Shift Transmission, Mechanical Shift Transmission (Mst), Clutch and Planetary Gear Drives, Shift Levers and Linkage |

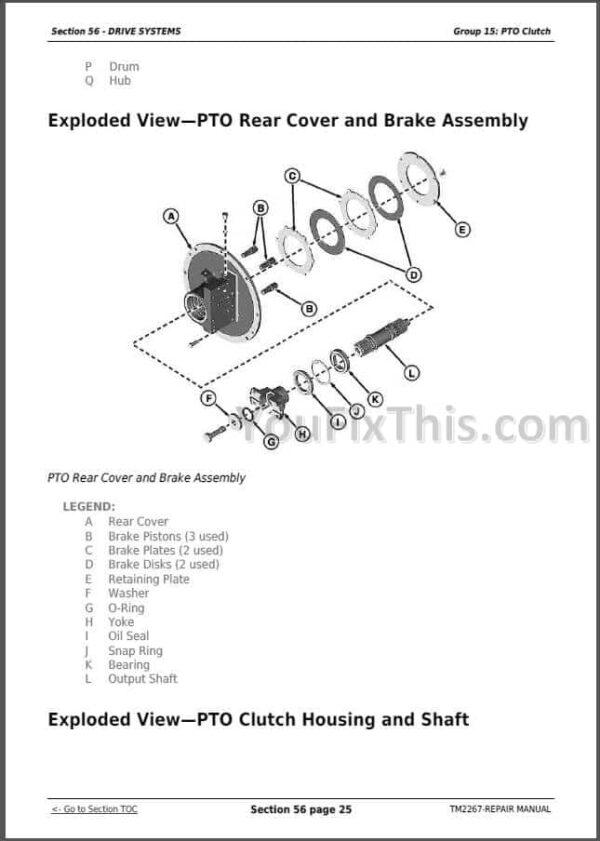

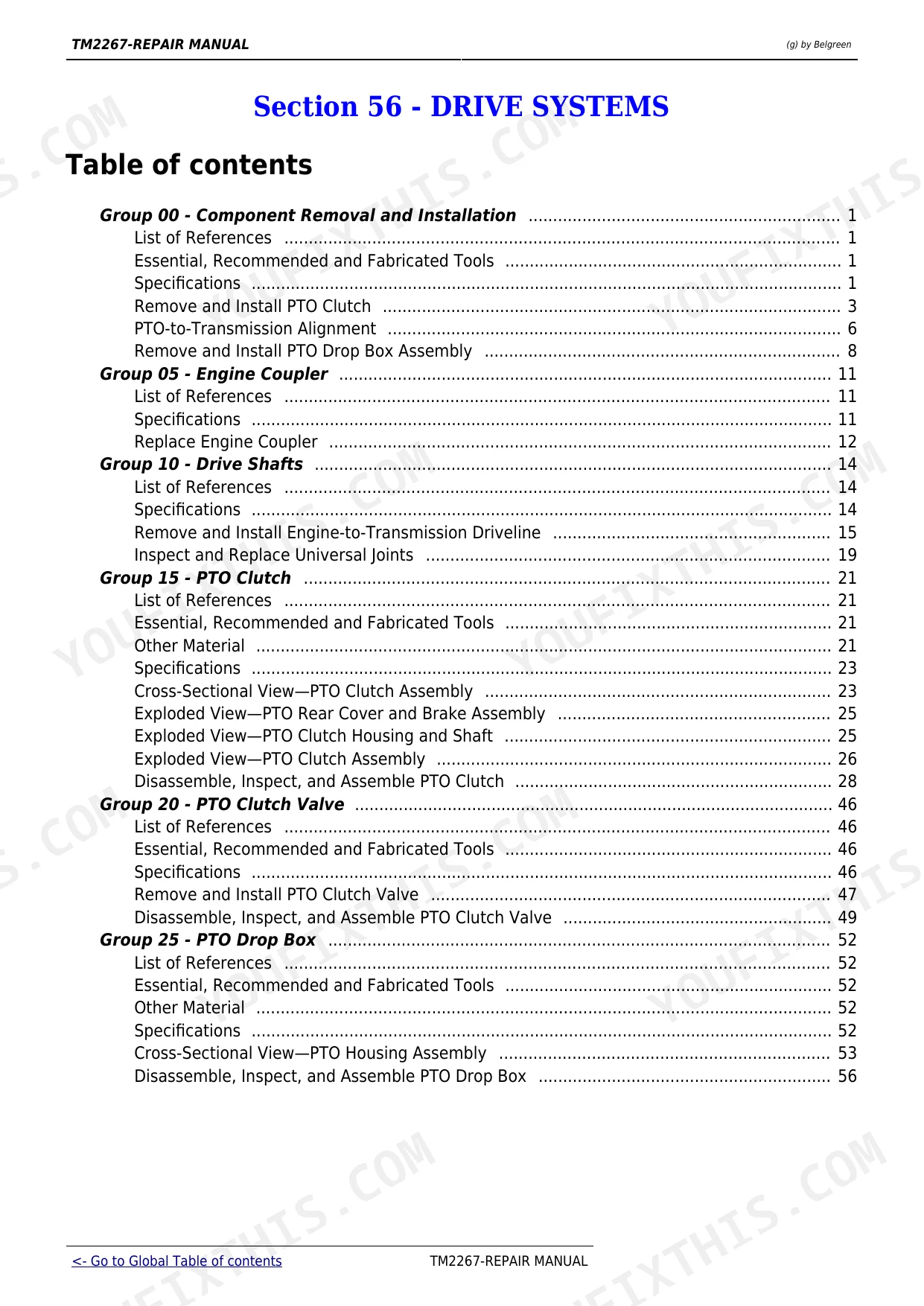

| Drive Systems | 868-930 | Engine Coupler, Drive Shafts, PTO Clutch, PTO Drop Box |

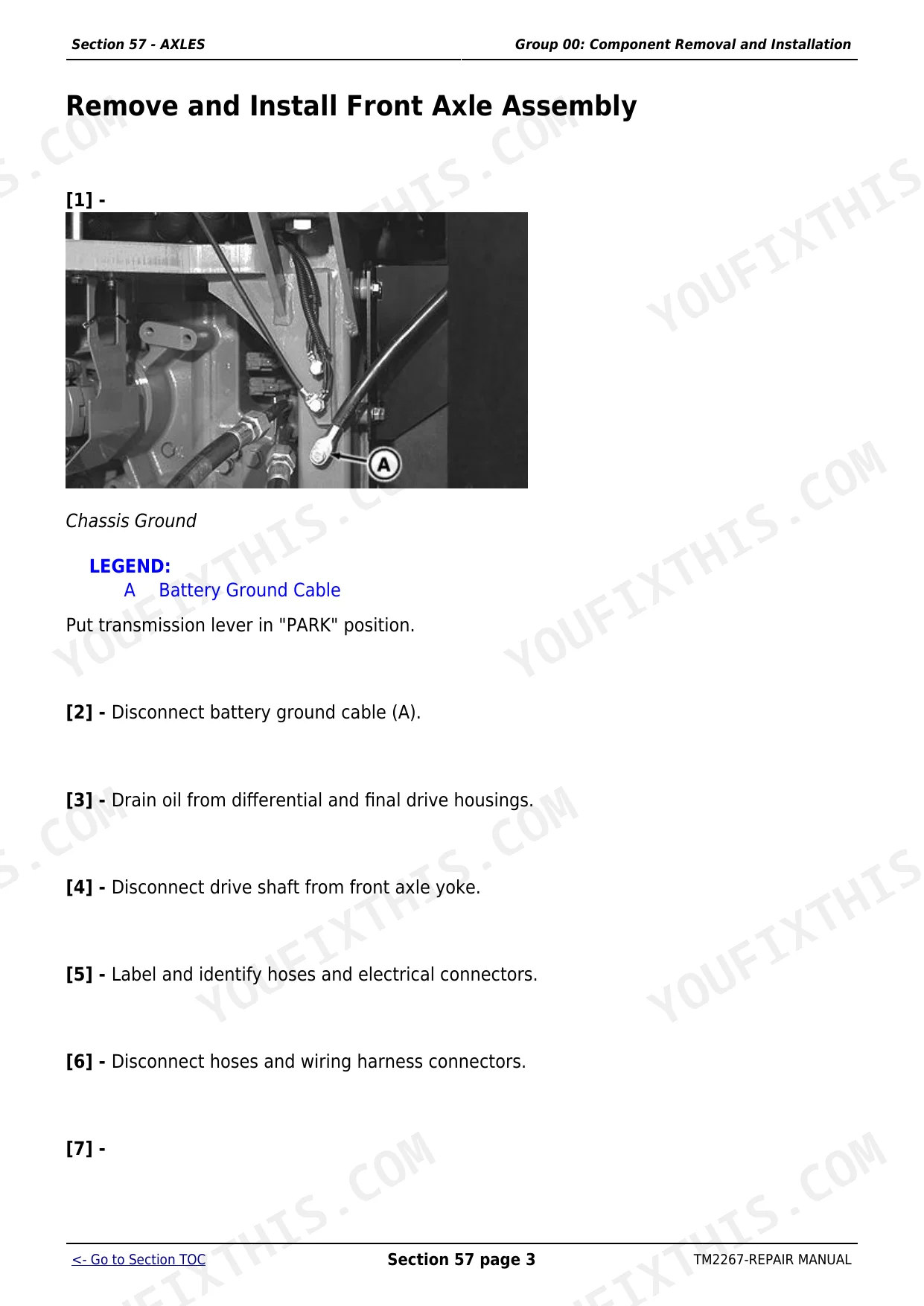

| Axles | 931-1183 | Input Housing, Differential, Final Drives, Brakes, Double Reduction Axles |
| Steering and Brakes | 1184-1283 | Steering Column, Steering Control Valve, Steering Cylinders, Secondary Steering |
| Hydraulics | 1284-1493 | Hydraulic Pump, Axle Lubrication Pumps, Hitch Valve, Selective Control Valves |
| Miscellaneous | 1494-1517 | Hood and Side Panels, Heavy-Duty Wheels |
| Operator Station | 1518-1729 | HVAC and Air Conditioning, Air Suspension Seat, Active Seat, Cab Door and Windshield |
| Hinge and Gudgeon | 1730-1802 | Hinge Pins and Bushings, Gudgeon Journal Bearings and Thrust Bearings, Gudgeon Spindle (Articulation Joint Service) |

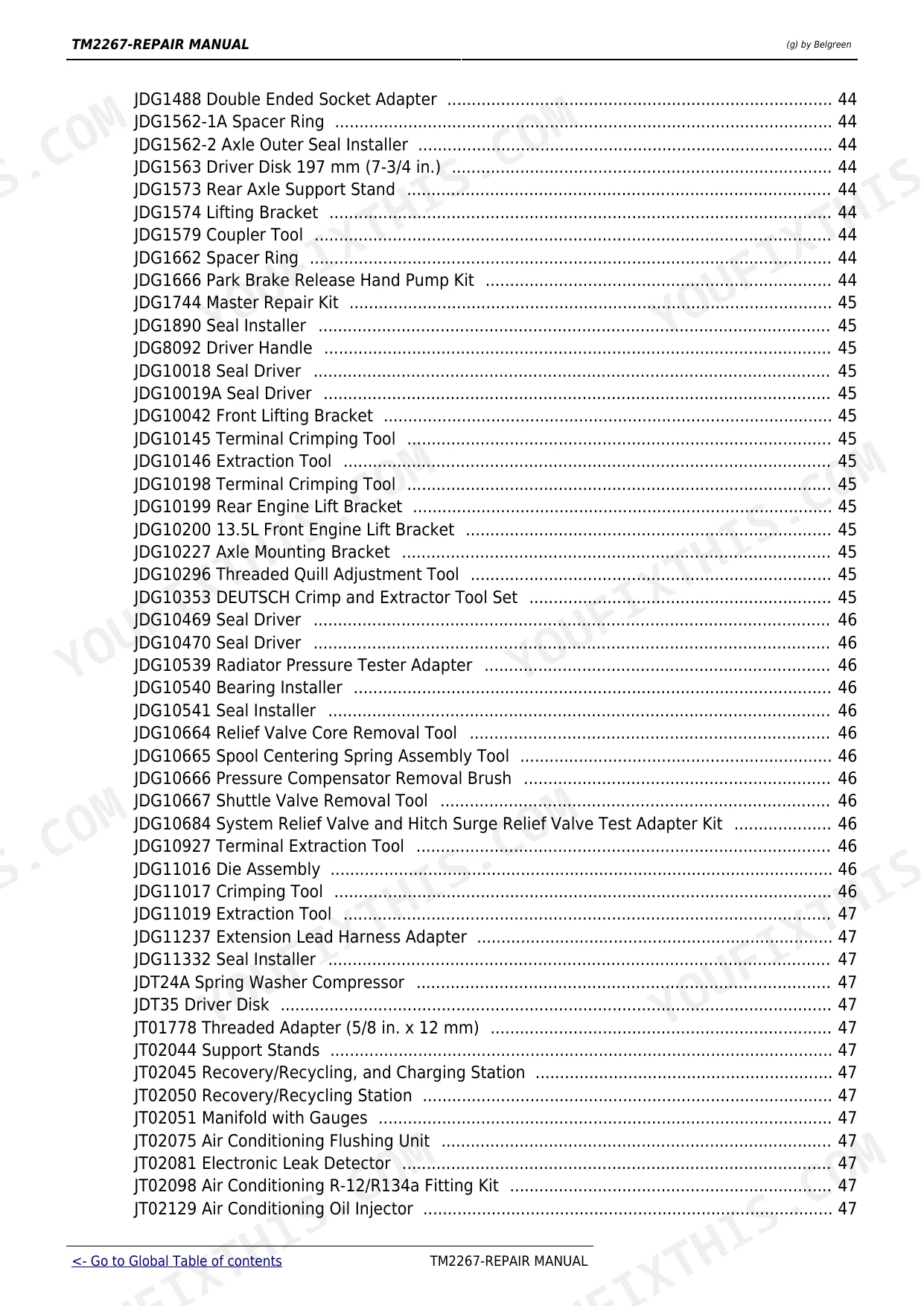

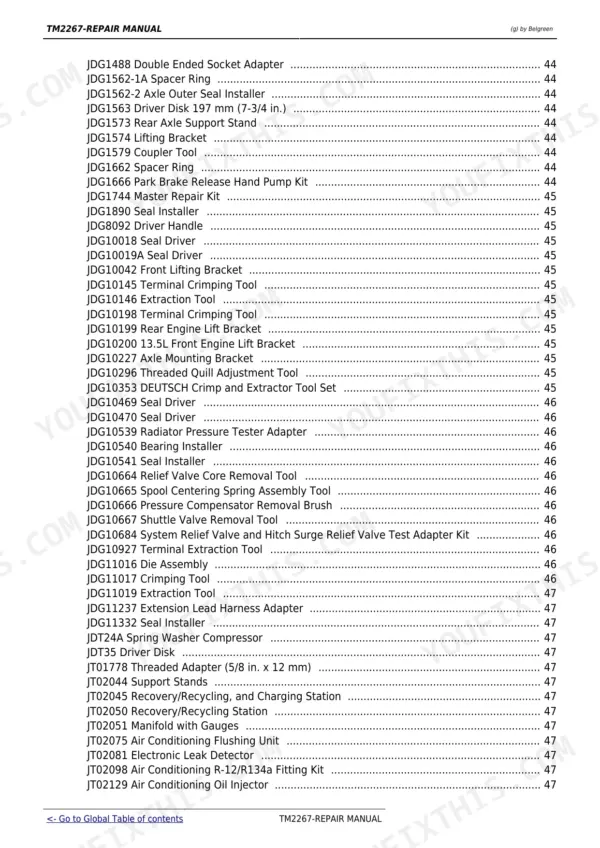

| Dealer Tools | 1803-1851 | Fabricated Special Tools, Essential and Recommended Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Mount-to-Frame Cap Screws Torque | 325 N·m (240 lb-ft) | p. 77 |
| Engine Coupler-to-Drive Shaft Cap Screws Torque | 210 N·m (155 lb-ft) | p. 77 |
| Radiator / Radiator Cap Pressure Test | 60-80 kPa (9-12 psi) | p. 125 |
| Hood/Side Panel Screws Torque | 6 N·m (53 lb-in) | p. 1494 |
John Deere 9230–9630 Common Problems This Manual Covers
Engine mount bolts loosen or fail after an engine removal and reinstall
Reinstalling the 9.0L or 13.5L engine without hitting the specified mount torques is a common cause of repeat failures. Torque the Engine Mount-to-Frame Cap Screws to 325 N·m (240 lb-ft) and the Engine Coupler-to-Drive Shaft Cap Screws to 210 N·m (155 lb-ft), following the Section 20 removal and installation procedure in order rather than tightening by feel.
Manual Section: Engine p. 77Coolant loss or overheating with no obvious external leak
Before chasing a head gasket or hose, pressure-test the radiator and radiator cap. Both should hold 60-80 kPa (9-12 psi); a cap or radiator that will not hold that pressure is losing coolant internally or venting it, not leaking visibly, and the Engine Cooling System group covers the test procedure and part replacement.
Manual Section: Fuel, Air, and Cooling Systems p. 124Play or leakage develops at the tractor's articulation joint
The 9030 Series steers by articulating at the gudgeon, so worn journal bearings, thrust bearings or wear plates there show up as steering play or wander. Section 95 walks through hinge pin and bushing replacement and separate standard-duty and severe-duty gudgeon bearing and spindle procedures so the right rebuild kit and process are used for the machine's duty class.
Manual Section: Hinge and Gudgeon p. 1730A warning light or fault code appears and the cause is not obvious
This Repair manual does not include fault code lists or diagnostic trees; read the code with the companion TM2254 Diagnosis and Tests manual first to identify the failed component, then come back to this book's matching section for the actual teardown and repair procedure.
Manual Section: General InformationFrequently Asked Questions
Does this manual cover diagnostic trouble codes or CommandCenter resets for the 9230-9630?
No. This is the Repair manual (TM2267), covering teardown and reassembly procedures only. Diagnostic trouble codes, CommandCenter resets and troubleshooting for these same models live in the companion Diagnosis and Tests manual (TM2254).
What is the correct torque for the engine mounting bolts?
Engine Mount-to-Frame Cap Screws torque to 325 N·m (240 lb-ft) and the Engine Coupler-to-Drive Shaft Cap Screws torque to 210 N·m (155 lb-ft), per the Engine section's removal and installation specifications table. p. 77
Does the manual cover the articulation joint (gudgeon)?
Yes. Section 95, Hinge and Gudgeon, covers hinge pin and bushing replacement plus journal bearing, thrust bearing and spindle service for both the standard-duty and severe-duty gudgeon, the pivot joint that lets these 4WD articulated tractors steer. p. 1730
What is the radiator pressure test spec for the cooling system?
The radiator and radiator cap both test to 60-80 kPa (9-12 psi), per the Engine Cooling System specifications in Section 30. p. 124
