Part of the John Deere Repair Manuals.
Pull up this John Deere 2025R Technical Manual PDF (OEM TM127019) and you have 1,200 pages of factory-direct service data covering the Compact Utility Tractor 2025R from cold start to final torque. Inside: a full diesel engine section spanning theory, diagnostics, tests, and repair; a complete hydrostatic power train chapter with component location, operation, and teardown procedures; and a dedicated hydraulics section with full fluid routing schematics. Electrical coverage spans system schematics for both domestic and export configurations, with a diagnostics and operation chapter to walk fault isolation from symptom to fix. Set charge pressure relief to 690 kPa, torque the hydraulic filter cover to 80 N·m (59 lb.-ft.), and fill the 1.267L engine with 3.2L of oil before startup. Every hour your tractor sits costs money. Grab the download, hit a bookmark, and get the right answer the first time.
What's Inside This John Deere 2025R Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-30 | Recognize Safety Information, Understand Signal Words, Replace Safety Signs, Handle Fluids Safely, Avoid Fires, Prepare for Emergencies, Prevent Battery Explosions |

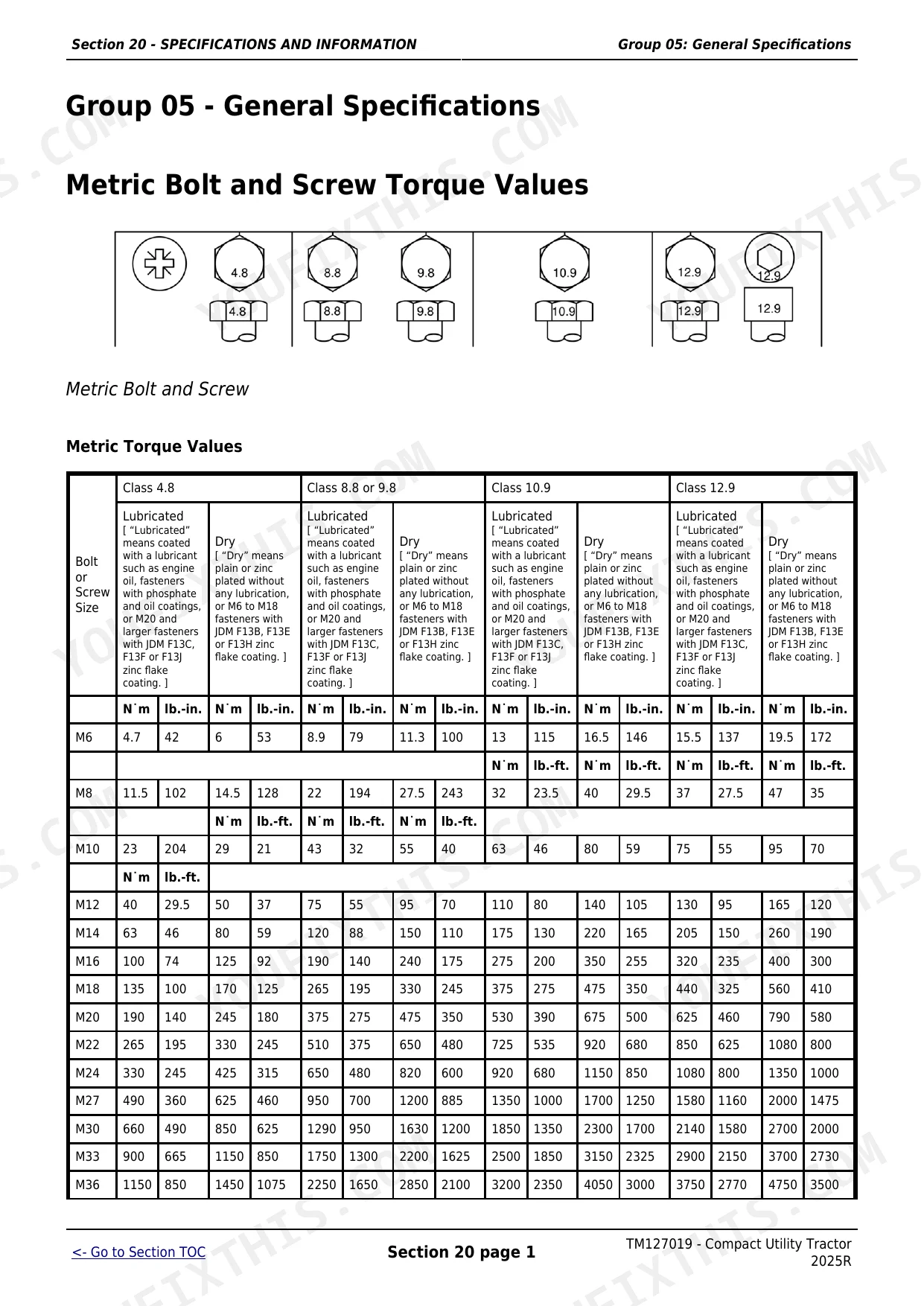

| Specifications and Information | 31-58 | Group 05 - General Specifications, Group 10 - Fuel and Lubricants, Group 15 - Serial Number Locations |

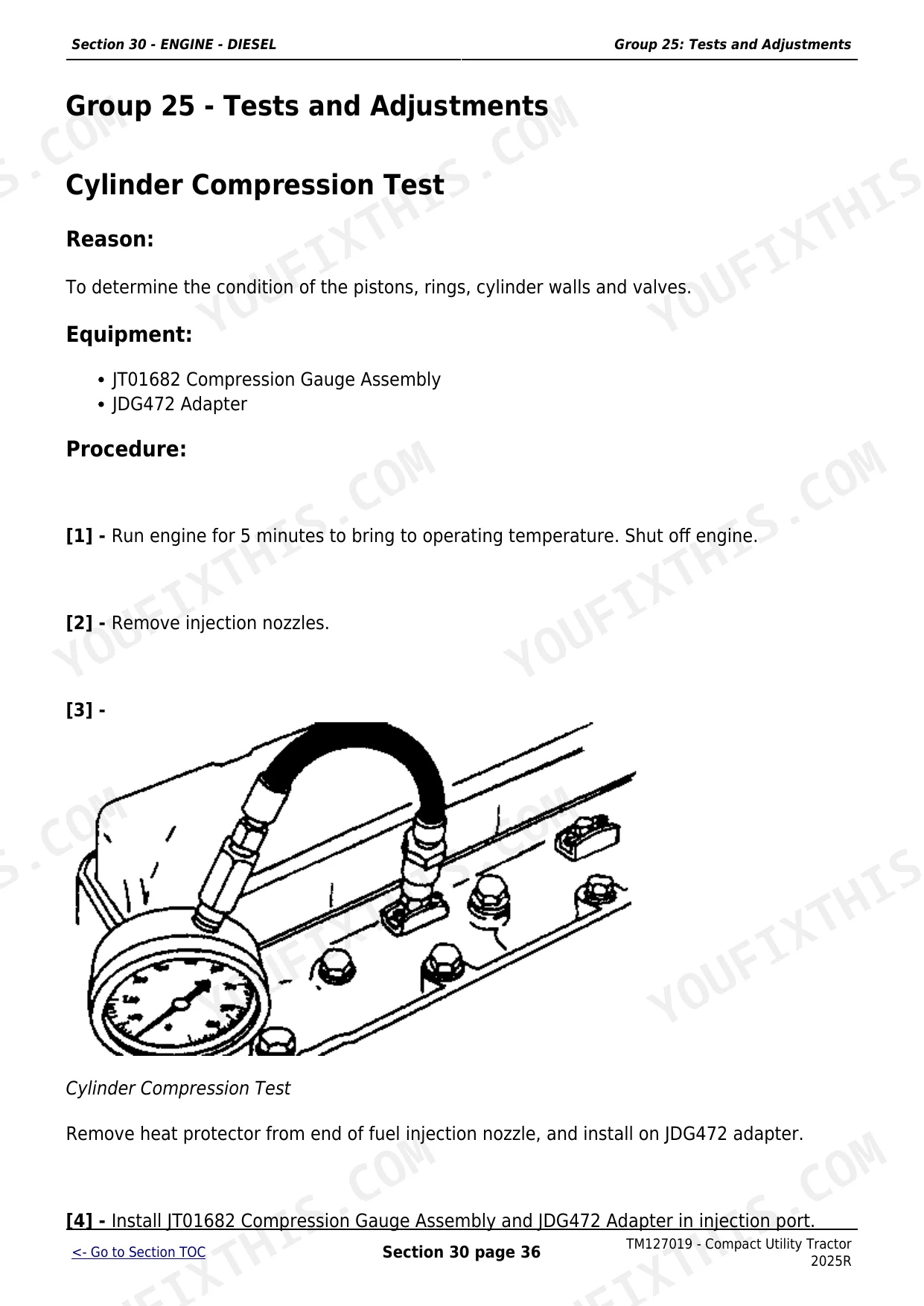

| Engine - Diesel | 59-331 | Group 05 - Specifications, Group 10 - Theory of Operation, Group 15 - Component Location, Group 20 - Diagnostics, Group 25 - Tests and Adjustments, Group 30 - Repair |

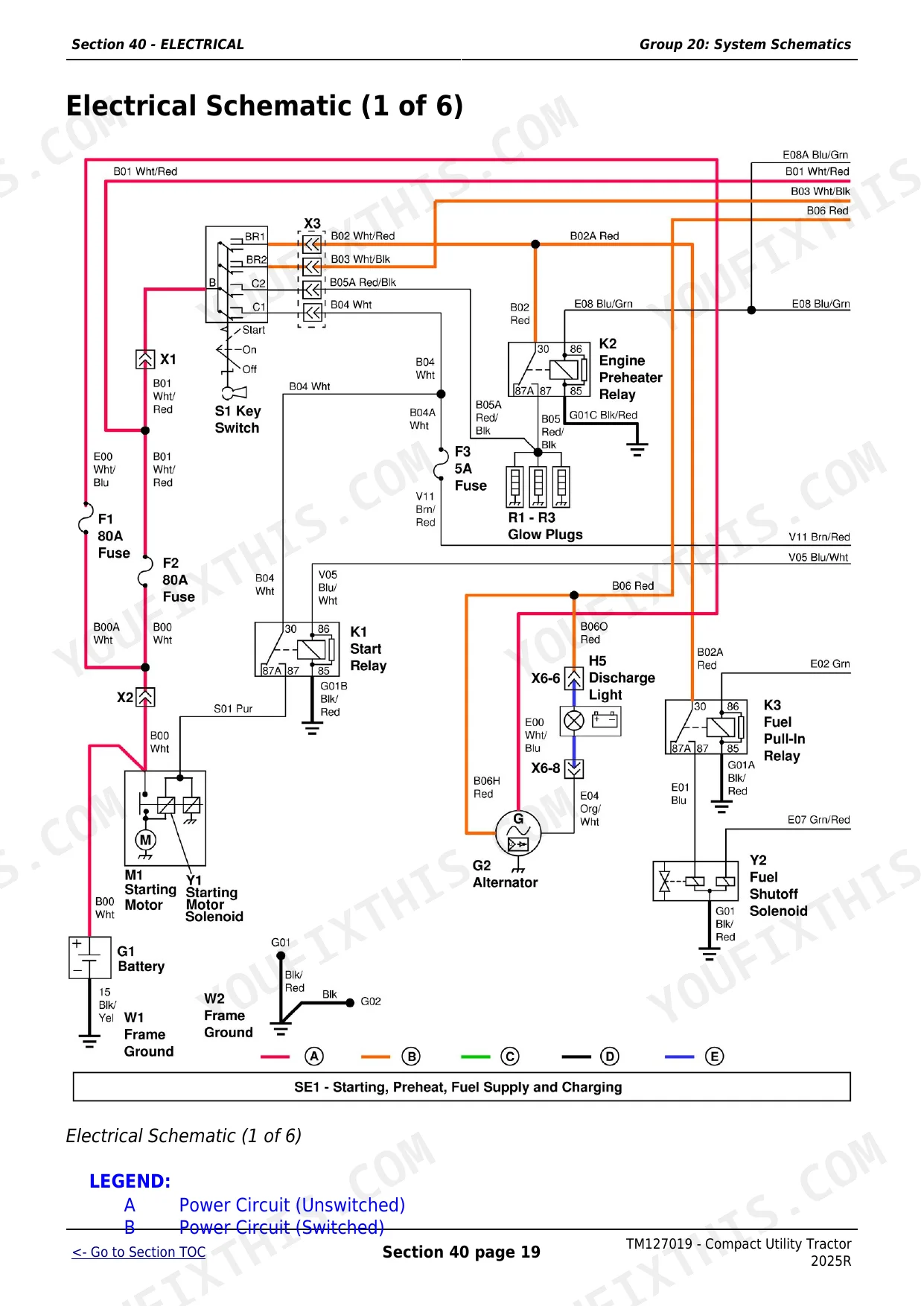

| Electrical | 332-591 | Group 05 - General Information, Group 10 - Specifications, Group 15 - Component Location, Group 20 - System Schematics, Group 25 - Diagnostics & Operation |
| Export Electrical | 592-754 | Specifications, Component Location, System Schematics, Diagnostics & Operation, Tests and Adjustments |

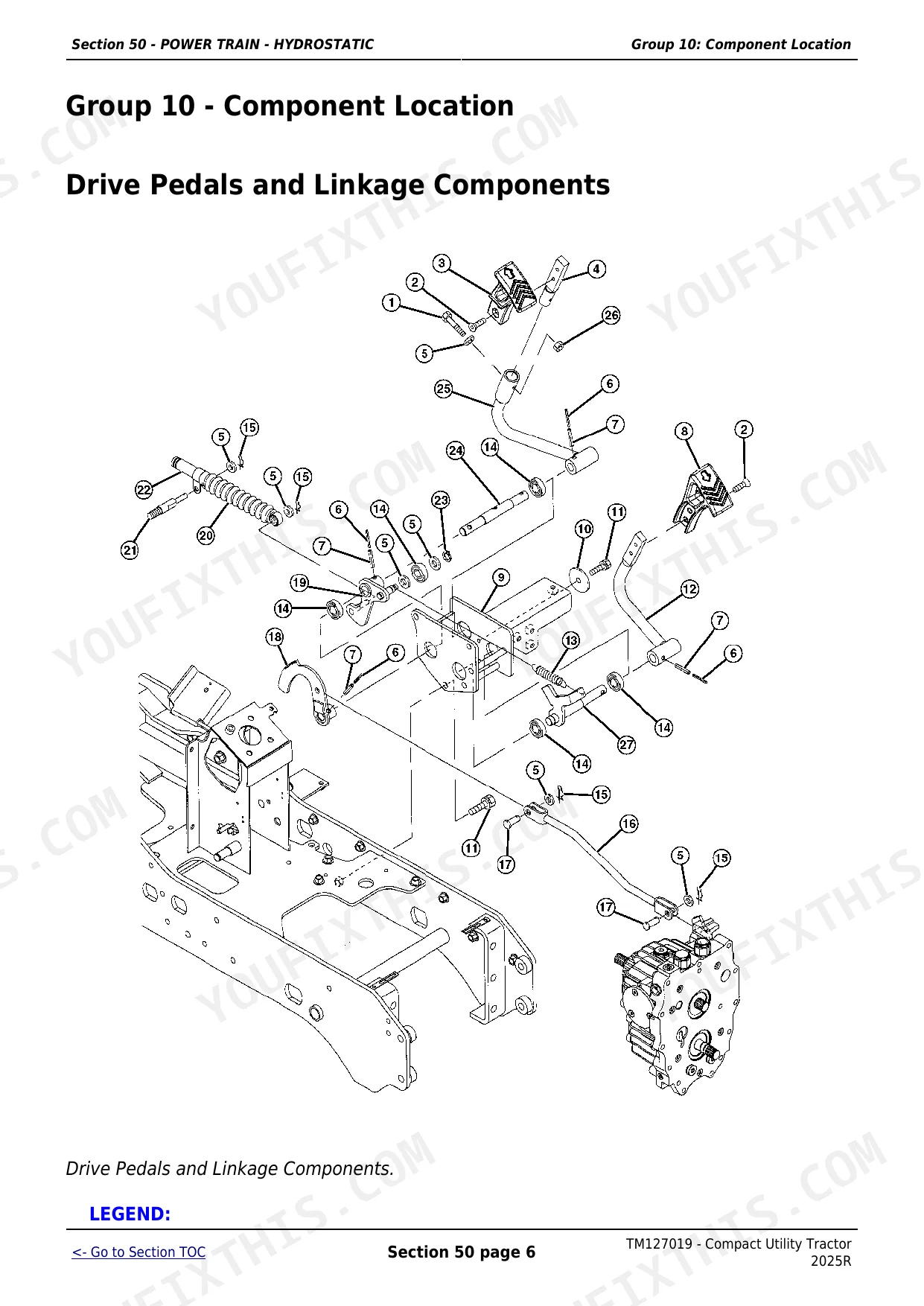

| Power Train - Hydrostatic | 755-958 | Group 05 - Specifications, Group 10 - Component Location, Group 15 - Theory of Operation, Group 20 - Diagnostics, Group 25 - Tests and Adjustments, Group 30 - Repair |

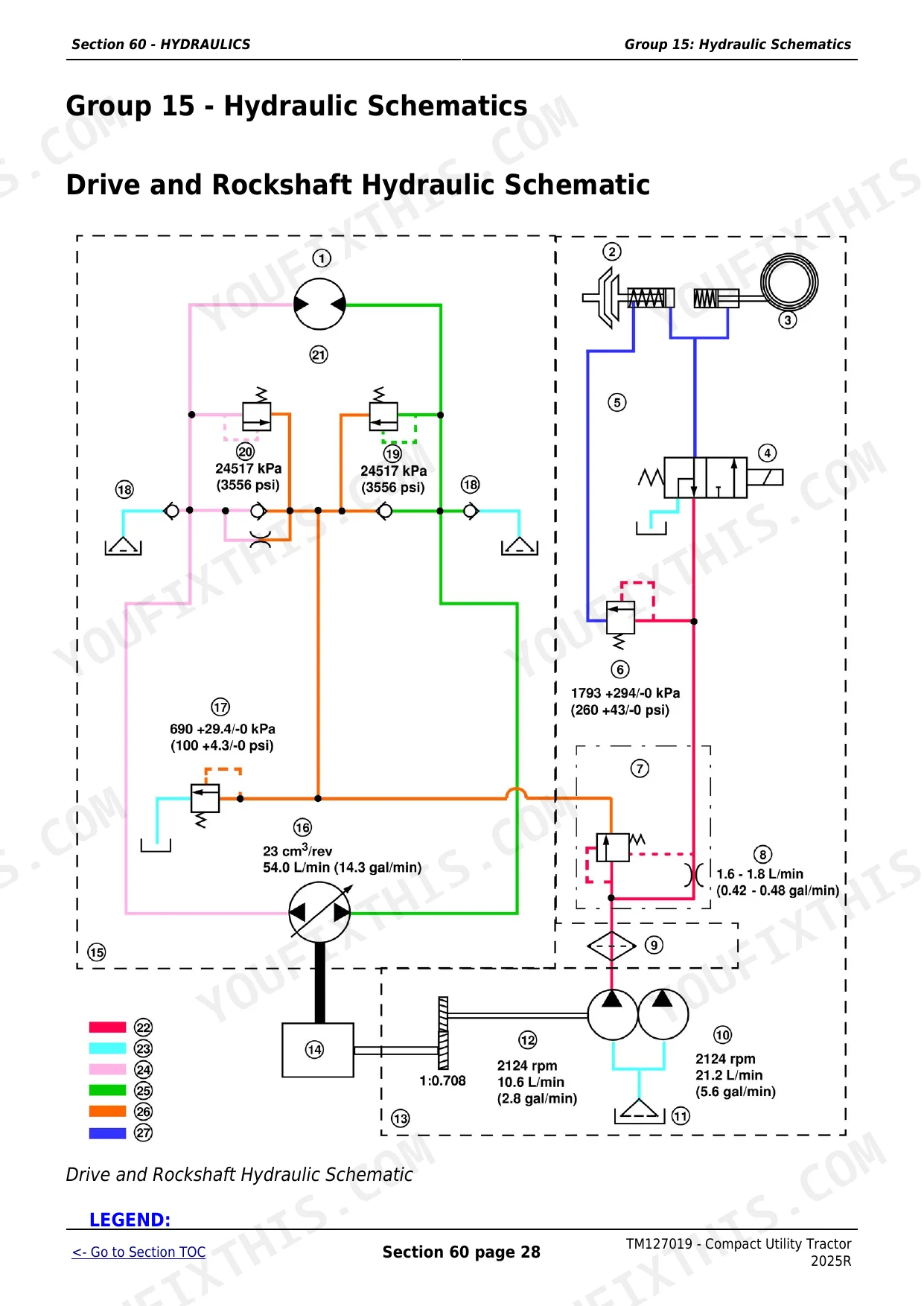

| Hydraulics | 959-1093 | Group 05 - Specifications, Group 10 - Component Locations, Group 15 - Hydraulic Schematics, Group 20 - Operation and Diagnostics, Group 25 - Troubleshooting |
| Steering | 1094-1124 | Steering Control Unit (Scu), Hydraulic Power Assist, Steering Cylinder, Steering Column, Tie Rod Ends, Front Axle Pivot Pin, Steering Wheel |
| Brakes | 1125-1169 | Group 05 - Specifications, Group 10 - Component Location, Group 15 - Theory of Operation, Group 20 - Diagnostics, Group 25 - Tests and Adjustments, Group 30 - Repair |
| Miscellaneous | 1170-1200 | Group 05 - Specifications, Group 10 - Repair |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Filter Cover Bolt Torque | 80 N·m (59 lb.-ft.) | p. 961 |
| Charge Pump Capacity | 10.6 L/min (2.80 gal/min) @ 2650 engine rpm | p. 959 |
| Charge Pump Volume | 5 cm3 /rev (0.305 cu. in./rev) | p. 755 |
| Engine 2025R Displacement | 1.267 L | p. 59 |
| Engine Oil Capacity (w/filter) | 3.2 L | p. 59 |
| Cylinder Compression Pressure (@250 RPM Cranking Speed) | 3432 kPa | p. 61 |
| Valve Clearance | 0.15–0.25 mm | p. 62 |
| Cylinder Head Bolt Torque (Final) | 53.9–57.9 N·m | p. 68 |
| Battery Voltage | 12VDC | p. 342 |
| Alternator Regulated Voltage @ 25 °C (77 °F) | 14.2–14.8 VDC | p. 342 |
| Transaxle Oil (with filter) Capacity | 13.1 L | p. 755 |
| Hydrostatic High Pressure Relief Pressure | 24 500 kPa | p. 755 |
John Deere 2025R Common Problems This Manual Covers
John Deere 2025R hydraulic system slow to lift, bucket barely raises under load p. 959
Check hydraulic fluid level and inspect the filter for clogging before anything else. Measure system relief pressure; spec is 16,692 ± 490 kPa (page 960). If pressure is low, inspect the pump. Replace the hydraulic filter and torque the filter cover bolt to 80 N·m (page 961).
Manual Section: Hydraulic System TroubleshootingHydrostatic transmission overheats during use, oil temp rises and tractor loses drive power p. 755
Check transaxle oil level; total capacity is 13.1 L when filled correctly (page 755). Inspect the oil cooler for blocked fins or restricted airflow. Verify hydrostatic high-pressure relief holds at 23,128–24,500 kPa (page 755). If pressure or flow is low, run the charge pump flow test in the Power Train diagnostics.
Manual Section: Hydrostatic Power Train DiagnosticsBrake pedal feels soft or unresponsive, tractor won't stop reliably on slopes p. 1125
Inspect brake pedal free play before operating on any slope; spec is 30-36 mm (page 1125). Examine the brake bell crank closely for cracks in the cast aluminum housing. If free play is out of spec or the bell crank shows damage, do not operate the machine until it is fully repaired.
Manual Section: Brakes System DiagnosticsSeat switch fault cuts power to hydraulics, loader won't move when operator seated p. 332
Test the seat switch for continuity with the operator in position; follow the circuit path in the wiring diagram. Verify battery voltage reads 12VDC and alternator output holds 14.2-14.8 VDC (page 342). Clean and reseat all wiring harness connectors at the seat switch and hydraulic control module.
Manual Section: Electrical System DiagnosticsEngine cranks but won't start in cold temperatures, preheat indicator light stays off
Check battery voltage first; cold cranking demands a full 12VDC system (page 342). Test each glow plug for resistance and verify the preheat relay is firing per the troubleshooting chart. If the engine still won't fire, measure cylinder compression at 250 RPM cranking speed; minimum spec is 3432 kPa (page 61).
Manual Section: Engine DiagnosticsFrequently Asked Questions
What are the torque specs for John Deere 2025R engine bolts?
Torque specifications for various engine bolts are provided in the manual. For Cylinder Head Bolts, the initial torque is 27 N·m (20 lb.-ft.), followed by a second step of 41 N·m (30 lb.-ft.), and a final torque of 53.9—57.9 N·m (39.7—42.7 lb.-ft.). Connecting Rod Bolts require 22.6—27.5 N·m (16.6—20.2 lb.-ft.) when lubricated, and Main Bearing Bolts require 75.5—81.5 N·m (55.6—60 lb.-ft.) when lubricated.
How to reset John Deere 2025R hydraulic system after filter change?
After a transmission filter change, refill the transmission with the correct oil. The transmission holds approximately 13.1 L (3.46 gal) of oil with filter. For steering hydraulic system service, fill the hydraulic system and bleed it if necessary, as indicated in the "Steering Wheel Removal and Installation" section.
How do you fix john Deere 2025R hydraulic system slow to lift, bucket barely raises under load?
Check hydraulic fluid level and inspect the filter for clogging before anything else. Measure system relief pressure; spec is 16,692 ± 490 kPa (page 960). If pressure is low, inspect the pump. Replace the hydraulic filter and torque the filter cover bolt to 80 N·m (page 961).
How do you fix hydrostatic transmission overheats during use, oil temp rises and tractor loses drive power?
Check transaxle oil level; total capacity is 13.1 L when filled correctly (page 755). Inspect the oil cooler for blocked fins or restricted airflow. Verify hydrostatic high-pressure relief holds at 23,128–24,500 kPa (page 755). If pressure or flow is low, run the charge pump flow test in the Power Train diagnostics.
How will I receive this John Deere 2025R Technical Manual?
This is a 1200-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this John Deere 2025R manual include wiring diagrams?
Yes, an electrical wiring diagram is included to help trace the main circuits.
