Before pulling the power plant out of your skid-steer loader, grab this 138-page John Deere 90 technical manual PDF (OEM #TM1205) to ensure you follow the correct factory procedures. Inside, you get a full teardown guide for the gasoline engine, complete hydraulic schematics detailing the main control valve, and clear wiring diagrams for the electrical system. Open up the troubleshooting section to diagnose hydrostatic drive faults or track down final drive issues fast. Set your spark plug gap to exactly 0.025 inches (0.64 mm) and verify the hydraulic system uses a 100 mesh screen before firing it up. Guesswork destroys expensive hydrostatic pumps. Download this bookmarked file directly to your phone or tablet, search for your exact spec, and repair your loader the right way.
What's Inside This John Deere 90 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-26 | Specifications (Engine, Hydraulic System, Drive System, Travel, Fluid Capacity, Tires) |

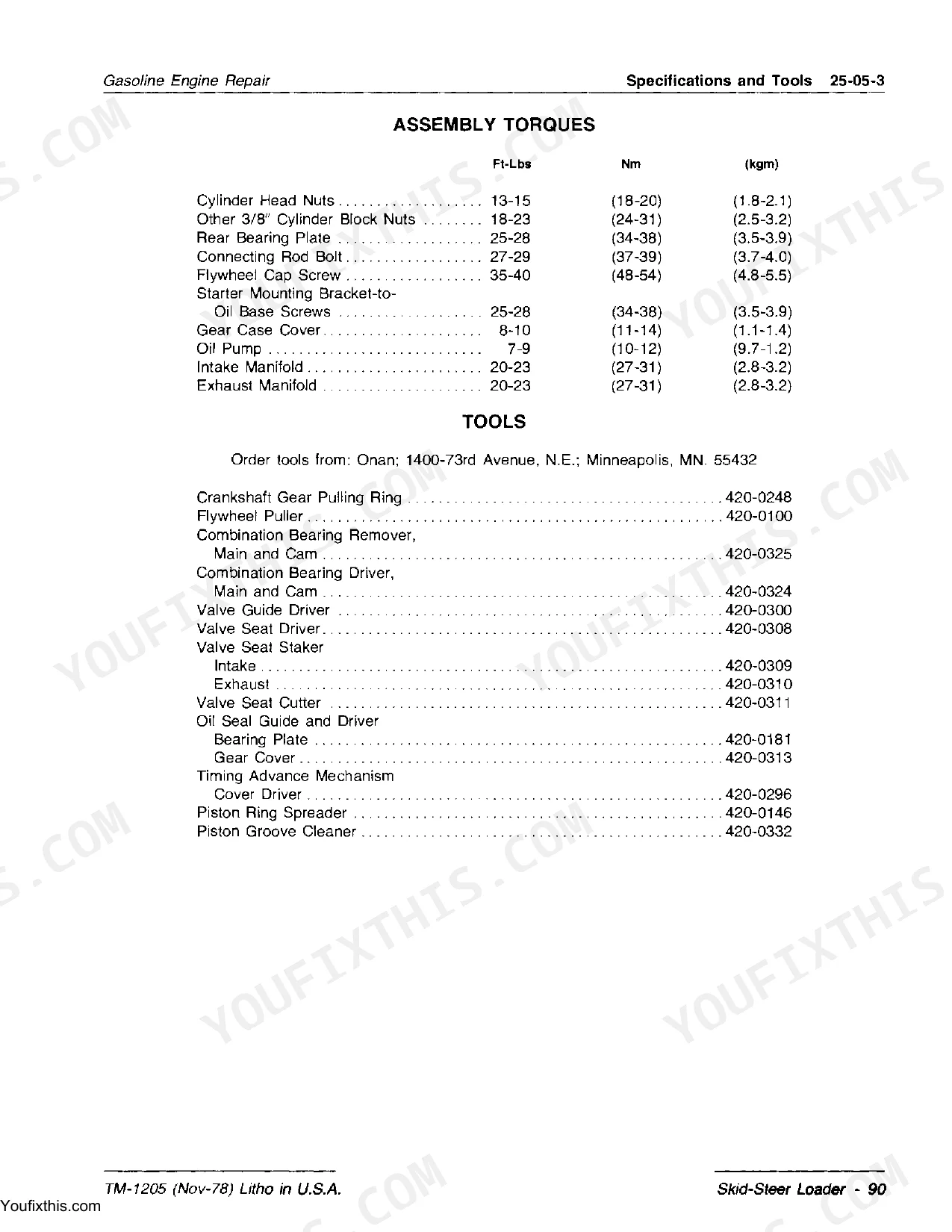

| Gasoline Engine Repair | 27-44 | Specifications and Tools, Engine Separation, Disassembly, Assembly, Cylinder Heads |
| Fuel Repair | 45-52 | Specifications, Carburetor Removal, Carburetor Repair, Governor Adjustment |
| Electrical Repair | 53-62 | Specifications, Starter Repair, Disassembly, Armature Checking, Solenoid Testing |

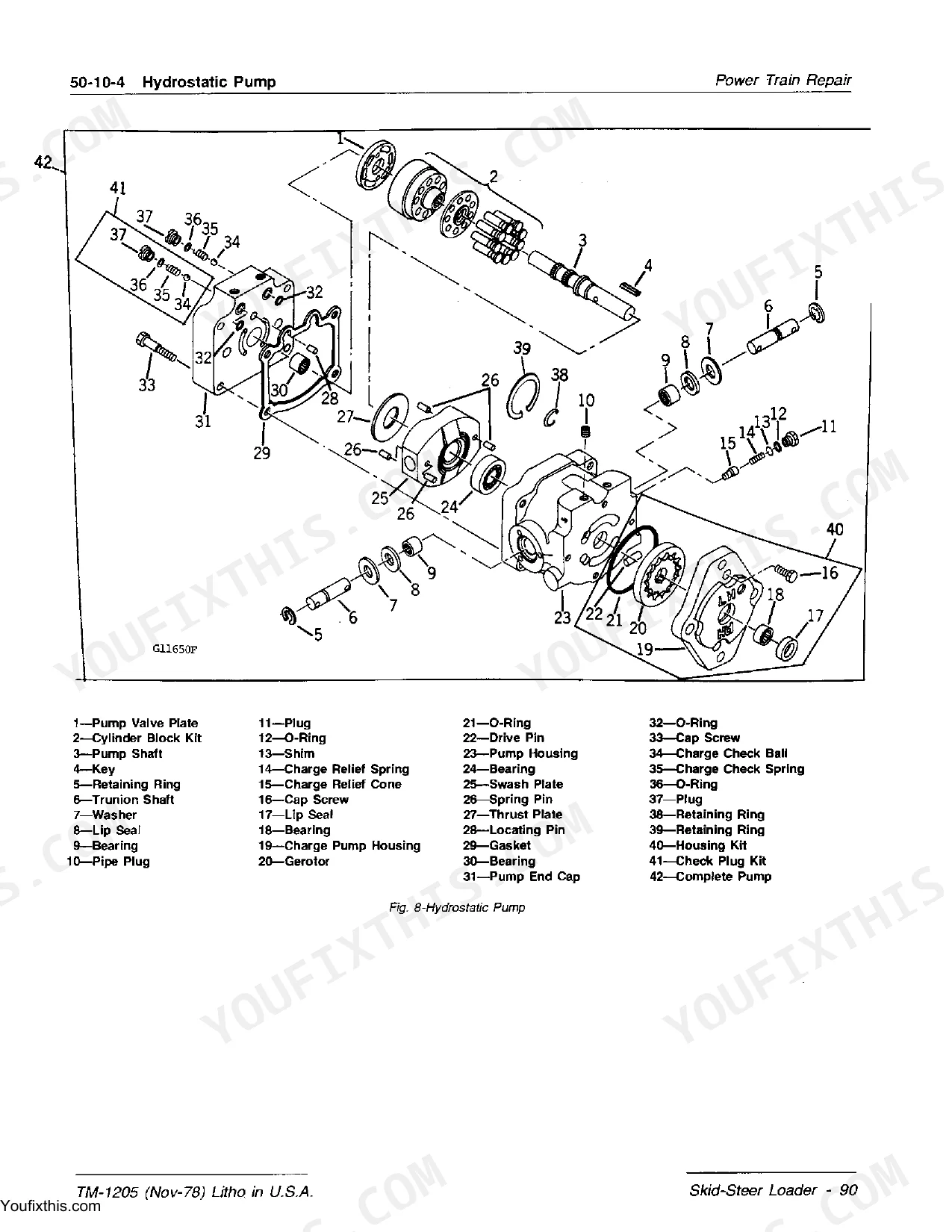

| Power Train Repair | 63-78 | Specifications, Hydrostatic Pump, Hydrostatic Motor, Final Drive Repair, Drive Chains |
| Steering and Brake Repair | 79-84 | Steering Repair, Steering Adjustment, Brakes Repair, Brake Adjustment |
| Hydraulic Repair | 85-92 | Hydraulic Pump Repair, Hydraulic Cylinders, Disassembly, Assembly |
| Gasoline Engine, Fuel and Air Operation and Tests | 93-108 | System Operation, Engine Analysis, Compression Test, Diagnosing Malfunctions |

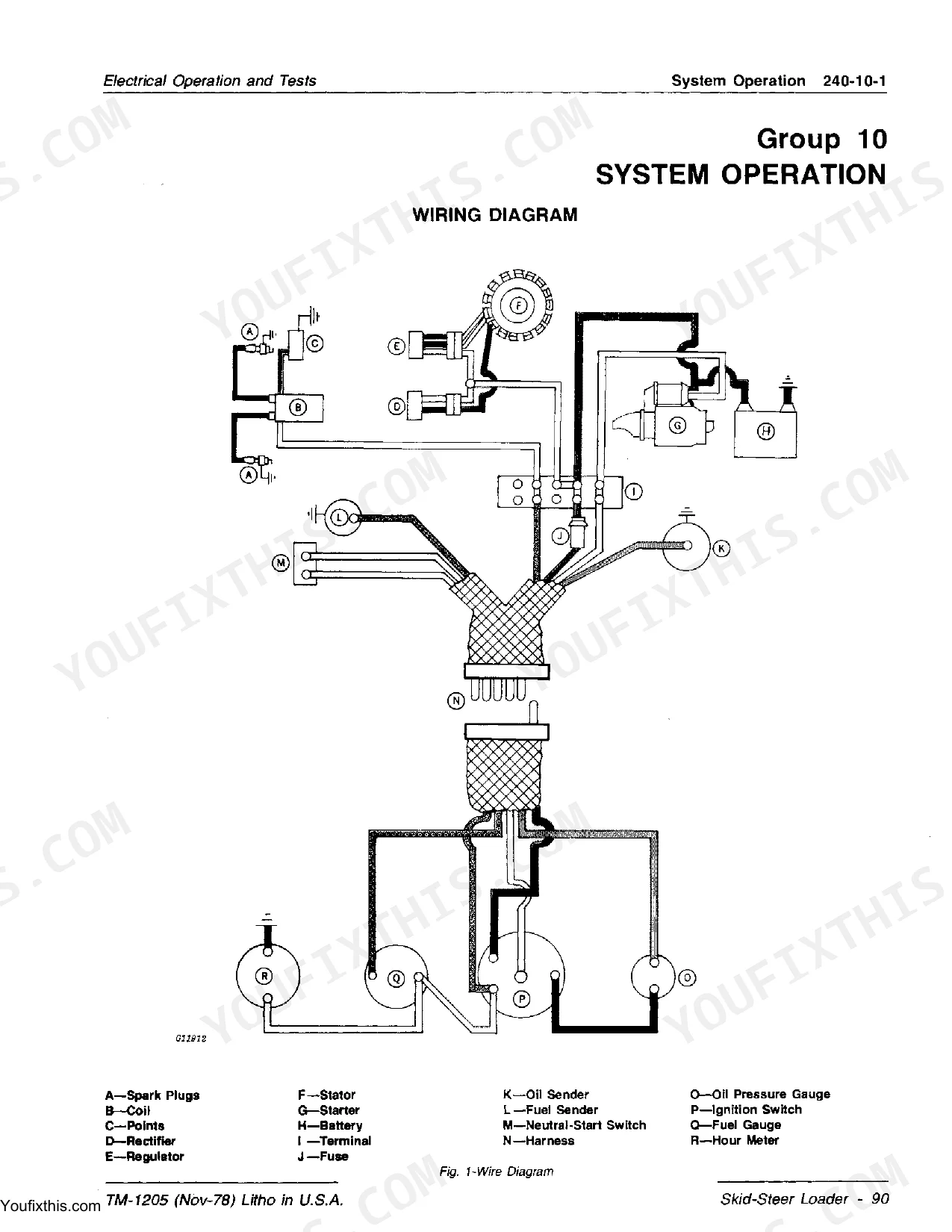

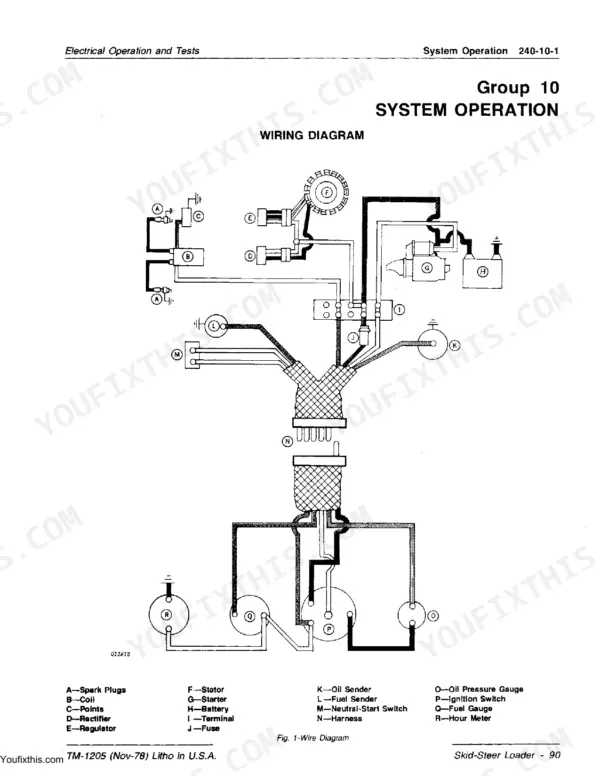

| Electrical Operation and Tests | 109-118 | Wiring Diagram, System Testing, Flywheel Alternator, Diagnosing Malfunctions |

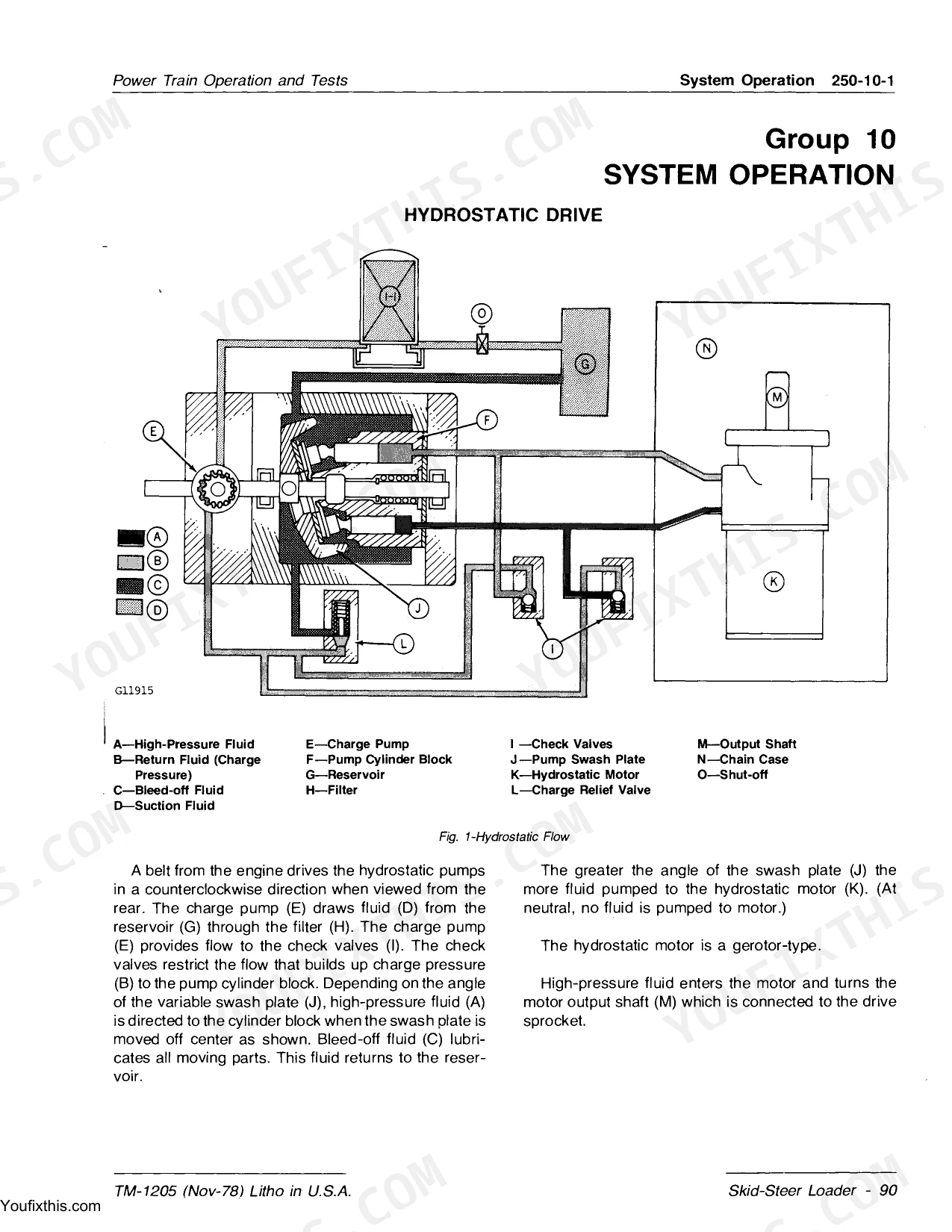

| Power Train Operation and Tests | 119-128 | Hydrostatic Drive, System Testing, Diagnosing Malfunctions, Drive Chains |
| Hydraulic Operation and Tests | 129-138 | System Operation, Main Control Valve, Relief Pressure, Diagnosing Malfunctions |
Quick Reference Specifications

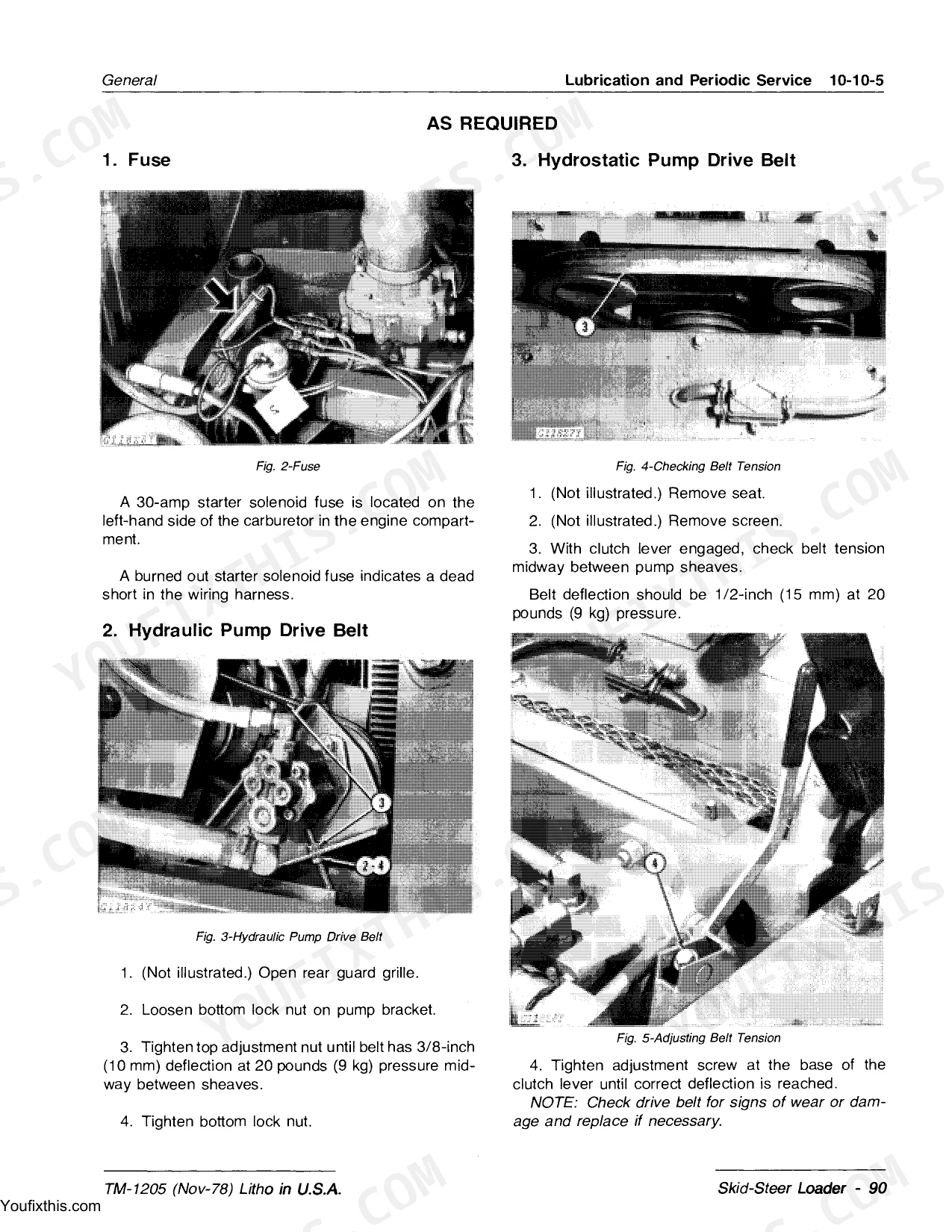

| Specification | Value | Page |
|---|---|---|
| Hydraulic | 100 mesh screen | p. 7 |
| Spark Plug Gap | 0.025 in. (0.64 mm) | p. 7 |
| Hydrostatic System Filter replacement | Replace element | p. 17 |
| Air Cleaner element replacement | after six cleanings or annually | p. 15 |
| Fuel Filter replacement | Replace filter | p. 21 |
| Spark Plug torque | 28 ft-lbs (38 Nm) (3.9 kgm) | p. 18 |
| Drive Chain deflection | 1/2-inch (13 mm) | p. 21 |
| Idler sprocket torque | 180 ft-lbs (244 Nm) (24 kgm) | p. 20 |
| Hydraulic Pump Drive Belt tension | 3/8-inch (10 mm) deflection at 60 pounds (27 kg) | p. 21 |
| Hydrostatic Pump Drive Belt tension | 1/2-inch (15 mm) deflection at 20 pounds (9 kg) | p. 21 |
| Engine Horsepower | 23 hp | p. 7 |
| Hydraulic Pump Capacity | 7.5 gpm | p. 7 |
John Deere 90 Common Problems This Manual Covers
Pressure loss or complete inability to lift the loader arms under a full bucket load
Check all hydraulic fittings for looseness and inspect control valve seals for leaks. Main valve relief pressure is set to 1750 psi on page 7; test it against the hydraulic system testing procedure. Remove and inspect the 100 mesh hydraulic filter screen for debris that can starve the pump, then replace fittings or seals as needed.
Manual Section: Hydraulic Operation and Tests p. 129Excessive drive chain slack, clanking noises, or the loader arms stalling mid-lift
Measure chain deflection with a straightedge; deflection should not exceed 1/2 inch (13 mm) as specified on page 21. Torque idler sprockets to 180 ft-lbs (244 Nm) if slack persists after adjustment. Inspect sprocket teeth for hooking wear and replace the chain and sprockets together rather than mixing worn and new links.
Manual Section: Power Train Repair p. 63Engine overheating with coolant boiling over after extended operation in dusty conditions
Shut the machine down and let it cool, then clean debris packed between the radiator fins with low pressure air or a soft brush. Check the maintenance schedule on page 14 for the correct coolant service interval. Verify the fan belt is not slipping and confirm coolant level is topped off before restarting the engine.
Manual Section: General p. 14Frequently Asked Questions
What are the recommended service intervals?
The manual provides a detailed periodic service chart with recommended intervals. These include checks and replacements to be performed as required, every 10 hours or daily, 50 hours or weekly, 100 hours, 200 hours, 500 hours, and 1000 hours or annually. p. 14
How do you fix john Deere 90 slow power buildup and delayed engine response under load?

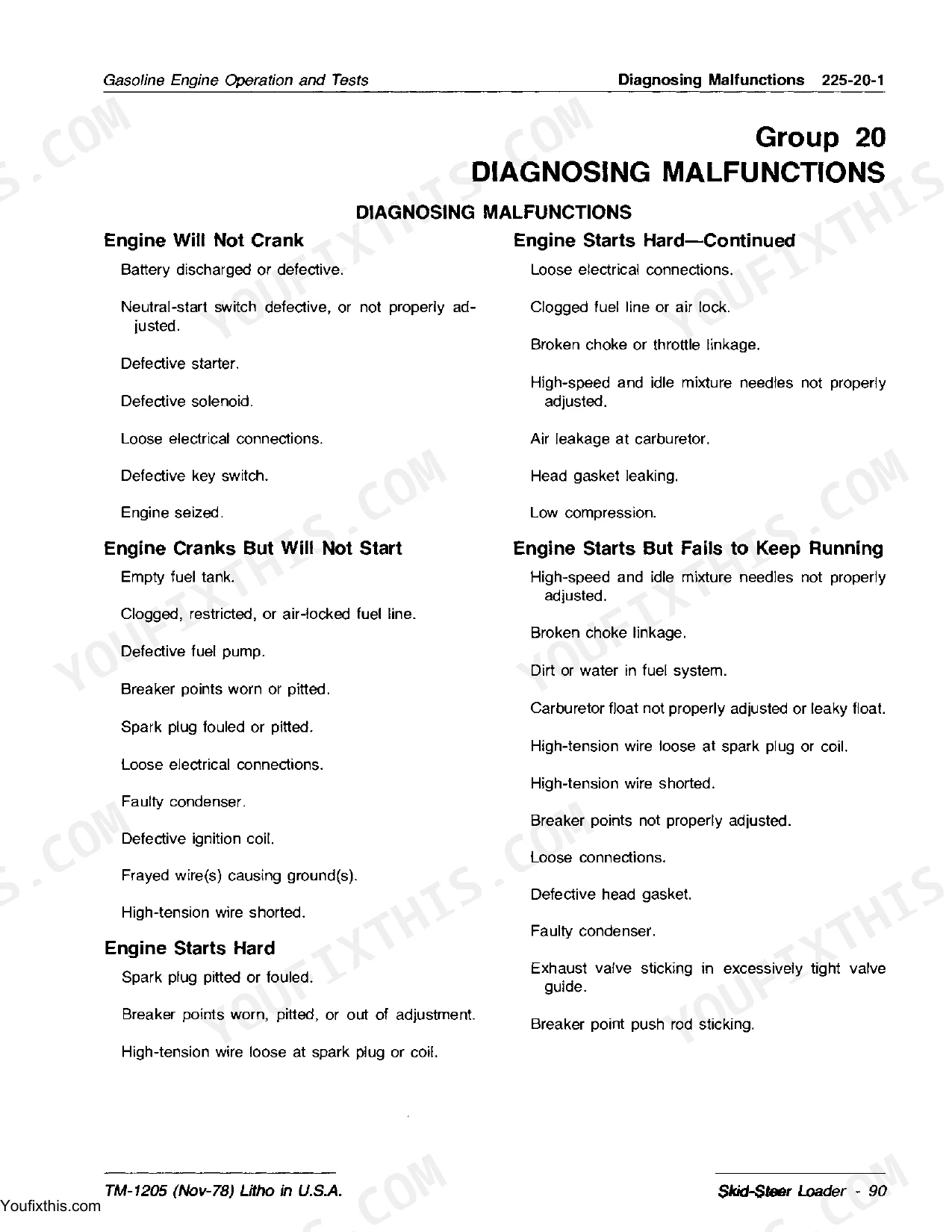

Check the engine diagnosing malfunctions chart on page 105 for loses-power symptoms. Run a compression test and check the oil level against the 4 U.S. quart capacity listed on page 8. Worn piston rings or valve seals in the Onan block cause slow throttle response; pull the head and inspect bore wear before replacing rings. p. 105
How do you fix excessive oil consumption under load with visible blue smoke from the exhaust?
Pull the dipstick after each shift and compare against the 4 U.S. quart fill capacity on page 8. Check the engine diagnosing malfunctions chart on page 105 for excessive oil use causes. Inspect valve seals and piston rings for wear, and verify intake valve tappet clearance is set to 0.003 inches cold before reassembly. p. 105
How do you fix motor runs well without clutch engaged but loses power once the clutch is engaged?
Test hydrostatic pump charge pressure using the power train system testing procedure. Maximum operating pressure is rated at 3000 psi on page 121; if pressure drops once the clutch engages, the drive motor or pump is failing internally. Check drive belt tension for 1/2 inch deflection at 20 pounds before condemning the pump, then rebuild or replace. p. 121
What do I get after purchasing this John Deere 90 manual?
You get a 138-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this John Deere 90 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this John Deere 90 manual?
Included. A hydraulic system diagram shows the main hydraulic layout for the John Deere 90.
