Part of the John Deere Repair Manuals.

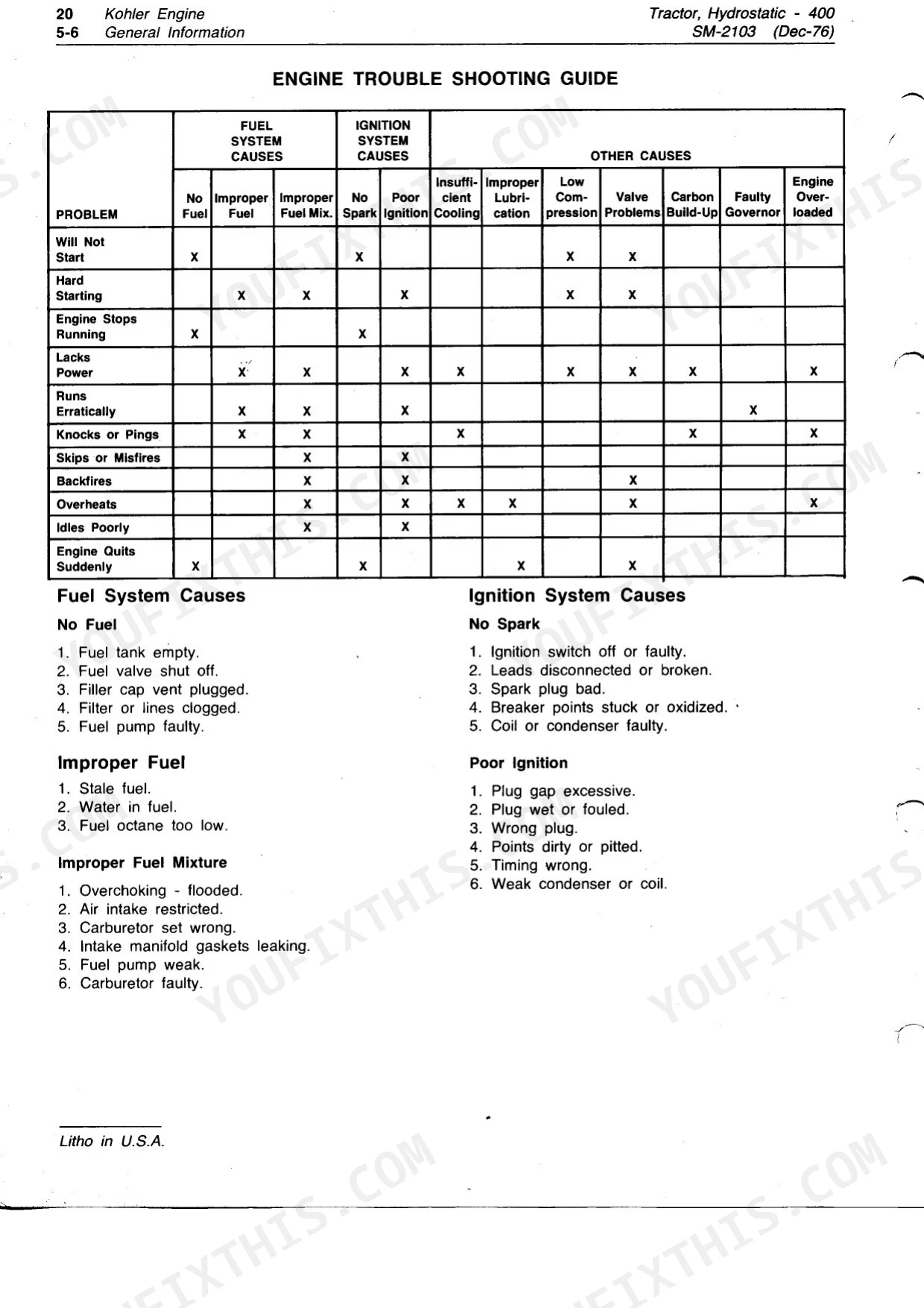

Hunting for the John Deere 400 service manual PDF? This 373-page factory service manual covers both the 400 and 400 Hydrostatic tractors, front axle to rockshaft. Inside: factory wiring diagrams for the cranking, ignition, and charging systems, hydraulic schematics for the implement control valve and power steering circuit, and a full troubleshooting section. Exploded views walk you through hydrostatic transmission teardown, the two-speed rear axle, brakes, and carburetor rebuilds, plus attachment service for the snow thrower, rotary tiller, and mower spindles. Set charge pressure between 650 and 750 psi, torque the transmission shoulder bolts to 35 to 40 ft-lbs, and check piston slippers against the 1/32-inch rounding limit. Forum threads guess; this book knows. Bookmarked by system and searchable by keyword, so you can pull it up on any device in the shop and get back to wrenching.
What's Inside This John Deere 400, 400 Hydrostatic Manual
| System | Pages | Key Topics |
|---|---|---|
| Search | - | Tractor Identification, Specifications, Fuel and Lubricants, Tune-Up and Adjustments |
| General | 3-28 | Tractor Identification (Tractor Serial Number, Engine Serial Number, Transmission Serial Number, Rear Axle Serial Number) |

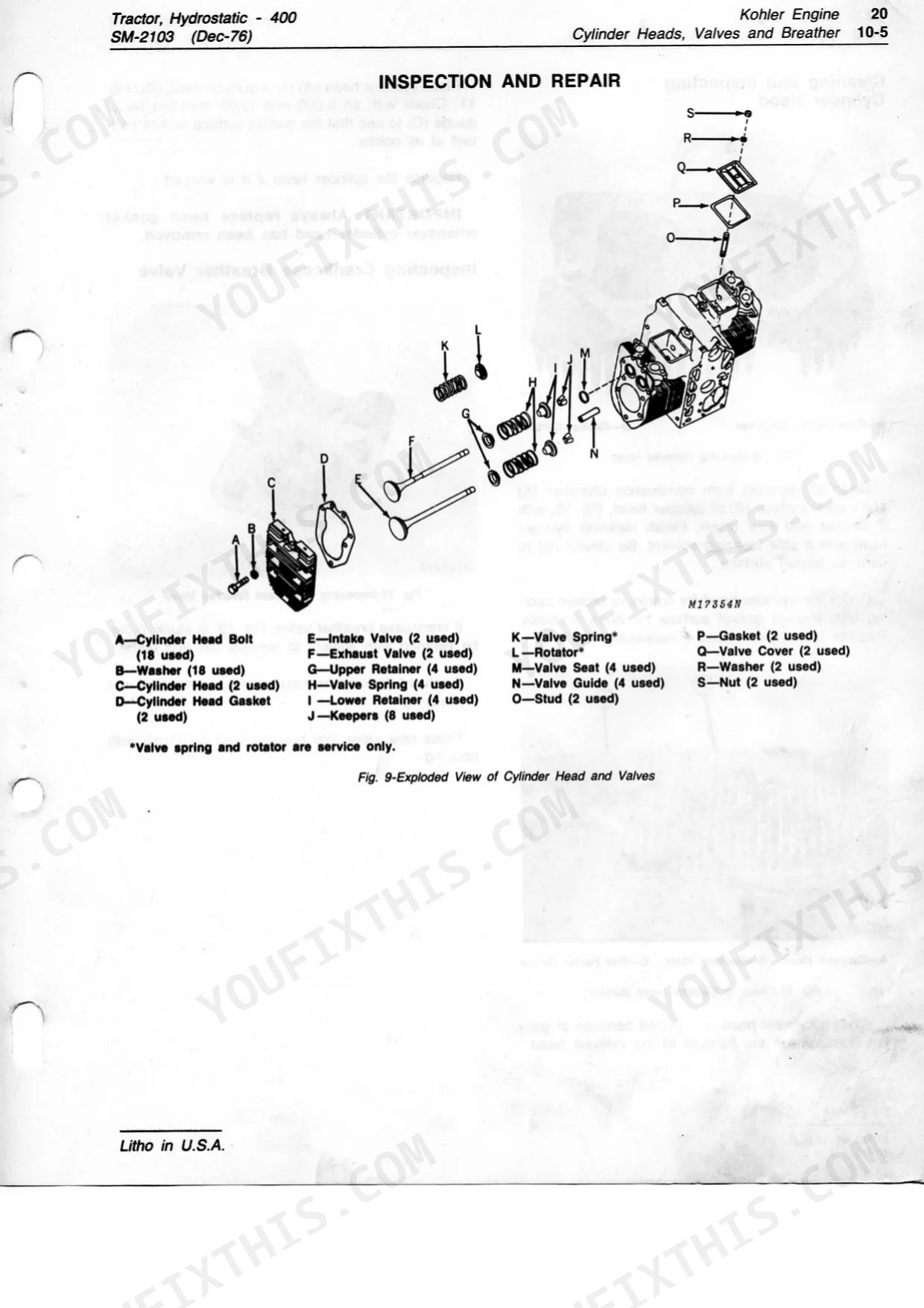

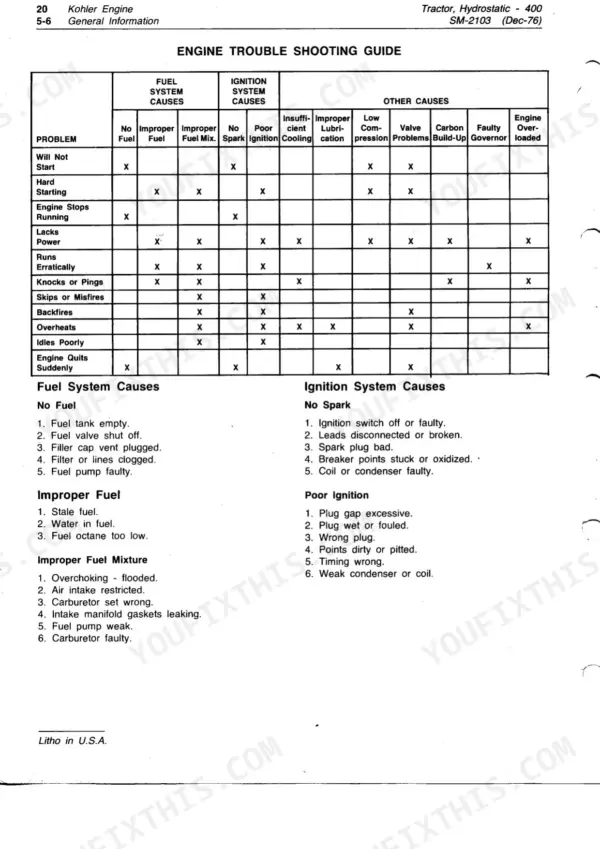

| Engine | 29-110 | Cylinder Head, Valves, Engine Removal, Internal Components, Lubrication System |
| Fuel System | 111-142 | Carburetor, Anti-Dieseling Solenoid, Governor, Fuel Tank, Fuel Pump, Air Cleaner |

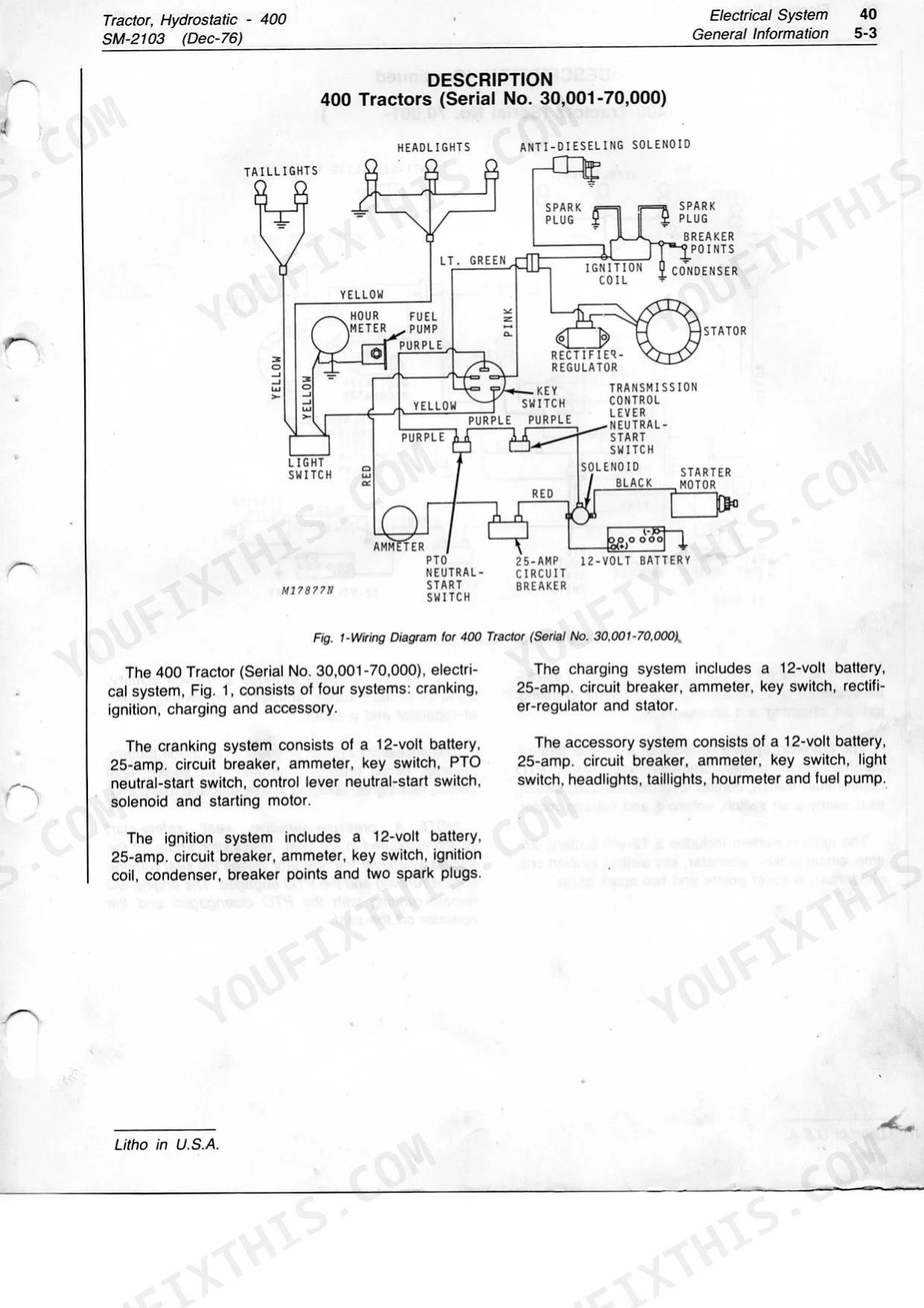

| Electrical System | 143-192 | Cranking System, Ignition System, Charging System, Battery, Starter Motor, Key Switch |
| Power Train | 193-264 | Hydrostatic Transmission, Hydrostatic Control Linkage, Two-Speed Rear Axle, Brakes |

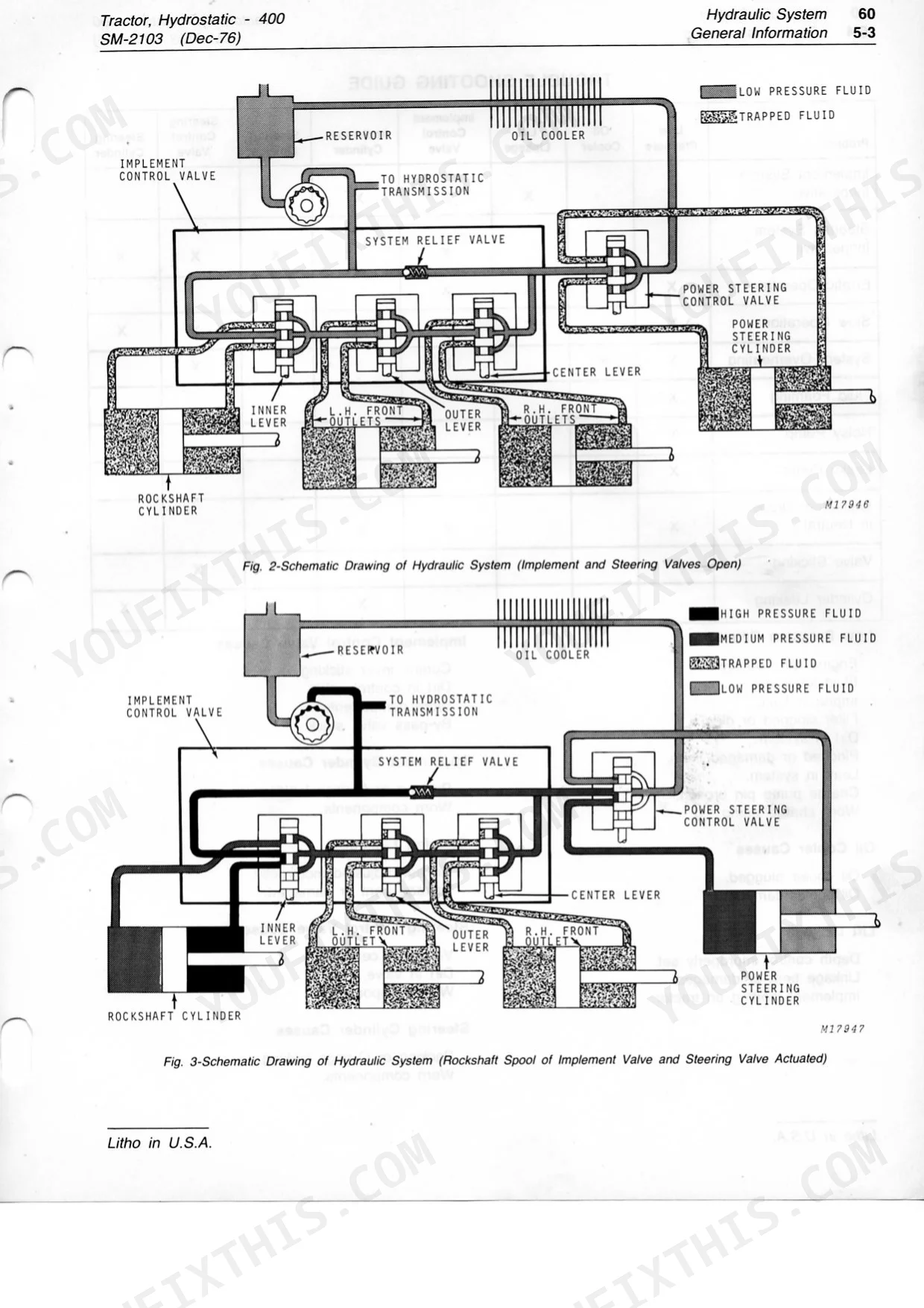

| Hydraulic System | 265-291 | Implement Control Valve, Rockshaft Cylinder, Power Steering Control Valve, Power Steering Cylinder, Hydraulic Lines |
| Miscellaneous | 292-315 | Steering, Front Axle, Lift Linkage, PTO |
| Special Tools | 316-327 | Engine Essential Service Tools, Engine Convenience Service Tools, Tractor Essential Service Tools, Tractor Convenience Service Tools |
| Tractor Attachments | 328-373 | Snow Thrower, Rotary Tiller, Rotary Mower, Drive Chain, Gear Case, Mower Blade Spindles |

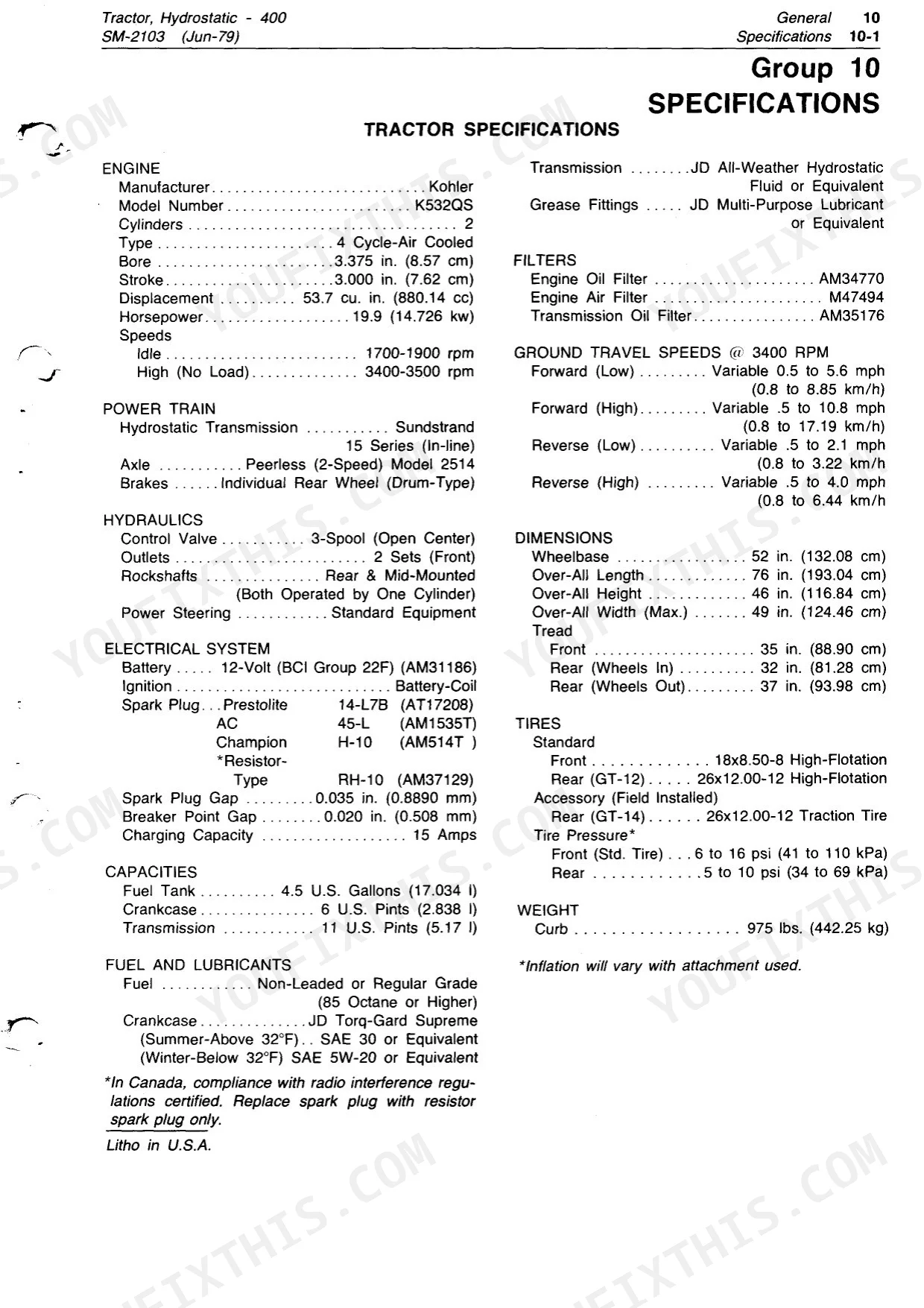

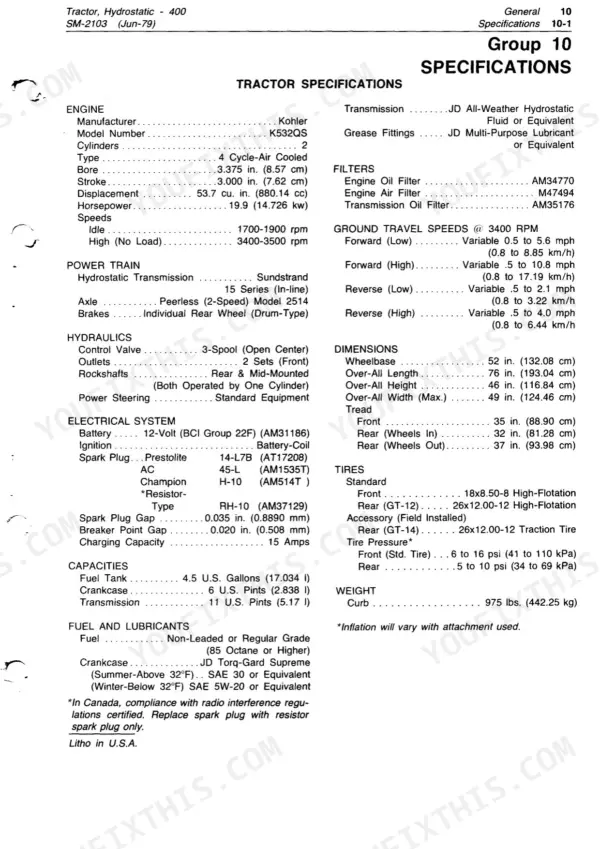

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Charge pressure | 650 to 750 psi (4.48 to 5.17 Nm) | p. 201 |
| Piston slipper edge rounding limit | 1/32-inch (0.79 mm) | p. 209 |
| Torque for shoulder bolts | 35 to 40 ft-lbs (47.46 to 54.64 Nm) | p. 246 |
| Hydraulic system charge pressure | 650 to 750 psi | p. 269 |
| Screw torque | 5 to 8 ft-lbs (6.78 to 11.65 Nm) | p. 277 |
| Swivel nuts torque | 15 to 18 ft-lbs (20 to 24 Nm) | p. 287 |
| Brake spring free length | 3.315 to 3.565 inches (8.42 to 9.06 cm) | p. 312 |
| PTO cable spring free length | 2.65 to 2.85 inches (6.73 to 7.24 cm) | p. 312 |
| Engine Horsepower | 19.9 hp | p. 110 |
| Breaker Point Gap | 0.020 inch | p. 110 |
| Transmission-to-Rear Axle Cap Screw Torque | 25 to 30 ft-lbs | p. 259 |
| Differential Shoulder Bolt Torque | 35 to 40 ft-lbs | p. 259 |
John Deere 400, 400 Hydrostatic Common Problems This Manual Covers
John Deere 400 hydrostatic tractor won't move, pedal engaged but no drive to rear wheels
Check the transaxle input shaft pulley first; worn splines let the pulley spin free while the shaft sits still. Remove the drive belt and try turning the pulley by hand. Then test charge pressure, which should read 650 to 750 psi per page 201. Low pressure points to a worn charge pump or a plugged filter.
Manual Section: Power Train p. 201Hydro whines and tractor slows to a crawl after 20 minutes of mowing
Purge air from the system before condemning parts: cycle the rockshaft lever several times at idle so oil displaces trapped air in the pump. If the whine persists, pull the pump and inspect the cylinder block pistons. Replace any piston with slipper edge rounding beyond 1/32-inch (0.79 mm), the wear limit on page 209.
Manual Section: Power Train p. 209Transmission oil runs hot and drive feels jerky after an hour of loader work
Drain and replace the transmission-hydraulic oil and filter if the fluid looks dark or smells burnt; contaminated oil is the usual heat source. Verify charge pressure holds 650 to 750 psi as specified on page 269. Pressure that sags once the oil warms up means internal leakage past worn pump or motor parts.
Manual Section: Hydraulic System p. 269Brakes drag or fail to hold the tractor on a slope after lining replacement
Measure brake spring free length before reassembly; page 312 calls for 3.315 to 3.565 inches (8.42 to 9.06 cm). Replace any spring outside that range, since a stretched spring keeps the linings dragging. Clean oil off the drum, adjust the linkage, and confirm the pedal locks both wheels on level ground.
Manual Section: Power Train p. 312Oil seeps from rear axle cover and differential housing after transmission removal
Replace the gaskets rather than reusing them, then torque the rear axle cover cap screws to 5 to 18 ft-lbs and the transmission-to-rear axle cap screws to 25 to 30 ft-lbs, both listed on page 259. Torque the differential shoulder bolts to 35 to 40 ft-lbs and recheck the oil level after a short test drive.
Manual Section: Power Train p. 259Frequently Asked Questions
How do I adjust the hydrostatic linkage on a John Deere 400?
To adjust the hydrostatic linkage, block one rear wheel off the ground and place the control lever in neutral. Disconnect the 'S' hook and remove the cotter pin, washer, and drilled pin. Move the control cam until the roller seats in the detent, then start the engine and turn the eccentric until the wheel stops moving. Tighten the lock nut and reassemble the linkage. p. 92
How do I adjust the carburetor idle mixture on a John Deere 400?
To adjust the idle mixture, close the idle mixture needle finger-tight, then open it 1-1/4 turns. This is the initial setting. For final adjustment, run the engine at idle speed (1700-1900 rpm) and adjust the needle to find the smoothest operation point. p. 19

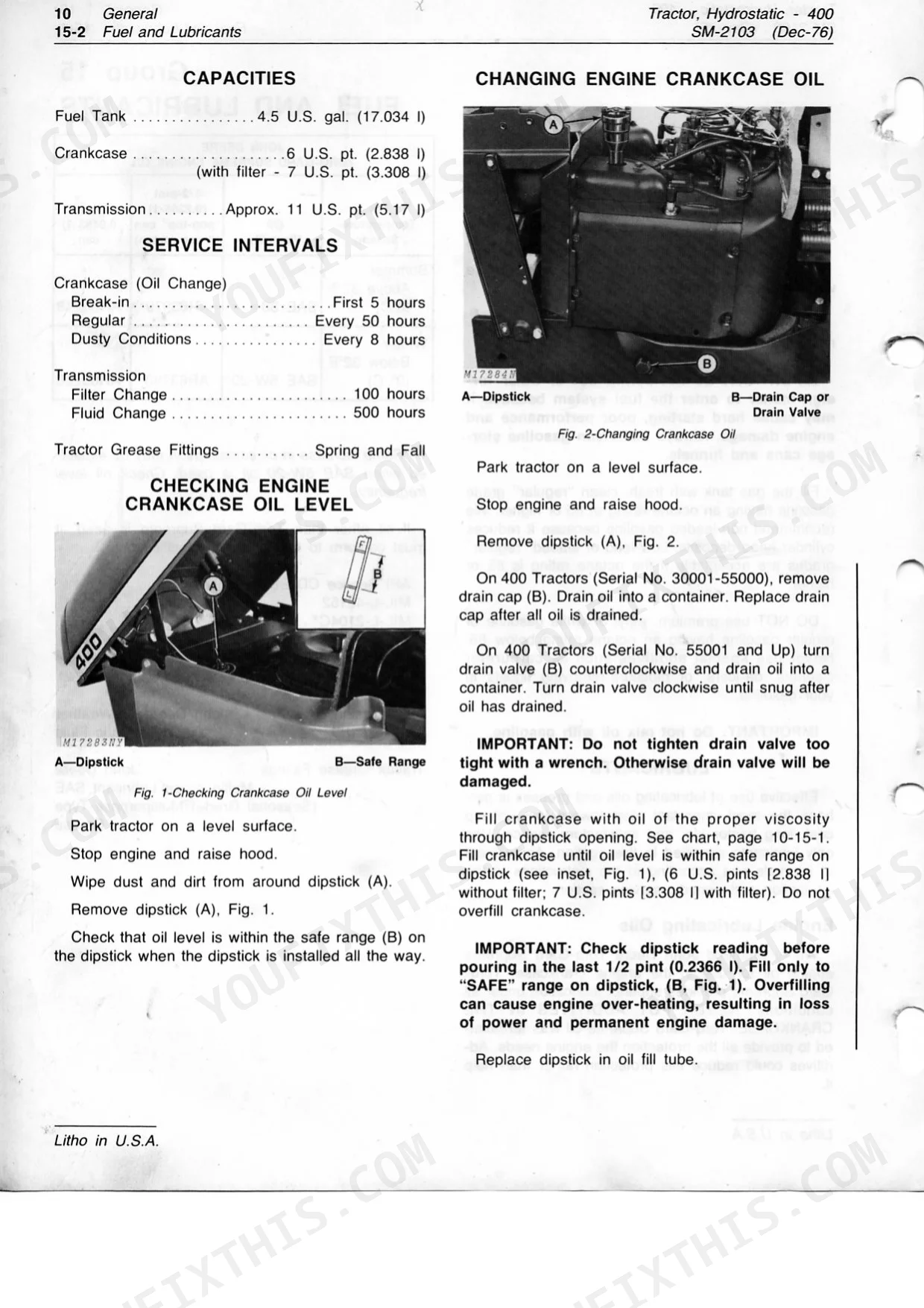

How do I change the transmission fluid and filter on a John Deere 400?
Change the transmission filter every 100 hours and the fluid every 500 hours. To change, park the tractor on a slight upward incline, remove the drain plug, and drain the fluid into a container. Replace the filter, hand-tighten only, and refill with approximately 11 U.S. pints of John Deere All-Weather Hydrostatic Fluid. p. 10
What is the correct valve-to-tappet clearance for the Kohler engine?
For the Kohler K532QS engine, the intake valve-to-tappet clearance should be 0.008 to 0.010 inch (0.20 to 0.25 mm). The exhaust valve-to-tappet clearance should be 0.017 to 0.020 inch (0.43 to 0.50 mm). These measurements must be taken when the engine is cold. p. 14
Is this John Deere 400, 400 Hydrostatic Service Manual a digital download?
A 373-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this John Deere 400, 400 Hydrostatic manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

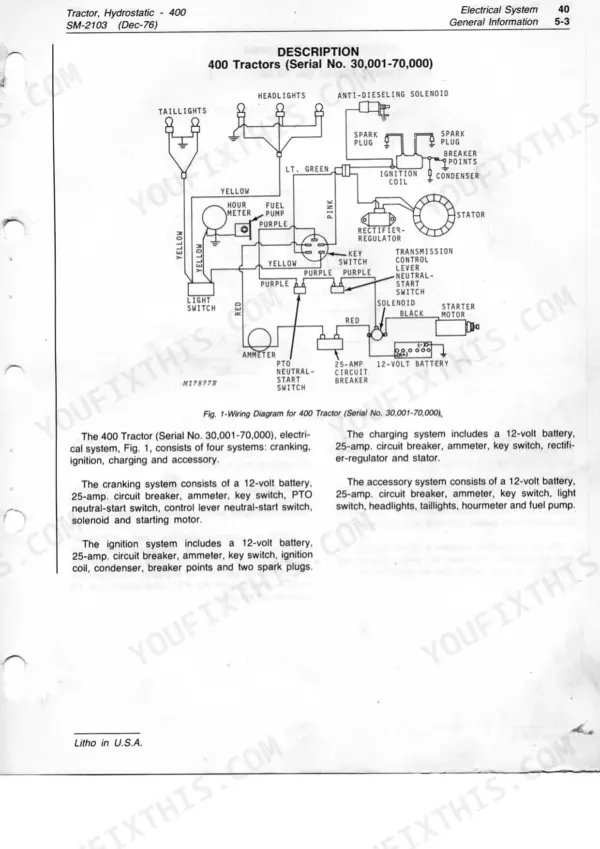

Can I find wiring schematics in this John Deere 400, 400 Hydrostatic manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
