This is the Diagnosis and Tests technical manual for the John Deere 9100, 9200, 9300 and 9400 4WD articulated tractors, 1998-2005. It covers what the operation-and-tests side of the shop actually needs: reading and clearing service codes from the ECUs, functional electrical schematics with test procedures, engine and fuel system diagnostics, cooling system tests, hydraulic and steering pressure tests, brake and PTO checks, and both Manual Shift and Power Shift transmission diagnosis. There is also a section for the AMS precision-ag side - AutoTrac, GreenStar and JDLink. This is the manual for finding the fault and proving it with a test, not a teardown/rebuild book - pair it with the repair TM if you plan to split the tractor.
What's Inside This John Deere 9100-9400 Manual
| System | Pages | Key Topics |
|---|---|---|
| General and Service Codes | 1-239 | General Information, Service Codes, Diagnostic Trouble Codes |
| Observable Symptoms Diagnostics | 240-300 | Symptom-Based Troubleshooting |
| Engine Operation and Tests | 301-346 | Engine Theory of Operation, Diagnostic Tests |

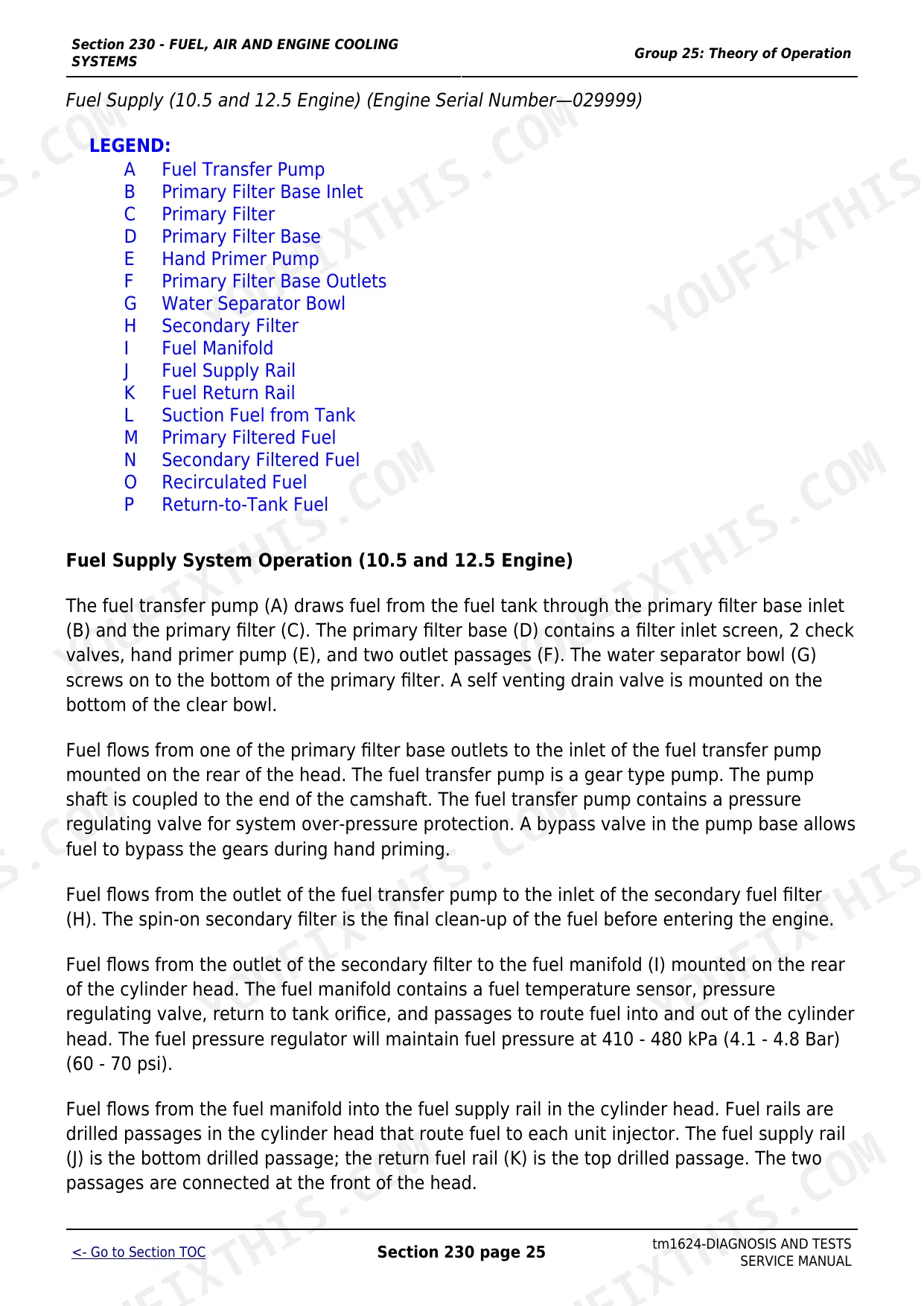

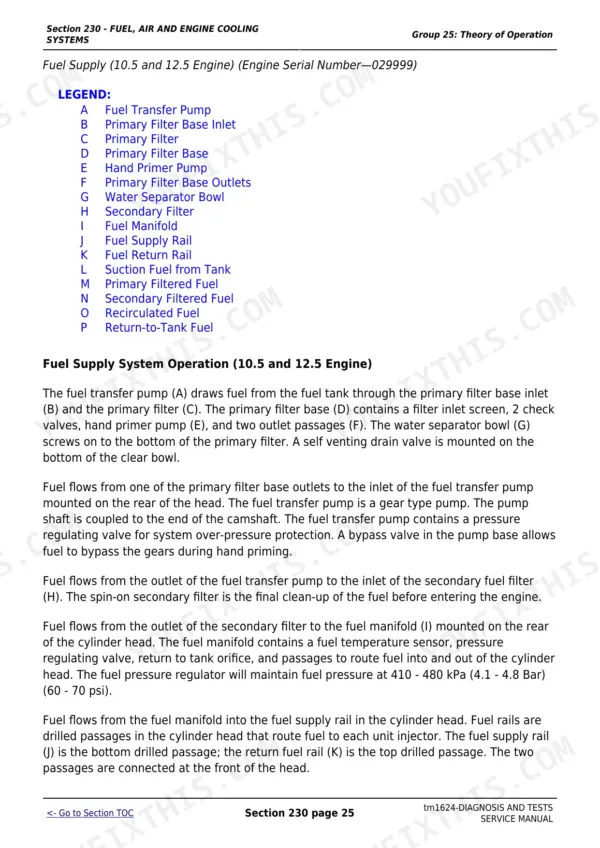

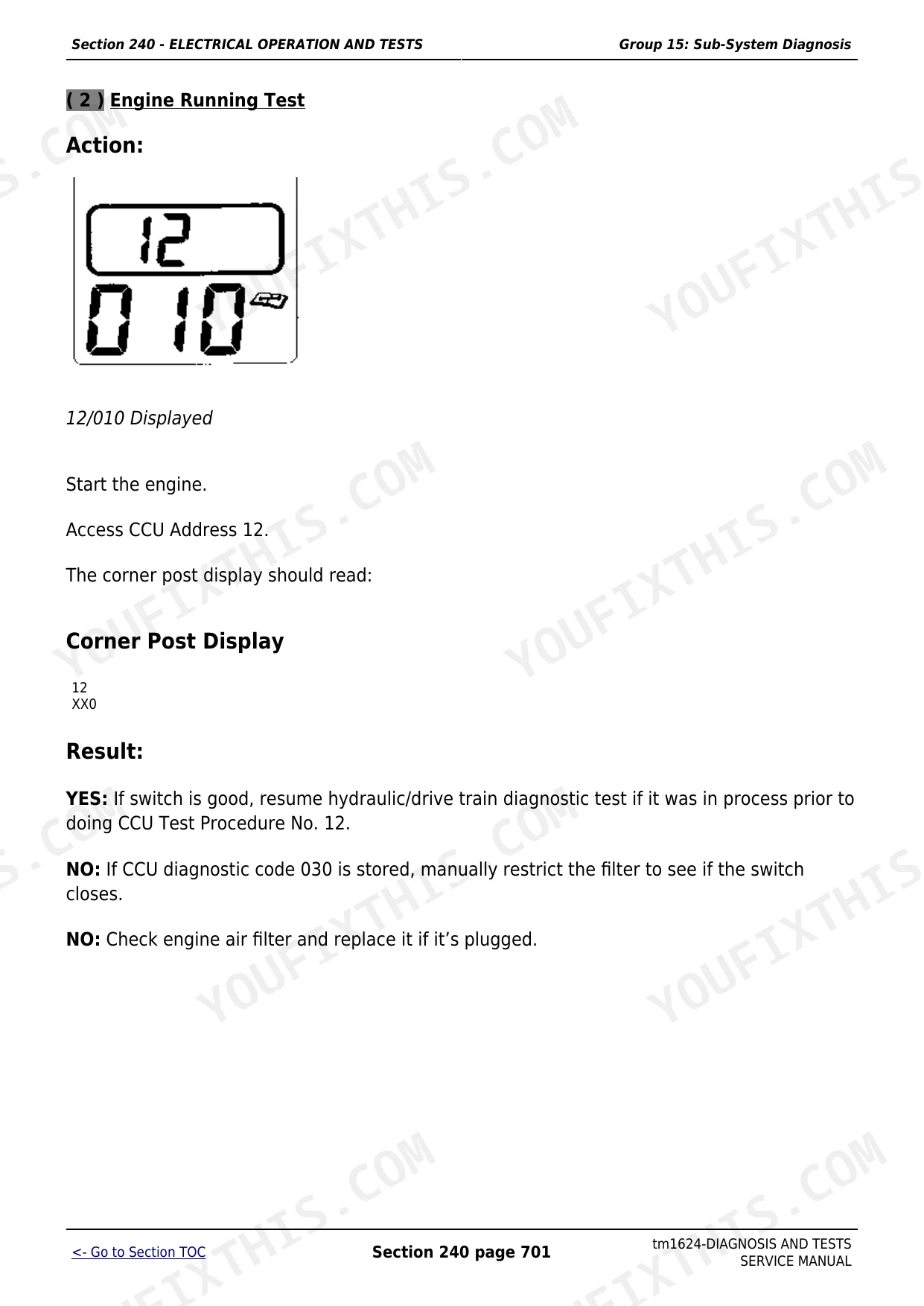

| Fuel, Air and Cooling | 347-403 | Fuel System, Air Intake, Engine Cooling |
| Electrical Operation, Tests and Schematics | 404-1491 | Wiring Diagrams, System Functional Schematics, Electrical Tests, Component Location |
| Ams Precision Ag | 1492-1863 | AutoTrac, GreenStar, JDLink, Field Management |

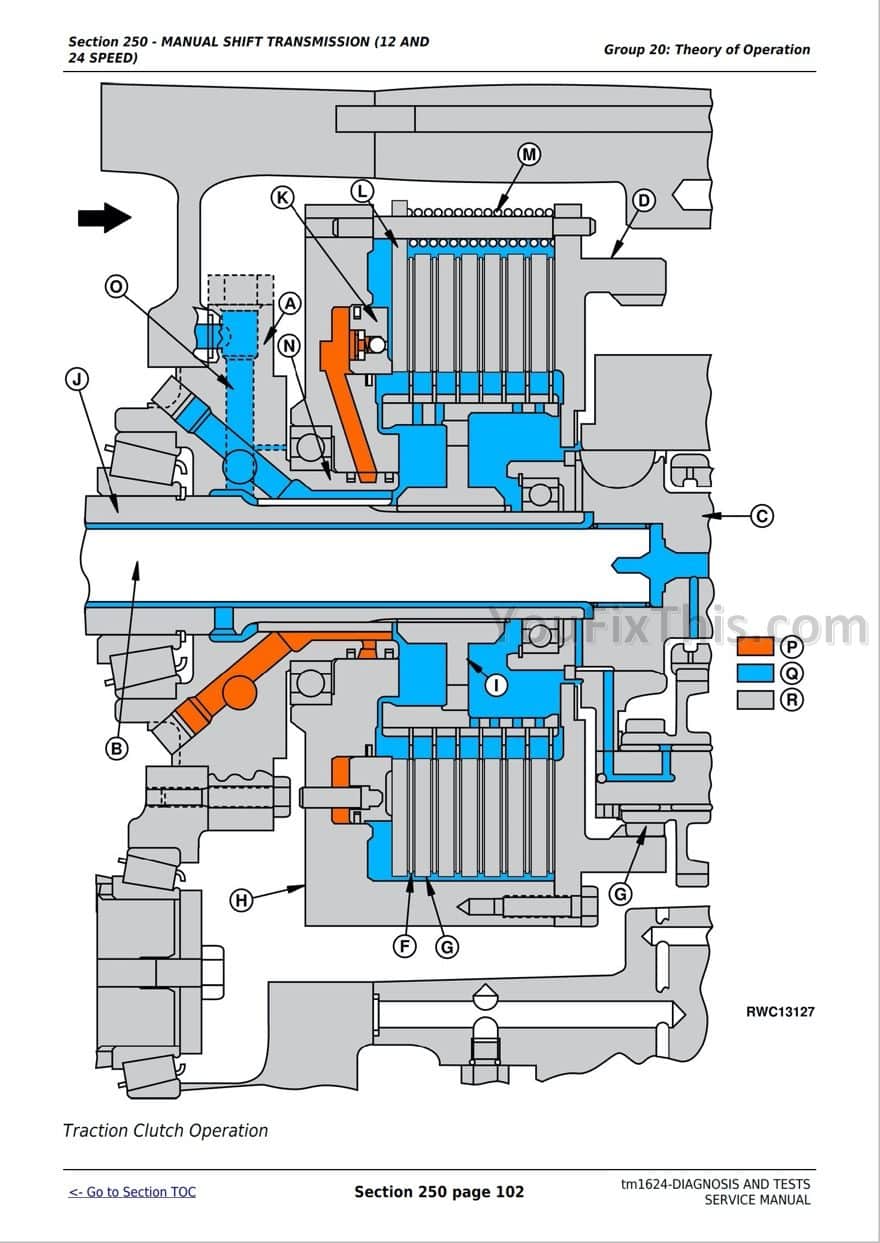

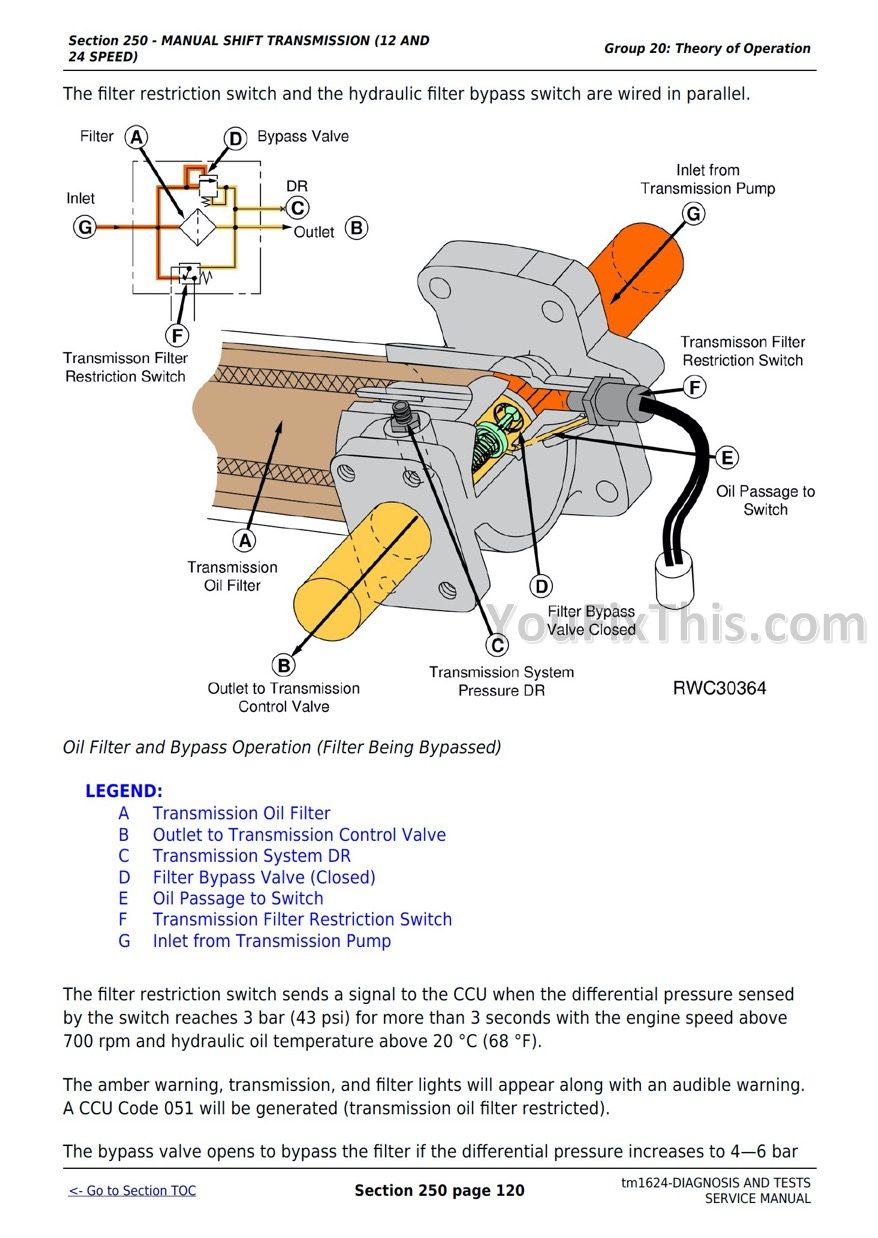

| Transmission | 1864-2310 | Manual Shift 12/24 Speed, Power Shift Transmission |
| PTO, Axles and Differentials | 2311-2391 | Power Take-Off, Axle and Differential Diagnostics |

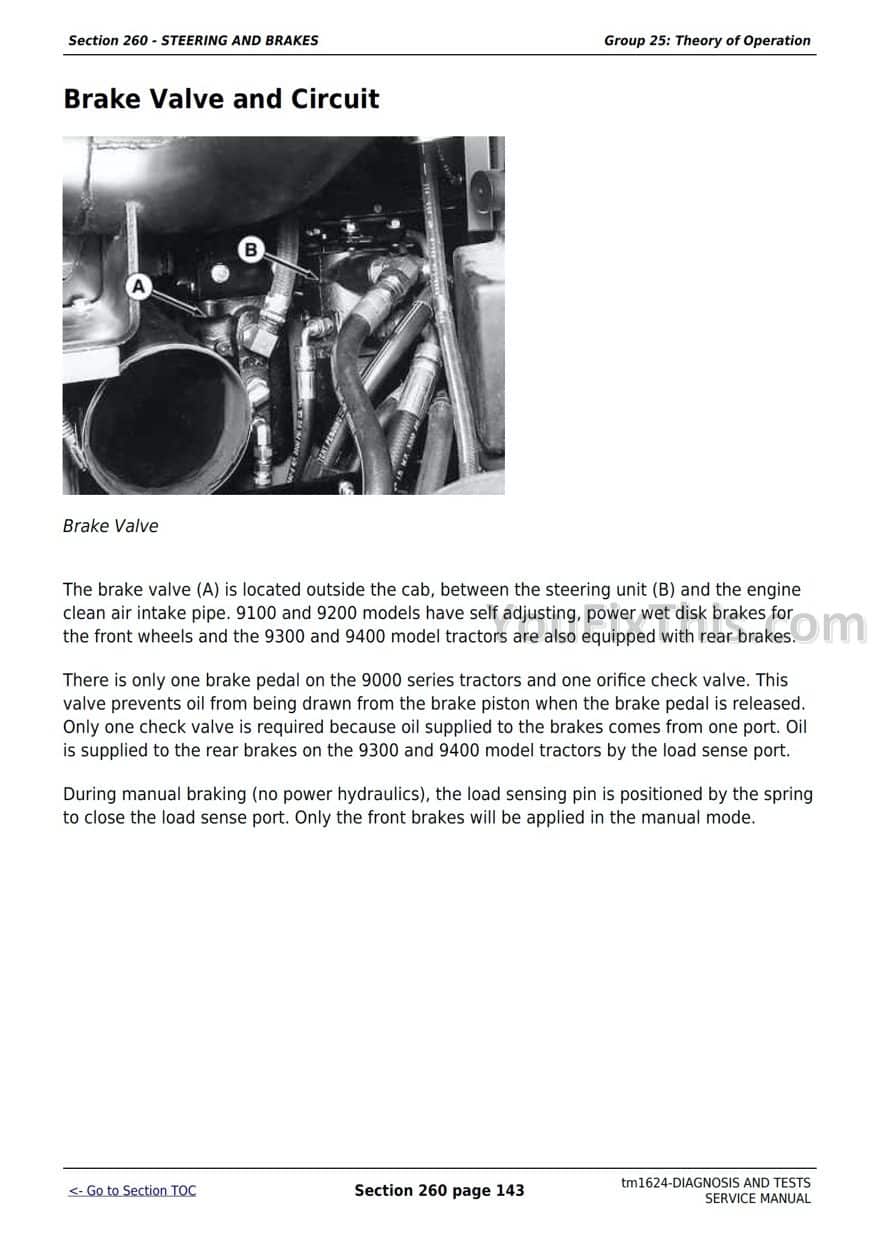

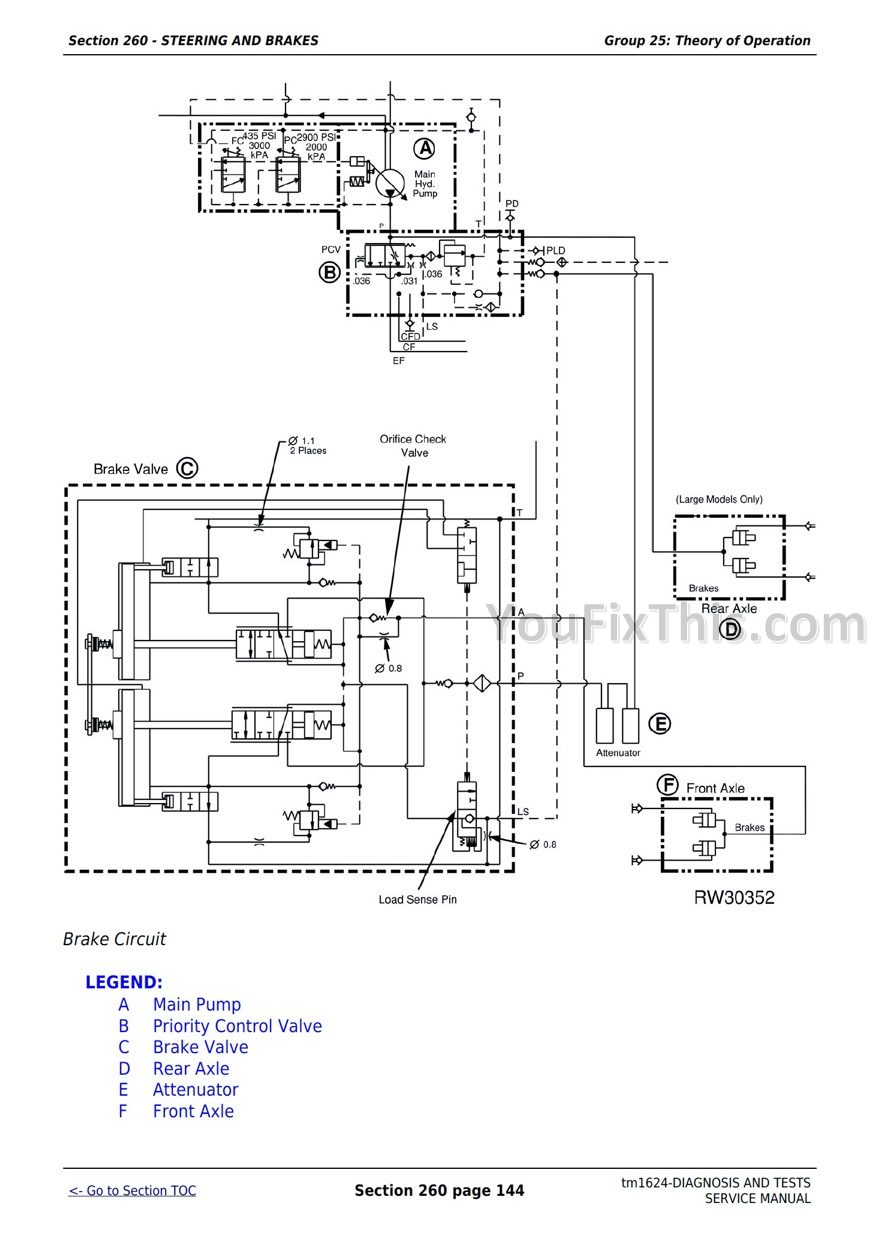

| Steering and Brakes | 2392-2549 | Steering Diagnostics, Brake Tests and Adjustments |
| Hydraulic System | 2550-3075 | Hydraulic Pressure Tests, SCV and Remote Cylinder Diagnostics |
| Operator Station | 3076-3250 | Cab Electronics, HVAC, Operator Controls |
| Dealer Fabricated Tools | 3251-3305 | Special Service Tool Fabrication |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| tire sizes | 18.4 X R38 tires | |
| Hitch Settling Spec (without implement) | Less than 13 mm (1/2') in 5 minutes | |
| Hitch Settling Spec (with implement) | Less than 25 mm (1') in 5 minutes | |
| A/C Min. Temperature Difference (Ambient Below 24°C) | 12°C (20°F) | |
| A/C Min. Temperature Difference (Ambient Between 24-32°C) | 14°C (25°F) | |
| A/C Min. Temperature Difference (Ambient Above 32°C) | 16°C (30°F) |
John Deere 9100-9400 Common Problems This Manual Covers
Drive shaft between the transmission and front differential fails, and the resulting debris takes out the hydraulic system.
Catch it before it grenades. The Hydraulics, Steering and Brakes section gives the hydraulic pressure and flow tests that reveal contamination and pressure loss early, and the Transmission section covers the driveline checks that flag a failing shaft before it wipes out the pumps.
Manual Section: Hydraulics, Steering and BrakesEngine knocks or fails to start due to fuel system contamination.
The Engine and Fuel section lays out the diagnostic sequence for hard-start and knock complaints: fuel quality and supply checks first, then component tests, so you confirm contamination and find its source instead of replacing injection parts that will just get killed again by dirty fuel.
Manual Section: Engine and FuelLow or excessive charging voltage with flashing SERVICE ALERT indicators on the dash.
Start in General and Service Codes to read the stored code, then follow the charging circuit test in Electrical and Schematics. The functional schematic lets you check voltage drop through the alternator, regulator and battery cables point by point instead of guessing at parts.
Manual Section: Electrical and SchematicsRemote hydraulic cylinders fail to lift a load or travel in the reversed direction.
The Hydraulics, Steering and Brakes section covers selective control valve diagnosis and remote cylinder tests. Reversed travel usually traces to crossed hose couplings or SCV valve issues; a no-lift condition gets isolated with the pressure tests in the same section before you condemn the pump.
Manual Section: Hydraulics, Steering and BrakesFrequently Asked Questions
My 9300 is flashing the SERVICE ALERT light and the display shows a code - can I look it up in this manual?
Yes. The General and Service Codes section lists the diagnostic trouble codes for these tractors, what each code means, and points you to the test procedure that isolates the fault. That includes the charging system codes - low or excessive charging voltage is a common trigger for the alert light on these machines, and the manual walks the alternator/regulator circuit test step by step.
The engine cranks but knocks or won't start - does this manual cover fuel system diagnosis?
It does. The Engine and Fuel section has the test sequence for hard-start and knock complaints, including checks for fuel contamination, which is a known killer on these tractors. Water or dirt in the fuel will make one of these engines knock or refuse to fire, and the manual tells you which tests to run in which order before you start throwing injectors at it.

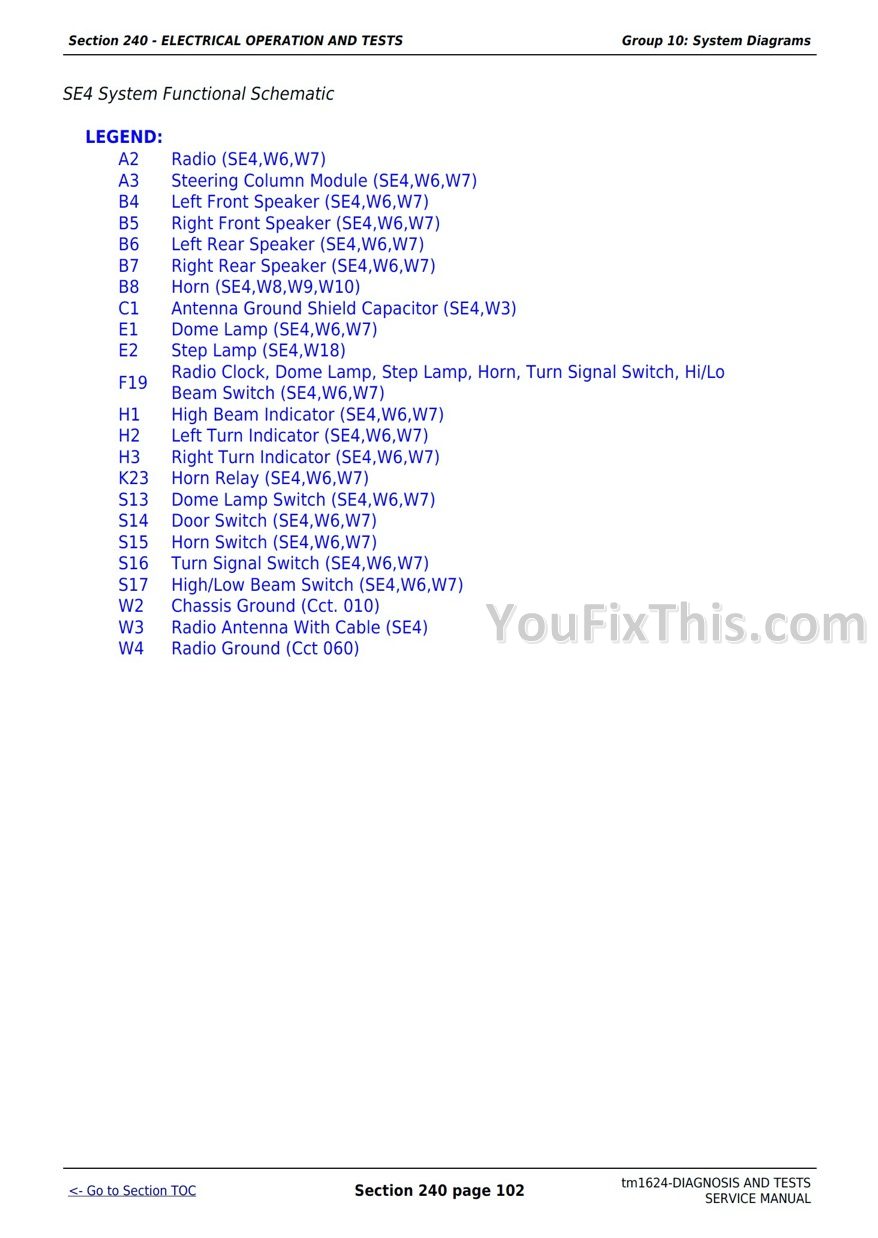

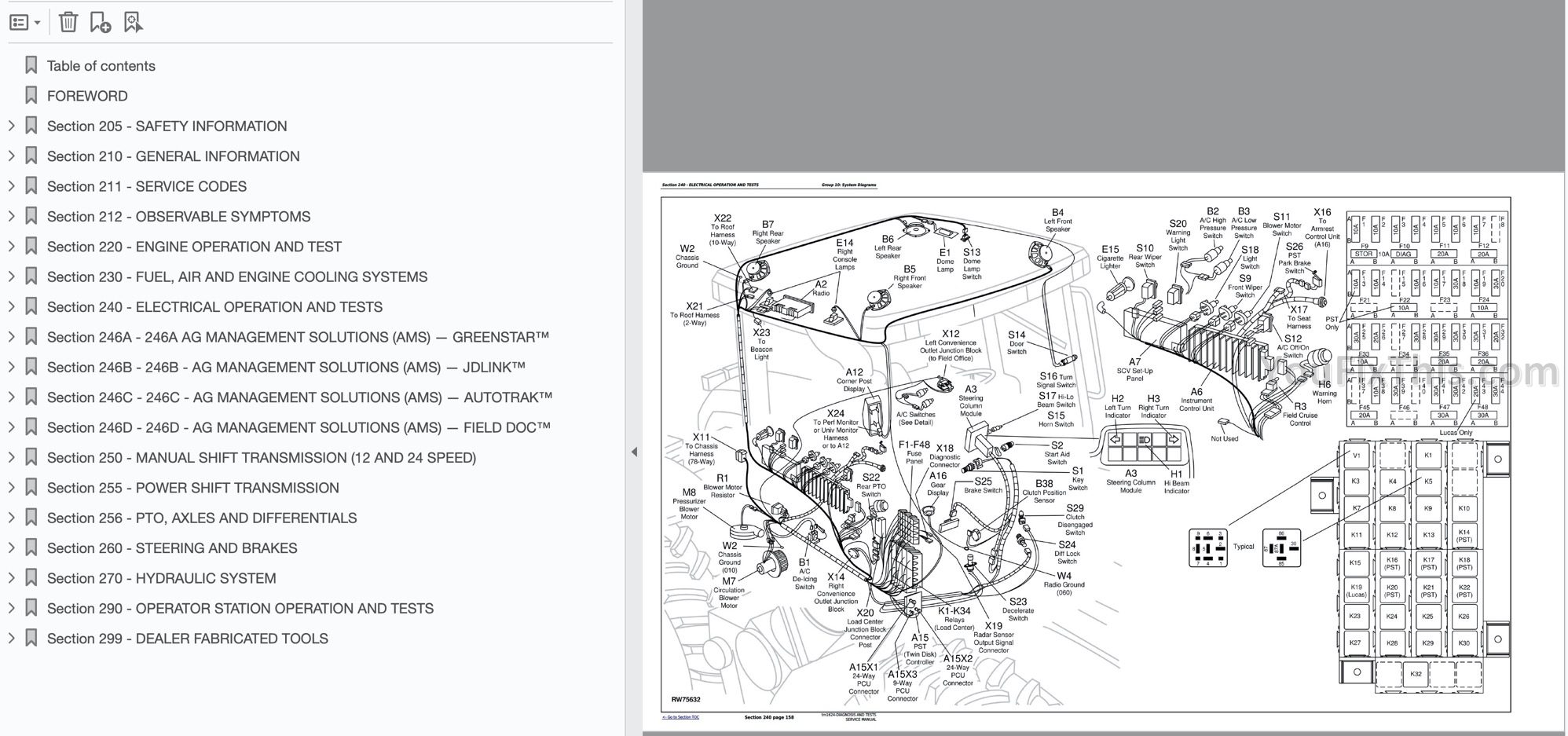

Are full wiring diagrams included, or just fragments?
The Electrical and Schematics section includes the wiring diagrams and functional schematics broken down by circuit, plus the electrical test procedures that go with them. Because these are functional schematics, each circuit is drawn the way it works, so you can trace a fault from the switch to the load without flipping through the whole harness drawing.
Does it cover AutoTrac and GreenStar diagnostics?
Yes, there is a dedicated AMS Precision Ag section covering AutoTrac, GreenStar and JDLink diagnostics for these tractors. If the guidance system is throwing codes or the display is not talking to the receiver, this is where the test procedures live. Keep in mind it covers the AMS hardware as fitted to the 1998-2005 9000 series, not newer display generations.
Is this a repair manual? Will it show me how to rebuild the transmission?
No. This is the Diagnosis and Tests TM - service codes, schematics, pressure tests, electrical tests and calibrations. It tells you which clutch pack or valve is at fault in a Manual Shift or Power Shift transmission, but the actual teardown and rebuild procedures are in the separate Repair technical manual. Most shops run both books side by side.
