Part of the John Deere Repair Manuals.
This is the factory technical manual John Deere dealers used to rebuild the 9000 and 9020 series four-wheel-drive tractors - 9100, 9200, 9300, 9400 and the later 9120 through 9620, built 1997-2003. It covers removal, teardown and assembly with torque specs for the 6081, 6101 and 6125 wet-sleeve diesels, from the 8.1L 260 hp 9100 up to the 12.5L engines in the 9300 and 9400. All three gearboxes get full overhaul chapters: the 18-speed PowerShift in the 9020 series, the 12-speed PowerShift in the 9000 series, and the Mechanical Shift (MST). Axles, final drives, articulation steering, brakes, hydraulics, SCVs, cab and the hinge/gudgeon bearings are all in here. Bring a torque wrench, not guesswork.
What's Inside This John Deere 9100, 9200, 9300, 9400, 9120, 9220, 9320, 9420, 9520, 9620 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 10-54 | Machine and Engine Specifications, Torque Values, Fuel and Lubricants |

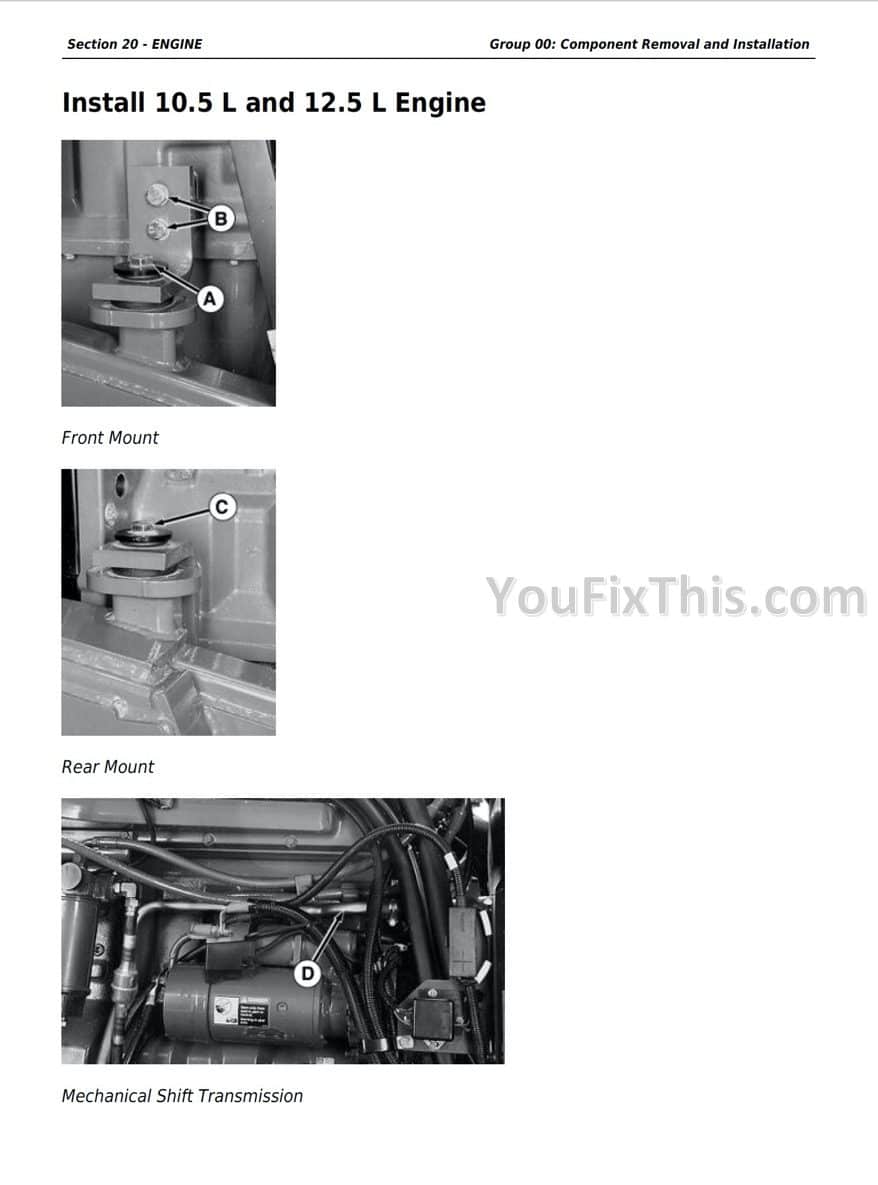

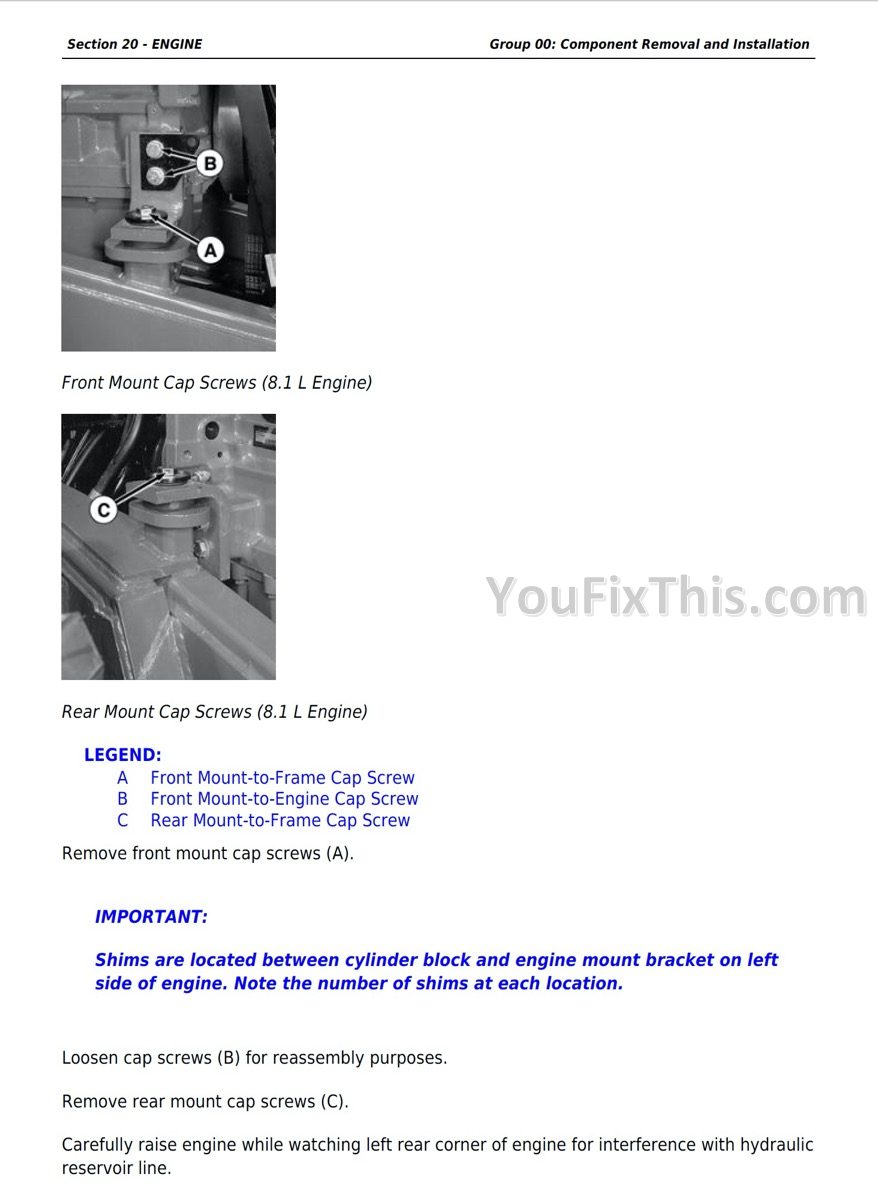

| Engine | 55-118 | 6081/6101/6125 Diesel Engine Removal, Teardown and Rebuild |
| Fuel, Air, and Cooling Systems | 119-169 | Fuel Injection, Air Intake, Turbocharger, Aftercooler and Cooling Repair |

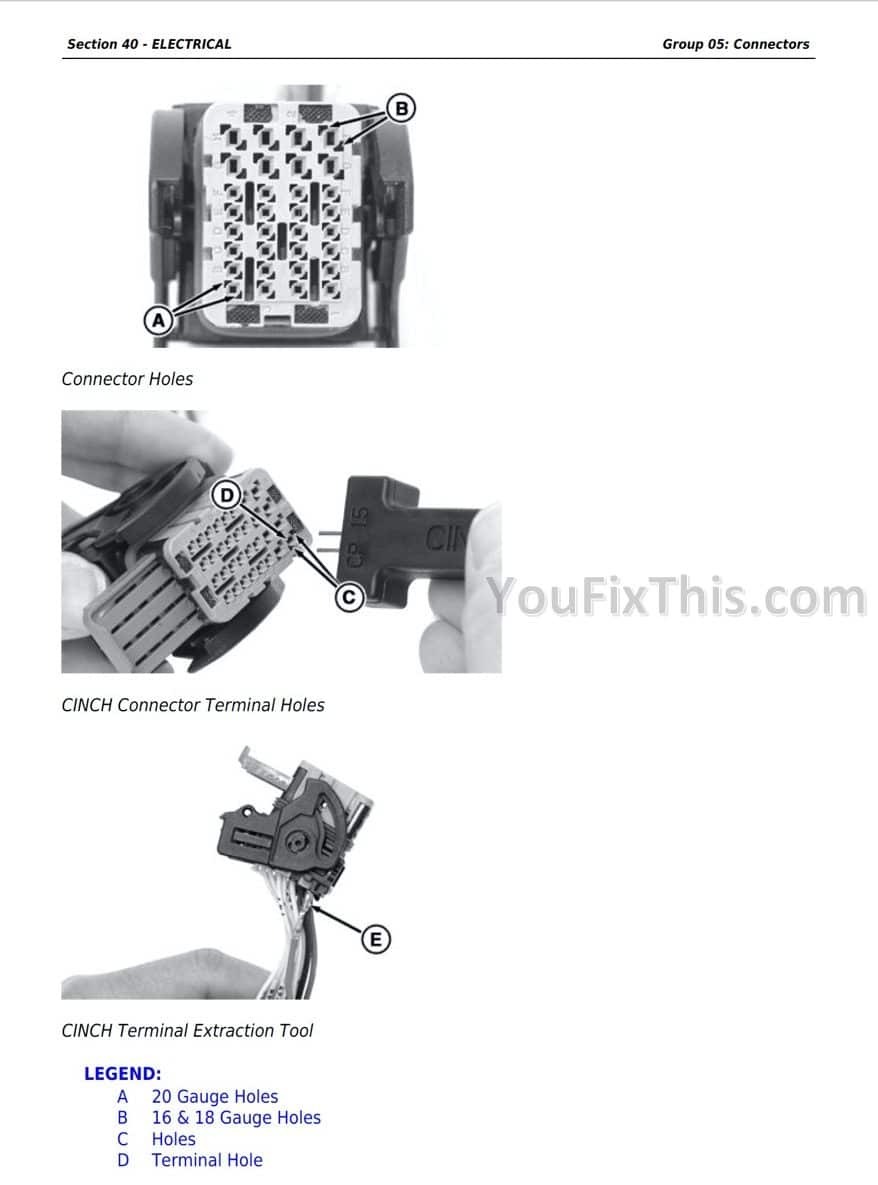

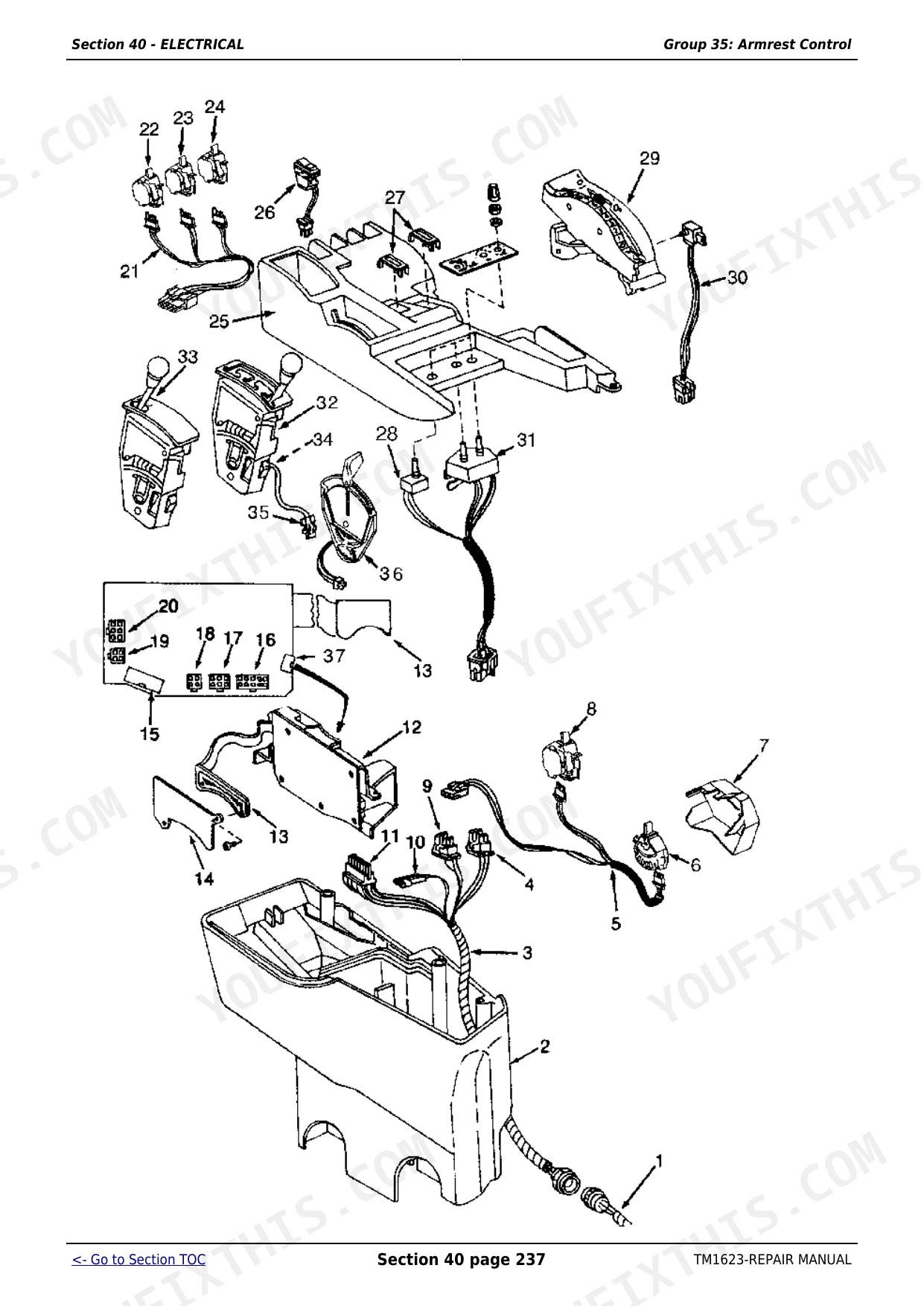

| Electrical | 170-442 | Alternator, Starter, Batteries, Instruments and Harness Repair |
| Speed Power-Shift Transmission | 443-485 | Clutch Packs, Shift Valves, Planetary Sets and Control Calibration (9020 Series) |
| Speed Power-Shift Transmission | 486-626 | Clutch Packs, Shift Valves and Planetary Gear-Train Overhaul (9000 Series) |
| Mechanical Shift Transmission (Mst) | 627-868 | Manual Gearbox Clutch, Synchronizers, Shift Rails and Range-Box Overhaul |

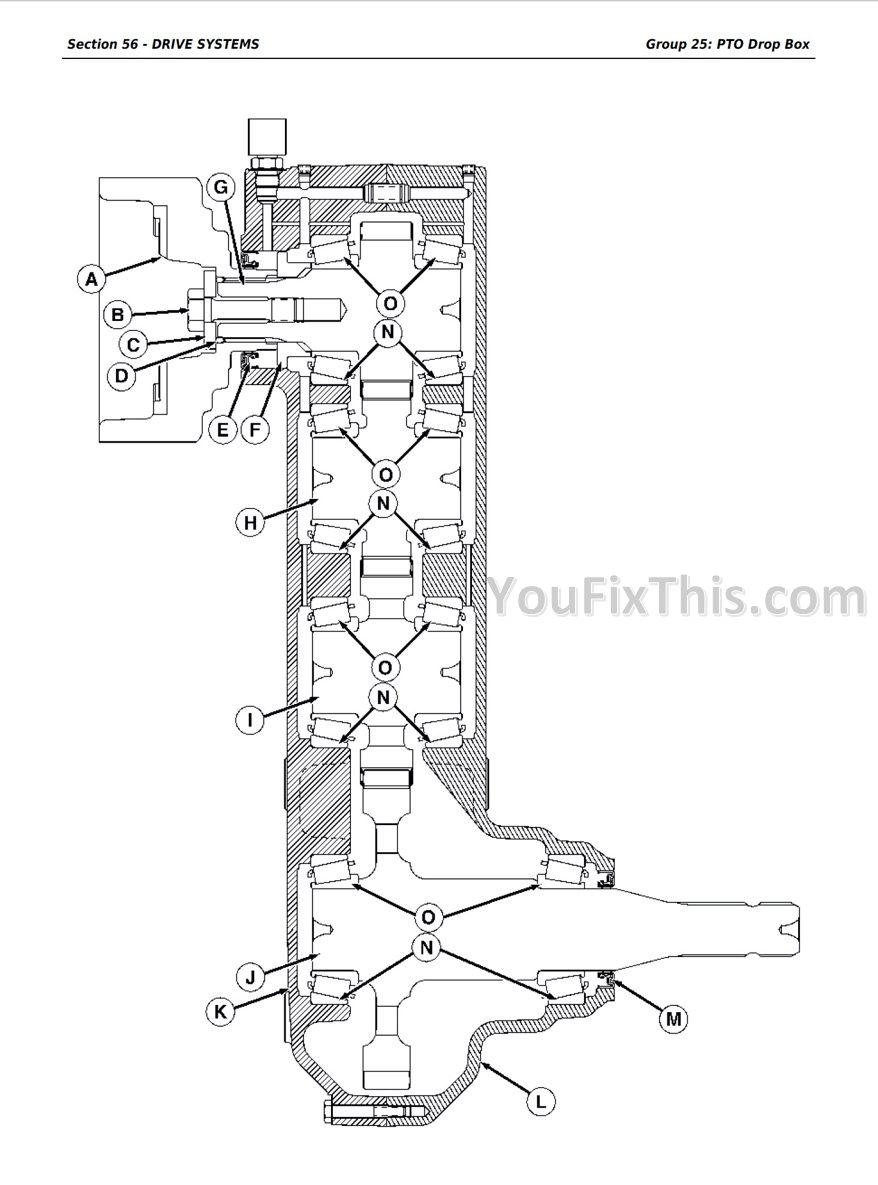

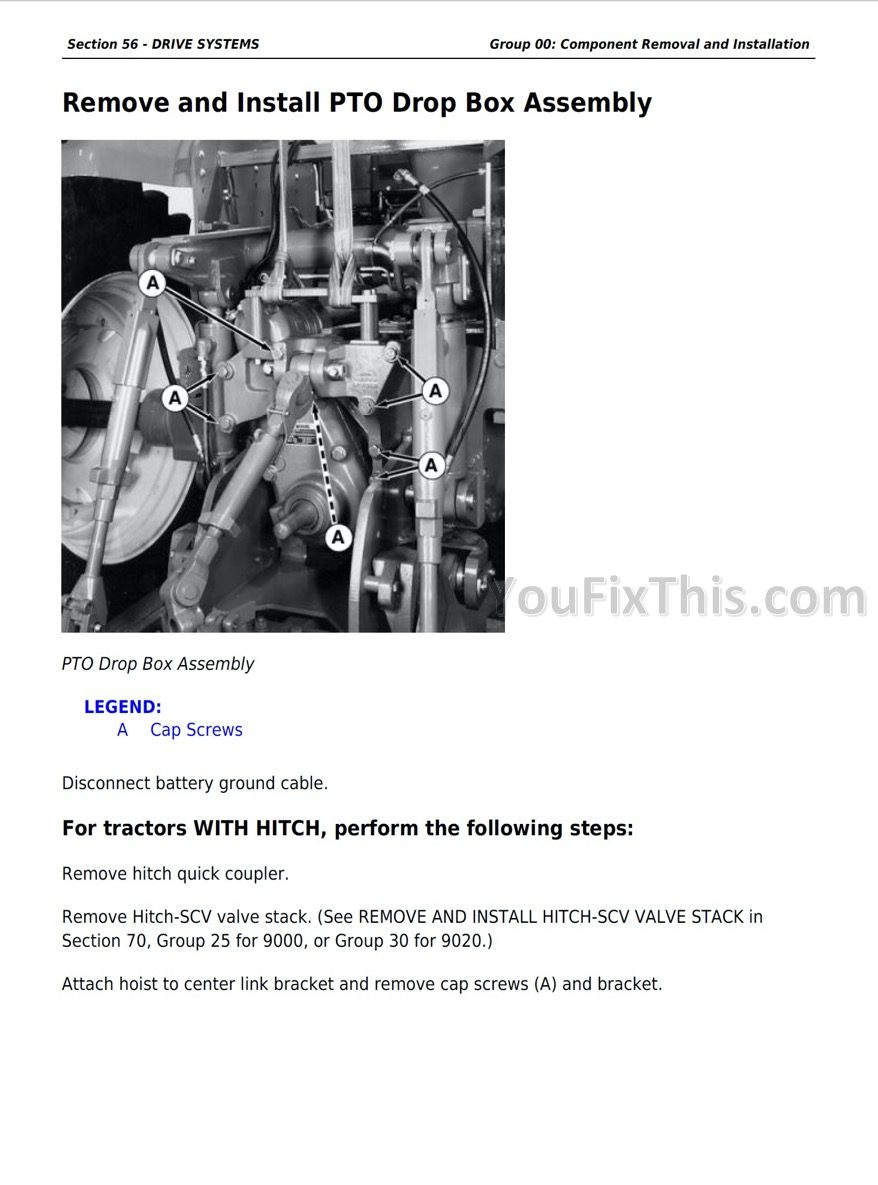

| Drive Systems | 869-927 | Drive Shafts, PTO and Differential Drive Repair |
| Axles | 928-1066 | Front and Rear Axle, Wheel and Final Drive Service |

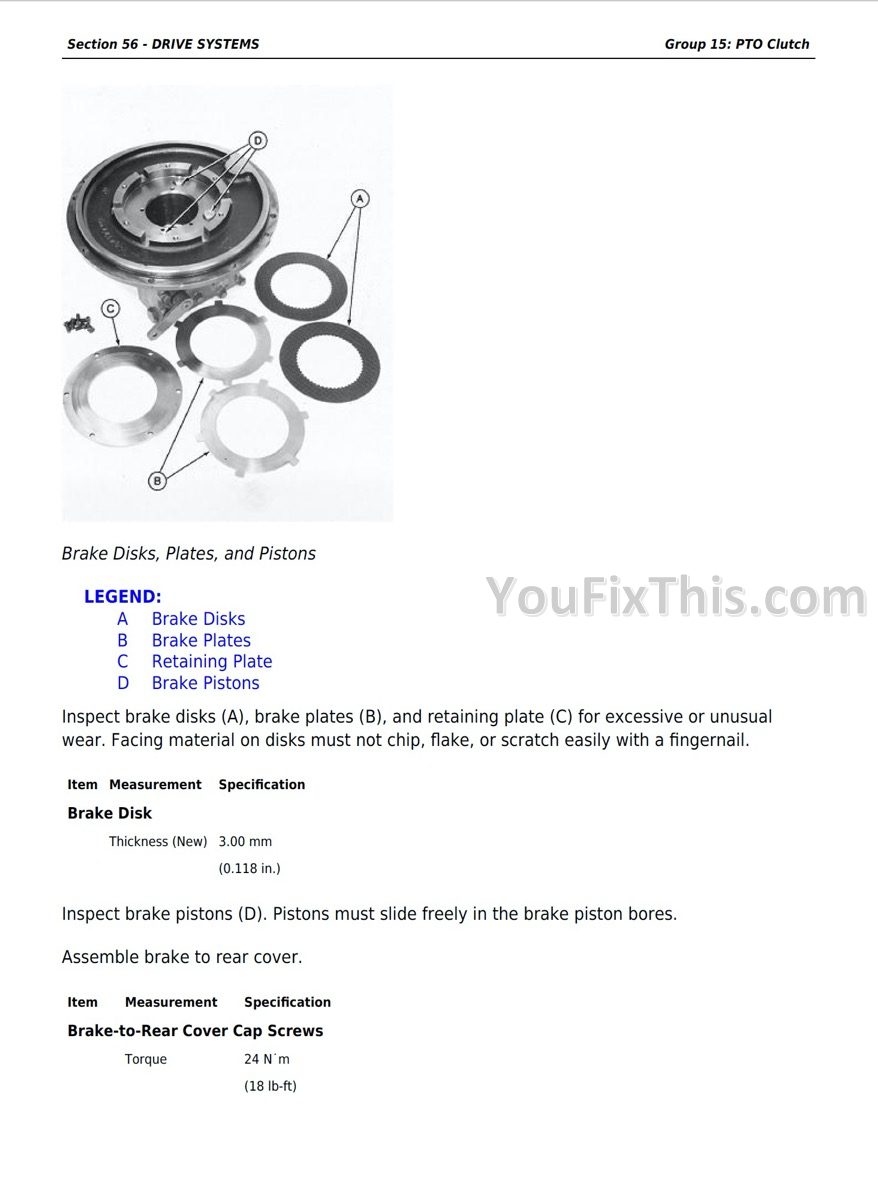

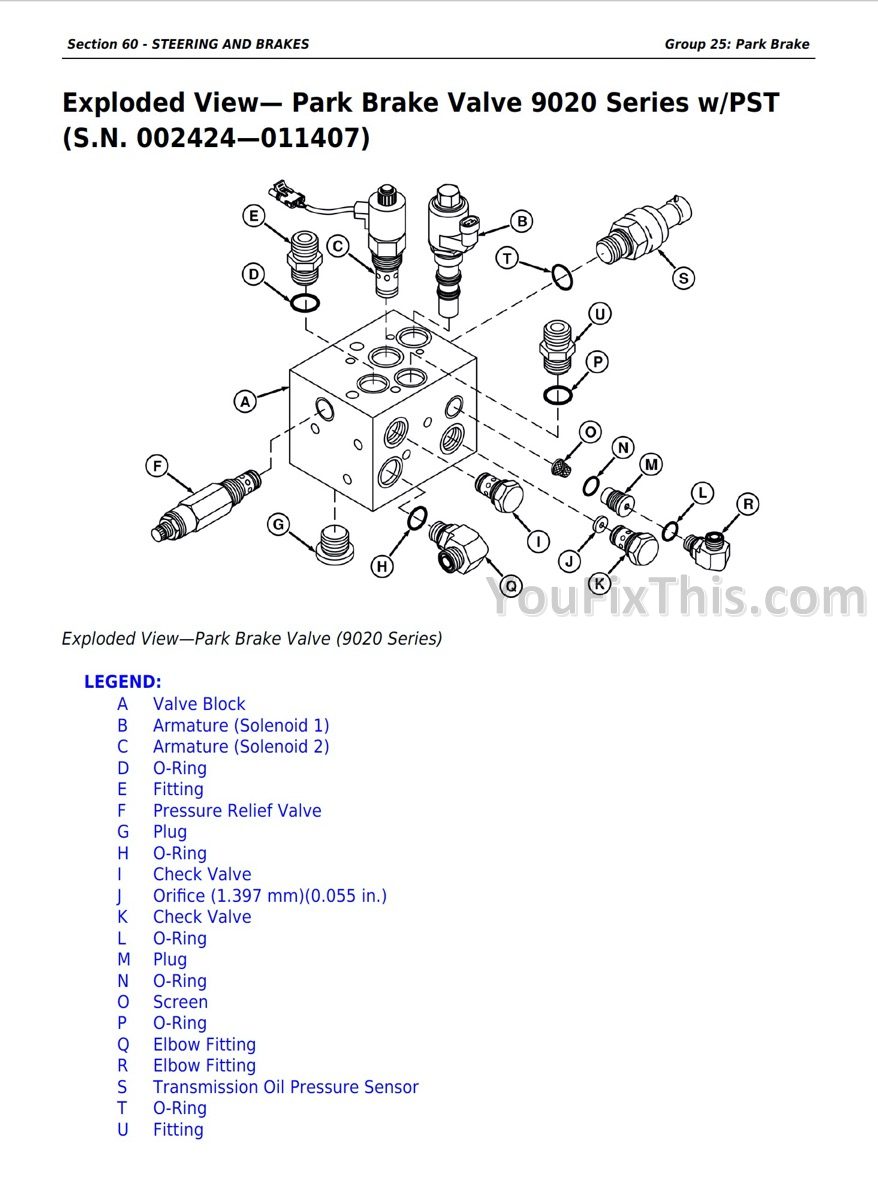

| Steering and Brakes | 1067-1174 | Articulation Steering, Valves, Cylinders and Brake Service |

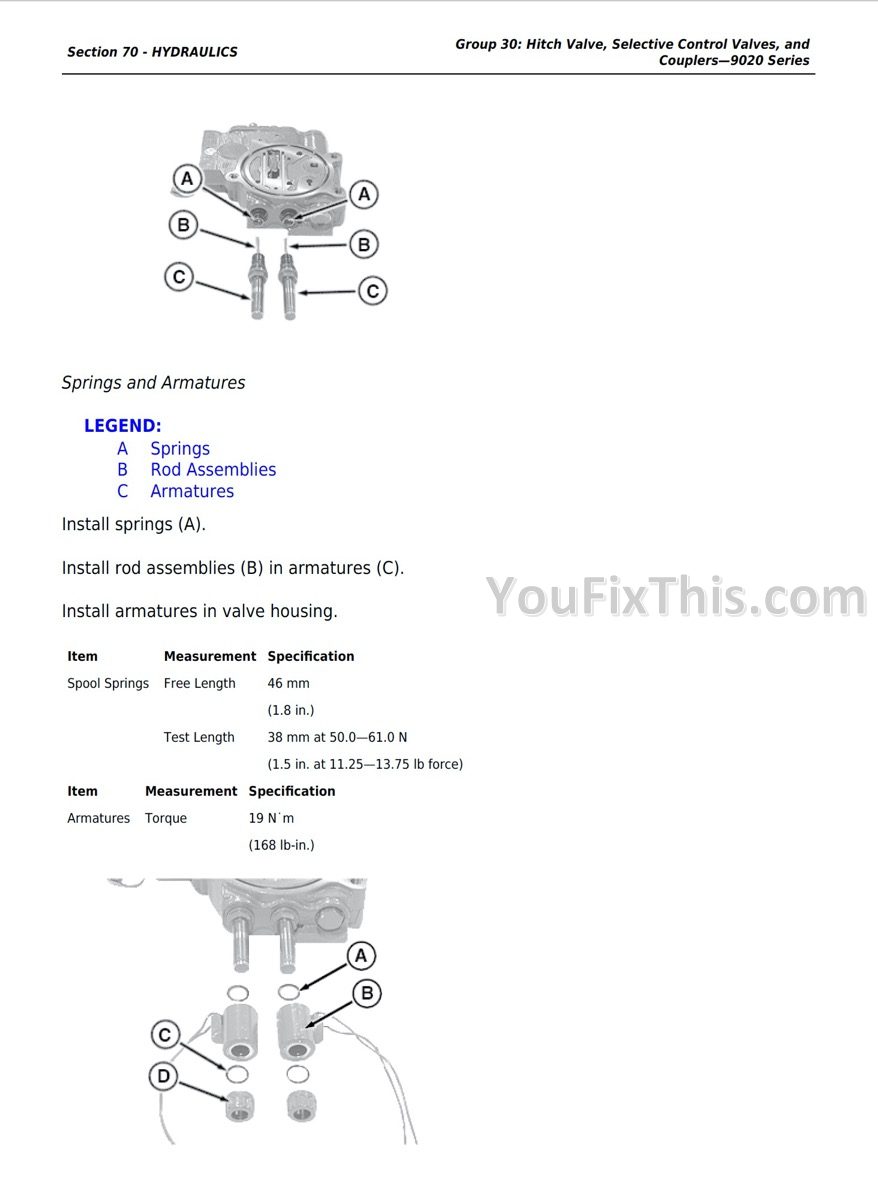

| Hydraulics | 1175-1462 | Hydraulic Pump, Valves, SCV and Three-Point Hitch Repair |
| Miscellaneous | 1463-1489 | Frame, Ballast, Three-Point Hitch, PTO Stub and Accessory Mounting |
| Operator Station | 1490-1727 | Operator's Cab, HVAC, Controls and Sheet Metal |

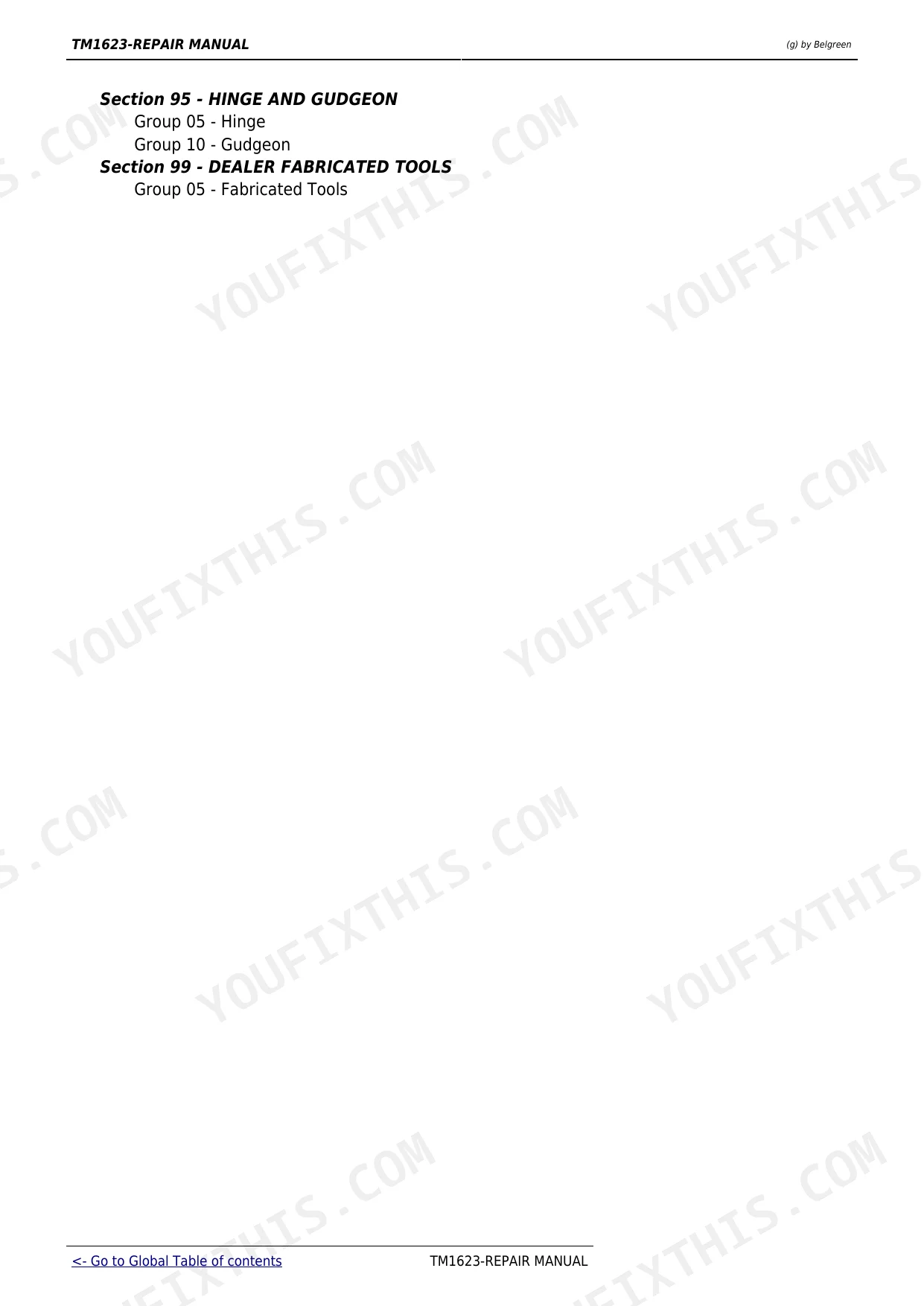

| Hinge and Gudgeon | 1728-1783 | Articulation Hinge and Gudgeon Bearing Service |
| Dealer Fabricated Tools | 1784-1813 | Dealer-Fabricated Special Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 9000 Series | ||
| Engine Type | In-line 6-cylinder, Wet Sleeve, Valve-in-Head, Turbocharged, Air-to-Air Aftercooled Diesel | p. 37 |
| Rated Speed | 2100 rpm | p. 37 |
| Operating Speed | 1500-2100 rpm | p. 37 |
| 9100 | ||
| Engine Factory Observed Power | 194 kW (260 hp) | p. 37 |
| PTO Power | 160 kW (214 hp) | p. 37 |
| Displacement | 8.1 L (496 in. ³) | p. 37 |
| Bore | 116 mm (4.56 in.) | p. 37 |
| Stroke | 129 mm (5.06 in.) | p. 37 |
| 9200 (S.N. -40000) | ||
| Engine Factory Observed Power | 231 kW (310 hp) | p. 37 |
| PTO Power | 194 kW (260 hp) | p. 37 |
| 9200 (S.N. 40001-) | ||
| Engine Factory Observed Power | 231 kW (310 hp) | p. 37 |
| PTO Power | 194 kW (260 hp) | p. 37 |
| 9300 | ||
| Engine Factory Observed Power | 268 kW (360 hp) | p. 37 |
| PTO Power | 225 kW (302 hp) | p. 37 |
| 9400 | ||
| Engine Factory Observed Power | 317 kW (425 hp) | p. 37 |
| PTO Power | 225 kW (302 hp) | p. 37 |
| Governed Speed | 800-2200 rpm | p. 37 |
| 9100, 9200, 9300 | ||
| Governed Speed | 900-2200 rpm | p. 37 |
| 9200 | ||
| Displacement | 10.5 L (644 in. ³) | p. 37 |
| Stroke | 138 mm (5.43 in.) | p. 37 |
| 9300, 9400 | ||
| Displacement | 12.5 L (766 in. ³) | p. 37 |
| 9200, 9300, 9400 | ||
| Bore | 127 mm (5.00 in.) | p. 37 |
John Deere 9100, 9200, 9300, 9400, 9120, 9220, 9320, 9420, 9520, 9620 Common Problems This Manual Covers
Engine oil pressure drops low and the monitor throws a stop-engine warning
Check oil level and viscosity first, then verify with a mechanical gauge before condemning parts. The Engine section covers oil pump removal, inspection and rebuild if pressure is genuinely low; the General Information section lists correct oil specs and capacities by engine.
Manual Section: EngineCoolant temperature climbs high under heavy pull

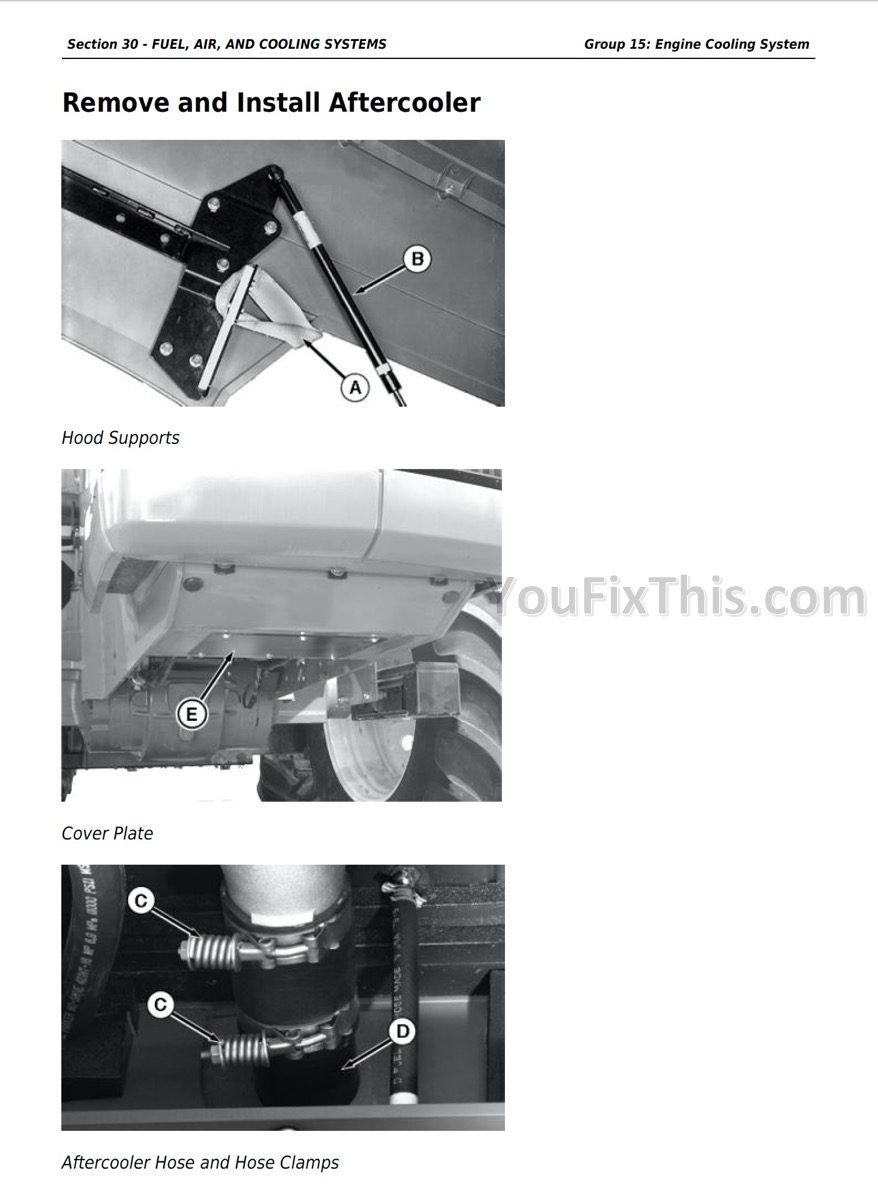

Usually a clogged radiator core, slipping fan belt or a stuck thermostat on these machines. The Fuel, Air, and Cooling Systems section walks through cooling system repair - radiator removal, thermostat replacement and aftercooler service - with the inspection steps to find the real cause.
Manual Section: Fuel, Air, and Cooling SystemsPowerShift transmission slips or a clutch element drags under load

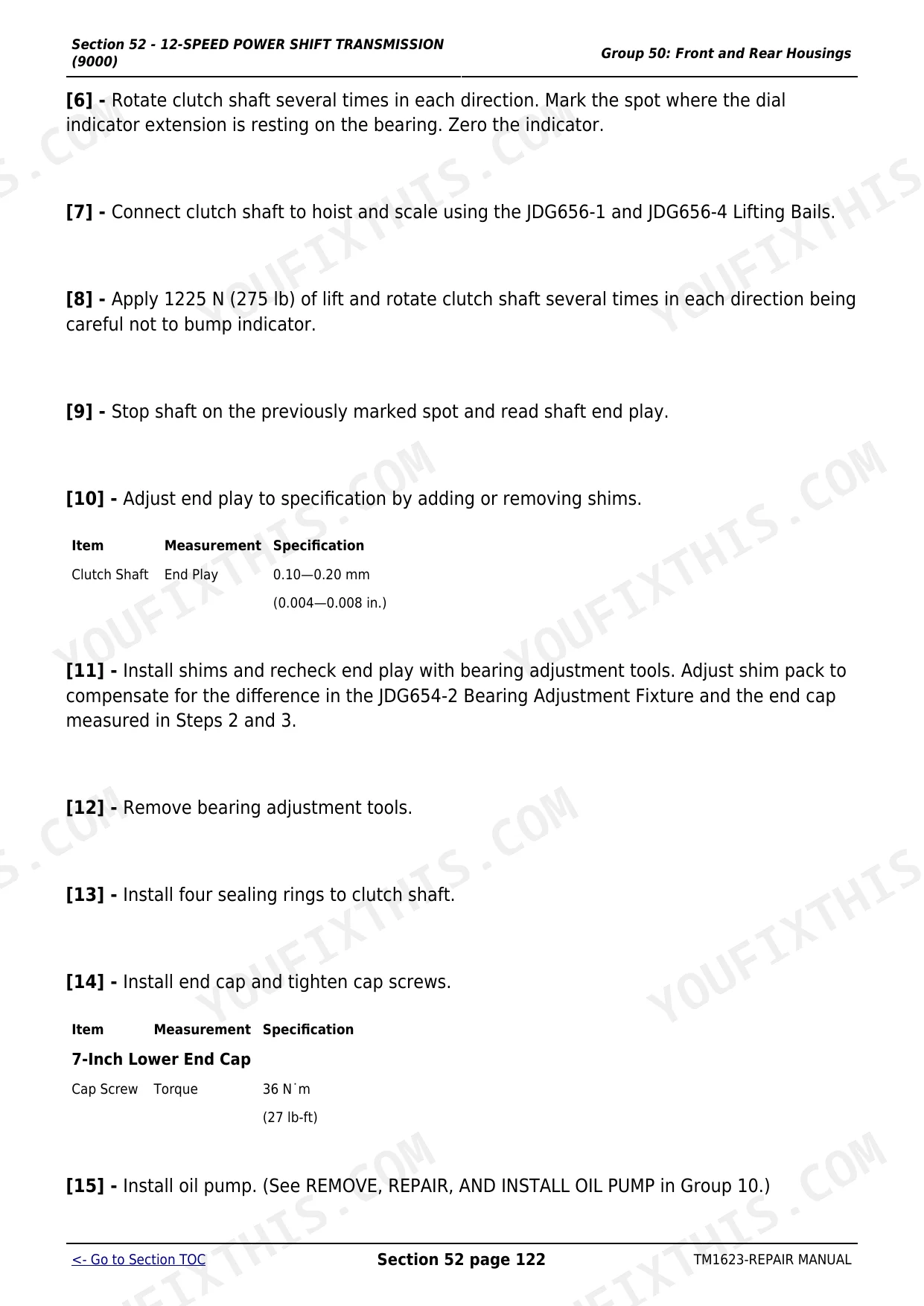

Worn clutch packs need a teardown, not fluid tricks. The 18-Speed and 12-Speed Power-Shift Transmission sections cover full overhaul - splitting the tractor, clutch pack disassembly, plate inspection limits and reassembly torques - for whichever gearbox your serial number carries.
Manual Section: 18-Speed / 12-Speed Power-Shift TransmissionSloppy steering and clunking from the center articulation joint
Worn gudgeon bearings, standard on high-hour articulated tractors. The Hinge and Gudgeon section covers bearing replacement and preload, and the Dealer Fabricated Tools section shows the special tooling you can build in the shop instead of buying from Deere.
Manual Section: Hinge and GudgeonFrequently Asked Questions
Does this manual cover the transmission in my tractor? There are three different ones across these models.
Yes, all three have their own overhaul section. The 18-speed PowerShift (9020 series machines like the 9120-9620) gets a full teardown chapter, the 12-speed PowerShift used in the 9000 series gets its own, and the Mechanical Shift (MST) transmission is covered separately. Each one walks through removal, clutch pack disassembly, inspection limits and reassembly. Just check which gearbox your serial number carries before you start ordering seals.
Will this help me rebuild the engine, or just pull it?
Both. The Engine section covers the 6081 (8.1L in the 9100), 6101 (10.5L in the 9200) and 6125 (12.5L in the 9300/9400) from removal through complete teardown and rebuild - wet sleeves, bearings, head work, the lot. These are in-line 6-cylinder turbocharged, air-to-air aftercooled diesels, and the General Information section carries the base specs: 2100 rpm rated speed, bore and stroke by model, torque values you will need at assembly.
My tractor runs rough and stalls under load. Where do I start in this manual?
The Fuel, Air, and Cooling Systems section. Nine times out of ten on these machines it is fuel starvation - plugged primary or secondary fuel filter, a restricted line, or air getting pulled into the system. The manual covers fuel injection repair, air intake and turbocharger service. Change both fuel filters first before you blame the injection pump; that fix costs twenty dollars and takes half an hour.
Can I trace an electrical fault with this manual, or do I need the diagnosis book?

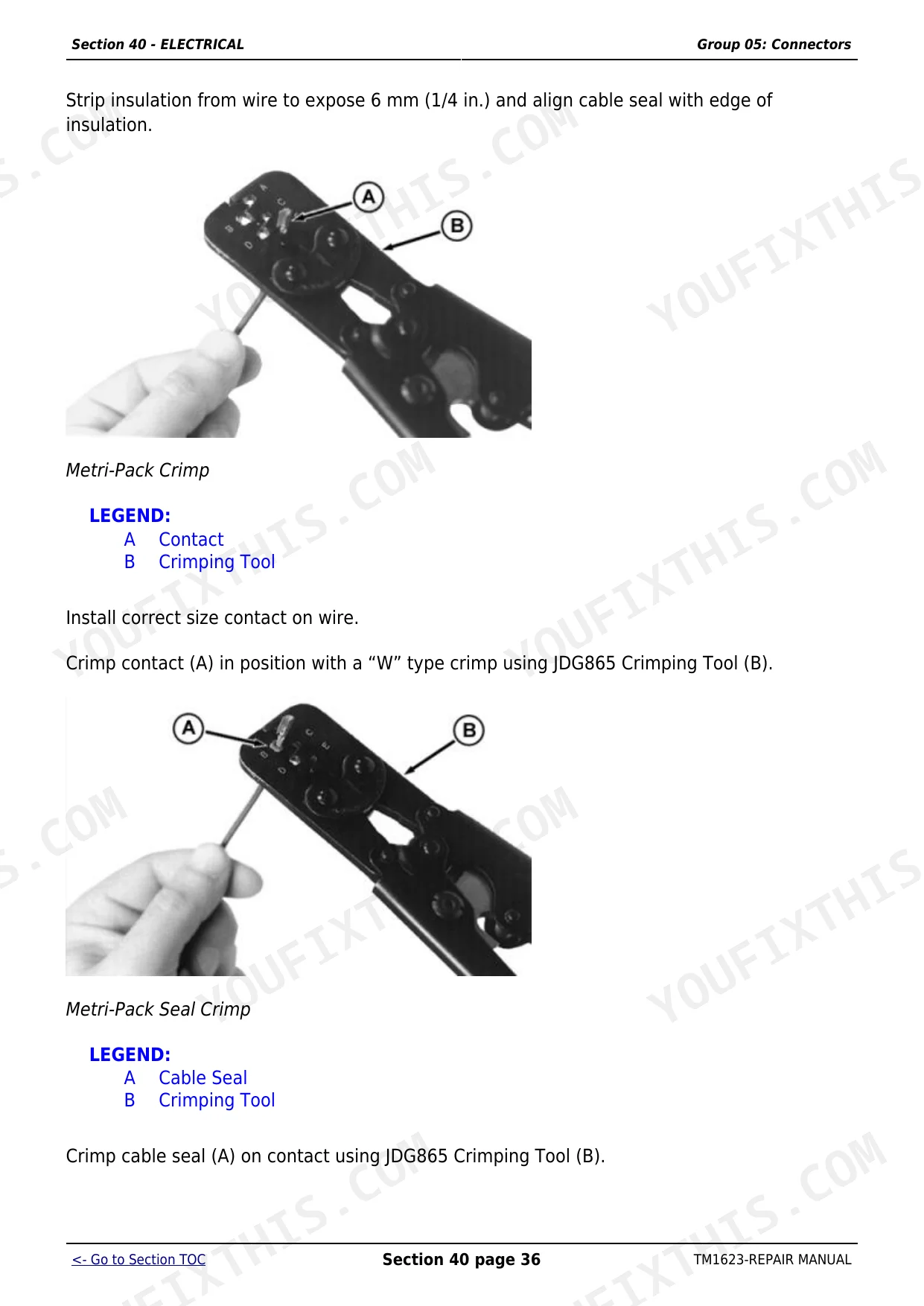

This manual handles electrical component repair - alternator, starter, batteries, instruments and harness work. To chase a live fault you also want the companion Diagnosis and Tests manual, which Deere published separately for this series; it carries the circuit diagrams and the operation-and-test routines. For physically replacing or rebuilding electrical parts, this manual has what you need.
What about the articulation joint? Mine has play in it.
There is a dedicated Hinge and Gudgeon section for exactly this. Play in the articulation joint on a high-hour 9000 series is common, and the manual covers the hinge and gudgeon bearing service - disassembly, bearing replacement and preload setup. Related steering work (articulation steering valves and cylinders) sits in the Steering and Brakes section. This is heavy work that needs proper support equipment, and the procedures spell out how to do it safely.
