Need factory-level service procedures for your John Deere SX85 or a GX-series riding mower? This 457-page Technical Manual (OEM #TM1491) covers the GX70, GX75, GX85, SX85, GX95, SRX75, and SRX95 across nine sections: engine diagnosis, power train rebuild, brake adjustment, and a procedures chapter that walks every repair step by step. Section 4 opens up the electrical system with wiring harnesses, schematics, and troubleshooting charts that tell you where to probe and what reading to expect. Gap your spark plugs to 0.762 mm (0.030 in.) and torque them to 20 N•m (177 lb-in.); the idler sheave nut on GX70, GX75, and GX95 models takes 73 N•m (54 lb-ft). Every number here is the factory figure. Bookmarked by section and keyword-searchable, so you can pull it up on a phone or tablet before you reach for a wrench.
What's Inside This John Deere GX70 & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-7 | Recognize Safety Information, Handle Fluids Safely, Avoid Fires, Use Care in Handling and Servicing Batteries, Use Care Around High-Pressure Fluid Lines, Use Safe Service Procedures |

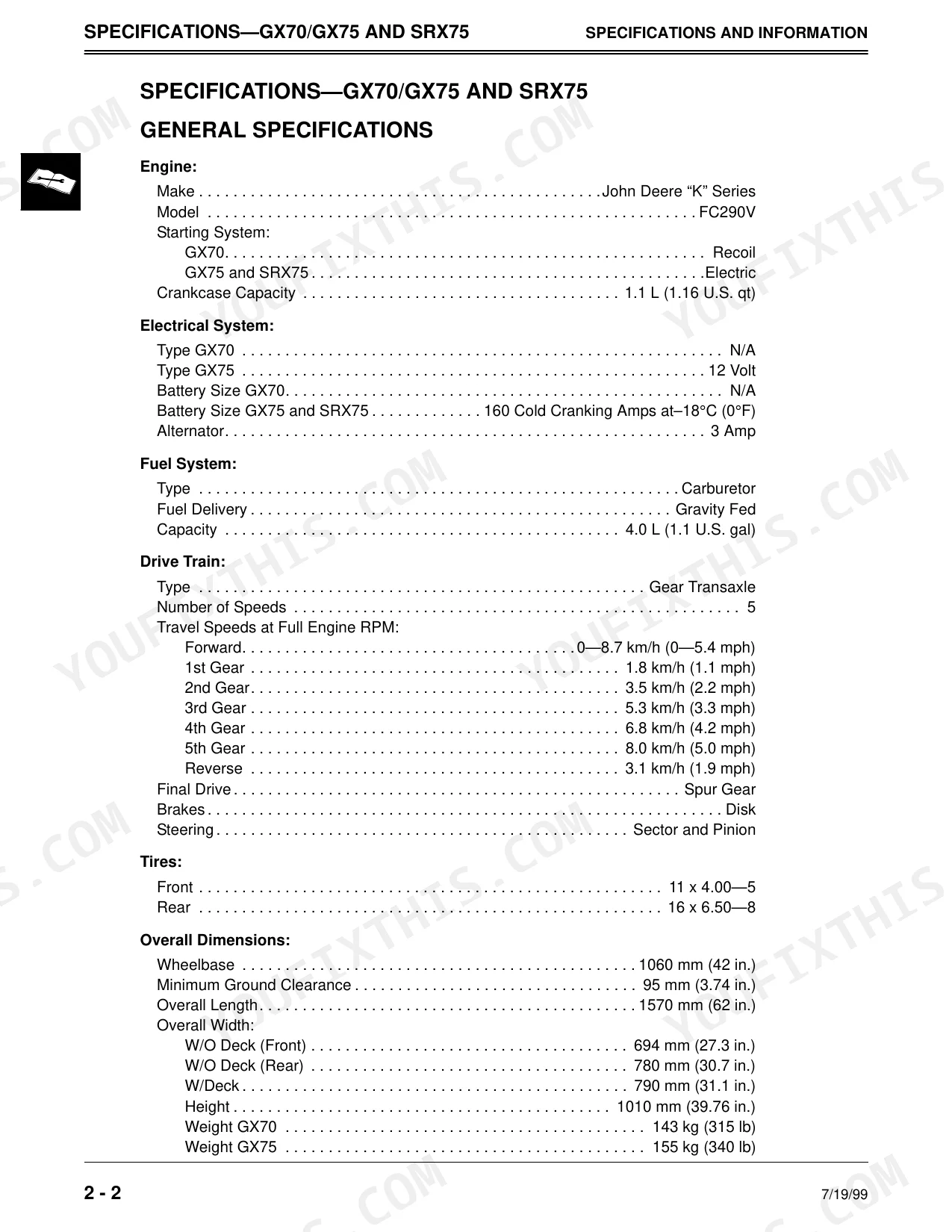

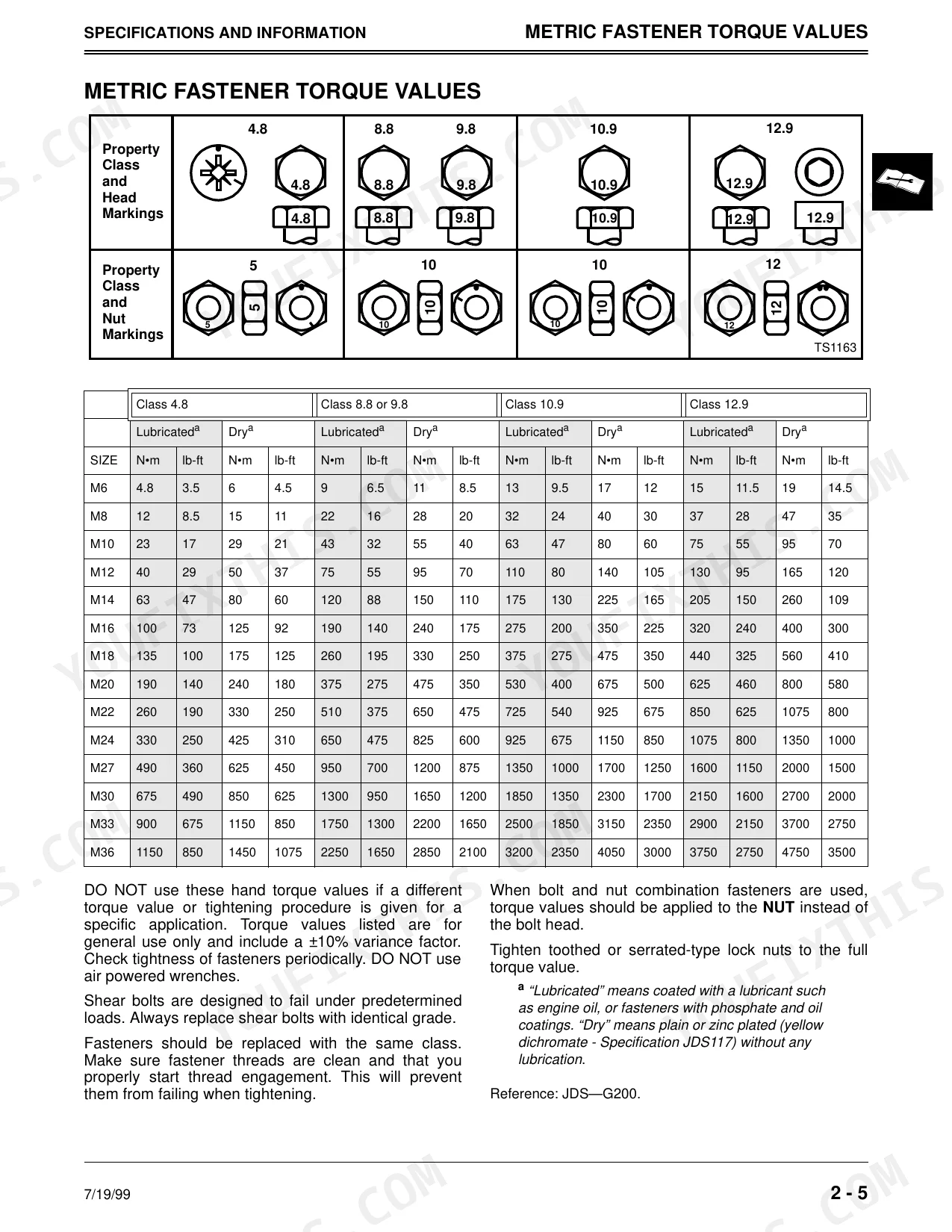

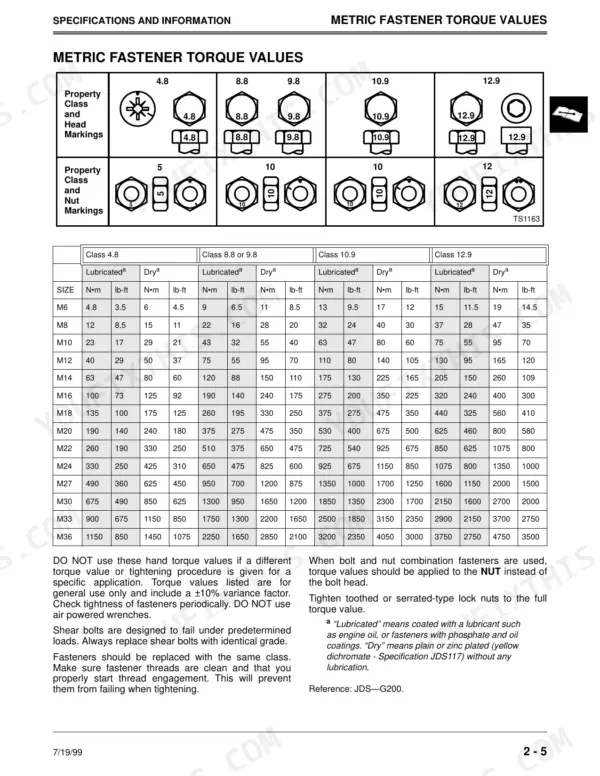

| Specifications and Information | 8-27 | Specifications, Fastener Torque Values, O-Ring Seal Service, Fuel Specifications, Oil and Lubricant Specifications |

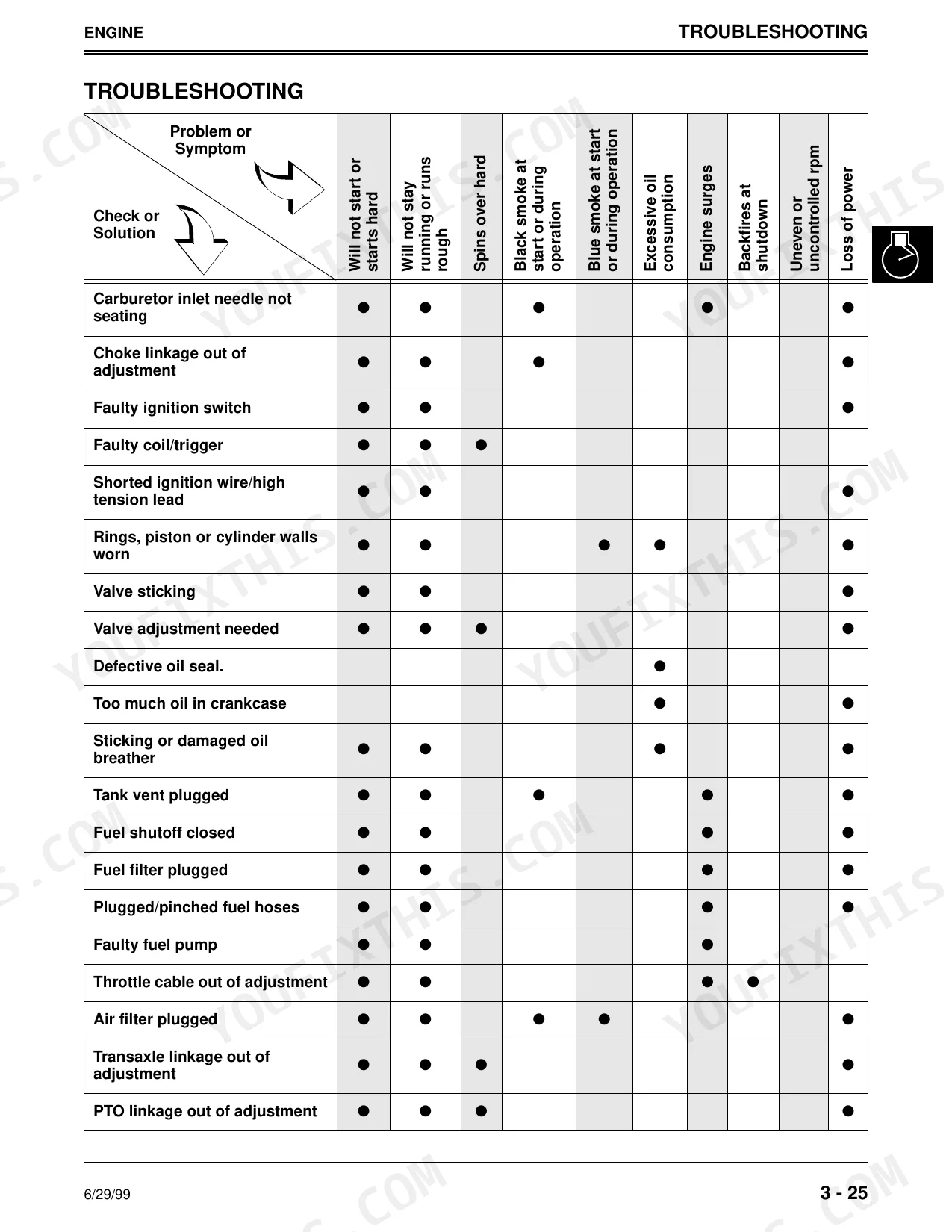

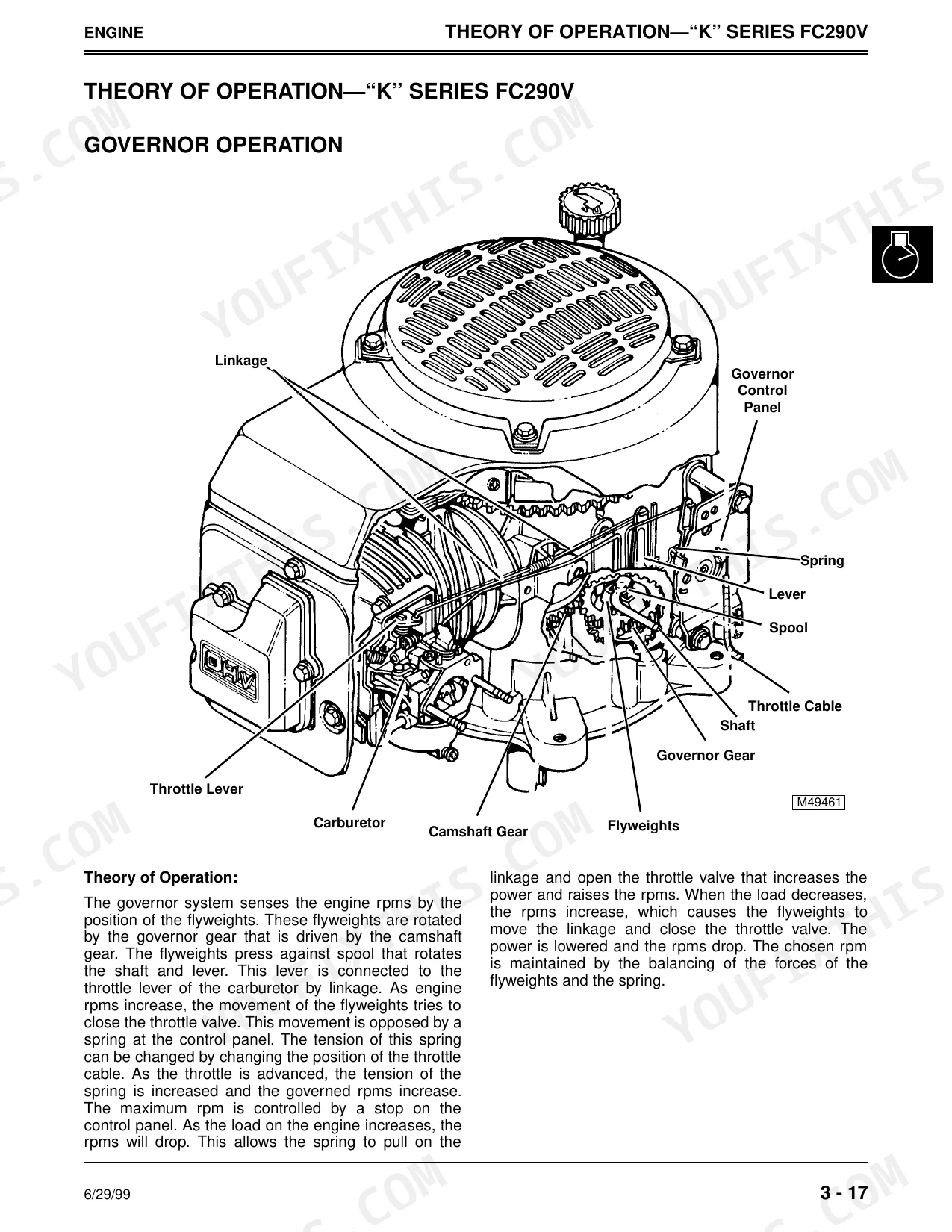

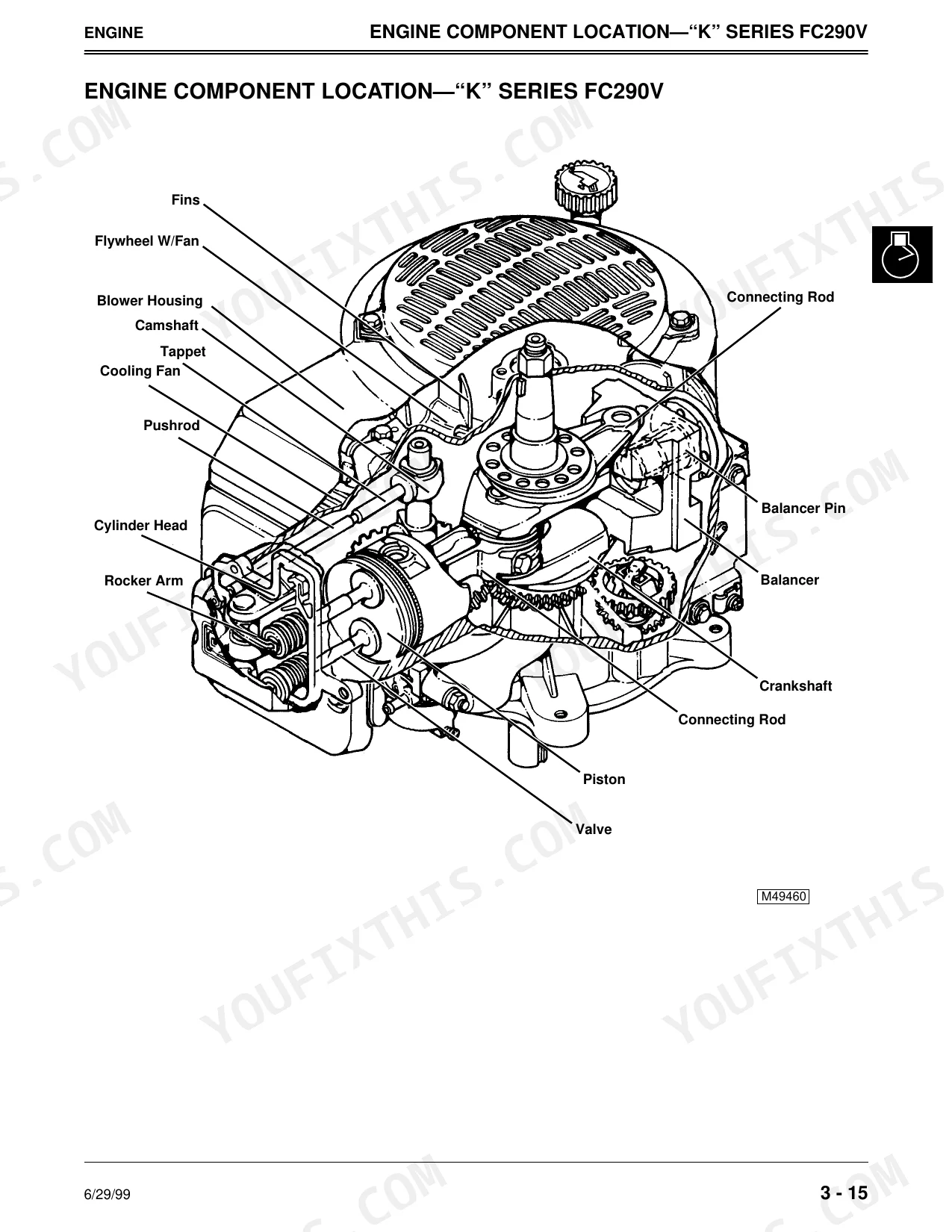

| Engine | 28-197 | Specifications, Component Locations, Theory of Operation, Troubleshooting, Diagnosis, Tests and Adjustments, Repair |
| Electrical | 198-299 | Specifications, Theory and Diagnostic Information, Component Locations, Wiring Harnesses, Electrical Schematics, Troubleshooting, Theory of Operation, Operation and Diagnosis |
| Power Train | 300-357 | Component Locations, Theory of Operation, Troubleshooting, Diagnosis, Tests and Adjustments, Repair |
| Steering | 358-361 | Component Location, Repair |
| Brakes | 362-383 | Specifications, Component Locations, Theory of Operation, Troubleshooting, Diagnosis, Checks, Tests and Adjustments, Repair |
| Attachments | 384-447 | Specifications, Component Locations, Theory of Operation, Troubleshooting, Diagnosis, Checks, Tests and Adjustments, Repair |
| Miscellaneous | 448-451 | Wheels, Removal/Installation, Front Wheel Bearings, Inspection/Replacement, Front Axle, Removal/Inspection/Installation, Spindle Shaft |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Mower Drive Belt Guide-to-Belt Clearance | 1 mm (0.063 in.) | p. 386 |
| Mower Drive Belt Guide-to-Belt Clearance (38-Inch Mower Deck) | 1.6—3.2 mm (0.063—0.125 in.) | p. 442 |
| Spark Plug Gap | 0.762 mm (0.030 in.) | p. 201 |
| Spark Plug Torque | 20 N•m (177 lb-in.) | p. 201 |
| Tires Front | 11 x 4.00—5 | p. 9 |
| GX70, GX75, GX95 | ||
| Idler Sheave Nut Torque | 73 N•m (54 lb-ft) | p. 343 |
| GX70, GX75 | ||
| Fuel System Capacity | 4.0 L (1.1 U.S. gal) | p. 9 |
| SRX75 | ||
| Fuel Tank Capacity | 3.5 L (0.91 U.S. gal) | p. 10 |
| GX70, GX75, SRX75 (FC290V engines) | ||
| Crankcase Capacity | 1.1 L (1.16 U.S. qt) | p. 9 |
| GX95, SRX95 (FB460V engines), GX85, SX85 (Briggs & Stratton engines) | ||
| Crankcase Capacity | 1.4 L (1.48 U.S. qt) | p. 10 |
| GX70, GX75, GX85 | ||
| Fuel Tank Capacity | 4.0 L (1.1 U.S. gal) | p. 9 |
| GX95, SRX95 | ||
| Fuel Tank Capacity | 6.5 L (1.6 U.S. gal) | p. 10 |
John Deere GX70 & variants Common Problems This Manual Covers
John Deere GX75 PTO switch clicked but blades refuse to spin or engagement drops mid-cut p. 386
Verify the mower drive belt is routed correctly and that belt guide clearance measures 1 mm (0.063 in.) per page 386. On GX70, GX75, and GX95 models, confirm the idler sheave nut is torqued to 73 N•m (54 lb-ft) per page 343. Trace the full belt path for jumped or worn sections before re-engaging the PTO.
Manual Section: Mower Deck Drive IssuesEngine cranks but won't fire, stumbles at idle, or stalls when mowing uphill

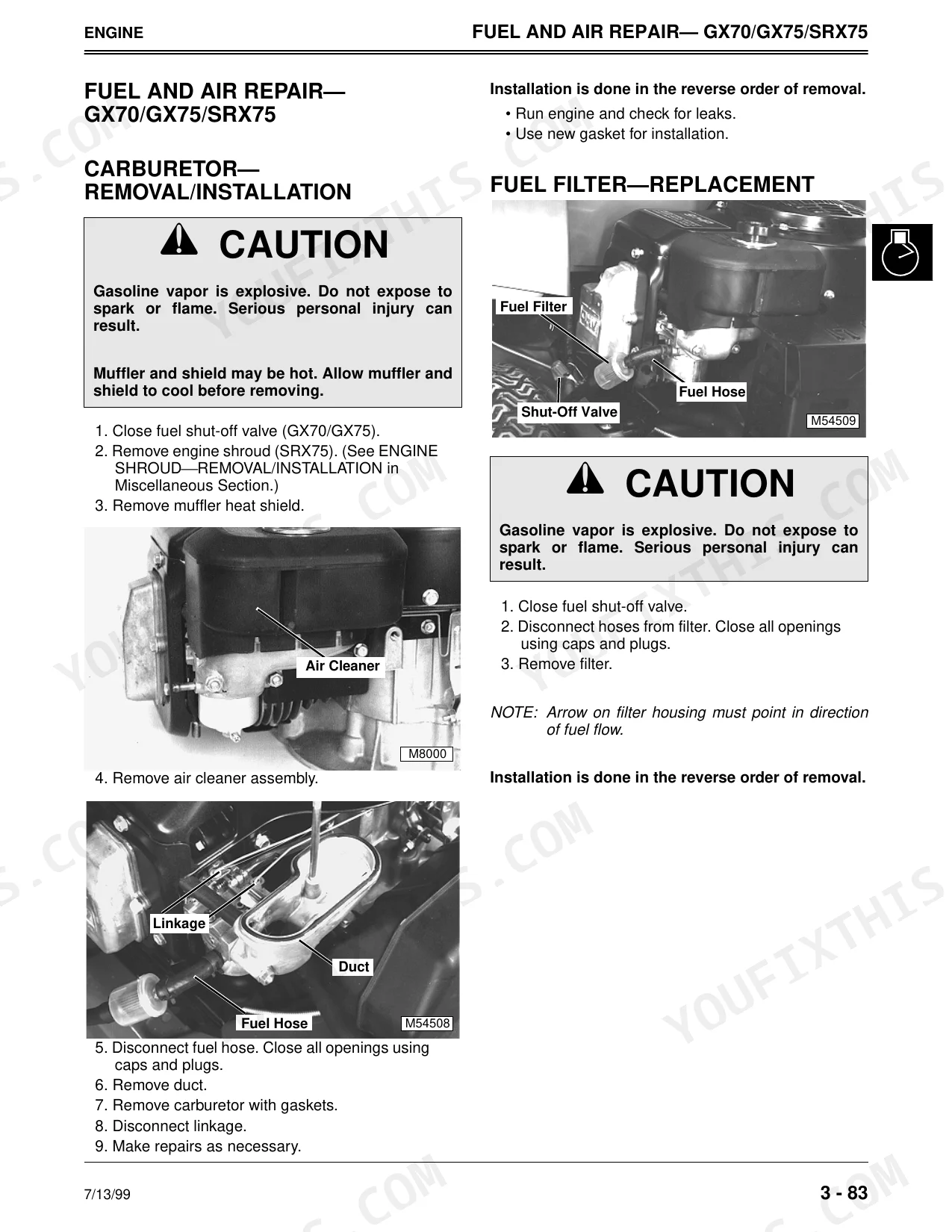

Start with the inline fuel filter and replace it if discolored or clogged. Inspect the spark plug, set the gap to 0.762 mm (0.030 in.) per page 201, and swap it out if the electrode is fouled or worn. Drain any fuel that has sat longer than 30 days; stale gasoline is the most common no-start cause on stored machines. Confirm the choke returns to full open at operating temperature.
Manual Section: Engine Starting & Running IssuesDeck leaves uneven stripes or scalped patches even after adjusting the cutting height p. 384
Match front tire pressure side to side; uneven inflation tilts the whole deck. Inspect the blades for bends or missing material, then confirm drive belt guide clearance is 1 mm (0.063 in.) per page 386. A dragging belt drops blade tip speed and causes striping. Follow the deck leveling procedure in Section 8 - Attachments for pitch and side-to-side adjustment.
Manual Section: Mower Deck Cut Quality & PluggingStarter motor won't turn over or battery goes dead between weekly mowing sessions
Clean the battery terminals of corrosion and tighten both posts. Trace the starter circuit through the safety interlock switches with the wiring diagram, starting at the seat and PTO interlocks. Rule out the low-oil shutoff: top up oil to 1.1 L for GX70/GX75/SRX75 (page 9) or 1.4 L for GX85/SX85/GX95/SRX95 (page 10).
Manual Section: Electrical Starting & Charging IssuesBlade or PTO contact injury risk when removing spark plug or working under the deck p. 3
Disconnect the spark plug wire before reaching under the deck for any blade or belt work. Follow the safe service procedures on page 3: stop the engine, set the parking brake, and pull the ignition key before your hands go near the blade arc. On reassembly, set the plug gap to 0.762 mm (0.030 in.) per page 201 before reconnecting the wire.
Manual Section: Section 1 - SafetyFrequently Asked Questions
What are the torque specs for the blade spindle bolts on a John Deere GX75?
For the John Deere GX75, the mower blade-to-spindle cap screw torque is 75 N•m (55 lb-ft). The spindle-to-deck nut torque is 25 N•m (222 lb-in.), and the sheave-to-spindle nut torque is 140 N•m (103 lb-ft).
What are the torque specs for the wheel lug nuts on a John Deere SRX95?
On the John Deere SRX95, tighten the front wheel nuts to 30 N•m (22 lb-ft) when installing them. The figure appears under the front axle installation procedure on page 449.
How to reset John Deere GX75 safety switch
The manual does not describe a "reset" procedure for the John Deere GX75 safety switch. Instead, it provides testing procedures for the seat switch (S4) and its wiring harness connector. If the seat switch continuity is not correct after testing, the manual recommends replacing the switch (page 286).
How to reset John Deere GX85 PTO switch
No reset routine exists for the John Deere GX85 PTO switch in this manual. Test the PTO switch for continuity (page 284); if it reads incorrectly, replace the switch. Otherwise reinstall it and check the plunger operation, bending the linkage tang to adjust if needed.
What format is this John Deere GX70 & variants manual in?
Instant PDF download. The full 457-page searchable Technical Manual lands in your hands right after payment, ready to open on a laptop, tablet, or phone in the shop.
Is this John Deere GX70 & variants Technical Manual printable?
Yes. The PDF carries no DRM restrictions, so print any page or section your shop needs. It works with any standard printer.

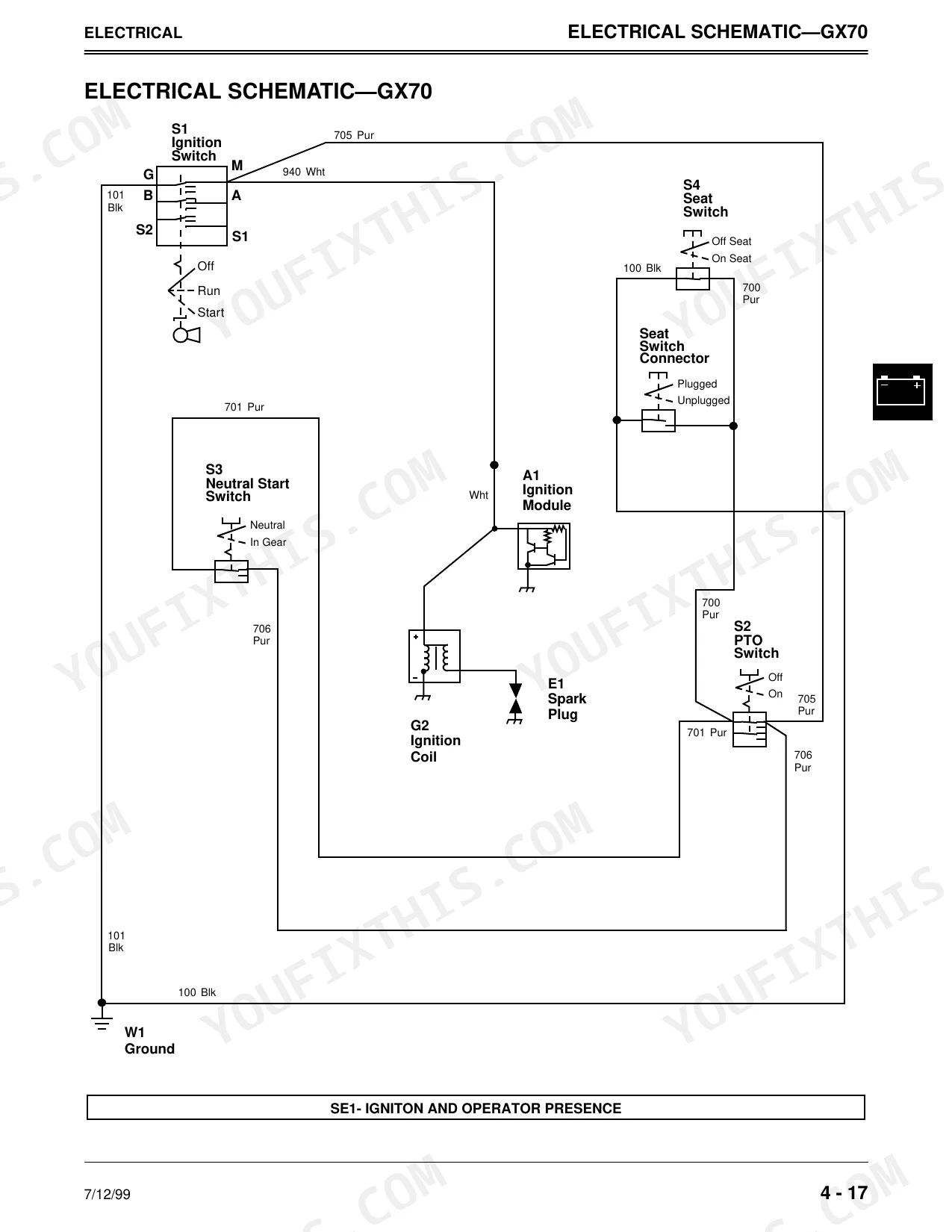

Can I find wiring schematics in this John Deere GX70 & variants manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF, not a native digital file. An OCR layer is present, allowing you to search and copy text, though some characters may have minor recognition errors. The text quality is generally crisp and readable throughout the manual. Diagrams and illustrations are raster images, which appear clear at normal zoom levels, and their labels are easily readable. Page condition is good overall, with minimal scan artifacts, stains, or skewed pages. There are several "This page intentionally left blank" filler pages included.
