Part of the John Deere Repair Manuals.
This is the John Deere Component Technical Manual CTM4687 for the AS Series and MS Series front wheel drive axles: AS-2025, AS-2035, AS-2035N, AS-2045, AS-2060, MS-2025, MS-2035, and MS-2045. Its 182 pages are a stand-alone service guide for these axles alone.These axles are fitted to a wide range of John Deere machines, including the 6020 through 6920 series tractors and the 310G, 310SG, 315SG, 410G, and 710G. The manual walks through the steering cylinder and tie rods, planetary drive and wheel hub, knuckle housing and drive shafts, and the axle housing and differential, with removal, repair, and installation for each, plus a section on how the axle operates.Because it is a component manual, use it alongside the machine technical manual; Triple Link Suspension is covered separately. It gives the torque values, clearances, and procedures needed to rebuild the axle correctly.
What's Inside This John Deere AS & MS Series Manual

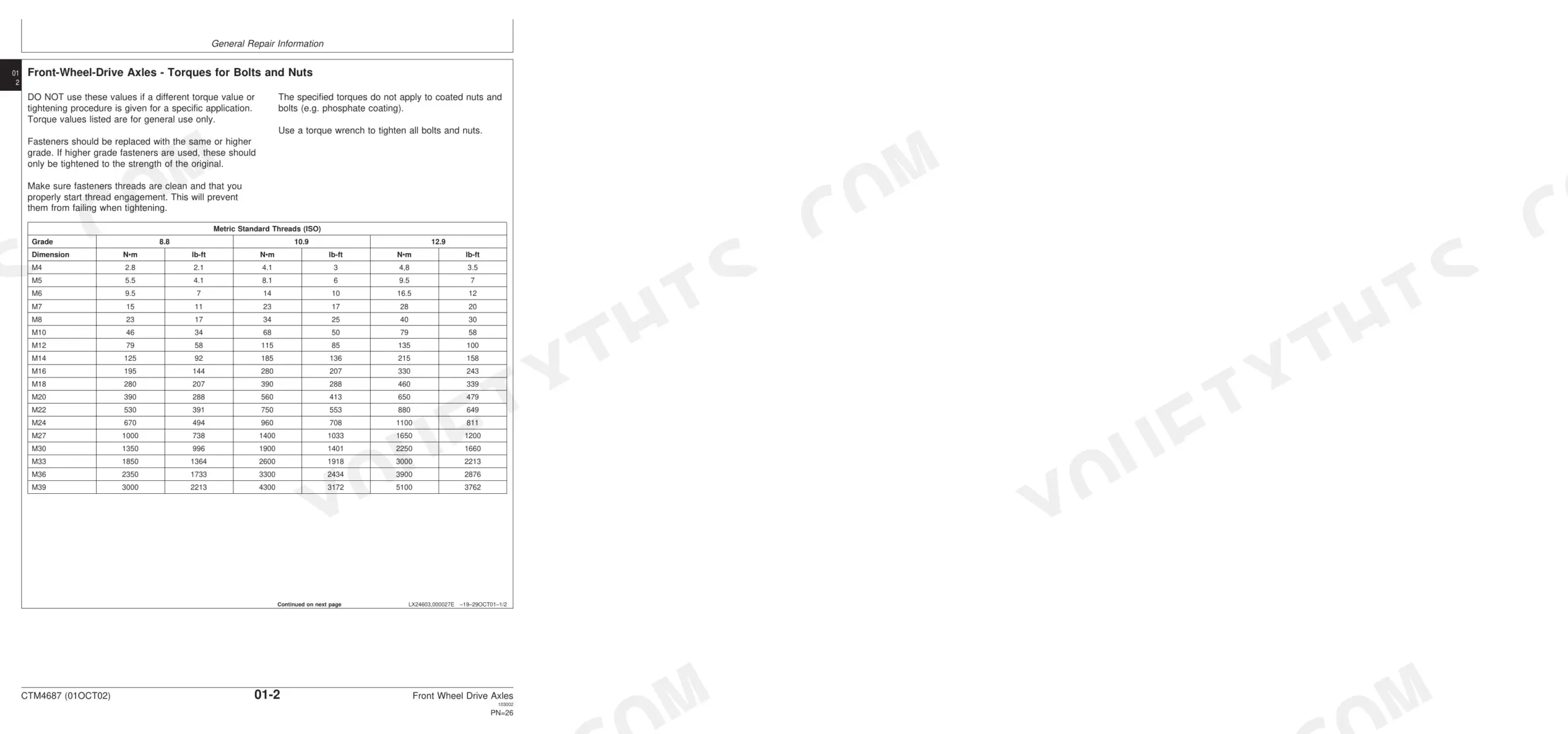

| System | Pages | Key Topics |
|---|---|---|
| Safety Information | 13-24 | Recognize Safety Information, Important - Information, Note - Information, Prevent Machine Runaway, Handle Fluids Safely - Avoid Fires, Prepare for Emergencies |
| General Repair Information | 25-28 | General Safety and Repair Information, Front-Wheel-Drive Axles - Torques for Bolts and Nuts, Metric Standard Threads (Iso) |

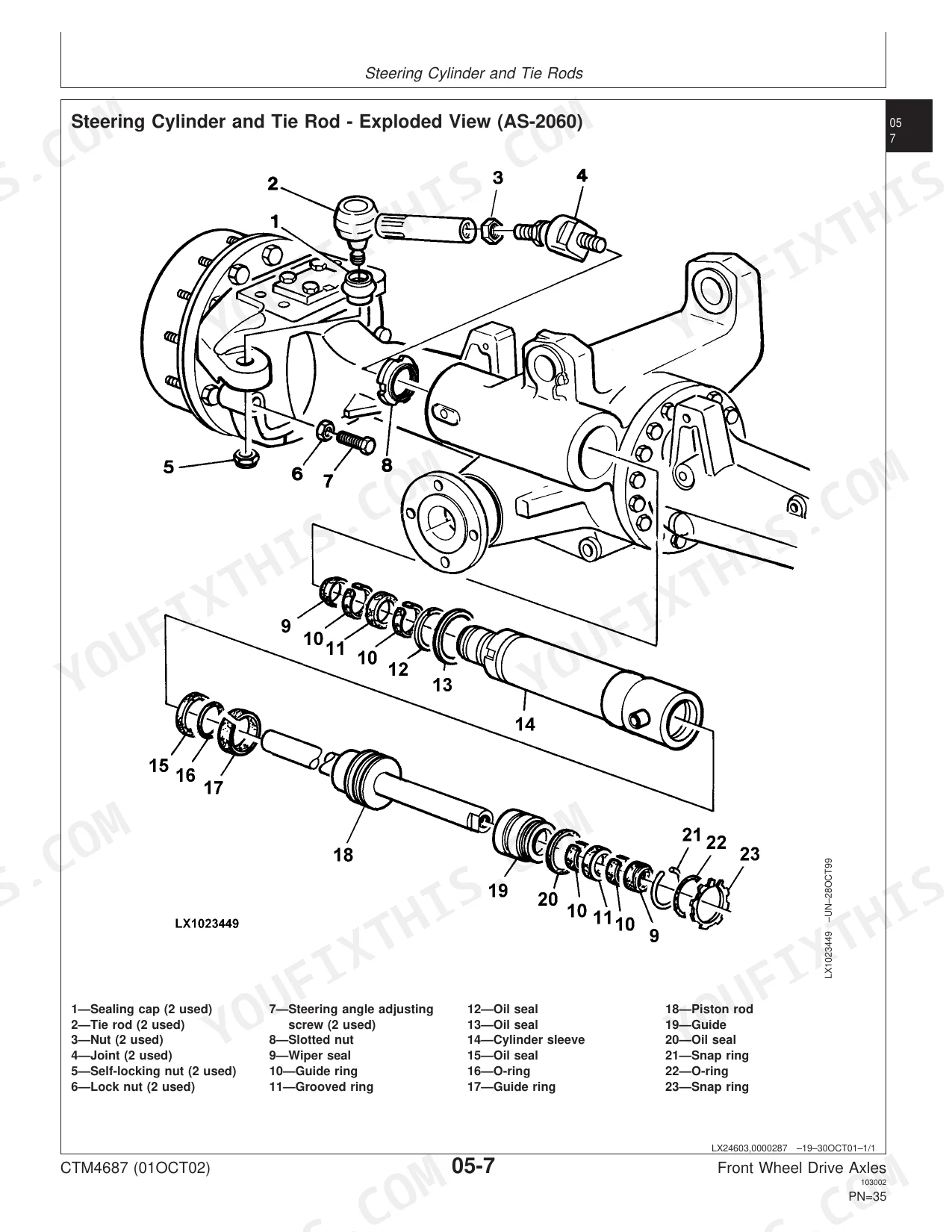

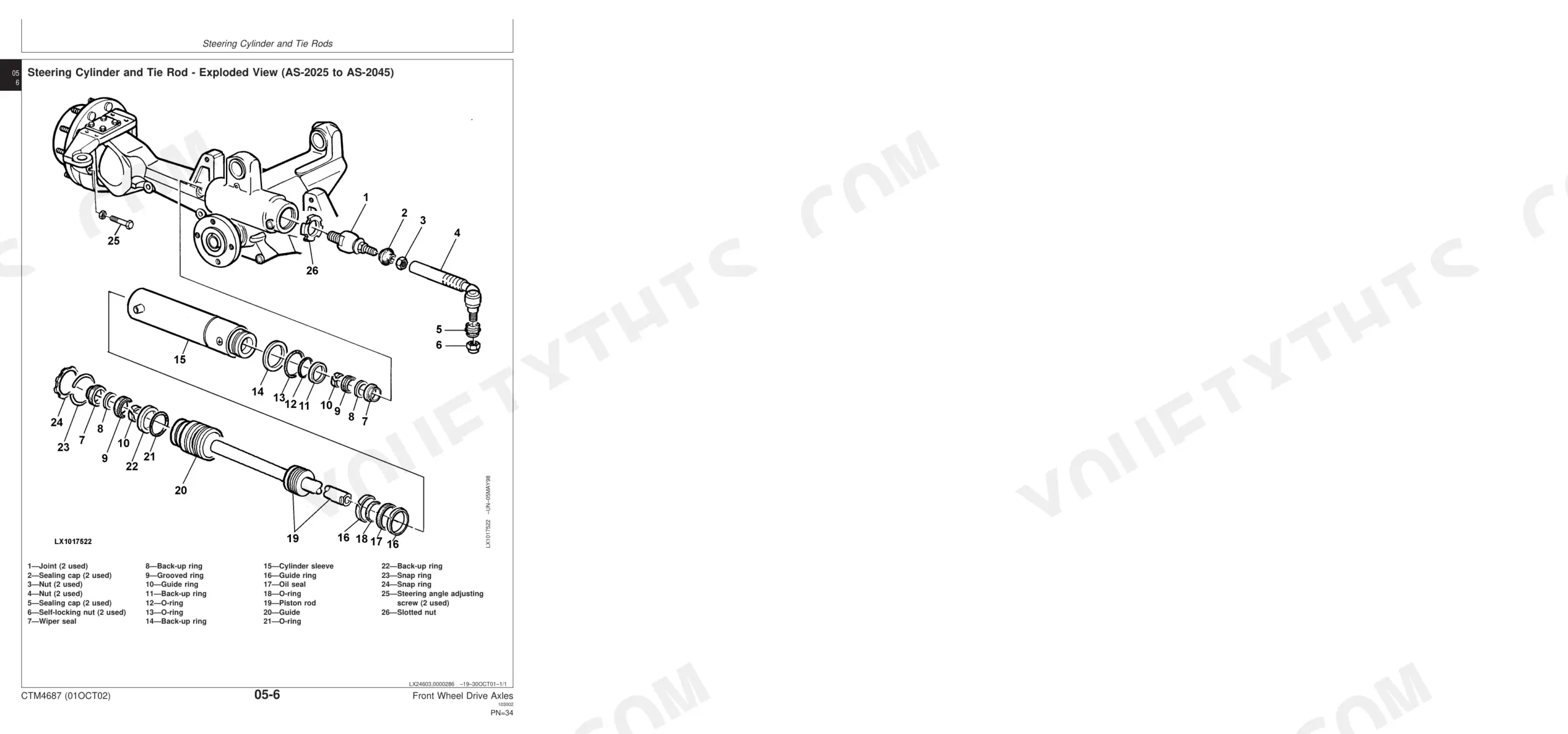

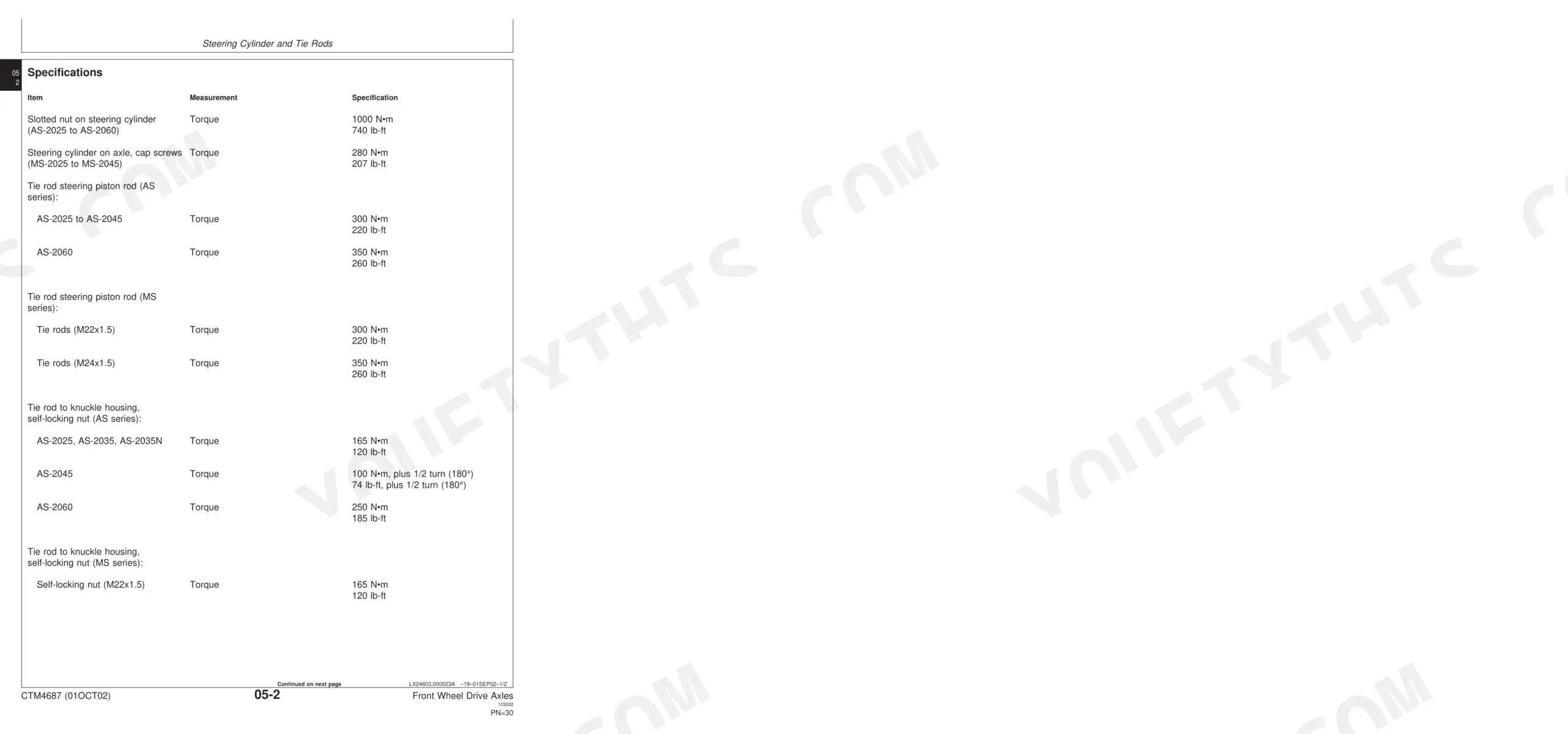

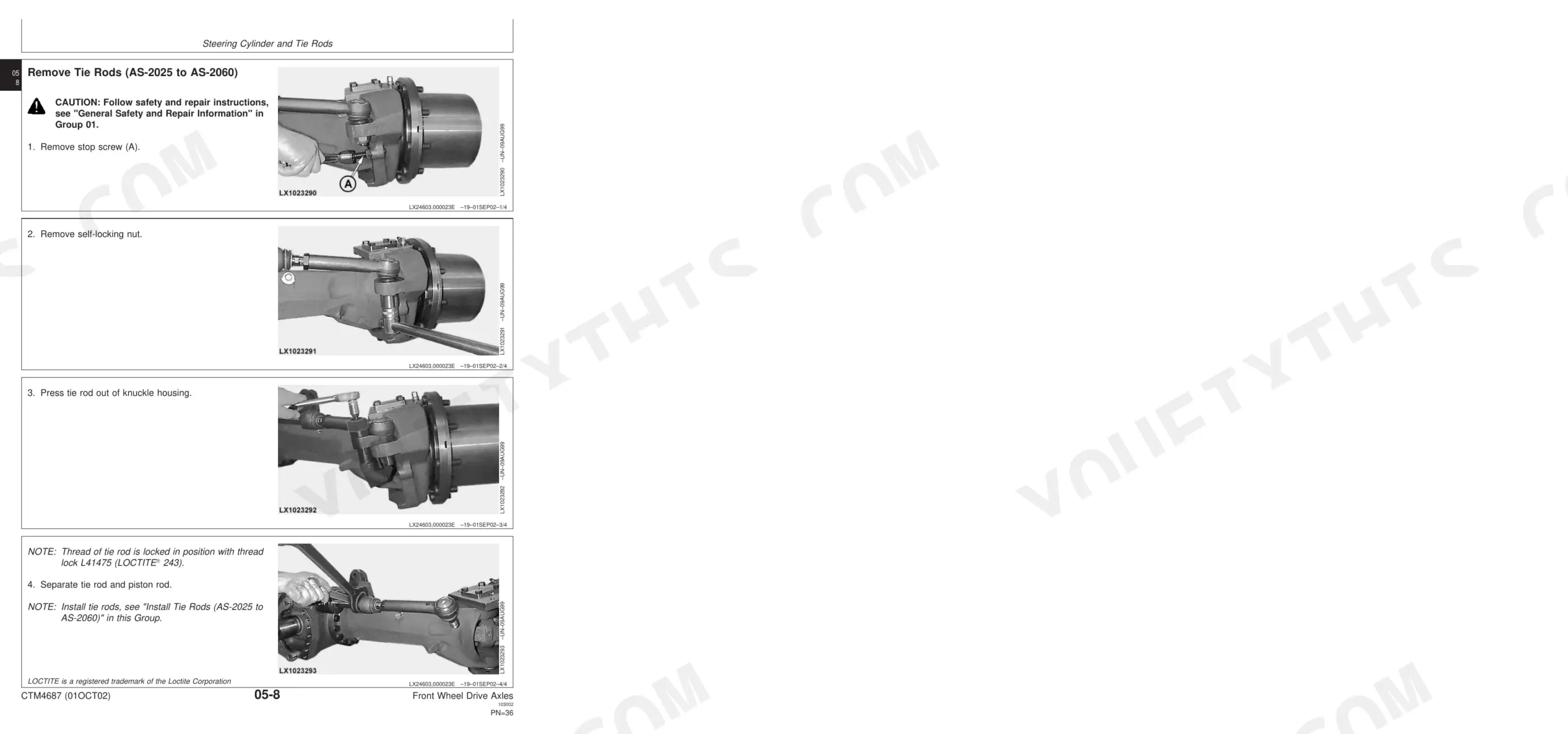

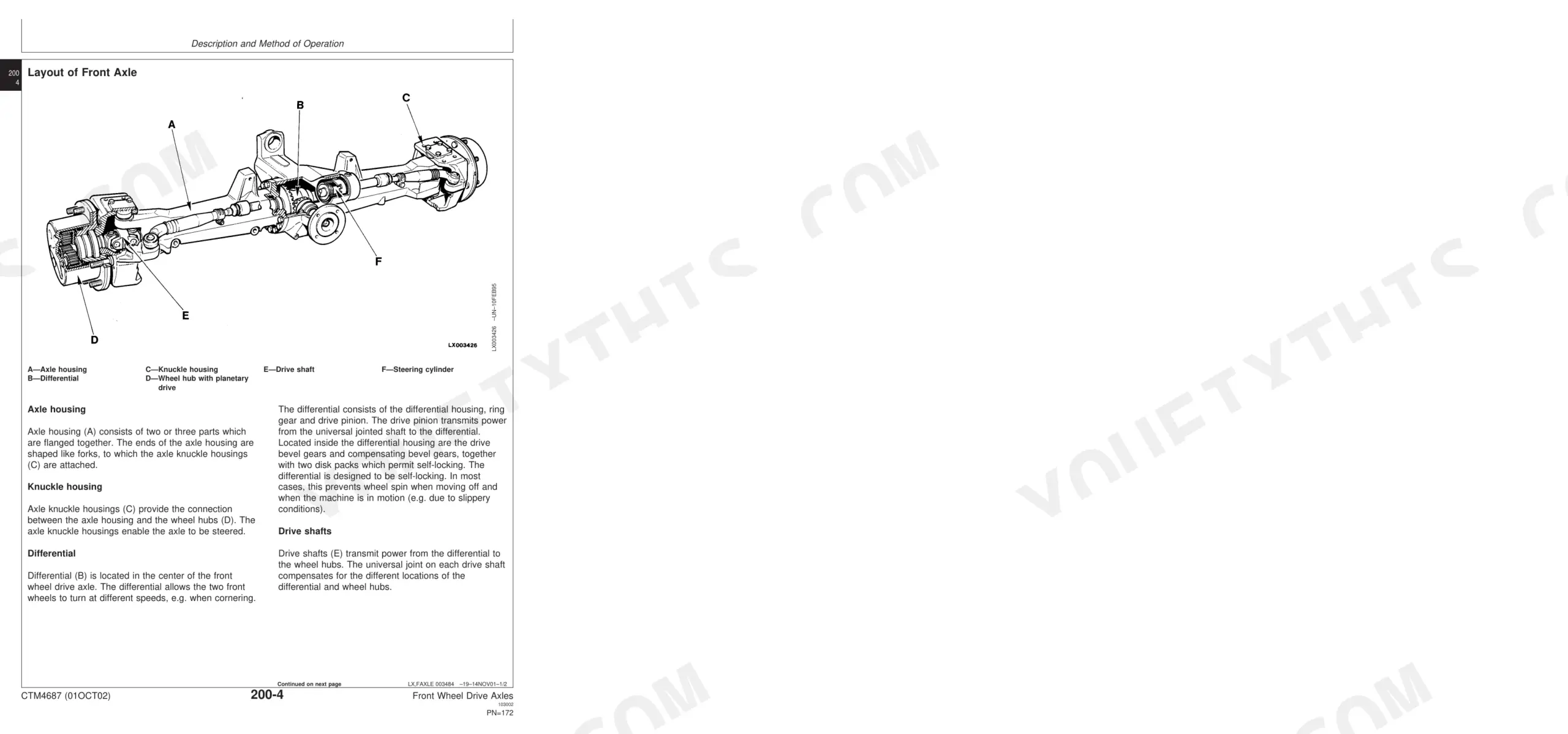

| Steering Cylinder and Tie Rods | 29-62 | Special or Essential Tools, Specifications, Steering Cylinder Removal/Repair/Installation, Tie Rod Removal/Installation, Tread Adjustment, Toe-In Adjustment |
| Planetary Drive and Wheel Hub | 63-98 | Special or Essential Tools, Specifications, Planetary Drive Removal/Repair/Installation, Wheel Hub Removal/Repair/Installation, Multi-Disk Brake Check |
| Knuckle Housing and Drive Shafts | 99-122 | Special Tools, Specifications, Knuckle Housing Removal/Repair/Installation, Drive Shaft Removal/Repair/Installation, King Pin Assembly |
| Axle Housing and Differential | 123-168 | Special Tools, Specifications, Axle Housing Removal/Repair/Installation, Bevel Pinion Drive Shaft Removal/Repair/Installation, Differential Removal/Repair/Installation |
| Description and Method of Operation | 169-180 | Front Wheel Drive Description, Layout of Front Axle, Operation of Differential, Operation of Self-Locking Differential, Operation of Planetary Drive, Multi-Disk Brake Operation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| MS-2025 to MS-2045 | ||
| Steering cylinder on axle, cap screws | 280 N•m 207 lb-ft | p. 30 |
| All Models | ||
| Lubricant specifications | see "Front Wheel Drive Axle Oil" | p. 25 |
| Sealant | L64500 (U.S.) 574 (LOCTITE®) | p. 29 |
| Thread lock | L41475 (U.S.) 243 (LOCTITE®) | p. 29 |
| Heat bushing (A) | 90-100°C (195-215°F) | p. 114 |
| Seal installer | KJD10186 | p. 124 |
| Seal ring (without shield) for AS-2025 to AS-2045 without TLS | KJD10186 | p. 165 |
| AS-2035, AS-2045 | ||
| AS-2035 and AS-2045—Torque | 30 N•m 22 lb-ft | p. 92 |
| AS-2060 | ||
| AS-2060—Torque | 55 N•m 40 lb-ft | p. 92 |
| AS-2025 to AS-2045 | ||
| King pin to knuckle housing | 115 N•m 85 lb-ft | p. 103 |
| Rolling drag torque of knuckle pin bearings | 18 to 20 N•m 13 to 15 lb-ft | p. 103 |
| AS-2025, AS-2035, AS-2035N, AS-2045, AS-2060 | ||
| Slotted nut on steering cylinder torque | 1000 N•m | p. 30 |
John Deere AS & MS Series Common Problems This Manual Covers
Front axle wobble from worn bushings
Play or visible wobble at the wheel usually comes from worn king pin and knuckle bushings where the spindle passes through. The knuckle housing and drive shafts section covers the king pin assembly and bushing service.
Manual Section: Knuckle Housing and Drive Shafts p. 99Planetary drive noise or wear
Whine or roughness at the wheel end points to a worn planetary drive or hub. This section covers planetary drive and wheel hub removal, repair, and installation.
Manual Section: Planetary Drive and Wheel Hub p. 63Self-locking differential wear
Loss of traction or noise from the center can mean differential or self-locking pack wear. The axle housing and differential section covers the differential and bevel pinion drive shaft.
Manual Section: Axle Housing and Differential p. 123Loose steering or wrong toe-in
Wandering or uneven tire wear often traces to a worn steering cylinder, tie rods, or incorrect toe-in. This section covers the steering cylinder, tie rods, and toe-in adjustment.
Manual Section: Steering Cylinder and Tie Rods p. 29Oil weeping from axle seals
Leaks at the housing or hub usually mean tired seals and gaskets. The axle housing and differential section provides seal ring part numbers and installation for the rebuild.
Manual Section: Axle Housing and Differential p. 123Multi-disk brake drag or wear
Dragging or weak braking on axles so equipped needs a disk pack check. The planetary drive and wheel hub section includes the multi-disk brake check procedure.
Manual Section: Planetary Drive and Wheel Hub p. 63Frequently Asked Questions
Which axles and tractors does this manual cover?
It covers the AS Series and MS Series front wheel drive axles, AS-2025 through AS-2060 and MS-2025 through MS-2045, fitted to John Deere 6020 through 6920 tractors and the 310G, 410G, and 710G. Triple Link Suspension is covered separately.
Does it give axle torque specs and rebuild steps?
Yes. The general repair information section lists the front wheel drive axle bolt and nut torques, and each repair group adds specifications and step-by-step removal, repair, and installation. p. 25
Can I rebuild the planetary drive and wheel hub?
Yes. The planetary drive and wheel hub section covers removal, repair, and installation, including the multi-disk brake check, with the special tools and specifications listed. p. 63
Does it cover the steering cylinder and toe-in?
Yes. The steering cylinder and tie rods section covers cylinder and tie rod removal and installation plus tread and toe-in adjustment. p. 29
How will I receive this John Deere AS-2025 & variants Technical Manual?
A 182-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this John Deere AS-2025 & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
