When the automatic twine wrap quits mid-windrow, the John Deere 430, 530 technical manual PDF is where the answer actually lives: 188 pages of factory Technical Manual TM1276 covering both round baler models. Hydraulic schematics trace oil flow through the single spool valve, gate cylinders, and pickup lift circuit, while the wiring diagram and electrical diagnosis section walk twine malfunctions down to the failed component. Drive train coverage runs from PTO hookup through the gear case and roll drives, with pickup teardown, adjustments, and gate removal filling out the back of the book. Set gate cylinder extension to 432 mm (17 in.) and torque the gear case mounting cap screws to 81 N·m (60 lb-ft), straight from the factory tables. Rain is coming and you're short one number. This bookmarked, text-searchable PDF rides along on whatever your shop laptop is, hayfield included.
What's Inside This John Deere 430, 530 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-18 | Safety, Specifications |

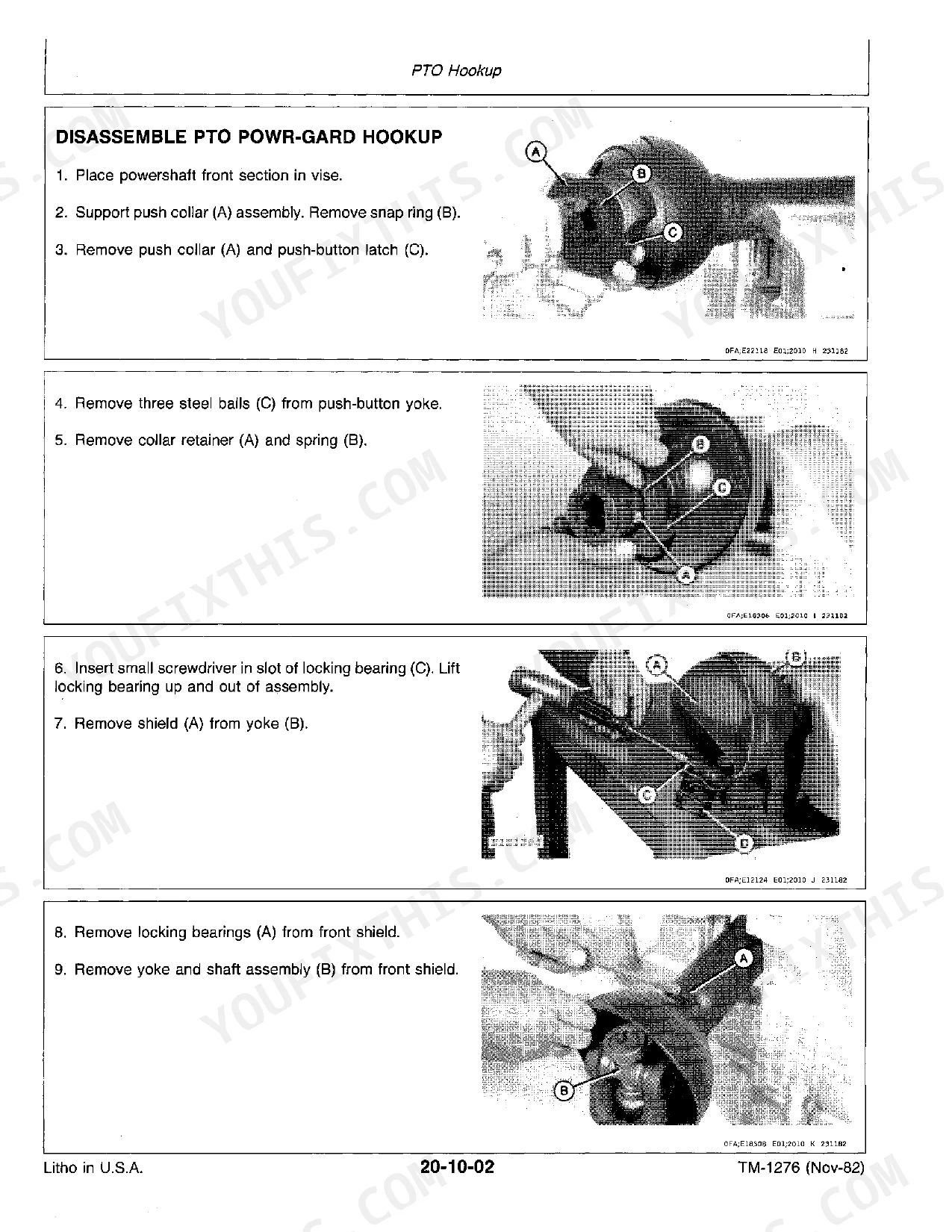

| Drive Train | 19-76 | PTO Hookup, Gear Case and Input Shaft, Rolls and Roll Drives |
| Hydraulics | 77-109 | Special Equipment, Hydraulic System, Cylinders, Single Spool Valve |
| Twine Mechanism | 110-133 | Automatic Twine Wrap System, Twine Mechanism Components |
| Electrical | 134-151 | Special Tools, Diagnosing Electrical Malfunctions, Electrical Adjustments, Check Electrical Functions |
| Pickup | 152-173 | Diagnosing Pickup Malfunctions, Repair and Replace Components, Remove Pickup, Disassemble Pickup, Pickup Adjustments |
| Miscellaneous | 174-188 | Wheel Hub, Converging Wheel, Tension Arm, Remove Gate, Remove and Install Tongue |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3/8-in. Socket-Head Screws (Superior) | 20-27 N·m (15-20 lb-ft) | p. 31 |
| Gear Case Mounting Cap Screws | 81 N·m (60 lb-ft) | p. 31 |
| Idler pressure | 2.3 to 4.5 kg (5 to 20 lb) | p. 49 |
| Idler cap screw torque | 163 N·m (120 lb-ft) | p. 49 |
| Gate cylinder extension | 432 mm (17-in.) | p. 68 |
| Twine exposed from end of twine arm | 305 mm (12-in.) | p. 116 |
| Minimum belt strand clearance | 20 mm (3/4 in.) | p. 121 |
| Minimum gap between twine arm and starter roll | 10 mm (3/8 in.) | p. 122 |
| Twine valve trip rod length (430) | 366 mm (14-13/32-in.) | p. 130 |
| Twine valve trip rod length (530) | 195 mm (7-11/16 in.) | p. 130 |
| Maximum bale size | 1829 mm (72 in.) | p. 128 |
| Gate latch switch roller to ramp clearance | 1 to 2 mm (0.039 to 0.079 in.) | p. 144 |
John Deere 430, 530 Common Problems This Manual Covers
John Deere 430 baler starts a core, then stops feeding and spits hay back out the front
Clear plugged hay from the pickup and flares first, then follow the pickup diagnostics starting on page 152. If the pickup turns but the belts stall, test the slip clutch; it must carry 1017 to 1130 N·m at 540 PTO RPM, per page 51. Retorque slipped clutch cap screws to 75 N·m.
Manual Section: Drive Train p. 51Twine will not wrap automatically and pulling the manual trip does nothing
Check the twine arm home position and clear chaff from under the tie components. Verify 305 mm (12 in.) of twine hangs exposed from the end of the twine arm, per page 116, then set the gap between the twine arm and starter roll to at least 10 mm (3/8 in.), shown on page 122.
Manual Section: Diagnosing Twine Wrap Malfunctions p. 116Baler keeps tying in the same spot on the bale and will not cut the twine
Clean packed hay and rust out of the tie mechanism; a dragging component keeps re-tripping the cycle. Inspect the twine knife for a rolled edge and replace it if dull. Set clearance between the knife anvil and twine tube to 1 to 3 mm, per page 131, then confirm the arm swings home freely.
Manual Section: Diagnosing Twine Wrap Malfunctions p. 131Gate will not close or latch, and will not hold pressure on a full bale
Inspect both gate latches for wear and replace weak stamped latches with the forged style. Measure gate cylinder extension; it should be 432 mm (17 in.), per page 68. Adjust the gate latch switch so the roller sits 1 to 2 mm off the ramp, per page 144, then run the hydraulic gate checks on page 83.

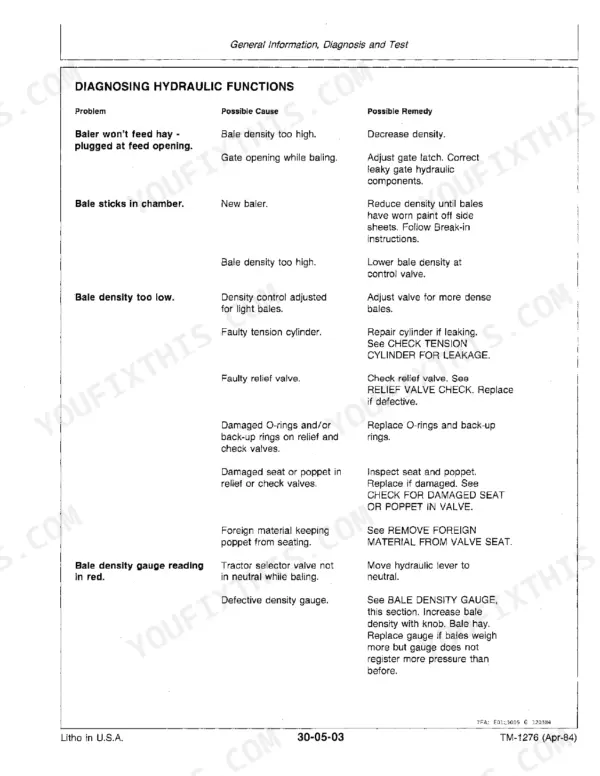

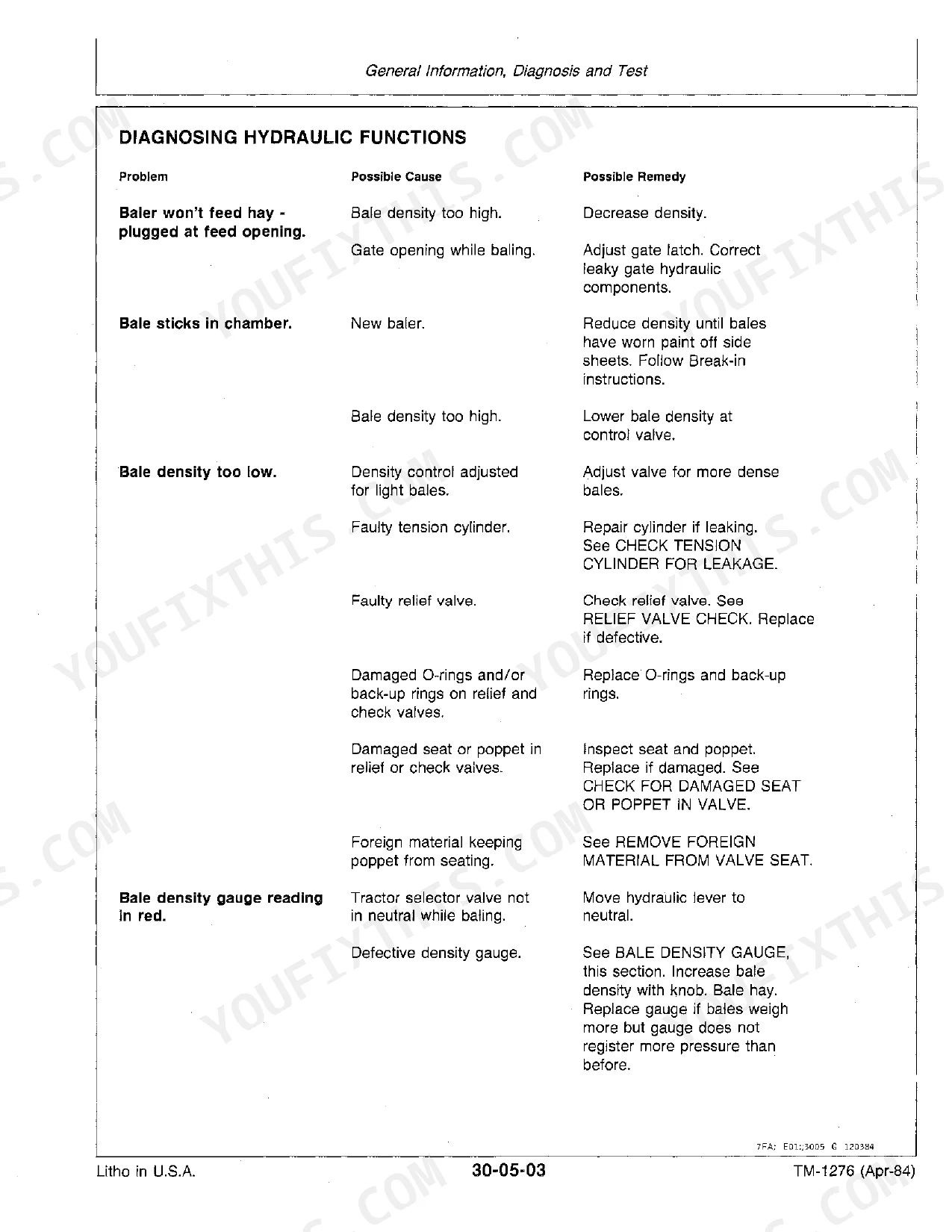

Manual Section: Diagnosing Hydraulic Functions p. 83Bale density stays low and the density gauge needle will not come up out of the red
Check the density troubleshooting steps starting on page 83 first. Test relief pressure and adjust the cartridge within its 3448 to 18961 kPa range, per page 88. Verify minimum belt strand clearance of 20 mm (3/4 in.), shown on page 121, and replace glazed or stretched belts before blaming the pump.
Manual Section: Diagnosing Hydraulic Functions p. 88Frequently Asked Questions
What are the torque specs for the gear case mounting cap screws on a John Deere 430, 530 round baler?
The gear case mounting cap screws must be torqued to 81 N-m (60 lb-ft). p. 31
How much oil does the Superior gear case hold on a John Deere 530 baler?
The Superior gear case has a capacity of 0.650 L (1.4 pt). The Comer gear case rolling torque, 0.19 to 0.59 N-m (1.7 to 5.2 lb-in), is on the same page 31. p. 31
What is the recommended procedure for checking tension cylinder leakage?
Disconnect hoses at the bottom of the tension cylinders and plug the hose ends. Close the gate with the SCV lever and hold it; 30 drops of oil per minute is the maximum allowable leakage. If it exceeds this, the cylinder must be repaired. p. 98
What is the required torque for the slip clutch on the 430 and 530 balers?
The slip clutch should be torqued to 75 N-m (55 lb-ft) when securing it with the two cap screws and nuts. p. 50
Do I get instant access to this manual?
A single searchable PDF file of 188 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Am I free to print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
