Quad-Range, Power Shift, Syncro-Range, Perma-Clutch: the power train is the deepest water in the John Deere 4230 Technical Manual PDF, TM1056, claiming nearly a third of its 702 pages, with engine, fuel, electrical, hydraulic, steering, and front axle coverage filling out the rest of this factory tractor service book. Wiring diagrams trace the Delcotron charging circuit and both starting circuits wire by wire, while hydraulic schematics follow oil from the main reservoir through the pumps, rockshaft, and breakaway couplers. Troubleshooting charts run fuel system malfunctions back to a cause before you crack an injection line. Set fan belt deflection at 1.00 inch and torque the hydraulic pump drive coupling to 30 ft-lbs (41 Nm). A wrong guess means splitting the tractor twice. Print the pages your job calls for, let them soak up grease on the bench, and keep the bookmarked, text-searchable original clean for next season.
What's Inside This John Deere 4230 Manual
| System | Pages | Key Topics |
|---|---|---|

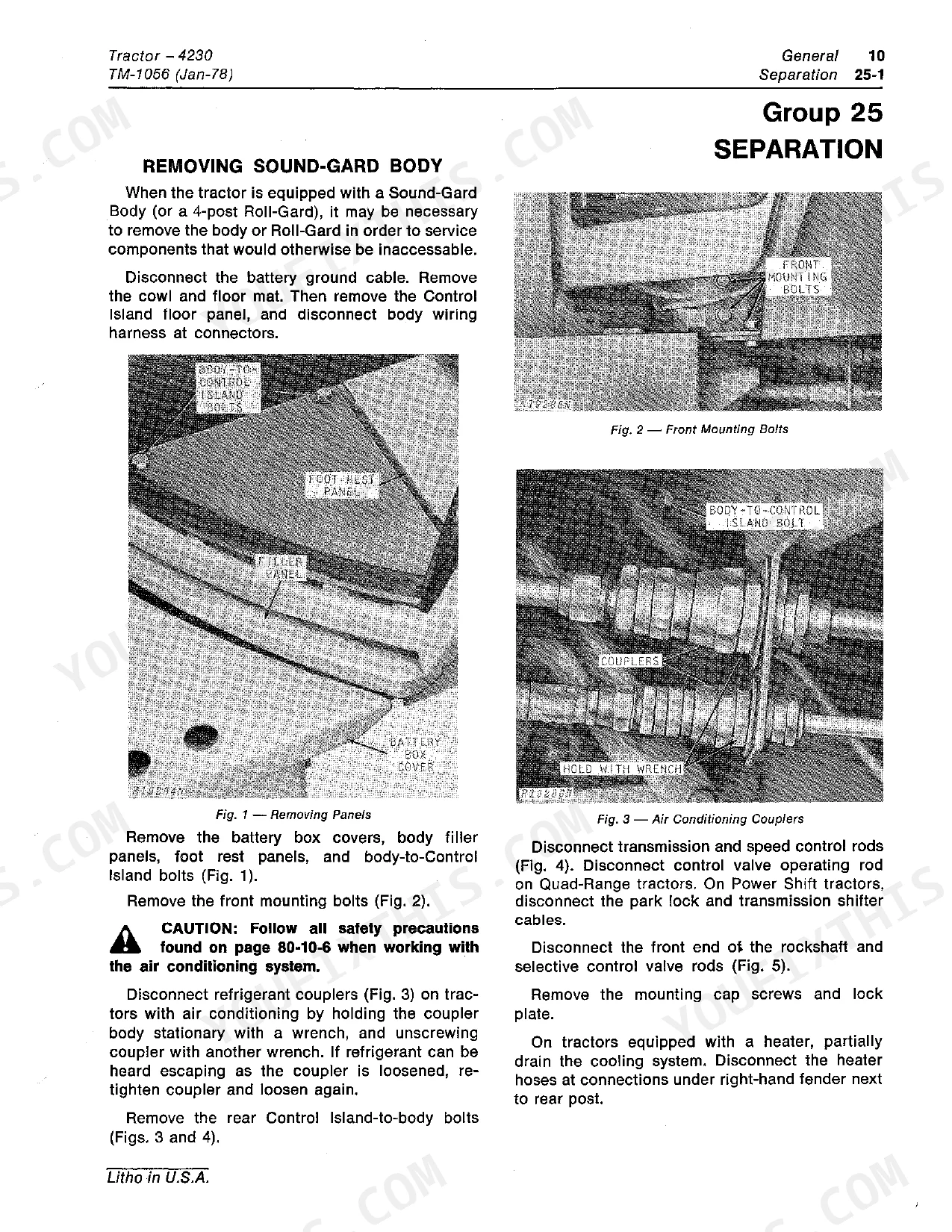

| General | 3-34 | Predelivery, Delivery, And After-Sale Services, Tune-Up, Lubrication, Separation, Specifications and Special Tools |
| Engine | 35-76 | Cylinder Head, Valve Train, And Camshaft, Cylinder Block, Liners, Pistons, And Rods, Crankshaft |

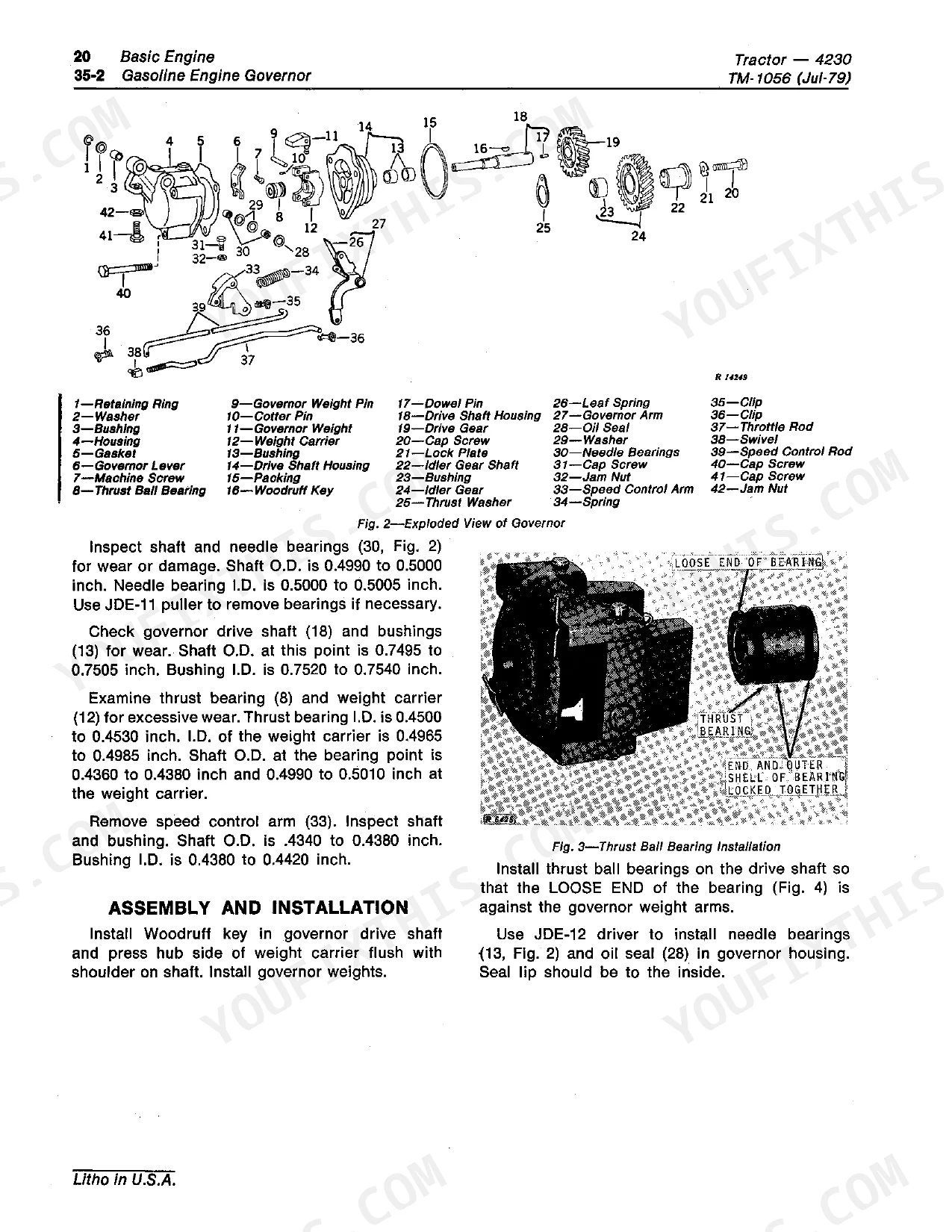

| Fuel System | 77-126 | Diagnosing Malfunctions, Air Intake System, Diesel Fuel System, Gasoline Fuel System, Speed Control Linkage, Specifications and Special Tools |
| Electrical System | 127-256 | Information and Wiring Diagrams, Delcotron Charging Circuit, Delco-Remy Starting Circuit, John Deere Starting Circuit, Ignition System, Lighting and Accessory Circuits |
| Power Train | 257-454 | Regular Clutch, Perma-Clutch, Creeper Transmission, Syncro-Range Transmission, Quad-Range Transmission, Power Shift Transmission, Differential, Final Drive |
| Steering and Brakes | 455-456 | Is a Two-Page Pointer: the Book States That General Information, Testing, Diagnosis, Repair and Adjustment for the Power Steering and Brake Systems Live in Section 70, Hydraulic System |
| Hydraulic System | 457-612 | General Hydraulic System Tests and Diagnosis, Main Reservoir, Filter, Valves, And Oil Cooler, Hydraulic Pumps, Early Model Power Steering, Late Model Power Steering |
| Miscellaneous | 613-702 | Front Axles, Air Conditioning System, Heating System, Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Add on tractors equipped with a heater | 2 U.S. qts. (1.9 L) | p. 6 |
| Sound-Gard Body and Control Island rubber mounts (late models) | 15 to 25 ft-lbs. (20 to 34 Nm) | p. 33 |
| Hydraulic pump drive coupling | 30 ft-lbs. (41 Nm) | p. 33 |
| Radiator cap pressure | 6.25 to 7.50 psi | p. 63 |
| Fan belt deflection | 1.00 inch | p. 63 |
| Sound-Gard Body relay winding resistance | 19 ohms | p. 131 |
| Sound-Gard Body relay winding current draw | 0.6 amp | p. 130 |
| Planetary air pressure test | 50 psi | p. 361 |
| Synchronizer disk thickness | 0.060 in. | p. 363 |
| Main hydraulic pump standby pressure (3.0 cu. in. pump) | 2200 to 2300 psi | p. 19 |
| Friction spring compression | 0.77-inch at 81 to 99 lbs | p. 556 |
| Metering pump cap screw torque | 35 ft-lbs | p. 556 |
John Deere 4230 Common Problems This Manual Covers
John Deere 4230 Quad-Range slips or loses drive on hills, recovers after shifting ranges
Check transmission oil level first, then verify system pressure before splitting the tractor. Run the planetary air pressure test at 50 psi, page 361, and listen for the clutch pack that hisses; that pack is losing apply pressure under load. While the transmission is open, replace any synchronizer disk worn below 0.060 inch.
Manual Section: Power Train p. 361Diesel hard to start in cold weather, cranks slow, needs ether or block heater

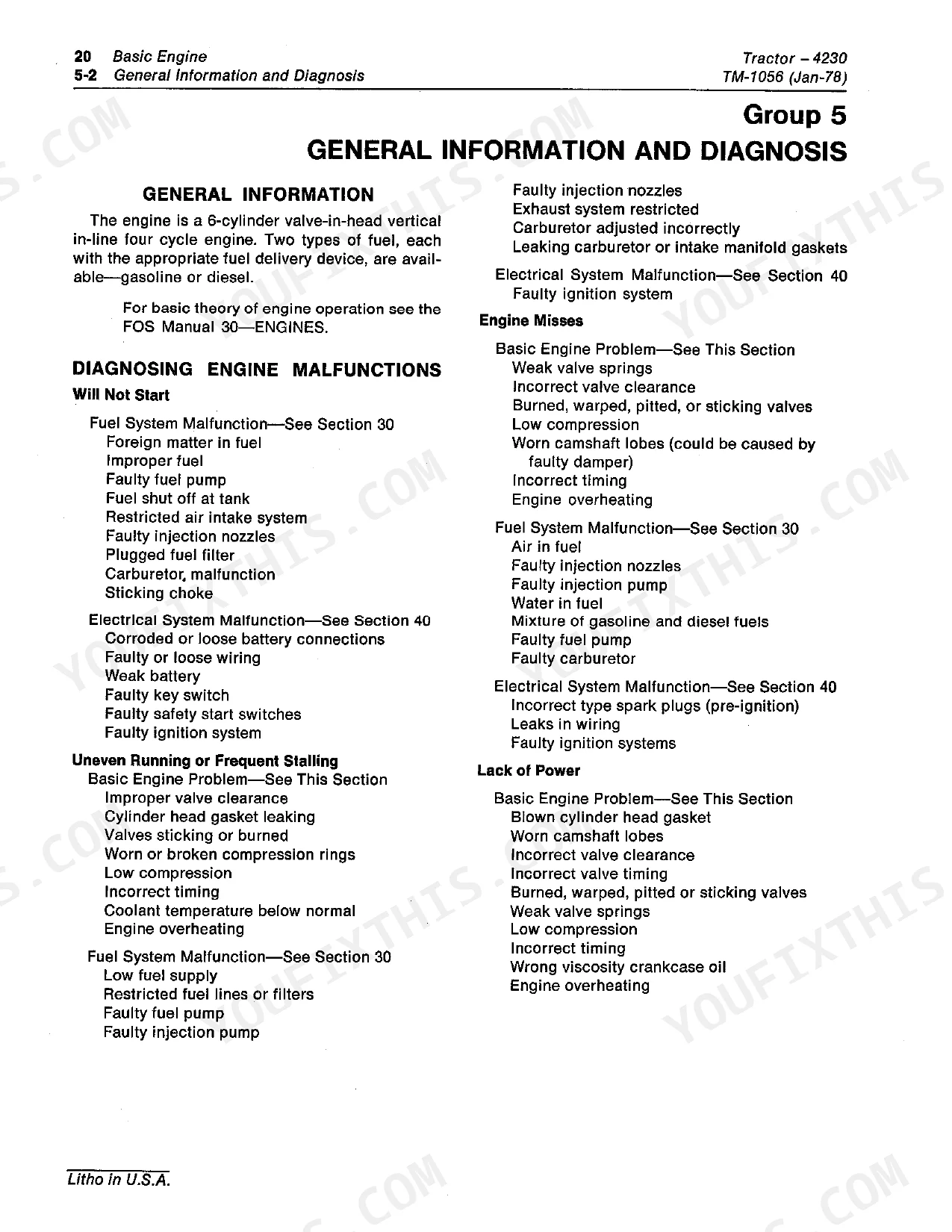

Check the will-not-start chart on page 36 before reaching for the ether. Test cranking speed and battery condition first, then verify fuel delivery and check the air intake for restriction. Once it runs, set slow idle to 800 rpm and cut back on ether; it washes the liners and steals compression over a winter.
Manual Section: Engine Malfunctions p. 36Power steering line from metering pump blows or leaks once hydraulic oil gets hot
Replace the blown line, then pull the metering pump; a worn check valve bleeds high pressure into the return circuit as the oil heats up. Inspect the check valve and test the friction spring, which should compress to 0.77 inch at 81 to 99 lbs, page 556. Torque the pump cap screws to 35 ft-lbs on reassembly.
Manual Section: Hydraulic System Tests and Diagnosis p. 556Runs hot under heavy load, temperature climbs during tillage or baling in summer heat
Clean the radiator, oil cooler, and condenser stack with compressed air from the engine side; this stack plugs fast in chaff and dust. Check fan belt tension for 1.00 inch of deflection, then pressure test the radiator cap; it should hold 6.25 to 7.50 psi, page 63. Replace the cap if it bleeds down early.
Manual Section: Engine Malfunctions p. 63Blower, wipers, lights, and radio all go dead at once in the Sound-Gard cab
Test the Sound-Gard body relay before chasing wires; the winding should read 19 ohms and draw about 0.6 amp at 12 volts, page 131. Measure voltage drop across each circuit breaker and replace any breaker showing more than 0.15 volt. Clean the cab ground connections; corrosion there kills every accessory circuit at once.
Manual Section: Electrical System Diagnosis p. 131Frequently Asked Questions
What are the torque specifications for the cylinder head cap screws on a John Deere 4230 tractor?
The cylinder head cap screws should be tightened in the specified sequence to 100 ft-lbs torque, then retightened to 110-120 ft-lbs. After the engine assembly is completed, the engine should be run for one-half hour and the cap screws retightened to 125 to 135 ft-lbs torque. p. 42
What are the valve clearance specifications for the John Deere 4230 diesel engine?
For the diesel engine, the intake valve clearance is 0.018 inch and the exhaust valve clearance is 0.028 inch. p. 39
What is the correct engine oil pressure for the John Deere 4230?
The engine oil pressure for the John Deere 4230 should be 25-40 psi at 1900 rpm. p. 17
What is the fuel tank capacity for the John Deere 4230 tractor?
The fuel tank capacity for both diesel and gasoline models of the 4230 tractor is 37 U.S. gallons (136.3 L). p. 6
What is the correct alternator belt tension for a John Deere 4230?
The alternator drive belts should be adjusted to a 1-inch deflection with a 25-pound force. p. 33
What exactly do I receive with this John Deere 4230 Technical Manual?
Delivery is instant: a 702-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print this John Deere 4230 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
