All 275 pages of this Scotts Yard and Garden Tractor Technical Manual (OEM #TM1777) zero in on three machines: the S2048, S2348, and S2554. Inside, you get a full Kohler engine troubleshooting chart with tests and adjustments, a complete hydrostatic power train section, wiring diagrams covering the entire electrical system, and exploded views across every major assembly. Open to the torque tables and you'll find both inch and metric values organized separately, plus lubricant specs broken out by application: engine oil, hydrostatic transmission fluid, grease, and synthetic alternatives. Gap your spark plug to 0.76 mm (0.030 in.) and torque it to 26 N•m before buttoning up the Kohler. No more cross-referencing three browser tabs to find a number your dealer guessed at anyway. Bookmarked by section and keyword-searchable; pull it up on your phone or tablet and have the right spec before you pull the first bolt.
What's Inside This Scotts S2048, S2348, S2554 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | - |
| Safety | 3-7 | Recognize Safety Information, Handle Fluids Safely-Avoid Fires, Use Care in Handling and Servicing Batteries, Use Safe Service Procedures, Park Machine Safely |

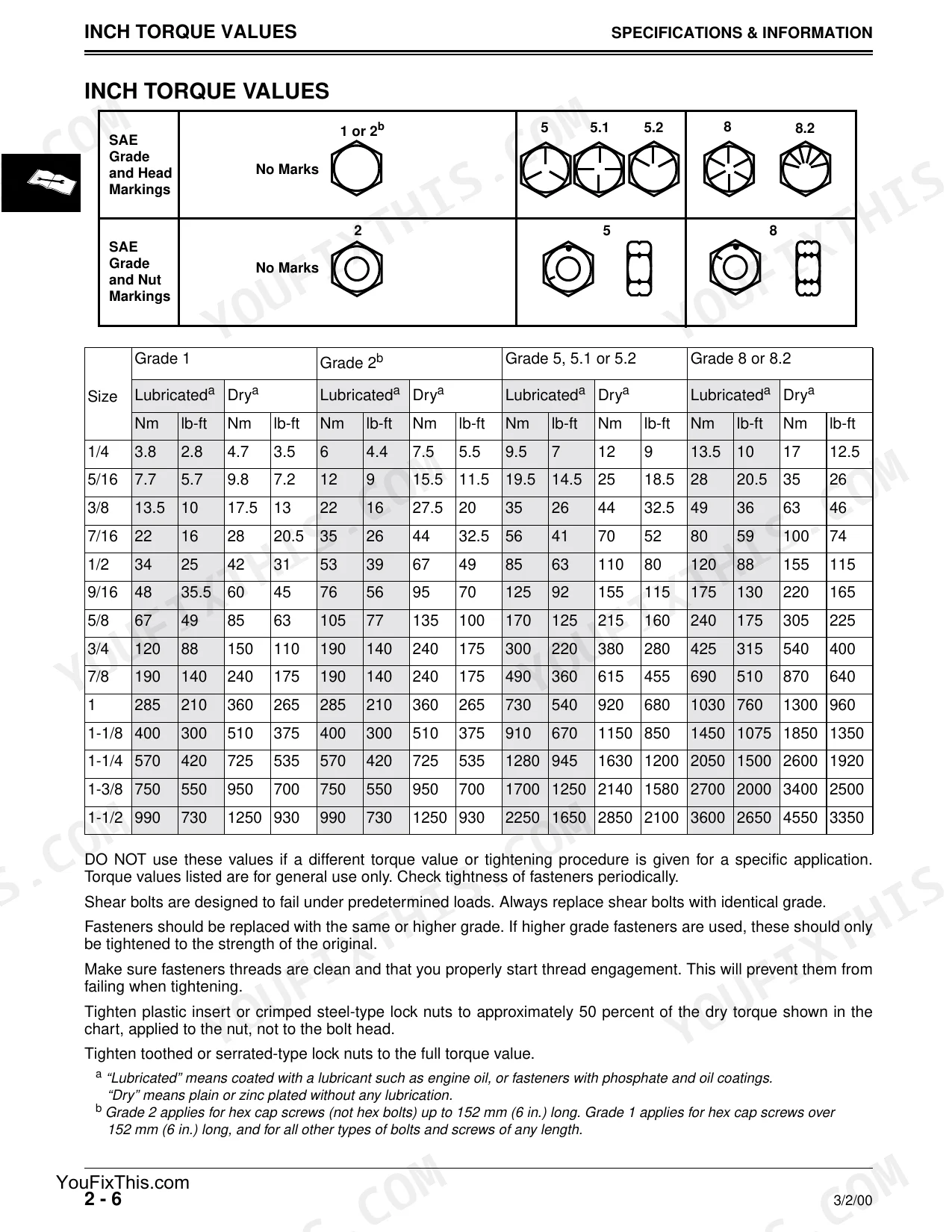

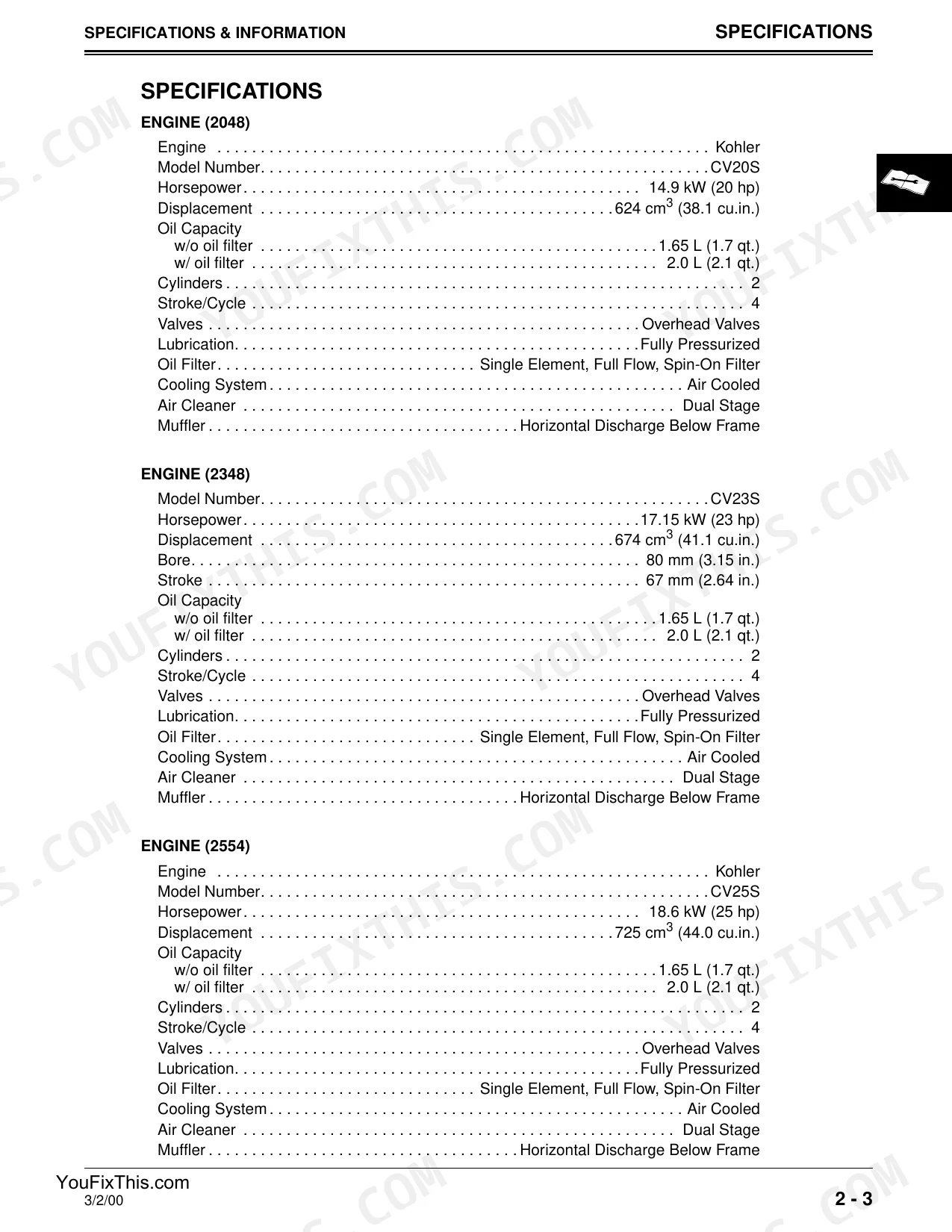

| Specifications & Information | 8-17 | Specifications, Inch Torque Values, Metric Torque Values, Gasoline Specifications, Lubricant Specifications, Serial Number Locations |

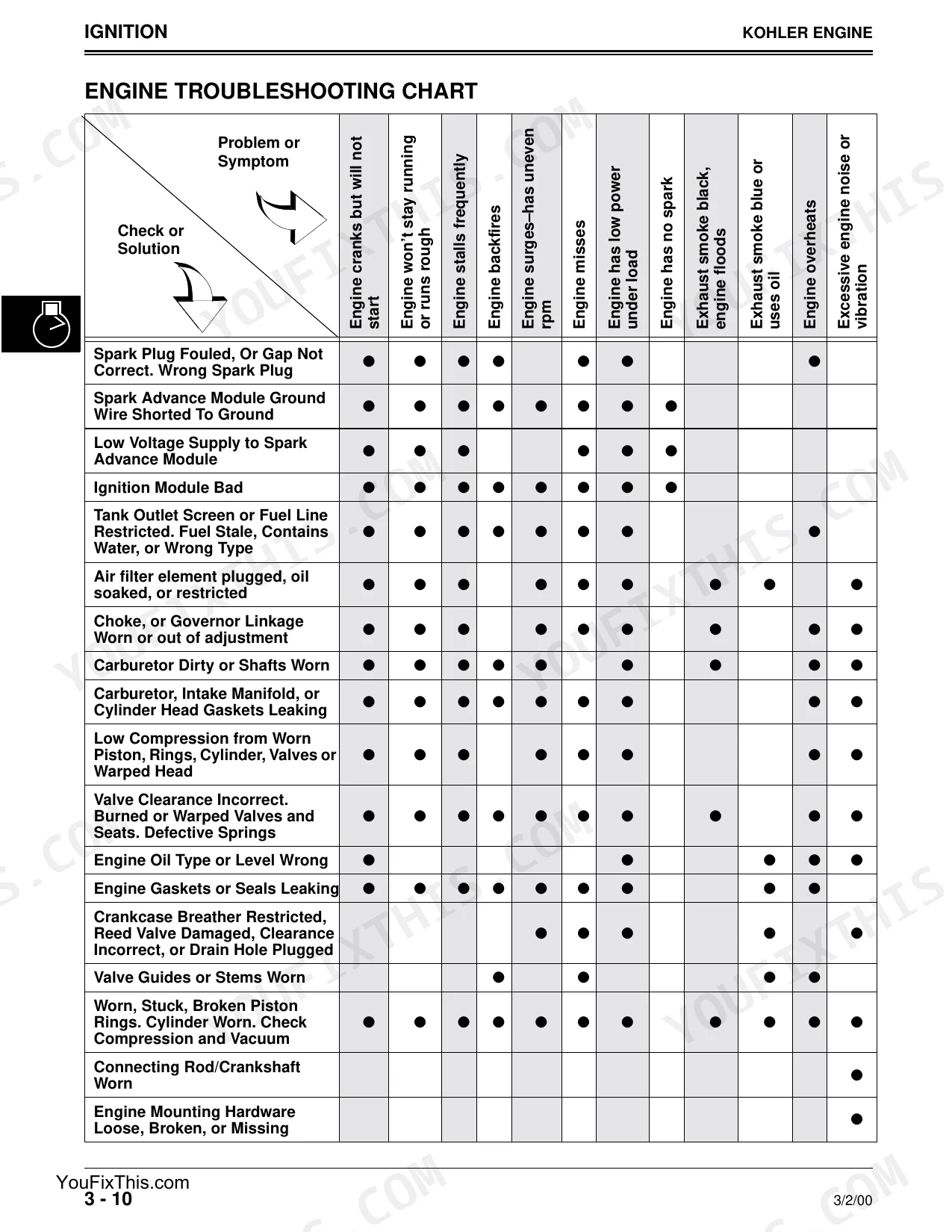

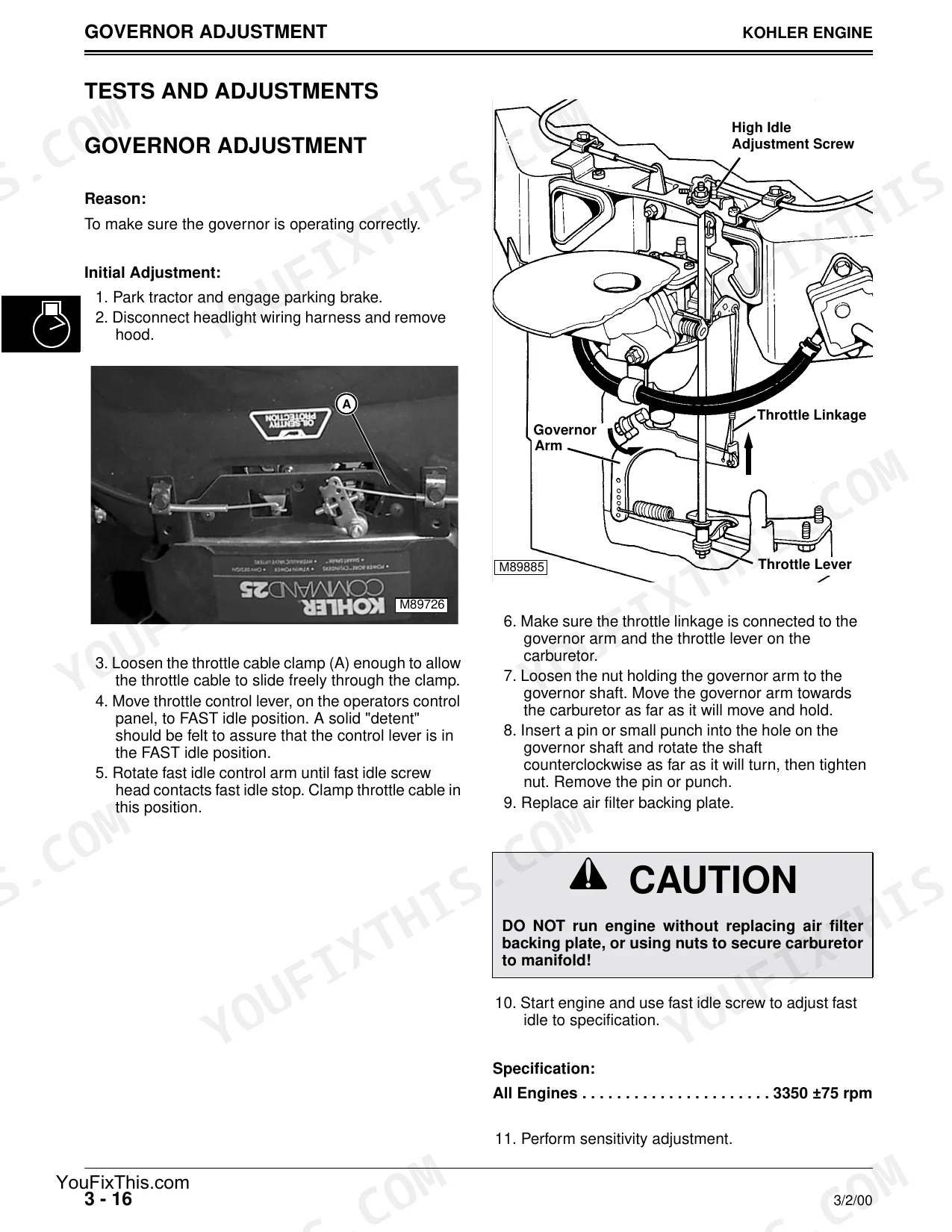

| Kohler Engine | 18-71 | General Specifications, Theory of Operation, Engine Troubleshooting Chart, Tests and Adjustments, Repair |
| Electrical | 72-147 | Theory of Operation Information |

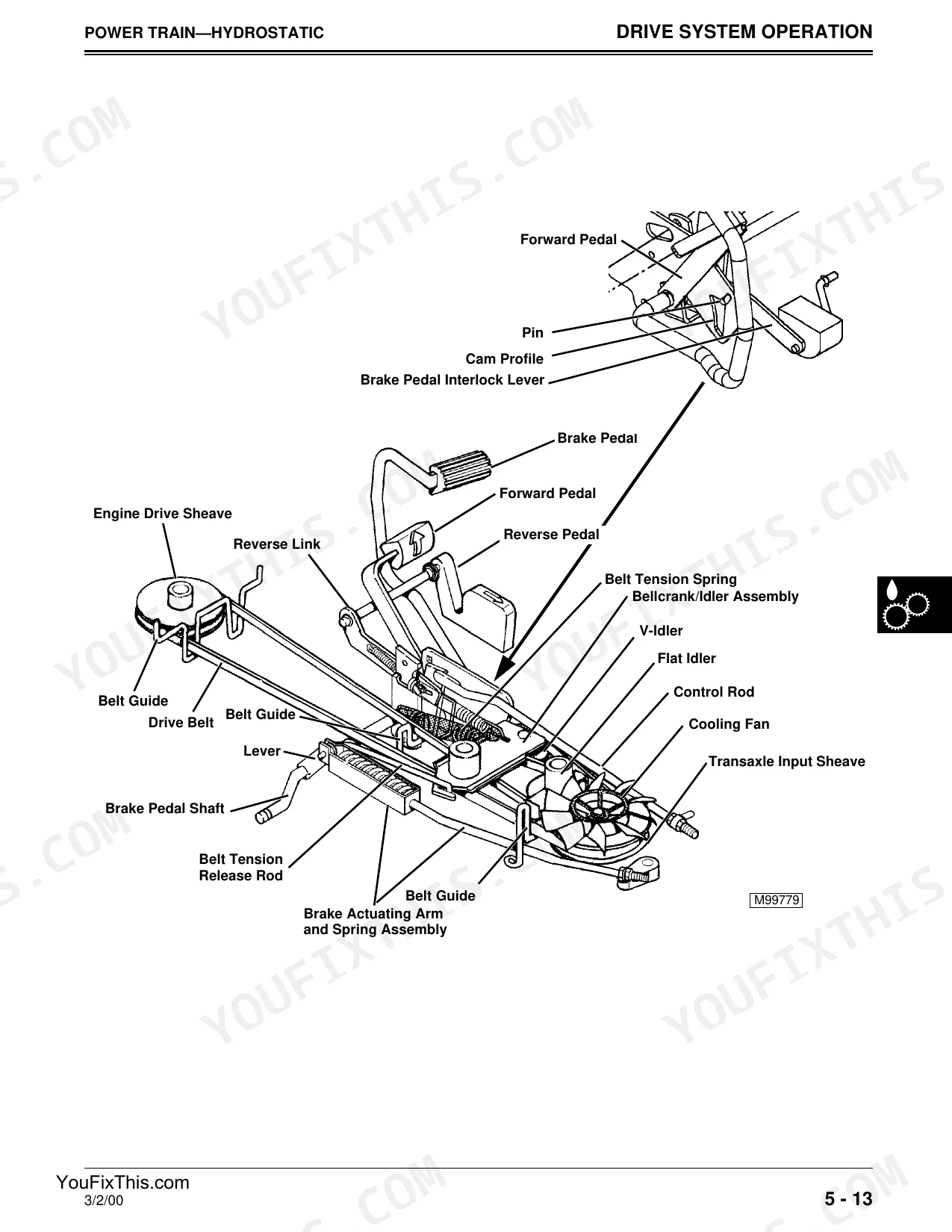

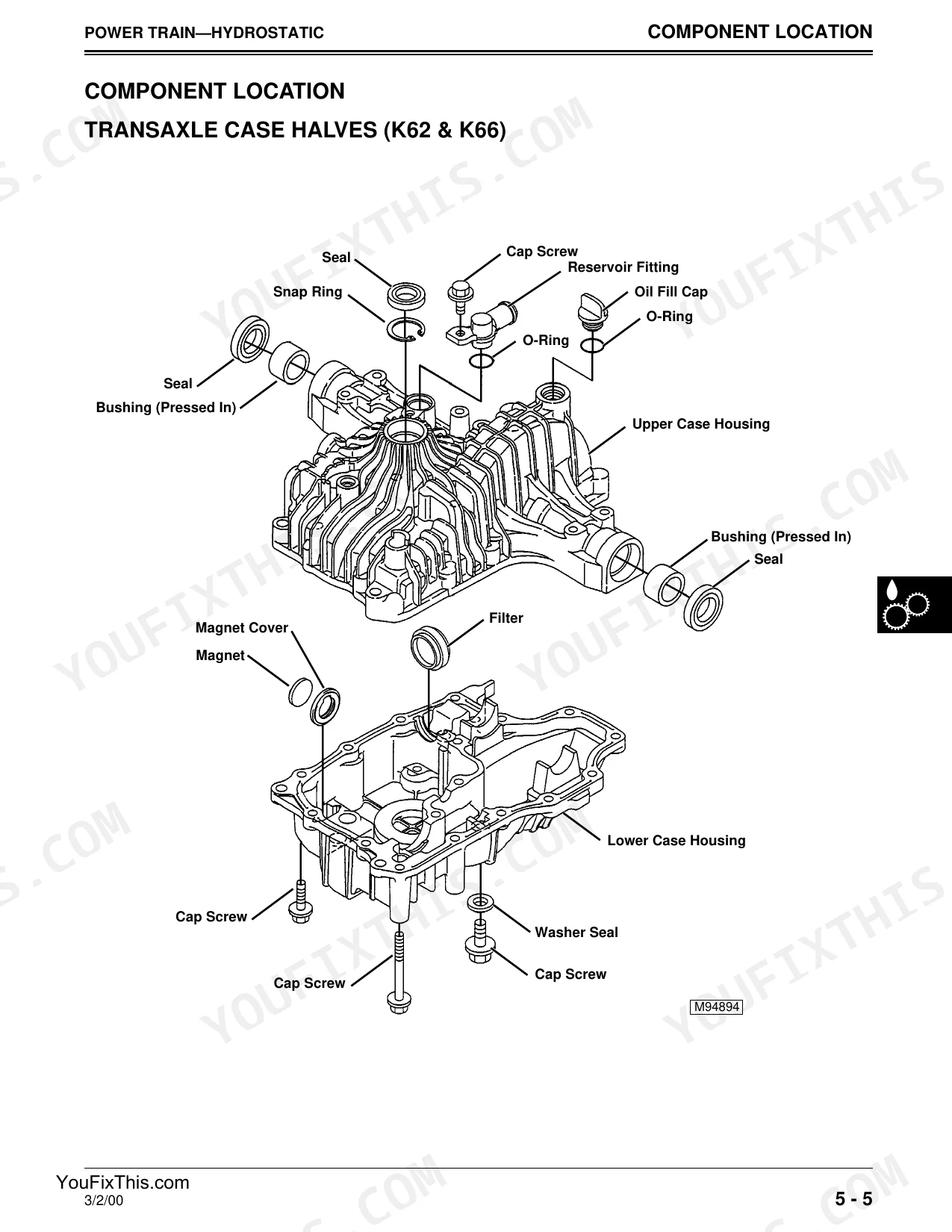

| Power Train - Hydrostatic | 148-217 | - |
| Steering | 218-227 | - |
| Brakes | 228-241 | - |
| Attachments | 242-261 | Mower Deck Components, Draft Arms, Gauge Wheels, Idlers and Sheaves, Mower Drive Checks, Spindles |
| Miscellaneous | 262-269 | Other Materials, Front Axle and Tires Component Location, Lift Assist and Depth Stop Operation, Front Axle Removal and Installation, Hood Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 21 |
| Spark Plug Torque | 26 N•m (240 lb-in.) | p. 21 |
| Intake Manifold Fasteners Torque | 9.9 N•m (88 lb-in.) | p. 24 |
| Carburetor Mounting Fasteners Torque | 9.9 N•m (88 lb-in.) | p. 24 |
| Fuel Tank Capacity | 11 L (3 U.S. gal) | p. 11 |
| Battery Cold Cranking Amps at -18°C (0°F) | 295 amps | p. 11 |
| Steering Turning Radius | 584 mm (23 in.) | p. 12 |
| S2048 | ||
| Engine (S2048) Horsepower | 14.9 kW (20 hp) | p. 10 |
| S2554 | ||
| Engine (S2554) Displacement | 725 cm3 (44.0 cu.in.) | p. 10 |
| all engines | ||
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 21 |
| Fuel Pump Minimum pressure | 10 kPa (0.3 psi) | p. 21 |
| Engine Mounting Screws Torque | 32 N•m (24 lb-ft) | p. 24 |
Scotts S2048, S2348, S2554 Common Problems This Manual Covers
Scotts S2048 electric PTO clutch shuts off abruptly mid-operation, mow deck stops cutting
Check the PTO/RIP switch and wiring connections in the electrical section starting on page 72. Verify the switch activates cleanly with no burnt contacts. Inspect the discharge module connections for corrosion. A battery rated below 295 amps cold cranking at -18°C (0°F) will drop voltage under PTO load and trigger premature shutdown.
Manual Section: Electrical p. 72Hydrostatic transmission won't move forward or reverse, induction rod set and brake released
Verify the freewheel valve is fully closed before attempting movement; an open freewheel valve bypasses drive pressure entirely. Check the transmission section on page 148 for linkage adjustment procedures. On S2048 models, confirm transmission oil type is 5W-30 or 10W-30 per page 16 before suspecting internal component failure.
Manual Section: Power Train - Hydrostatic p. 148Engine misses under load, stalls at idle, or won't start after sitting
Check the troubleshooting chart for miss and stall conditions. Remove and gap a new Champion RC12YC spark plug to 0.76 mm (0.030 in.), torquing it to 26 N•m (240 lb-in.). If the plug tests good, drain the float bowl and inspect for varnish or water from stale fuel.
Manual Section: Kohler EngineLoose or corroded battery cable causes intermittent cranking failure or complete no-start
Inspect both battery terminals for corrosion and verify all connections are tight. Confirm the battery is rated for at least 295 amps cold cranking at -18°C (0°F) per the specs on page 11. Clean terminals with baking soda solution, apply dielectric grease, and retest cranking voltage under load before condemning the starting motor.
Manual Section: Electrical p. 72Engine runs rough or bogs under load on one cylinder, carburetor suspected
Inspect and clean the carburetor float bowl and main jet; varnish from stale fuel blocks jets quickly on these engines. Verify minimum fuel pump pressure of 10 kPa (0.3 psi) at the carburetor inlet before pulling the carb. Torque carburetor mounting fasteners to 9.9 N•m (88 lb-in.) on reassembly per the engine service procedures.
Manual Section: Kohler EngineFrequently Asked Questions
Torque specifications for the spark plug on Scotts S2554.
The spark plug torque for the Scotts S2554, as well as all other engines, is specified as 26 N•m (240 lb-in.). This information is consistently provided across the manual's specifications and adjustment sections. p. 21
What do I get after purchasing this Scotts S2048, S2348, S2554, SCOTTS YARD?
A 275-page Technical Manual in searchable PDF format (32 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Scotts S2048, S2348, S2554, SCOTTS YARD AND GARDEN TRACTORS manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Scotts S2048, S2348, S2554, SCOTTS YARD AND GARDEN TRACTORS manual?

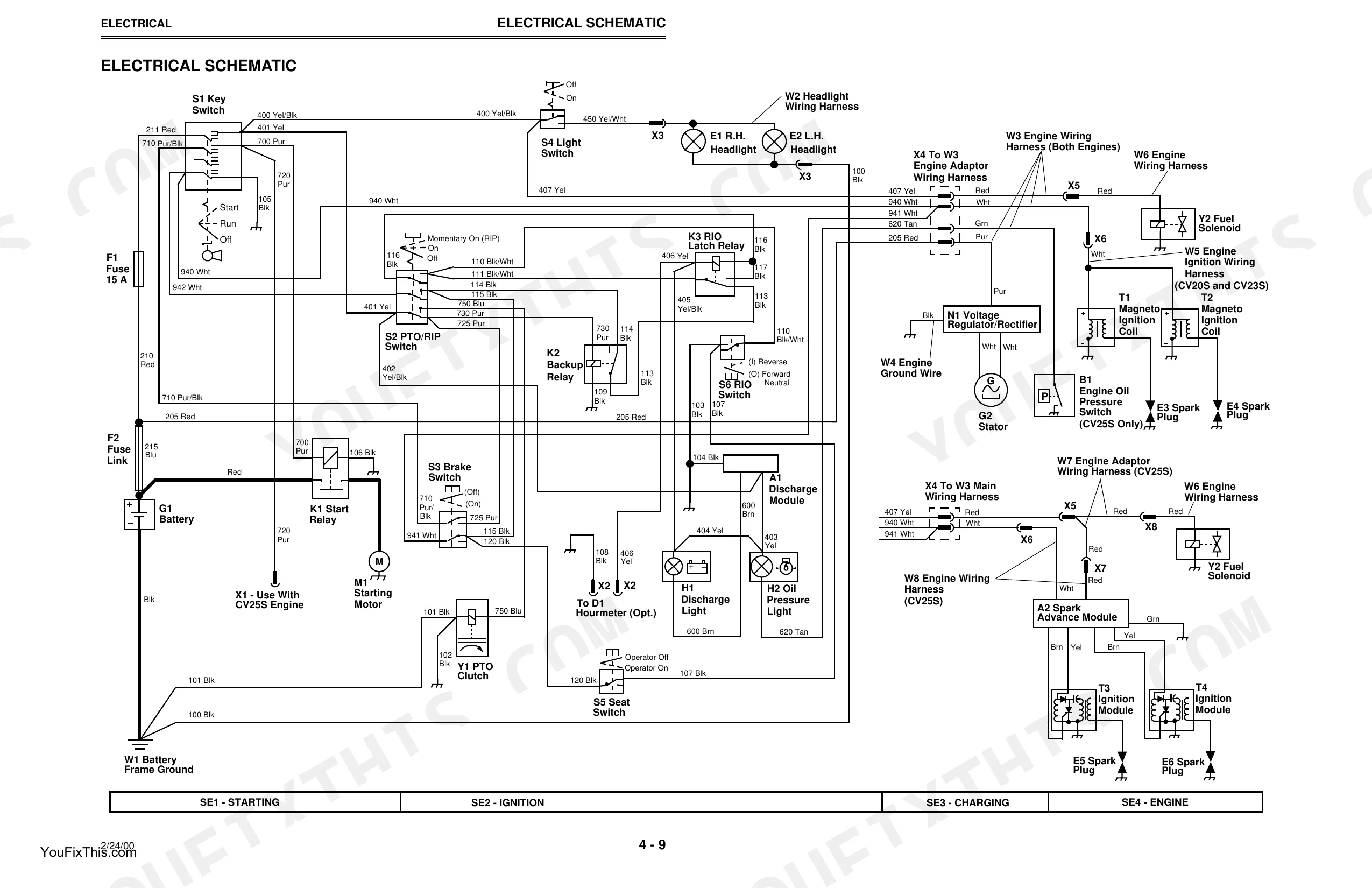

Yes, this Scotts S2048, S2348, S2554, SCOTTS YARD AND GARDEN TRACTORS Technical Manual includes a wiring diagram for the electrical system.
