Part of the John Deere Repair Manuals.
Need factory repair data for your John Deere Agriculture 6-Series tractor? This 1,711-page repair manual (OEM #TM4493) gives you factory-level procedures for ten variants: 6100, SE6100, 6200, SE6200, 6300, SE6300, 6400, SE6400, 6506, and 6600. Inside, you get wiring diagrams spanning the full electrical system, from harness routing and charging circuits to starting motor sequences, switches, and solenoids. Flip to the transmission section and you find three distinct gearbox families (SynchroPlus, PowrReverser, and PowrQuad), each with its own removal, installation, shift controls, and test value sequences. Confirm slow idle at 800 to 900 rpm on any variant in the family, then verify bore at the factory spec of 106.5 mm before you touch the head gasket. Your tractor is down and the clock is running. Download now, pull it up on your tablet by the machine, and get back to work.
What's Inside This John Deere Agriculture 6100–6600 SE Series Repair Manual

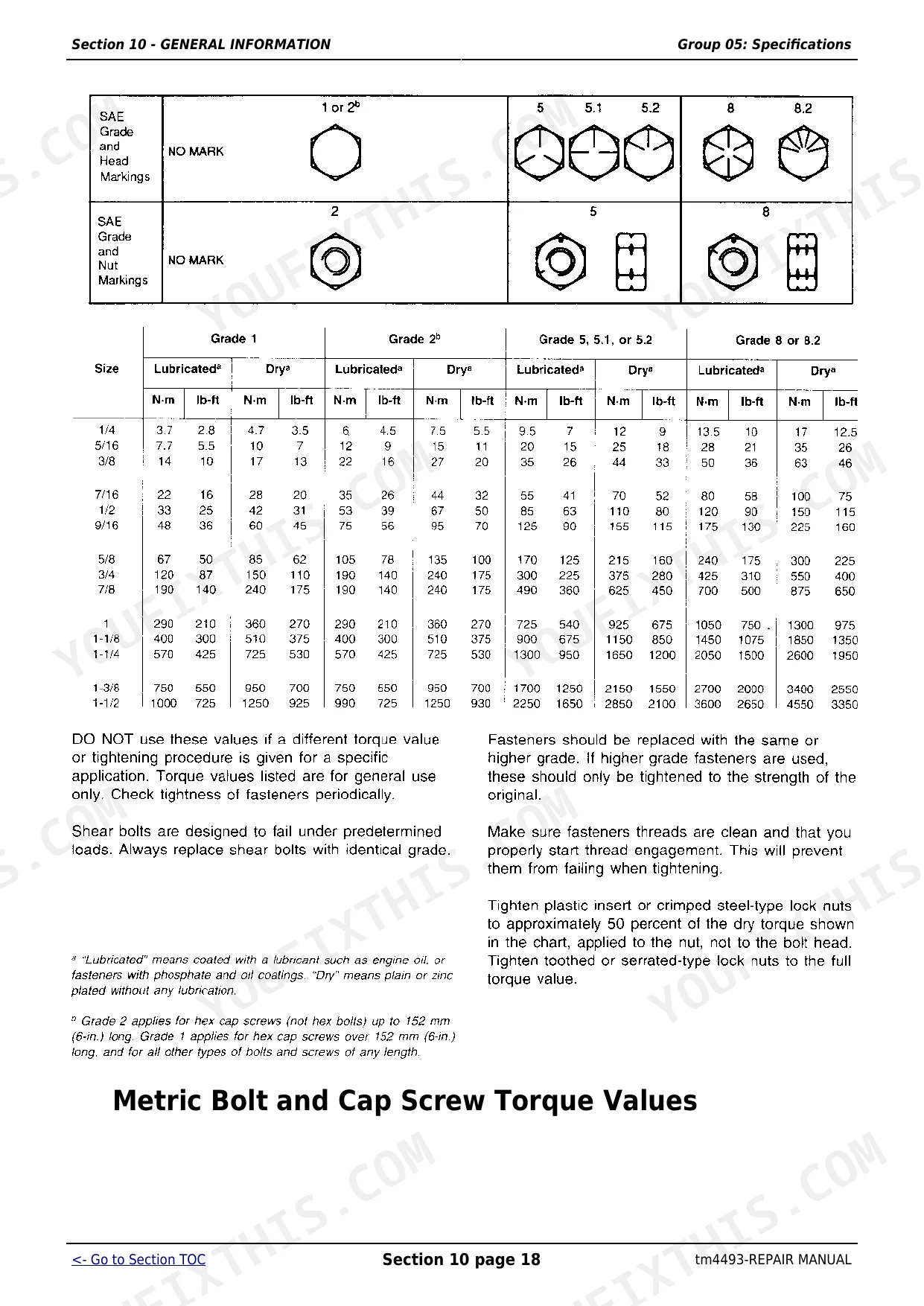

| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-27 | Safety Measures (Recognize Safety Information, Prevent Machine Runaway, Handle Fluids Safely-Avoid Fires, Prevent Battery Explosions, Prepare for Emergencies, Prevent Acid Burns) |
| General Information | 28-71 | Group 05 - Specifications, Group 10 - Tune-Up, Group 15 - Predelivery Inspection |

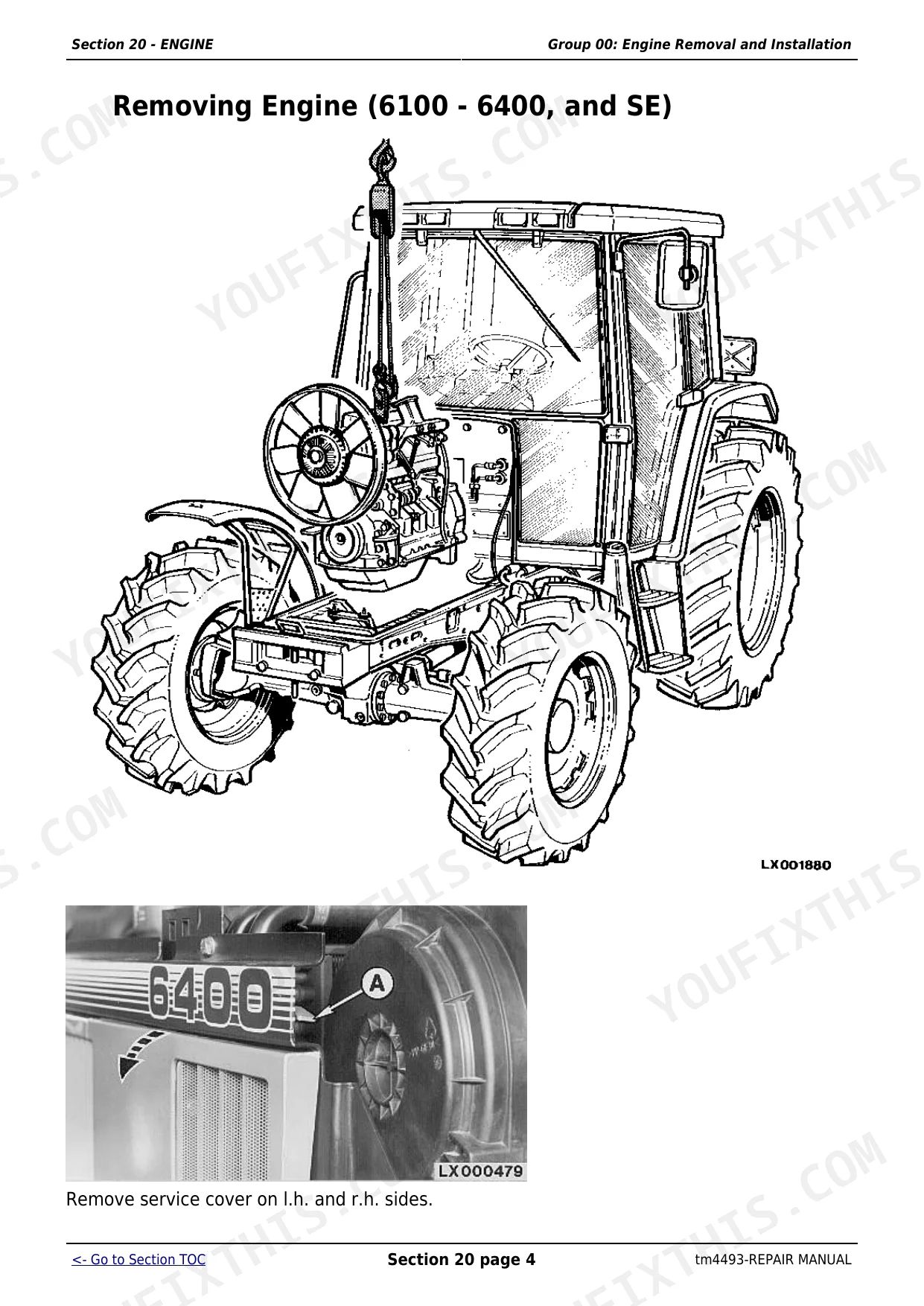

| Engine | 72-136 | Group 00 - Engine Removal and Installation |
| Fuel, Air Intake, Cooling and Exhaust Systems | 137-195 | Group 05 - Speed Control Linkage, Group 10 - Fuel System, Group 15 - Air Intake System, Group 20 - Cooling System, Group 25 - Cold Weather Starting Aids, Group 30 - Exhaust System |

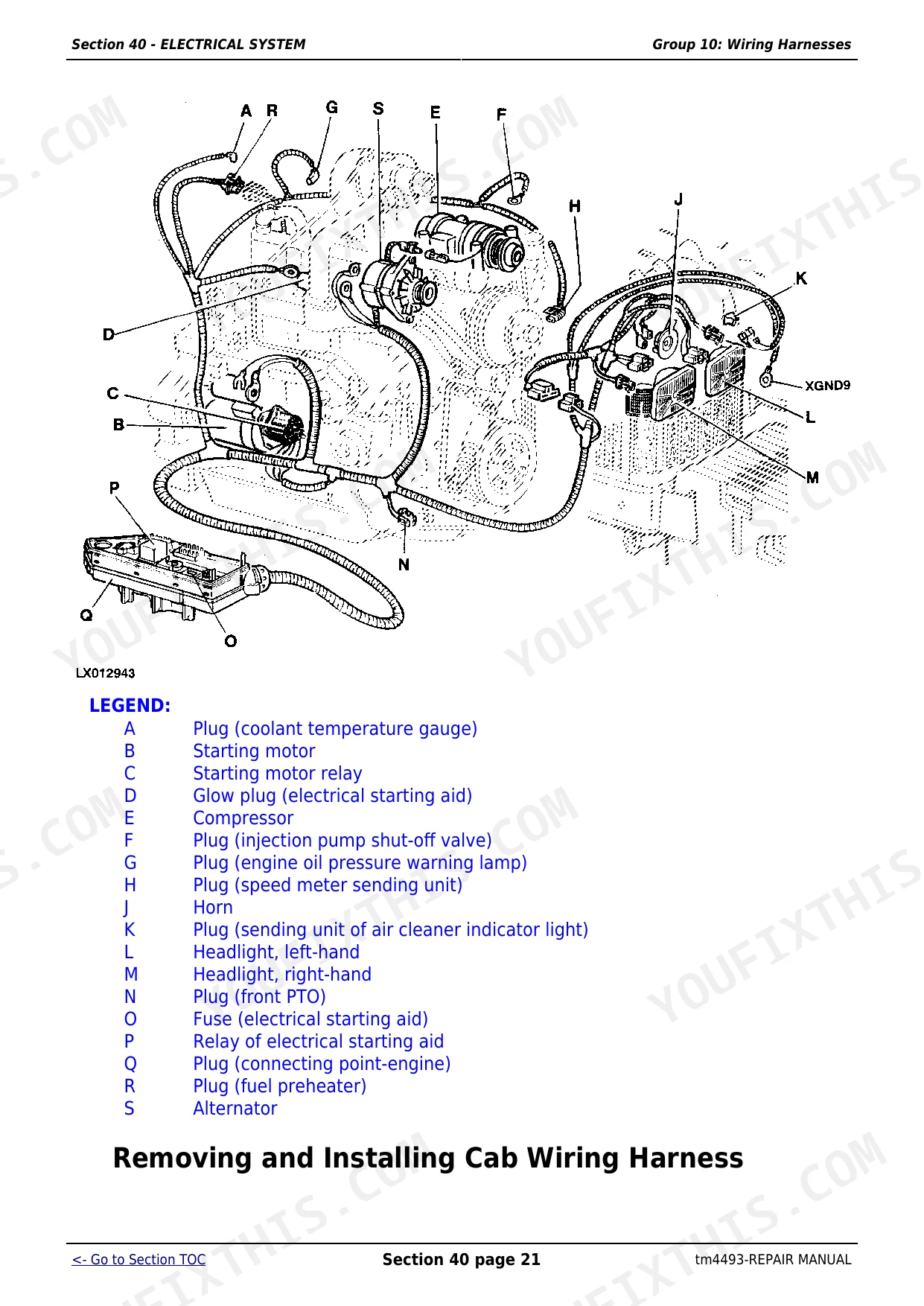

| Electrical System | 196-302 | Group 05 - Connectors, Group 10 - Wiring Harnesses, Group 15 - Charging Circuit, Group 20 - Starting Motor Circuit, Group 25 - Switches, Relays and Solenoids |

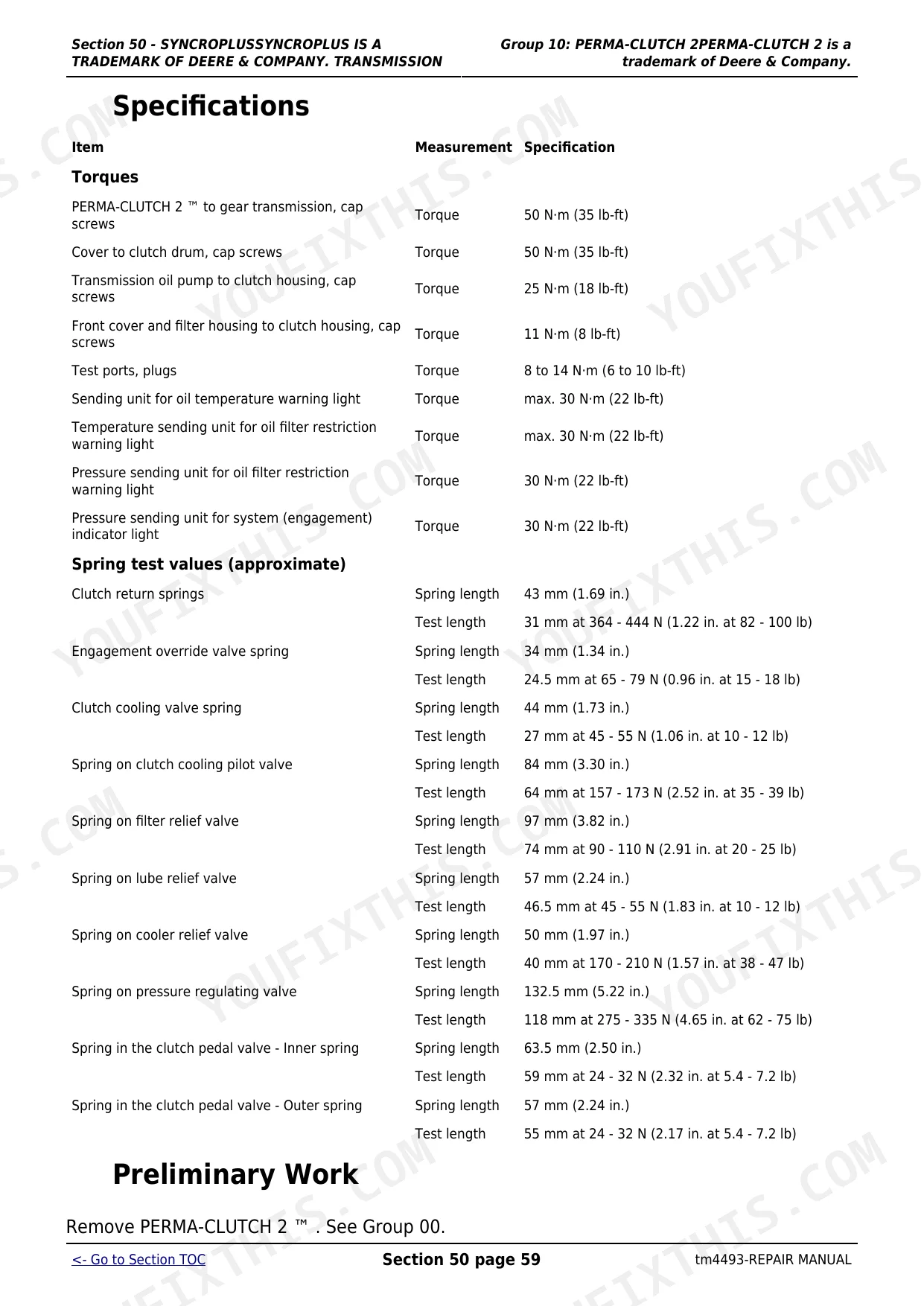

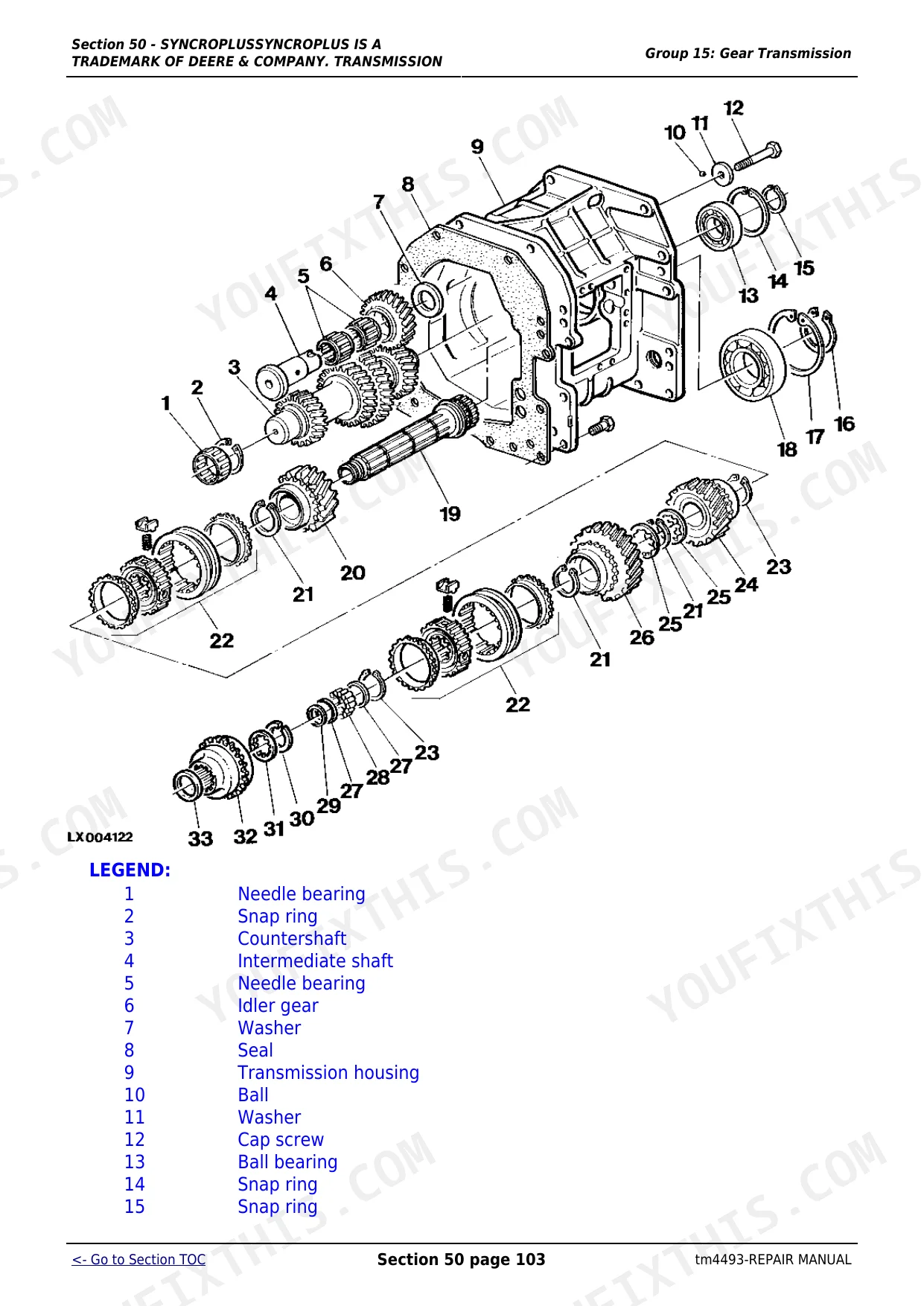

| Syncroplussyncroplus Is a Trademark of Deere & Company. Transmissio | 303-505 | Group 00 - Removal and Installation of Transmission Components, Group 01 - Summary of Important Specifications, Group 05 - Transmission Shift Controls |

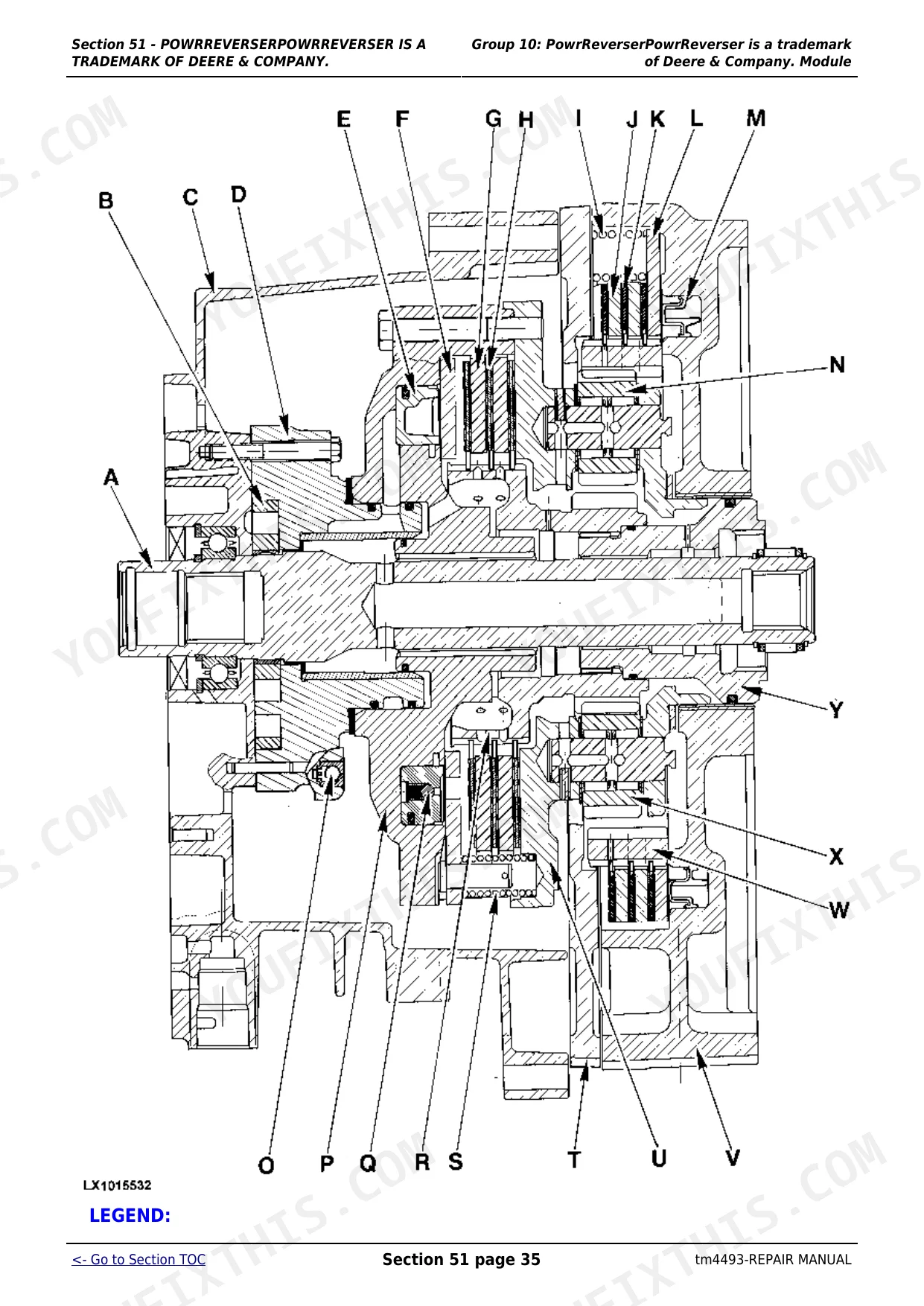

| Powrreverserpowrreverser Is a Trademark of Deere & Company. | 506-642 | Group 00 - Removal and Installation of PowrReverser PowrReverser Is a Trademark, Group 05 - Transmission Shift Controls |
| Powrquadpowrquad Is a Trademark of Deere & Company. Transmission | 643-772 | Group 00 - Removal and Installation of PowrQuad PowrQuad Is a Trademark of Deere, Group 05 - Transmission Shift Controls |
| Drive Systems | 773-1024 | Group 00 - Component Removal and Installation, Group 05 - U-Jointed Shafts and Torsion Damper, Group 10A - Front Wheel Drive Clutch Up to Transmission Serial No. 114447 |
| Steering and Brakes | 1025-1209 | Group 05 - Hydrostatic Steering, Group 10 - Steering Cylinders, Group 15 - Brake Valve, Group 20 - Rear Brakes, Group 25 - Handbrake, Group 30 - Hydraulic Trailer Brake |
| Hydraulic System | 1210-1395 | Group 05 - Controls, Group 10 - Hydraulic Pump and Charge Pump, Group 11 - Hydraulic Pump on Se Tractors, Group 15 - Valves, Group 16 - Valves on Se Tractors |
| Miscellaneous | 1396-1511 | Group 00 - Component Removal and Installation, Group 05 - Main Frame, Group 10 - Front Axle, Group 15 - Front and Rear Wheels, Group 20 - Trailer Hitch |
| Operator′S Cab and 4-Post Roll Guard | 1512-1700 | Group 00 - Tilting, Removing and Installing the Operator′s Cab, Group 01 - Tilting, Removing and Installing the Operator′s Cab (Se Tractors), Group 05 - Controls and Instruments |
| Special Tools (Dealer-Fabricated) | 1701-1711 | Group 05 - Special Tools (Dealer-Fabricated) |

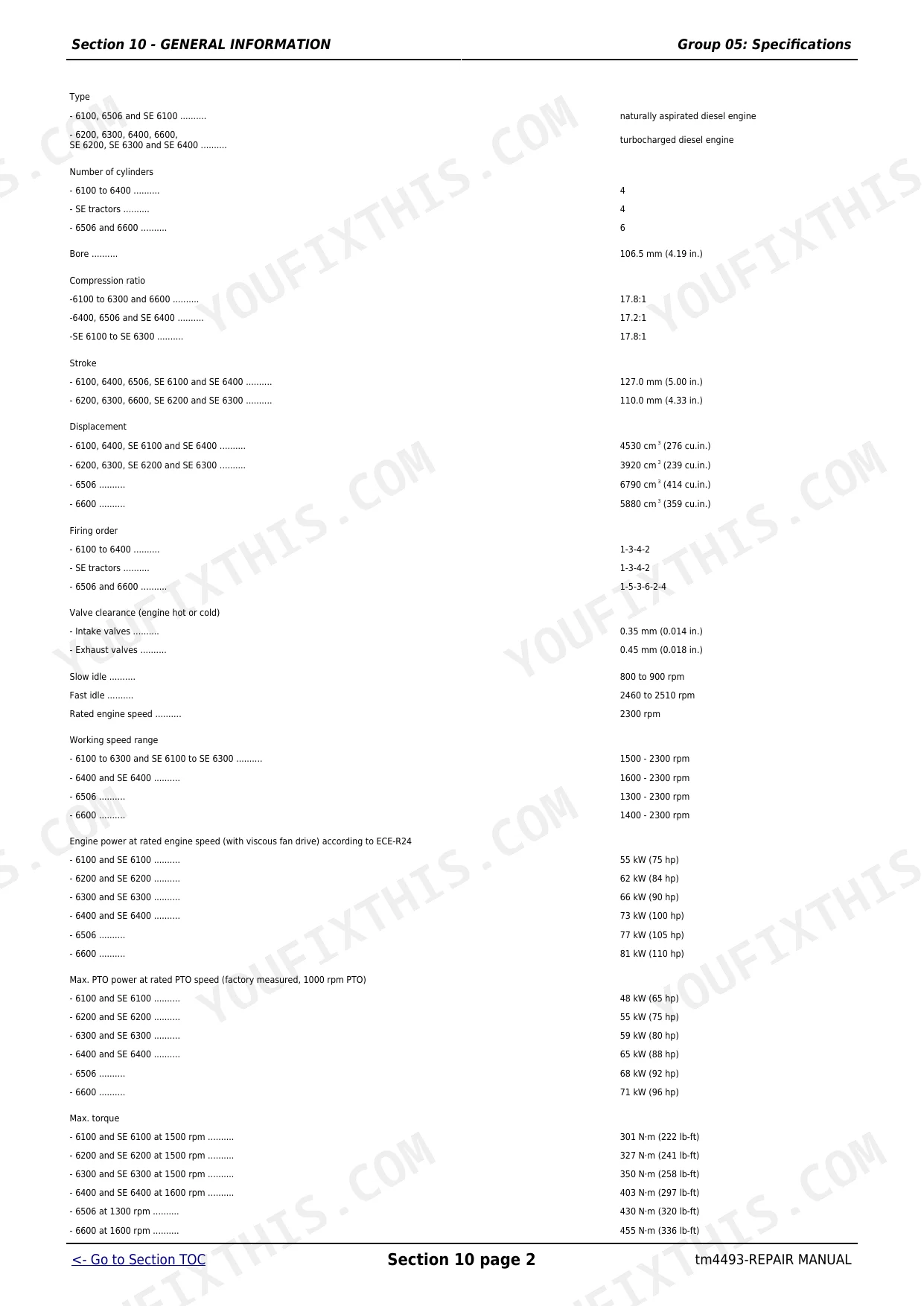

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine Bore | 106.5 mm (4.19 in.) | p. 29 |
| Engine Slow Idle Speed | 800 to 900 rpm | p. 29 |
| Steering Wheel to Steering Shaft Torque | 50 N·m (35 lb-ft) | p. 1027 |
| Front PTO Disk Clutch Piston Spring Free Length | 98 mm (3.88 in.) | p. 989 |
| Front Cab Mounting Torque | 220 N·m (160 lb-ft) | p. 1515 |
| 6100, SE6100, 6400, SE6400 | ||
| Engine Displacement | 4530 cm3 (276 cu.in.) | p. 29 |
| 6506 | ||
| Engine Displacement | 6790 cm3 (414 cu.in.) | p. 29 |
| 6100, SE6100, 6200, SE6200, 6300, SE6300, 6400, SE6400 | ||
| Fuel Tank Capacity | 160 L (42.2 US.gal.) | p. 34 |
| SyncroPlus 30 km/h transmission | ||
| Transmission Oil Capacity (SyncroPlus initial filling) | 64 L (16.9 US.gal.) | p. 35 |
| 6100, SE6100, 6200, SE6200, 6300, SE6300, 6400, SE6400, 6506, 6600 | ||
| Hydraulic System Max Pressure | 20000 kPa (200 bar; 2900 psi) | p. 33 |
| all with flanged axle | ||
| Rear Wheel to Final Drive Torque (Flanged Axle) | 500 N·m (370 lb-ft) | p. 779 |
| 6100, 6200, 6300, 6400, 6506, 6600 | ||
| Air-Conditioning System Refrigerant Weight | 1300 g (2.86 lb) | p. 1617 |
John Deere Agriculture 6100–6600 SE Series Common Problems This Manual Covers
John Deere 6400 hydraulic pump grinding noise, implements slow to raise or won't lift at all p. 1210
Check hydraulic fluid level and filter condition before pulling the pump. Connect a pressure gauge at the test port; system maximum is 20000 kPa (200 bar; 2900 psi) per page 33. If pressure reads low, inspect the charge pump for wear and clean the suction strainer. Replace the filter if it shows contamination.
Manual Section: Hydraulic SystemEngine won't start or turns over slowly in cold weather below freezing p. 137
Verify battery terminals are clean and tight. Check that engine slow idle is set to 800-900 rpm per page 29. If the engine cranks but won't fire, bleed the fuel system; air trapped in the injector lines after a cold soak is the most common culprit. Fuel system procedures begin on page 137.
Manual Section: Fuel, Air Intake, Cooling and Exhaust SystemsSyncroPlus transmission slipping out of gear or won't shift cleanly under load p. 303
Check transmission oil level first; low fluid causes slip before any mechanical damage appears. Verify the shift linkage adjustment if fluid is clean and at level. SyncroPlus 30 km/h units hold 64 L (16.9 US.gal.) on initial fill; a short fill starves the clutch packs under load. Shift control procedures are detailed starting on page 303.
Manual Section: SyncroPlus TransmissionCab air conditioning blowing warm air, compressor cycling on and off every few seconds p. 1617
Test for refrigerant loss first; a compressor cycling rapidly is the classic sign of low charge. On 6100, 6200, 6300, 6400, 6506, and 6600 models, the system holds 1300 g (2.86 lb) of refrigerant per page 1617. Leak-test the system with a detector, then evacuate and recharge to spec before returning to service.
Manual Section: Operator's Cab and 4-Post Roll GuardRear wheels loose or wobble felt through the seat at field speeds p. 773
Torque the rear wheel mounting bolts before anything else. On flanged axle configurations, spec is 500 N·m (370 lb-ft) per page 779. Check for worn or missing hub spacers after re-torquing. If wobble persists with bolts at spec, inspect the final drive housing for bearing wear and cracked axle flanges.
Manual Section: Drive SystemsFrequently Asked Questions
What are the torque specs for John Deere 6000 series engine bolts?
For 6100-6400 Tractors and SE models, the engine support bracket to flywheel housing cap screws should be torqued to 95 N·m (70 lb-ft). Engine mountings cap screws for these models require a torque of 100 N·m (74 lb-ft). For 6506 and 6600 Tractors, the engine to main frame cap screws should be tightened to 100 N·m (74 lb-ft).
How do you fix john Deere 6400 hydraulic pump grinding noise, implements slow to raise or won't lift at all?
Check hydraulic fluid level and filter condition before pulling the pump. Connect a pressure gauge at the test port; system maximum is 20000 kPa (200 bar; 2900 psi) per page 33. If pressure reads low, inspect the charge pump for wear and clean the suction strainer. Replace the filter if it shows contamination.
How do you fix engine won't start or turns over slowly in cold weather below freezing?
Verify battery terminals are clean and tight. Check that engine slow idle is set to 800-900 rpm per page 29. If the engine cranks but won't fire, bleed the fuel system; air trapped in the injector lines after a cold soak is the most common culprit. Fuel system procedures begin on page 137.
How do you fix syncroPlus transmission slipping out of gear or won't shift cleanly under load?
Check transmission oil level first; low fluid causes slip before any mechanical damage appears. Verify the shift linkage adjustment if fluid is clean and at level. SyncroPlus 30 km/h units hold 64 L (16.9 US.gal.) on initial fill; a short fill starves the clutch packs under load. Shift control procedures are detailed starting on page 303.
How will I receive this John Deere Agriculture 6100 & variants Repair Manual?
A 1711-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this John Deere Agriculture 6100 & variants manual have electrical?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
