Part of the John Deere Repair Manuals.

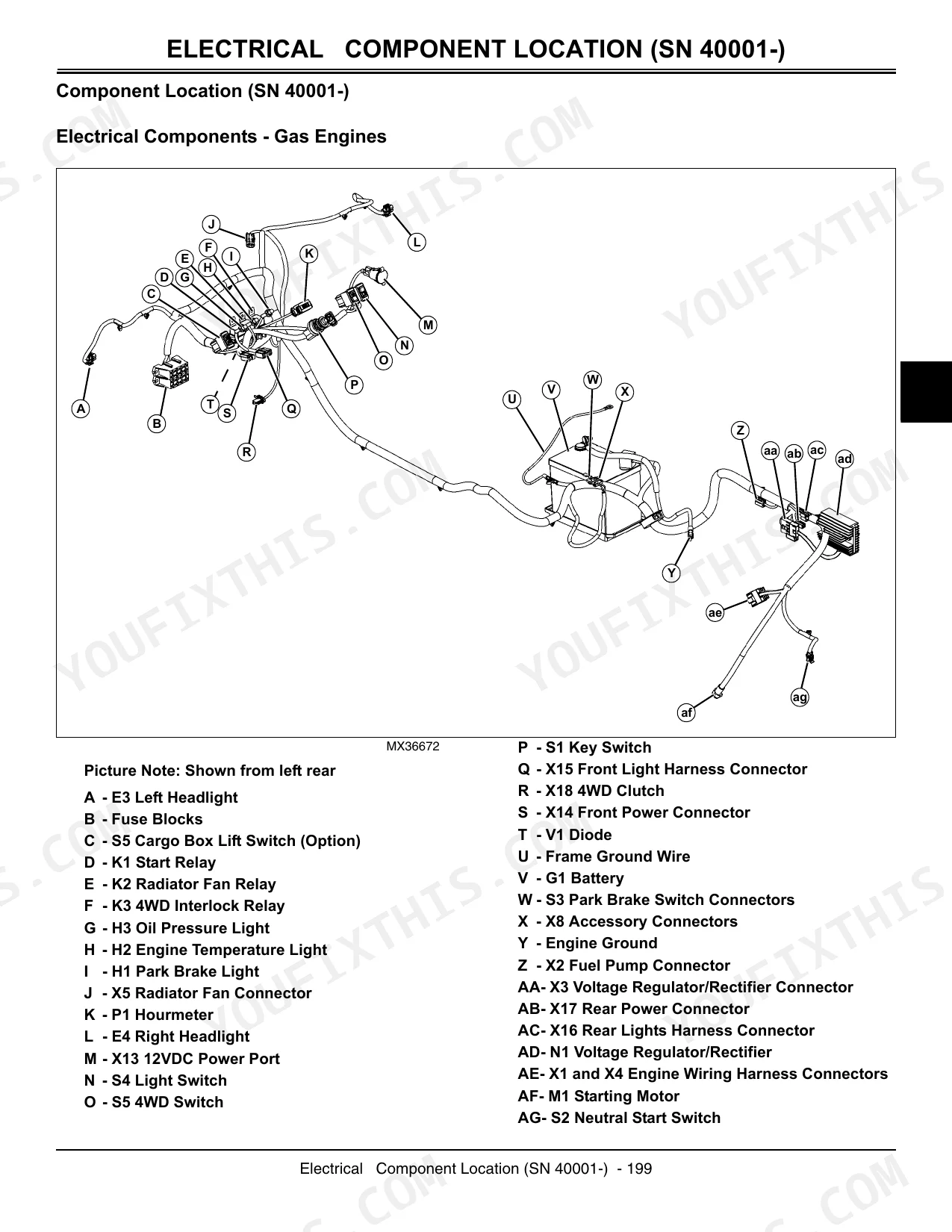

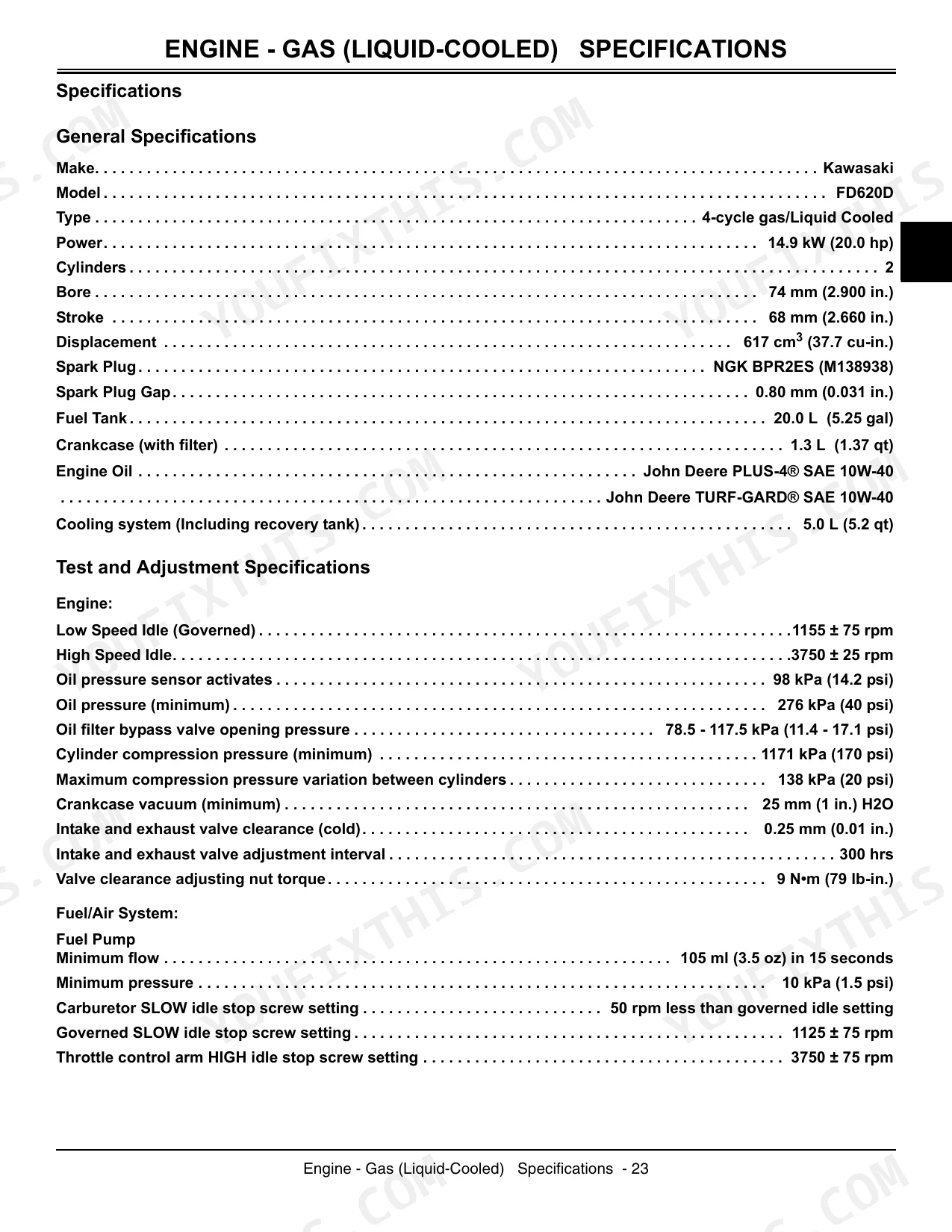

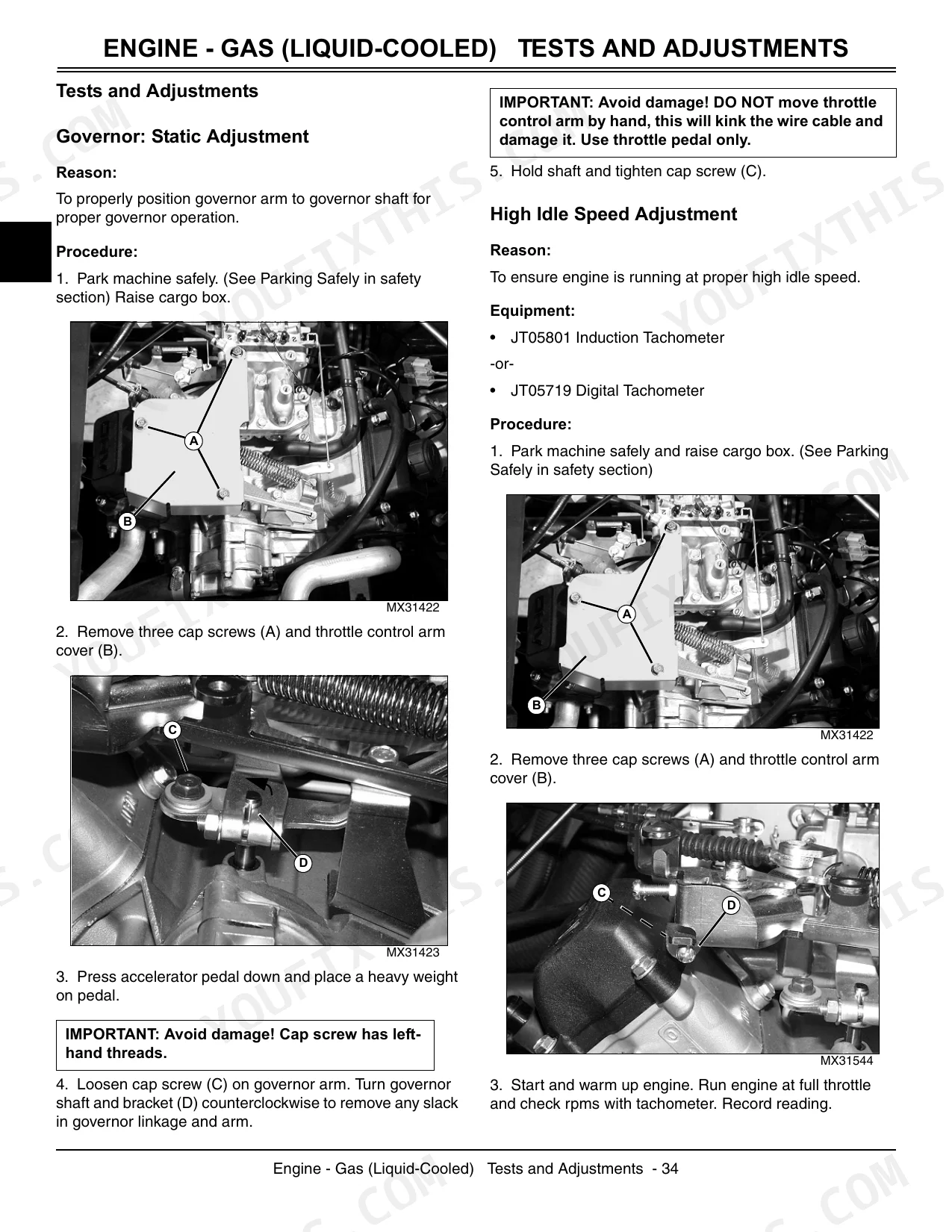

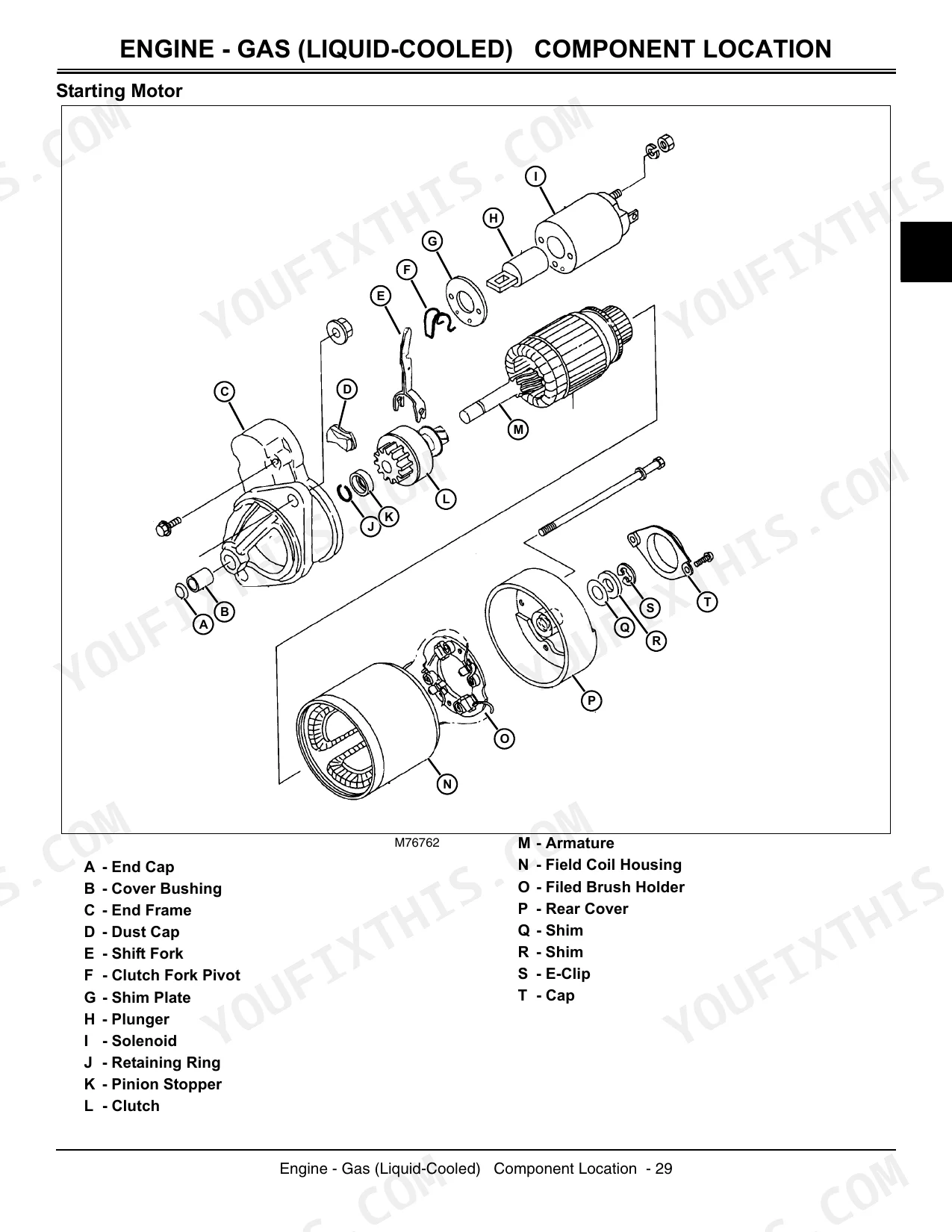

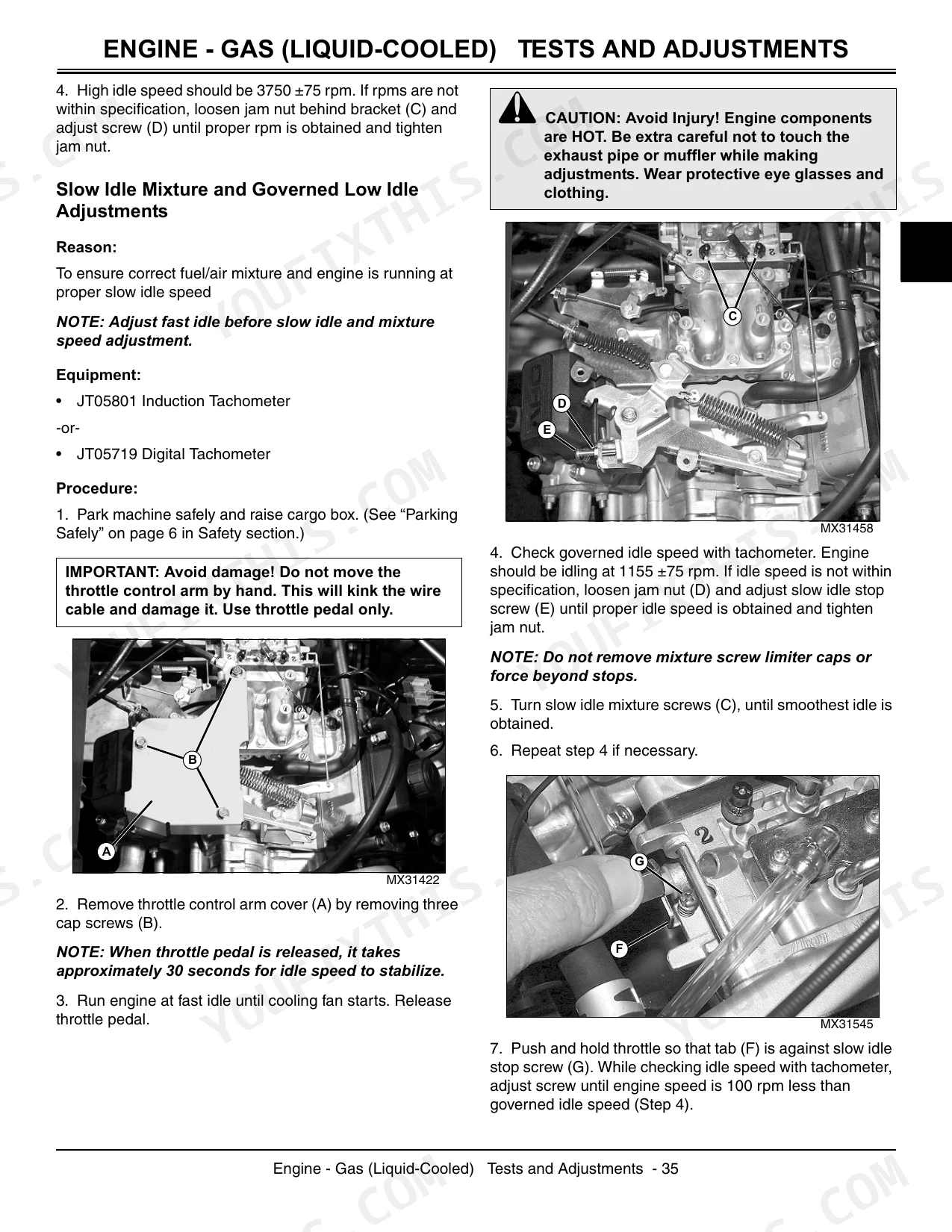

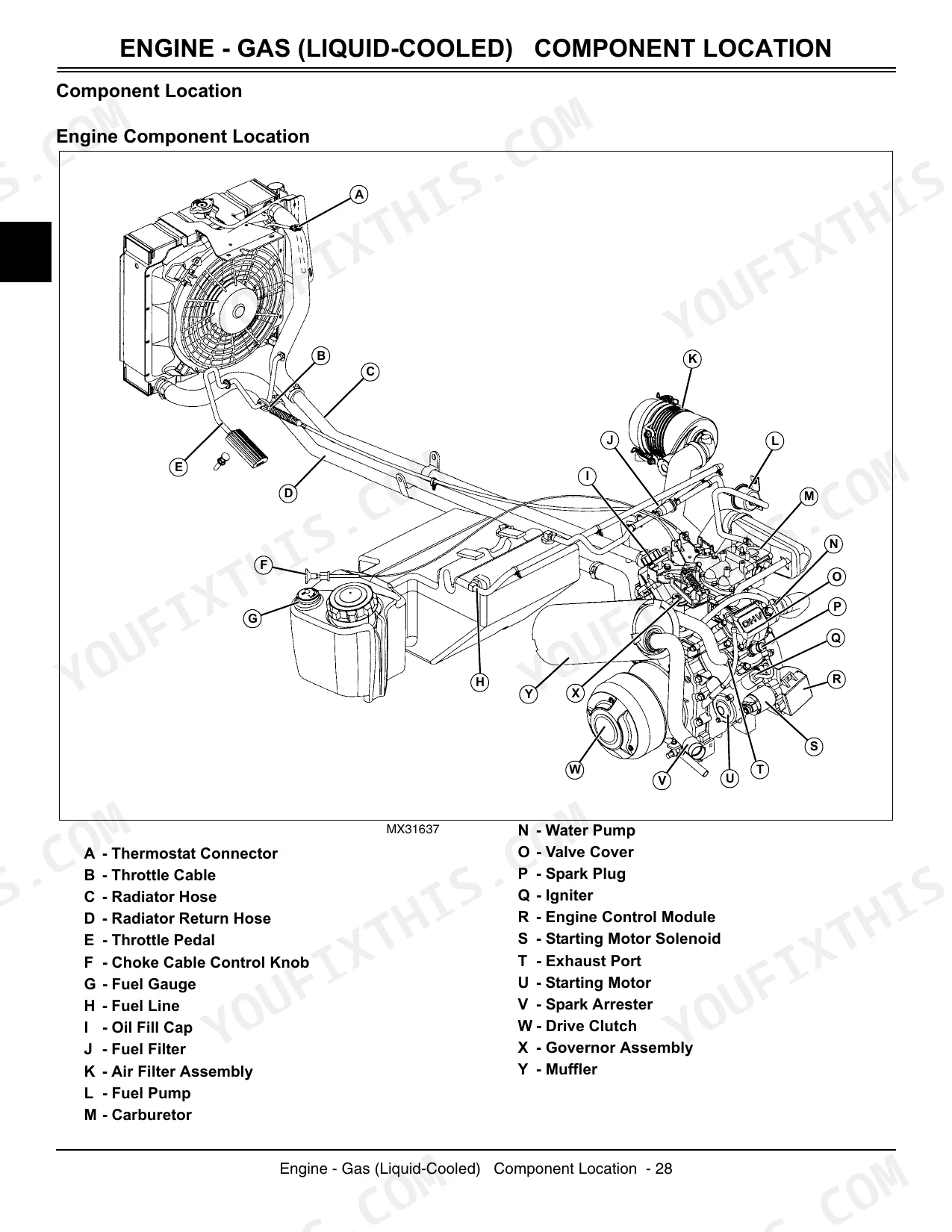

All 610 pages of this John Deere Gator Utility Vehicle Technical Manual (OEM #TM2195) cover one job: keeping your HPX 4X2, HPX 4X4 Gas, and HPX 4X4 Diesel running at factory spec. Inside: complete wiring diagrams for both gas and diesel electrical systems, a full troubleshooting section with component-level diagnostics, and torque specifications across every major system from engine to brakes. Exploded views run throughout, showing exact part relationships before you pull anything apart. Gap your spark plugs to 0.80 mm and torque them to 25 N·m (18 lb-ft); confirm fuel pump flow at 105 ml in 15 seconds before chasing a hard-start. No more guessing at specs or hunting through forum threads. Grab this PDF, open it on your tablet, and walk to the machine: bookmarked sections get you to the right procedure in seconds.
What's Inside This John Deere HPX Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Specifications and Information, Identification Numbers, Tools and Materials, Component Location, Theory of Operation, Diagnostics |
| Safety | 5-10 | Handle Fluids Safely, Use Care in Handling and Servicing Batteries, Wear Protective Clothing, Use Care Around High-Pressure Fluid Lines, Service Machines Safely |
| Specifications & Information | 11-24 | Metric Fastener Torque Values, Inch Fastener Torque Values, O-Ring Seal Service Recommendations, General Information, Coolant Specifications, Serial Number Locations |
| Engine - Gas (Liquid-Cooled) | 25-68 | Specifications, Component Location, Diagnostics, Tests and Adjustments, Repair, Piston Inspection |
| Engine - Diesel | 69-190 | Cylinder Head, Intake and Exhaust Valves, Connecting Rod Bearing, Piston Ring, Piston Pin, Piston, Cylinder Bore, Crankshaft |

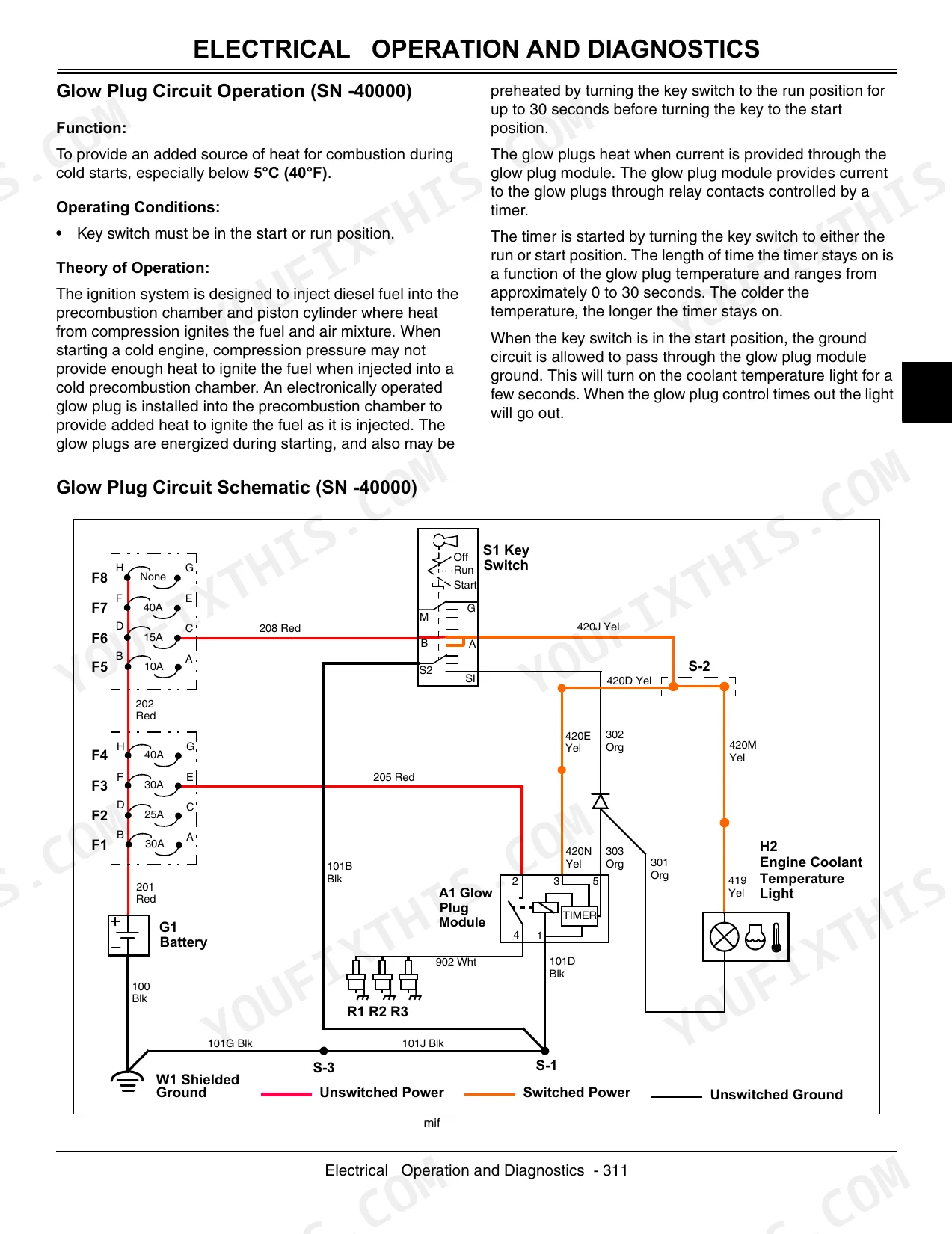

| Electrical | 191-440 | Engine, Fuses, Wiring Harness, Battery, Alternator, Relays, Switches, Lights |
| Power Train - Gear | 441-516 | Drive Train, Fluid Capacities, Special or Required Tools, Power Train Components, Transaxle Control Components, Drive Clutch Components, Driven Clutch, Shift Linkage Components |
| Steering | 517-534 | Steering Wheel, Tie Rod End, Steering Rack, Steering Shaft, Front Strut/Shock, Front Wheel Bearing, Ball Joint, Front A-Arm |
| Brakes | 535-570 | General Specifications, Torque Specifications, Component Location, System Diagnosis, Bleeding Brakes, Brake Pad Replacement |
| Miscellaneous | 571-598 | General Specifications, Tires, Torque Specifications, Component Location, Wheel Removal and Installation, Battery Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| HPX 4X2 and 4X4 Gas | ||

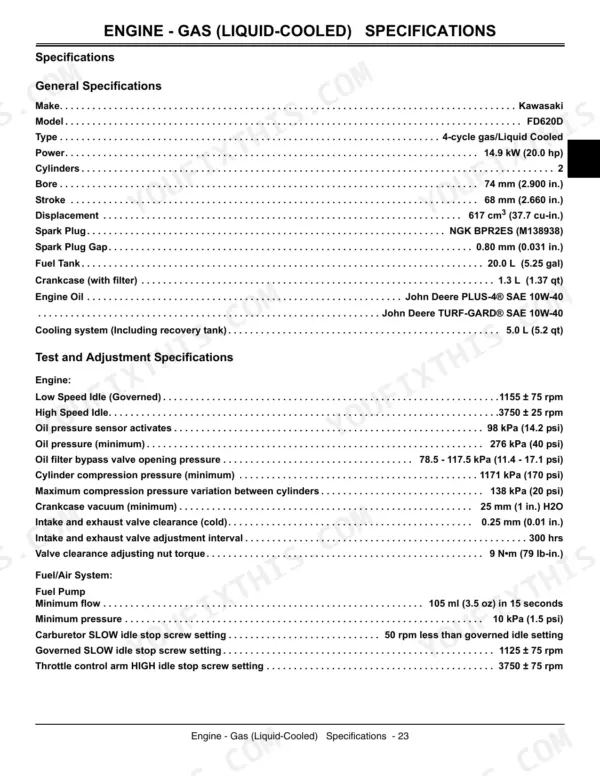

| Fuel Pump Minimum flow | 105 ml (3.5 oz) in 15 seconds | p. 27 |
| Fuel Pump Minimum pressure | 10 kPa (1.5 psi) | p. 27 |
| Spark Plug Gap | 0.80 mm (0.031 in.) | p. 27 |
| Spark Plug Torque | 25 N·m (206 lb-in.) (18 lb-ft) | p. 71 |
| Accelerator pedal free travel | 2-6 mm (0.080 - 0.240 in.) | p. 40 |
| HPX 4X4 Diesel | ||
| Accelerator pedal free travel | 2-6 mm (0.080 - 0.240 in.) | p. 105 |
| All Models | ||
| Transaxle Shift Adjustment | centered in the Neutral position | p. 465 |
| Metric Fastener Torque (M6, Class 8.8/9.8, Lubricated) | 9 N•m | p. 13 |
| Inch Fastener Torque (1/4, Grade 5/5.1/5.2, Lubricated) | 9.5 N•m | p. 30 |
| Cooling System Capacity (Including Reservoir) | 5.0 L | p. 27 |
| HPX 4X2 Gas, HPX 4X4 Gas, Gator Utility Vehicle Gas | ||
| Gasoline Engine Oil Capacity (with filter) | 1.3 L | p. 27 |
| HPX 4X2 Diesel, HPX 4X4 Diesel, Gator Utility Vehicle Diesel | ||
| Diesel Engine Oil Capacity (with filter) | 2.2 L | p. 71 |
John Deere HPX Series Common Problems This Manual Covers
John Deere HPX 4X4 Gas engine runs poorly, stalls under heavy load, or fails to start completely.
Test the fuel delivery system as outlined on page 27. Disconnect the fuel line and verify minimum flow is 105 ml (3.5 oz) in 15 seconds. Check the fuel pump minimum pressure is 10 kPa (1.5 psi). Replace the pump if values fall below specifications.
Manual Section: Engine - Gas Troubleshooting p. 32Engine cranks hard, runs rough at idle, or experiences constant misfires during normal machine operation.
Inspect the ignition system components starting on page 32. Remove and inspect spark plugs for heavy carbon fouling. Set the spark plug gap to 0.80 mm (0.031 in.) using a feeler gauge as specified on page 27. Reinstall the plugs and tighten securely.
Manual Section: Engine - Gas Troubleshooting p. 32Gears grind heavily during shifting and shift lever frequently disengages while driving under a heavy load.
Inspect the shift linkage and shift cable for wear. Verify the transaxle shift adjustment is centered in the Neutral position as directed on page 465. Adjust the accelerator pedal free travel to 2-6 mm (0.080 - 0.240 in.) per page 40 to ensure proper engagement.
Manual Section: Power Train - Gear DiagnosticsFrequently Asked Questions
Is this John Deere HPX 4X2, HPX 4X4 Gas, HPX 4X4 Diesel, Gator Utility?
You get a 610-page searchable PDF (82 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this John Deere HPX 4X2, HPX 4X4 Gas, HPX?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this John Deere HPX 4X2, HPX 4X4 Gas, HPX 4X4 Diesel, Gator Utility?
A wiring diagram for the John Deere HPX 4X2, HPX 4X4 Gas, HPX 4X4 Diesel, Gator Utility Vehicle, HPX 4X2 Gas, HPX 4X2 Diesel electrical system is included.
