Part of the John Deere Repair Manuals.
Need factory specs for your John Deere F525 or F510 Front Mower? This 571-page John Deere f525 technical manual pdf (OEM #TM1475) puts every repair procedure for both Residential Front Mowers in your hands, from engine teardown to electrical diagnostics. You get wiring schematics with full harness routing, hydraulic schematics for the hydrostatic transmission, a section-by-section troubleshooting guide spanning fuel/air, power train, steering, and brakes, plus exploded views through every major rebuild. Gap your spark plug to 0.75 mm (0.030 in.) and torque it to 20 N·m; the PTO circuit fuse is rated at 15 Amp. Every hour your mower sits costs you. Bookmarked and keyword-searchable; open it on your tablet, walk to the machine, and start wrenching.
What's Inside This John Deere F510, F525, F510 Front Mowers, F525 Front Mowers Manual

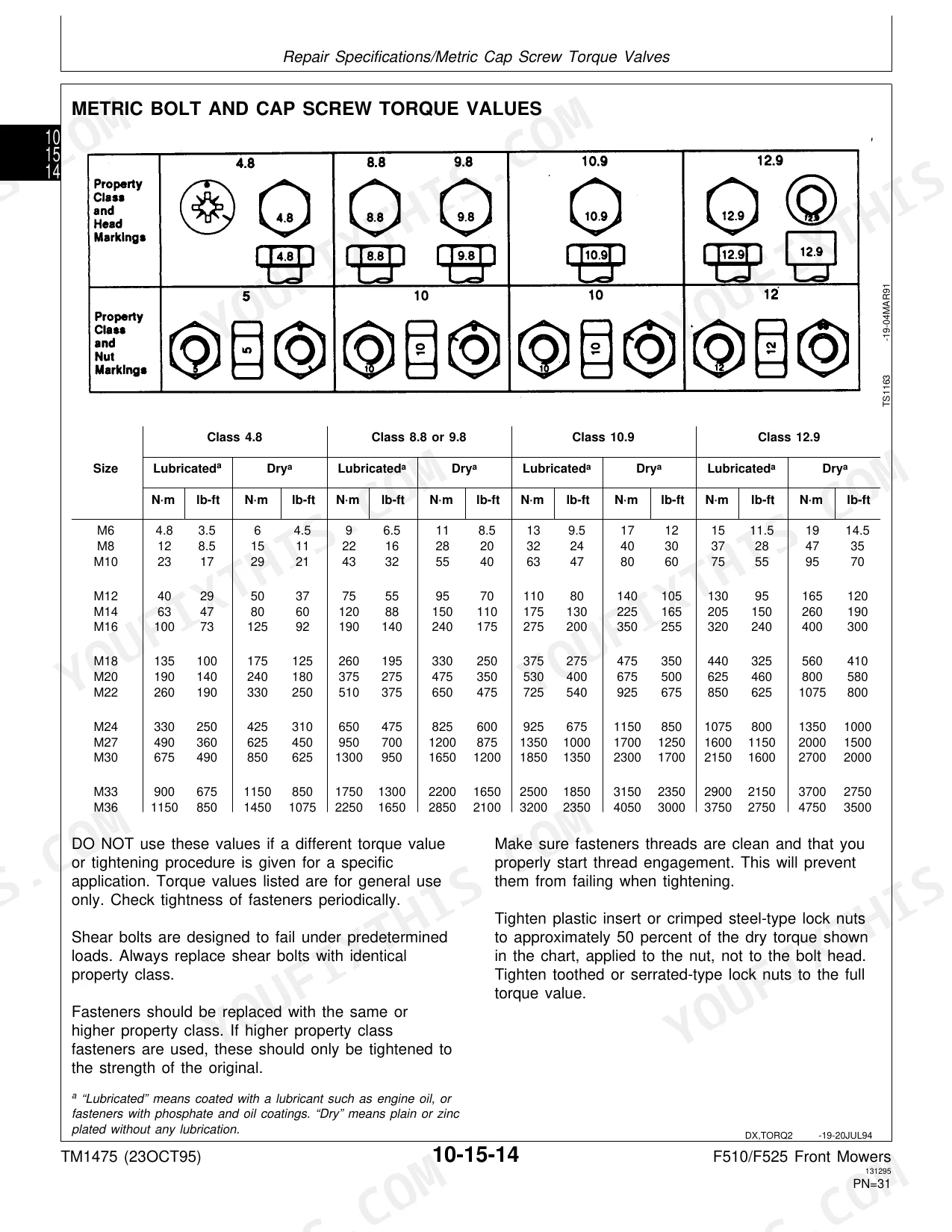

| System | Pages | Key Topics |
|---|---|---|
| General Information | 10-53 | Safety, Repair Specifications, Fuel and Lubricants, Serial Number Location |

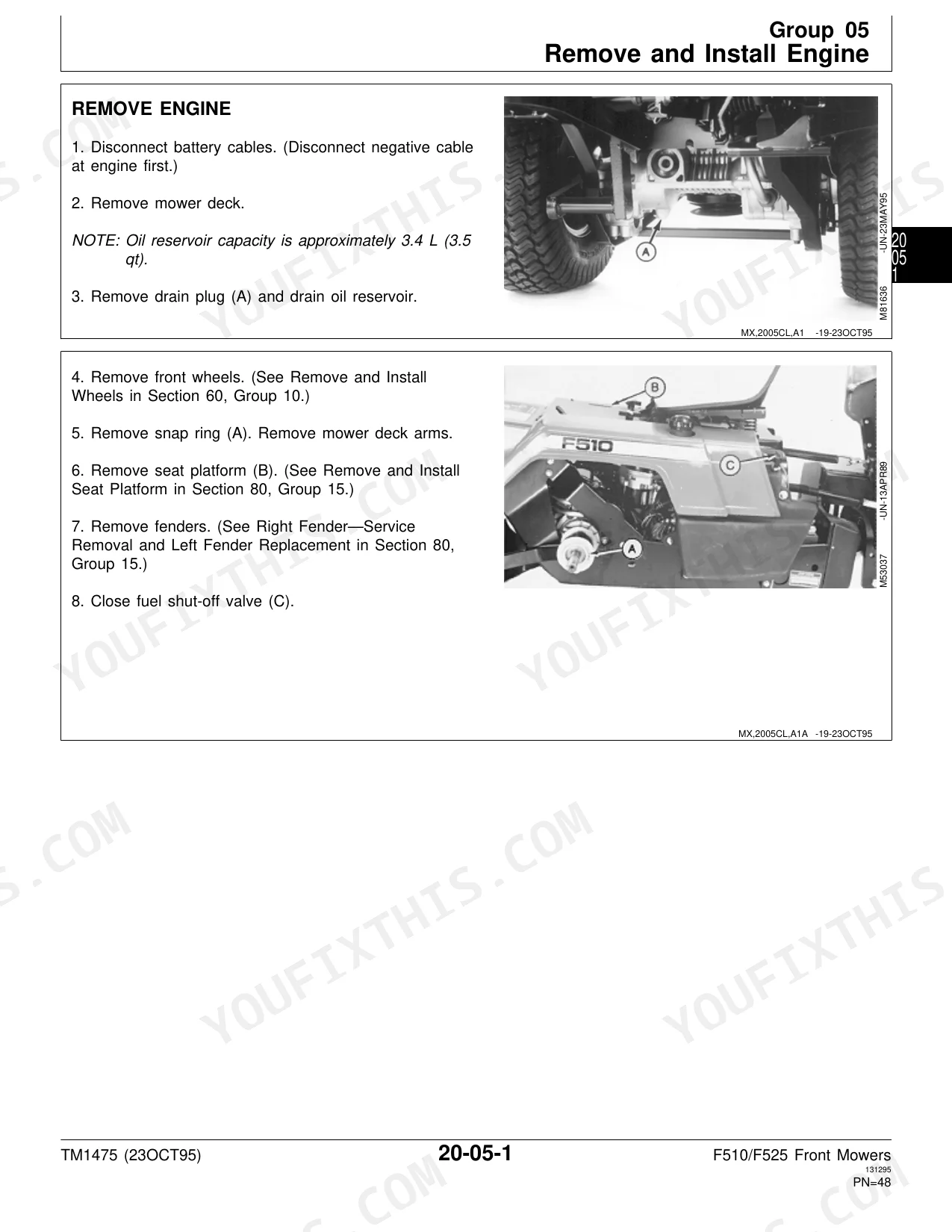

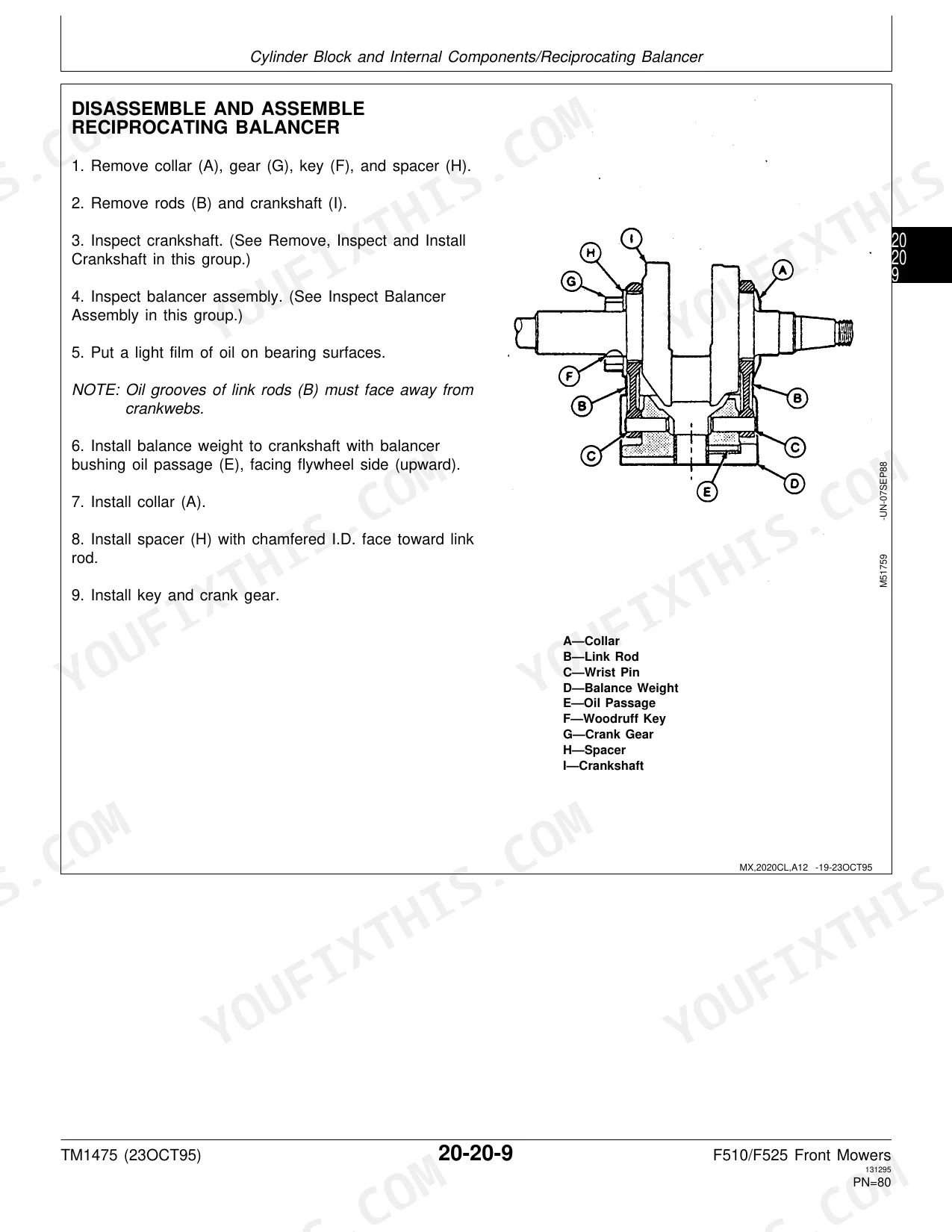

| Engine Repair | 54-119 | Remove and Install Engine, Blower Housing and Flywheel, Cylinder Head and Valves, Cylinder Block and Internal Components |
| Fuel and Air System Repair | 120-139 | Fuel Tank, Fuel Pump, Air Cleaner, Carburetor |
| Electrical Repair | 140-155 | Electric PTO Clutch, Starter, Ignition and Charging System |

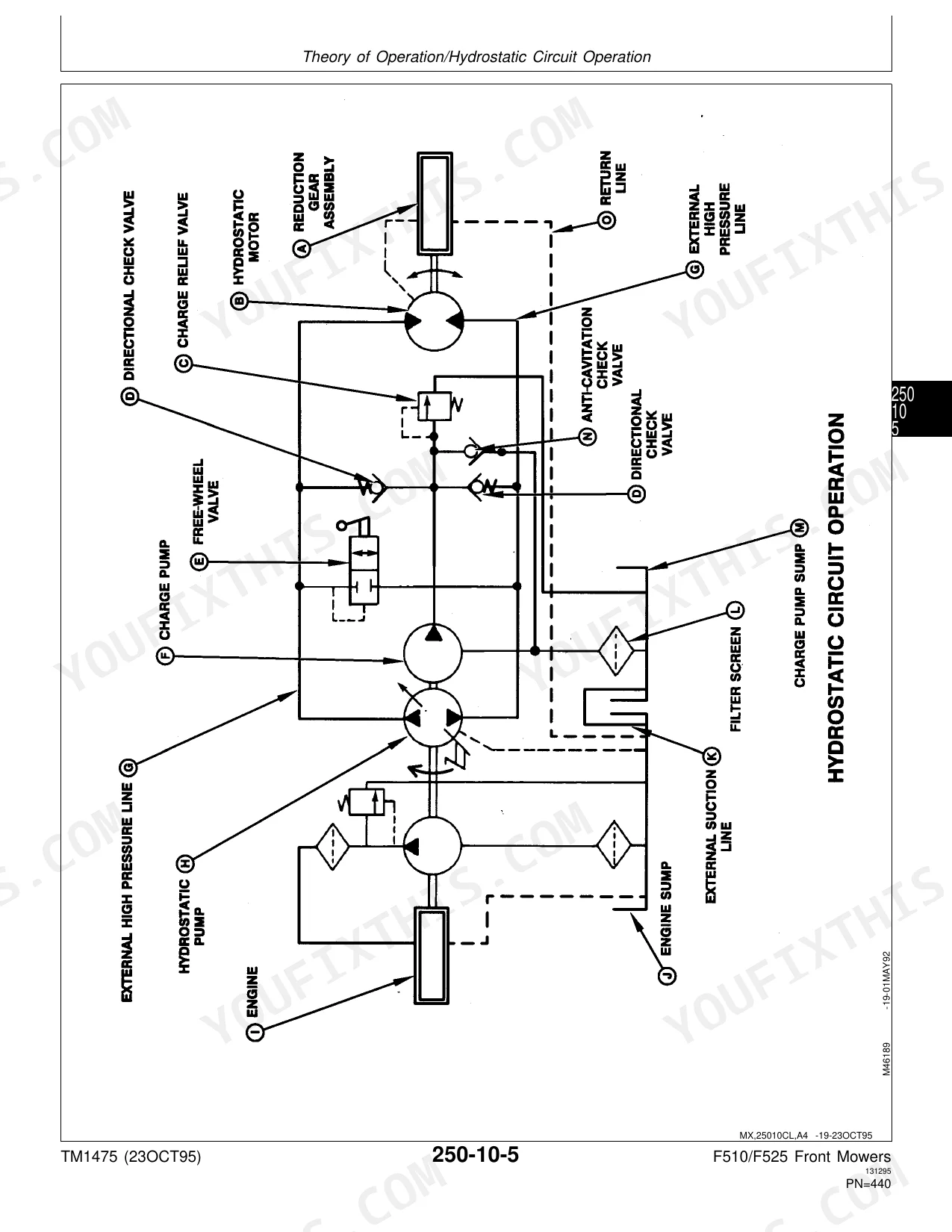

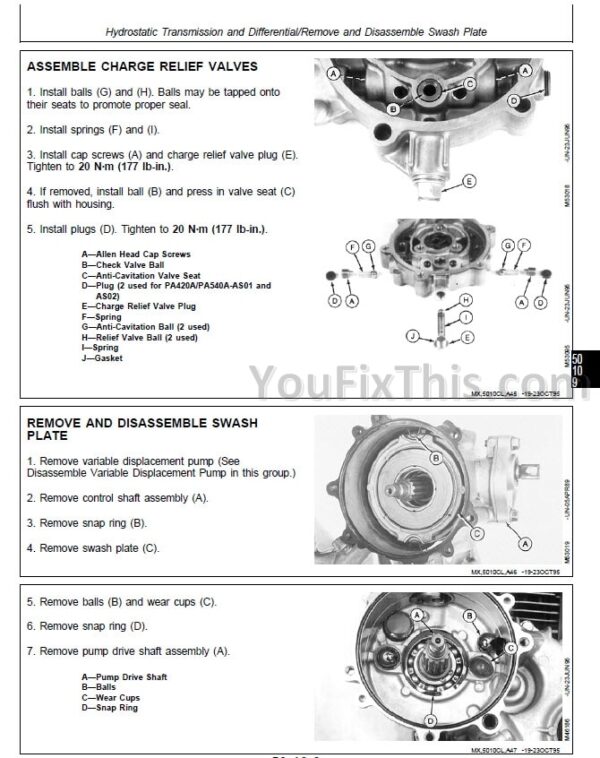

| Power Train Repair | 156-187 | Hydrostatic Transmission and Differential |
| Steering Repair | 188-195 | Steering Shaft and Gears, Wheels |
| Brake Repair | 196-199 | Remove and Install Brake Band, Brake System Components, Brake Linkage Operation, Brake Pedal Travel Adjustment, Brake Switch Safety Circuit Check |
| Miscellaneous | 200-245 | Mower Deck Repair, Blade Drive Belt, 38-Inch Snowthrower, Power Flow Blower Assembly, Engine Shroud and Fenders, Weight Transfer System |
| Specifications/Operational Checkout Procedure | 246-259 | Operational Checkout Procedure, Test and Adjustment Specifications |

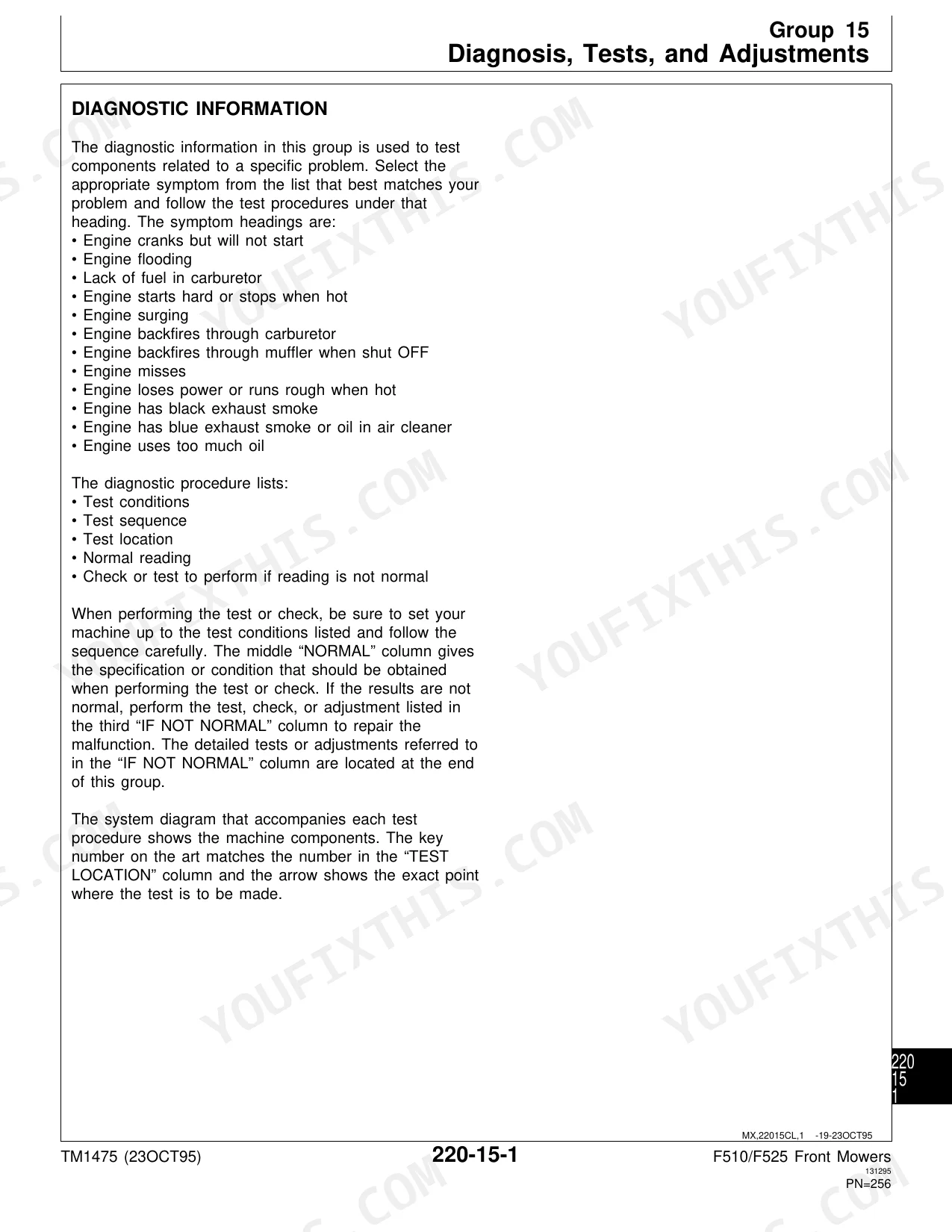

| Engine Operation, Tests, and | 260-321 | Engine Component Location, Theory of Operation Information, Diagnostic Information, Throttle Cable Adjustment, Cylinder Compression Test, Oil Pressure Test |
| Fuel/Air Operation, Tests, and Adjustments | 322-345 | Component Location, Theory of Operation, Diagnosis, Tests, And Adjustments |
| Electrical System Operation, Tests, and Adjustments | 346-469 | Component Location, Theory of Operation, Diagnosis, Tests, And Adjustments, Wiring Schematic and Harness Diagram |
| Power Train Operation, Tests, and Adjustments | 470-515 | Power Train Component Location, Theory of Operation, Power Train Diagnosis |
| Steering Operation, Tests, and Adjustments | 516-525 | Component Location, Theory of Operation, Diagnostics, Adjustments |
| Brake Operation, Tests, and Adjustments | 526-535 | Component Location, Theory of Operation |
| Miscellaneous Operation, Tests, and Adjustments | 536-561 | Mower Deck Adjustment, Blade Height Setting, Belt Tension Check, PTO Clutch Gap Adjustment, Weight Transfer System Adjustment, Operational Checkout |

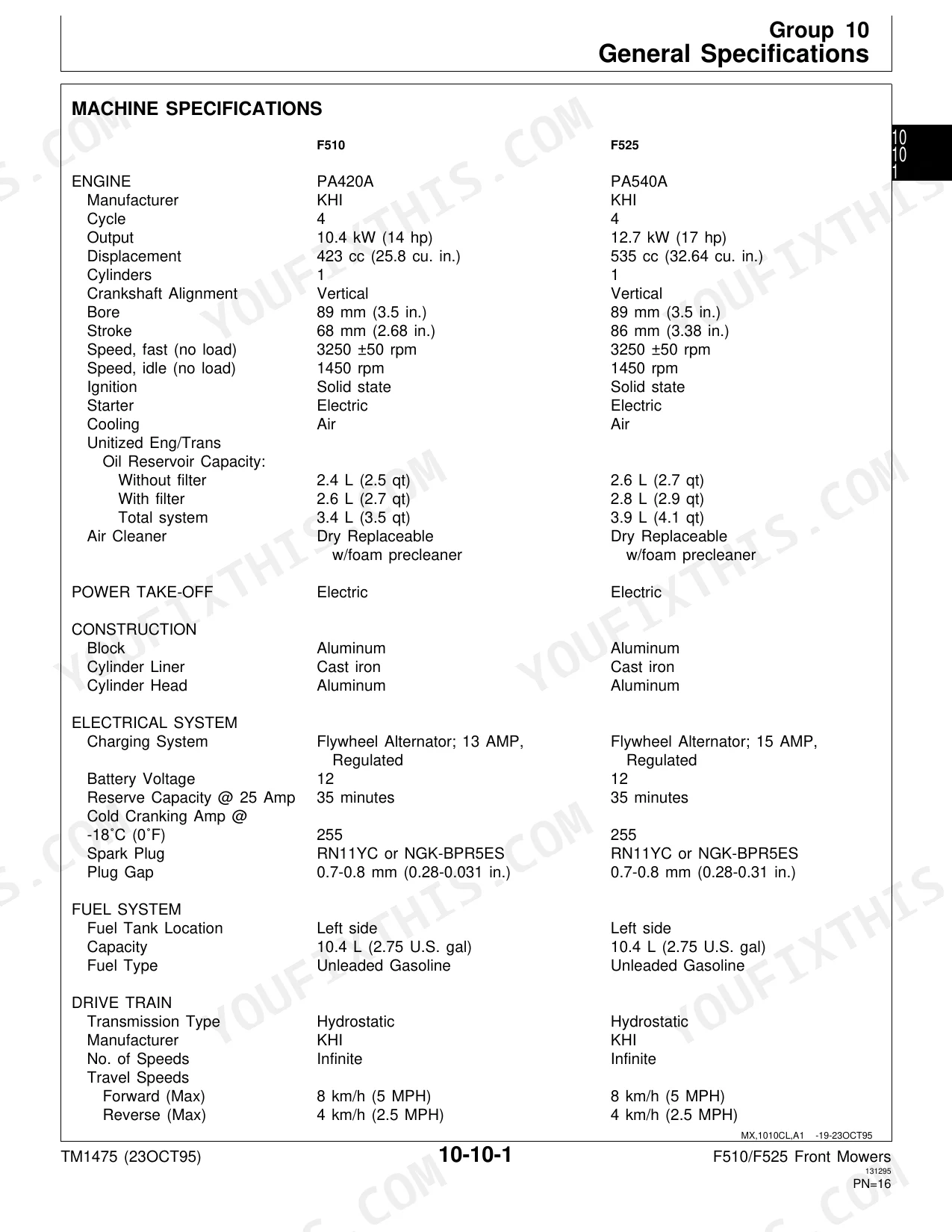

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air Cleaner Foam Element Replacement Interval | yearly or every 25 hours | p. 126 |
| PTO Fuse Rating | 15 Amp | p. 371 |
| Spark Plug Type | Champion RN11YC, NGK-BPR5ES, John Deere M802138 | p. 35 |
| Spark Plug Gap | 0.75 mm (0.030 in.) | p. 35 |
| Engine Speed, fast (no load) | 3250 ±50 rpm | p. 22 |
| PTO Clutch Clearance | 0.46 mm (0.018 in.) | p. 32 |
| Cylinder Compression (Minimum) | 483 kPa (71 psi) | p. 258 |
| Oil Pressure at WOT (Wide Open Throttle) | 240 kPa (35 psi) | p. 258 |
| F510 | ||
| F510 Engine Output | 10.4 kW (14 hp) | p. 22 |
| F510 Flywheel Nut Torque | 137 N·m (101 lb-ft) | p. 25 |
| F525 | ||
| F525 Engine Output | 12.7 kW (17 hp) | p. 22 |
| F525 Flywheel Nut Torque | 172 N·m (127 lb-ft) | p. 29 |
John Deere F510, F525, F510 Front Mowers, F525 Front Mowers Common Problems This Manual Covers
John Deere F510 mower cranks over fine but engine will not start or turns over slowly.
Inspect the electrical connections and test the PTO circuit. Check the PTO fuse on page 371 and verify it meets the 15 Amp rating. If the fuse is blown, replace it immediately. Measure the F510 starter amp draw to ensure it stays below 60 amps at 500 rpm.
Manual Section: Cranking Circuit Test PointsMower deck blades fail to spin and PTO clutch not engaging when switch is pulled.
Test the electrical continuity across the PTO switch terminals. Measure the PTO clutch clearance to confirm it is exactly 0.46 mm (0.018 in.) as specified on page 32. Adjust the locking nuts if the gap is too wide. Replace the relay if you find loose wiring connections.
Manual Section: PTO Circuit Test PointsEngine running extremely hot under load and missing during normal cutting operations. p. 54
Remove dirt and debris clogging the blower housing and engine cooling fins. Verify the spark plug gap measures exactly 0.75 mm (0.030 in.) and torque the plug to 20 N·m (177 lb-in.) using the specs on page 35. Clean the foam air filter element yearly or every 25 hours.
Manual Section: Engine RepairMachine creeps forward while parked or brake binding when pedal is depressed. p. 196
Adjust the brake linkage to ensure proper engagement. Measure the brake pedal free play and confirm it sits exactly at 15 mm (0.59 in.) as detailed on page 259. Inspect the brake band for excessive wear and replace it if the friction material is compromised.
Manual Section: Brake RepairFrequently Asked Questions
What are the torque specs for the engine bolts on a John Deere F510?
For the F510 (PA420A engine), the flywheel nut torque is 137 N·m (101 lb-ft). Cylinder head cap screws require an initial torque of 32 N·m (24 lb-ft) and a final torque of 52 N·m (38 lb-ft). Connecting rod end-cap screws should be tightened to 20 N·m (177 lb-in.).
How to reset PTO clutch John Deere F525
To adjust the PTO clutch on a John Deere F525, first ensure the transmission is in neutral, and the key and PTO switches are OFF with the park brake engaged. Insert a 0.51 mm (0.020 in.) feeler gauge through the slot in the brake plate to check the air gap between the clutch armature and rotor, which should be 0.38–0.64 mm (0.015–0.025 in.). Adjust the lock nut until the feeler gauge begins to bind, then perform a break-in procedure of 12–15 cycles by engaging the PTO for 10 seconds and disengaging for 10 seconds with the engine running at full throttle and no load.
What are the replacement specifications for Air Filter (foam pre-cleaner type)?
Air filter elements should be replaced yearly or every 25 hours, whichever comes first. The foam element (A) should be washed in detergent and water, dried, and then have 12-15 drops of engine oil applied and squeezed out. The paper element (B) should be gently tapped to remove dust, and replaced if it's oily, dirty, bent, torn, crushed, or obstructed.
How do you fix john Deere F510 mower cranks over fine but engine will not start or turns over slowly?
Inspect the electrical connections and test the PTO circuit. Check the PTO fuse on page 371 and verify it meets the 15 Amp rating. If the fuse is blown, replace it immediately. Measure the F510 starter amp draw to ensure it stays below 60 amps at 500 rpm.
Is this John Deere F510–F525 Series Technical Manual a digital download?
Instant PDF download. You get the full 571-page searchable Technical Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

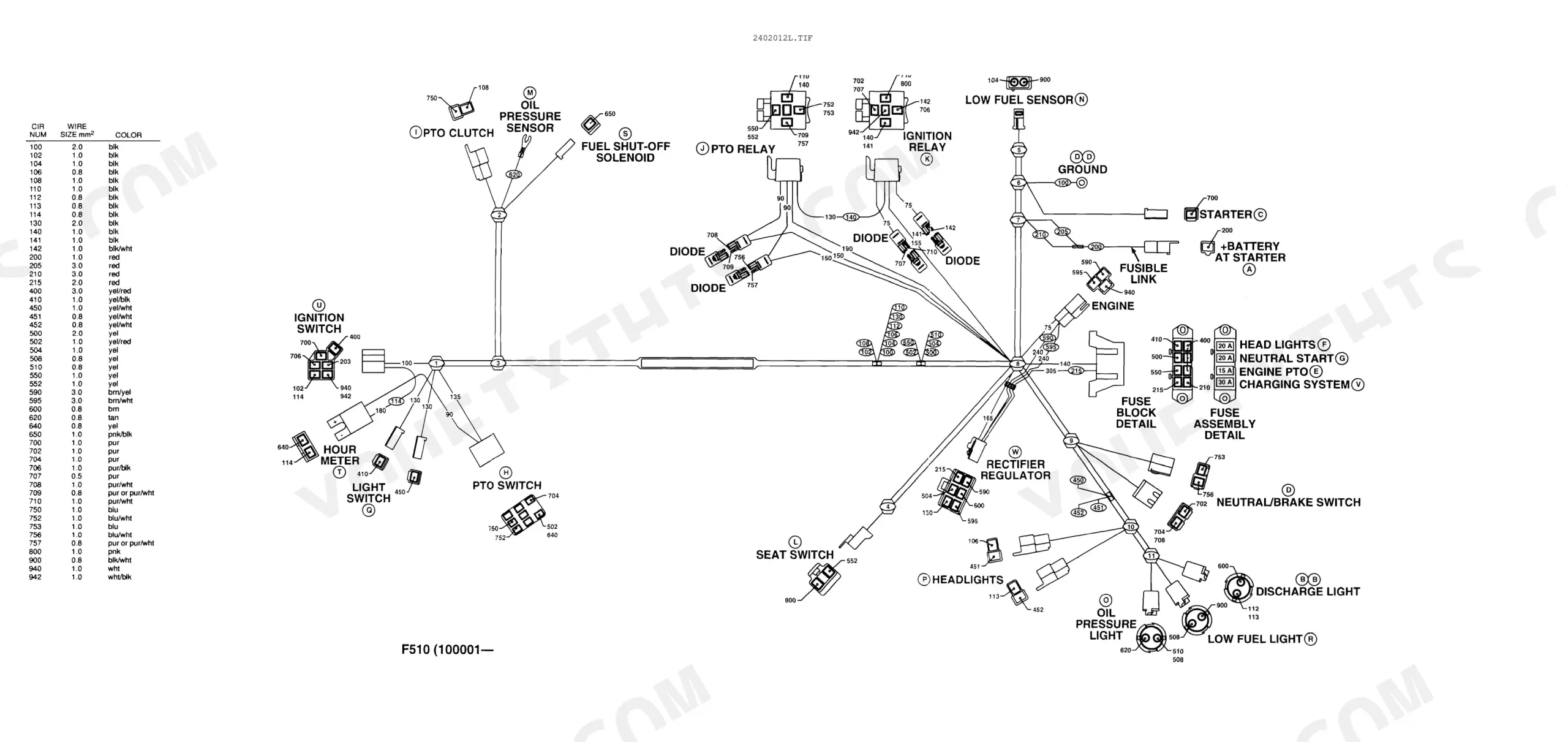

Are there wiring harness diagrams in this John Deere F510–F525 Series manual?
Yes, this John Deere F510–F525 Series Technical Manual includes a wiring diagram for the electrical system.
