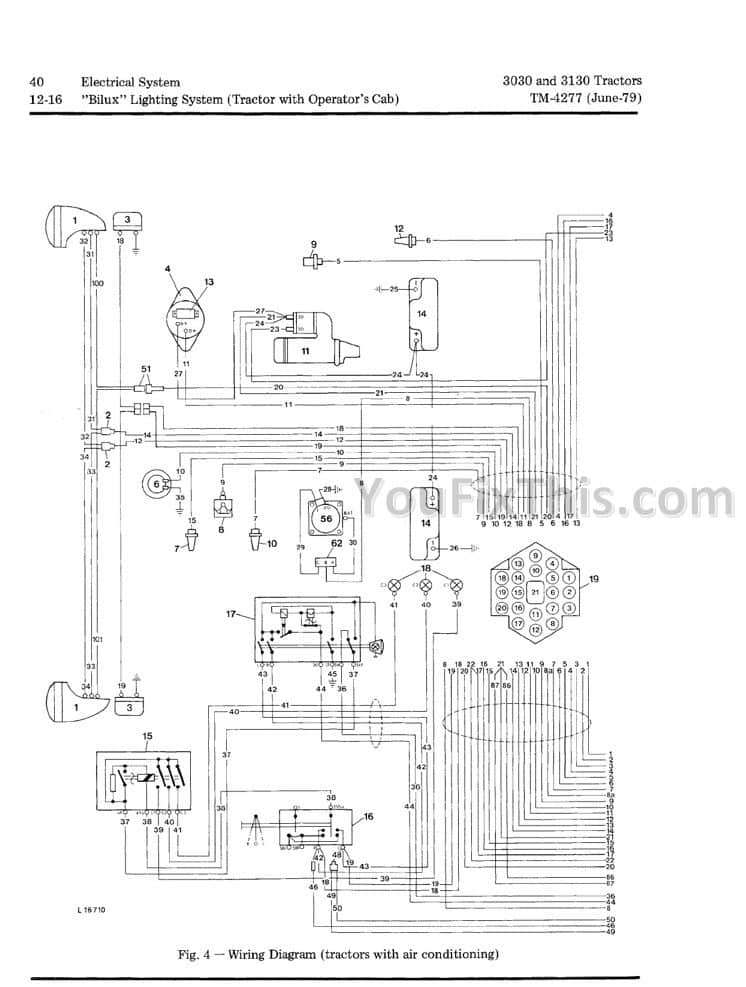

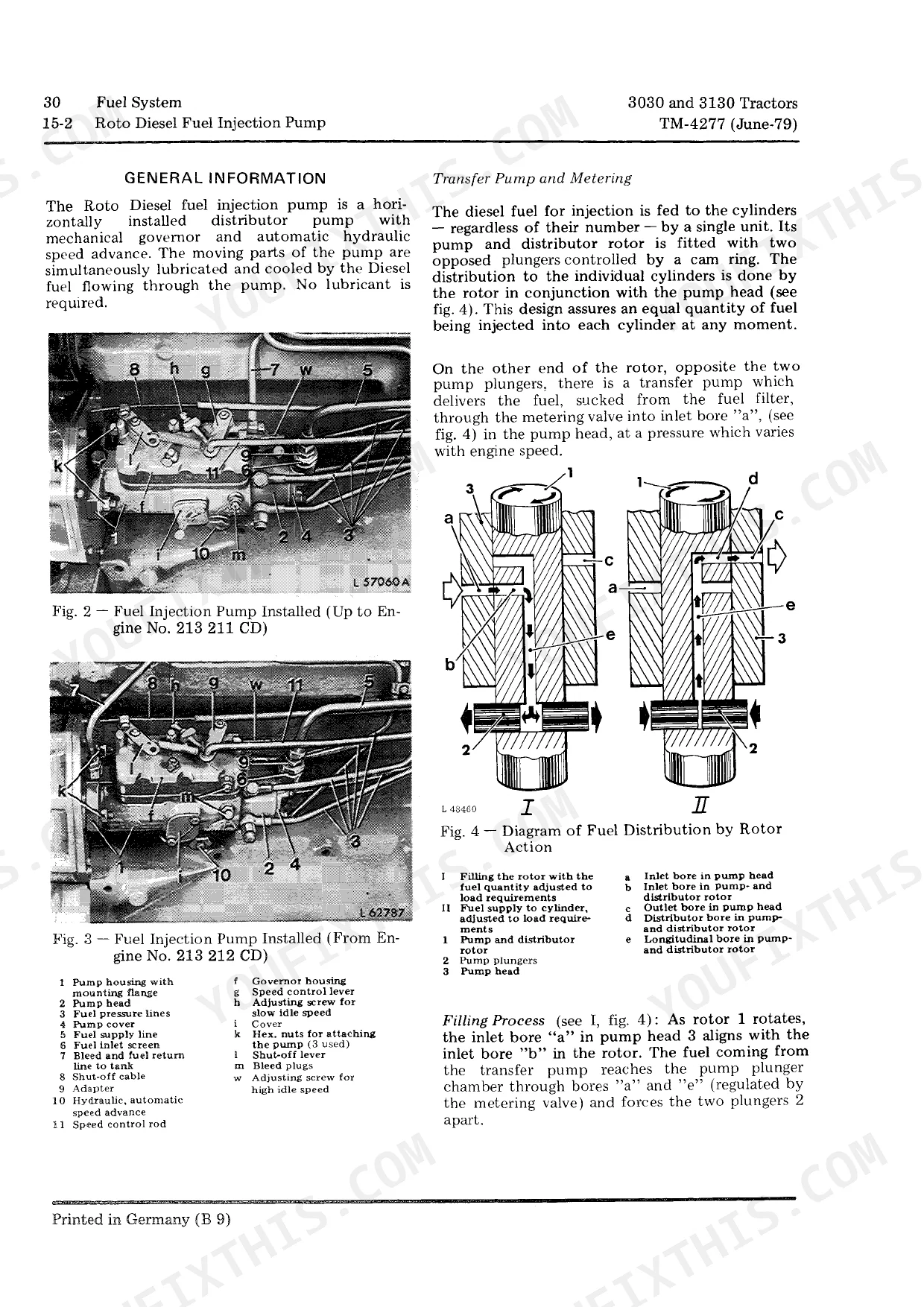

Rebuilding a 3030 or 3130? This 458-page John Deere 3030, 3130 Technical Manual PDF (OEM TM4277) is the factory service book John Deere dealers used on these tractors. Inside: wiring diagrams for every lighting system variant (Bilux and sealed-beam, early and late models), hydraulic schematics with pressure tests, and page after page of torque tables and removal-repair-installation procedures for the engine, Roto Diesel injection pump, collar-shift transmission, PTO clutch, and hydraulic brakes. Diagnosing malfunctions sections walk you through electrical, fuel, and hydraulic faults step by step. Check your charging circuit against the 12-volt, 3-kW starting motor spec and the twin 12-volt, 88 ampere-hour batteries before you condemn the alternator. No more guessing which wire feeds which light. Bookmarked PDF opens on any device; download it and take it to the shop.
What's Inside This John Deere 3030, 3130 Manual

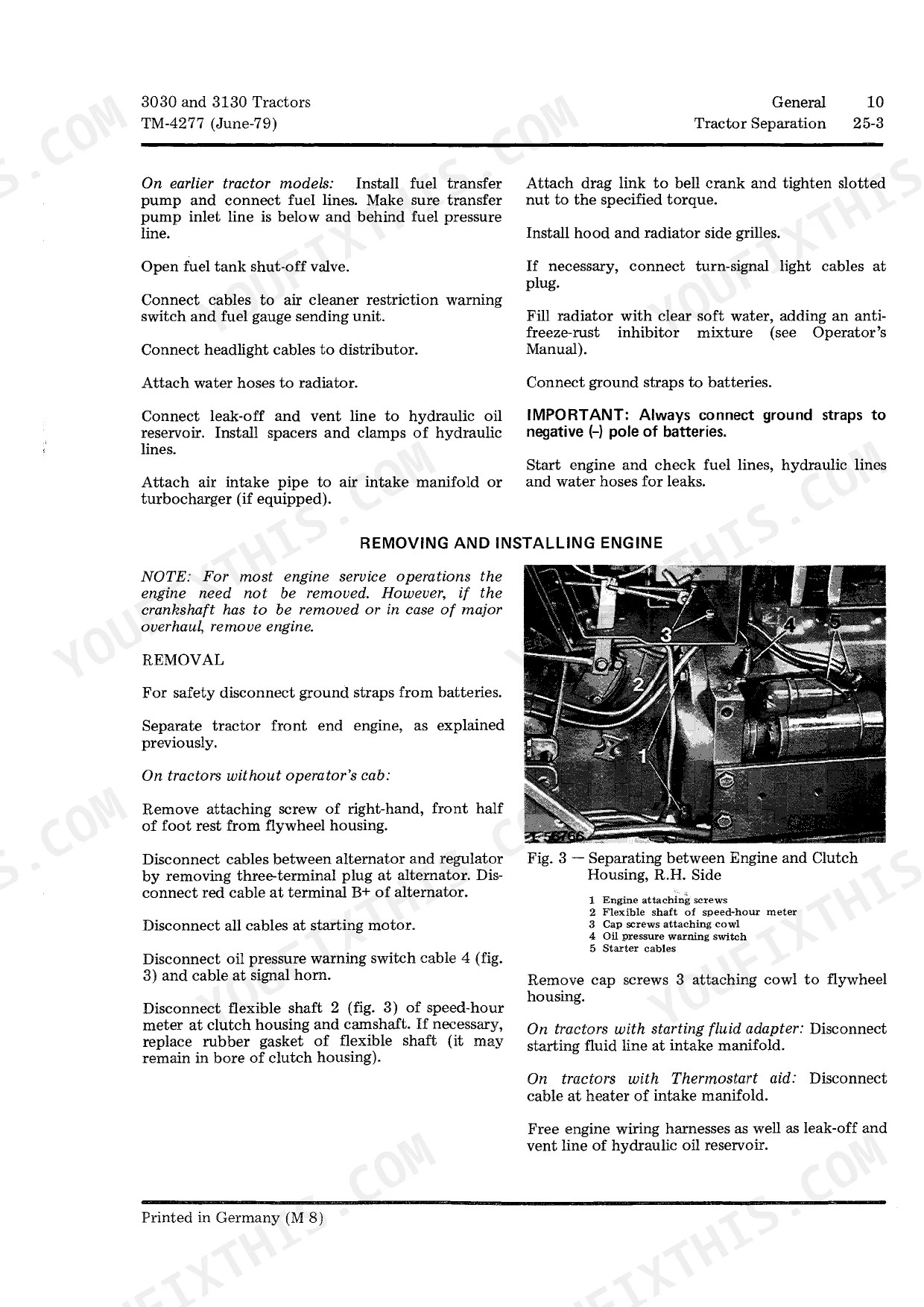

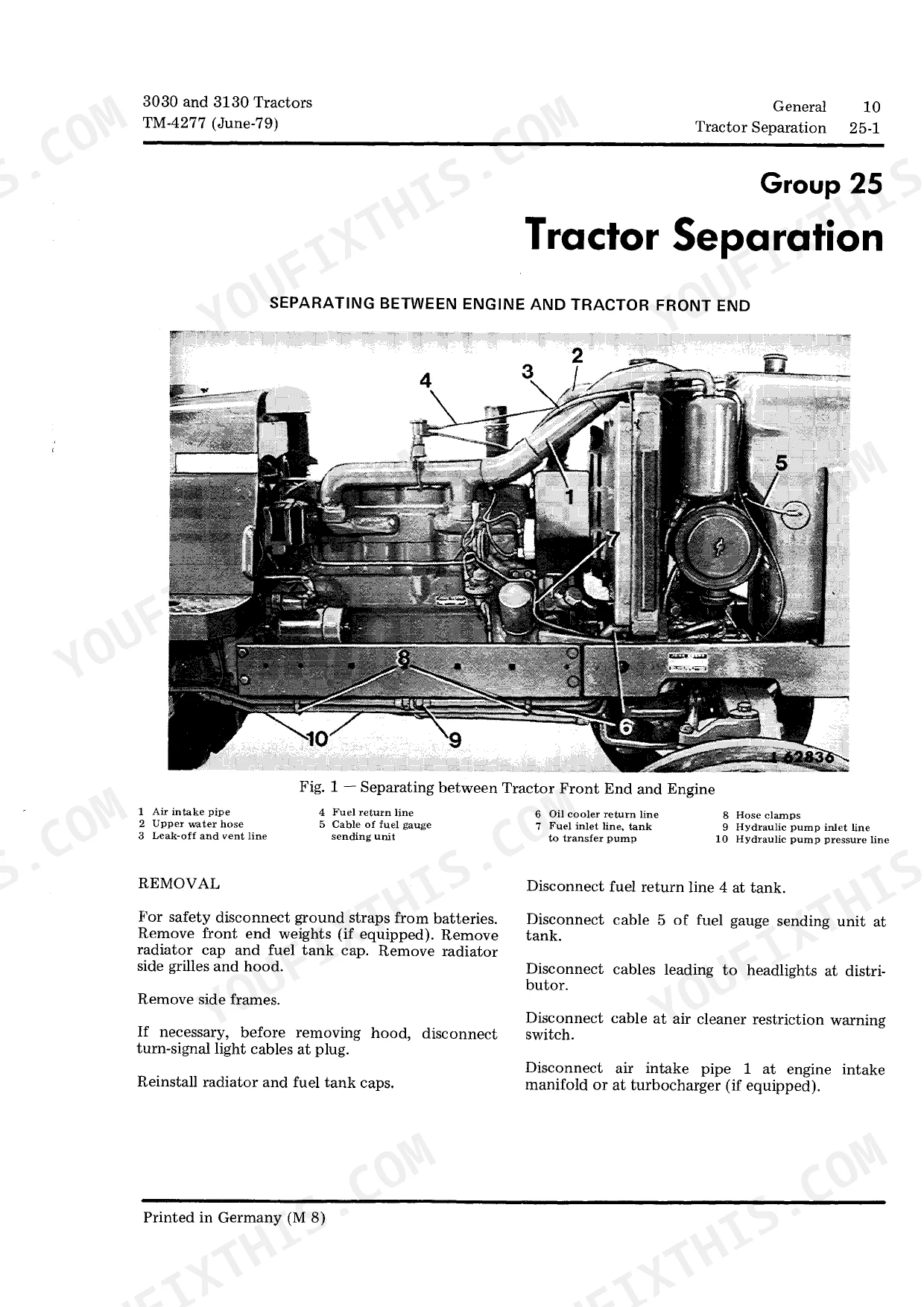

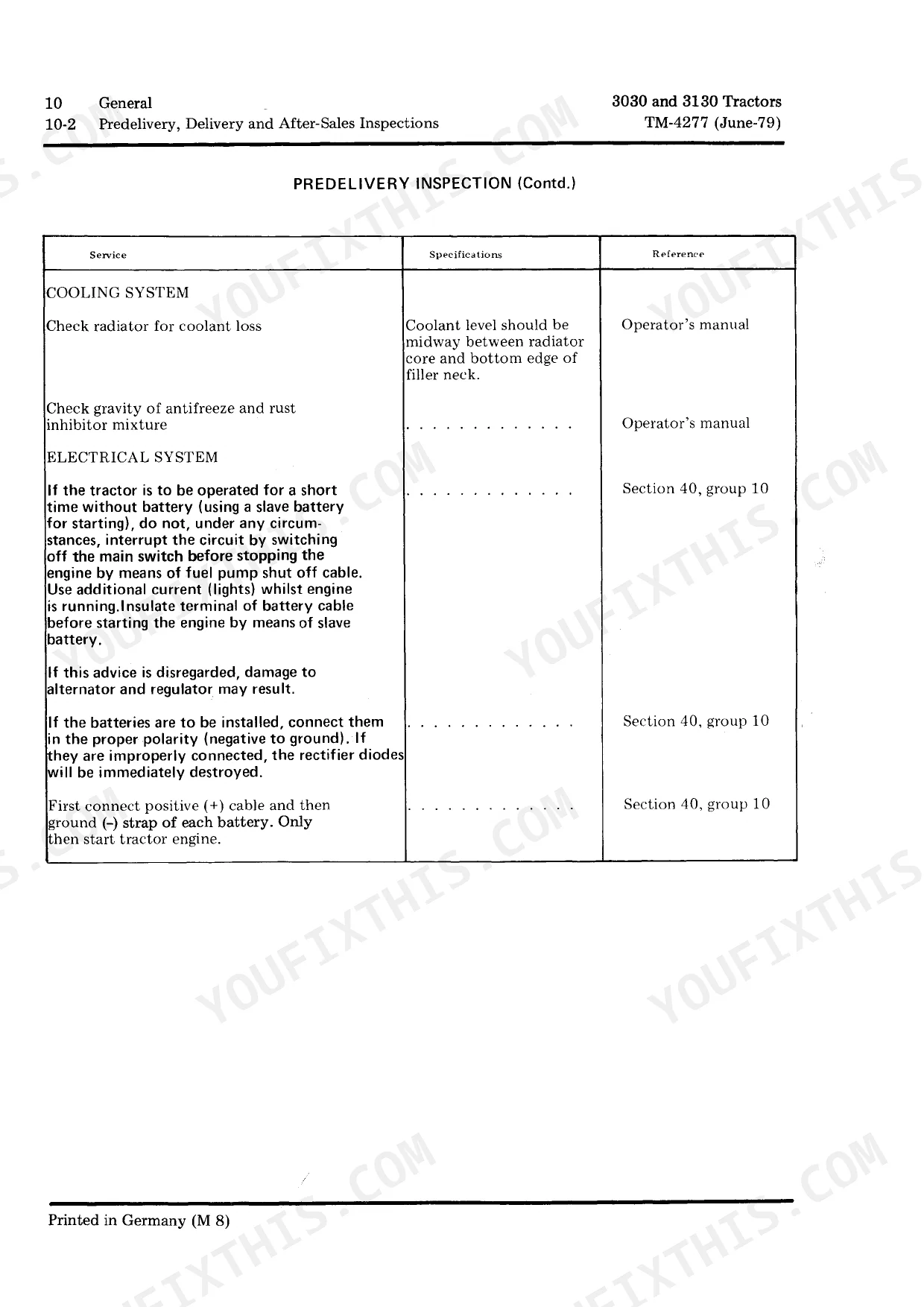

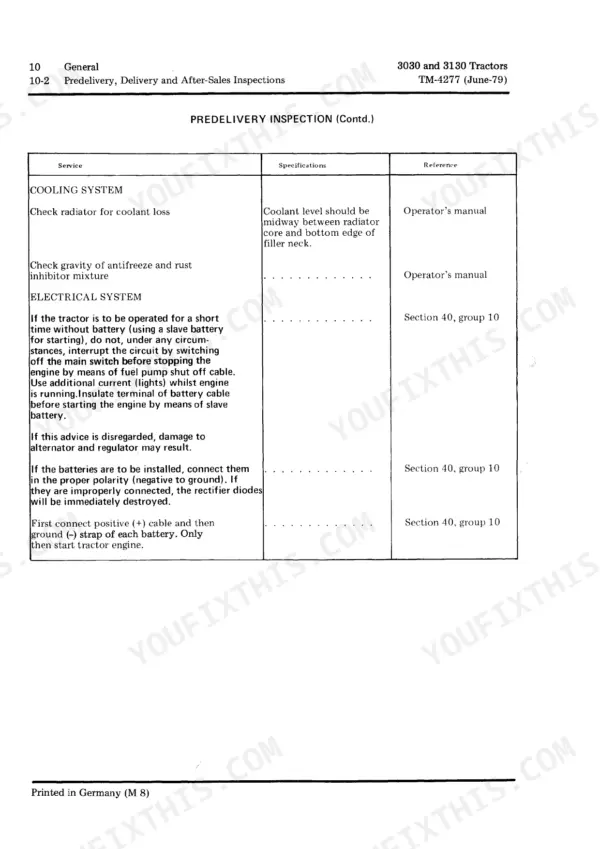

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | How to Use This Technical Manual, Fos Manuals for Background Reference, Section and Group Numbering, Safety Notes |
| General | 4-28 | Specifications (Serial Numbers, Model Numbers, Engine, Engine Clutch, Electrical System, Transmission, High Low Shift Unit, Differential and Final Drives, Differential Lock, Power Take-Off, Hydraulic System, Power Steering, Hydraulic Brakes, Handbrake, Capacities, Travel Speeds, Front and Rear Wheels, Dimensions and Weights) |

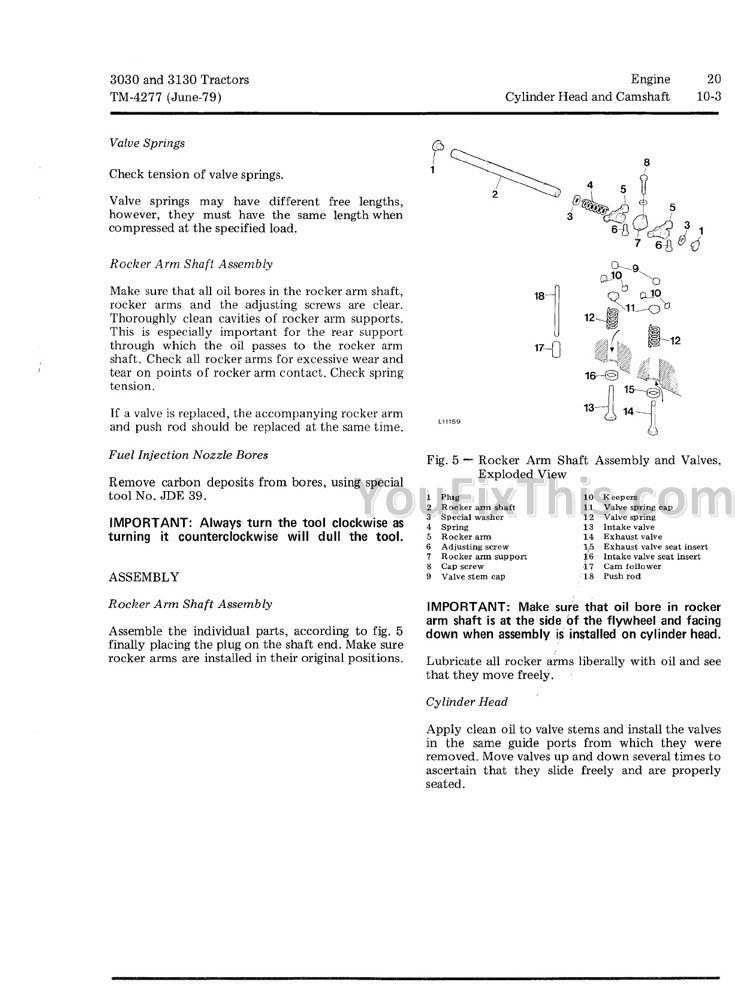

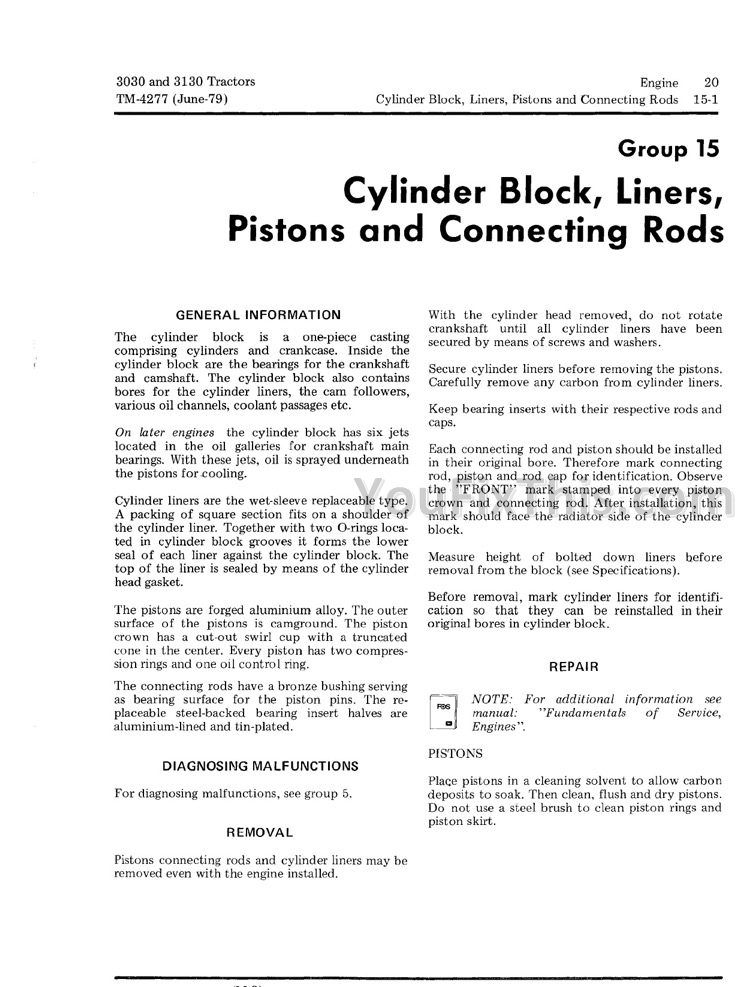

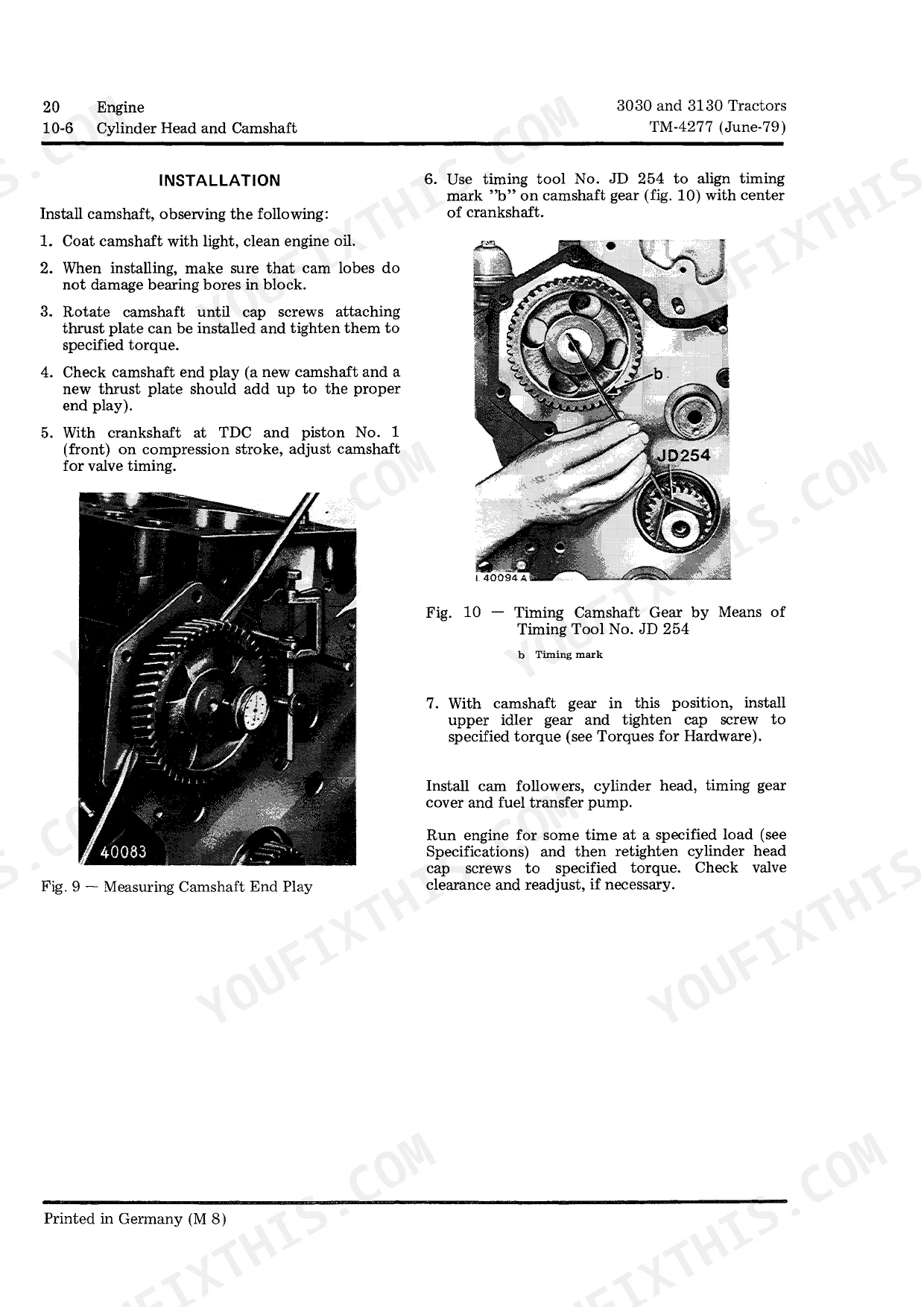

| Engine | 29-84 | Cylinder Head and Camshaft (Removal, Repair, Installation, Valve Clearance, Specifications, Torques for Hardware, Special Tools), Cylinder Block, Liners |
| Fuel System | 85-124 | Diagnosing Malfunctions, Fuel Tank, Water Trap, Transfer Pump and Fuel Filter (Removal, Repair, Installation, Diagnosing Malfunctions) |
| Electrical System | 125-186 | Diagnosing Malfunctions (Batteries, Alternator, Tests and Diagnosis on Tractor, Controls, Starting Motor, Head Lights) |

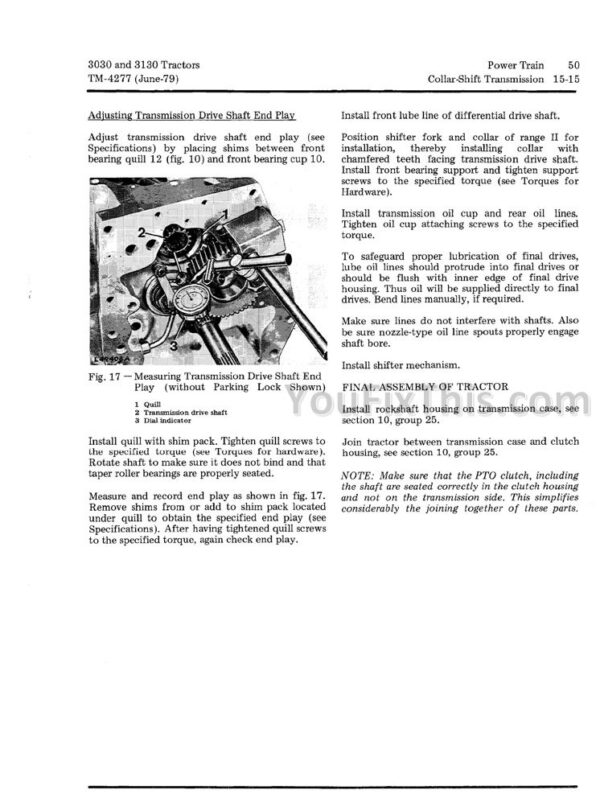

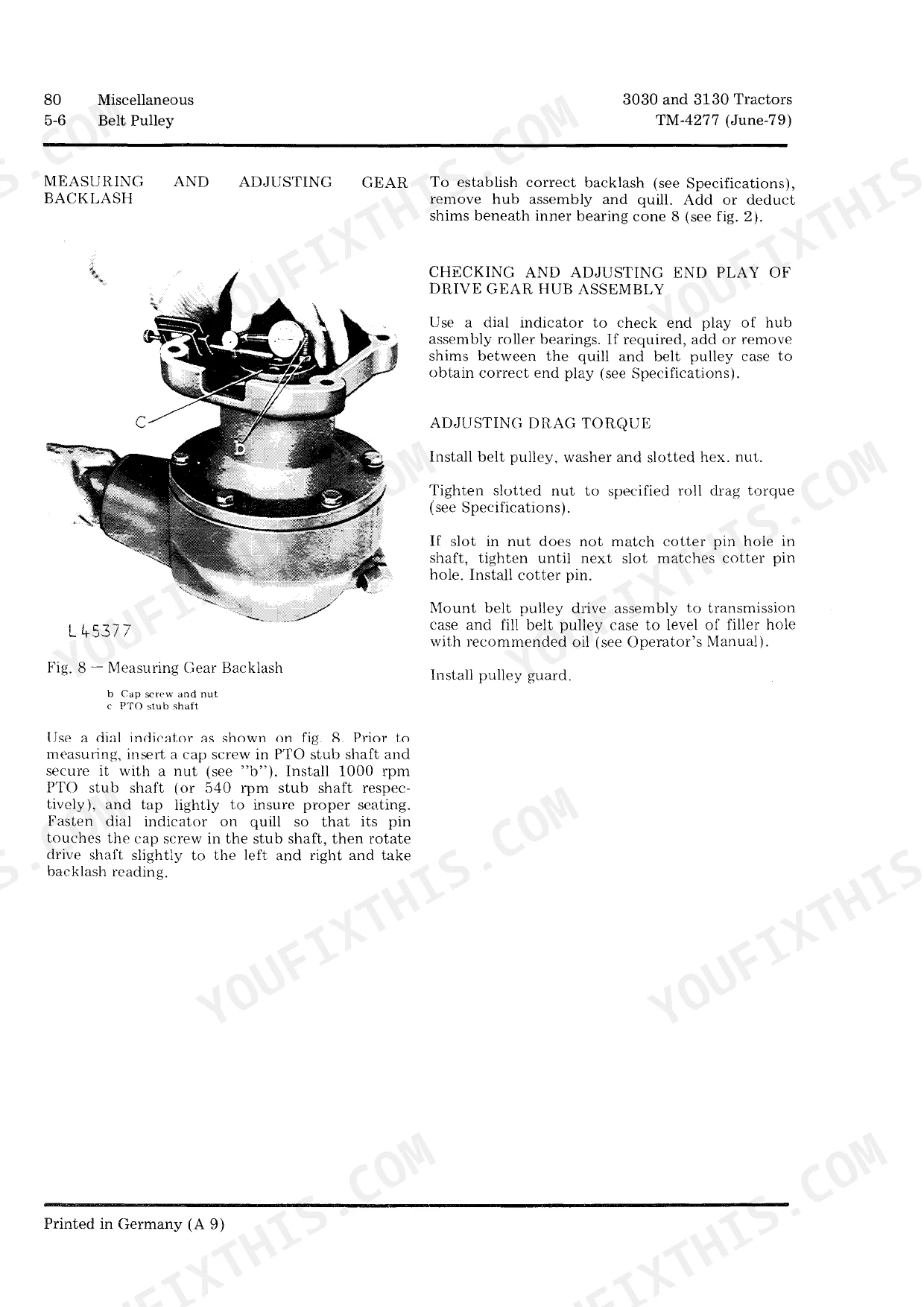

| Power Train | 187-246 | Engine Clutch and Clutch Linkage (Diagnosing Malfunctions, Removal, Disassembly, Repair, Assembly, Installation, Adjustment, Specifications, Torques for Hardware, Special Tools) |
| Front Axle, Steering System and Brakes | 247-266 | Front Axle (Removal, Repair, Installation, Adjustment), Steering System, Hydraulic Brakes |
| Hydraulic System | 267-320 | General Information and Diagnosing Malfunctions, Oil Reservoir, Filter, Valves and Oil Cooler, Hydraulic Pumps and Transmission Oil Pump, Rockshaft, Selective Control Valve (Spool and Poppet Types), Breakaway Coupler, Remote Cylinder |
| Miscellaneous | 321-458 | Belt Pulley, Operator's Seat, Front and Rear Wheels, Roll-Guard, Operator's Cab Ventilation and Heating, Air Conditioning System, Operator's Cab Removal and Repair |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Starting motor | 12 volt, 3 kW (4 hp) | p. 6 |
| Batteries | 2 x 12 volt, 88 Ah | p. 6 |
| Engine clutch | Single dry disk with torsion damper, foot-operated | p. 6 |
| Flywheel-to-crankshaft cap screw torque | 120 N·m (85 ft-lb) | p. 75 |
| Main bearing cap screw torque | 120 N·m (85 ft-lb) | p. 75 |
John Deere 3030, 3130 Common Problems This Manual Covers
Alternator warning light glows at all engine speeds, batteries slowly discharge overnight
Verify belt tension and every charging circuit connection before replacing the alternator. Load-test both 12-volt, 88-ampere-hour batteries; one bad cell drags the whole charging system down. Run the alternator tests and diagnosis on the tractor from the Electrical System section beginning on page 125, then check regulator output with a voltmeter at rated engine speed.
Manual Section: Electrical System p. 125Frequently Asked Questions
What are the torque specifications for the flywheel on a John Deere 3030?
The torque specifications for the flywheel housing-to-cylinder block are 30 Nm (23 ft-lb) for the first step and 50 Nm (35 ft-lb) for the second step. The cap screws connecting the flywheel to the crankshaft should be torqued to 120 Nm (85 ft-lb). p. 59
How do you fix john Deere 3030 starter clicks but engine won't turn over, batteries seem charged?
Check battery voltage first; the two 12-volt, 88-ampere-hour batteries must both pass a load test. Clean and tighten the ground strap and cable clamps, since loose or corroded connections mimic a dead starter. If cranking is still weak, work through the starting motor solenoid checks on page 42, then bench-test the 12-volt, 3 kW starting motor. p. 42
How do you fix clutch slips under load in higher gears, pedal free play feels normal?
Inspect the single dry disk clutch for oil contamination and worn facings, following the removal and adjustment steps in the Power Train section on page 187. If the flywheel comes off during the job, torque the flywheel-to-crankshaft cap screws to 120 Nm (85 ft-lb) up to engine serial 333 624 CD, or 160 Nm (120 ft-lb) after. p. 187

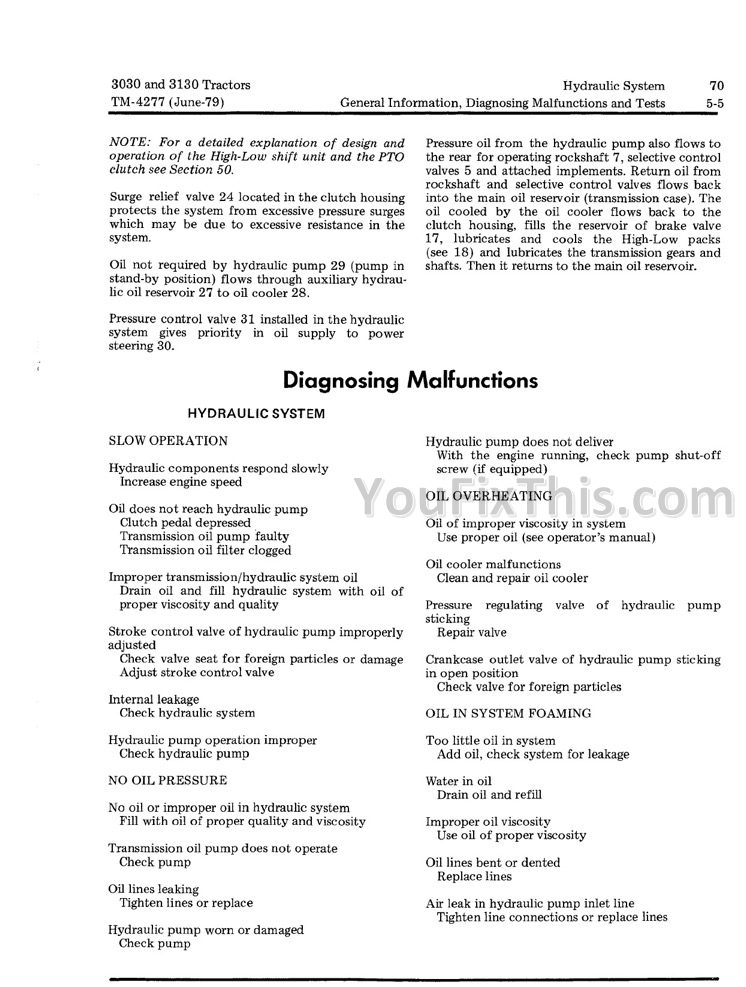

How do you fix hydraulic pump squeals and three-point hitch rockshaft lifts slowly once oil warms up?
Check reservoir oil level and change the filter before condemning the pump. Test system pressure by removing the 3/8 in. plug on the back of the PTO clutch control valve housing, shown on page 271, and installing a gauge. Inspect the suction line for air leaks; a squeal under load usually means the pump is cavitating. p. 271
What do I get after purchasing this John Deere 3030, 3130 manual?
This is a 458-page scanned PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this John Deere 3030, 3130 manual include hydraulic schematics?
Yes. The manual includes a hydraulic system diagram covering the main circuits.
