This John Deere Technical Manual (TM4525) covers the 3100, 3200, 3200 X, 3300, 3300 X, 3400, and 3400 X tractors. It is the factory service reference for diagnosing, removing, repairing, and reinstalling the major systems on these machines, from the engine and electrical wiring through the clutch, gear transmission, drive systems, steering, brakes, and hydraulics.Across 490 pages you get component removal and installation procedures, tightening torques, fluid capacities, and troubleshooting for both standard and Version X tractors. Listed specifications include engine bore (106.5 mm), valve clearance, slow idle speed, and hydraulic pump displacement and pressure figures.Delivered as a downloadable PDF, it opens on a computer, tablet, or phone, and you can print just the pages you need for the bench. Whether you are chasing a hydraulic pressure loss, separating the engine from the clutch housing, or removing the operator's cab, each procedure is laid out step by step.
What's Inside This John Deere 3100–3400 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 5-18 | - |
| General Information | 19-50 | Special Tools, Specifications, Battery, Operation, Safety Precautions, Troubleshooting, Checking Electrolyte Level, Starting with Booster Battery |
| Engine | 51-54 | Removal and Installation, Engine Separation From Clutch Housing, Removal and Installation Overview |
| Fuel, Air Intake and Cooling Systems | 55-58 | Coolant Pump Drive (Drive Belt Tension), Checking the Tension of the Alternator/Coolant Pump Belt and Compressor Belt |
| Electrical System | 59-150 | Fuses and Connectors, Standard Tractors (Access, Allocation, Wiring), Version "X" (Special Tools, Access, Replacing JX1/JX2 Connectors) |

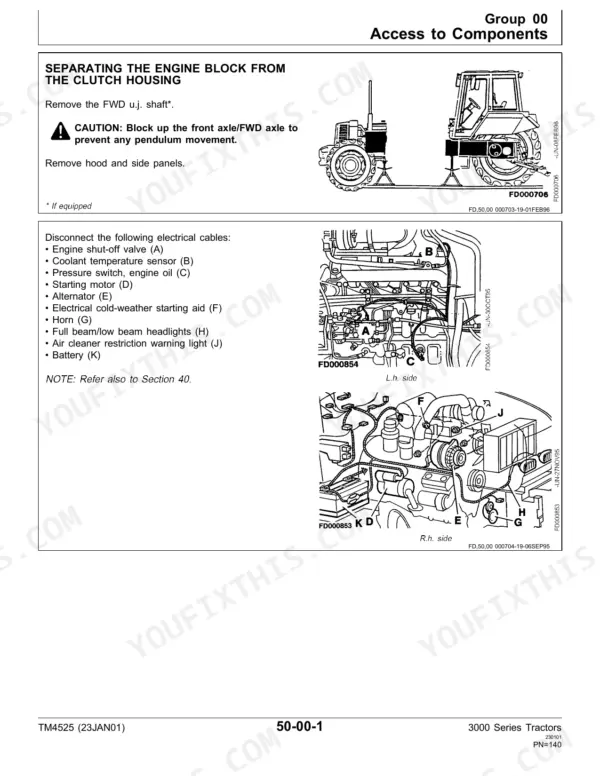

| Clutch and Gear Transmission | 151-254 | Access to Components (Separating: Engine From the Clutch Housing, Clutch Housing From the Gear Transmission Housing, Gear Transmission From the Diff. Housing) |
| Drive Systems | 255-316 | Removal and Installation (FWD: Clutch Housing, Axle) |
| Steering and Brakes | 317-366 | Removing and Installing Components (Steering Unit, Trailer Brake Valve) |

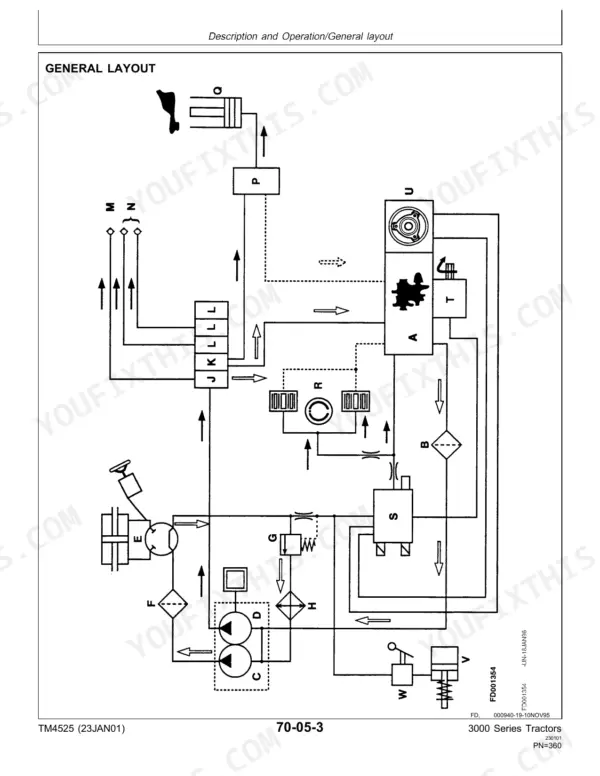

| Hydraulic System | 367-454 | Removing and Installing Components (Special Tools, Flow Divider, Manifold Valve, Distributor, PTO Clutch Assistance, Hydraulic Assist Cylinder, PTO Clutch, Selective Control Valves, Rockshaft Valve, Rockshaft Housing, Hydraulic Pump) |
| Operator's Cab | 455-482 | Removing and Installing the Cab, Standard Tractors (Special Tools, Safety Instructions, Removing the Operator's Cab, Preliminary Operations, Raising the Cab) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

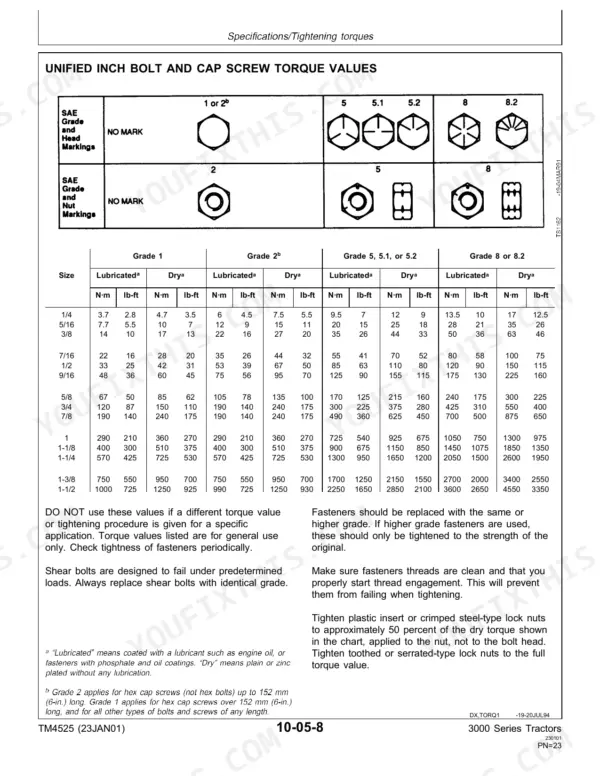

| JIC Connector Tightening Torque (M14 x 1.5 thread B) | 36 N·m (27 lb-ft) minimum, 44 N·m (32 lb-ft) maximum | p. 434 |
| Gear Transmission (Without Twinshift) Play (A) | 0.15 ± 0.05 mm (0.006 ± 0.002 in.) | p. 200 |
| Gear Transmission (Without Twinshift) Tightening torque (Flywheel housing to clutch housing) | 60 ± 20 N·m (44 ± 15 lb-ft) | p. 201 |
| Steering pump displacement | 11 cm³ (0.67 cu in) | p. 392 |
| Steering pump pressure | 14000 kPa (140 bar; 2030 psi) | p. 392 |
| Possible reasons for hydraulic oil pressure being too low | Hydraulic oil filter contaminated or obstructed; The pressure-limiting valve on the manifold valve remains open (perhaps obstructed by an impurity); Leak in the Twinshift splitter circuit or FWD clutch (if equipped) | p. 394 |

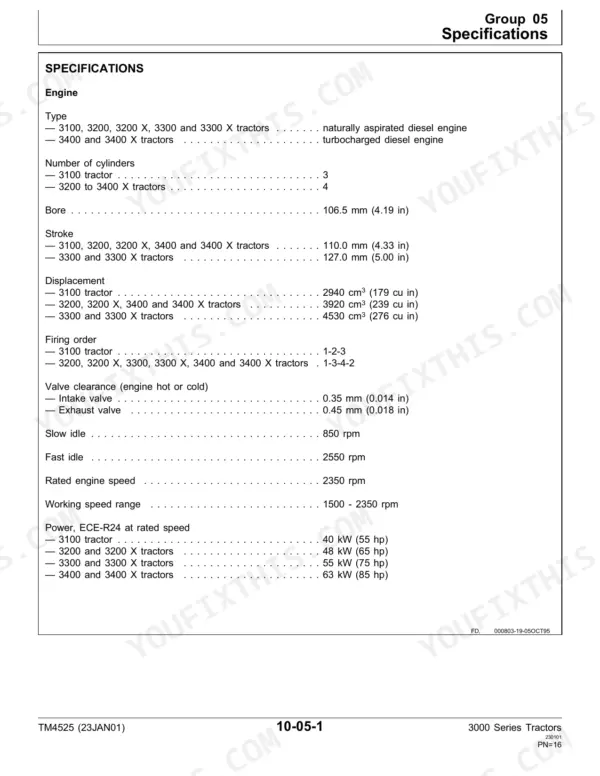

| Engine Bore | 106.5 mm (4.19 in) | p. 21 |
| Engine Intake Valve Clearance | 0.35 mm (0.014 in) | p. 21 |
| Engine Slow Idle Speed | 850 rpm | p. 21 |
| Battery Voltage | 12 V | p. 22 |
| Standard tractors | ||
| Fuel Tank Capacity | 115 l (30.4 US gal) | p. 27 |
| 3100 tractor | ||
| Cooling Circuit Capacity | 11 l (2.9 US gal) | p. 27 |
John Deere 3100–3400 Common Problems This Manual Covers
Weak or dead hydraulic functions
Owners report hydraulics that weaken, stop working, or only operate when auxiliary plumbing is connected a certain way. Causes range from a contaminated oil filter to a pressure-limiting valve stuck open on the manifold valve. This section covers the flow divider, manifold valve, selective control valves, and hydraulic pump.
Manual Section: Hydraulic System p. 367Power-shift and transmission trouble
The 3400 in particular draws complaints of shifting problems and loss of drive from the power-shift feature. Internal wear or control issues usually mean separating and inspecting the drivetrain, which this section documents with access procedures.
Manual Section: Clutch and Gear Transmission p. 151Blown fuses and connector faults
Electrical gremlins on these tractors often trace back to fuses and the JX1/JX2 connectors, which differ between standard and Version X machines. This section maps fuse and connector access, allocation, and replacement for both configurations.
Manual Section: Electrical System p. 59Hard or leaking steering
Heavy or unresponsive steering points to the hydrostatic steering unit or its supply pressure. This section covers removing and installing the steering unit and trailer brake valve so you can isolate the fault.
Manual Section: Steering and Brakes p. 317Front-wheel drive axle service
FWD tractors need periodic axle and clutch-housing work, and worn front drive components affect traction and handling. This section walks through removal and installation of the FWD clutch housing and axle.
Manual Section: Drive Systems p. 255Cooling system burn hazard during service
The manual stresses that opening a hot, pressurized cooling system can release scalding fluid. Always depressurize before servicing; this section covers the coolant pump drive and belt tension checks.
Manual Section: Fuel, Air Intake and Cooling Systems p. 55Frequently Asked Questions
Which tractor models does this manual cover?
It covers the John Deere 3100, 3200, 3200 X, 3300, 3300 X, 3400, and 3400 X tractors, including both standard and Version X configurations under one TM4525 technical manual.
Does it include hydraulic pump specifications?
Yes. The Hydraulic System section lists figures such as rockshaft pump displacement of 22.5 cm3 and pressure of 18000 kPa (180 bar), plus steering pump values, for diagnosing pressure problems. p. 367
What torque and capacity data is provided?
The General Information section lists tightening torques, engine and hydraulic capacities, and specifications like engine bore and valve clearance for the covered tractors. p. 19
Does it explain engine removal?
Yes. The Engine section covers removal and installation, including separating the engine from the clutch housing, with the related access steps continued in the transmission section. p. 51
What format is this manual in?
Immediate download of the complete 490-page searchable Technical Manual. Access it on any device — laptop at your desk or phone in the field.
Can I print this manual?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this John Deere 3100 & variants manual include wiring diagrams?

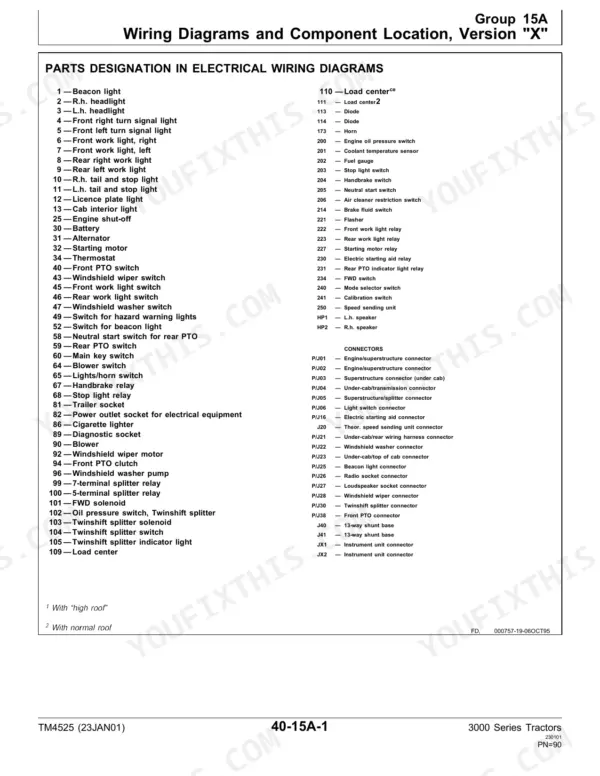

Yes — full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
