Engine rebuild, electrical diagnosis, traction drive and blade brake clutch service run end to end through the 228 pages of the John Deere JA60 technical manual PDF, factory number TM1723, written for the 21-inch cast deck walk-behind mowers, six variants in all. Briggs & Stratton Quantum, Briggs & Stratton Intek and Kawasaki engines each get their own full section, well over half the book, from theory of operation through diagnosis, tests and adjustments, and repair. Electrical schematics trace the wiring between stator, battery and starter, and the spark, battery, starter and stator tests walk you down to the failed part. Your 3L drive belt measures 861.0 mm (33.90 in.); the blade brake clutch center bolt takes 75 N·m (55 lb-ft), the Briggs flywheel nut 81 N·m (60 lb-ft). Saturday night in the garage, there is nobody to ask. Buy it once, bookmarked and searchable, and it stays with this mower as long as you own it.
What's Inside This John Deere JA60–JX85 Walk-Behind Mowers Manual
| System | Pages | Key Topics |
|---|---|---|
| General Vehicle Specifications | 9 | Engine Specifications, Electrical Specifications, Fuel System Specifications, Transmission Specifications, Dimensions |

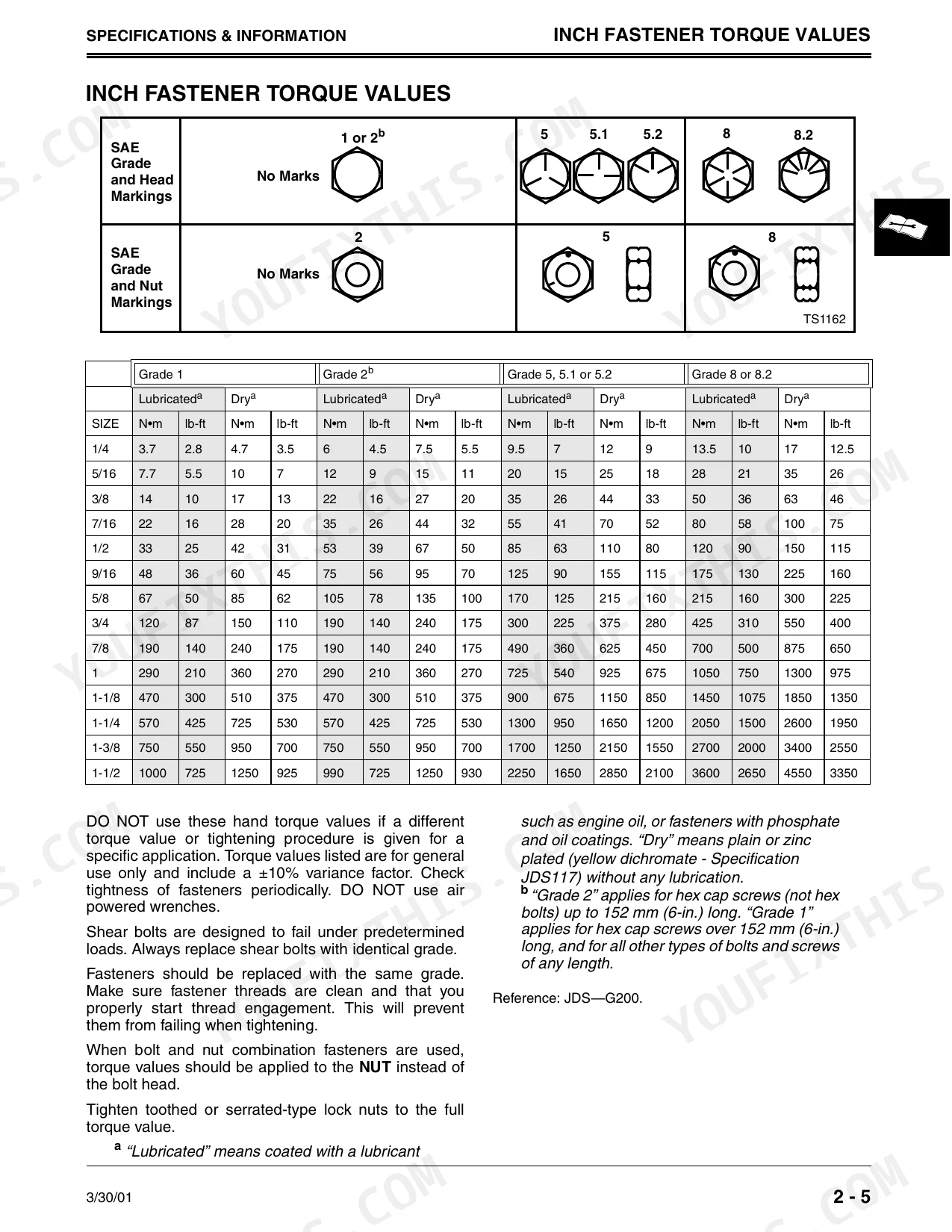

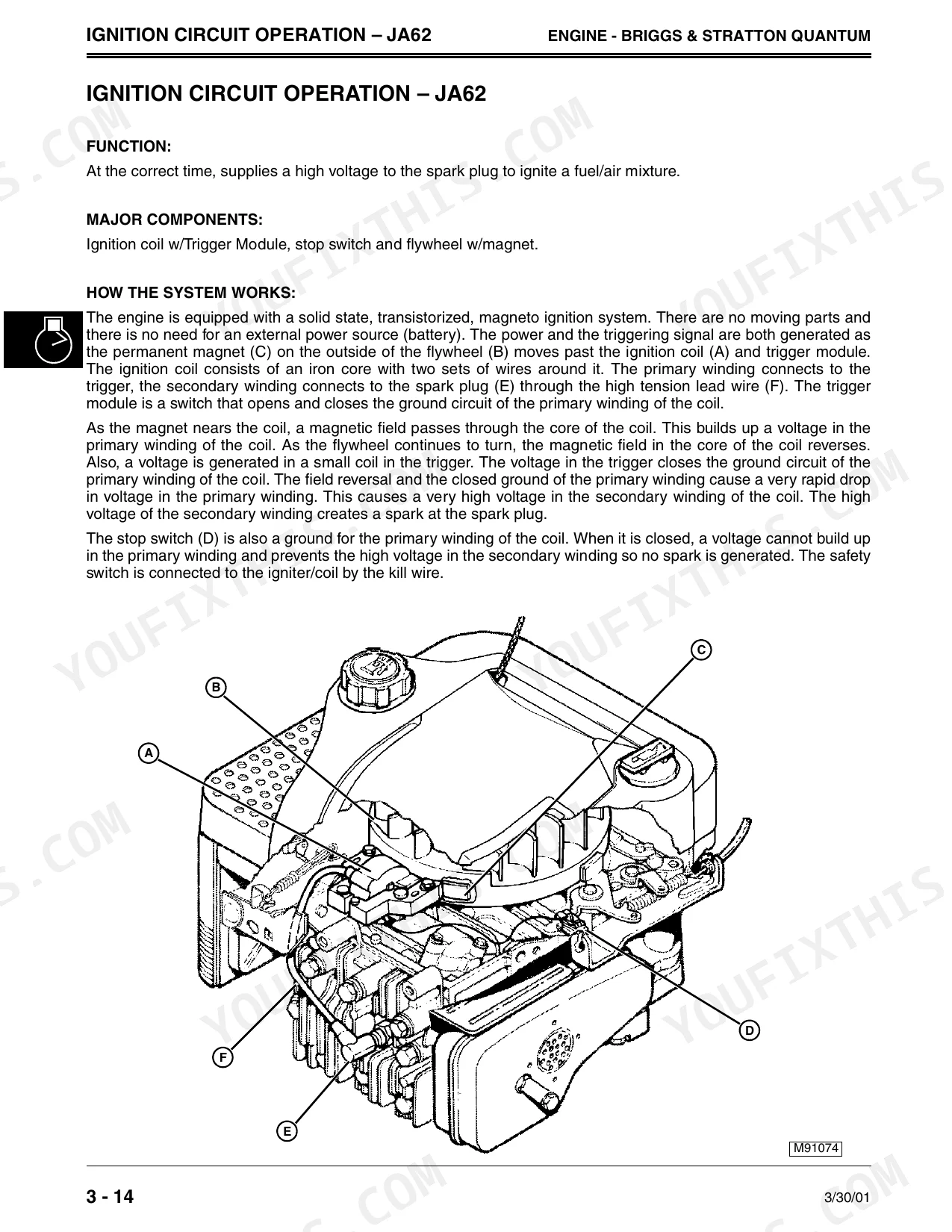

| Torque Specifications | 10-12 | Inch Fastener Torque Values, Metric Fastener Torque Values |
| Lubricants | 13-16 | Gasoline, Gasoline Storage, Engine Oil, Engine Break-In Oil, Transaxle Oil, Anti-Corrosion Grease, Alternative Lubricants, Synthetic Lubricants |
| Product Identification Locations and Specifications | 17-18 | Product Identification Number, Engine Identification, Briggs & Stratton Quantum, Briggs & Stratton Intek, Kawasaki Engine |
| Briggs & Stratton Quantum Engine | 19-66 | Engine Specifications, Troubleshooting, Theory of Operation, Diagnosis, Tests and Adjustments, Repair |
| Briggs & Stratton Intek Engine | 67-112 | Engine Specifications, Troubleshooting, Theory of Operation, Diagnosis, Tests and Adjustments, Repair |
| Kawasaki Engine | 113-162 | Engine Specifications, Troubleshooting, Theory of Operation, Diagnosis, Tests and Adjustments, Repair |

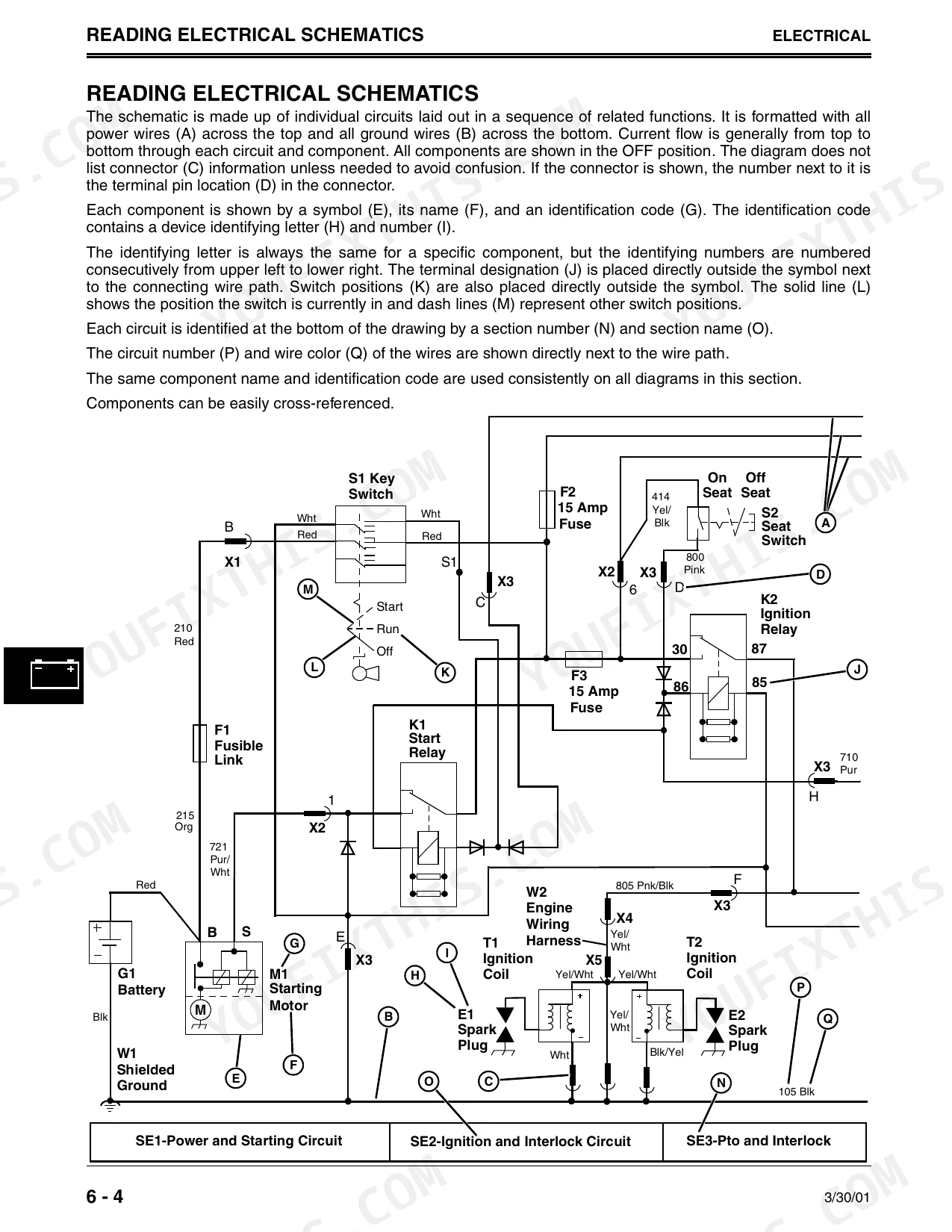

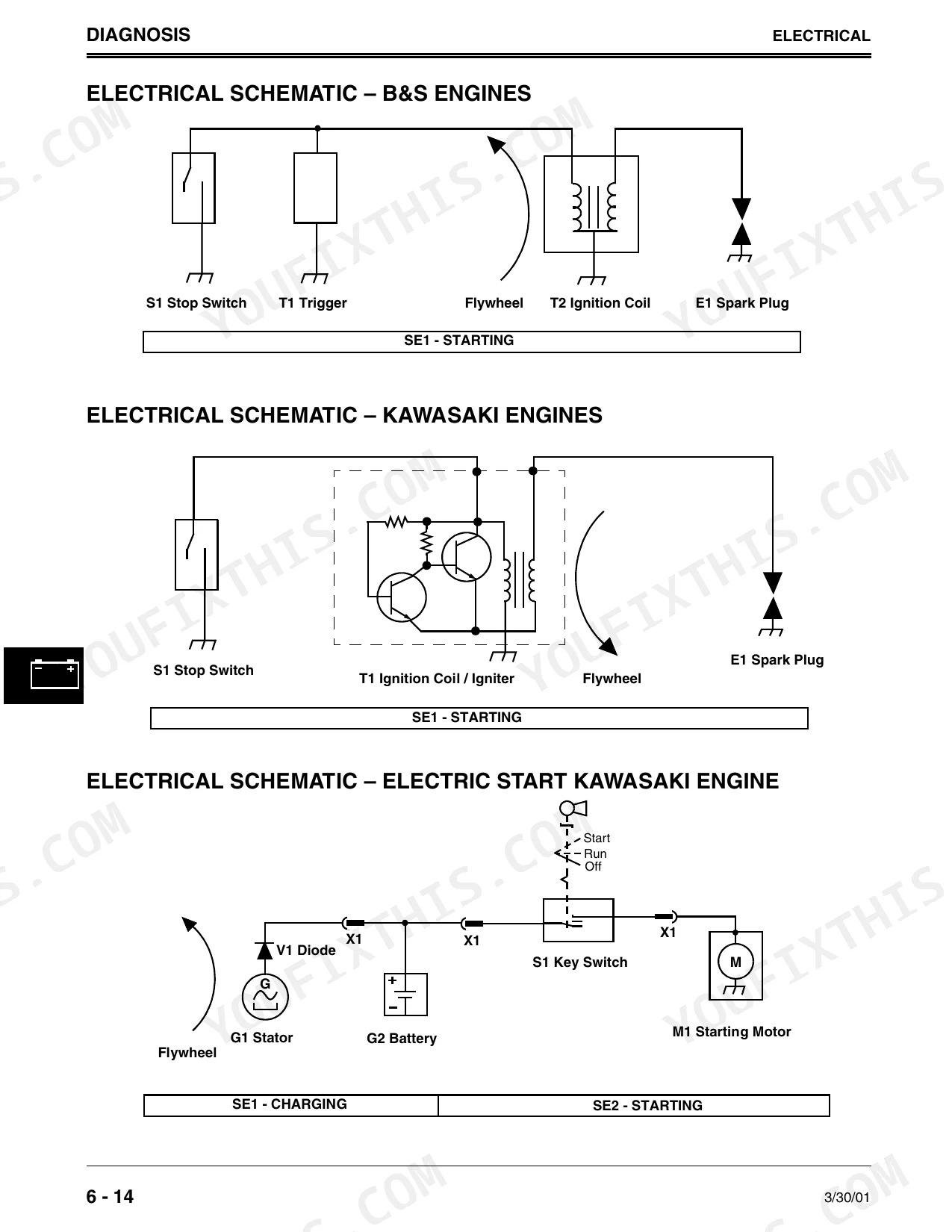

| Electrical System | 163-186 | Electrical Schematics, Diagnostic Information, Spark Test, Battery Test, Starter Test, Stator Test |
| Power Train | 187-212 | Traction Drive, Blade Brake Clutch, Transaxle Removal, Drive Belt Inspection, Shift Mechanism Adjustment |
| Miscellaneous | 213-228 | Wheels, Height Adjusters, Axles, Blade Removal, Blade Installation |

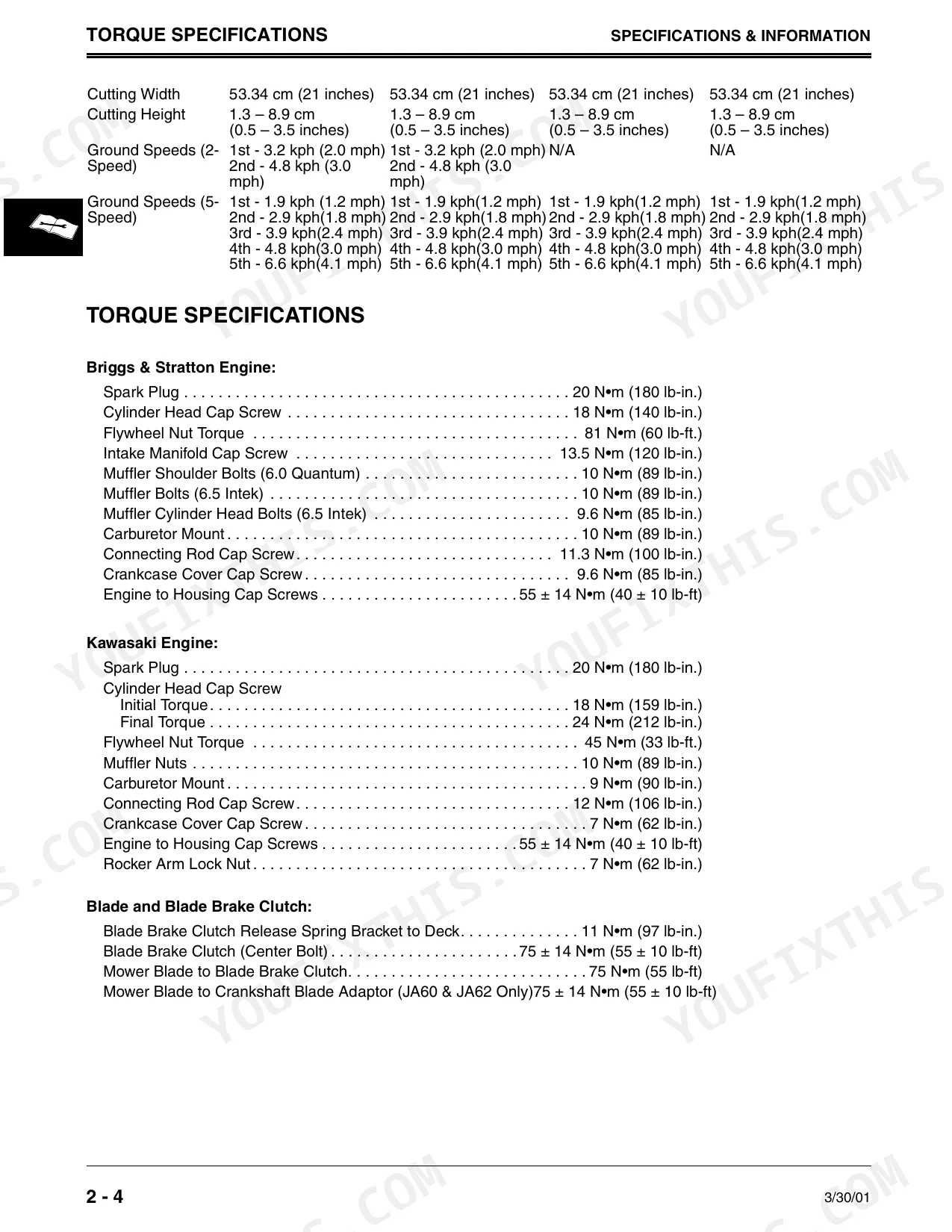

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| JA60, JA62, JA65 | ||
| Spark Plug (Briggs & Stratton Engine) | 20 N•m (180 lb-in.) | p. 10 |
| Cylinder Head Cap Screw (Briggs & Stratton Engine) | 18 N•m (140 lb-in.) | p. 10 |
| All Models | ||
| Blade Brake Clutch (Center Bolt) Torque | 75 ± 14 N•m (55 ± 10 lb-ft) | p. 10 |
| Blade Brake Clutch (Center Bolt) | 75 ± 14 N•m (55 ± 10 lb-ft) | p. 23 |
| Drive belt | 3L – 861.0 mm (33.90 in.) | p. 9 |
| Muffler Shoulder Bolt Torque | 10 N•m (87 lb-in.) | p. 35 |
| Transaxle Driven Sheave Lock Nut Torque | 34 N•m (25 lb-ft) | p. 189 |
| Drive Belt Effective Length | 861.0 mm (33.90 in.) | p. 189 |
| Axle bolt torque | 28.5 N·m (21 lb-ft) | p. 204 |
| Front Wheel Height Adjuster Cap Screw | 37 N•m (27 lb-ft) | p. 215 |
| JA60/JA62/JA65 | ||
| Engine Oil Capacity (Briggs & Stratton Quantum) | 0.65 L (22.0 oz) | p. 9 |
| JE75 | ||
| Engine Oil Capacity (Kawasaki) | 0.6 L (20.0 oz) | p. 9 |
John Deere JA60–JX85 Walk-Behind Mowers Common Problems This Manual Covers
John Deere JX85 blade brake clutch won't engage or stop the blade, cutting quits mid-pass
Pull the clutch assembly and measure the friction pad material. Replace it once thickness drops to the 0.76 mm (0.030 in.) minimum listed on page 201. Check the BBC control cable for stretch and free travel before reassembly, then torque the clutch center bolt to 75 ± 14 N•m (55 ± 10 lb-ft).
Manual Section: Blade Brake Clutch Diagnosis p. 201Drive jerks, pops, or slips under load going uphill or in higher gear
Tip the mower and inspect the traction drive belt for glazing, cracks, and missing chunks. Measure it against the 861.0 mm (33.90 in.) effective length and 9.525 mm (0.375 in.) top width on page 189. Check both sheave grooves for wear, then torque the transaxle driven sheave lock nut to 34 N•m (25 lb-ft).
Manual Section: Traction Drive Diagnosis p. 189Mower will not self-propel or is very hard to push in cold weather
Work the drive bail by hand and watch the idler arm move the belt onto the sheave. Clean and lubricate the sticky linkage, then verify belt guide clearance so the belt fully releases. Set the drive sheave set screw to 8 N•m (6 lb-ft), and follow the traction drive diagnosis on pages 197 through 198.
Manual Section: Traction Drive Diagnosis p. 197Deck height changes when hitting bumps or the adjuster lever won't stay set
Inspect the height adjuster lever detents and the mating bracket for rounded edges and elongated holes. Replace worn parts rather than bending them back. Torque the front wheel height adjuster cap screw to 37 N•m (27 lb-ft) per page 215, and set wheel cap screws on all models to 25 N•m (18.4 lb-ft).

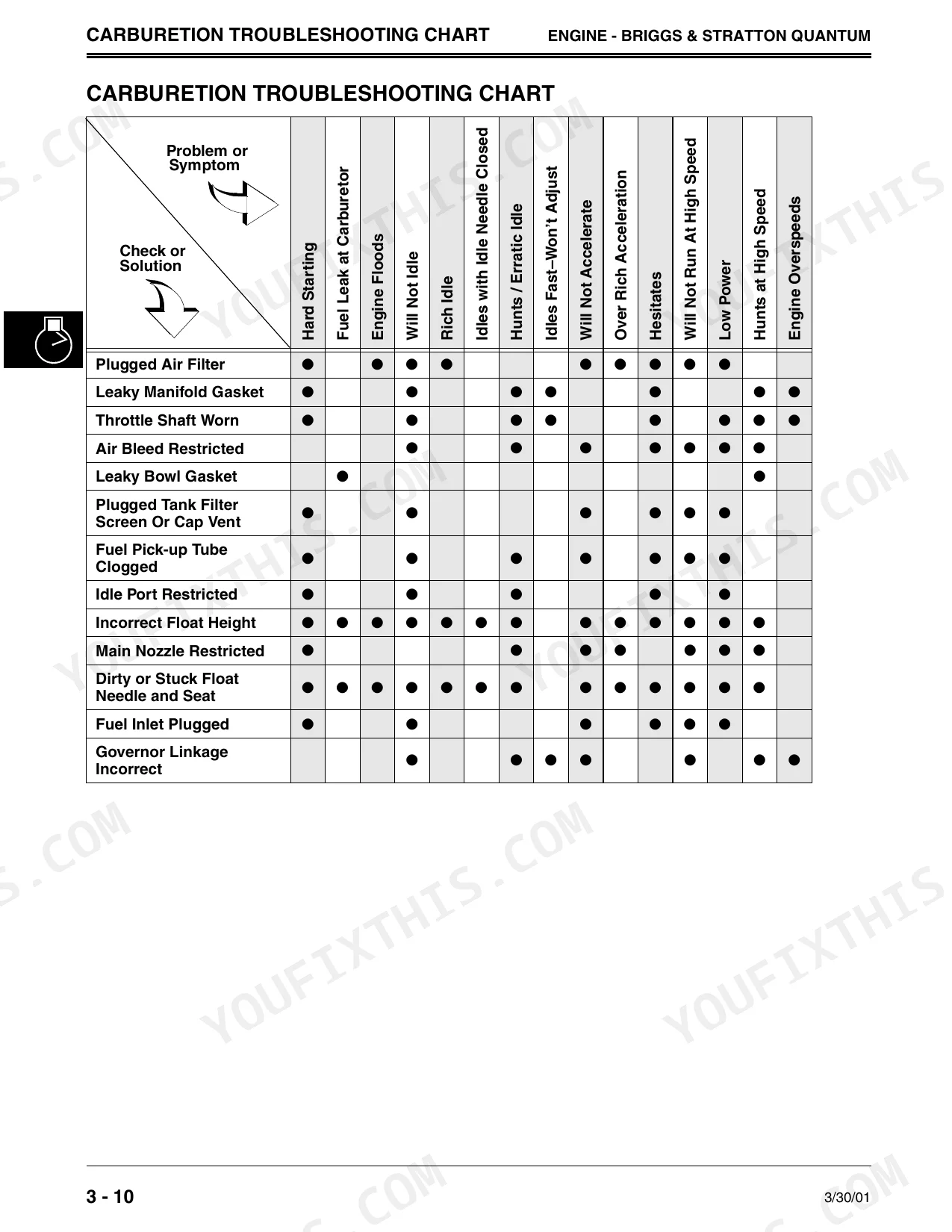

Manual Section: Miscellaneous p. 215Engine cranks but won't start, or runs rough and surges at full throttle

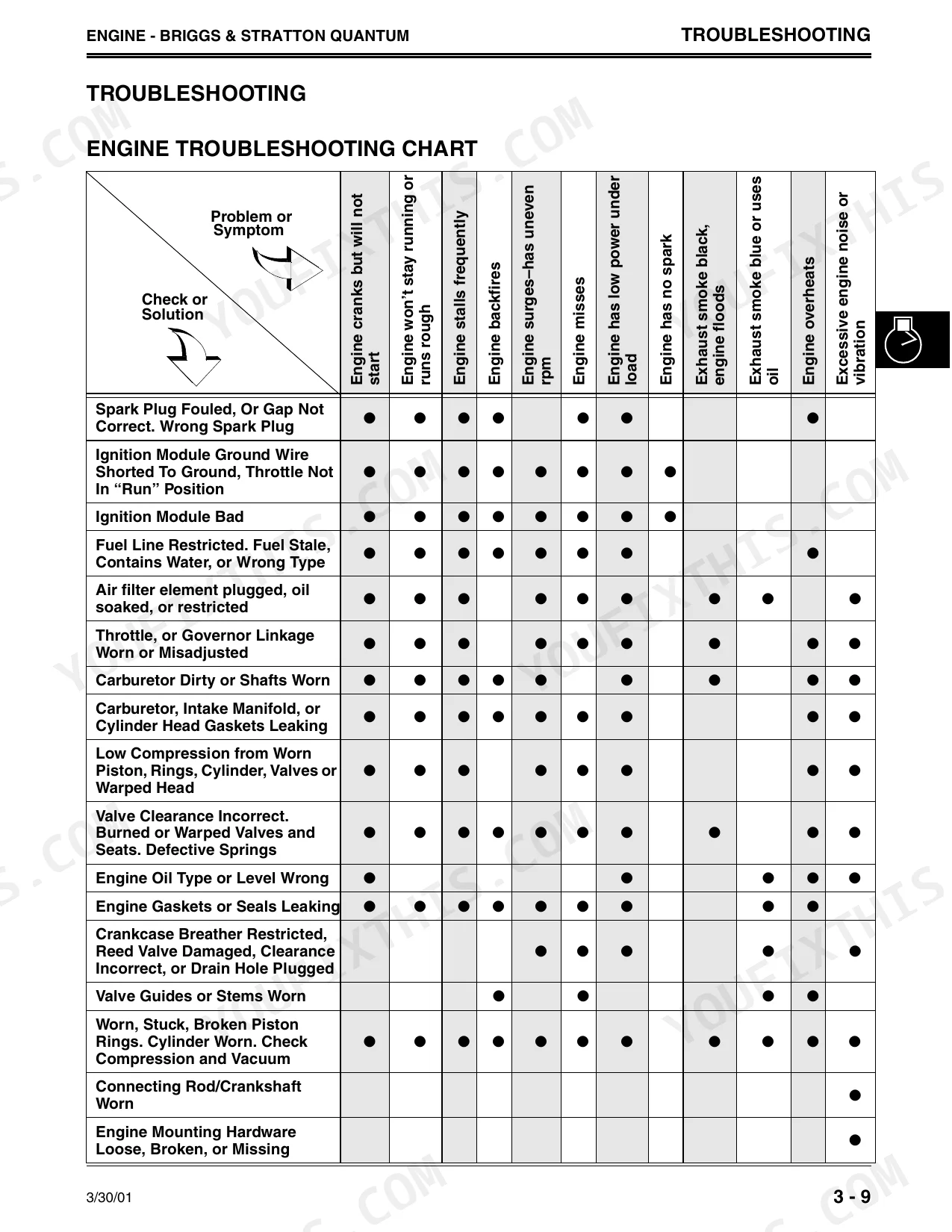

Pull the plug and set the gap to 0.76 mm (0.030 in.) on Briggs Quantum units, then torque it to 20 N•m (180 lb-in.). Work through the troubleshooting procedures starting on page 27, and check the carburetor for stale fuel and a plugged bowl jet on page 28.
Manual Section: Engine Troubleshooting (Briggs & Stratton) p. 27Clattering or vibration from the drive and clutch area at full throttle
Stop the engine and check the belt guide clearance and idler arm hardware for looseness before blaming the engine. Inspect both sheaves for bent flanges and wobble. Verify the blade is seated flat on the adaptor and torque it to 75 N•m (55 lb-ft), using the power train section starting on page 187.
Manual Section: Power Train p. 187Frequently Asked Questions
What is the torque specification for the mower blade to the crankshaft blade adaptor on a JA60 or JA62 mower?
The torque specification for the mower blade to the crankshaft blade adaptor on JA60 and JA62 models is 75 ± 14 N•m (55 ± 10 lb-ft). p. 10
What are the specifications for the JE75 and JX75 engines?
The JE75 and JX75 engines are 4-cycle, air-cooled engines with a 153 cc (9.34 cu. in.) displacement and 4.1 kW (5.5 HP) horsepower. They use a pressure lubrication system and have an oil capacity of 0.6 L (20.0 oz). p. 9
What are the torque specifications for the JA65 engine?
The JA65 engine torque specifications include 20 N•m (180 lb-in.) for the spark plug, 18 N•m (140 lb-in.) for the cylinder head cap screw, and 81 N•m (60 lb-ft) for the flywheel nut. p. 10
What is the minimum thickness for the blade brake clutch friction material?
The minimum thickness for the blade brake clutch friction material is 0.76 mm (0.030 in.). If the material is thinner than this, the blade brake clutch should be replaced. p. 22
What are the traction drive belt specifications for the John Deere JA60 to JX85 walk-behind mowers?
The traction drive belt is a 3L type with an effective length of 861.0 mm (33.90 in.), a top width of 9.525 mm (0.375 in.), and a depth of 5.563 mm (0.219 in.). p. 189
Is this John Deere JA60 manual a download or a disc?
Delivery is instant: a 228-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is printing allowed for this John Deere JA60 Technical Manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
