This John Deere GT235 Technical Manual PDF (TM1756) packs 584 pages of factory service data, and it covers the GT225, GT235E, and GT245 garden tractors too, so one download handles the whole line. Inside: complete electrical schematics with circuit-by-circuit diagnosis for the power, cranking, ignition, and charging systems, plus full teardown procedures for the hydrostatic transaxle, charge pump, and piston pump. You also get dedicated engine sections for the Kohler, Briggs and Stratton, and Kawasaki FH580V and FH601V powerplants, from compression tests to crankshaft oil seals. Gap the GT235 plugs at 0.76 mm, torque them to 22 N-m, and check the electric PTO clutch for 2.4 to 2.7 ohms before you condemn it. Your tractor is down and mowing season won't wait. Bookmarked with keyword search built in; jump straight to the spec and start wrenching.
What's Inside This John Deere GT225, GT235, GT235E, GT245 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Manual Description, Table of Contents, Specifications, Identification Numbers, Tools and Materials, Component Location |
| Safety | 5-10 | - |

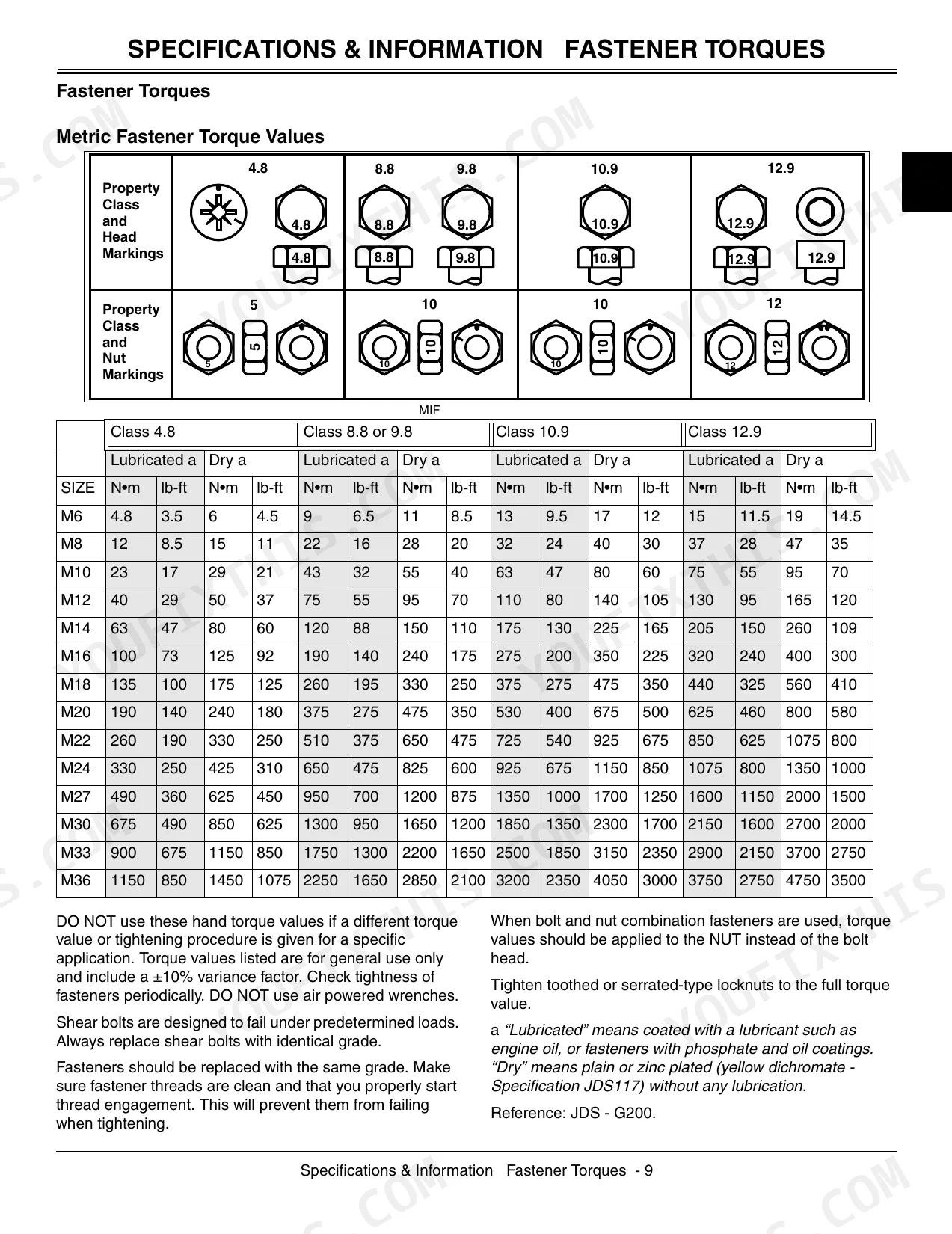

| Specifications & Information | 11-20 | Fastener Torques, Gasoline, Engine Oil, Hydrostatic Transmission Oil, Oil Filters, Serial Number Locations |

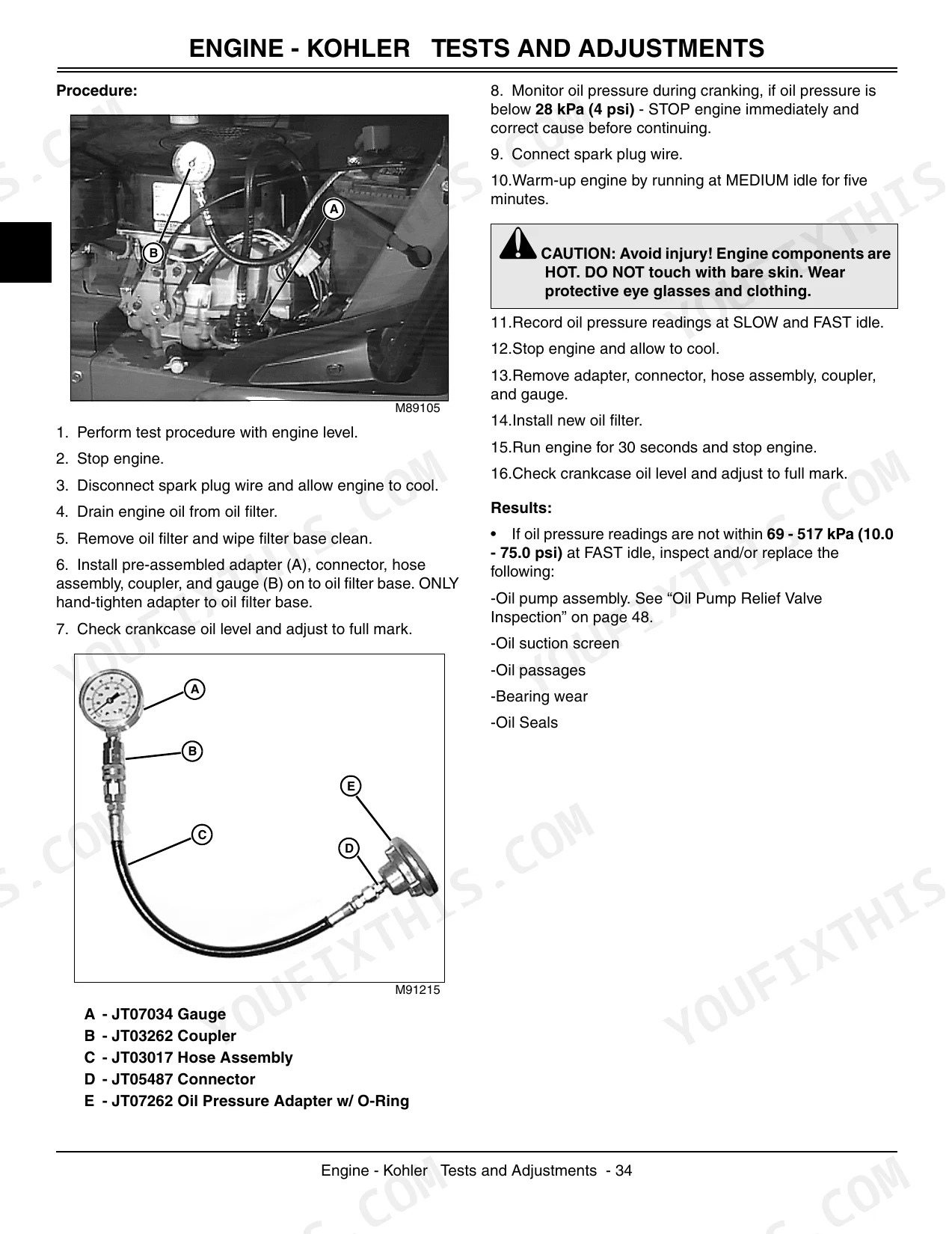

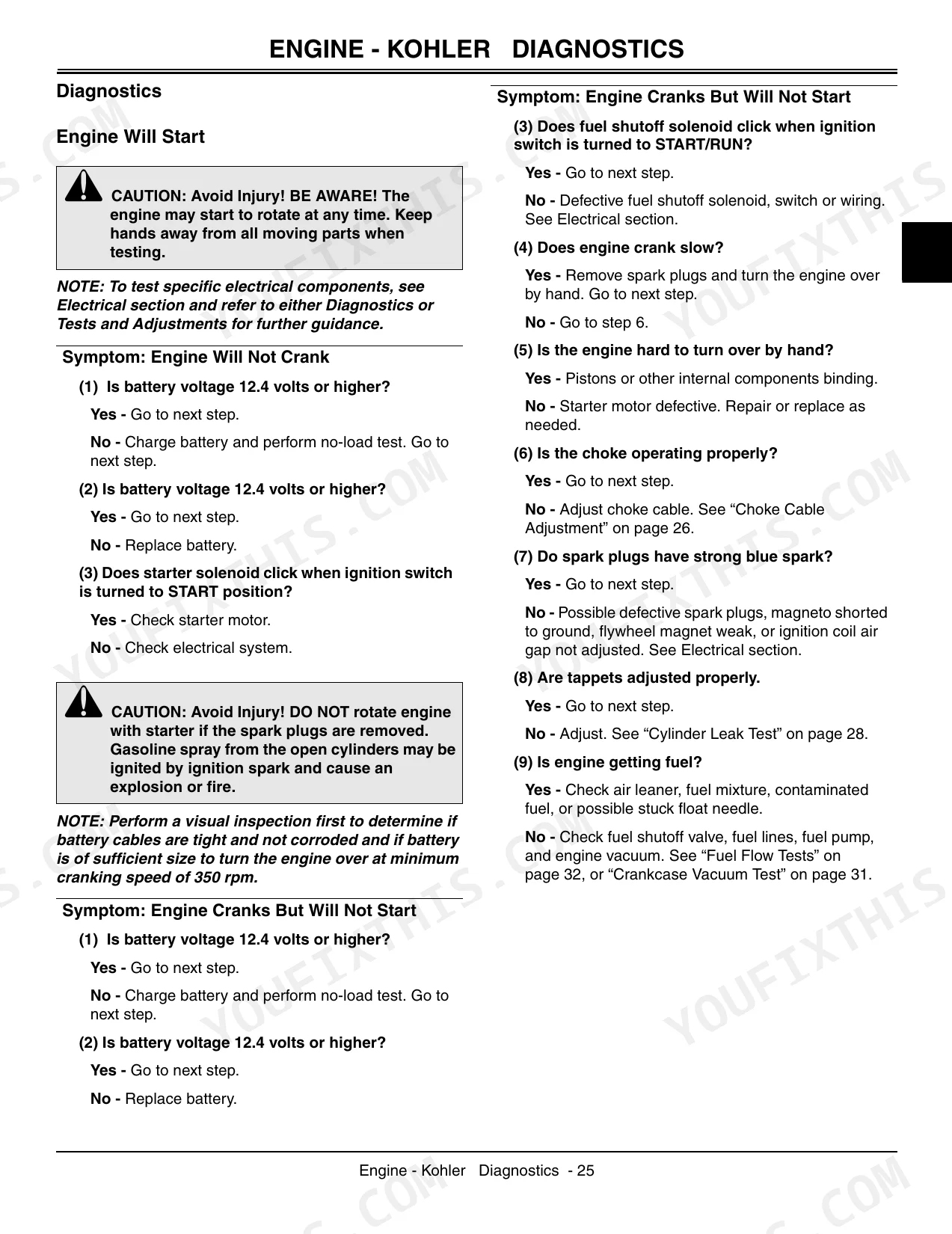

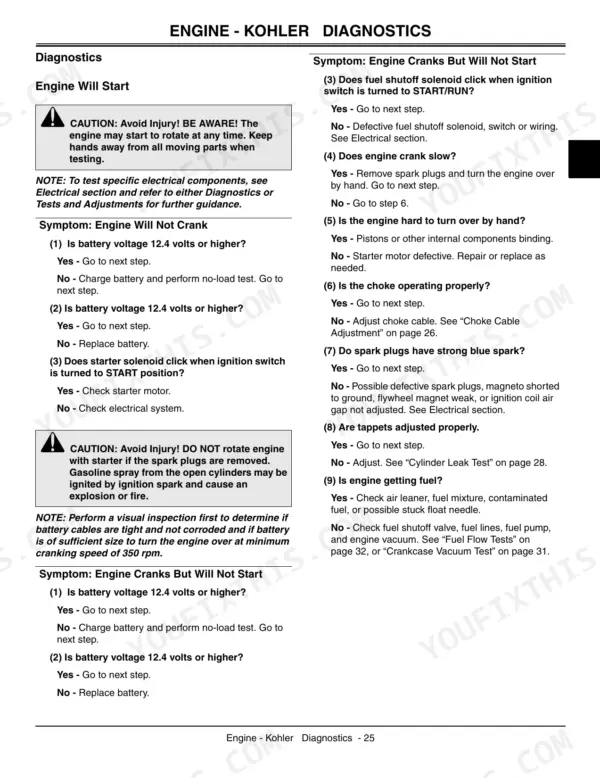

| Engine - Kohler | 21-68 | Cylinder Leak Test, Fuel Flow Tests, Oil Pressure Test, Carburetor Inspection, Engine Removal, Crankshaft Removal |

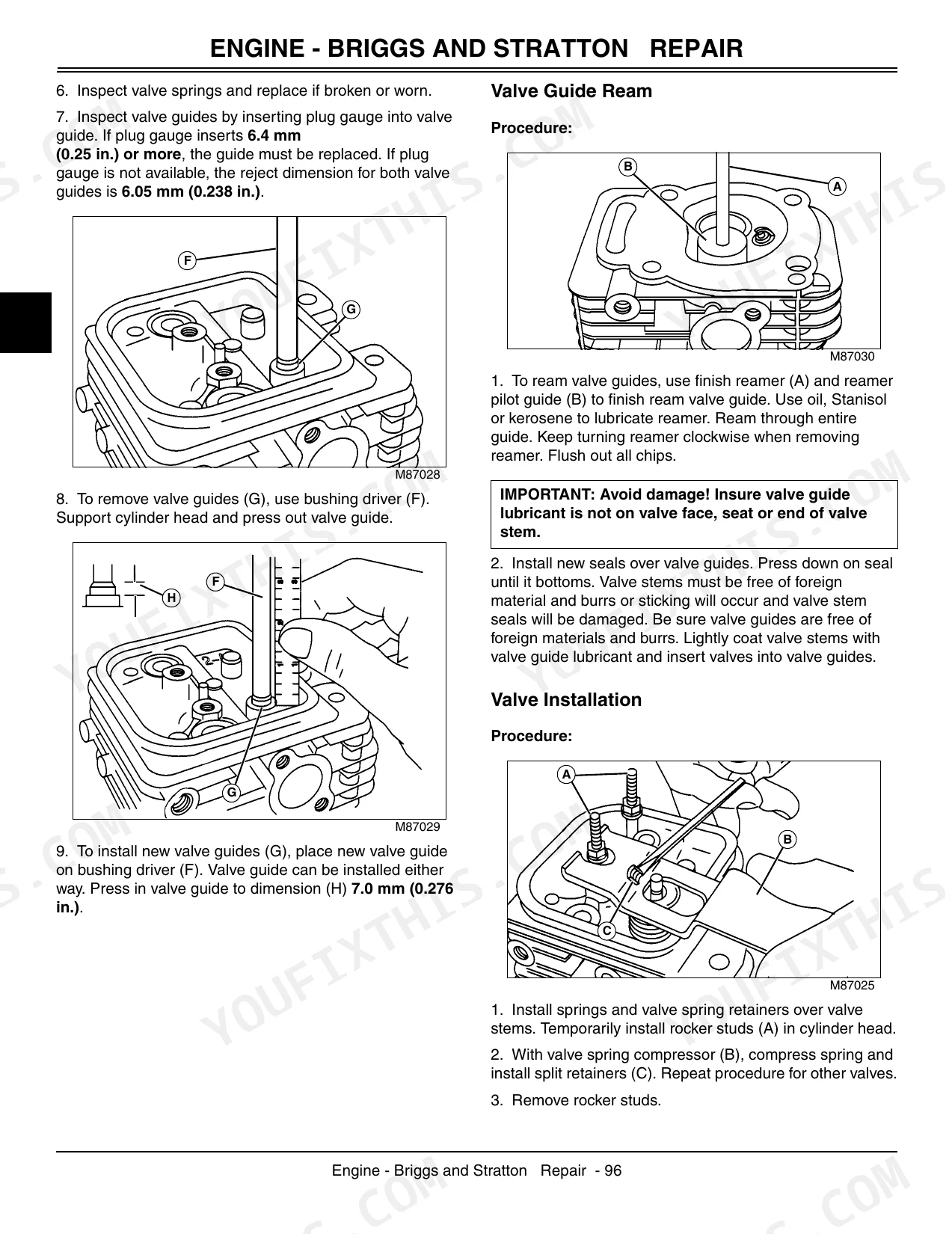

| Engine - Briggs and Stratton | 69-118 | Compression Test, Carburetor Adjustment, Governor Adjustment, Cylinder Head Inspection, Piston Inspection, Starting Motor |
| Engine - Kawasaki (FH580V) | 119-170 | Throttle Cable Adjustment, Governor Adjustment, Cylinder Compression Pressure Test, Carburetor Disassembly, Fuel Pump Replacement, Crankshaft Oil Seals |
| Engine - Kawasaki (FH601V) | 171-232 | Throttle Cable Adjustment, Governor Adjustment, Cylinder Compression Pressure Test, Carburetor Disassembly, Fuel Pump Replacement, Crankshaft Oil Seals |
| Electrical | 233-358 | Electrical Schematics, Power Circuit Diagnosis, Cranking Circuit Diagnosis, Ignition Circuit Diagnosis, Charging Circuit Diagnosis, Electric PTO Clutch Test |
| Power Train - Hydrostatic | 359-454 | Transaxle Case, Charge Pump, Piston Pump, Motor, Reduction Gears, Differential |
| Steering | 455-476 | Steering Wheel, Front Axle, Steering Gear, Front Wheel Spindle, Front Wheel Bearing |
| Attachments | 477-554 | Mower Deck, Drive Belt, Mower Blades, Deck Spindles, Jack Sheave, Idlers |
| Miscellaneous | 555-574 | Mower Deck Lift, Hood Latch, Lift Assist Spring, Seat Support, Fender Deck, Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Spark Plug Gap | 1.0 mm (0.040 in.) | p. 23 |
| Spark plug tightening torque | 22 N•m (195 lb-in.) | p. 137 |
| Electrolyte Quantity (Approximate) | 1.9 L (2.0 qt) | p. 23 |
| Electric PTO Clutch Resistance | 2.4 - 2.7 ohms | p. 347 |
| GT225 | ||
| Crankcase Oil Capacity w/ Oil Filter (Kohler) | 1.8 L | p. 23 |
| Fast Idle Speed (Kohler) | 3350 ± 50 rpm | p. 23 |
| GT235, GT235E | ||
| Crankcase Oil Capacity w/ Oil Filter (Briggs & Stratton) | 1.65 L | p. 71 |
| Fast Idle Speed (Briggs & Stratton) | 3350 ± 50 rpm | p. 71 |
| GT235 | ||
| Crankcase Oil Capacity w/ Oil Filter (Kawasaki FH580V) | 1.7 L | p. 121 |
| Fast Idle Speed (Kawasaki FH580V) | 3400 rpm | p. 121 |
| GT245 | ||
| Crankcase Oil Capacity w/ Oil Filter (Kawasaki FH601V) | 1.7 L | p. 173 |
| Fast Idle Speed (Kawasaki FH601V) | 3400 ± 50 rpm | p. 173 |
John Deere GT225, GT235, GT235E, GT245 Common Problems This Manual Covers
Battery goes dead after sitting a few days, cranks slower each start
Clean both battery terminals and load-test the battery before buying a new one; a green corroded clamp mimics a dead battery. Check alternator belt tension, then run the charging circuit diagnosis in the electrical section starting on page 233. If the battery has been run dry, note it holds roughly 1.9 L (2.0 qt) of electrolyte when refilling.
Manual Section: Electrical p. 233Oil pressure warning light stays on after oil change, engine sounds normal
Check the oil level first and correct it; the GT225 Kohler takes 1.8 L with a new filter, per page 23. If the level is good, test the oil pressure switch and its wiring using the low oil pressure light circuit diagnosis in the electrical section, page 233, before condemning the engine.
Manual Section: Electrical p. 233Frequently Asked Questions
What are the torque specifications for the cylinder head cap screws on a Kohler engine?
For the Kohler engine, the cylinder head cap screws should be tightened in two stages. The initial torque is 20 N•m (177 lb-in.) and the final torque is 41 N•m (30 lb-ft). p. 27
How do you fix john Deere GT235 engine cranks but won't start after winter storage, fires briefly then dies?
Drain the stale fuel and replace the inline fuel filter before touching anything else. Pull the spark plug and check for fouling; on GT235 and GT235E Briggs engines, gap a new plug to 0.76 mm (0.030 in.), the spec listed on page 72. Still no fire, work through the Briggs and Stratton diagnostics starting on page 69. p. 72
How do you fix PTO switch on but mower blades won't spin, no click from deck clutch?
Check the deck belt and idler pulley first; a seized idler will stall the blades with the clutch working fine. Then unplug the PTO clutch connector and measure coil resistance: you want 2.4 to 2.7 ohms, per the clutch test on page 347. Open coil means replace the clutch; good coil means chase the safety switches in the PTO circuit. p. 347
How do you fix engine loses power at full throttle and stalls when the mower deck is engaged?
Replace a dirty air filter and check fuel flow from the tank before blaming the carburetor. Verify governor linkage moves freely, then check fast idle under no load: the GT225 Kohler should hold 3350 ± 50 rpm, the spec on page 23. Low rpm at full throttle points to fuel restriction or a sticking governor. p. 23
How is this John Deere GT225–GT245 Series Technical Manual delivered?
All 584 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is printing allowed for this John Deere GT225–GT245 Series Technical Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this John Deere GT225–GT245 Series manual show the machine's wiring?
A wiring diagram for the John Deere GT225–GT245 Series electrical system is included. Page 242 carries one of them.
