Part of the John Deere Repair Manuals.

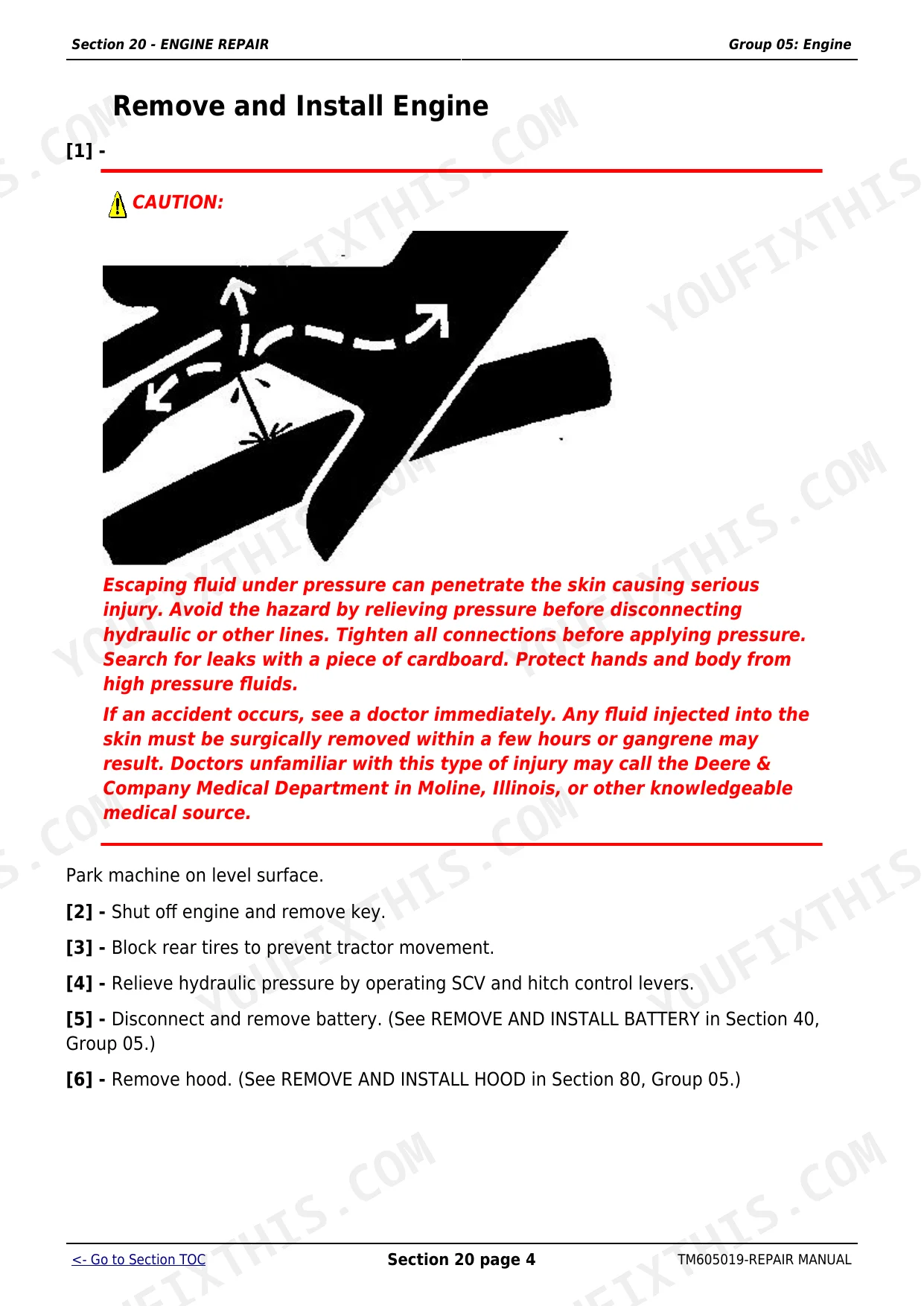

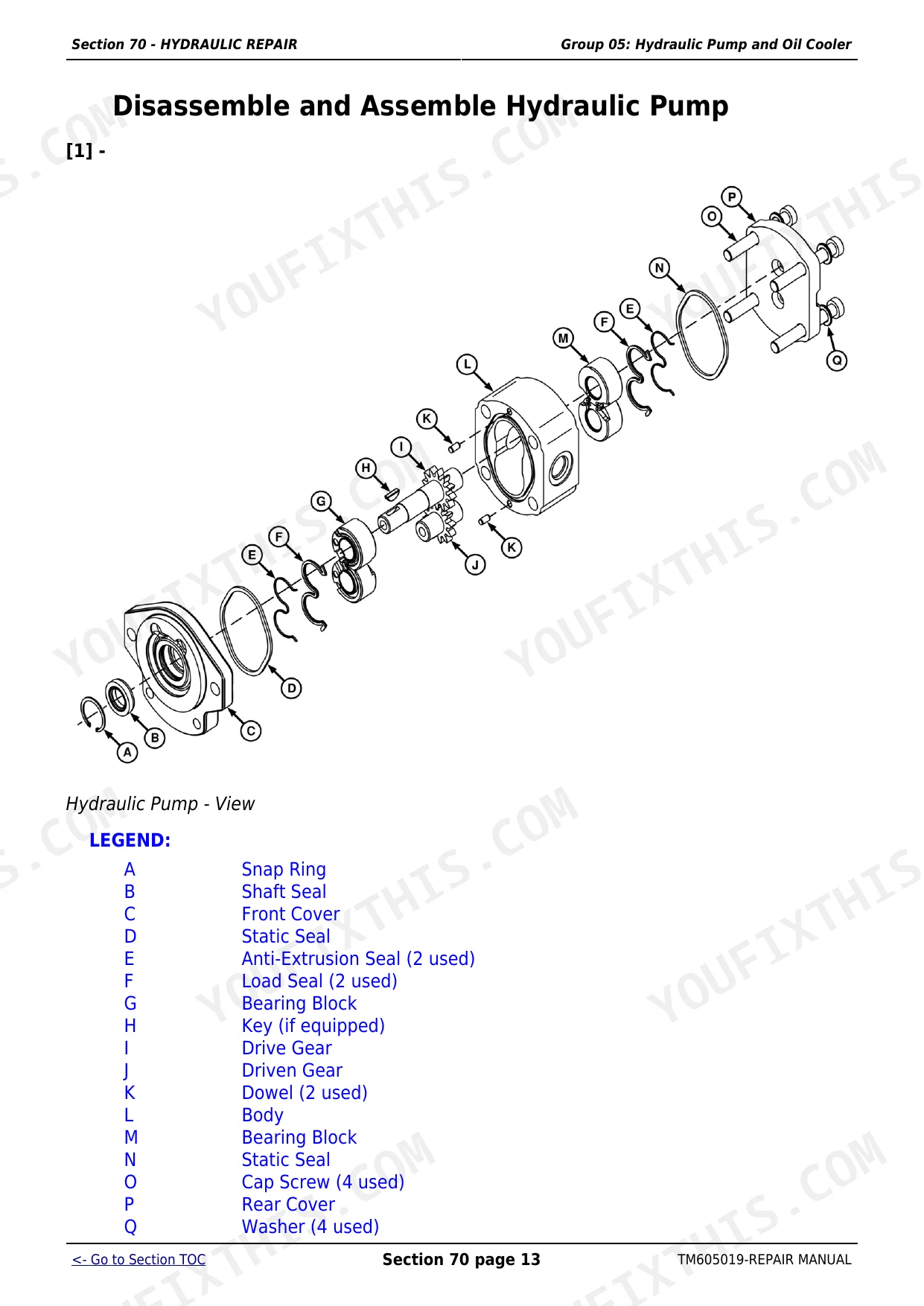

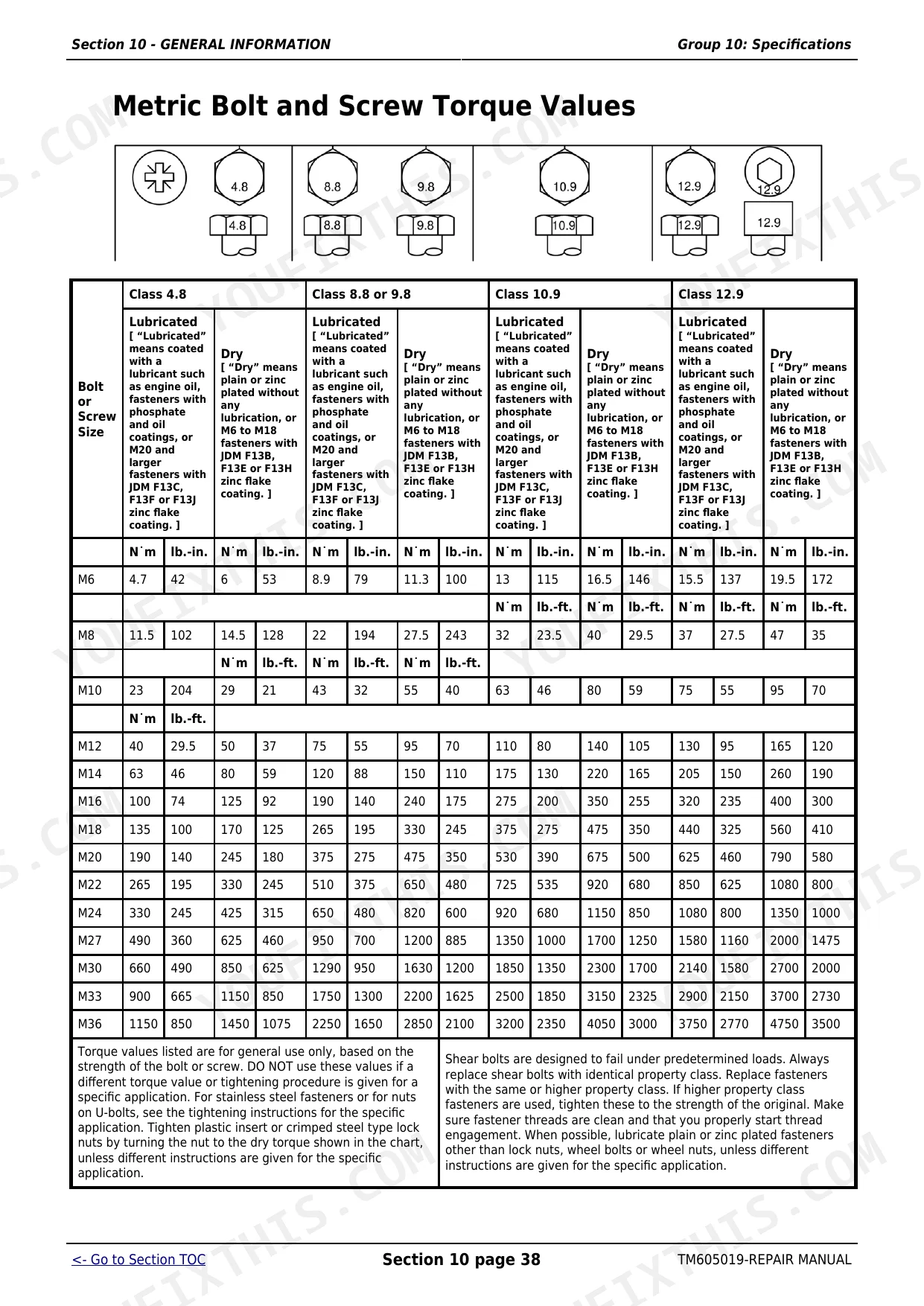

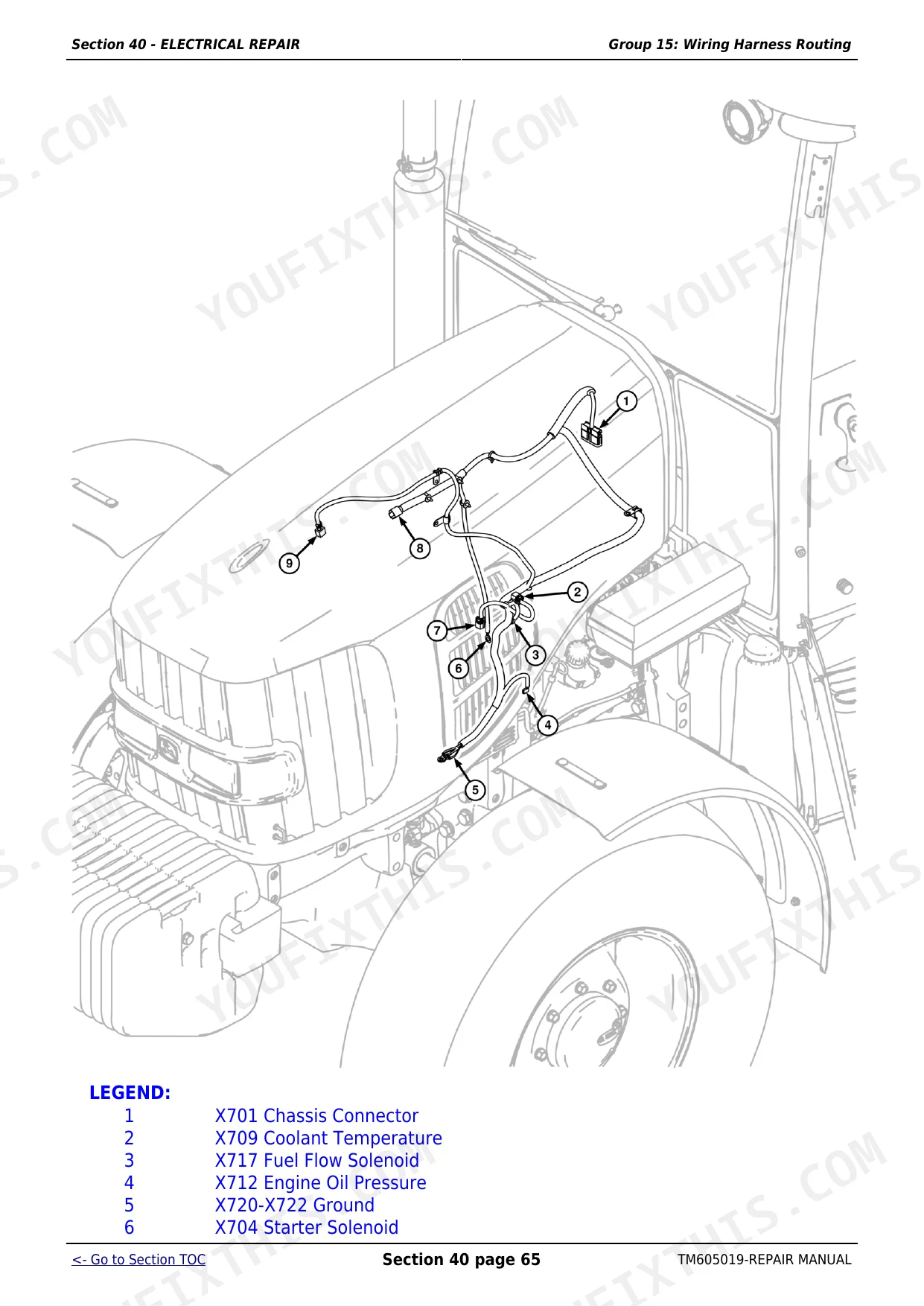

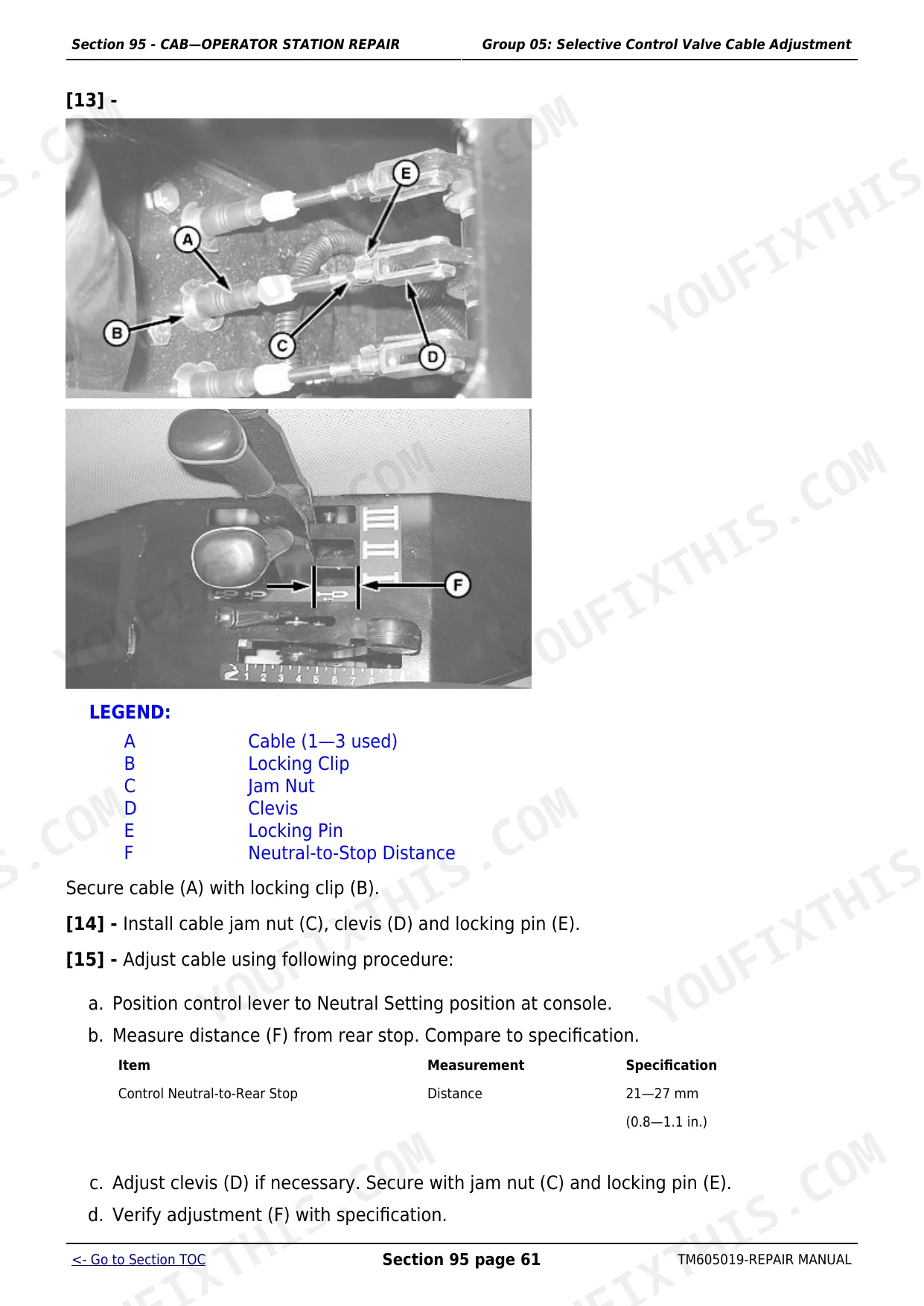

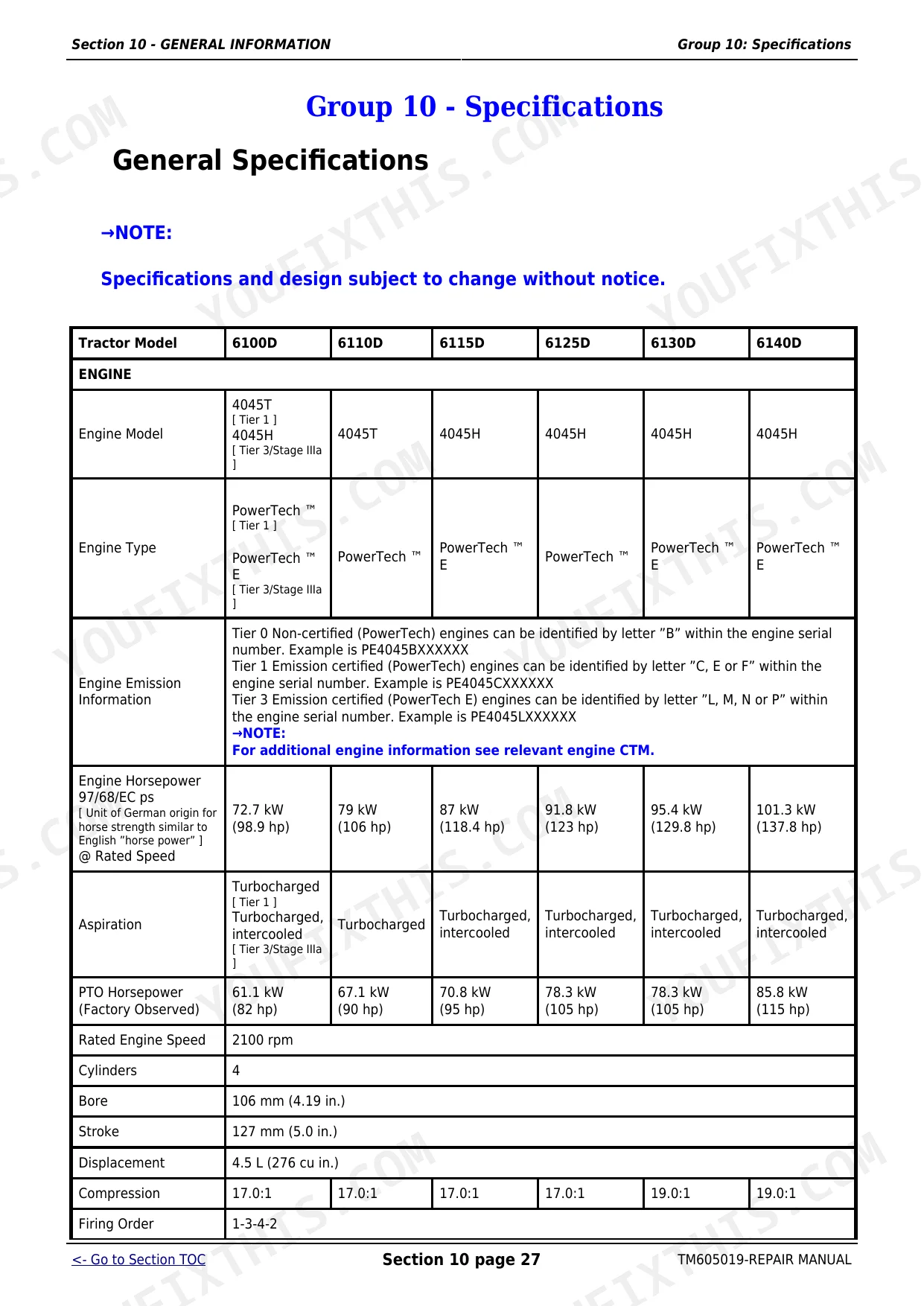

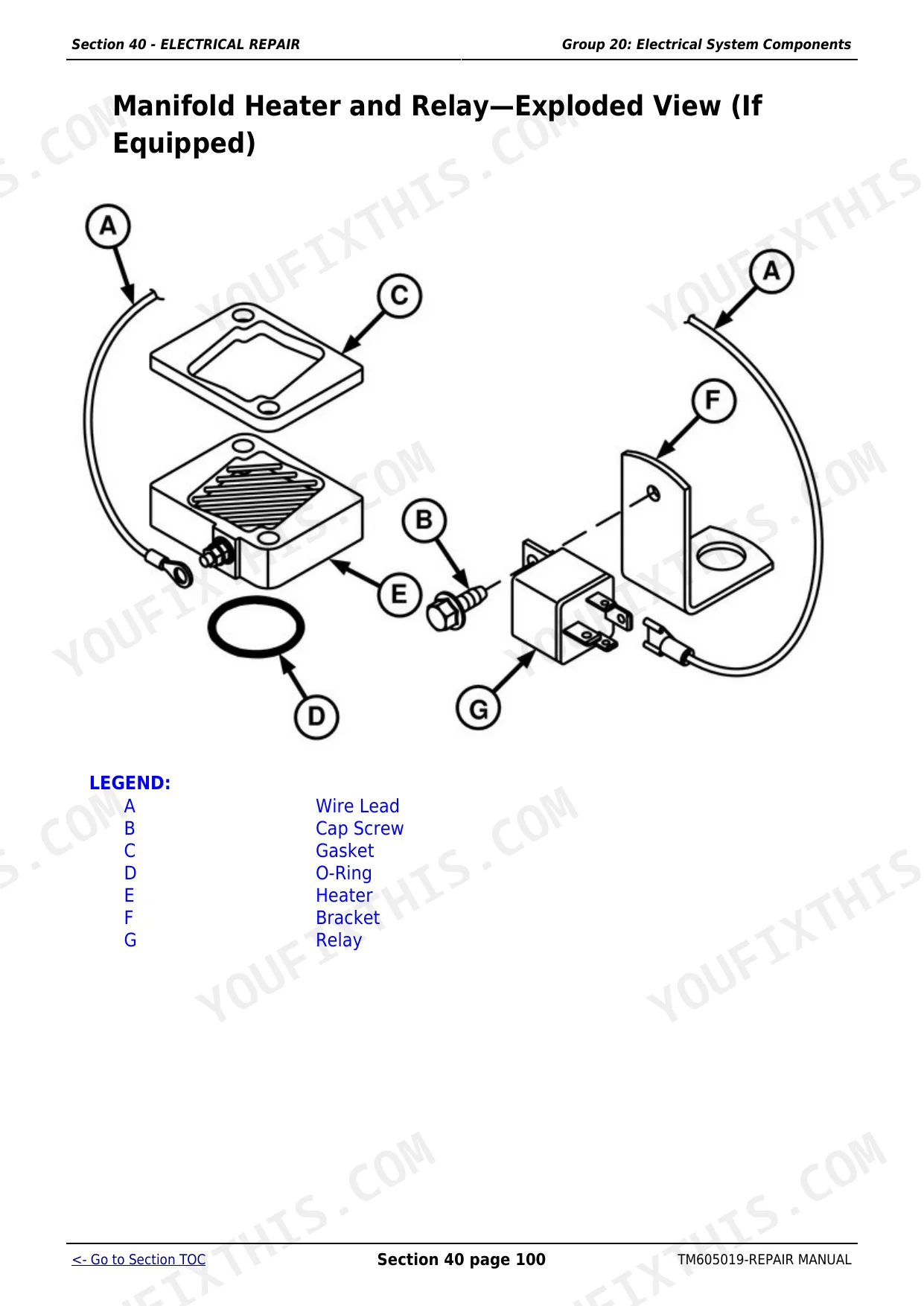

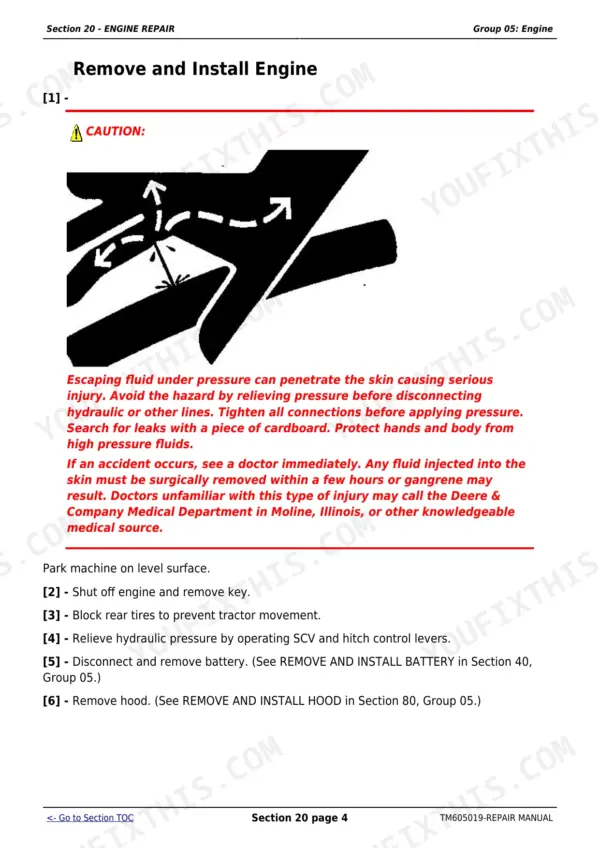

Every one of the 878 pages in this factory John Deere 6100D repair manual pdf (OEM #TM605019) focuses on getting your 6110D, 6115D, 6125D, 6130D, or 6140D tractor back in the dirt. You get complete wiring diagrams, full-system hydraulic schematics, and extensive step-by-step teardown procedures covering the engine, powertrain, and selective control valves. Look inside to find clear exploded views and exact calibration test values that help you diagnose mechanical faults without second-guessing. Verify your transmission pump capacity is hitting exactly 26.3 L/min at 2100 rpm, and lock down those flywheel cap screws to 105 N·m during the rebuild. Waiting on a dealer tech costs you valuable daylight. Download this bookmarked file directly to your tablet, walk right up to the machine, and turn wrenches with absolute confidence.
What's Inside This John Deere 6100D–6140D Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-74 | Safety (Recognize Safety Information, Understand Signal Words, Prevent Machine Runaway, Handle Fluids Safely, Avoid Fires, Prevent Battery Explosions, Prepare for Emergencies) |
| Engine Repair | 75-132 | Group 05 - Engine, Group 10 - Cooling System |
| Fuel and Air | 133-165 | Group 05 - Fuel System, Group 10 - Speed Control Linkage, Group 15 - Air Intake System |
| Electrical Repair | 166-339 | Group 05 - Battery, Starter and Alternator, Group 10 - Connectors, Group 15 - Wiring Harness Routing, Group 20 - Electrical System Components |
| Power Train | 340-446 | Group 00 - Towing, Group 05 - Component Removal, Group 10 - PTO, Group 15 - Clutch, Group 25 - Separation |
| Steering and Brake Repair | 447-509 | Group 05 - Steering Repair, Group 10 - Front Axle, 2WD, Group 15 - Front Axle, MFWD, Group 20 - Brake Repair |
| Hydraulic Repair | 510-635 | Group 05 - Hydraulic Pump and Oil Cooler, Group 10 - Rockshaft, Group 15 - Lubrication System, Group 20 - Selective Control Valve (SCV) |
| Miscellaneous Repair | 636-699 | Group 05 - Hood and Fenders, Group 10 - 3-Point Hitch, Group 15 - Wheels, Group 20 - Front Support, Group 25 - Trailer Mounting and Swinging Drawbar |
| Open Operator Station Repair | 700-734 | Group 05 - Seat and Support, Group 10 - ROPS, Group 15 - Operator Platform, Group 20 - Cowl Repair |
| Cab, Operator Station Repair | 735-871 | Group 00 - Removal and Installation of Components, Group 05 - Selective Control Valve Cable Adjustment, Group 10 - Air Conditioning System, Group 15 - Heating System |
| Special Tools | 872-878 | Group 05 - Dealer-Fabricated Tools, Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Transmission Pump Capacity (2100 rpm) | 26.3 L/min (6.9 gpm) | p. 37 |

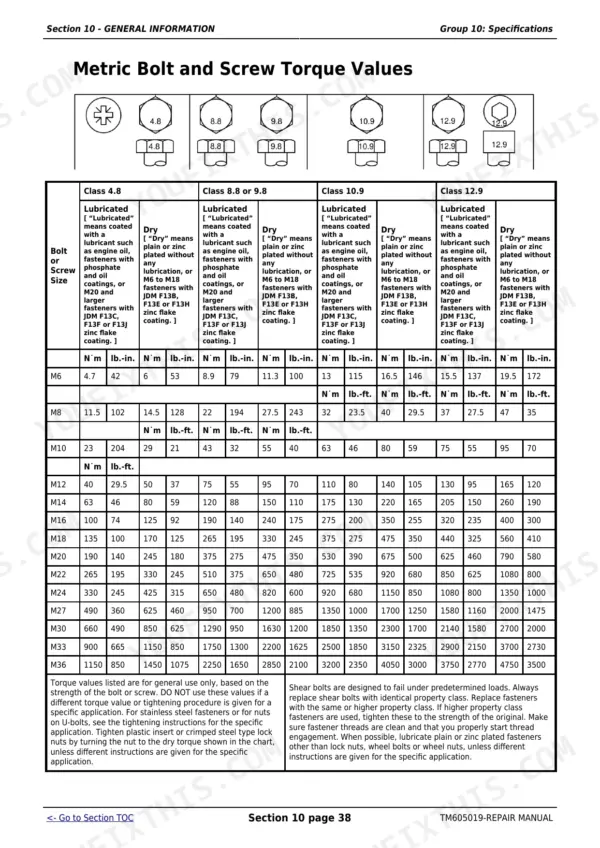

| Flywheel Cap Screws Torque | 105 N·m (77 lb-ft) | p. 460 |
| Engine Oil Filter (RE504836) Torque | 20 N·m (15 lb-ft) | p. 49 |
| Hydraulic Hose Assemblies Torque | 30 N·m (22 lb-ft) | p. 49 |
| Transmission Pump Mounting Cap Screws Torque | 50 N·m (37 lb-ft) | p. 49 |
| Hydraulic Control Valve Mounting Cap Screws Torque | 50 N·m (37 lb-ft) | p. 49 |
| Flywheel Housing-to-Clutch Housing Mounting Cap Screws (A) | 625 Nm (460 lb-ft) | p. 77 |
| Crankshaft Pulley Cap Screw (B) Torque | 500 N·m (370 lb-ft) | p. 108 |
| Hose End Fittings-to-Steering Valve Torque | 50 N·m (37 lb-ft) | p. 49 |
| Front Wheel Nuts | 155 N·m (115 lb-ft) | p. 460 |
| Hydraulic Pump Mounting Cap Screws | 95 N'm (70 lb-ft) | p. 511 |
| Hydraulic Pump Drive Gear Retaining Nut | 135 N'm (100 lb-ft) | p. 511 |
John Deere 6100D–6140D Common Problems This Manual Covers
John Deere 6115D tractor won't move or has no drive engagement despite engine running normally
Check transmission pump output on page 37; rated flow is 26.3 L/min (6.9 gpm) at 2100 rpm. If flow is low, remove the pump and inspect for internal wear, then verify hydraulic control valve mounting cap screws are torqued to 50 N·m (37 lb-ft) per page 49 before reinstalling.
Manual Section: Hydraulic RepairENGINE STOP indicator illuminates with audible alarm and engine shuts down without warning mid-field
Shut down the engine immediately when this alarm sounds. Check engine oil level first, then pressure test the cooling system and radiator cap; radiator capacity is 8.9 L (9.4 qt) on page 112. If coolant checks out, drain the fuel filter/water separator per pages 139-140 to rule out water in the fuel.
Manual Section: Engine RepairSERVICE ALERT indicator illuminates with audible alarm during normal field operation, no fault code shown
Check the maintenance schedule for overdue services before anything else. Then test the SCV relief valve pressure on page 526; specification is 190 bar (2755 psi). Low relief pressure combined with a restricted air cleaner element commonly triggers this alert before it escalates to a STOP shutdown, so replace the filter element and retest.
Manual Section: General InformationHydraulic hose leaks under pressure at a fitting connection near the rear coupler
Inspect hose assemblies for cracking, chafing, or swelling near fittings before restarting the tractor; relieve system pressure first since injected fluid under pressure causes serious injury. Torque hydraulic hose assembly fittings to 30 N·m (22 lb-ft) per page 49, and torque hose-end fittings at the steering valve to 50 N·m (37 lb-ft). Replace any cracked hose rather than reusing it.
Manual Section: General Information p. 49Front axle pulls to one side during transport with uneven front tire wear
Check front wheel toe-in; specification is 3-9 mm (0.1-0.4 in.) measured at hub height per page 460. Uneven toe-in outside this range causes rapid, uneven tread wear and pulling to one side. After adjustment, torque the front wheel nuts to 155 N·m (115 lb-ft) before returning the tractor to service.
Manual Section: Steering and Brake RepairFrequently Asked Questions
How to reset John Deere 6140D hydraulic system?
To reset the hydraulic system after repairs, fill it with John Deere HY-GARD™ transmission and hydraulic oil, leaving the cap off. Start the engine and run it at a slow idle speed for 2 minutes to bleed air from the main hydraulic pump. Cycle the steering wheel several times full left and right until operation is smooth, and operate the rockshaft and SCV systems to allow them to self-bleed. Finally, check for system leaks, fill the reservoir with oil, and install the cap. p. 456
What are the replacement specifications for Hydraulic hose assemblies?
Hydraulic hose assemblies should be inspected at least once per year for leakage, kinking, cuts, cracks, abrasion, blisters, corrosion, exposed wire braid, or any other signs of wear or damage. Worn or damaged hose assemblies must be replaced immediately with John Deere approved replacement parts. The manual does not provide specific technical specifications for the hoses themselves, such as pressure ratings or material composition. p. 16
What is the engine oil pan capacity for the John Deere 6100D tractor?
The engine oil pan capacity for the John Deere 6100D tractor is 15 L (16 qt). p. 77
What is the specified pressure for the radiator cap on the John Deere 6100D tractor?
The radiator cap pressure specification is 103 kPa (1 bar) (15 psi). p. 130
How will I receive this John Deere 6100D & variants Repair Manual?
Instant PDF download. You get the full 878-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this John Deere 6100D & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there hydraulic schematics in this John Deere 6100D & variants manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
