Part of the John Deere Repair Manuals.
This 246-page John Deere 200 Series Service Manual covers the 200, 210, 212, and 214 Lawn and Garden Tractors (1975-1976), plus the 39 and 47 Rotary Mower attachments, front to back. You get full wiring diagrams for the cranking, ignition, and charging circuits, hydraulic schematics for the control valve, pump, and cylinder, and a dedicated troubleshooting section that walks you through diagnosis before you start pulling parts. Specs are lifted straight from the factory floor: set spark plug gap at 0.035 in. (0.889 mm), and confirm your lift system, manual, electric, or hydraulic, matches the 210/212/214 setup before you adjust linkage. No more guessing whether that carburetor spec applies to your engine or someone else's. Bookmarked by section so you can jump straight to the transaxle, PTO clutch, or mower deck rebuild without flipping through 246 pages by hand, this one loads on your phone, tablet, or shop laptop the moment you buy it.
What's Inside This John Deere 200, 210, 212, 214 Manual

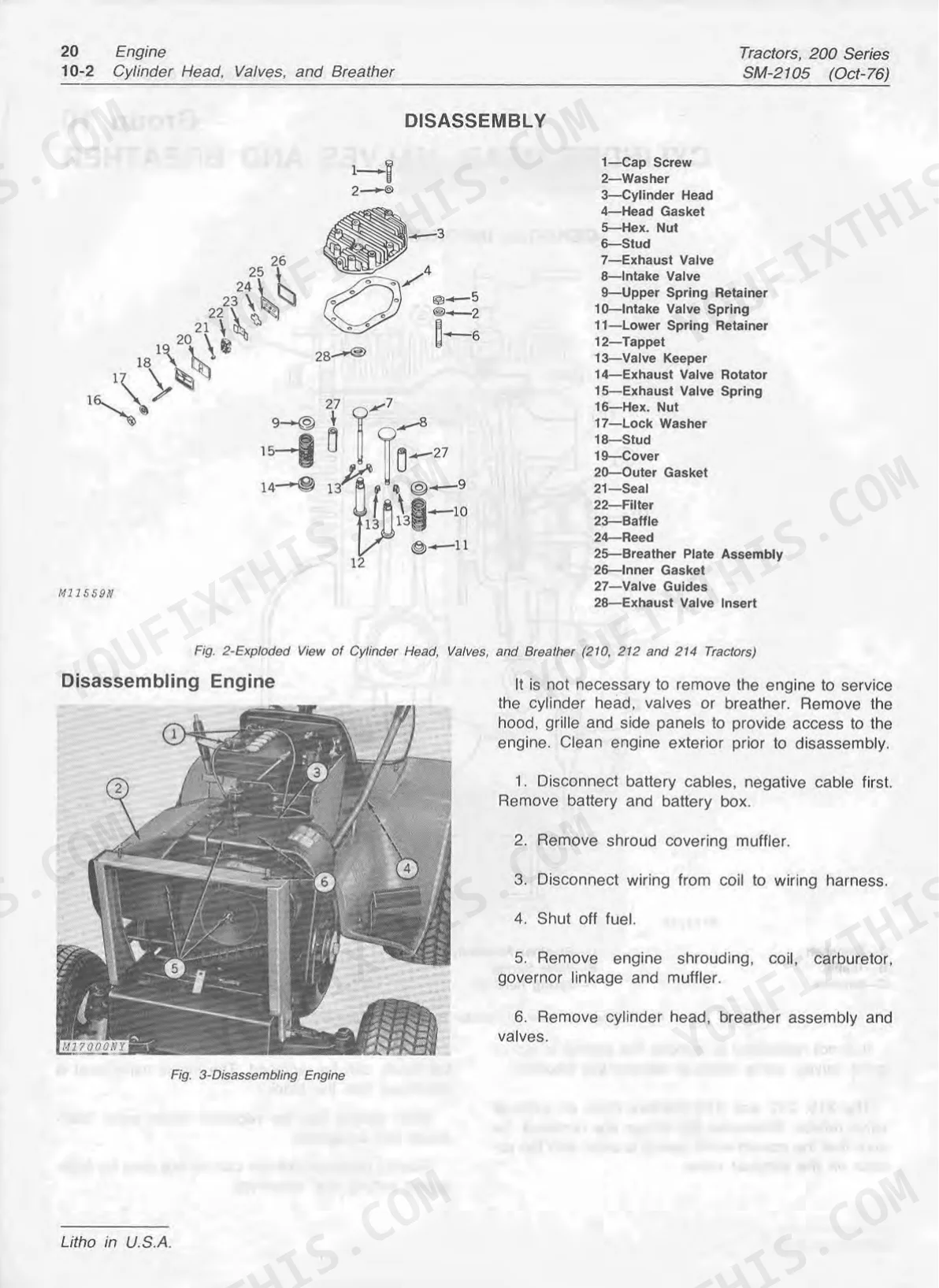

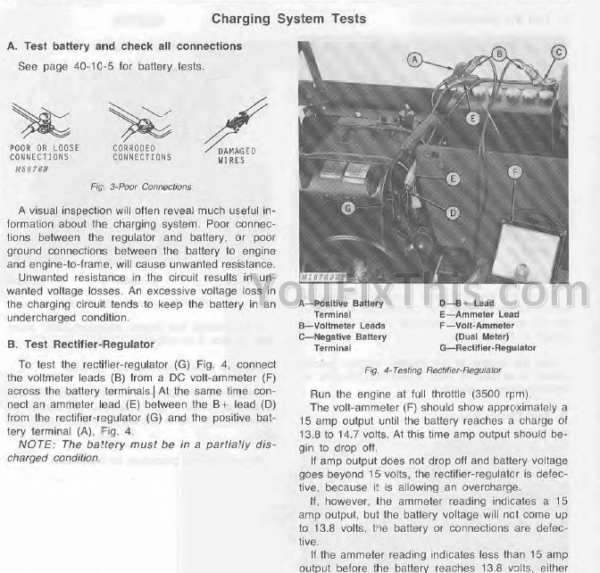

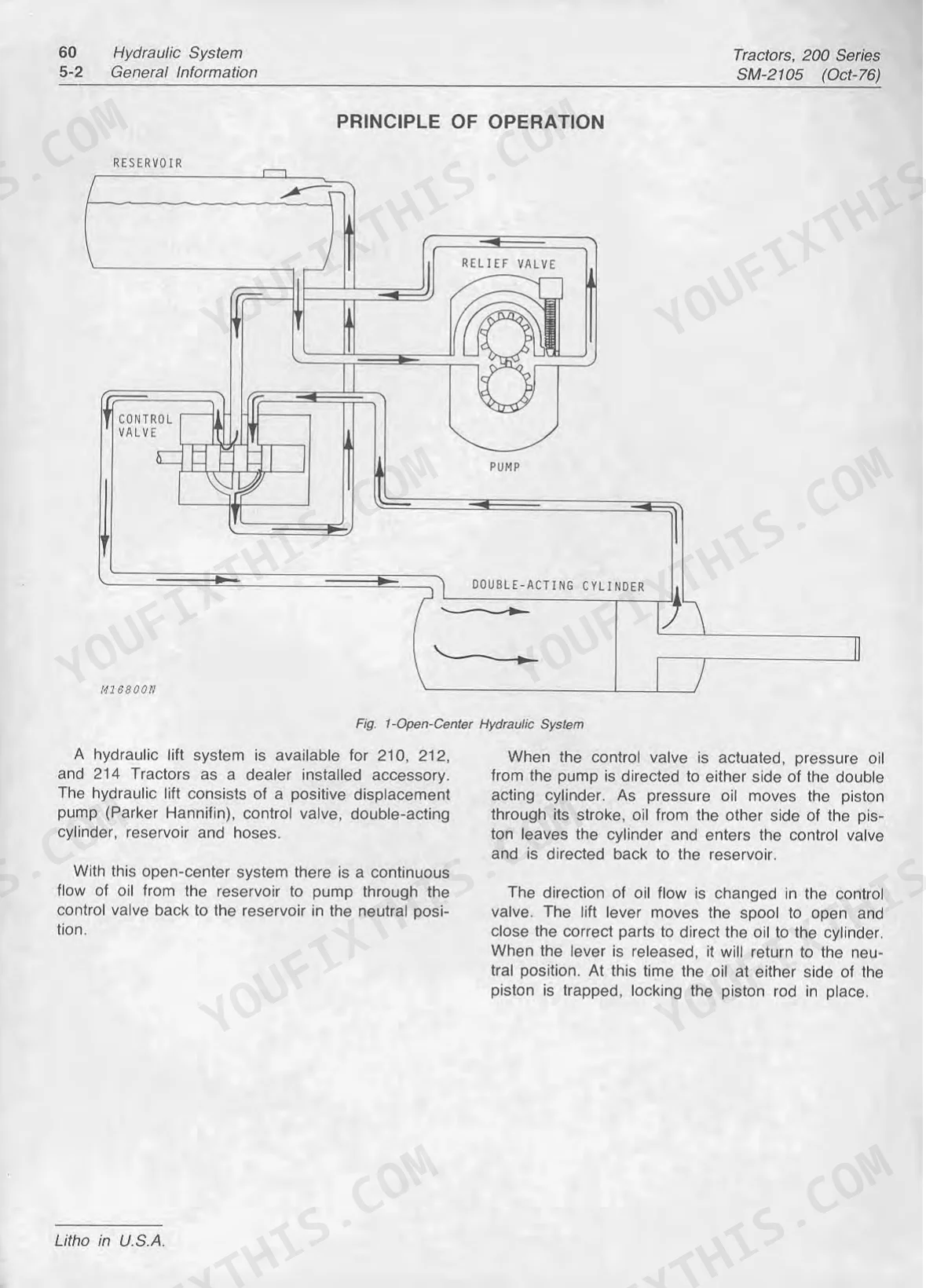

| System | Pages | Key Topics |
|---|---|---|
| General | 4-19 | Group 20 - Tune-Up and Adjustments, Group 15 - Fuel and Lubricants |
| Engine | 20-75 | Group 10 - Cylinder Head, Valves and Breather, Group 15 - Minor Engine Recondition, Group 20 - Major Engine Recondition, Group 25 - Specifications |
| Fuel System | 76-97 | Group 10 - Carburetor, Gourp 15 - Air Cleaner, Group 20 - Fuel Strainer and Fuel Tank, Group 25 - Fuel Pump - Kohler K181QS Engine, Group 30 - Specifications |
| Electrical System | 98-141 | Group 10 - Cranking System, Group 15 - Ignition System, Group 20 - Charging System, Group 25 - Lights, Group 30 - Electric Lift |
| Power Train | 142-185 | Group 10 - Clutch and Vriable Speed Drive, Group 15 - Brakes, Group 20 - 4-Speed Transaxle, Group 25 - PTO Clutch |
| Hydraulic System | 186-203 | Group 10 - Control Valve, Group 15 - Pump, Group 20 - Cylinder |
| Miscellaneous | 204-227 | Group 10 - Front Wheels and Axles, Group 15 - Lift Linkage, Group 20 - Attachments |
| Special Service Tools | 228-237 | Group 10 - Tractor Essential Service Tools, Group 15 - Tractor Convenience Service Tools |
| Parts Catalog (39 & 47 Rotary Mower Decks) | 238-246 | Mower Deck, Deck Drive, Draft Plate, Guards, Rollers, Lift Straps |

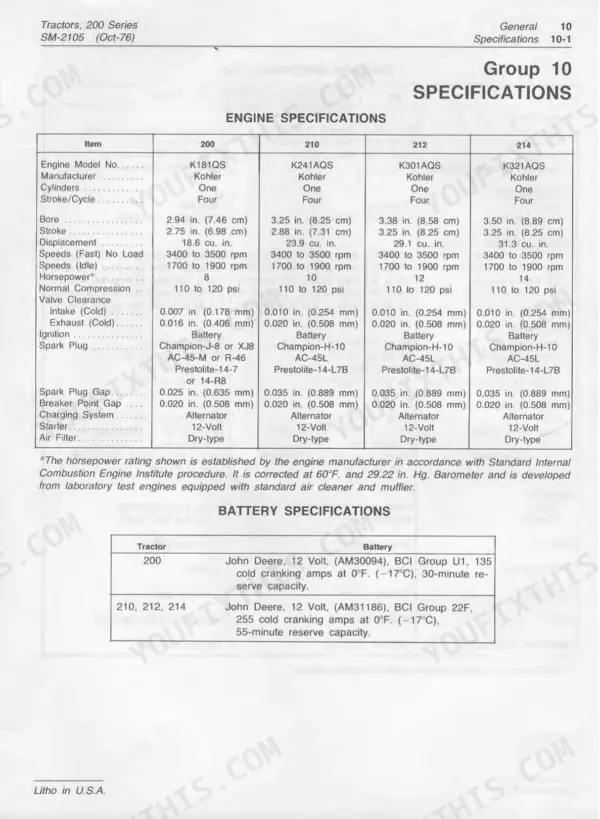

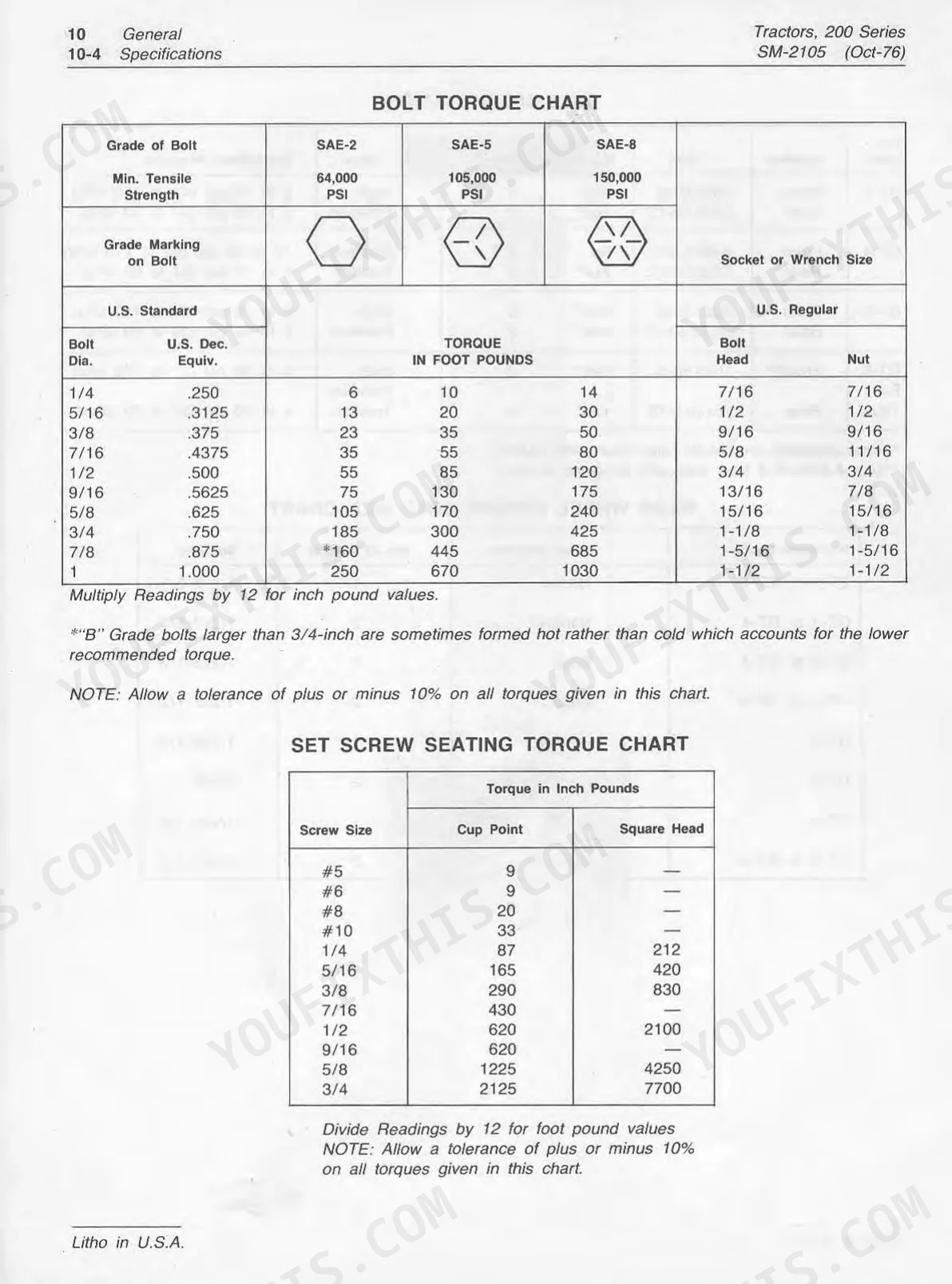

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 210, 212, 214 | ||
| Lift System | Manual, Electric, Hydraulic | p. 7 |

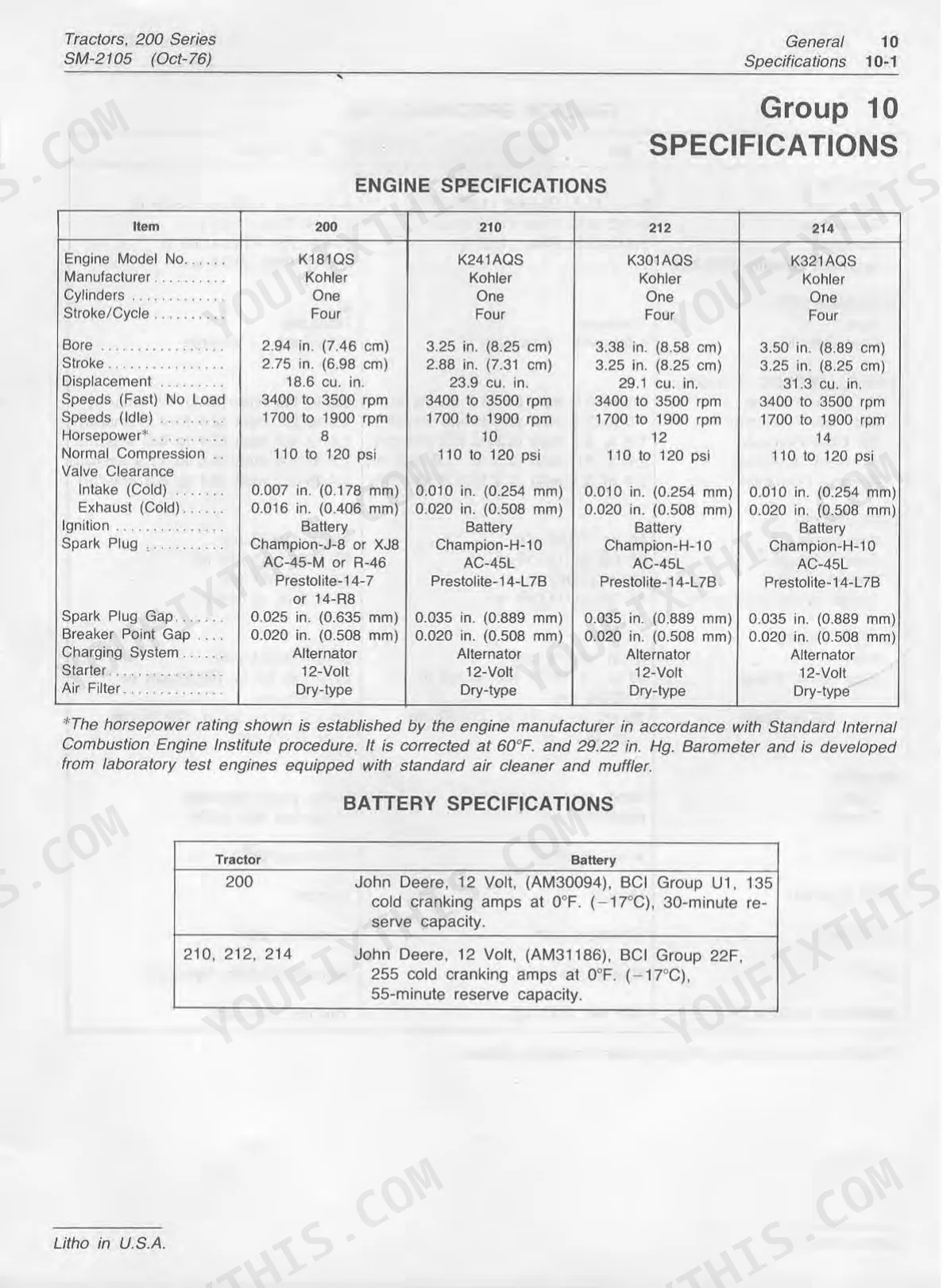

| Spark Plug Gap | 0.035 in. (0.889 mm) | p. 6 |
| All Models | ||
| Air Filter | Dry-type | p. 6 |
| Clean Fuel Strainer | 20-2 | p. 4 |
| Repacking PTO Clutch Bearing | 15-4 | p. 4 |
| Transaxle | 3-1/2 U.S. Pints (1.65 l) | p. 10 |
| Idle mixture needle | 2 turns | p. 96 |
| High-speed mixture needle | 2-1/2 turns | p. 96 |
| Spark Plug Gap K181QS Engine | 0.025 in. (0.6350 mm) | p. 72 |
| Spark Plug Gap K241AQS, K301AQS and K321AQS Engines | 0.035 in. (0.8890 mm) | p. 6 |
| 200 | ||
| Crankcase | 2-1/2 U.S. Pints (1.18 l) | p. 10 |
| 210, 212, 214 Tractors | ||
| Spark plug (cold) | 27 ft-lbs (36 Nm) | p. 74 |
John Deere 200, 210, 212, 214 Common Problems This Manual Covers

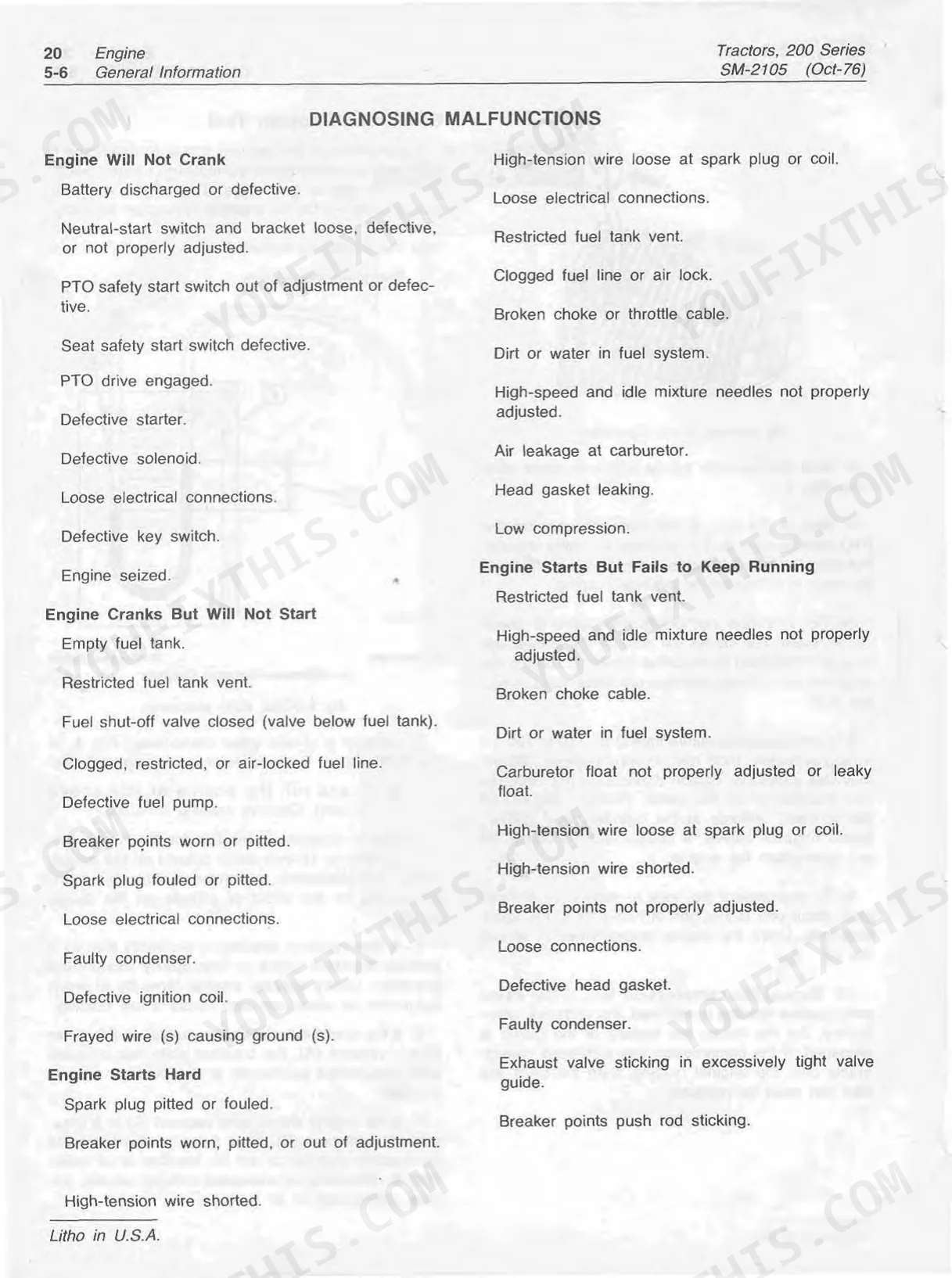

John Deere 200 Series tractor engine misses and lacks acceleration, bogs down under load
Check the fuel system diagnosis chart on page 76 for poor acceleration symptoms. Remove and clean the fuel strainer screen, then verify idle mixture needle is set to 2 turns open and high-speed mixture needle to 2-1/2 turns open per the carburetor specs on page 96. Test for a lean condition before replacing the strainer element.
Manual Section: Fuel System General Information and Diagnosis p. 76Excessive black exhaust smoke with fuel smell, engine runs rich at idle and load
Turn the high-speed mixture needle to the 2-1/2 turn factory setting listed on page 96, then adjust the idle mixture needle to 2 turns open. Set idle speed to 1700 to 1900 rpm on page 18 with the throttle at low idle. Inspect the air cleaner element for oil saturation and replace if clogged.
Manual Section: Fuel System General Information and Diagnosis p. 96Oil leaking from engine, transaxle, or hydraulic system after hours of operation
Check the hydraulic system diagnosis chart on page 188 for external leakage sources around fittings, cylinder rod seals, and the control valve. Inspect the transaxle case and drain plug for seepage, then refill to the 3-1/2 U.S. pint (1.65 L) capacity listed on page 10. Torque loose fittings and replace any cracked gaskets found.
Manual Section: Hydraulic System Diagnosis and Malfunctions p. 188Engine runs rough or won't start, cranks fine but fails to catch
Check the engine diagnosis section on page 20 for cranks-but-no-start conditions. Clean or replace the dirty air filter element and clear the crankcase breather of debris. Gap the spark plug to 0.025 in. (0.635 mm) on the K181QS engine per page 72, or 0.035 in. (0.889 mm) on K241, K301, and K321 engines.
Manual Section: Engine General Information and Diagnosis p. 20PTO clutch bearing fails or engages poorly after extended mower or attachment use

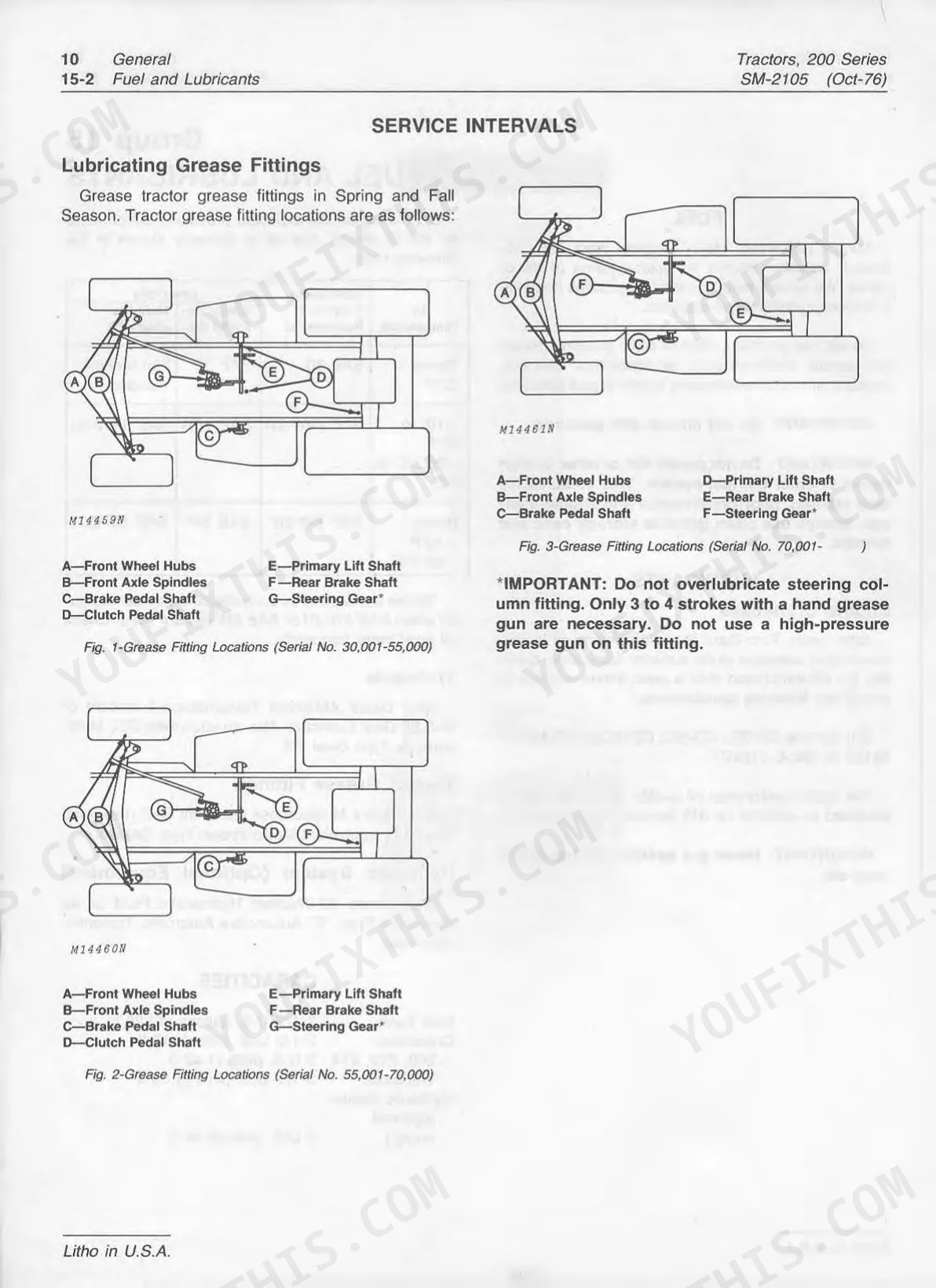

Inspect the PTO clutch bearing for dryness, noise, or slow engagement under load. Repack the bearing with grease per the maintenance schedule interval on page 11, greasing every 15 hours or 4 times per season. Check the clutch linkage adjustment in the Power Train section starting page 142 and adjust for full engagement without slippage.
Manual Section: Power Train - Group 5 General Information p. 142Frequently Asked Questions
How do I adjust the PTO clutch on a John Deere 212?
To adjust the PTO clutch, first adjust the length of the PTO link (G) so the PTO lever points forward and the toggle (A) is overcenter approximately 1-1/2 inches (38.10 mm) or 1/8-inch (3.175 mm) forward of parallel. Then, adjust the fulcrum bolt (C) to a preliminary setting of 2-1/2 inches (63.50 mm) from the back of the lock nut (B) to the inside of clutch arm (D). Finally, adjust the PTO brake (J) for a 1/32-inch (0.794 mm) gap between the brake pad and the PTO drive sheave (K) with the PTO engaged. p. 184
What are the torque specifications for the spark plug on a John Deere 214?
When installing a new spark plug, torque it to 27 ft-lbs (36 Nm). This ensures proper seating and operation. p. 116
How do I adjust the engine points on a John Deere 200 series tractor?
To adjust the breaker points, rotate the engine until the "T" mark on the flywheel aligns with the indicator. Then, use a feeler gauge to measure the gap, which should be 0.020-inch (0.508 mm) when the points are fully open. If adjustment is needed, loosen the locking screw and move the screwdriver in the V-slot until the proper gap is obtained, then securely tighten the locking screw. p. 16
How do I adjust the hydraulic lift on a John Deere 212?
To adjust the electric lift, pull the control lever all the way to the rear. After the lift is fully raised, turn the key switch off. If the lift solenoid clicks, loosen the stop spacer bolt, pull the control lever to the rear, then move the lever forward until the key switch can be turned on and off without activating the lift solenoids. Finally, move the spacer forward until it touches the control switch arm and tighten. p. 133
How quickly can I access this John Deere 200 & variants manual after buying?
Instant PDF download. You get the full 246-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this John Deere 200 & variants Service Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

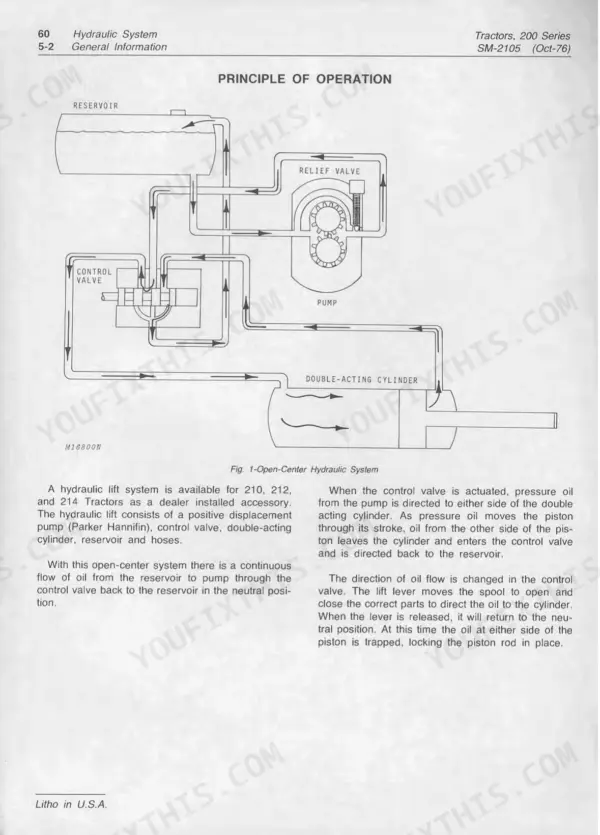

Does this John Deere 200 & variants Service Manual cover the hydraulic system?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
