Part of the John Deere Repair Manuals.

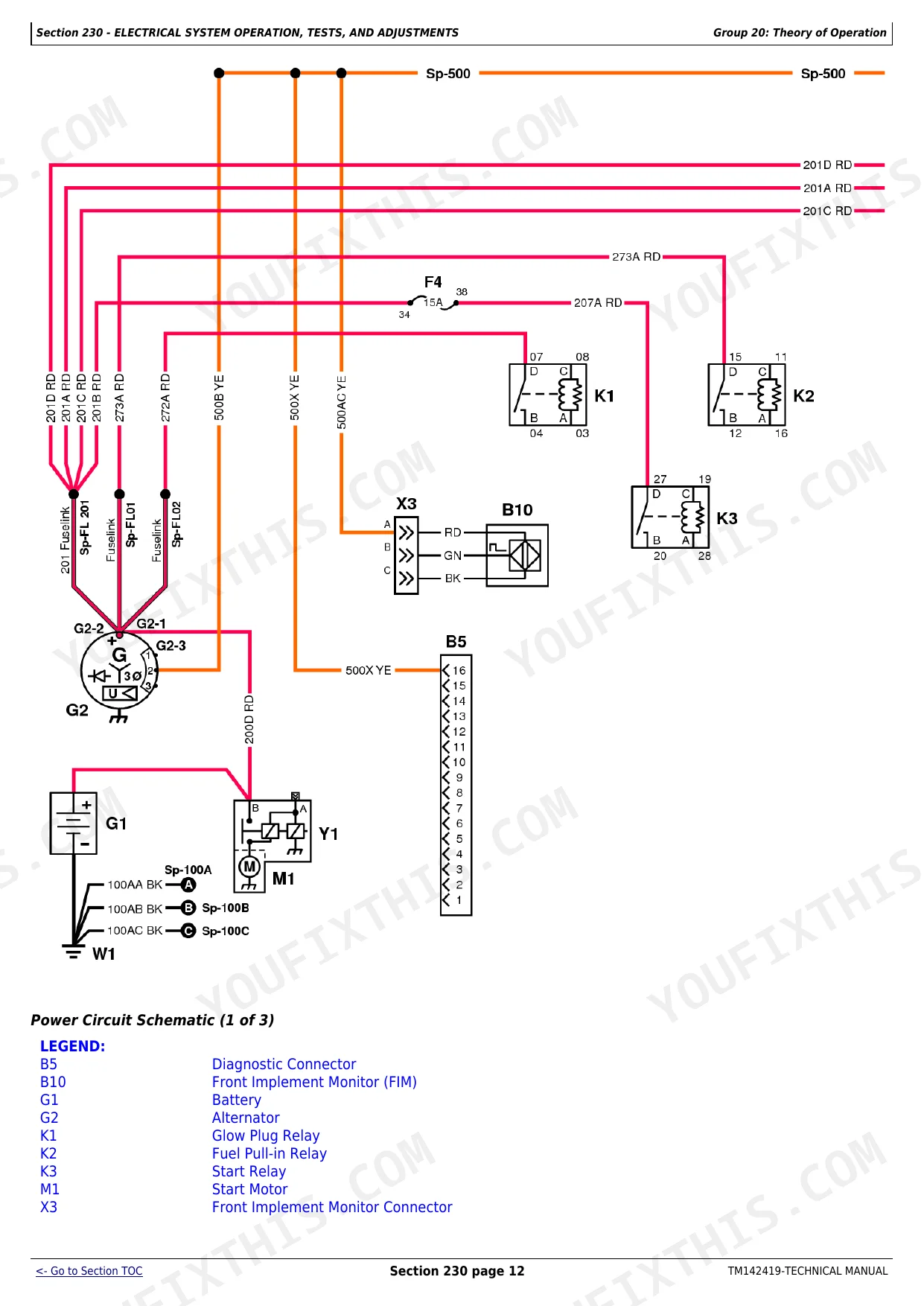

All 970 pages of this John Deere X750, X754, and X758 Technical Manual (OEM #TM142419) are aimed at one goal: returning your Select Series tractors to exact factory condition. Inside you get full electrical schematics with EEC theory of operation, wiring harness routing, and connector pinouts; a hydraulic section covering the transaxle, HFWD, PTO, and attachment circuits; plus a thorough troubleshooting section spanning the engine, power train, steering, and brakes. Page after page of torque specifications and calibrated test values back every procedure. Fill the engine to 3.2 L (3.4 qt) with filter, confirm displacement at 904 cm³ for the 3TNM72 or 993 cm³ for the 3TNM74F, and keep your 19.7 L fuel tank topped before any cold-start diagnosis. No more chasing electrical faults with a test light and a guess. Bookmarked and searchable; pull it up on your tablet, walk to the machine, and start wrenching.
What's Inside This John Deere X750, X754, X758 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-48 | Group 05 - Safety, Group 10 - General Specifications, Group 20 - Fuel, Lubricants, And Coolants, Group 30 - Machine Specifications |
| Engine Repair | 49-152 | Group 10 - Engine, Group 20 - Cooling System, Group 30 - Fuel and Air System |
| Electrical Repair | 153-197 | Group 10 - Battery, Starter, And Alternator, Group 20 - Wiring Harnesses |
| Power Train Repair | 198-321 | Group 10 - Controls and Charge Pump, Group 20 - Transaxle, Group 30 - Differential, Group 40 - Hfwd, Group 50 - PTO Repair |
| Steering and Brake Repair | 322-351 | Group 10 - Steering, Group 20 - Brakes |
| Hydraulics Repair | 352-369 | Group 10 - Hydraulics |
| Attachment Repair | 370-425 | Group 10 - Attachments |
| Miscellaneous Repair | 426-448 | Group 10 - Miscellaneous |
| Operator's Station Repair | 449-458 | Group 10 - Operator's Station, Group 20 - Component Location |
| Engine Operation, Tests, and Adjustments | 459-539 | Group 10 - Component Location, Group 20 - Theory of Operation, Group 30 - Diagnosis, Group 40 - Tests and Adjustments |
| Electrical System Operation, Tests, and Adjustments | 540-759 | Group 10 - Component Location, Group 20 - Theory of Operation, Group 25 - Theory of Operation, Eec, Group 30 - Schematics, Group 40 - Diagnosis, Group 50 - Tests and Adjustments |
| Power Train Operation, Tests, and Adjustments | 760-816 | Group 10 - Hydrostatic Transmission Component Location, Group 20 - Hydrostatic Drive Theory of Operation, Group 30 - Transmission and PTO Diagnosis, Group 40 - Drive System Tests and Adjustments |
| Steering and Brake Operation, Tests, and Adjustments | 817-874 | Group 10 - Steering System Component Location, Group 20 - Steering and Brake Theory of Operation, Group 30 - Brake and Steering Diagnosis, Group 40 - Steering and Brake Tests and Adjustments |
| Hydraulic System Operation, Tests, and Adjustments | 875-931 | Group 10 - Component Location, Group 20 - Theory of Operation, Group 30 - Schematics, Group 40 - Diagnosis, Group 50 - Tests and Adjustments |
| Attachment Operation, Tests, and Adjustments | 932-966 | Group 10 - Component Location, Group 20 - Diagnosis, Group 30 - Tests and Adjustments |
| Service Tools and Kits | 967-970 | Essential or Recommended Tools, Service Equipment and Tools |

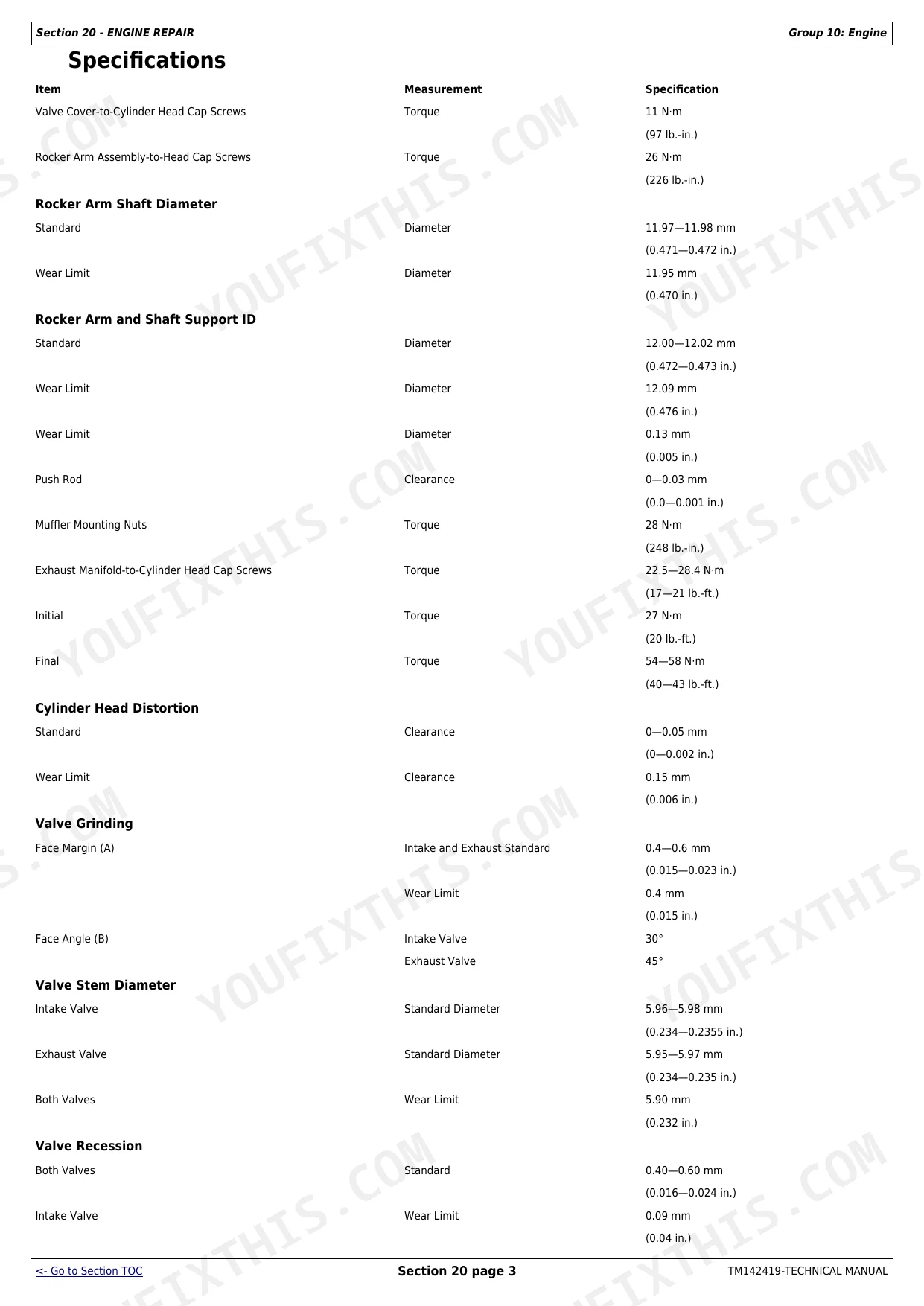

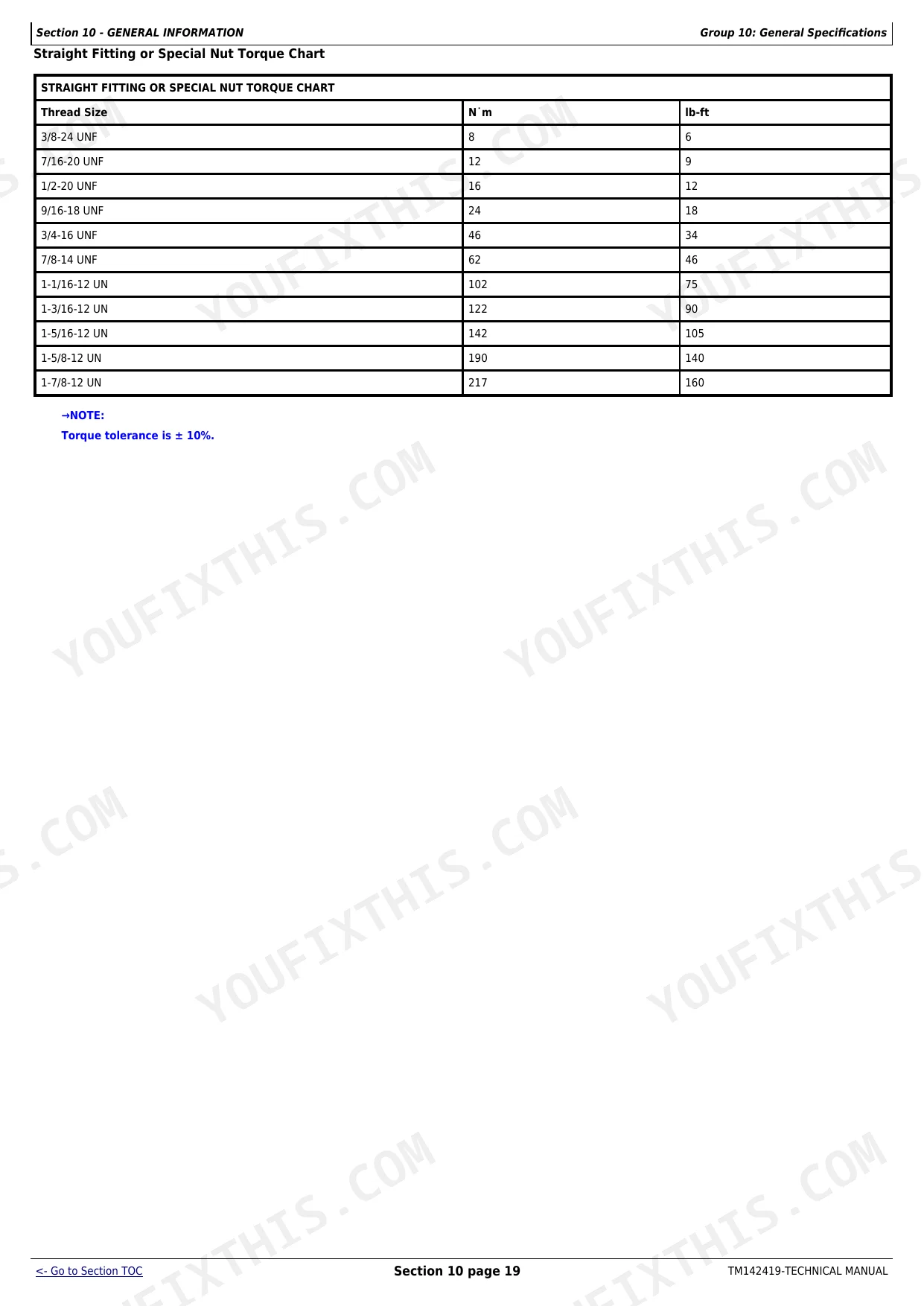

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Oil Capacity (with filter) | 3.2 L (3.4 qt) | p. 45 |
| Engine Oil Capacity (with filter) | 3.2 L (3.4 qt) | p. 45 |
| Fuel Tank Capacity | 19.7 L (5.2 gal) | p. 45 |
| Battery (Domestic) | 500 CCA | p. 45 |
| Hydraulic System Oil Capacity | 11.3 L (12.0 qt) | p. 45 |

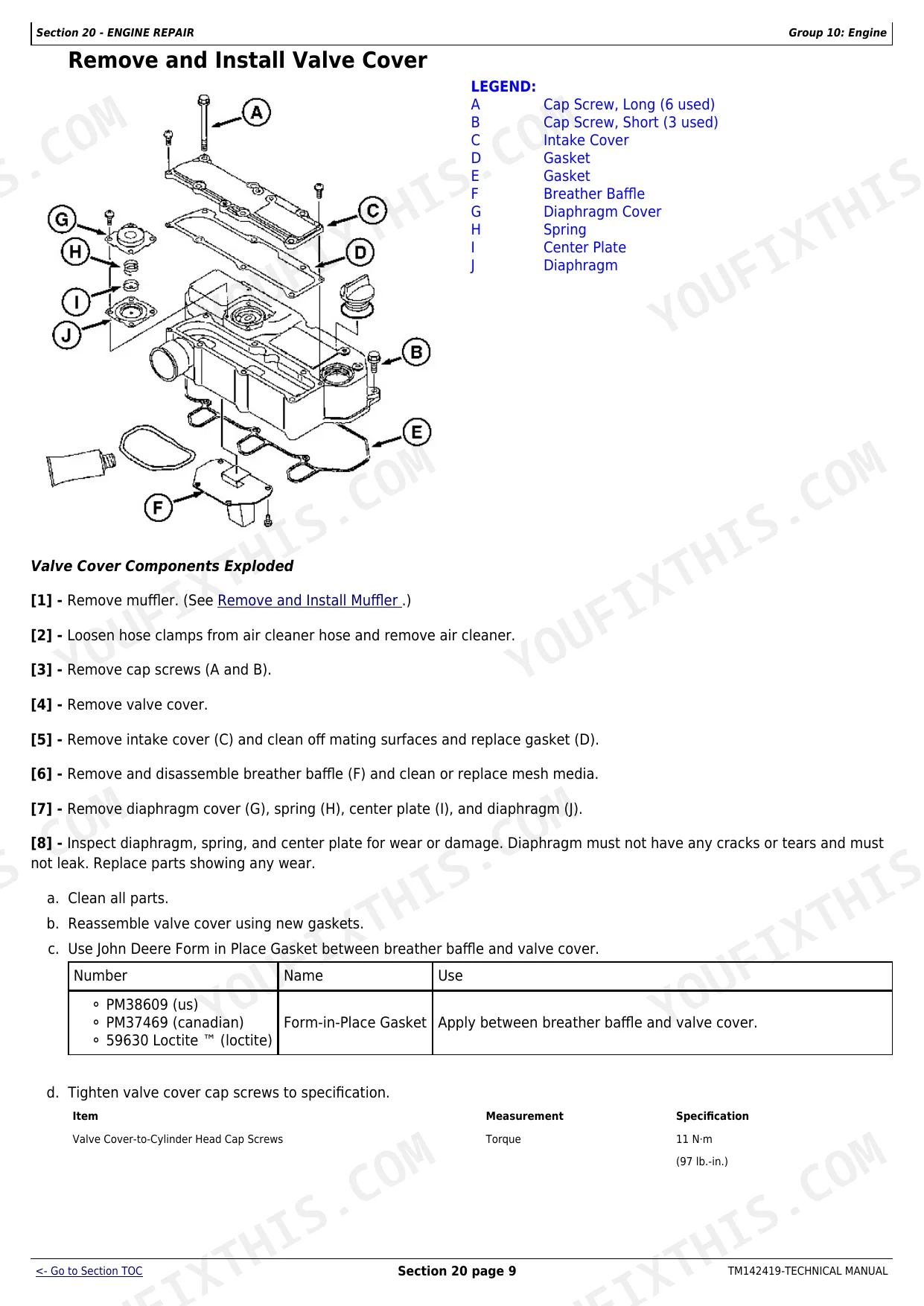

| Valve Cover-to-Cylinder Head Cap Screws Torque | 11 N·m (97 lb.-in.) | p. 51 |
| Connecting Rod Cap Screws Torque | 22.6-27.5 N·m (16.6-20.2 lb.-ft.) | p. 54 |
| Crankshaft Main Bearing Clearance | 0.03-0.06 mm (0.001-0.002 in.) | p. 54 |
| Piston Ring Groove Side Clearance Top Piston Ring | 0.06-0.10 mm (0.002-0.004 in.) | p. 54 |
| Steering Wheel Nut Torque | 34-41 N·m (25-30 lb.-ft.) | p. 322 |
| 3TNM72 | ||
| Engine Displacement | 904 cm^3 (56.2 in^3) | p. 45 |
| 3TNM74F | ||
| Engine Displacement | 993 cm^3 (60.6 in^3) | p. 45 |
John Deere X750, X754, X758 Common Problems This Manual Covers
John Deere X754 engine running hot and coolant temperature spiking during heavy mowing
Inspect the air intake screen near the deck discharge. Clean off all grass and debris blocking airflow. Check the diagnostic procedures. Verify coolant levels and ensure the engine oil is filled to the 3.2 L (3.4 qt) capacity shown on page 45.
Manual Section: Engine Diagnostic ProceduresFresh oil puddle under engine block immediately following routine lube and filter service p. 49
Inspect the engine block mating surface. Remove the new filter and check for an old rubber gasket stuck to the base. Clean the surface completely. Install a new filter and fill the crankcase with exactly 3.2 L (3.4 qt) of oil as specified on page 45.

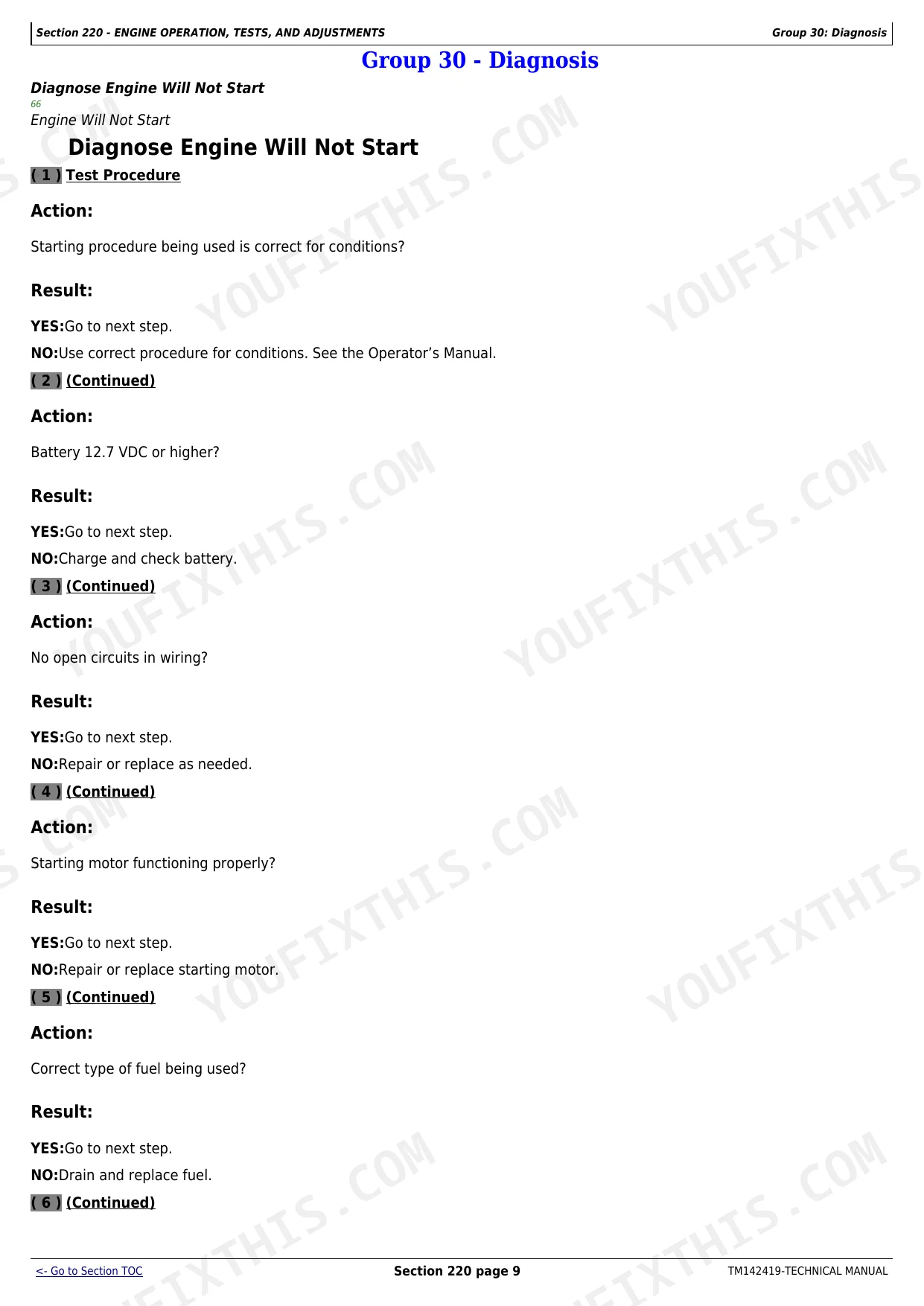

Manual Section: Engine RepairEngine cranks but will not start after running out of fuel or replacing sediment bowl
Stop cranking the starter motor. Locate lever D on the fuel filter assembly and manually prime the system. Pump the lever until you feel resistance. Check the fuel tank to confirm it has up to 19.7 L (5.2 gal) of clean diesel.
Manual Section: Engine Diagnostic ProceduresHeavy vibration from mower deck and loud rattling noise when engaging the mid-PTO p. 371
Inspect the spindle housing and blades. Remove the deck and check for bent or damaged cutting edges. Torque all mower blade bolts to exactly 67.8 N·m (50 lb.-ft.) as instructed on page 371. Replace any severely worn drive belts or tension springs.
Manual Section: Attachment RepairFrequently Asked Questions
How to reset John Deere X750 fuel system after filter change
After a fuel filter change, the fuel system can be reset by bleeding air. Pump the primer lever on the side of the fuel transfer pump for at least 30 seconds to purge air from the fuel system. This action is usually sufficient as the machine incorporates a self-bleeding fuel system.
John Deere X750 overheating error code reset procedure
For error code E1023 (PTO Clutch Disabled with Engine Overtemp), the control unit response is that the PTO clutch is disabled until the engine cools down. The recovery action is to allow the engine to cool. To generally clear diagnostic trouble codes (DTCs), hold the RIO switch and turn the key to the OFF position, which will cause all segments to flash three times before going blank, confirming the codes are cleared.
How to reset John Deere X758 error code after cleaning clogged screen
To reset an error code after cleaning a clogged screen, first ensure the condition causing the code is resolved, such as allowing the engine to cool for E1027. Then, to clear diagnostic trouble codes (DTCs), hold the RIO switch and turn the key to the OFF position. This action will cause all segments to flash three times before going blank, confirming the codes are cleared.
How do you fix john Deere X754 engine running hot and coolant temperature spiking during heavy mowing?
Inspect the air intake screen near the deck discharge. Clean off all grass and debris blocking airflow. Check the diagnostic procedures. Verify coolant levels and ensure the engine oil is filled to the 3.2 L (3.4 qt) capacity shown on page 45.
Is this John Deere X750, X754, X758 Technical Manual a digital download?
This is a 970-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

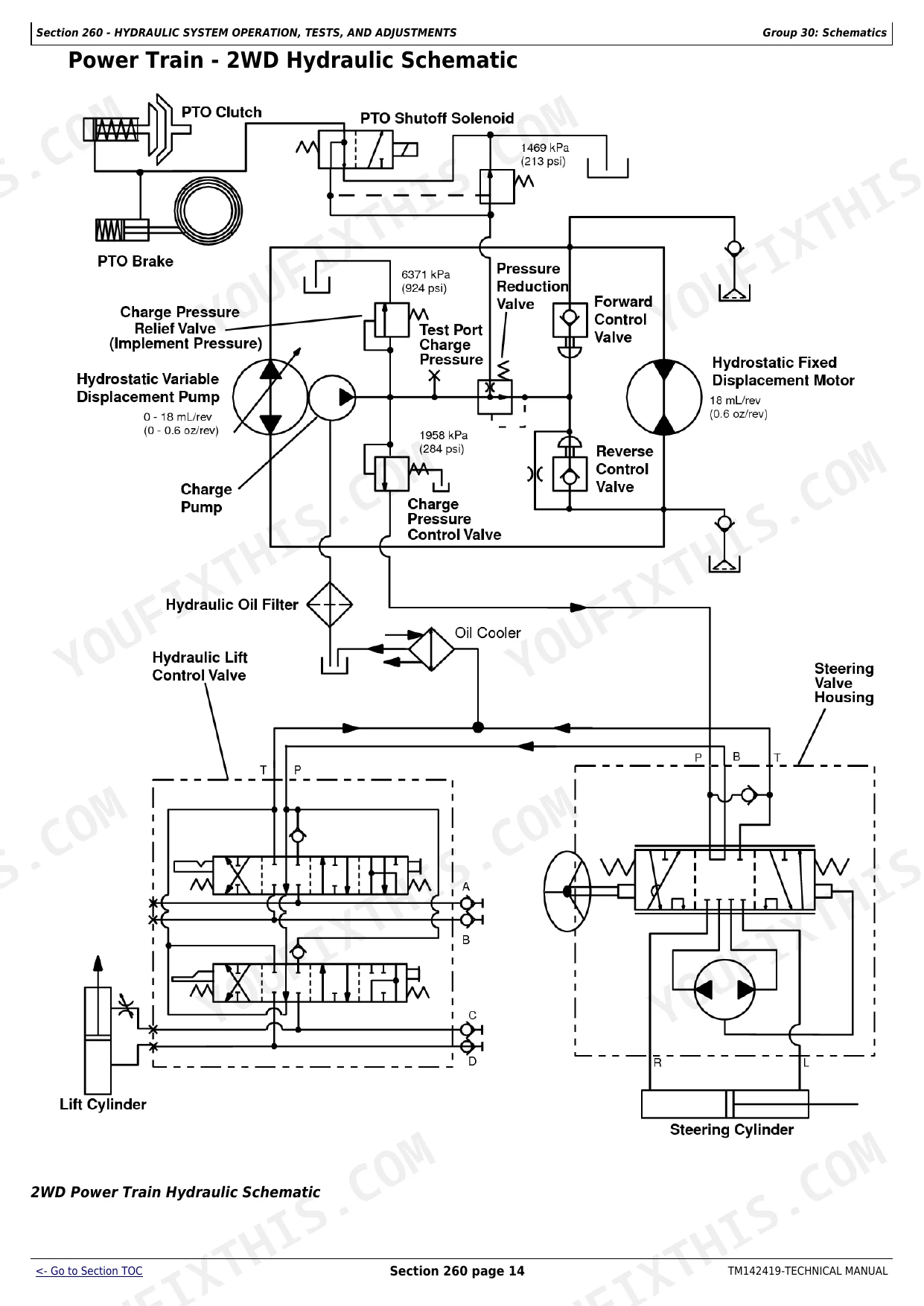

Does this John Deere X750, X754, X758 manual cover the hydraulic system?
A hydraulic system diagram for the John Deere X750, X754, X758 is included.
