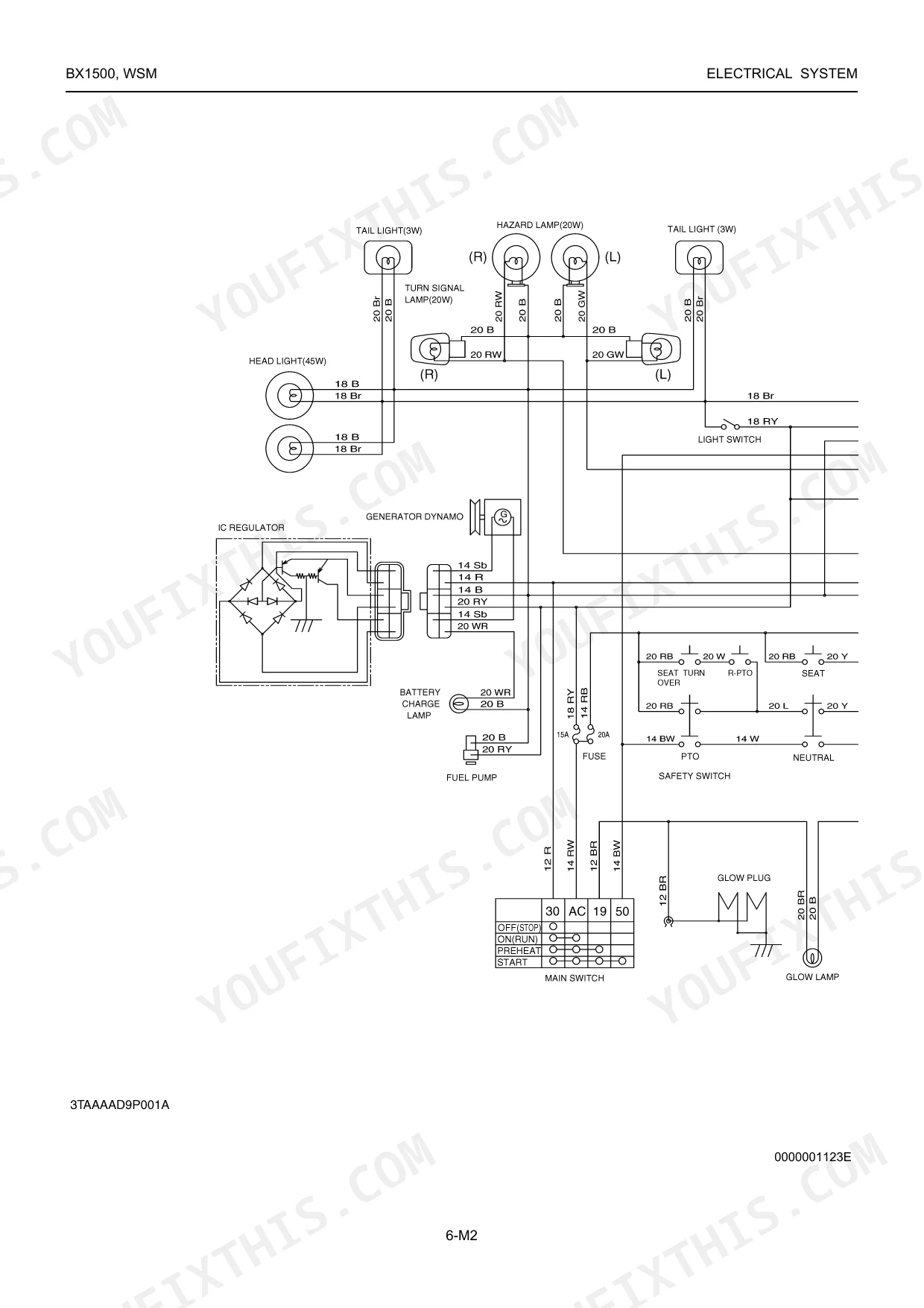

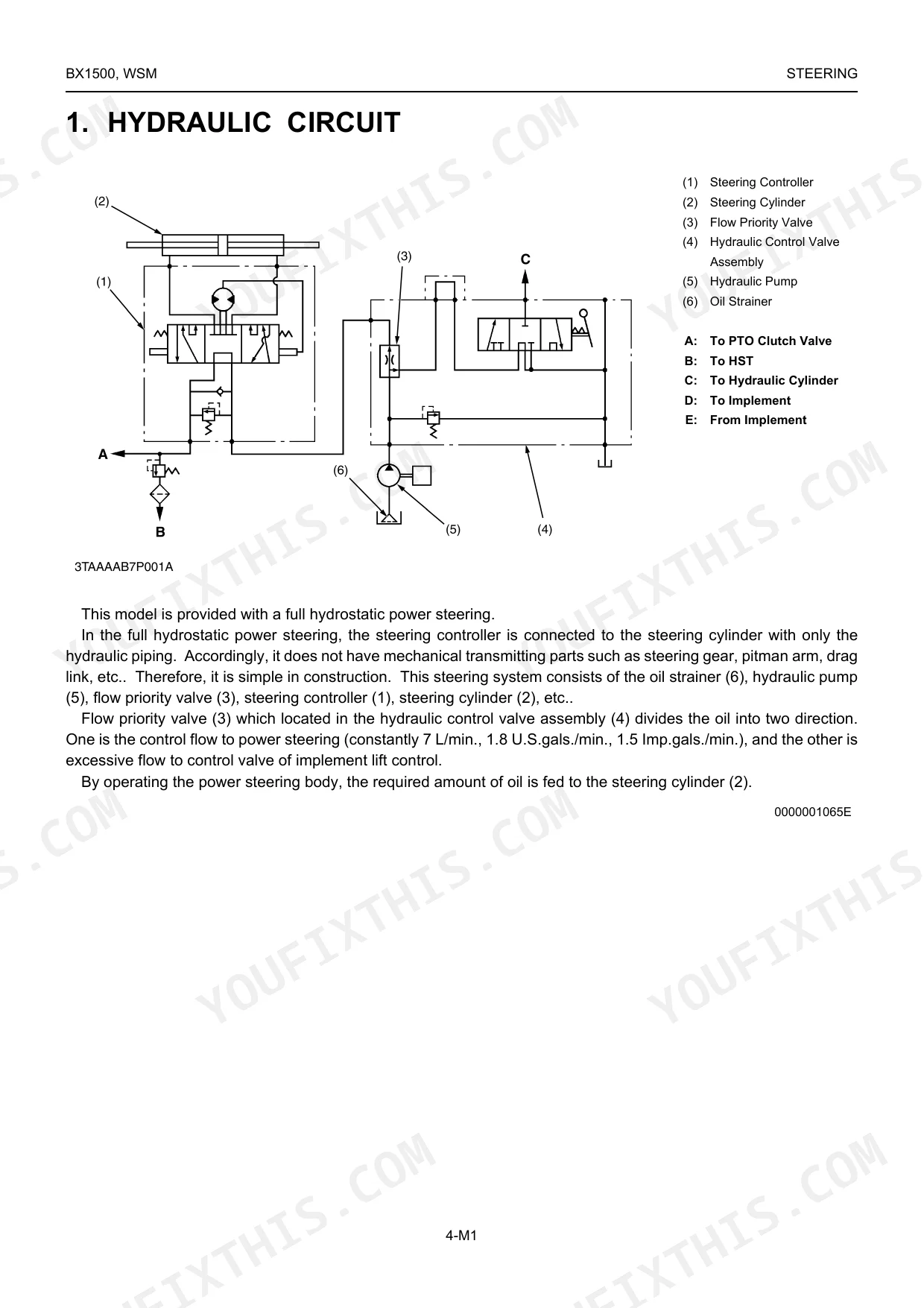

Need factory specs for your Kubota BX1500? This 277-page workshop/service manual (OEM #97897-13060) covers the complete compact tractor: engine, transaxle, hydraulic system, front axle, steering, and electrical. Hydraulic schematics trace full circuit routing for steering and lift; wiring diagrams map starting, charging, and lighting; 30 pages of exploded views span every major assembly. Troubleshooting runs 15 pages system by system, tightening torque tables fill 9, and disassembly and reassembly procedures cover 65. Fill the transmission to exactly 10.1 L of Kubota SUPER UDT fluid, set charge relief valve pressure to 686.5 kPa, and confirm PTO clutch operating pressure at 961 kPa. Your machine is parked and the clock is running. Bookmarked by section and searchable by keyword, so pull it up on your tablet and start wrenching.
What's Inside This Kubota BX1500 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 3-5 | - |
| Safety Decals | 6-7 | - |

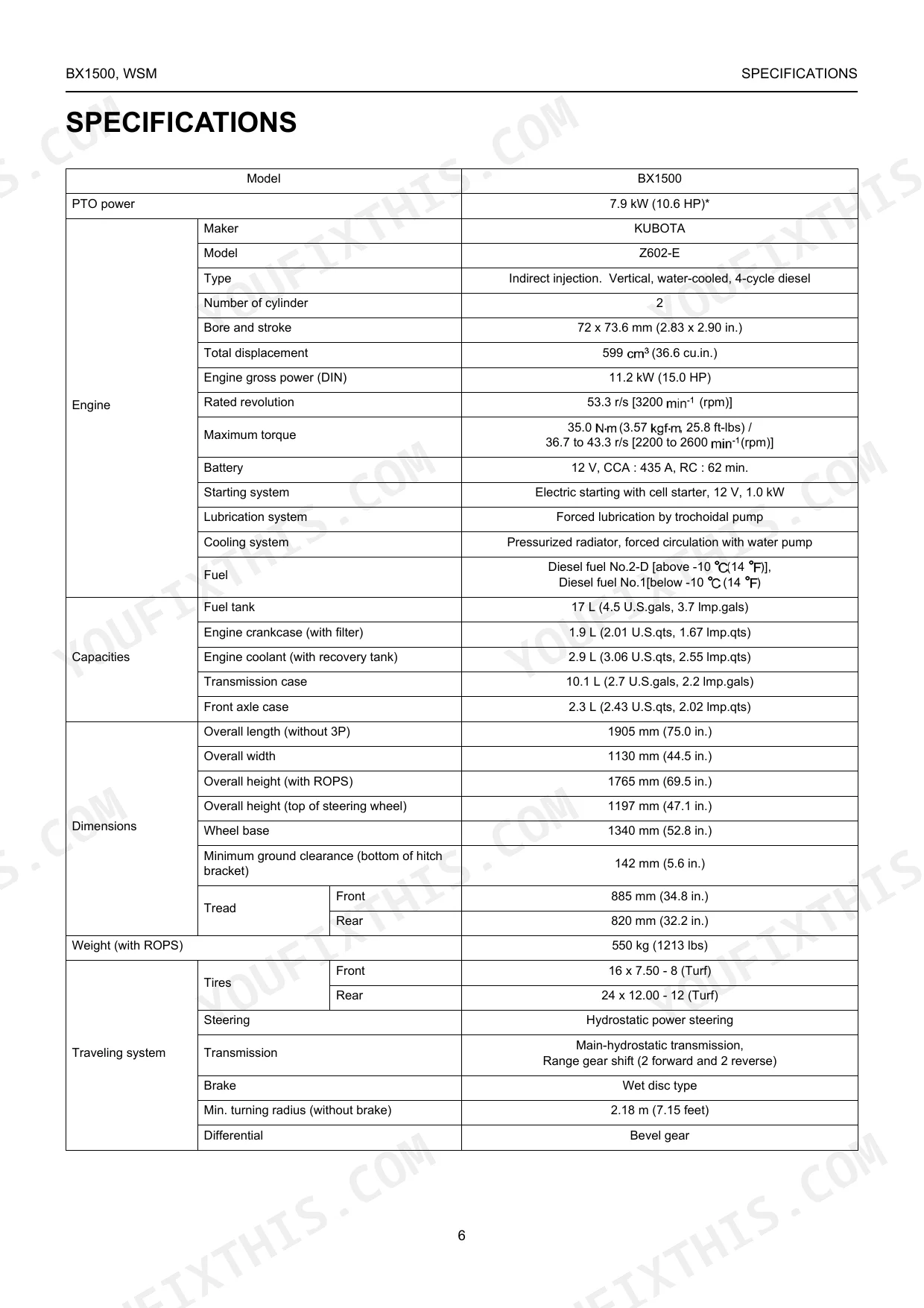

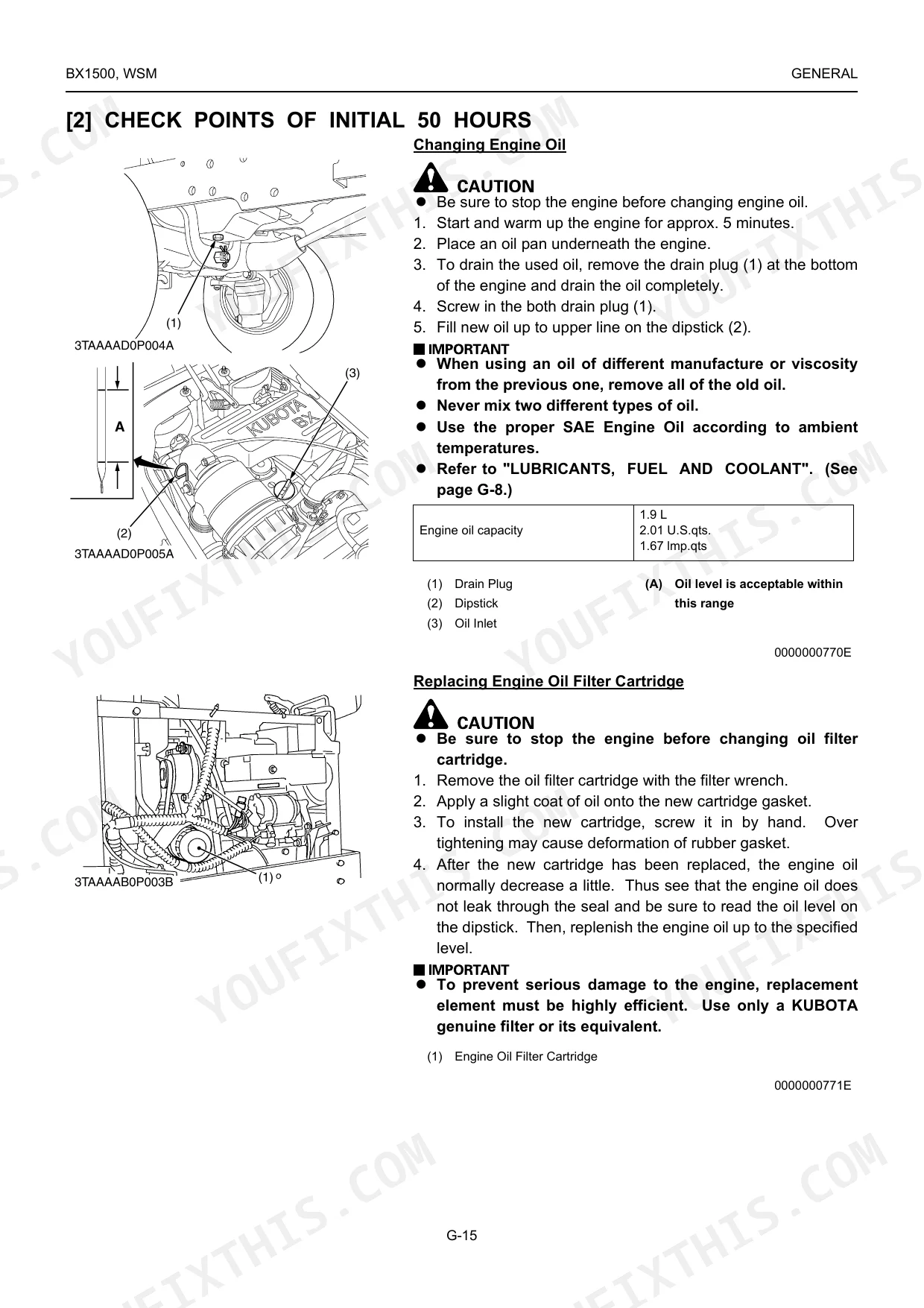

| Specifications | 8-9 | Engine, Capacities, Dimensions, Traveling system, Hydraulic system, PTO system |
| Travelling Speeds | 10 | Tire size (Rear), Range gear shift lever, Forward, Reverse |
| Dimensions | 11 | Overall length, Overall width, Overall height, Wheel base, Minimum ground clearance, Tread |
| G General | 12-58 | Tractor identification, General precautions, Lubricants, fuel and coolant, Tightening torques, Maintenance check list, Special tools |

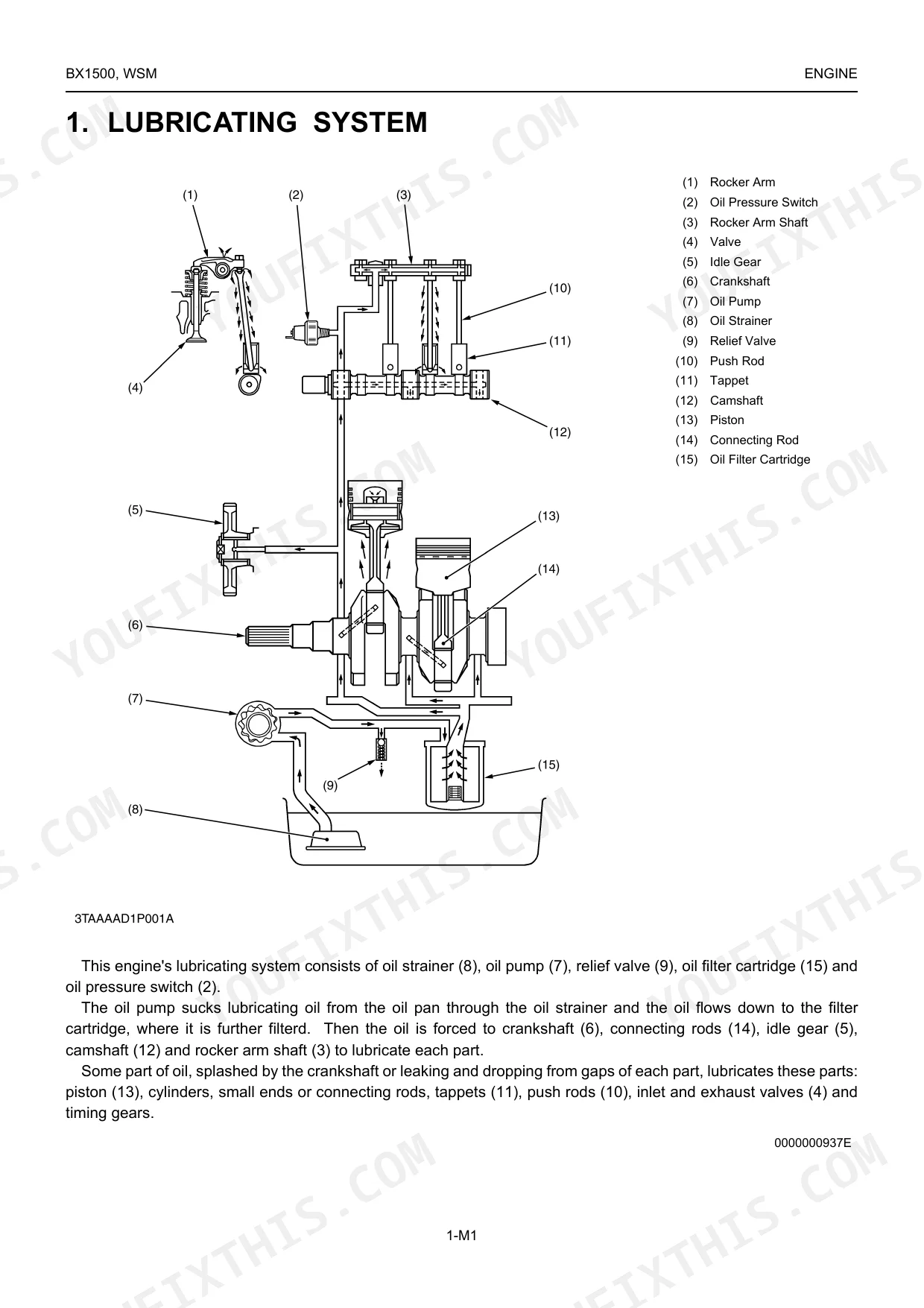

| 1 Engine | 59-120 | Lubricating system, Cooling system, Fuel system |
| 2 Transaxle | 121-176 | Hydrostatic transmission, Range gear shift section, Front wheel drive section, Differential gear section, Brake section, PTO system |
| 3 Front Axle | 177-195 | Front Axle Case, Bevel Gear Case, Front Gear Case, Differential Gear Assembly, Power Steering Cylinder, Bevel Pinion Shaft, Axle Shaft |
| 4 Steering | 196-210 | TROUBLESHOOTING, SERVICING SPECIFICATIONS, TIGHTENING TORQUES, Relief Valve, Power Steering Controller, Power Steering Cylinder |
| 5 Hydraulic System | 211-238 | Troubleshooting, Servicing Specifications, Tightening Torques, Hydraulic Control Valve, Pump and Cylinder, Mower Lift Linkage |
| 6 Electrical System | 239-276 | Troubleshooting, Servicing Specifications, Tightening Torques, Battery, Starting System, Charging System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General Use Screws, Bolts and Nuts (M6) | 7.85 to 9.31 N·m | p. 22 |
| Charge Relief Valve Setting Pressure | 686.5 kPa | p. 144 |
| PTO Clutch Operating Pressure | 961 kPa | p. 144 |
| Transmission case fluid type | KUBOTA SUPER UDT fluid* | p. 21 |
| Transmission case fluid capacity | 10.1 L | p. 21 |
| Brake Pedal Free Travel (Factory spec.) | 20 to 30 mm | p. 36 |
| PTO Brake Disc Thickness (Factory spec.) | 3.20 to 3.40 mm | p. 145 |
| Workshop Manual Code No. | 97897-13060 | p. 277 |
| Publication Date | November 2002 | p. 2 |
| Engine Oil Capacity (with filter) | 1.9 L (2.01 U.S.qts, 1.67 Imp.qts) | p. 8 |
| Transmission Case Capacity | 10.1 L (2.7 U.S.gals, 2.2 Imp.gals) | p. 8 |
| Front Axle Case Capacity | 2.3 L (2.43 U.S.qts, 2.02 Imp.qts) | p. 8 |
Kubota BX1500 Common Problems This Manual Covers
Kubota BX1500 hydrostatic transmission whines under load, tractor barely moves in high range p. 144
Drain and refill the transmission case with Kubota Super UDT fluid; capacity is 10.1 L (page 21). Swap the hydraulic filter if you're past 200 hours (page 24). Verify charge relief valve setting pressure hits 686.5 kPa (page 144). Persistent whining with low pressure points to internal pump wear.
Manual Section: Transaxle TroubleshootingBrake pedal has too much free travel or feels spongy, braking inconsistent p. 36
Measure brake pedal free travel; factory spec is 20 to 30 mm (page 36). If travel exceeds that range, adjust the brake linkage per the brake section starting at page 121. Then measure brake disc thickness against the 3.0 mm allowable limit and friction plate at 1.52 mm minimum (page 145).

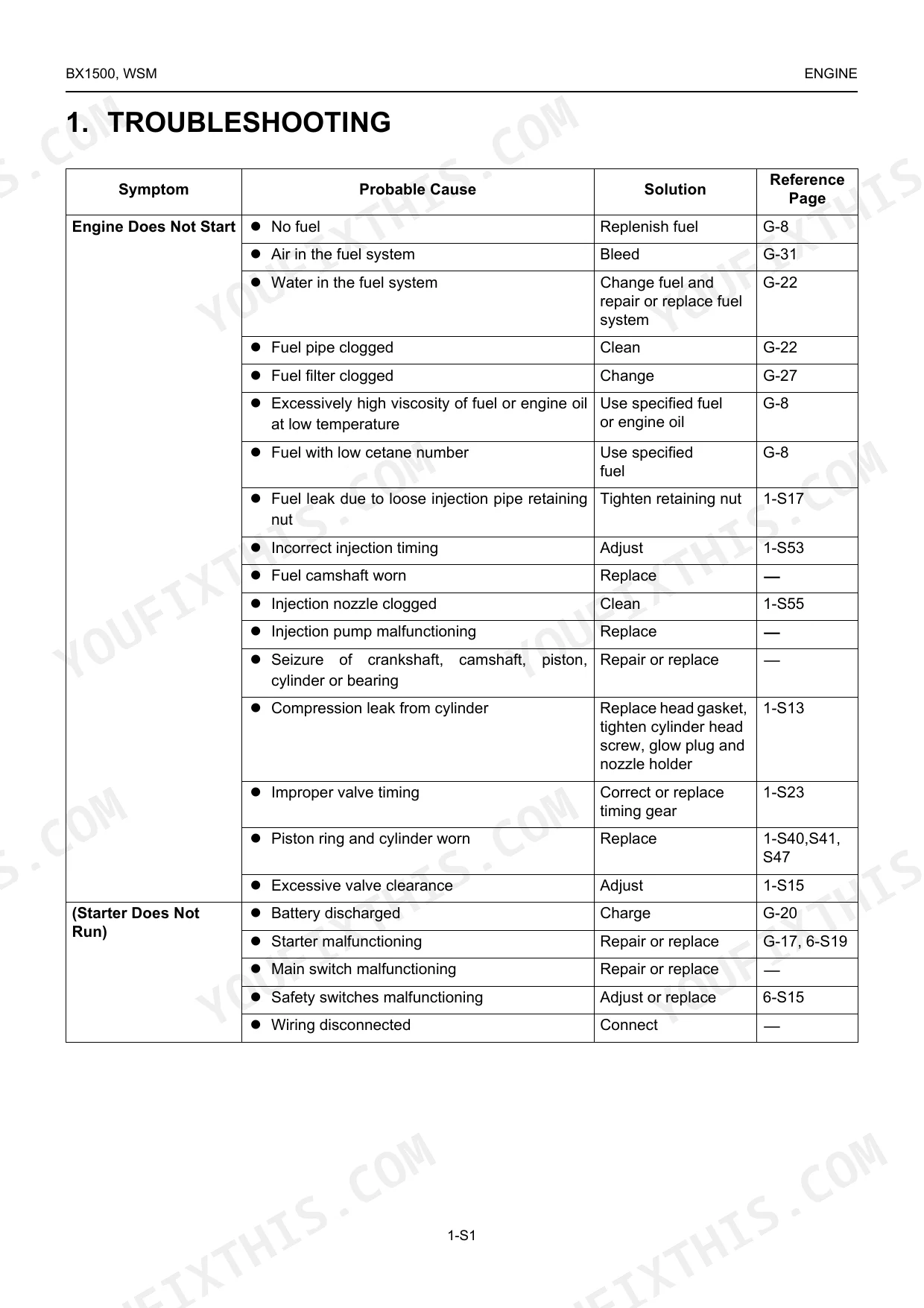

Manual Section: Transaxle TroubleshootingEngine cranks slowly, won't start, no fire on cold or warm engine p. 65
Check battery voltage and fuel shutoff valve position first. Work through the engine no-start procedure. After you get it running, verify oil pressure at rated speed reads 196 to 441 kPa (page 71). Cold-start hard cranking often traces back to valve clearance out of the 0.145 to 0.185 mm cold spec.
Manual Section: Engine TroubleshootingThree-point implement won't rise when hydraulic lever is operated, lift circuit unresponsive p. 222
Verify hydraulic fluid level first; pump rated flow is 21.0 L/min (page 8). Step through the implement-does-not-rise sequence in the hydraulic troubleshooting section starting on page 211. If the pump sounds rough or flow is weak, measure gear-to-casing clearance; the allowable limit is 0.15 mm (page 222).
Manual Section: Hydraulic System TroubleshootingDrive power fades progressively through a work shift, tractor gets weaker as it warms up p. 144
Inspect transmission fluid level and condition; top off to 10.1 L with Kubota Super UDT only (page 21). Replace the filter at 200-hour intervals (page 24). Heat-related fading typically means air ingestion or a failing charge circuit: test relief valve pressure against the 686.5 kPa spec (page 144) with the unit at operating temperature.
Manual Section: Transaxle TroubleshootingFrequently Asked Questions

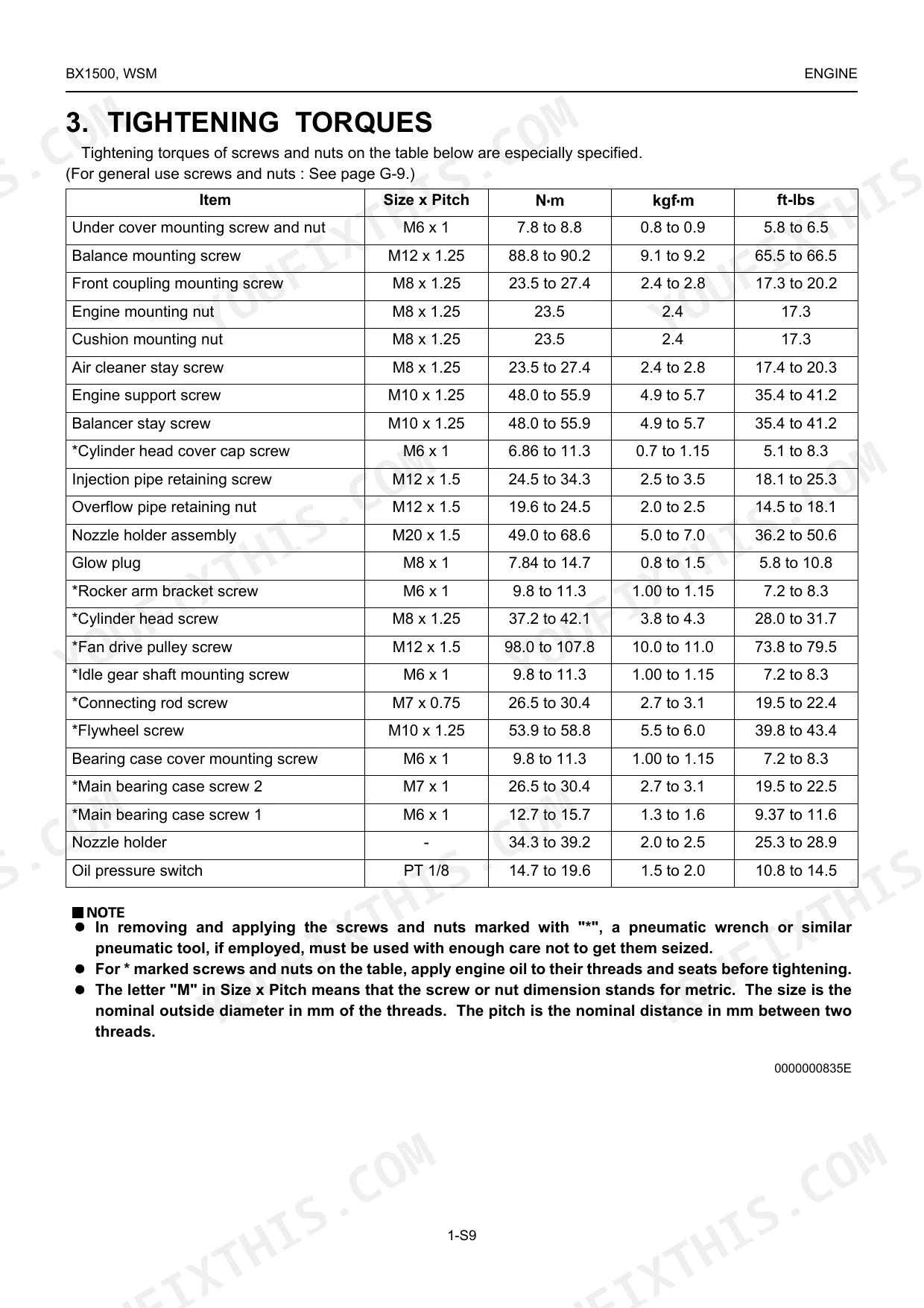

What are the torque specs for a Kubota BX1500?
The manual specifies tightening torques component by component. For general screws, bolts, and nuts, see page G-9: the engine mounting nut (M8 x 1.25), for instance, takes 23.5 N·m (2.4 kgf·m, 17.3 ft-lbs). Torque values for the engine, transaxle, front axle, steering, hydraulic, and electrical systems appear in their respective sections.
Why won't my Kubota BX1500 PTO engage?
A slipping PTO clutch usually traces to low operating pressure, a faulty PTO clutch valve, worn clutch discs or drive plates, or a deformed clutch piston. Start by checking the operating pressure, since a low reading is the first thing to rule out, then repair or replace any worn or deformed components as needed.
Why is my Kubota BX1500 running rough at idle?
Rough running often comes down to fuel and air delivery: a clogged or dirty fuel filter, a clogged air cleaner, a fuel leak at a loose injection pipe retaining nut, a failing injection pump, incorrect nozzle injection pressure, a stuck or clogged injection nozzle, or a faulty governor. Change a dirty fuel filter; clean or replace a clogged air cleaner.
How to reset Kubota BX1500 HST
To adjust the HST neutral spring (speed control pedal), run the engine at low idle (approx. 1500 min⁻¹ (rpm)) and shift the range gear shift lever to HIGH. Move the speed control pedal from forward to reverse and back to neutral, watching for tractor movement. If the pedal returns too slowly, adjust the HST neutral spring setting, keeping length A no more than 40 mm (1.57 in.).
How will I receive this Kubota BX1500 Service Manual?
Instant PDF download: the full 277-page searchable Service Manual lands in your inbox right after payment. Open it on a laptop, tablet, or phone in the shop.
Is this Kubota BX1500 Service Manual printable?
Yes. The PDF carries no DRM restrictions, so print any page or section you need. Works with any standard printer.
Does this Kubota BX1500 Service Manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a native digital PDF, allowing you to search and copy the full text content. All text is crisp and easy to read, ensuring clarity throughout the manual. Diagrams and illustrations are sharp, with clearly readable labels, whether they appear to be vector graphics or high-quality raster images. The pages are clean, free from scan artifacts, stains, or skewed content, presenting a professional and well-maintained appearance. There are no notable blank or filler pages beyond the standard section title pages.
