This Kubota Shop Manual covers the D1005-E4B, D1105-E4B, D1305-E4B, and V1505-E4B diesel engines under Kubota publication 9Y111-07840. It gives owners and independent mechanics the factory service information for these engines, from routine maintenance through full disassembly and rebuild.
The 128-page manual is organized into Information, General, Mechanism, and Servicing. You get engine specifications, a complete maintenance check list by service hour, troubleshooting tables, servicing specifications, tightening torques, and the checking, disassembling, and assembling procedures for the engine.
With documented figures such as valve clearance, injection pressure, cylinder head and connecting rod torque, and oil capacity for each model, this PDF lets you work to Kubota specification whether you are adjusting valves, chasing a no-start, or overhauling a high-hour engine.
What's Inside This Kubota D1005-E4B, D1105-E4B, D1305-E4B, V1505-E4B Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | - | - |
| General | - | Engine Identification (Model Name, Engine Serial Number E4b, Cylinder Number), Maintenance Checklist Including Daily Checks, Initial 50 Hours, Every 50/100/200/400/500 Hours, 1–2 Months, Yearly, 800/1500/3000 Hours, And Every 2 Years, Check and Maintenance Procedures, Special Tools. |
| Mechanism | - | Engine Body (Closed Breather, Half-Floating Head Cover), Governor, Boost Compensator |
| Servicing | - | Troubleshooting, Servicing Specifications, Tightening Torques (Tightening Torques for General Use Screws, Bolts and Nuts, Tightening Torques for Special Use Screws, Bolts and Nuts), Checking, Disassembling and Servicing (Checking and Adjusting, Disassembling and Assembling, Servicing) |

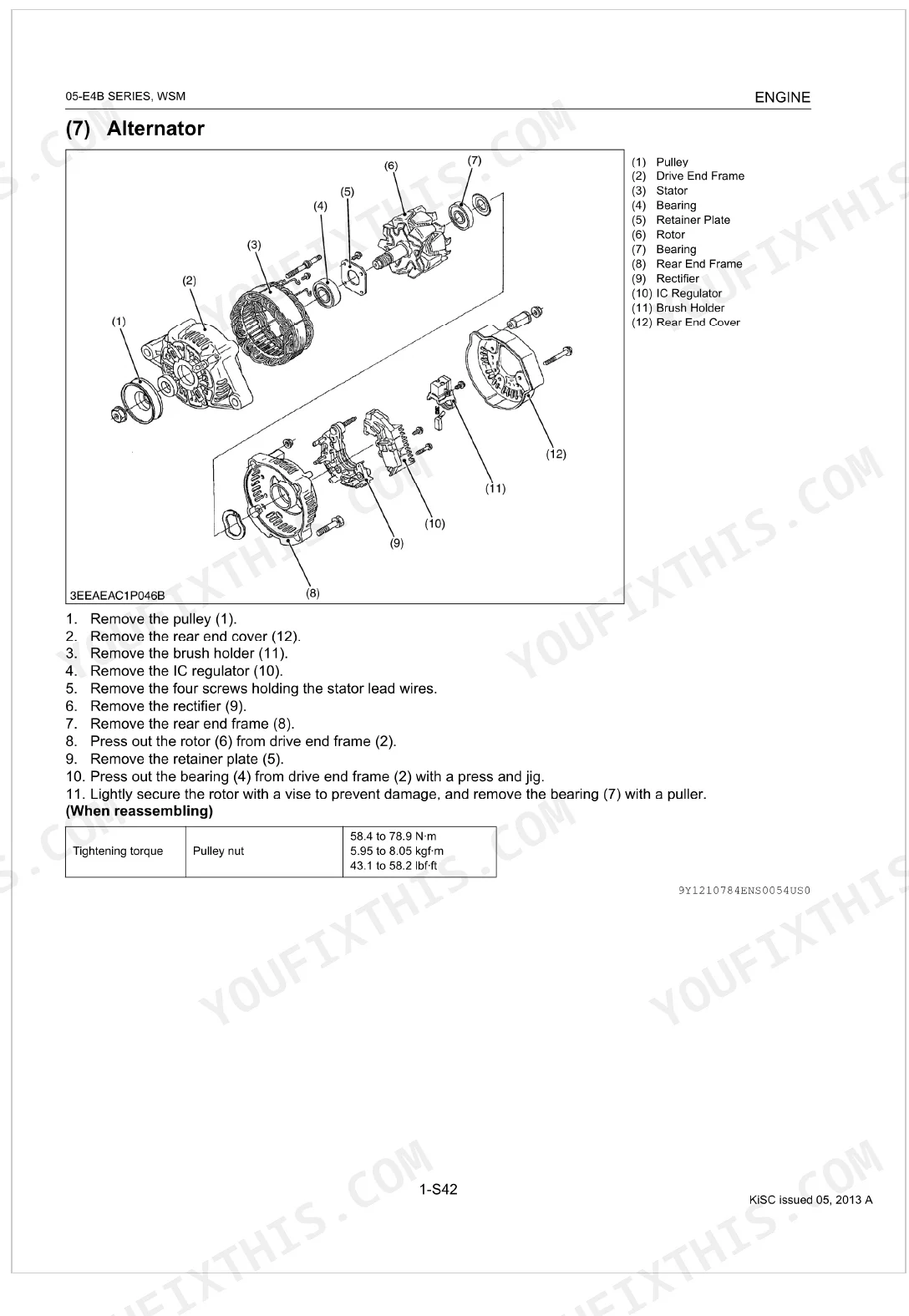

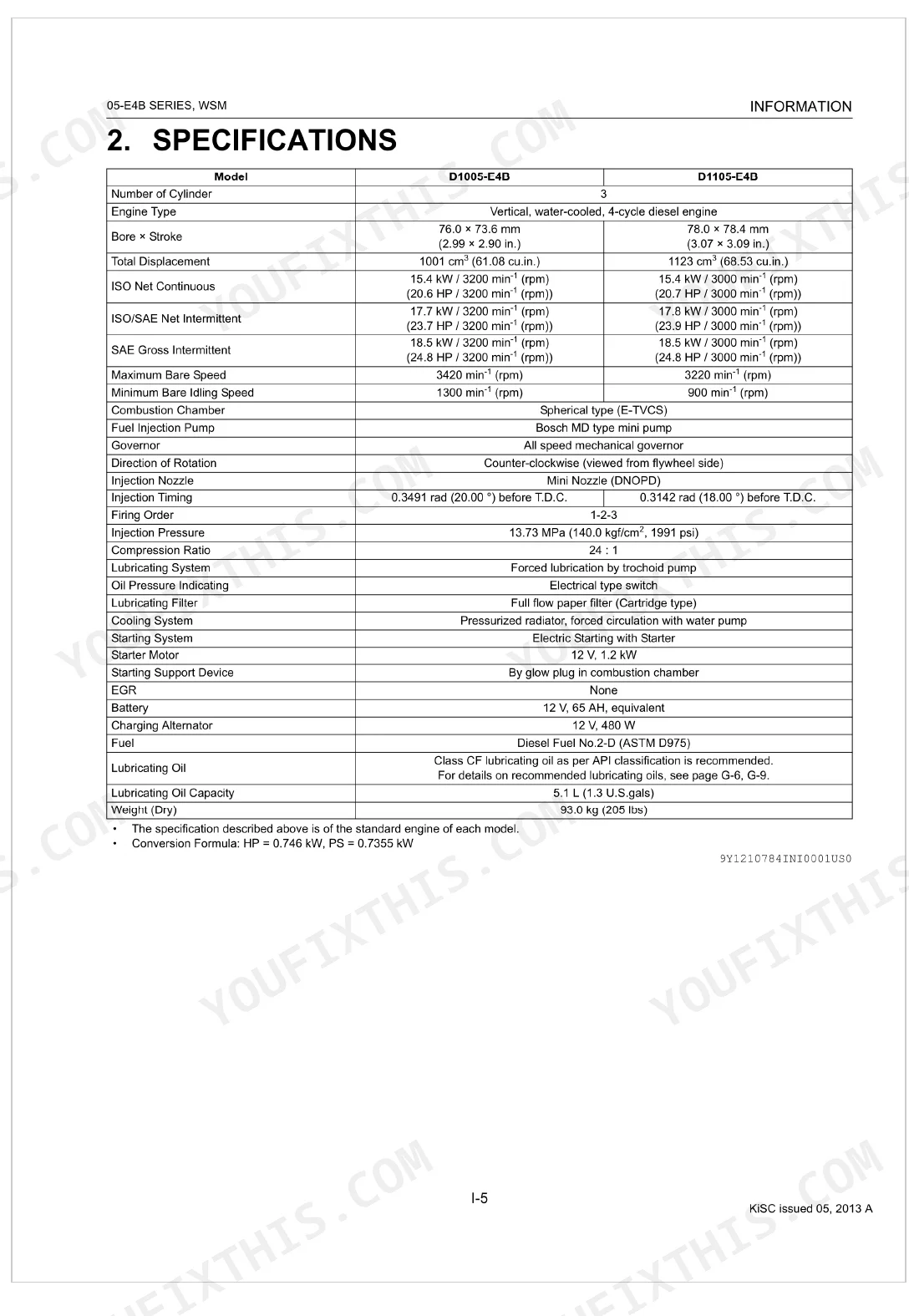

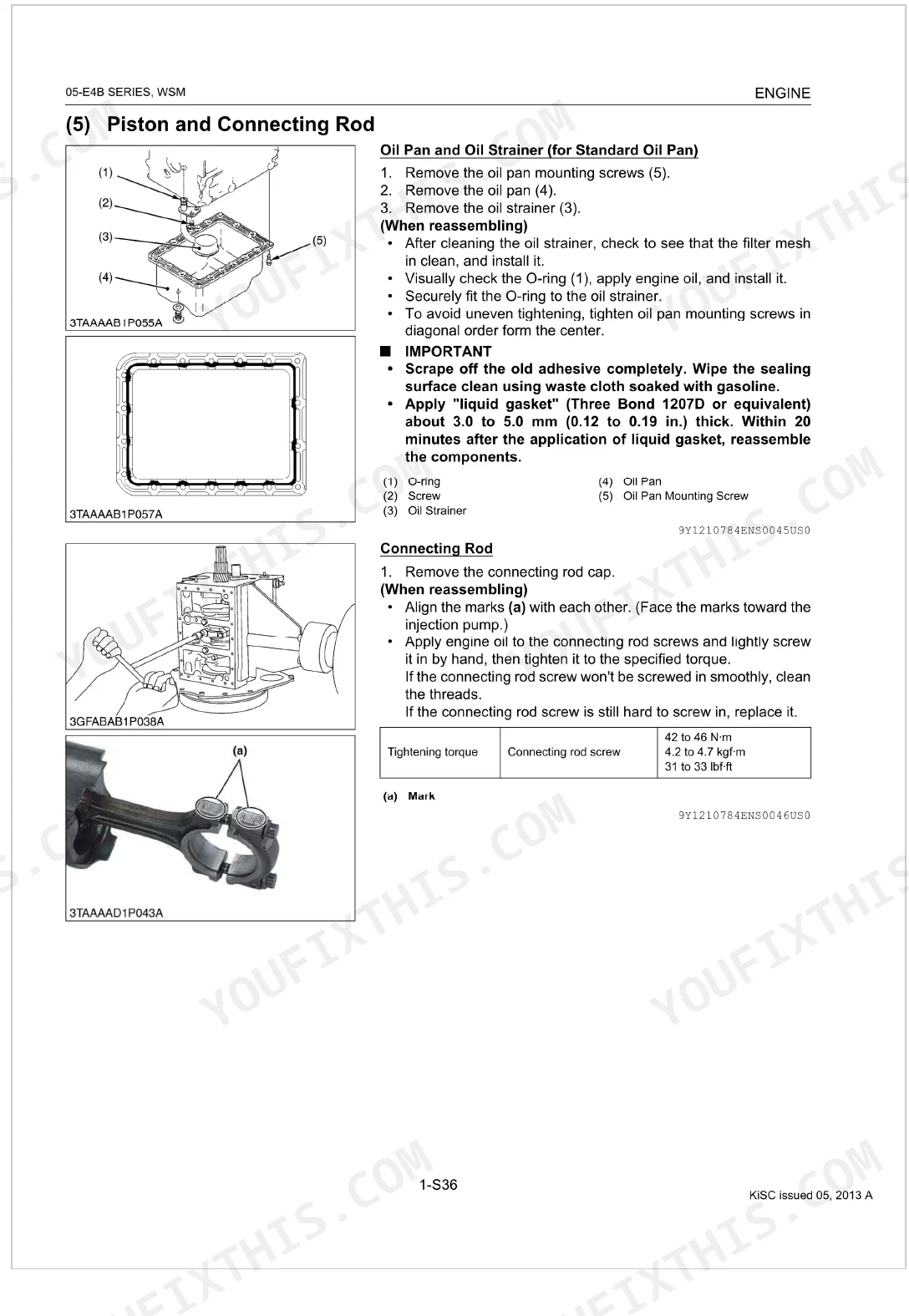

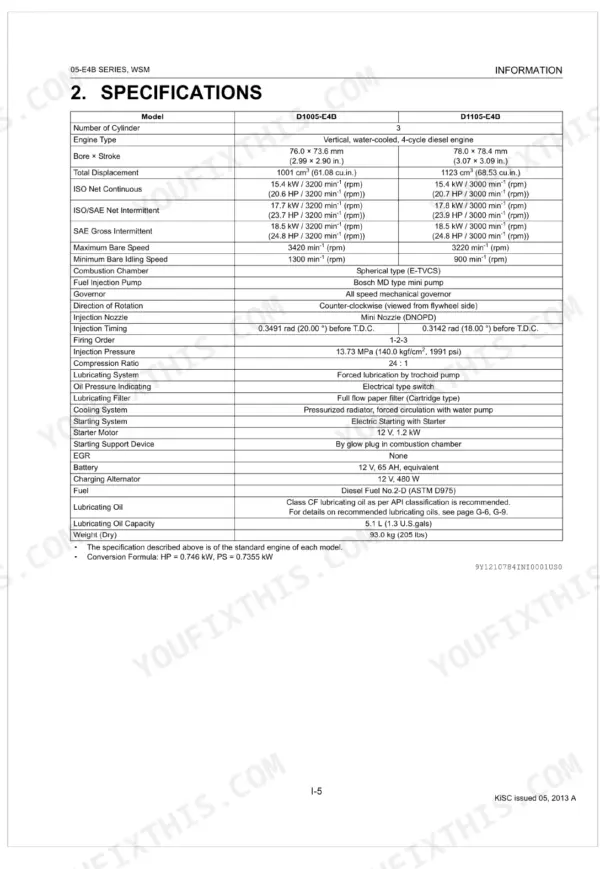

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Injection Pressure | 13.73 to 14.70 MPa (140.0 to 150.0 kgf/cm², 1992 to 2133 psi) | p. 81 |
| Replacing fuel filter element (Service Interval) | Every 400 hrs | p. 24 |
| Replacing air cleaner element (Service Interval) | Every 1 year | p. 24 |
| Glow plug (Tightening torque) | 7.9 to 14 N·m (0.80 to 1.5 kgf·m, 5.8 to 10 lbf·ft) | p. 73 |
| Glow Plug (Resistance) | Approx. 0.9 Ω | p. 71 |
| Nozzle holder assembly (Tightening torque) | 49 to 68 N·m (5.0 to 7.0 kgf·m, 37 to 50 lbf·ft) | p. 73 |
| Delivery Valve Fuel Tightness (Factory specification) | 10 seconds (13.73 → 12.75 MPa, 140.0 → 130.1 kgf/cm², 1991 → 1850 psi) | p. 70 |
| Injection pipe retaining nut (Tightening torque) | 25 to 34 N·m (2.5 to 3.5 kgf·m, 18 to 25 lbf·ft) | p. 73 |

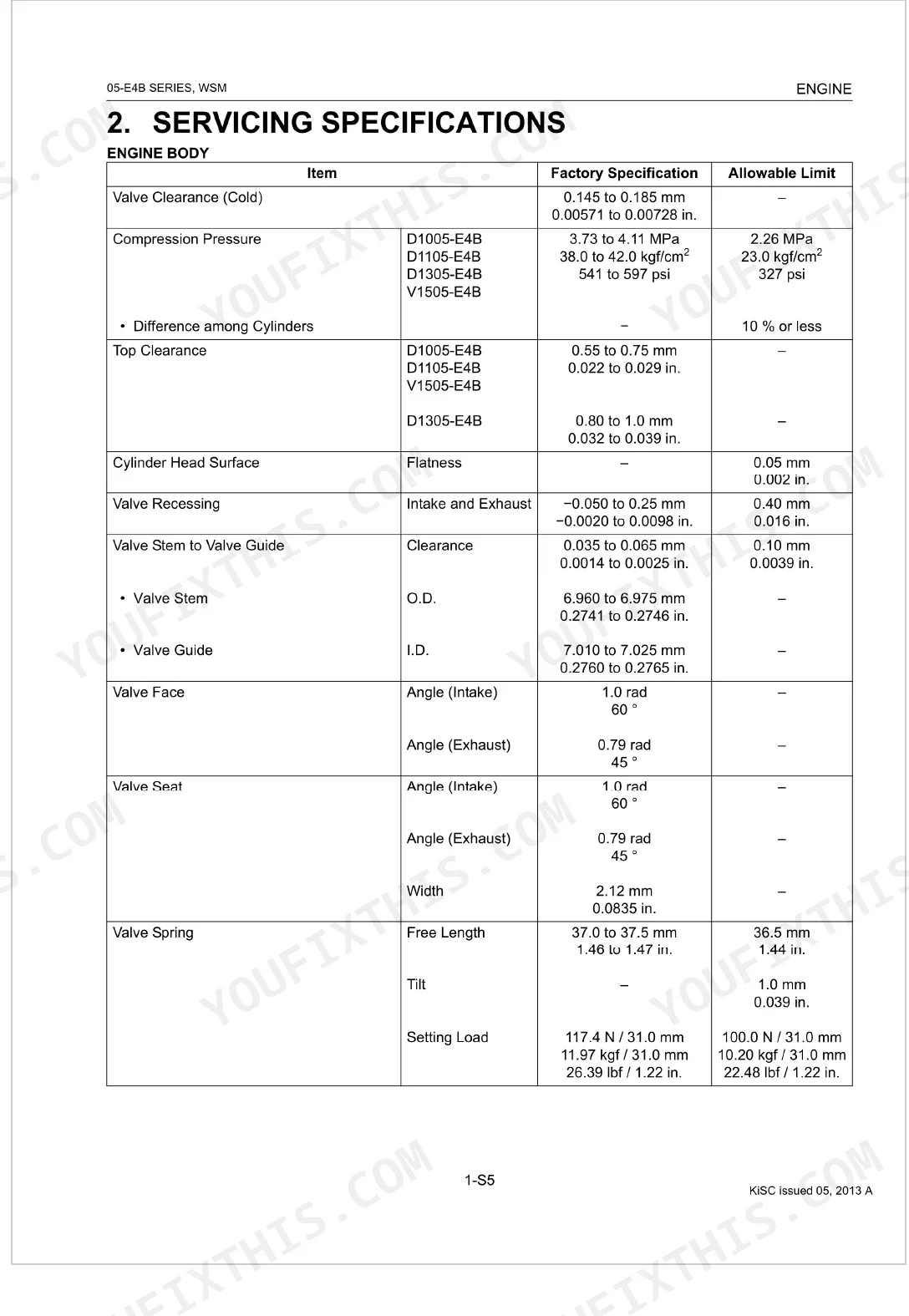

| Valve Stem to Valve Guide Clearance (Allowable Limit) | 0.10 mm (0.0039 in.) | p. 65 |
| D1005-E4B | ||
| Piston ring gap (Top ring) - Allowable limit | 1.25 mm (0.0492 in.) | p. 114 |
| D1105-E4B, D1305-E4B, V1505-E4B | ||
| Piston ring gap (Top ring) - Allowable limit | 1.20 mm (0.0472 in.) | p. 114 |
| D1005-E4B, D1105-E4B | ||
| Lubricating Oil Capacity | 4.7 L | p. 9 |
Kubota D1005-E4B, D1105-E4B, D1305-E4B, V1505-E4B Common Problems This Manual Covers
Hard starting or no start

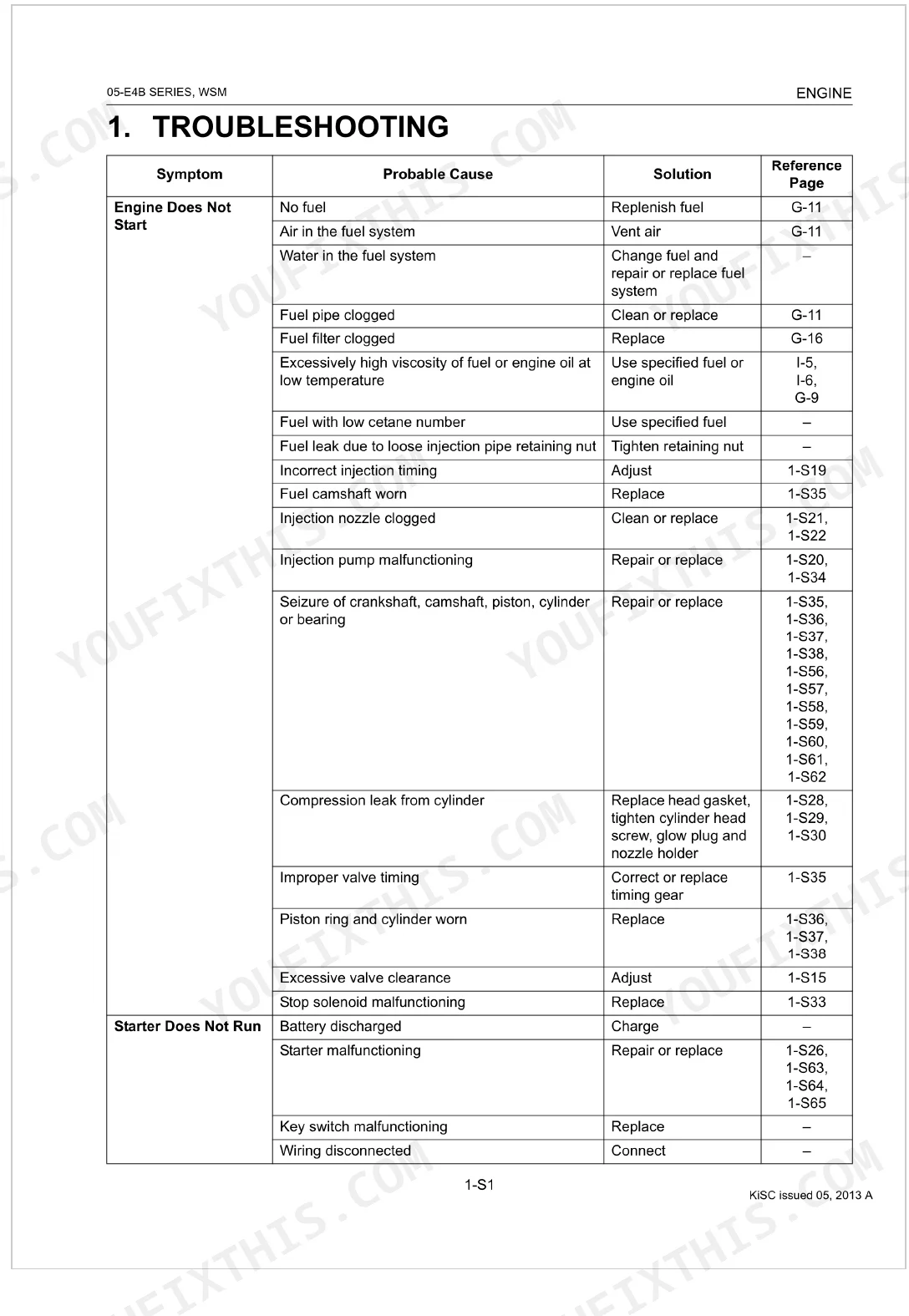

A Kubota diesel that will not fire often has a fuel delivery fault, air in the lines, or a weak glow system. The troubleshooting tables walk you through the checks in order before you condemn the injection pump.
Manual Section: Servicing p. 59Loss of power under load
Low output usually traces to a clogged fuel filter or nozzle, a dirty air cleaner, or air in the fuel system. The servicing section covers the fuel and injection tests to isolate the cause.
Manual Section: Servicing p. 59Excessive smoke or oil in exhaust
Oil burning and heavy smoke point to worn or chipped piston rings or excessive valve stem clearance. The servicing specifications and allowable limits tell you when a part is out of tolerance.
Manual Section: Servicing p. 59Rough running after overdue filters

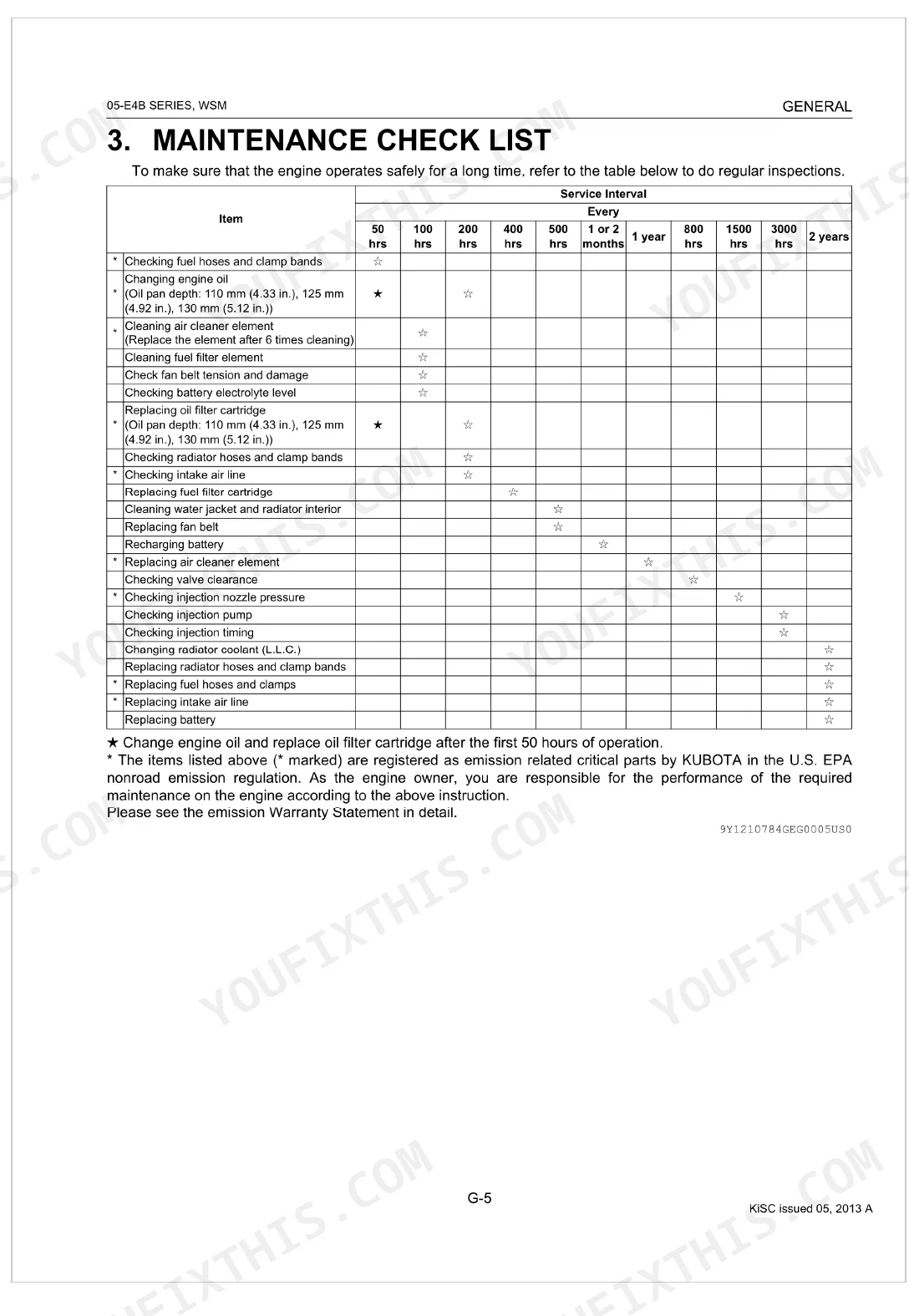

Skipped fuel filter changes leave the engine starved and running rough. The maintenance check list gives the service intervals, including the fuel filter element replacement, to keep fuel flow clean.
Manual Section: General p. 18Hard cold starting and weak glow
Cold-start trouble often comes down to failing glow plugs. The servicing section provides the glow plug resistance value so you can test each plug rather than guessing.
Manual Section: Servicing p. 59Fan belt slip and overheating
A loose or worn fan belt lets the alternator and water pump underperform, causing overheating and weak charging. The maintenance section lists the correct belt deflection to set tension properly.
Manual Section: General p. 18Frequently Asked Questions
Which engines does this shop manual cover?
It covers the Kubota D1005-E4B, D1105-E4B, D1305-E4B, and V1505-E4B diesel engines under publication 9Y111-07840.

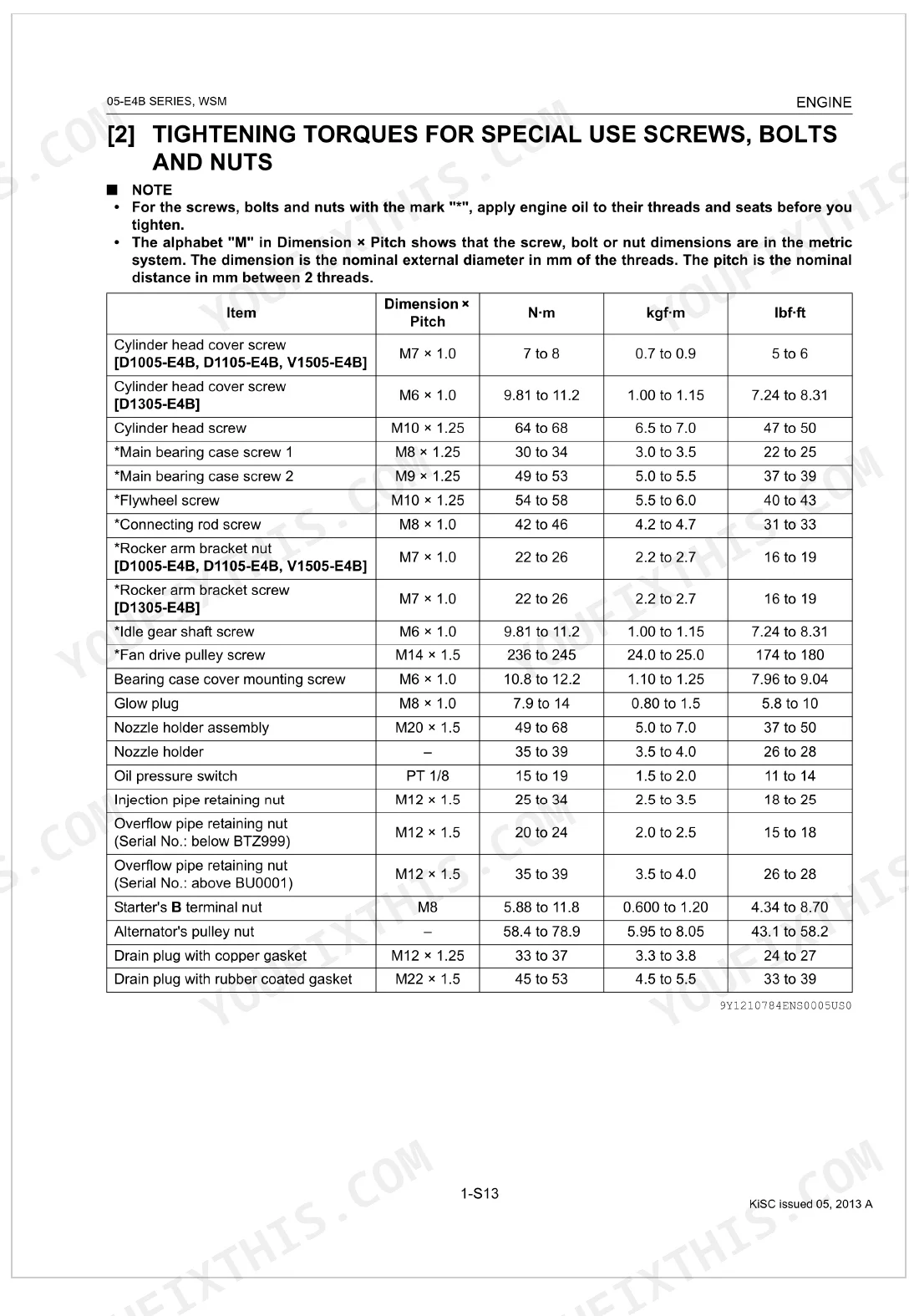

Does it include torque specifications?
Yes. The Servicing section lists tightening torques, including cylinder head, connecting rod, and flywheel screws, so you can assemble to Kubota specification. p. 59
Does it cover full disassembly and rebuild?
Yes. The Servicing section provides the checking, disassembling, and assembling procedures along with servicing specifications and allowable limits for an in-frame or full overhaul. p. 59
What format is this manual in?
Immediate download of the full 128-page searchable Shop Manual. Open it on any device, whether that's a laptop at the desk or a phone out in the field.
Can I print this manual?
No restrictions. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works fine.
