Part of the Kubota Repair Manuals.
This Kubota Shop Manual covers the Z411KW-AU, Z421KW-AU, Z412KW-AU, and Z422KW-AU zero-turn mowers, powered by the FS651V, FS730V, GH7302V, and GH7301V engines. It is a 191 page PDF with a searchable text layer and bookmarks that you download and keep on any device.The manual is organized by system: an information and safety chapter, a general section on identification and maintenance, then engine, hydrostatic transaxle, front axle, lift system, electrical, and the mower deck. Each chapter carries the mechanism, troubleshooting, service checks, and tightening torques Kubota specifies for these machines.Owners and independent shops use it to service the HST drive, adjust the electric PTO clutch, trace the safety-switch and wiring circuits, set the deck for an even cut, and torque fasteners to factory figures instead of guessing.
What's Inside This Kubota Z411–Z422 Series Manual

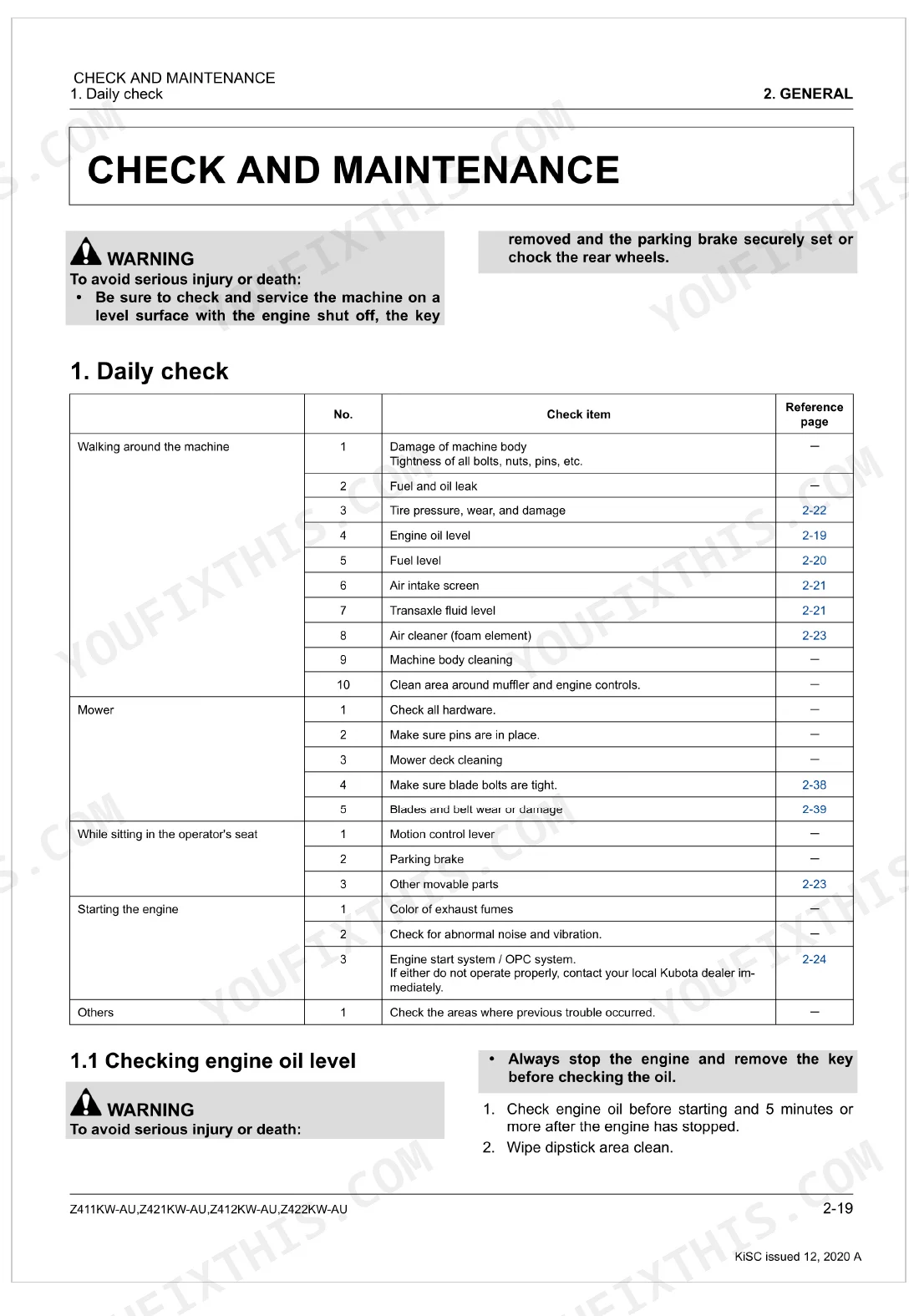

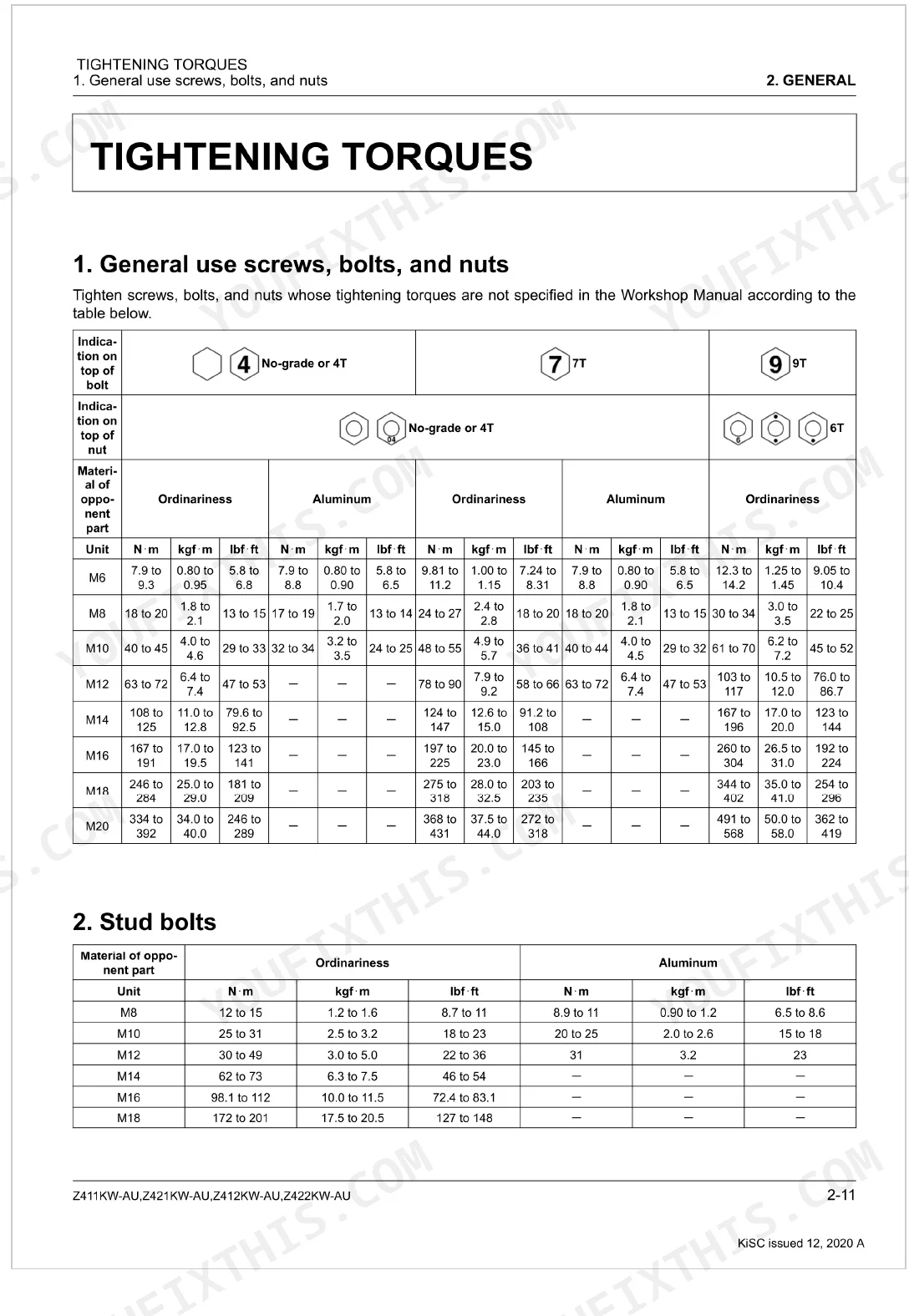

| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3-10 | - |
| Information | 11-29 | Safety First, Before You Start Service, Start Safely, Operate Safely, Prevent a Fire, Keep a Good Airflow in the Work Area, Discard Fluids Correctly, Prevent Acid Burns |
| General | 30-74 | Identification, Serial Number, Product Identification Number, Production Month, Production Year, Handling Precautions for Electrical Parts and Wiring, Handling of Wiring, Battery |
| Engine | 75-91 | Fuel System, Lubrication System, Cooling System, Servicing, Troubleshooting |

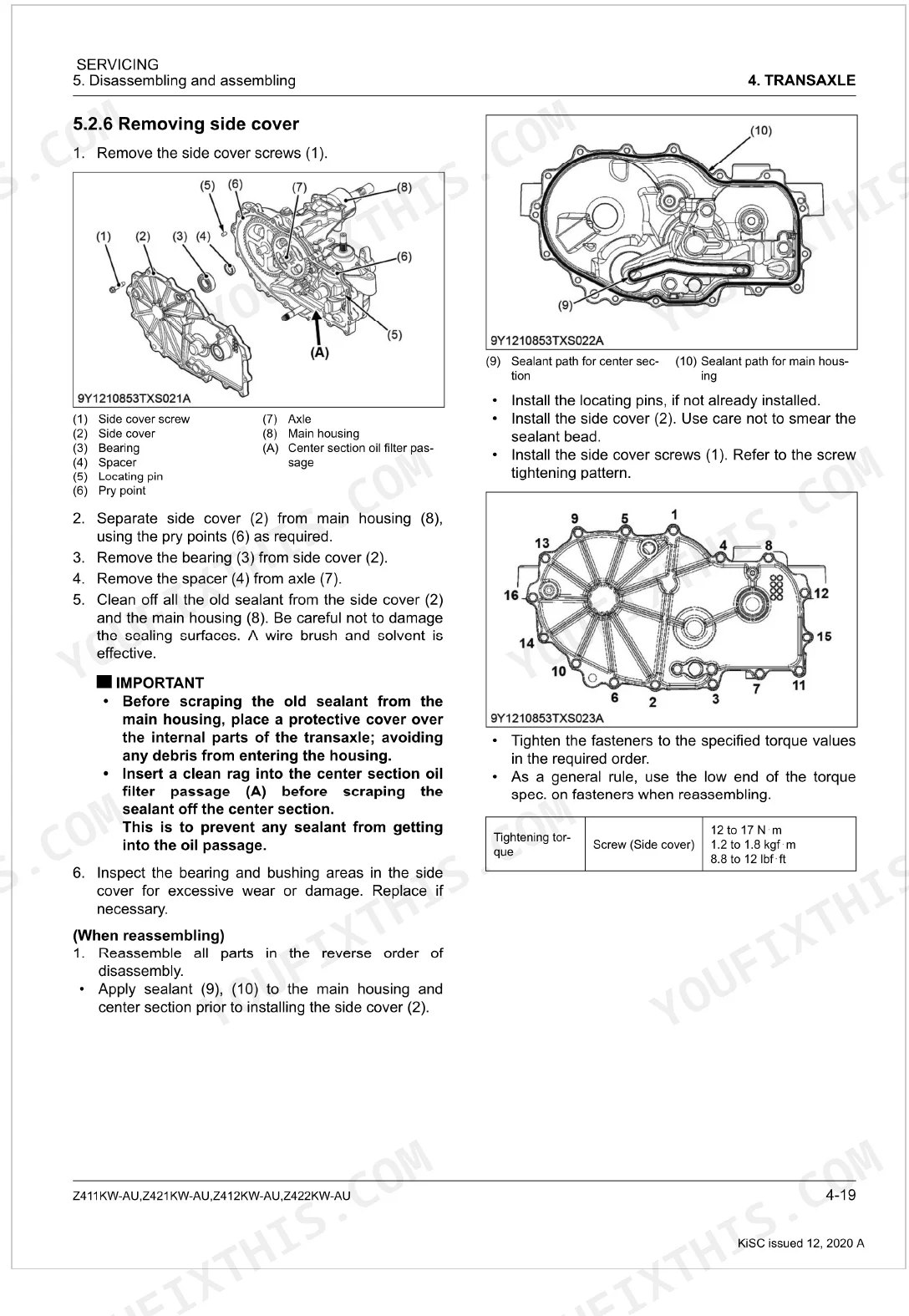

| Transaxle | 92-122 | Hydraulic Circuit of Transaxle, Transaxle External Components |
| Front Axle | 123-129 | Servicing, Troubleshooting, Tightening Torques, Disassembling and Assembling |
| Lift System | 130-138 | Servicing, Troubleshooting, Tightening Torques, Checking and Adjusting, Checking Link Stopper, Link Stopper |

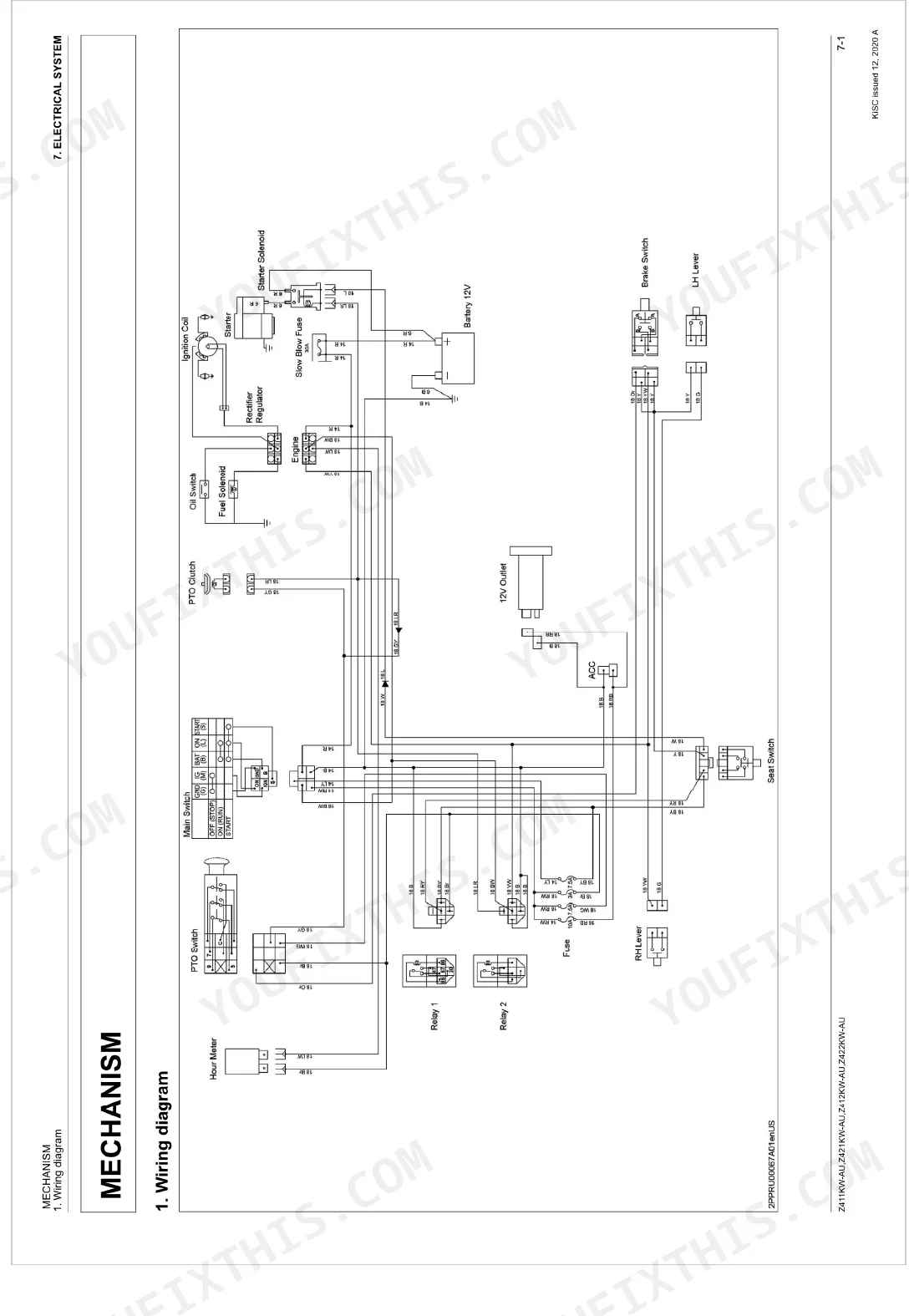

| Electrical System | 139-165 | Wiring Diagram, Starting System, Electrical Circuit of Starting System, Safety Switch, Property of Safety Switch |
| Mower | 166-186 | Structure for Mower, Serial Number: RCK48P-400Z: 20548, RCK54P-400Z: 29036, RCK60P-400Z: 30003 |
| Contact Information | 191 | Editor: Tractor and Agricultural Implement Service Dept, Address: 64, Ishizu-Kitamachi, Sakai-Ku, Sakai-City, Osaka, 590-0823, Japan |

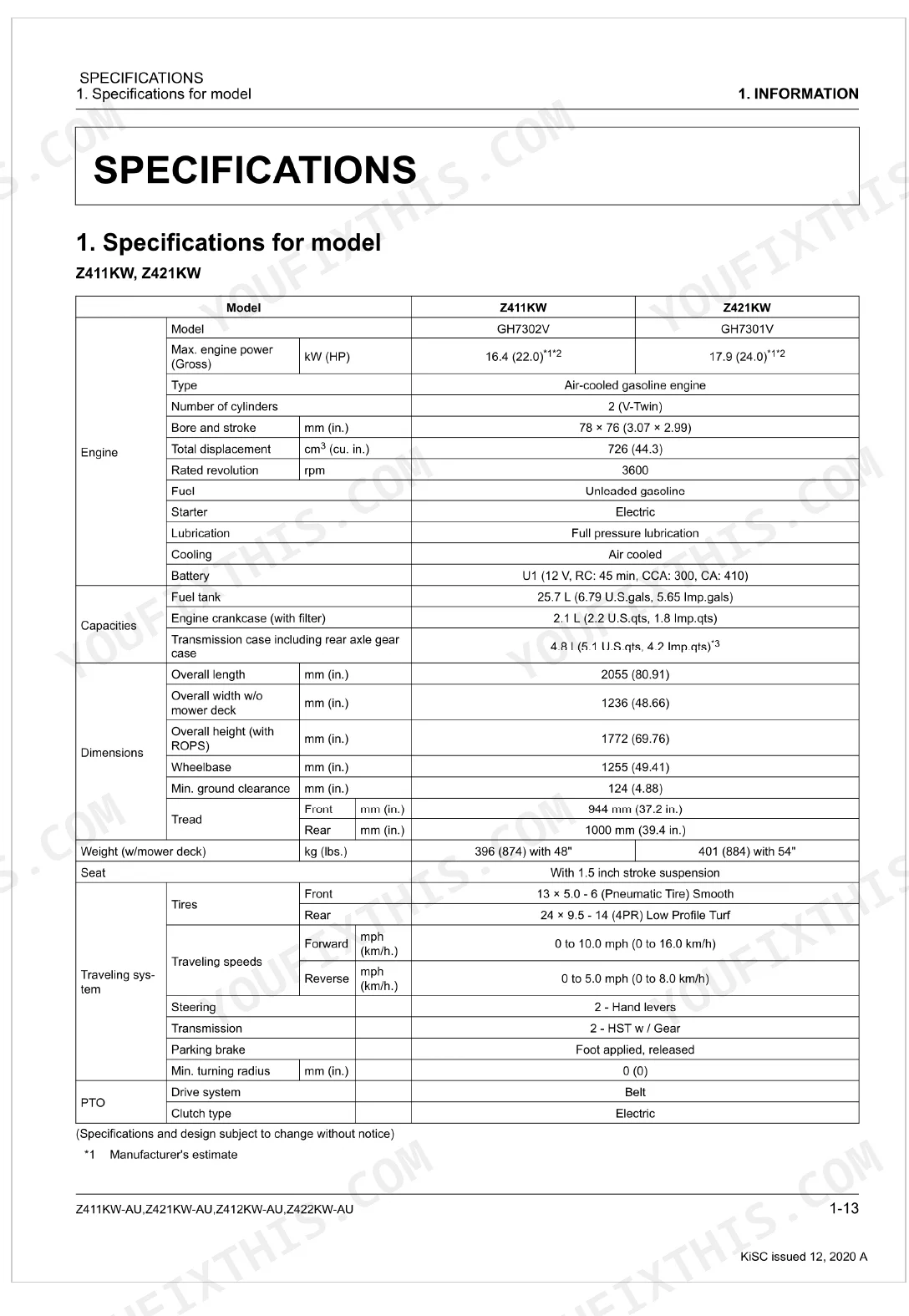

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 25.7 L (6.79 U.S.gals, 5.65 Imp.gals) | p. 24 |
| Engine crankcase (with filter) capacity | 2.1 L (2.2 U.S.qts, 1.8 Imp.qts) | p. 24 |
| Transmission case including rear axle gear case capacity | 4.8 L(5.1 U.S.qts, 4.2 Imp.qts) | p. 24 |

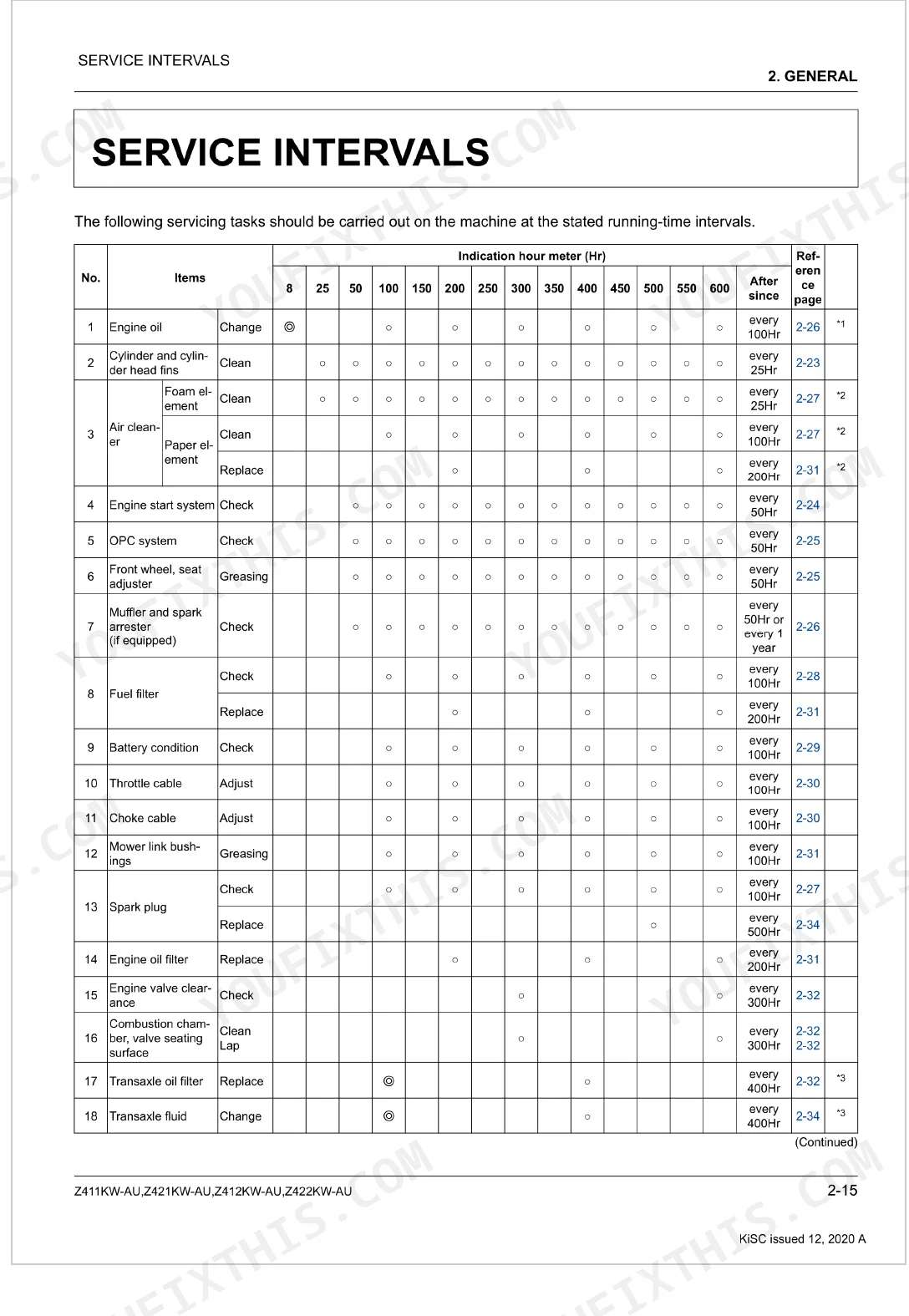

| Engine oil change interval | every 100Hr | p. 45 |
| Air cleaner foam element cleaning interval | every 25Hr | p. 45 |
| Air cleaner paper element cleaning interval | every 100Hr | p. 45 |
| Spark plug check interval | every 100Hr | p. 45 |
| Spark plug replacement interval | every 500Hr | p. 45 |
| Fuel filter check interval | every 100Hr | p. 45 |
| Fuel filter replacement interval | every 200Hr | p. 45 |
| Battery condition check interval | every 100Hr | p. 45 |
| Transaxle oil filter replacement interval | every 400Hr | p. 45 |
Kubota Z411–Z422 Series Common Problems This Manual Covers

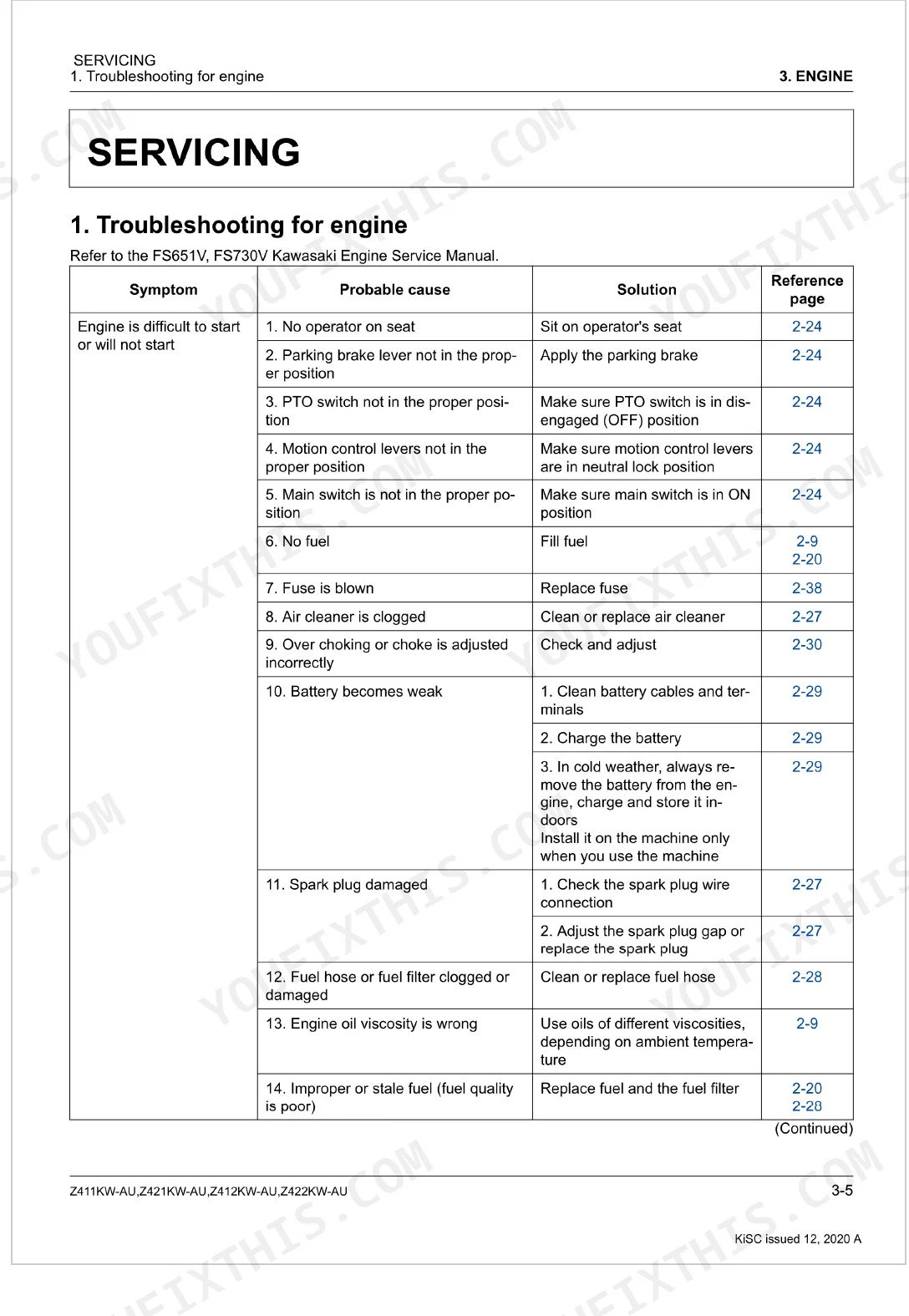

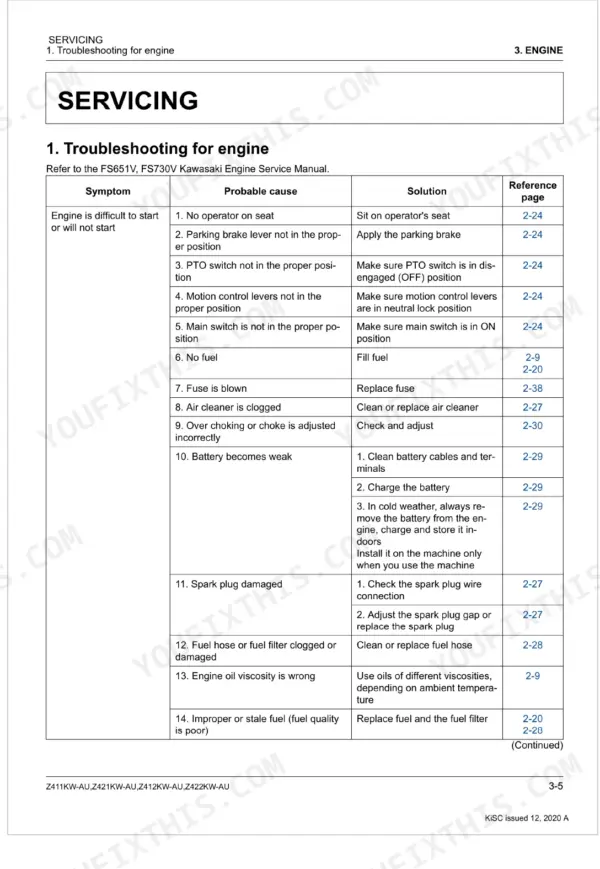

Hard starting or charging faults
Fouled plugs, a weak battery, or a charging fault keep these mowers from starting. The engine section covers the fuel and cooling systems and engine troubleshooting.
Manual Section: Engine p. 75Weak hydrostatic drive
A worn HST or aerated fluid makes the mower creep or lose speed. The transaxle section explains the hydraulic circuit and transaxle structure.
Manual Section: Transaxle p. 92Electric PTO clutch slipping
As the electric PTO clutch wears, its air gap opens past the 0.35 to 0.45 mm spec and the blades slip or fail to engage. The electrical system section covers the clutch clearance.
Manual Section: Electrical System p. 139Deck will not lift
A worn lift linkage or misadjusted link stopper leaves the deck slow or stuck. The lift system section covers checking, adjusting, and the link stopper.
Manual Section: Lift System p. 130Uneven cut
Worn blades or loose blade hardware spoil the finish. The mower section covers blade service and the 103 to 117 N·m blade bolt torque.
Manual Section: Mower p. 166No-start from safety switches
A faulty seat, PTO, or brake safety switch stops the engine from starting. The electrical system section covers the safety switch function and structure.
Manual Section: Electrical System p. 139Front caster wear
The front caster wheels and bearings develop play that affects tracking. The front axle section covers structure, torques, and disassembly.
Manual Section: Front Axle p. 123Frequently Asked Questions
Which mowers and engines does this manual cover?
It covers the Kubota Z411KW-AU, Z421KW-AU, Z412KW-AU, and Z422KW-AU zero-turn mowers, powered by the FS651V, FS730V, GH7302V, and GH7301V engines.
Does it cover the hydrostatic transaxle?
Yes. The transaxle section covers the transaxle function, hydraulic circuit, and structure, along with its external components. p. 92
Are wiring diagrams and safety switches covered?
Yes. The electrical system section includes the wiring diagram, starting system, and safety switch function and structure. p. 139
Can I use it to service the mower deck?
Yes. The mower section covers the deck structure and the blade bolt torque of 103 to 117 N·m for correct reassembly. p. 166
How quickly can I access this Kubota Z411–Z422 Series manual after buying?
You get a 191-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Can I print this Kubota Z411–Z422 Series manual?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Can I find hydraulic circuit diagrams in this Kubota Z411–Z422 Series manual?
Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
