Kubota built this workshop manual (OEM #9Y111-09680) for four zero-turn mowers: the ZG124E, ZG123S, ZG127E, and ZG127S. Its 169 pages map the start system, OPC safety switches, charging circuit, PTO clutch, and headlight wiring, then trace the hydraulic transaxle from pump to wheel motor. Step-by-step procedures cover the engine, transaxle, front axle, lift system, and mower deck, with troubleshooting charts and torque tables included. Before you run diagnostics, fill the transmission case to 4.8 L and top off the 16 L fuel tank. When your ZG127S is down, you want the factory numbers, not forum guesses. Everything is bookmarked by system and searchable, so the transaxle torque table loads on your tablet while you work.
What's Inside This Kubota ZG123–ZG127 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Workshop Manual | 1-1 | Model ZG124E, ZG123S, ZG127E, ZG127S, Kubota, KiSC Issued 09, 2013 a |
| To the Reader | 2-2 | Information, Safety First, Safety Decal, Dimension, Engine Identification, Model Identification, General Precautions, Maintenance Check List |
| Information | 3-14 | - |
| General | 15-65 | Identification, Serial Number, Cylinder Number, General Precautions, Wiring, Battery, Fuse, Connector |
| Engine | 66-81 | Zg124e, Zg127e, Zg123s, Zg127s, Fuel System, Fuel Line, Lubrication System |

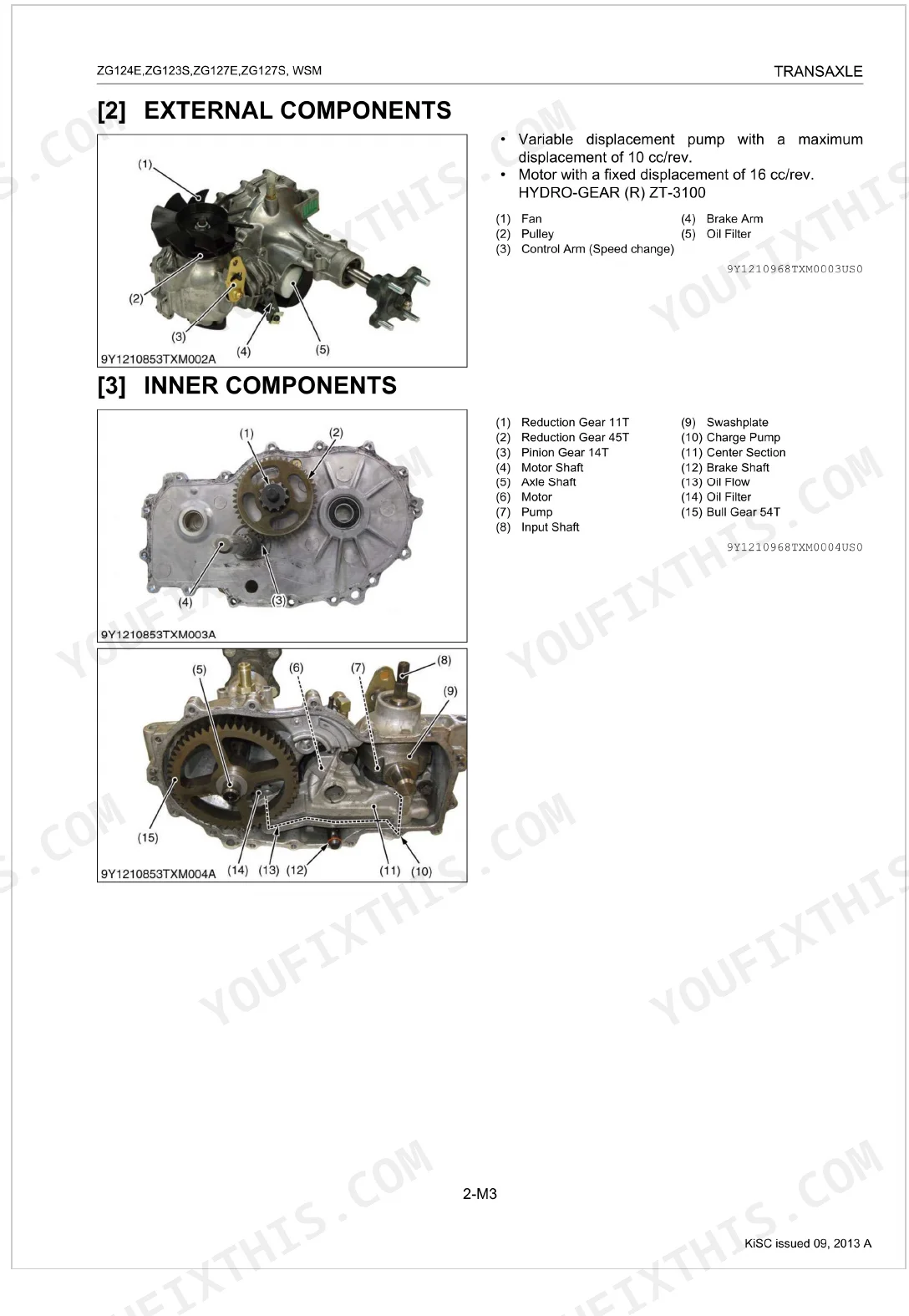

| Transaxle | 82-110 | Hydraulic Circuit, External Components, Inner Components |
| Front Axle | 111-117 | Wheel Bracket, Front Wheel, Bearing, Flange Nut, Wheel Bolt, Bracket Bolt, Cap |
| Lift System | 118-125 | Cam Dial, Cam Shaft, Cam, Front Lift Shaft, Rear Lift Shaft, Link Stopper, Mower Link, Bushing |

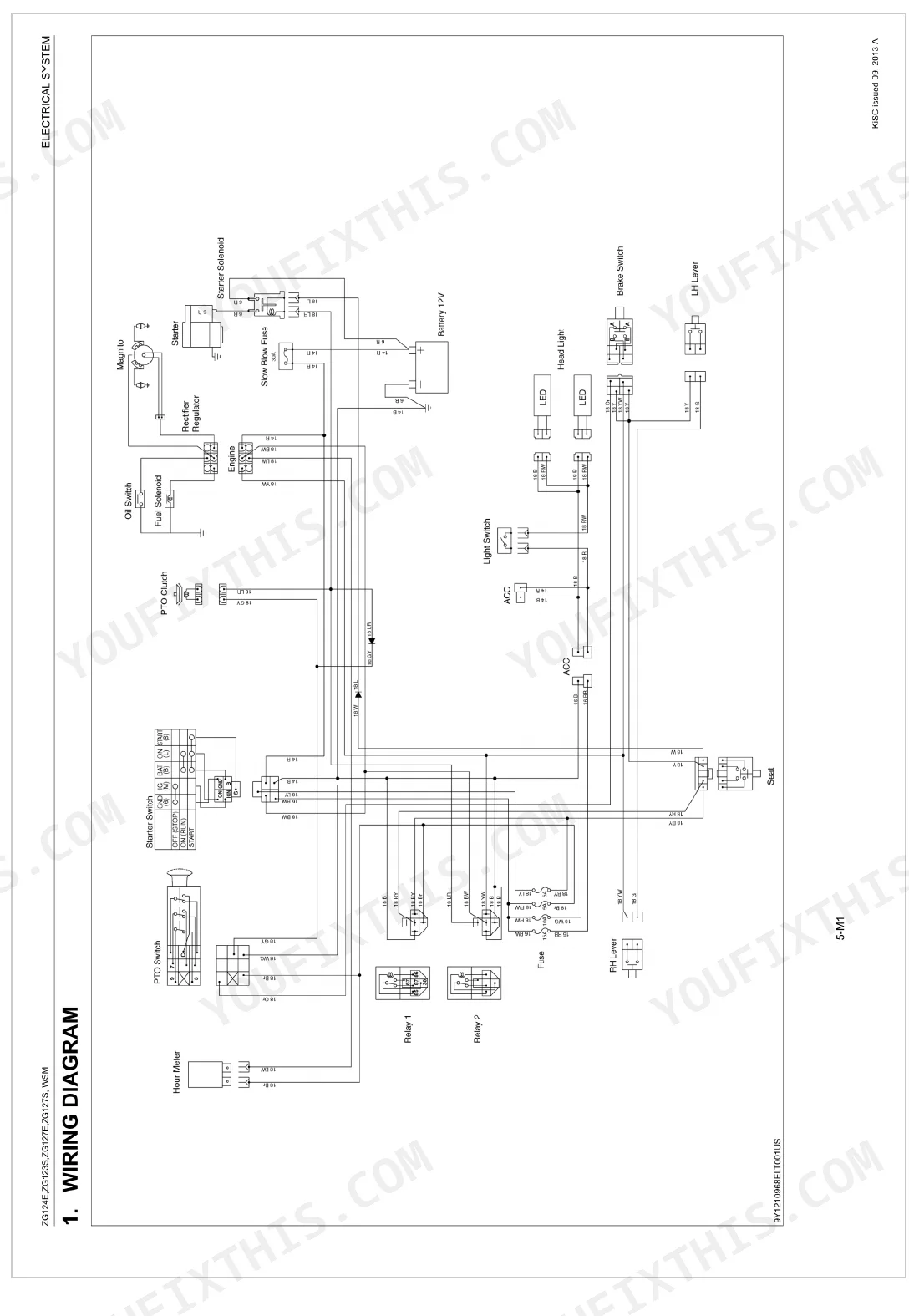

| Electrical System | 126-152 | Wiring Diagram, Start System and Opc, Start System, Operator's Presence Control, Safety Switches, Relay, Electrical Equipments |
| Mower | 153-168 | Power Transmission |
| Editor | 169-169 | Address, Phone, Fax, E-Mail, Printed in Japan 2013.09, Code No.9Y111-09680, Kubota Corporation |

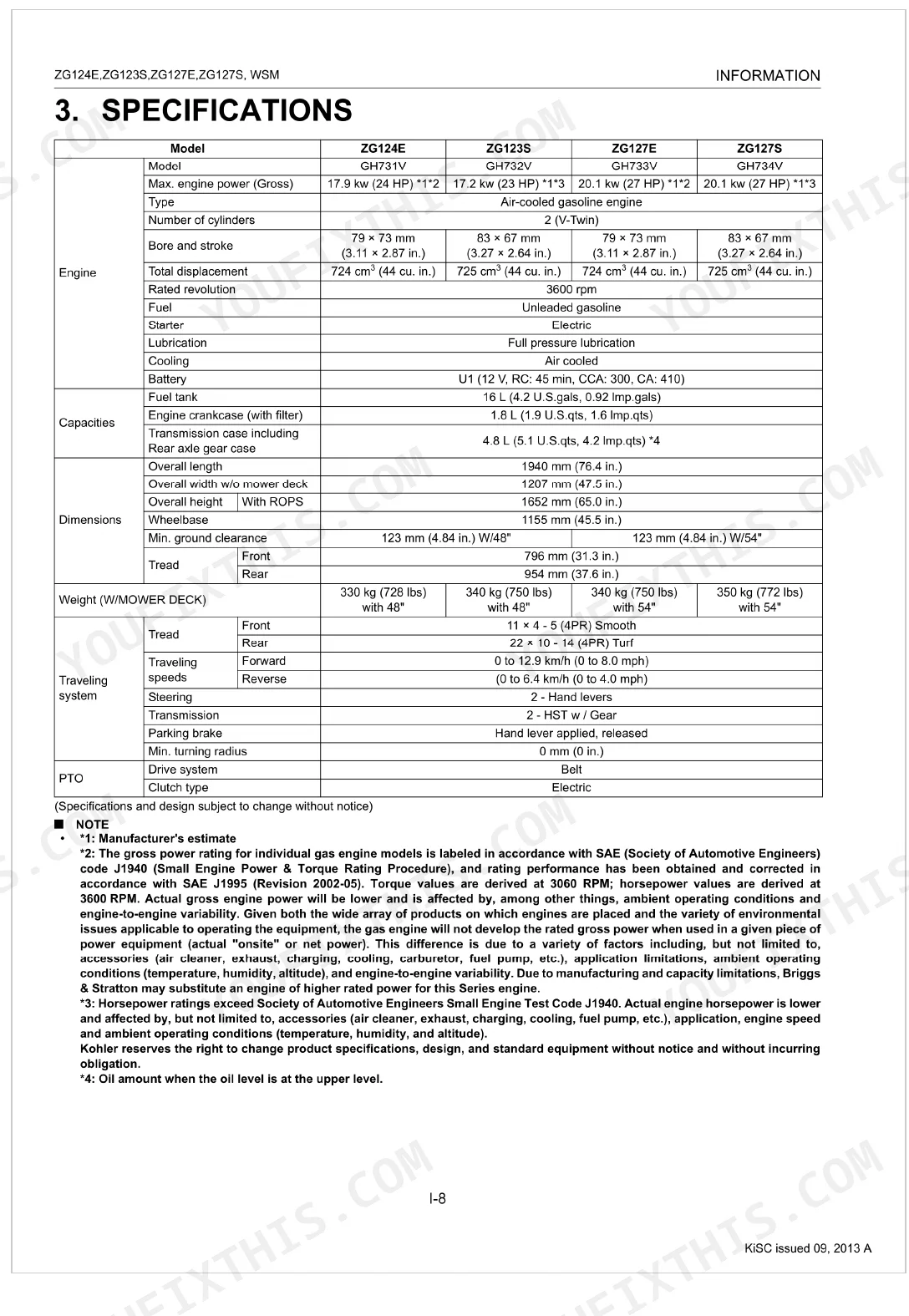

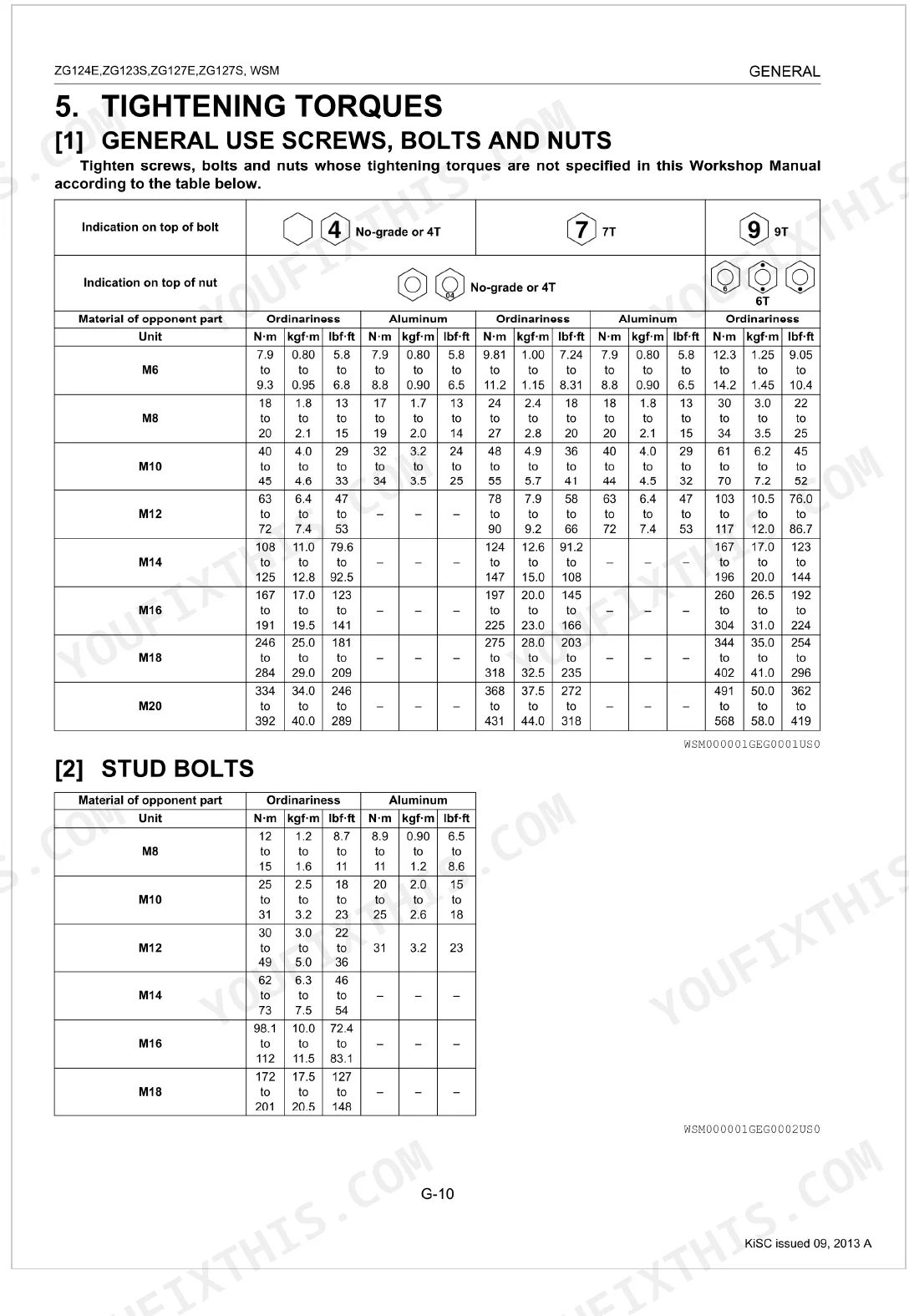

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 16 L (4.2 U.S.gals, 0.92 Imp.gals) | p. 25 |
| Engine crankcase (with filter) capacity | 1.8 L (1.9 U.S.qts, 1.6 Imp.qts) | p. 25 |
| Engine Rated Revolution | 3600 rpm | p. 12 |
| Engine Crankcase Capacity (with filter) | 1.8 L | p. 12 |
| Transmission Case Capacity (including Rear axle gear case) | 4.8 L | p. 12 |
| Front Tire Pressure | 170 kPa | p. 34 |
| Rear Tire Pressure | 110 kPa | p. 34 |
| Electric Clutch Air Gap | 0.04 mm | p. 54 |
| Engine Valve Clearance (cold) IN. and EX. | 0.13 mm | p. 57 |
| Battery Voltage | More than 12 V | p. 142 |
| Electric PTO Clutch Resistance | 2.88 to 3.18 Ω | p. 142 |
| Blade Bolt Torque | 103 to 118 N·m | p. 160 |
Kubota ZG123–ZG127 Series Common Problems This Manual Covers

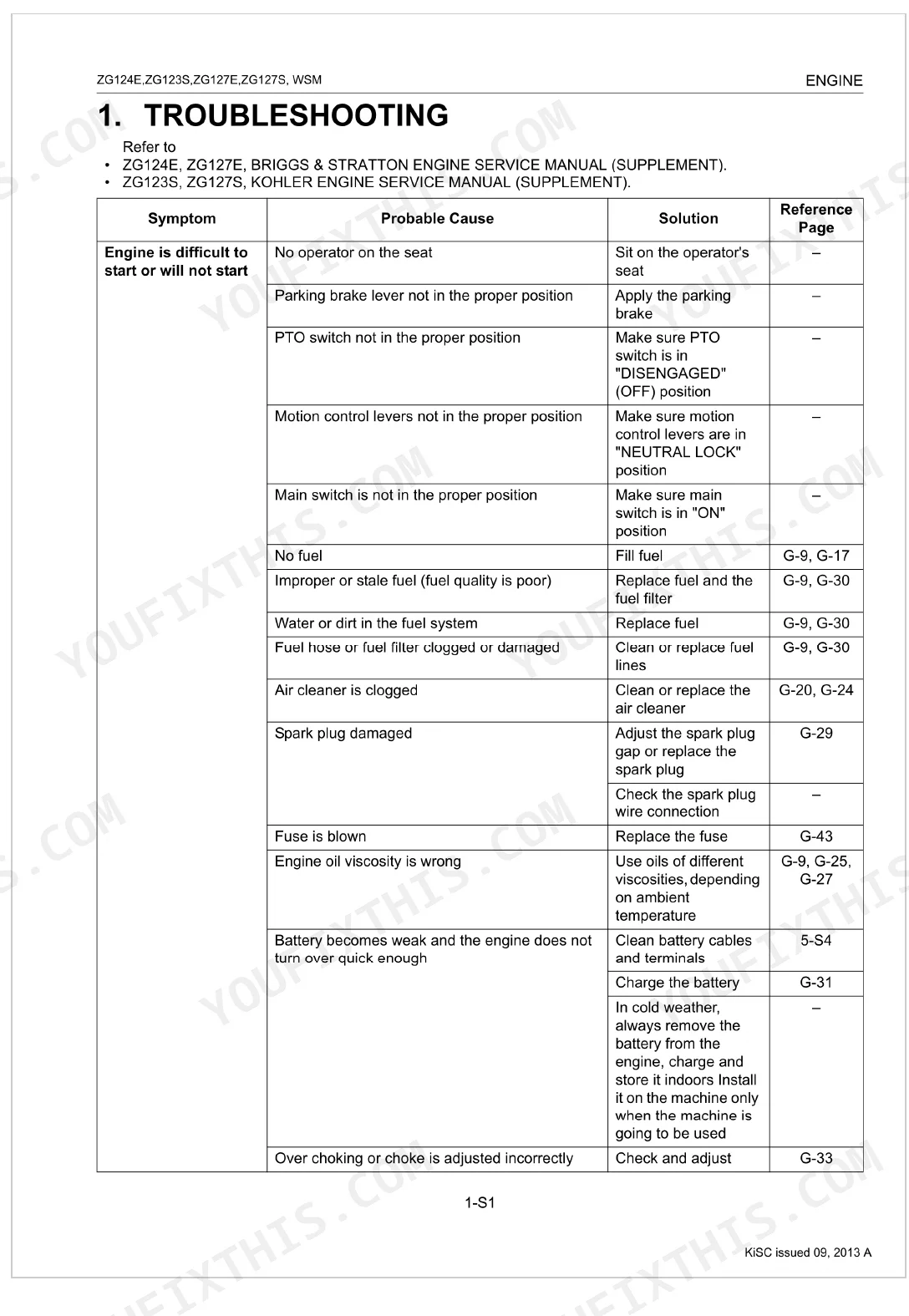

Kubota ZG124E engine cranks normally but won't fire, fuel tank full p. 73
Check all safety switches first: seat, blade engagement, and parking brake circuits must all be closed before the starter circuit completes. Inspect spark plugs and replace per the annual interval. If spark and fuel delivery are confirmed, review the troubleshooting chart on page 73. Also verify valve clearance: cold measurement for both intake and exhaust should be 0.13 mm.
Manual Section: Engine TroubleshootingPTO switch activated but mower blades won't turn, no sound from clutch
Measure PTO clutch coil resistance with a multimeter: spec is 2.88 to 3.18 Ω (page 142). If resistance is out of range, replace the clutch coil. If within spec, check the air gap; it must be 0.04 mm (page 54) and a worn gap prevents friction surface contact. Verify battery voltage exceeds 12 V and inspect the PTO fuse before condemning any component.
Manual Section: Electrical System TroubleshootingMachine pulls hard left or right on level ground, won't track straight
Compare rear tire pressure side to side; spec is 110 kPa. Unequal pressure is the most common cause of pull on zero-turns and takes 30 seconds to rule out. If both sides match, check transaxle fluid level; total capacity including the rear axle gear case is 4.8 L. Low fluid on one side causes that drive unit to lag and pull the machine off line.
Manual Section: Transaxle TroubleshootingDeck leaving uncut strips of grass, cut height uneven across full width
Inspect blade mounting bolts on every spindle and torque to 103 to 118 N·m (page 160). A loose or bent blade on one spindle produces exactly the streak pattern you are seeing. Park on flat concrete and measure deck height at all four corners; adjust the deck lift link arms until both sides read equal. Replace bent blades as a matched set.
Manual Section: Mower TroubleshootingBattery dead overnight, starter motor won't crank after machine sat two days
Test open-circuit battery voltage before anything else: it must read above 12 V (page 142). If low, load-test to confirm the battery will hold charge under demand. With the engine running, verify the charging circuit is producing voltage above the resting battery level. Check for parasitic draw by confirming headlights and the PTO relay circuit are fully de-energized after key removal.
Manual Section: Electrical System TroubleshootingFrequently Asked Questions

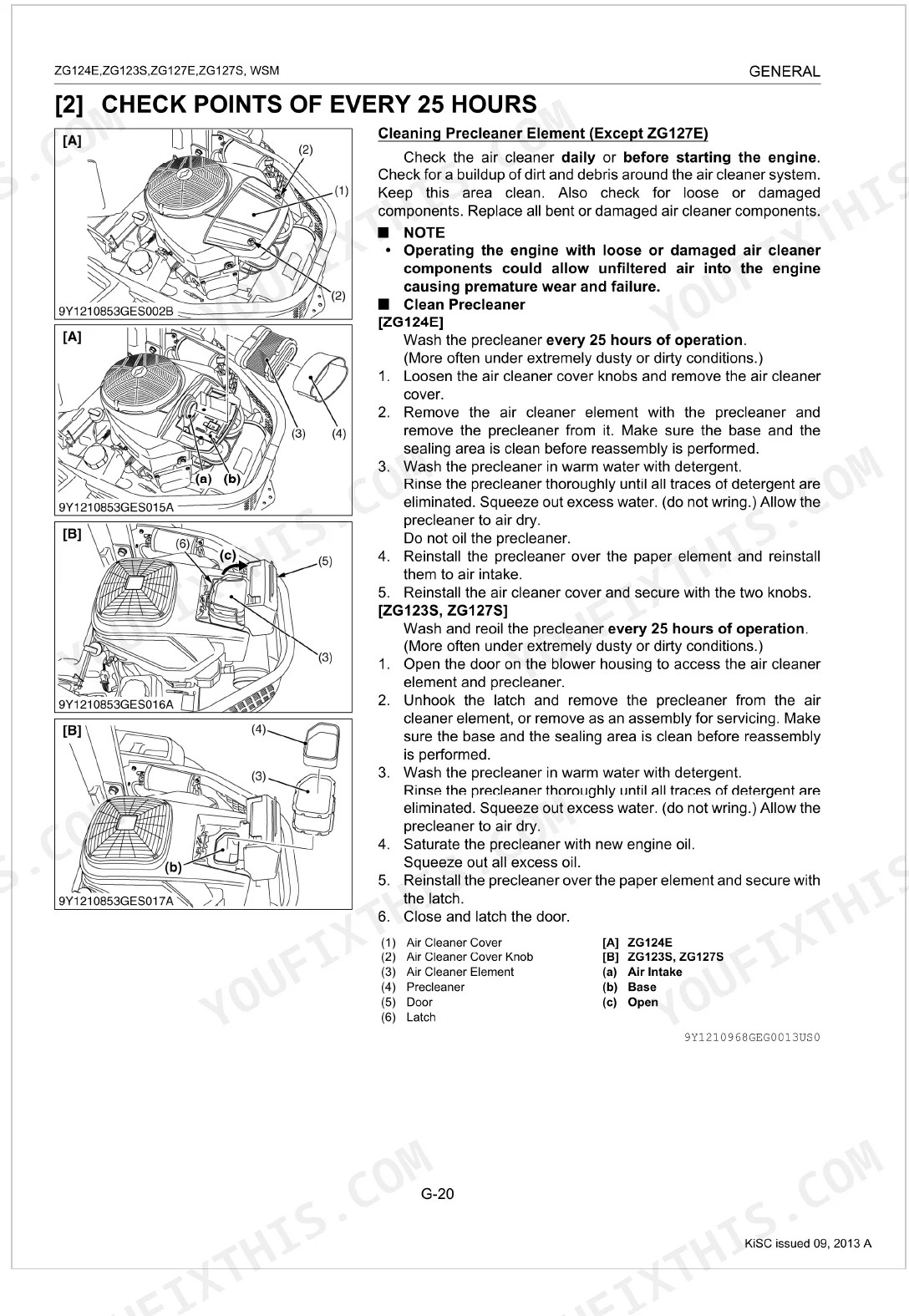

What are the recommended service intervals?
Service intervals vary by component. For ZG124E and ZG127E models, engine oil and engine oil filter should be changed every 50 hours or annually. For ZG123S and ZG127S models, these are every 100 hours or annually. The air cleaner element should be replaced every 100 hours of operation or annually, with checks every 25 hours. Hydraulic hoses require checking every 200 hours and replacement every 2 years, while the electric clutch needs adjustment every 500 hours.
What fluids and capacities does this machine require?
The fuel tank capacity is 16 L (4.2 U.S.gals, 0.92 Imp.gals) and requires unleaded gasoline with 87 octane or higher. The engine crankcase (with filter) capacity is 1.8 L (1.9 U.S.qts, 1.6 Imp.qts) and uses API service Classification SG, SH, SJ or higher engine oil (SAE30, SAE10W-30, or SAE5W-30 depending on ambient temperature). The transmission case, including the rear axle gear case, has a capacity of 4.8 L (5.1 U.S.qts, 4.2 Imp.qts) and requires API service Classification SL SAE20W-50 engine oil.
How to troubleshoot engine won't start?
If the engine won't start, check if there's an operator on the seat and if the parking brake lever is in the proper position. Ensure the PTO switch is in the "DISENGAGED" (OFF) position and the motion control levers are in "NEUTRAL LOCK". Verify the fuel level and fill if necessary (G-9, G-17). Also, check if the air cleaner is clogged (G-20, G-24) or if the battery is weak, requiring a charge (G-31).
What are the hydraulic system specifications?
Filled to 4.8 L (5.1 U.S.qts, 4.2 Imp.qts), the transmission case and rear axle gear case run API service Classification SL SAE20W-50 oil. (page 25) The hydrostatic transaxle pairs a variable displacement pump rated at 10 cc/rev maximum with a fixed displacement motor at 16 cc/rev, for an overall reduction of 24.74:1.
How quickly can I access this manual after buying?
Download starts the moment payment clears. The full 169-page searchable Workshop Manual is yours immediately, ready to open on a laptop, tablet, or phone right in the shop.
Is this Kubota ZG123–ZG127 Series Workshop Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

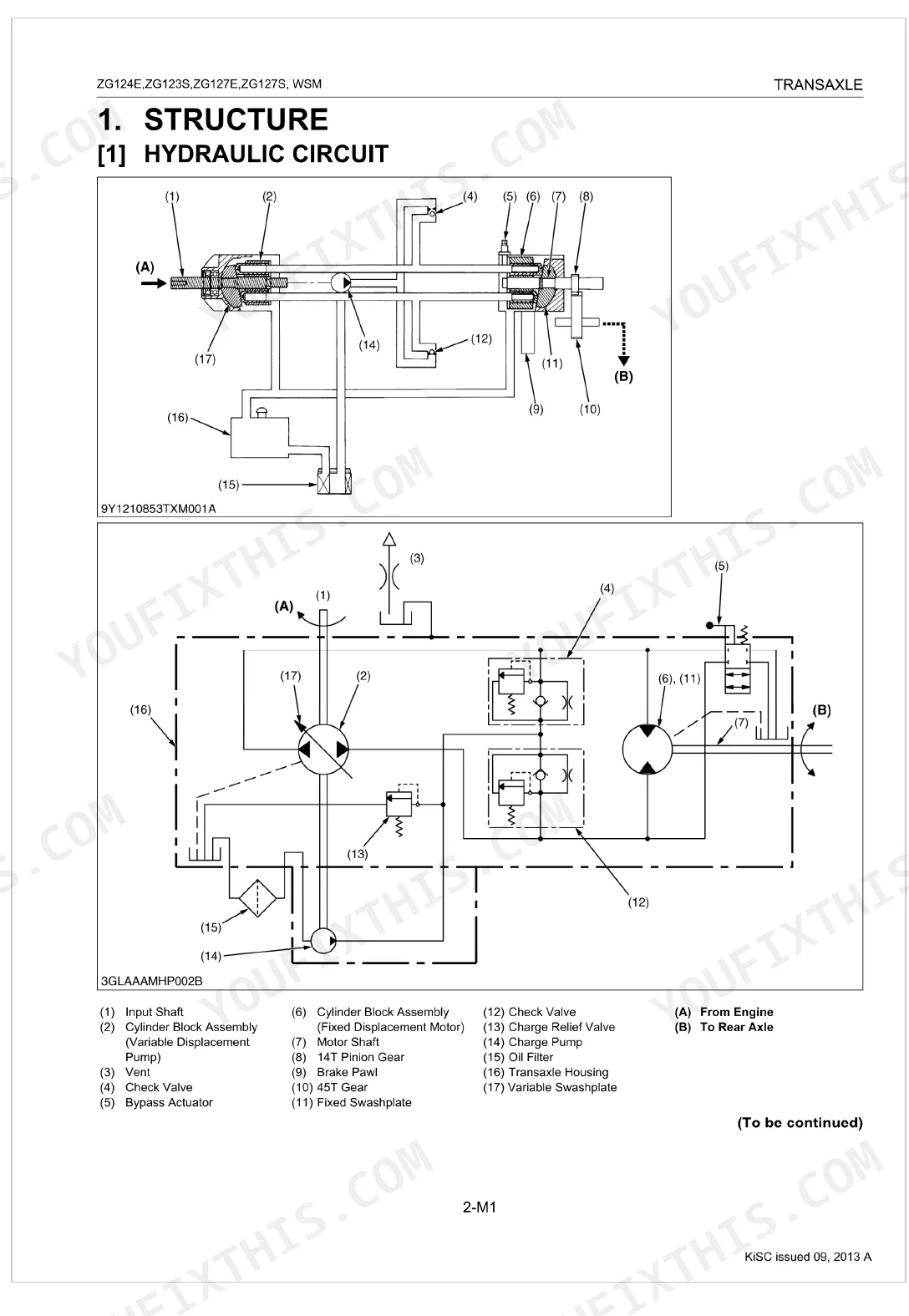

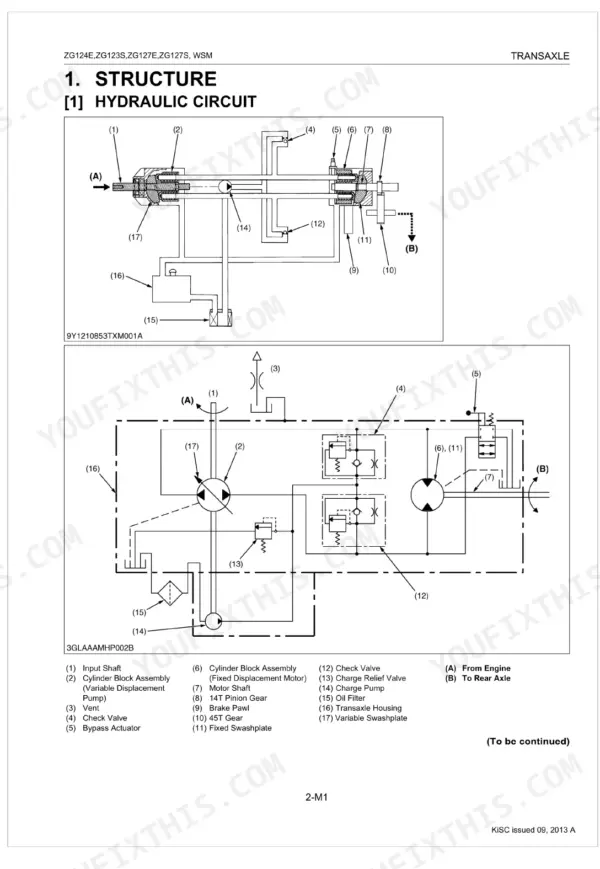

Are there hydraulic schematics in this Kubota ZG123–ZG127 Series manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
