Searching for a kubota zd18 workshop manual pdf? This is the OEM set: 263 pages of factory service data (part #97897-15061) for the ZD18, ZD18F, ZD21, ZD21F, ZD28, and ZD28F Zero Turn Mowers. It maps the starting and charging circuits with full wiring diagrams, traces every hydraulic line from the hydrostatic transmission out to the lift cylinder, and lays out 8 pages of tightening torques across the engine, transaxle, and rotary mower. There are 59 pages of teardown and assembly steps, 11 pages of troubleshooting reaching all six major systems, and 60 pages of exploded views running front axle to mower deck. Fill the crankcase with 3.2L on the ZD18 or 3.5L on the ZD21 before you turn the key; the tank takes a full 34L. When your ZTR is down, you want the right number, not a forum guess. Bookmarked by section and keyword-searchable, so you can open a tablet at the machine and land on any spec in under a minute.
What's Inside This Kubota ZD18–ZD28 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Safty First | 3-5 | - |
| Safety Decals | 6-11 | - |

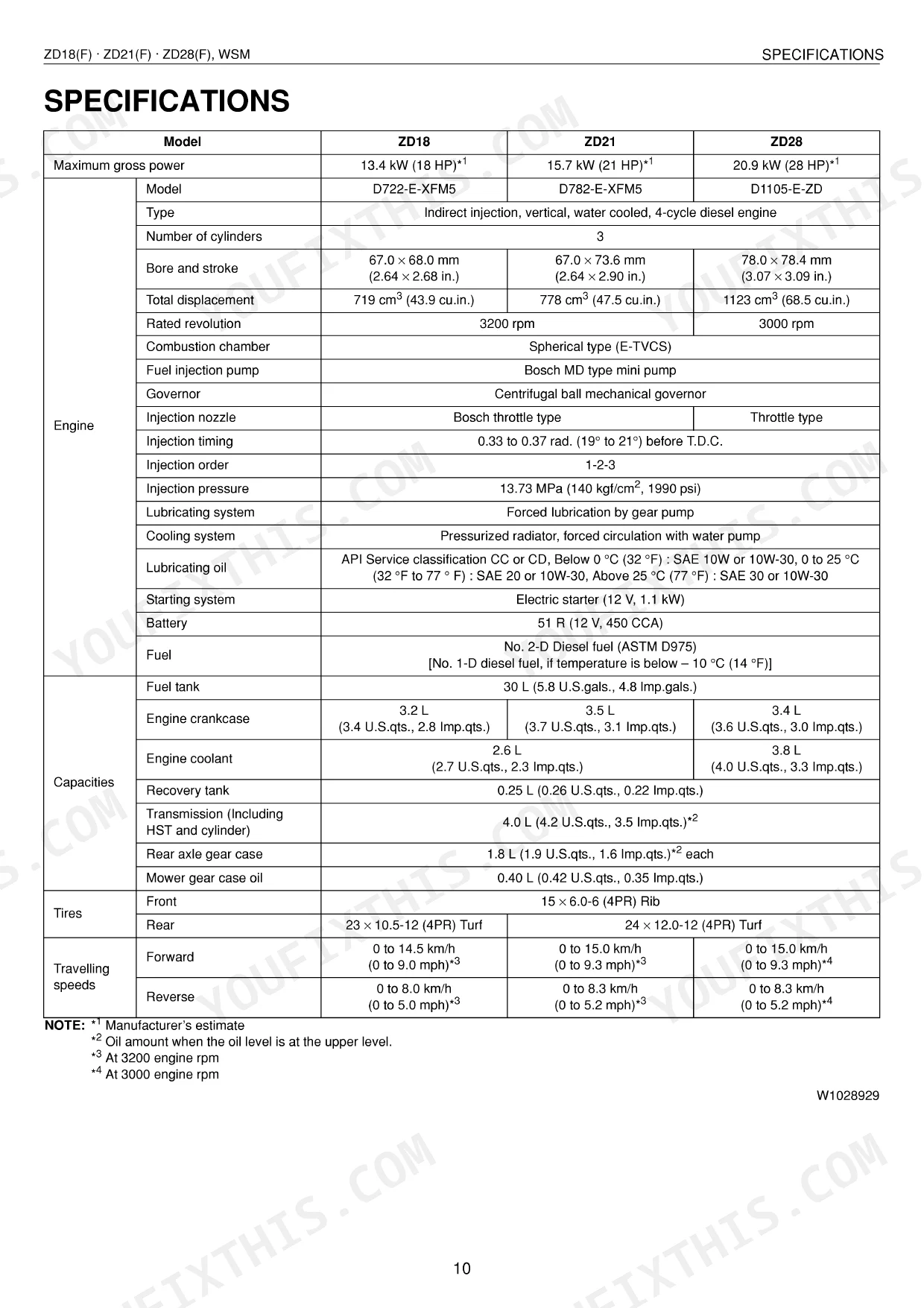

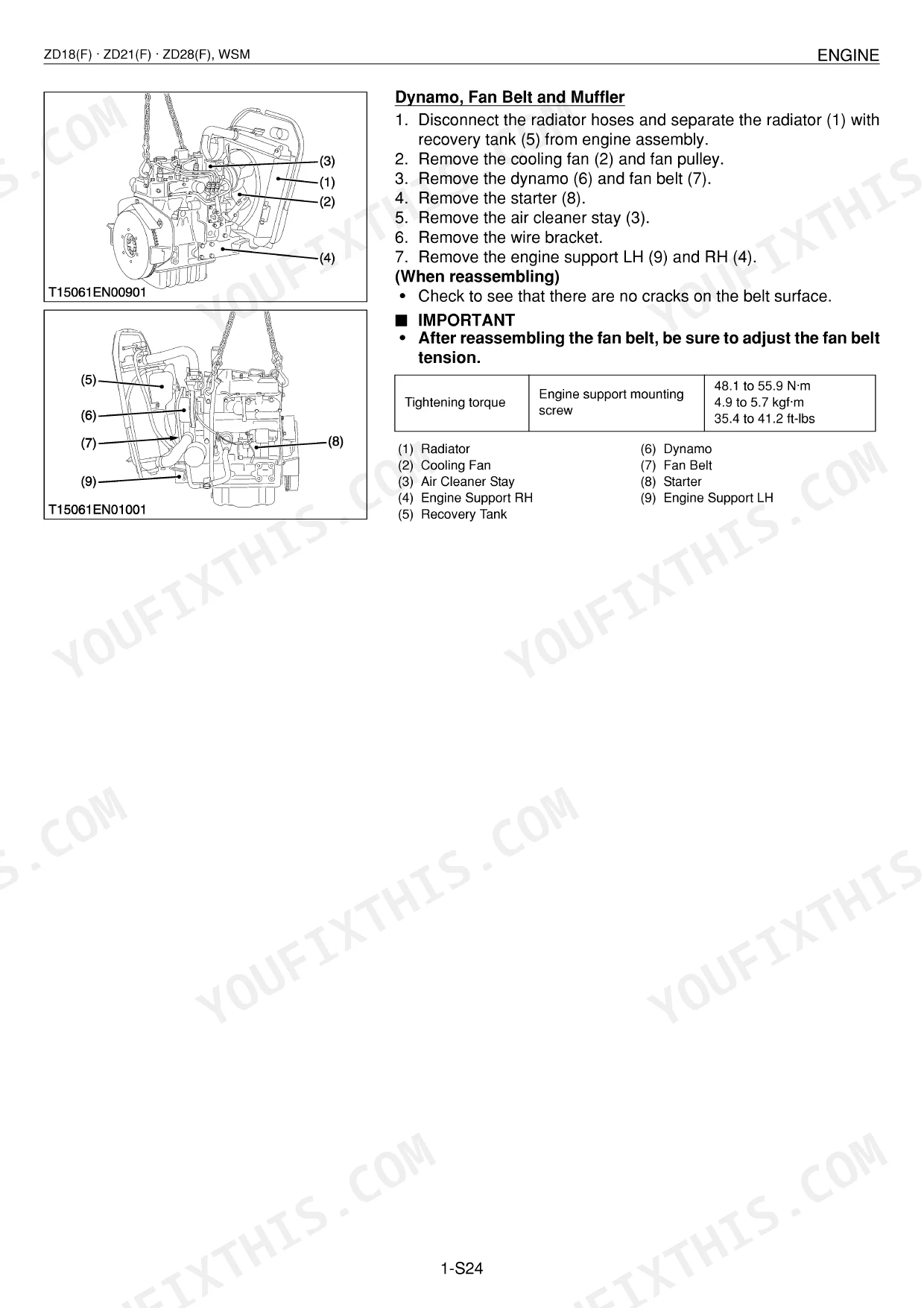

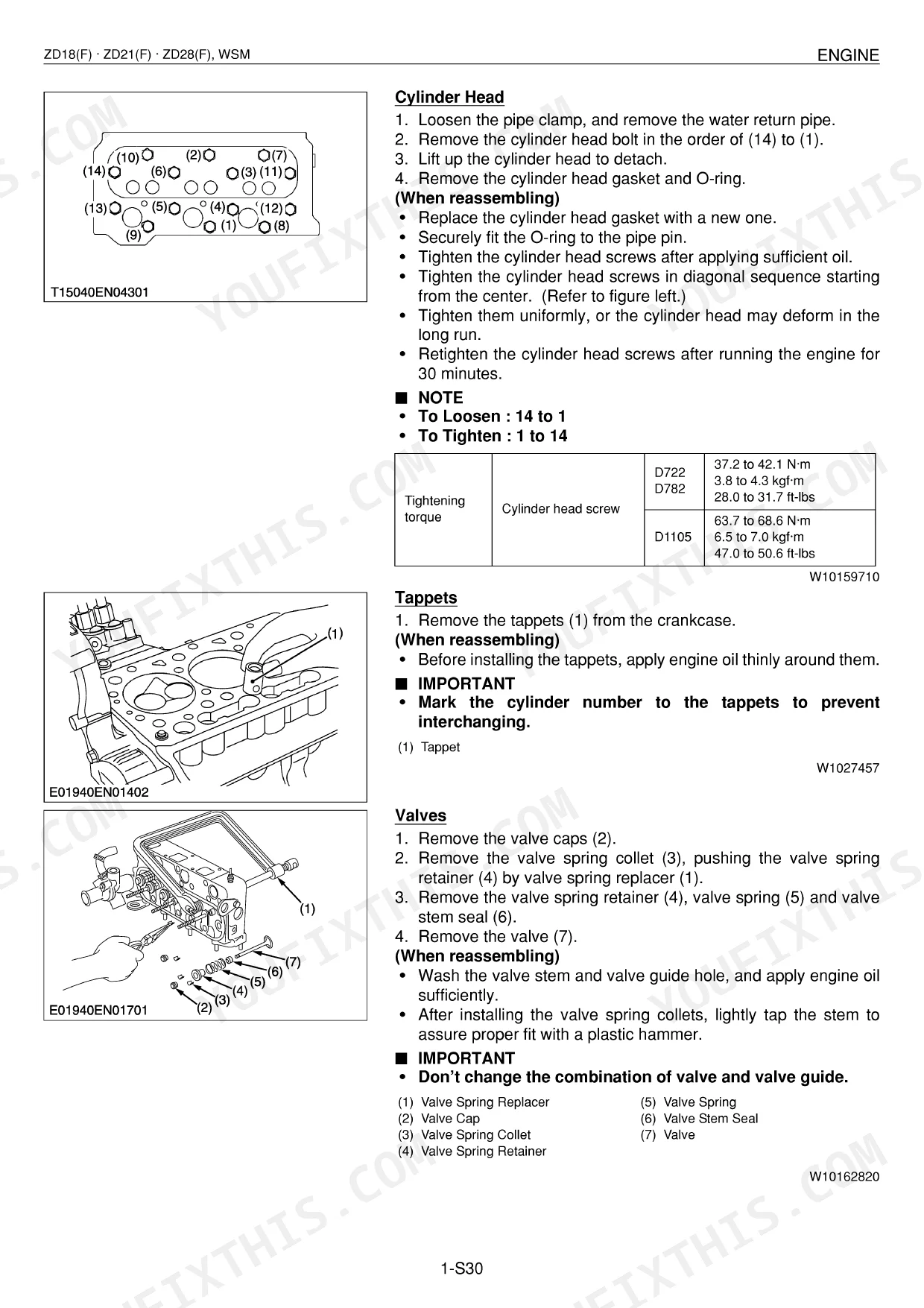

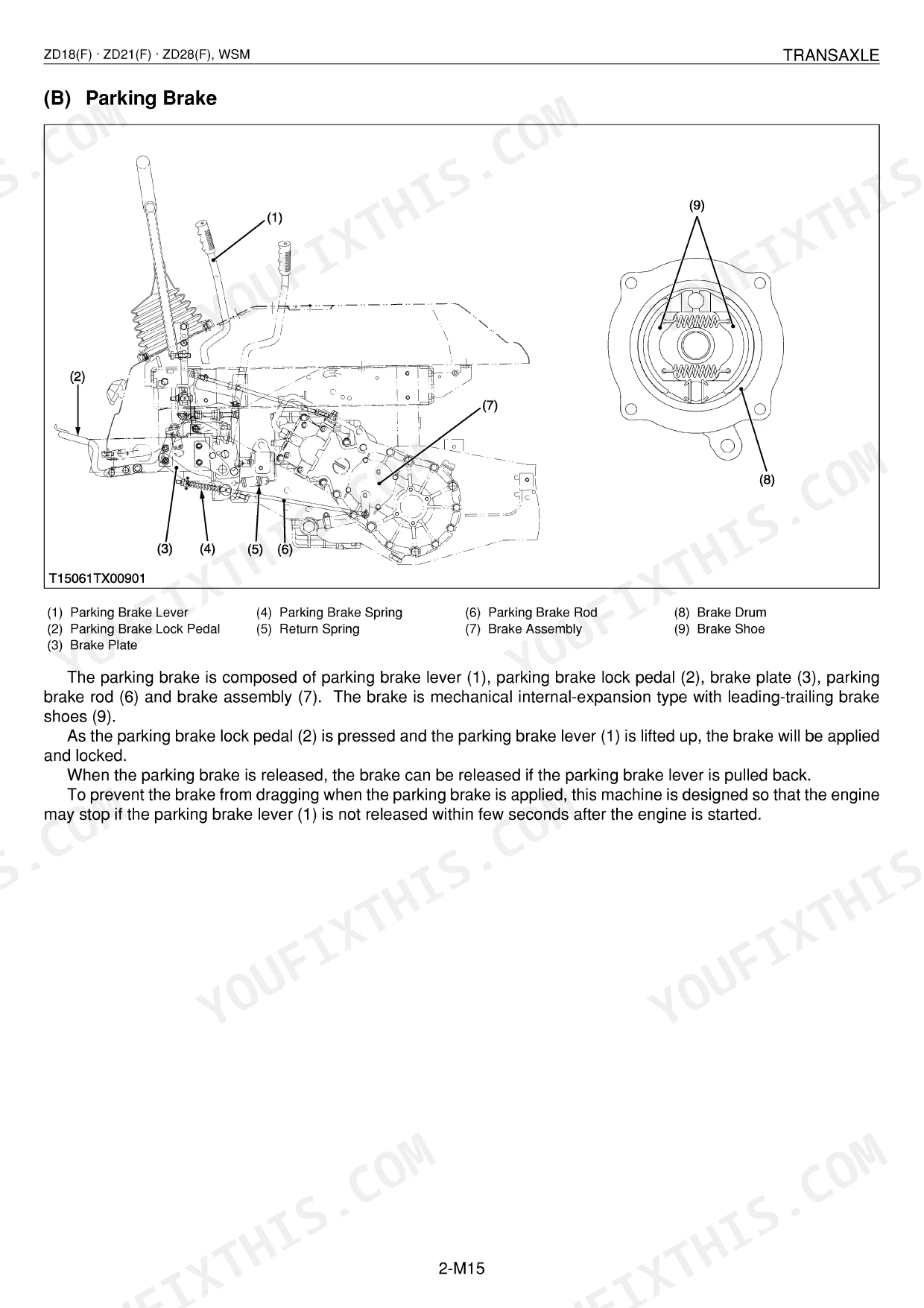

| Specification | 12-15 | Engine, Transmission, PTO, Mower, Dimensions, Weight |
| Dimensions | 16-17 | Overall length, Overall width, Overall height, Wheel base, Mower deck width |
| General | 18-63 | Identification, General precautions, Lubricants, fuel and coolant, Tightening torques, Maintenance check list, Special tools |
| 1.Engine | 64-142 | Notice |
| 2.Transaxle | 143-185 | Hydrostatic transmission, Pump and motor, Check valve, Power trains operation, Control linkage, PTO system |
| 3.Front Axle | 186-194 | Cap, Taper roller bearing, Wheel bracket, Lift up adjuster, Front axle, Center pin |
| 4.Hydraulic System | 195-210 | Hydraulic circuit, Hydraulic pump, Hydraulic control valve, Lift cylinder, Mower linkage |
| 5.Electrical System | 211-245 | Wiring Diagram, Starting System, Charging System, Gauges |
| 6.Rotary Mower | 246-263 | PTO Shaft, Mower Belt, Mower Blades, Bevel Gear, Lift Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Tank Capacity | 34 L (7.9 U.S. gals., 6.6 Imp.gals.) | p. 26 |
| Rear Axle Case Oil Capacity | 1.8 L each | p. 7 |
| Mower Gear Case Oil Capacity | 0.40 L | p. 7 |
| Engine Oil Change Interval | 50 hours | p. 11 |
| Front Tire Pressure | 207 kPa | p. 13 |
| Rear Tire Pressure | 140 kPa | p. 13 |
| General Tightening Torque (M8 x 1.25, SS400, S20C) | 17.7 to 22.5 N·m | p. 9 |
| Universal Joint Mounting Screw Torque | 26.0 to 28.0 N·m | p. 17 |
| ZD18, ZD21 | ||
| Cooling System Capacity | 2.7 L (2.7 U.S.qts., 2.3 Imp.qts.) | p. 26 |
| ZD18 | ||

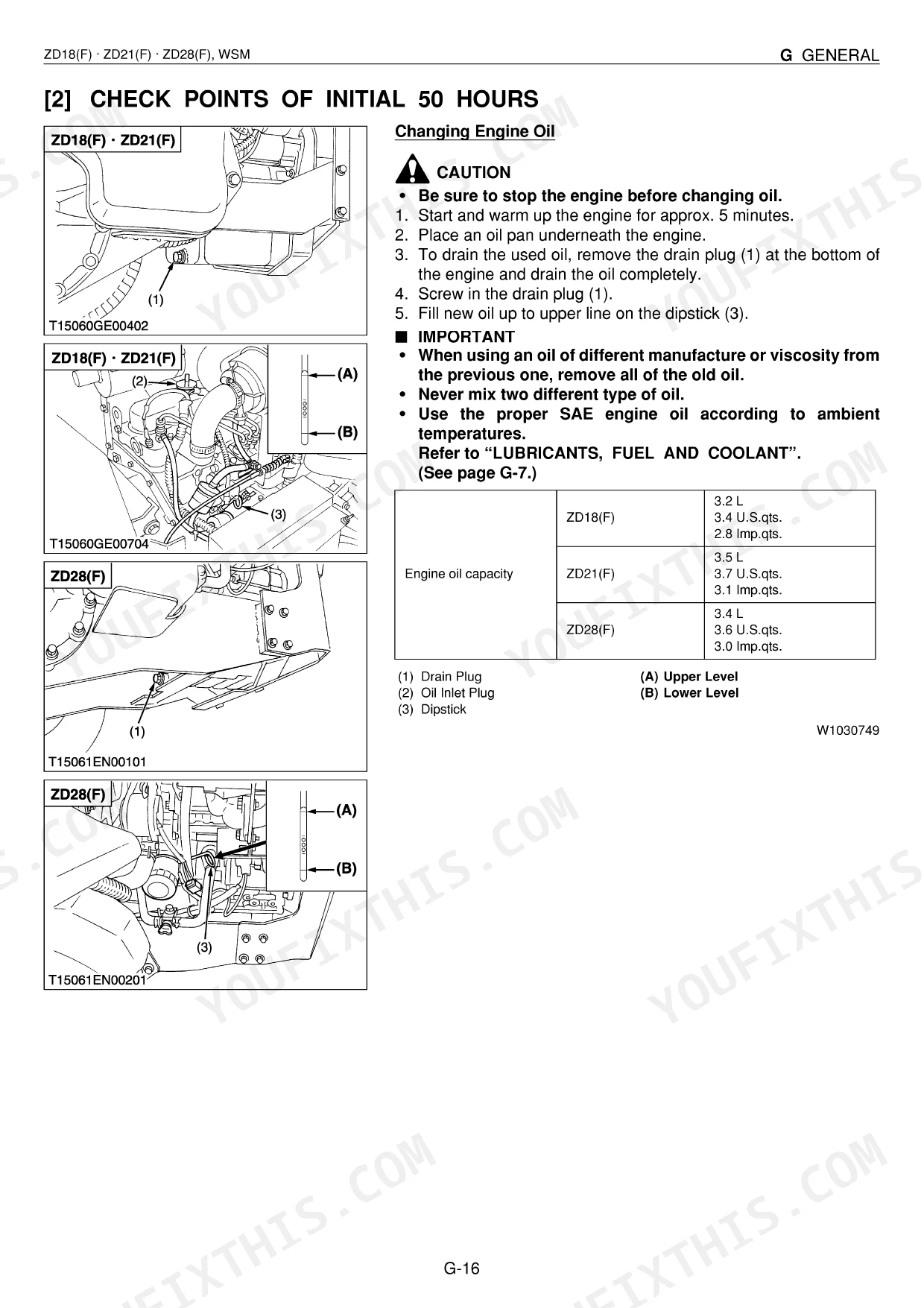

| Engine Oil Capacity | 3.2 L | p. 7 |
| ZD21 | ||
| Engine Oil Capacity | 3.5 L | p. 7 |
| ZD28 | ||
| Engine Oil Capacity | 3.4 L | p. 7 |
Kubota ZD18–ZD28 Series Common Problems This Manual Covers
Kubota ZD series diesel engine turns over slowly or won't start in cold morning temperatures
Clean any corrosion off the battery terminals before cranking. Confirm the fuel shutoff valve sits fully open, then switch to a lower-viscosity oil rated for cold ambient temperatures; the 50-hour oil change interval on page 30 holds year-round. Air trapped in the fuel line will also block a start, so bleed it at the fuel filter.
Manual Section: Engine TroubleshootingMower blades won't engage or blade speed is slow with PTO switch on
Inspect the mower belt for glazing, cracking, or a slip off the drive sheave. Confirm the seat safety switch closes under weight and the PTO switch clicks fully home. Top up the mower gear case if needed; it holds 0.40 L total. Most slow-blade complaints trace back to a slipping or broken belt.

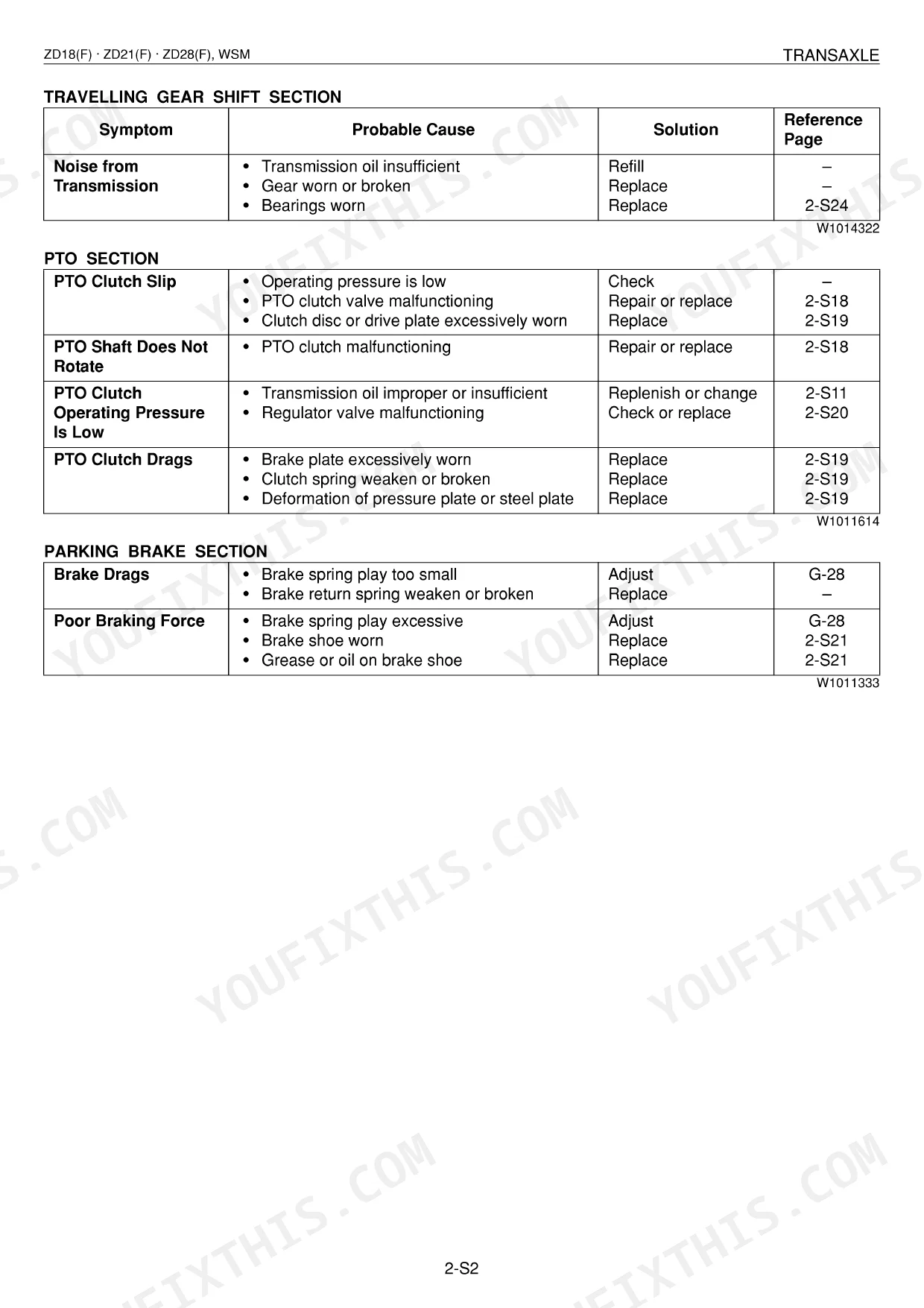

Manual Section: Rotary Mower TroubleshootingHydrostatic transmission jerky during startup, weak on hills, or operates normally in one direction only p. 162
Check the troubleshooting chart on page 162. Verify transmission fluid level and inspect for milky discoloration, which indicates water ingress. The fluid change interval is every 200 hours; old, degraded fluid causes jerky or one-direction-only operation. Also confirm the hydrostatic control linkage has full, equal travel on both left and right sides.
Manual Section: Transaxle TroubleshootingDeck won't raise with lift switch, or mower drops under its own weight when parked
Trace the circuit from the pump with the hydraulic system diagram that starts on page 195. Watch the lift cylinder for oil weeping around the rod seal. Hoses get inspected at 400-hour intervals and swapped every 2 years regardless of how they look. A deck that sinks under its own weight almost always means a worn control valve spool or a failed cylinder seal.
Manual Section: Hydraulic System TroubleshootingBattery discharges too quickly, or starter motor fails to crank after overnight sit
Test each battery terminal connection for corrosion and check the fuse panel. Probe every safety interlock switch (seat, PTO, parking brake) for continuity; one open switch kills the starter relay outright. Follow the circuit on the wiring diagram on page 211. Fresh engine oil at the 50-hour interval on page 30 cuts cranking drag on cold mornings too.
Manual Section: Electrical System TroubleshootingFront wheels wander or drift to one side on flat ground, requiring constant steering correction
Measure front tire pressure before anything else; both tires belong at 207 kPa per page 13. Uneven side-to-side pressure is the usual reason for wander. If the pressures match, check the front axle center pin and wheel bracket bearings for play; the front axle assembly begins at page 186.
Manual Section: Front Axle TroubleshootingFrequently Asked Questions
What are the recommended service intervals?

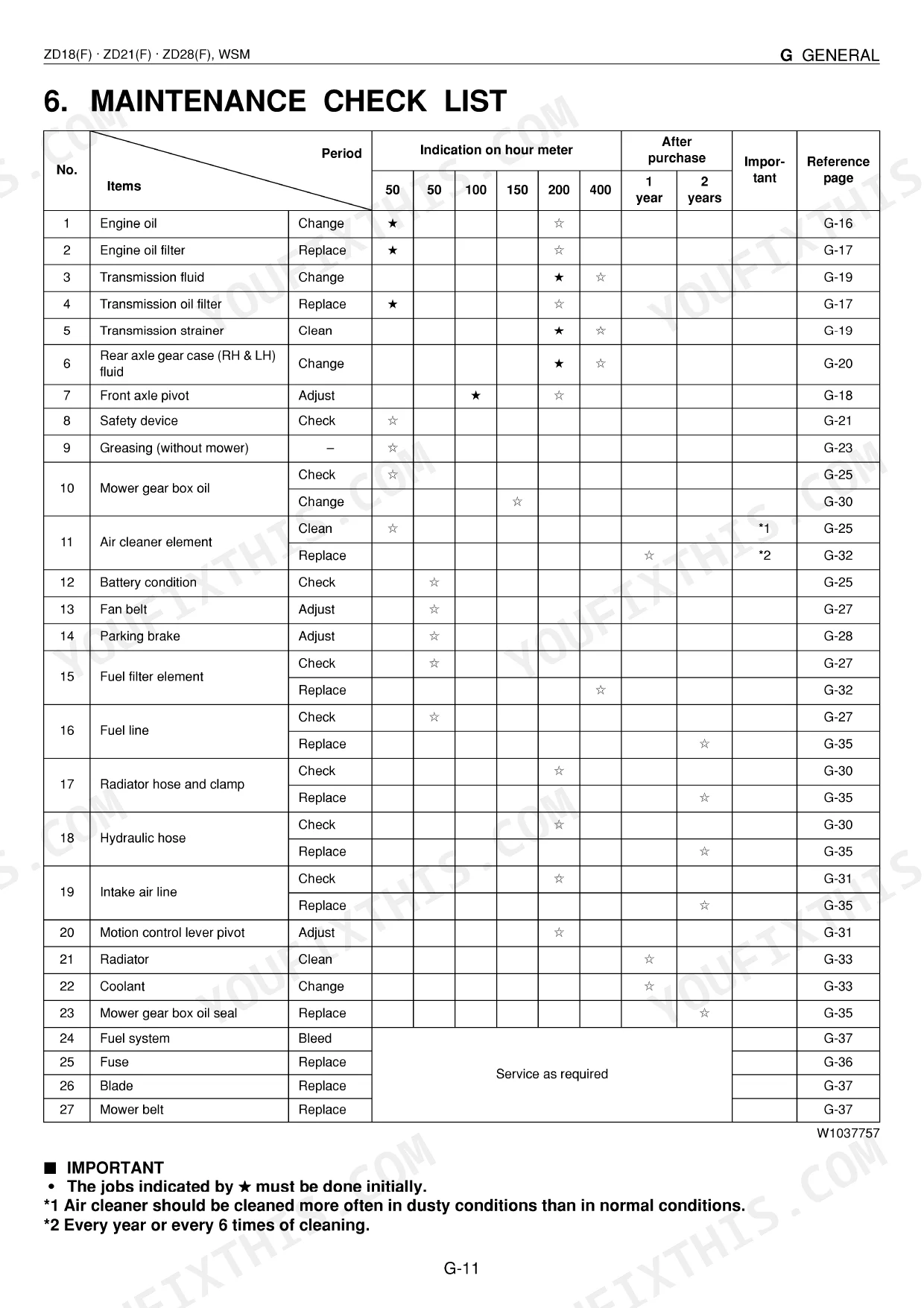

Page 30 carries the full maintenance check list. Engine oil and its filter get changed at 50 hours. Battery condition gets checked at 50, 100, 150, 200, 400 hours, 1 year, and 2 years. The fuel filter element is replaced at 400 hours.
What fluids and capacities does this machine require?
Run No. 2-D Diesel fuel (ASTM D975), dropping to No. 1-D diesel fuel below -10 °C (14 °F). On the ZD18, the engine crankcase holds 3.2 L (3.4 U.S.qts., 2.8 Imp.qts.), the coolant system 2.6 L (2.7 U.S.qts., 2.3 Imp.qts.), and the transmission case 4.0 L (4.2 U.S.qts., 3.5 Imp.qts.).
How to troubleshoot engine won't start?
A no-start usually points to one of a few things: no fuel, air or water in the fuel system, a clogged fuel pipe or filter, wrong fuel viscosity, or an injection-system fault. Deeper causes include a seized crankshaft, camshaft, piston, cylinder, or bearing, plus compression leaks. Fixes range from adding fuel and bleeding the system to cleaning or replacing parts and adjusting timing.
What are the hydraulic system specifications?
On the hydraulic side, the relief valve (control valve) setting pressure runs between 3.14 and 3.73 MPa (32 to 38 kgf/cm², 455 to 540 psi).
What format is this Kubota ZD18–ZD28 Series manual in?
It downloads instantly after checkout: a 263-page searchable PDF that opens on a laptop, tablet, or phone, so it rides out to the shop floor with you.
Are there any print restrictions on this Kubota ZD18–ZD28 Series manual?
None at all. The PDF ships DRM-free, so print whatever sections you want for the shop. Standard letter or A4 paper both work.
Can I find wiring schematics in this Kubota ZD18–ZD28 Series manual?
Yes. The electrical section gives you full schematics with wire routing, connector identification, and circuit descriptions.
Document Quality
This document is a native digital PDF, allowing you to search and copy the full text. The text throughout is crisp and easy to read, with no blurriness or fading. Most diagrams and illustrations are vector-based, appearing sharp at any zoom level, and their labels are clearly readable. Some special tools diagrams are raster images, but they are still clear. All pages are clean with no scan artifacts, stains, marks, or skewed content, and there are a few blank filler pages to separate sections.
