This 662-page Kubota L3301, L3901, and L4701 Service Manual is the factory workshop reference for these compact tractors, covered under publication 9Y111-10123. It is built around the D1803-CR-E4 engine used on the L3301 and L3901 and the V2403-CR-E4 engine used on the L4701, both common rail diesels with after treatment.The manual runs the full machine across Information, General, and system sections: engine, clutch, transmission with HST, rear axle, brakes, front axle, steering, hydraulics, and the electrical system with its ECU, sensors, and circuits. Specifications, maintenance check lists, tightening torques, and step by step checking, disassembly, and servicing are included throughout.Owners and independent mechanics can use it to service the diesel engine and DPF, rebuild the transmission, sort out steering or hydraulics, work the brakes, or trace the electrical system. It is delivered as a downloadable PDF you can view on any device or print.
What's Inside This Kubota L3301, L3901, L4701 Manual
| System | Pages | Key Topics |
|---|---|---|
| I Information | 4-21 | - |
| G General | 22-134 | Tractor Identification, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Maintenance Check List, Special Tools |

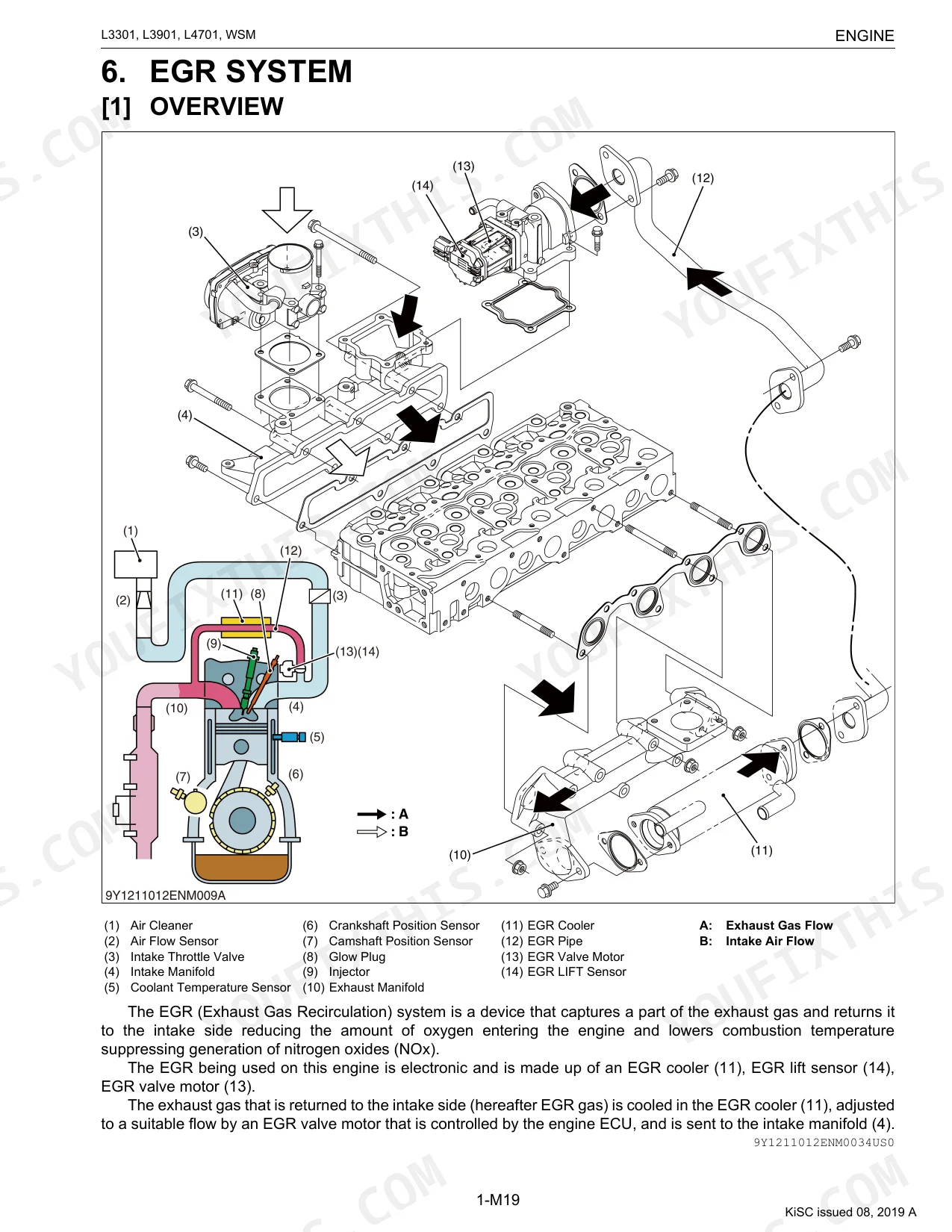

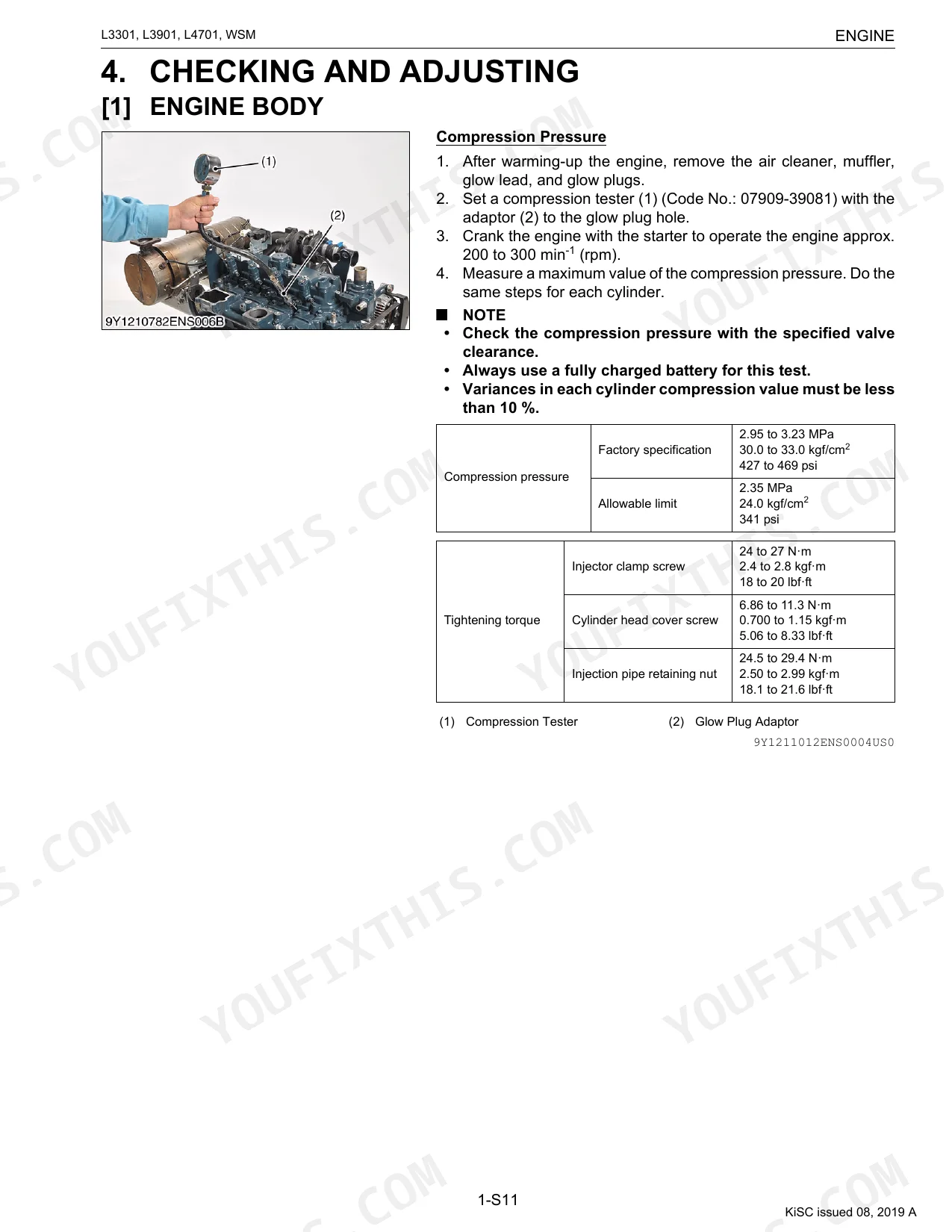

| Engine | 135-241 | Engine Body, Lubricating System, Cooling System, Fuel System, EGR System, After Treatment System |
| Clutch | 242-271 | Traveling Clutch, Manual Transmission Model, Hydrostatic Transmission (HST) Model, Single Stage Clutch, Dual Stage Clutch |
| Transmission | 272-428 | Manual Transmission Model, Hydrostatic Transmission (HST) Model, Power Train for Traveling Gears, PTO System, Hydrostatic Transmission Assembly, Linkage Mechanism |
| Rear Axle | 429-441 | Rear Axle Case, Differential Gear Shaft, Brake Case, Differential Pinion, Final Gear |
| Brakes | 442-458 | Brake Pedal, Brake Disc, Cam Plate, Brake Cam, Brake Case, Brake Cam Lever |
| Front Axle | 459-495 | Front Wheel Hub, Knuckle Shaft, Bevel Gear Case, Axle Flange, Steering Cylinder |
| Steering | 496-530 | Linkage, Hydraulic Circuit, Hydraulic Pump, Steering Gear Box, Steering Controller, Steering Cylinder |
| Hydraulic System | 531-576 | Hydraulic Circuit, Hydraulic Cylinder, Linkage Mechanism, Position Control Valve, Hydraulic Pump, Safety Valve |

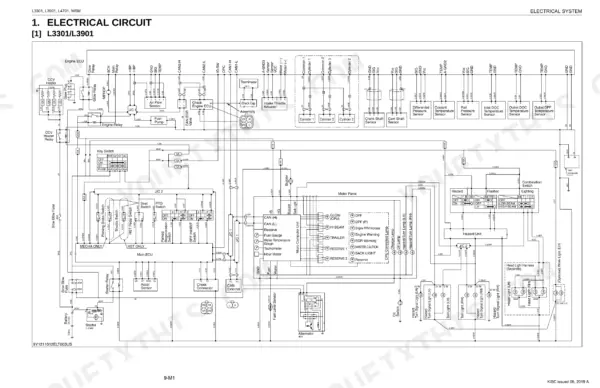

| Electrical System | 577-662 | Electrical Circuit, Instrument Panel, Electric Control Unit (ECU), Switches, Sensors, Starting Circuit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L3301, L3901 | ||
| Fuel tank capacity | 42.0 L (11.0 U.S.gals, 9.24 Imp.gals) | p. 34 |
| Engine crankcase (with filter) capacity | 6.7 L (7.1 U.S.qts, 5.9 Imp.qts) | p. 34 |
| Engine coolant capacity | 6.0 L (6.3 U.S.qts, 5.3 Imp.qts) | p. 34 |
| Transmission case capacity (Manual Transmission, 2WD) | 28.0 L (7.4 U.S.gals, 6.16 Imp.gals) | p. 34 |
| Transmission case capacity (Manual Transmission, 4WD) | 28.5 L (7.5 U.S.gals, 6.27 Imp.gals) | p. 34 |
| Front axle case [4WD] capacity | 4.5 L (4.8 U.S.qts, 4.0 Imp.qts) | p. 34 |
| Maintenance interval (Daily Check) | Daily | p. 39 |
| L4701 | ||
| Fuel tank capacity | 51.0 L (13.5 U.S.gals, 11.2 Imp.gals) | p. 35 |
| Engine crankcase (with filter) capacity | 8.2 L (8.7 U.S.qts, 7.2 Imp.qts) | p. 35 |
| Engine coolant capacity | 6.5 L (6.9 U.S.qts, 5.7 Imp.qts) | p. 35 |
| Front axle case [4WD] capacity | 6.5 L (6.9 U.S.qts, 5.7 Imp.qts) | p. 35 |
| Maintenance interval (Daily Check) | Daily | p. 42 |
Kubota L3301, L3901, L4701 Common Problems This Manual Covers
Weak transmission or HST drive
Loss of drive, creeping, or poor shifting on the manual or HST models traces to the power train, PTO system, or the hydrostatic transmission assembly. The transmission section covers all of these with mechanism and servicing.
Manual Section: 3 Transmission p. 272Hard starting or DPF warnings

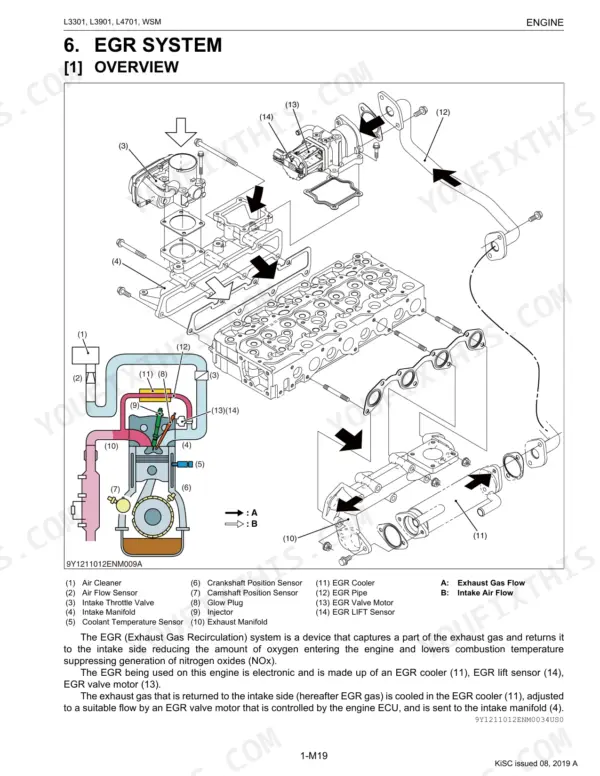

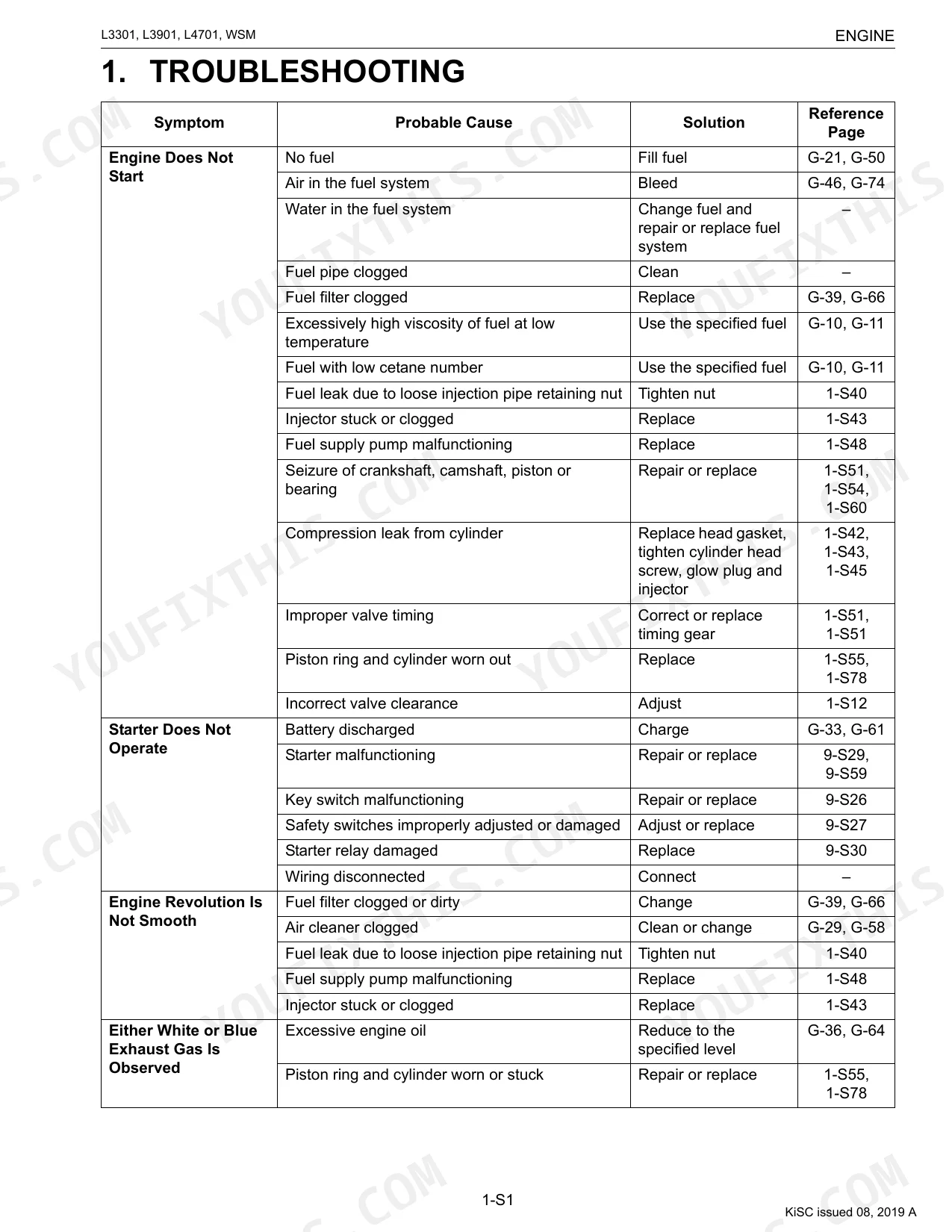

Hard starting, low power, or a regeneration warning on these common rail engines involves the fuel system, EGR, and after treatment. The engine section covers the engine body, fuel system, EGR, and after treatment system with servicing.
Manual Section: 1 Engine p. 135Heavy or unresponsive steering
Stiff or wandering steering points to the hydraulic pump, steering gear box, controller, or cylinder. The steering section documents the linkage, hydraulic circuit, pump, gear box, controller, and cylinder.
Manual Section: 7 Steering p. 496Three-point hitch will not lift

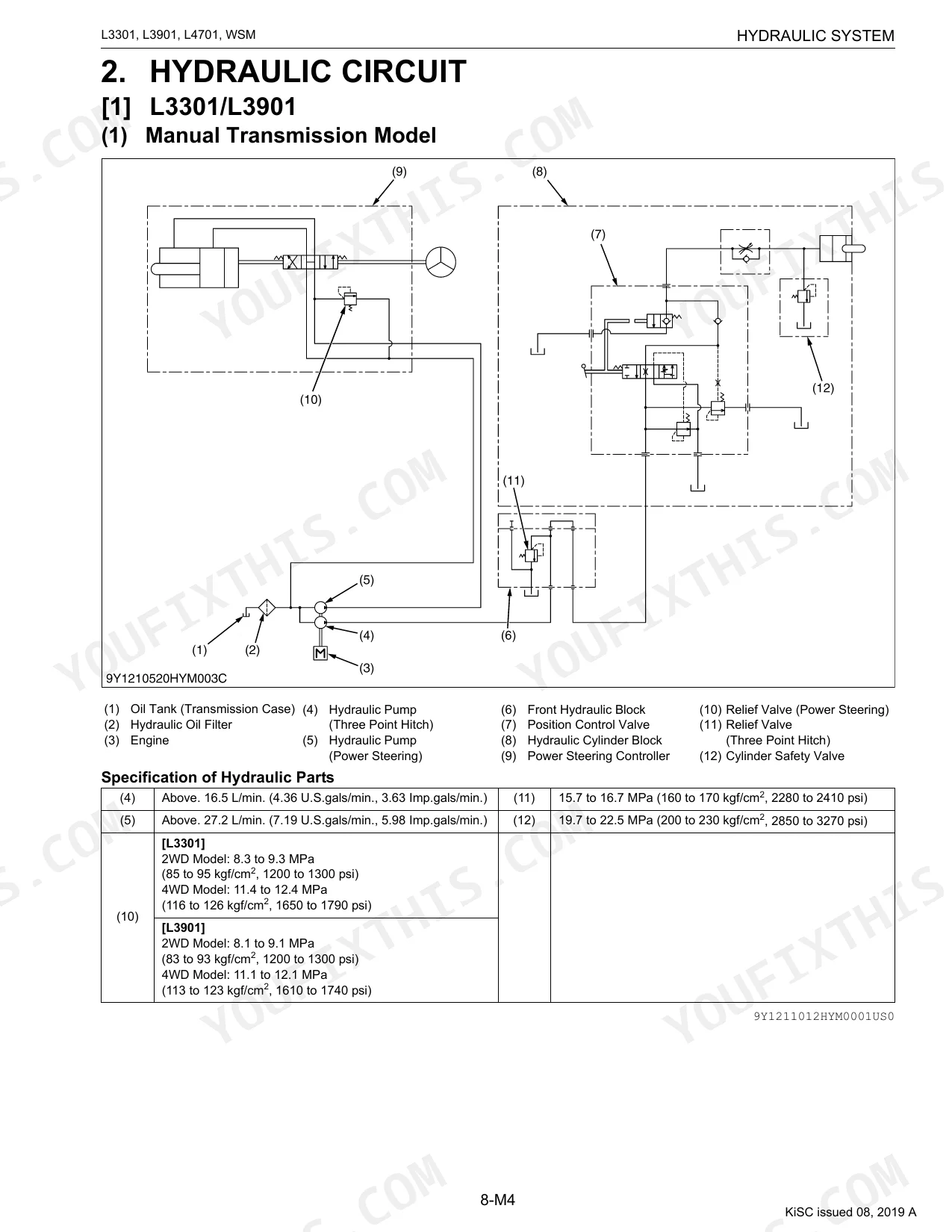

A hitch that lifts slowly or not at all comes from the hydraulic pump, position control valve, safety valve, or the lift cylinder. The hydraulic system section covers the circuit, cylinder, linkage mechanism, control valve, pump, and safety valve.
Manual Section: 8 Hydraulic System p. 531Soft or dragging brakes
Excessive brake pedal free travel or dragging comes from the brake disc, cam plate, or cam adjustment. The brakes section covers the pedal, disc, cam plate, cam, and brake case with checking and servicing.
Manual Section: 5 Brakes p. 442Charging or ECU electrical faults
A flat battery, no start, or warning light can involve the ECU, sensors, switches, or the starting circuit. The electrical system section documents the circuit, instrument panel, electronic control unit, sensors, and starting circuit.
Manual Section: 9 Electrical System p. 577Frequently Asked Questions
Which tractors and engines does this manual cover?
It covers the Kubota L3301, L3901, and L4701 tractors under publication 9Y111-10123. The L3301 and L3901 use the D1803-CR-E4 engine and the L4701 uses the V2403-CR-E4 engine.
Does it cover the engine and after treatment system?
Yes. The engine section covers the engine body, lubricating and cooling systems, fuel system, EGR, and after treatment system, with mechanism and servicing for these common rail diesels. p. 135
Are maintenance intervals and torque specs included?

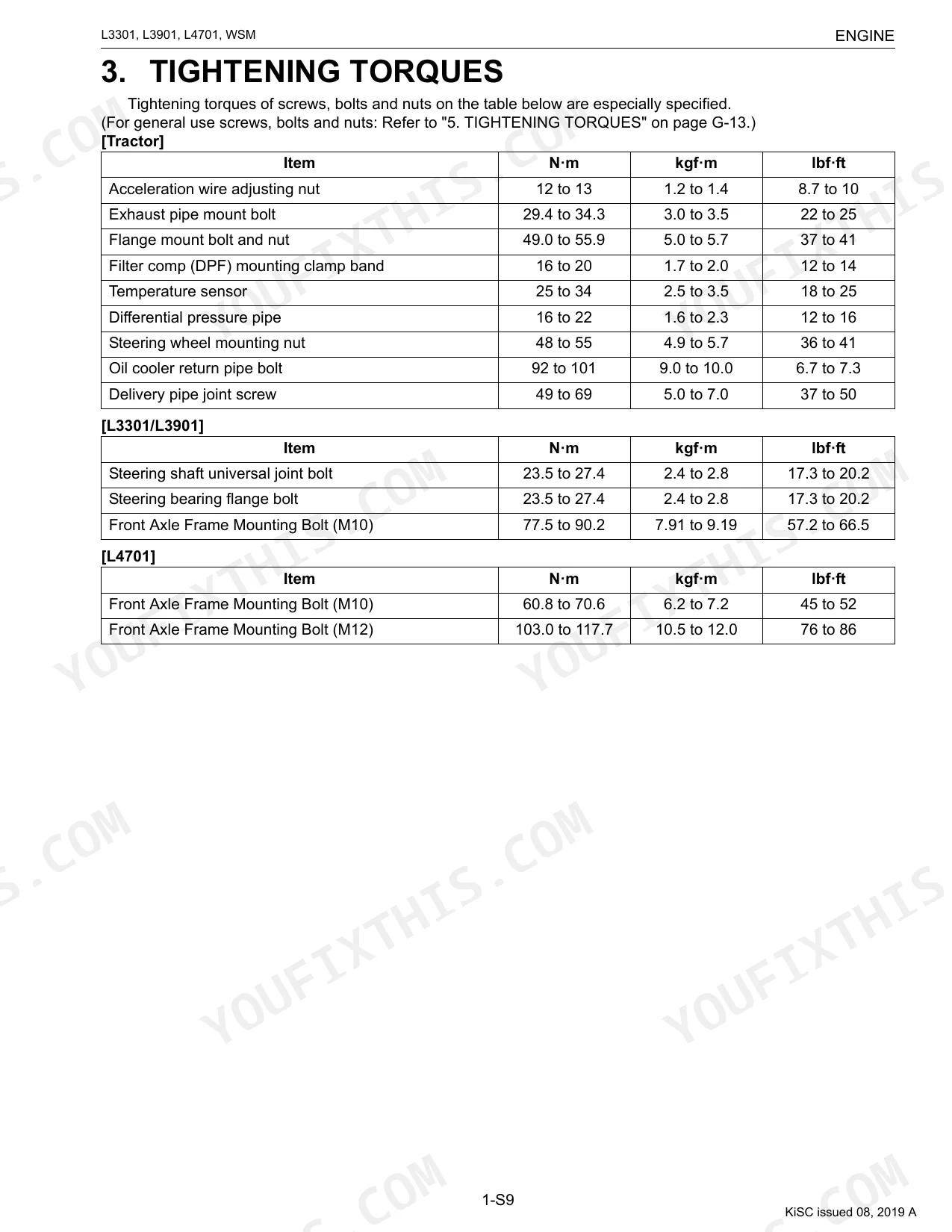

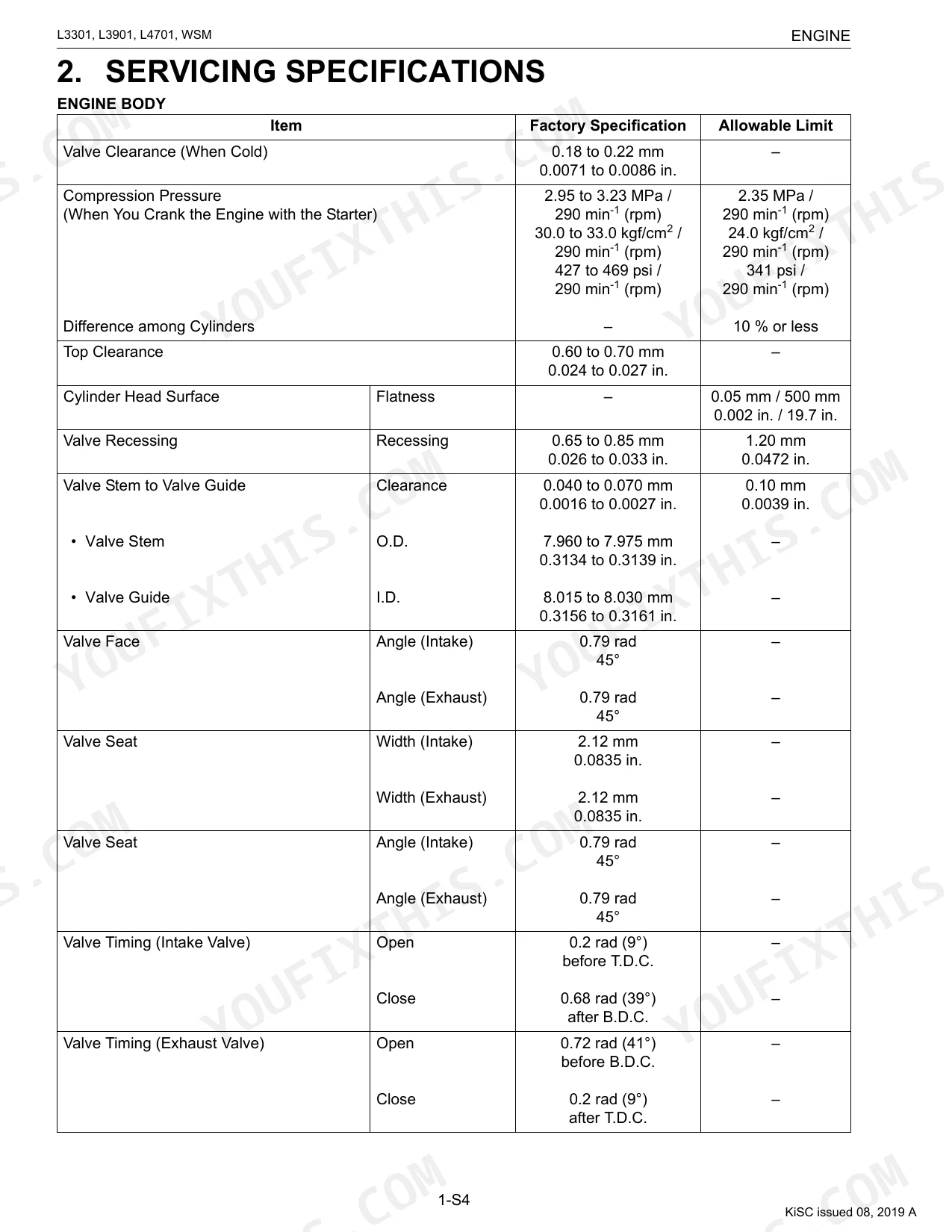

Yes. The general section carries the maintenance check list, tightening torques, and lubricants and fuel, and each system section adds its own servicing specifications and torque values. p. 22
Will this Kubota L3301 Service Manual download right away?
Immediate download of the complete 662-page searchable Service Manual. Access it on any device, laptop at your desk or phone in the field.
Can I print this Kubota L3301 manual?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

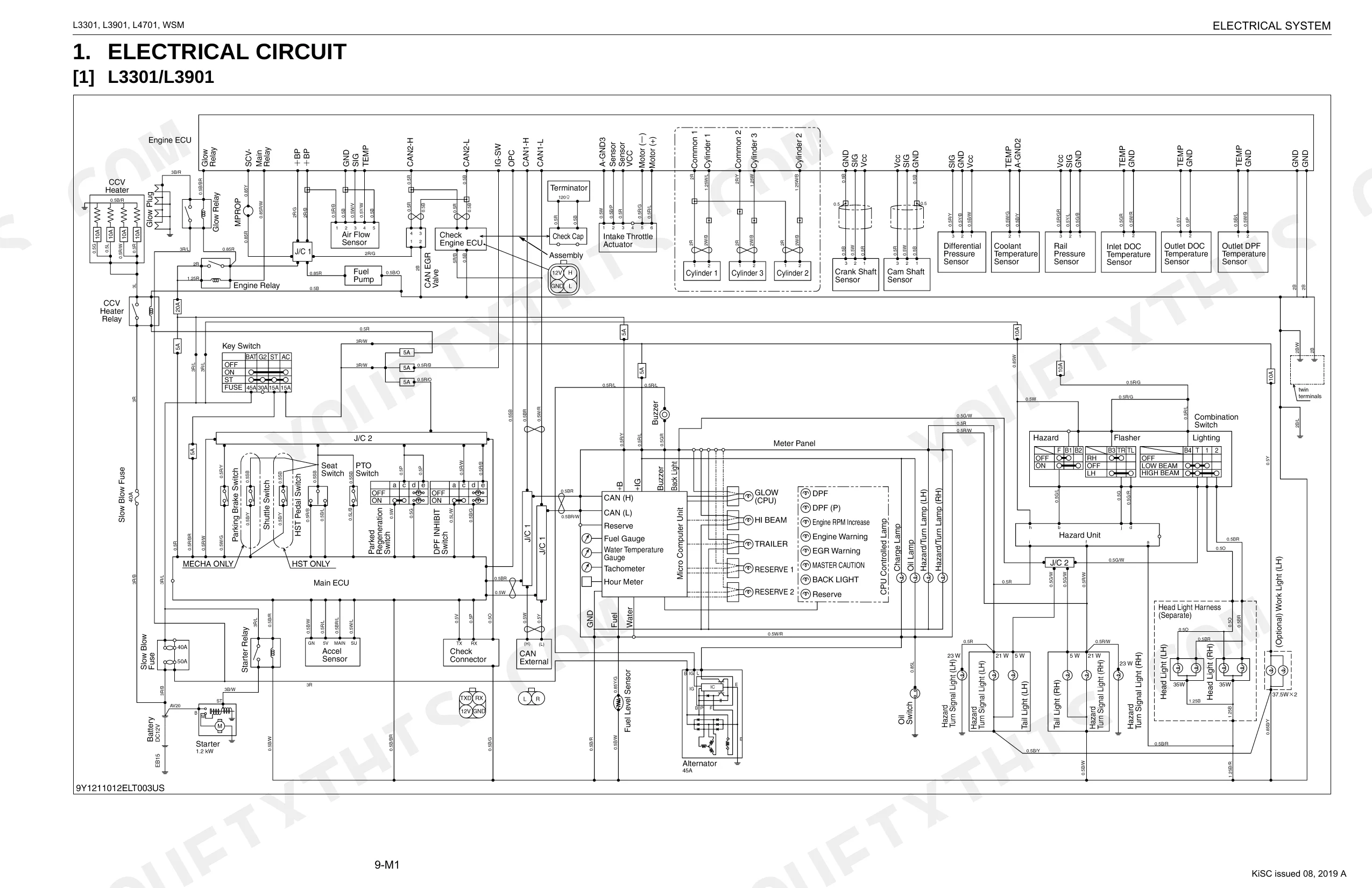

Does this Kubota L3301 manual have electrical schematics?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
