This Kubota Workshop Manual covers the ZG222, ZG227 and ZG222S zero-turn mowers, including the KGZ770-E2-M3 and KGZ770-E2-M2 gasoline engines. It runs 251 pages with a searchable text layer, so you can find the system you need and jump straight to it.Inside you get full service coverage: the engine body and fuel system, the hydrostatic transaxle, the front axle, the hydraulic system, the electrical system with wiring diagrams, and the rotary mower deck. Specifications, tightening torques and servicing limits are laid out per system.Whether you are chasing a drive fault, setting valve clearance, tracing a wiring problem or leveling the mower deck, the procedures and specs let an owner or independent shop do the work without guessing. It is delivered as a downloadable PDF you can read on any device or print the pages you need.
What's Inside This Kubota ZG222, ZG227, ZG222S Manual

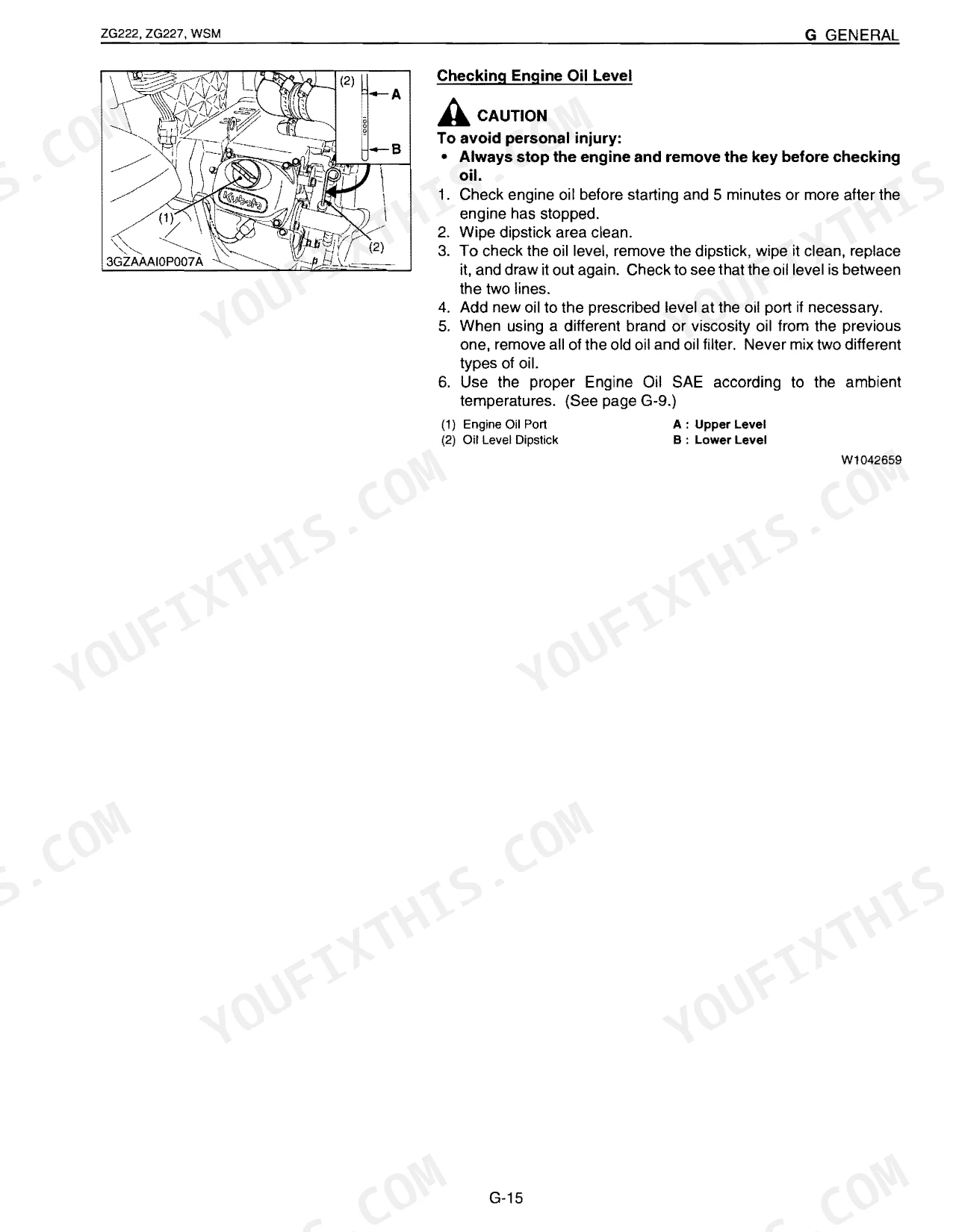

| System | Pages | Key Topics |
|---|---|---|
| Specifications | 11-12 | Model, Engine, Capacities, Travelling System, PTO, Pro Commercial Deck |
| Dimensions | 13-14 | - |
| General | 15-60 | Identification, Electrical Parts and Wiring, Lubricants and Fuel, Tightening Torques, Maintenance Check List, Special Tools |
| Engine | 61-112 | Engine Body, Lubricating System, Cooling System, Fuel System, Ignition System, Servicing Specifications |
| Transaxle | 113-154 | Structure, Travelling System, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Front Axle | 155-164 | Structure, Troubleshooting, Tightening Torques, Disassembling and Assembling |
| Hydraulic System | 165-182 | Hydraulic Circuit, Hydraulic Pump, Hydraulic Control Valve and Valve Adaptor, Lift Cylinder, Mower Linkage, Servicing Specifications |
| Electrical System | 183-229 | Wiring Diagram, Starting System, Charging System, Gauges, Servicing Specifications, Tightening Torques |
| Rotary Mower | 230-251 | Power Transmission, Lifting Mechanism, Mower Blades, Gear Box, Anti-Scalp Rollers, Mower Deck Level Adjustment |

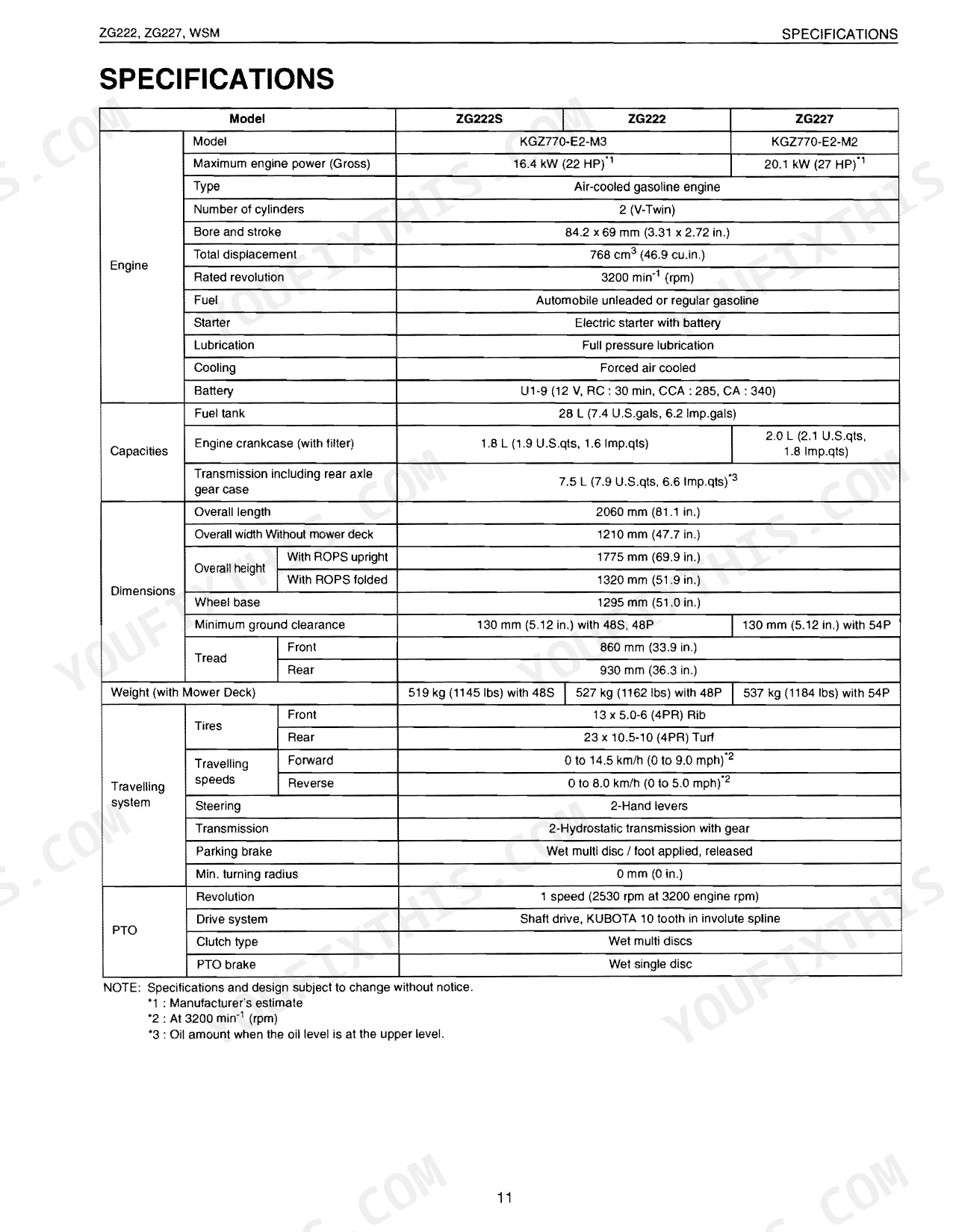

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 30 L (7.9 U.S.gals, 6.6 Imp.gals) | p. 24 |
| Transmission fluid capacity (including rear axle gear case) | 7.5 L (7.9 U.S.qts, 6.6 Imp.qts) | p. 24 |
| Mower gear box oil capacity | 0.15 L (0.16 U.S.qts, 0.13 Imp.qts) | p. 24 |

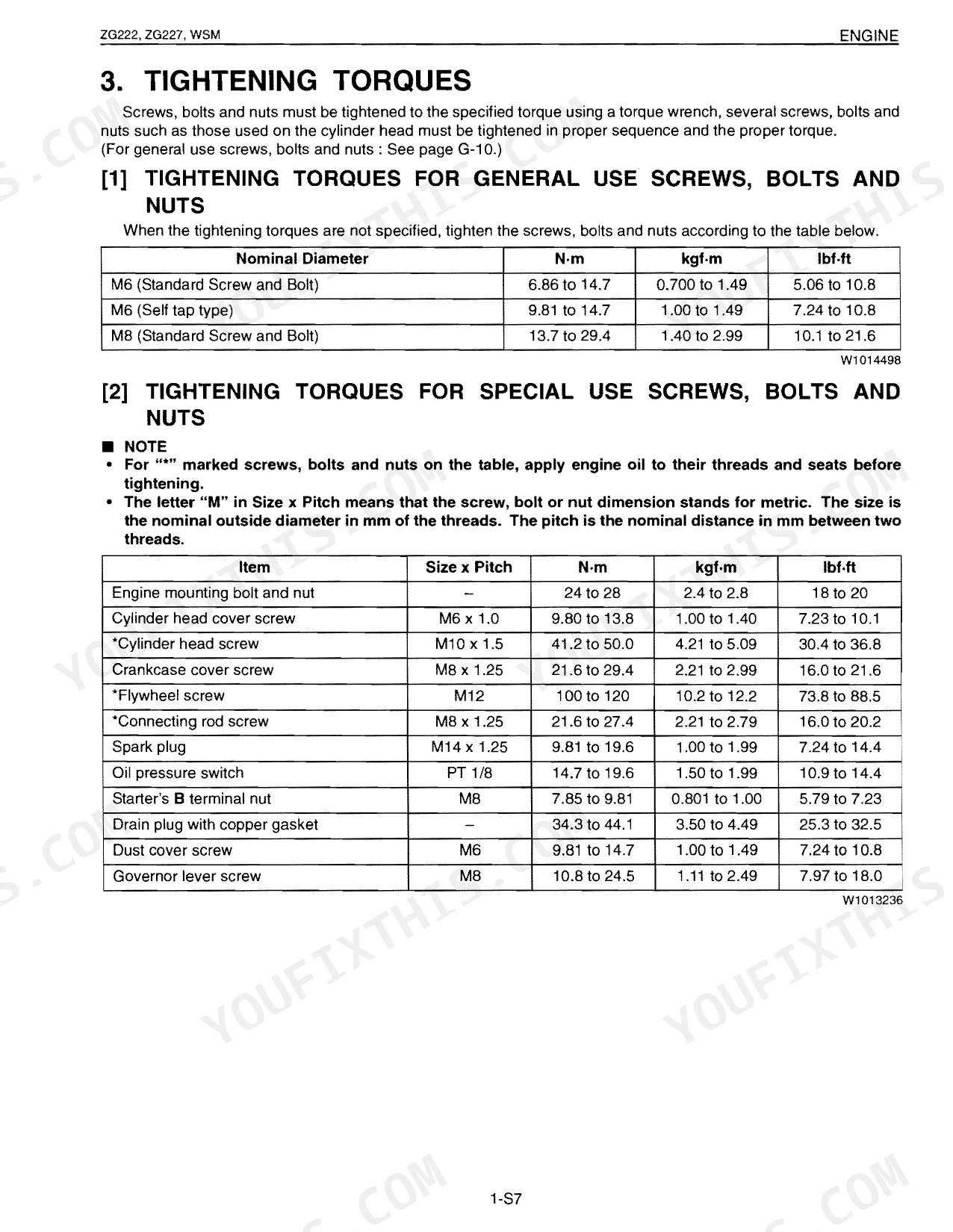

| General use screws, bolts and nuts torque (M6 Standard) | 6.86 to 14.7 N·m (0.700 to 1.49 kgf·m, 5.06 to 10.8 lbf·ft) | p. 83 |
| Engine mounting bolt and nut torque | 24 to 28 N·m (2.4 to 2.8 kgf·m, 18 to 20 lbf·ft) | p. 83 |
| Spark plug torque | 9.81 to 19.6 N·m (1.00 to 1.99 kgf·m, 7.24 to 14.4 lbf·ft) | p. 83 |
| Rear wheel mounting nut torque | 65 to 75 N·m (6.6 to 7.7 kgf·m, 48 to 55 lbf·ft) | p. 132 |
| Transaxle mounting screw (M12) torque | 78 to 90 N·m (7.9 to 9.2 kgf·m, 58 to 66 lbf·ft) | p. 132 |
| Wheel bolt and lock nut torque (Front Axle) | 20 to 25 N·m (2.1 to 2.5 kgf·m, 15 to 18 lbf·ft) | p. 162 |
| ZG222S | ||
| Engine crankcase oil capacity (with filter) | 1.8 L (1.9 U.S.qts, 1.6 Imp.qts) | p. 24 |
| ZG227 | ||
| Engine crankcase oil capacity (with filter) | 2.0 L (2.1 U.S.qts, 1.8 Imp.qts) | p. 24 |
| RCK48S | ||
| Mower blade screw torque | 103 to 117 N·m (10.5 to 12.0 kgf·m, 76.0 to 86.7 lbf·ft) | p. 238 |
Kubota ZG222, ZG227, ZG222S Common Problems This Manual Covers
Hydrostatic drive weakens over time
Zero-turn mowers lose ground speed and pulling power as the hydrostatic transaxle wears or its oil breaks down. The Transaxle section covers the pump and motor, checking, and servicing specifications so you can measure wear against spec.
Manual Section: Transaxle p. 113Uneven cut and deck scalping
A deck that cuts unevenly or scalps usually needs the blades, anti-scalp rollers and deck level checked and adjusted. The Rotary Mower section walks through the blades, gear box and mower deck level adjustment.

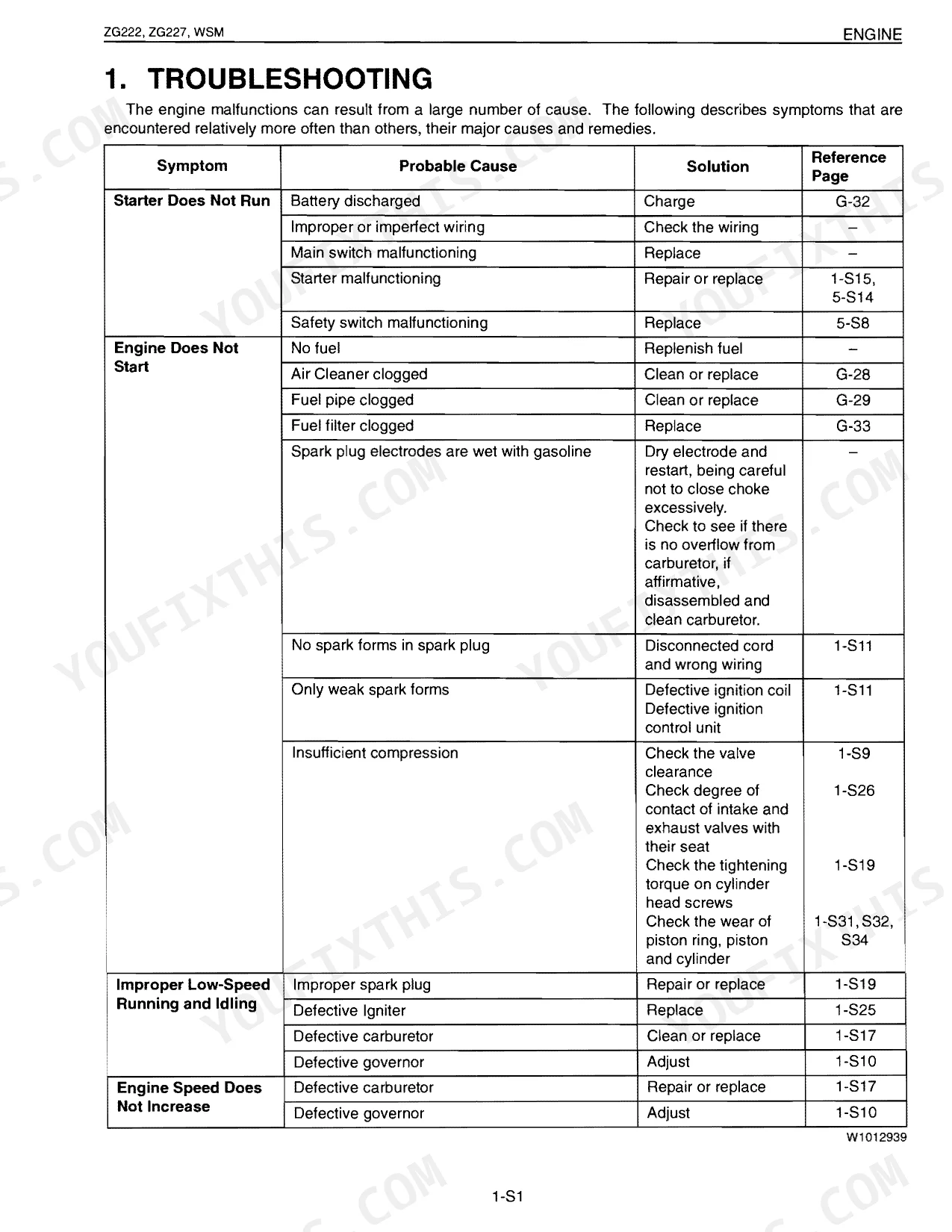

Manual Section: Rotary Mower p. 230Hard starting or no crank
Starting faults on these mowers often trace to the starting circuit, safety switches or charging system rather than the engine itself. The Electrical System section covers the wiring diagram, starting system and charging system.
Manual Section: Electrical System p. 183Engine overheating under load
Heavy cutting can push cooling to its limit if the cooling system is neglected. The Engine section covers the cooling system along with the engine body, fuel and ignition systems and servicing specifications.
Manual Section: Engine p. 61Slow or weak deck lift
A mower deck that lifts slowly or drops points to the hydraulic pump, control valve or lift cylinder. The Hydraulic System section covers the circuit, pump, control valve and lift cylinder with servicing specifications.
Manual Section: Hydraulic System p. 165Front axle play and steering wander
Worn front axle components cause looseness and wandering. The Front Axle section covers the structure, troubleshooting, tightening torques and disassembling and assembling.
Manual Section: Front Axle p. 155Frequently Asked Questions
Which mowers and engines does this manual cover?
It covers the Kubota ZG222, ZG227 and ZG222S zero-turn mowers, including the KGZ770-E2-M3 and KGZ770-E2-M2 gasoline engines.
Is this the full workshop manual or just operator information?
It is the full 251-page workshop manual, with service coverage for the engine, transaxle, front axle, hydraulic system, electrical system and rotary mower deck, including specifications and tightening torques.

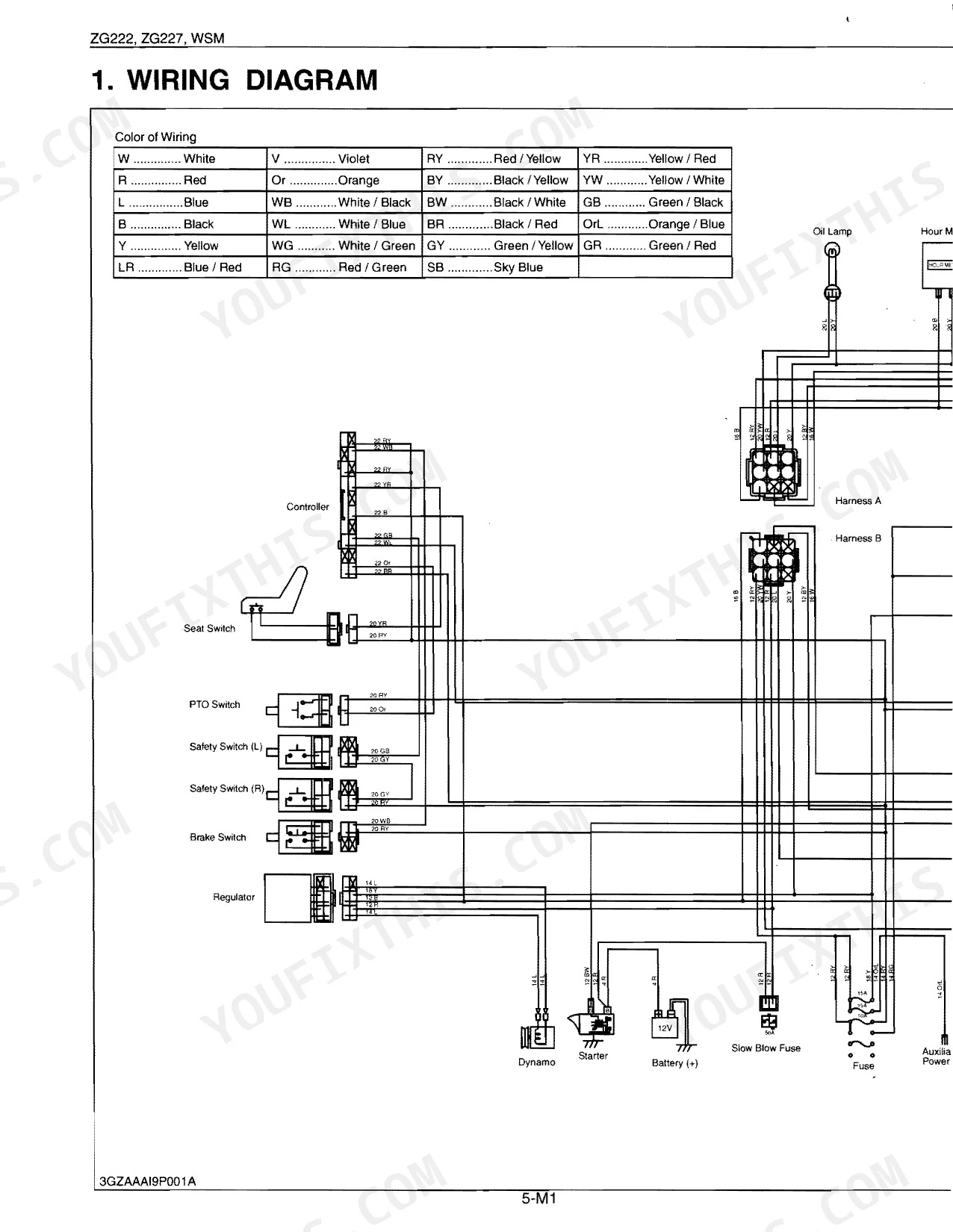

Where do I find the wiring diagrams?
The Electrical System section, which starts on page 183, includes the wiring diagram along with the starting system, charging system, gauges and servicing specifications. p. 183

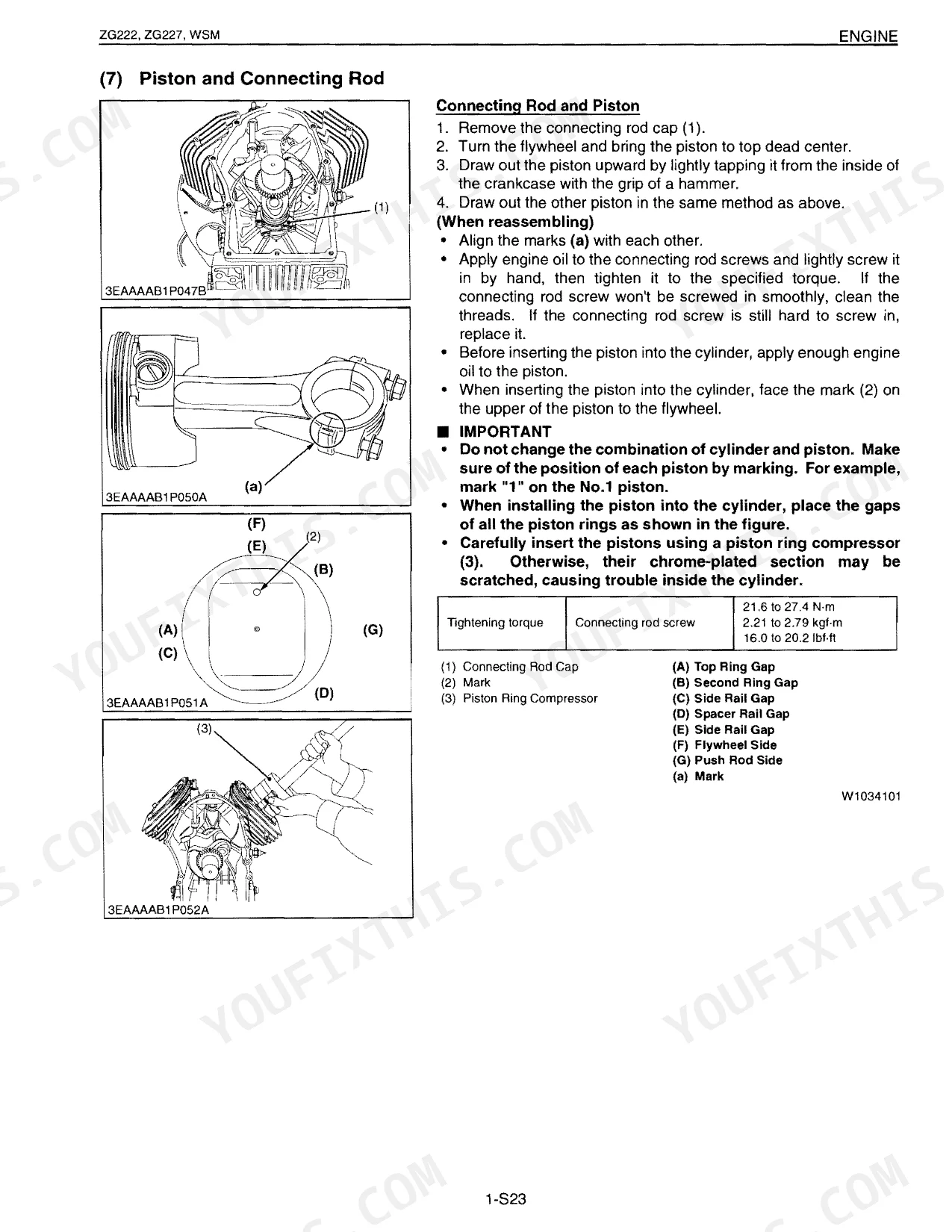

Does it include engine valve and torque specifications?
Yes. The Engine section, starting on page 61, covers the engine body, lubricating, cooling, fuel and ignition systems together with servicing specifications. p. 61
How will I receive this Kubota ZG222 Workshop Manual?
After checkout you download a 251-page searchable PDF right away. Open it on a laptop, tablet, or phone and carry it straight to the shop floor.
Am I free to print this Kubota ZG222 Workshop Manual?
None at all. The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper works fine.

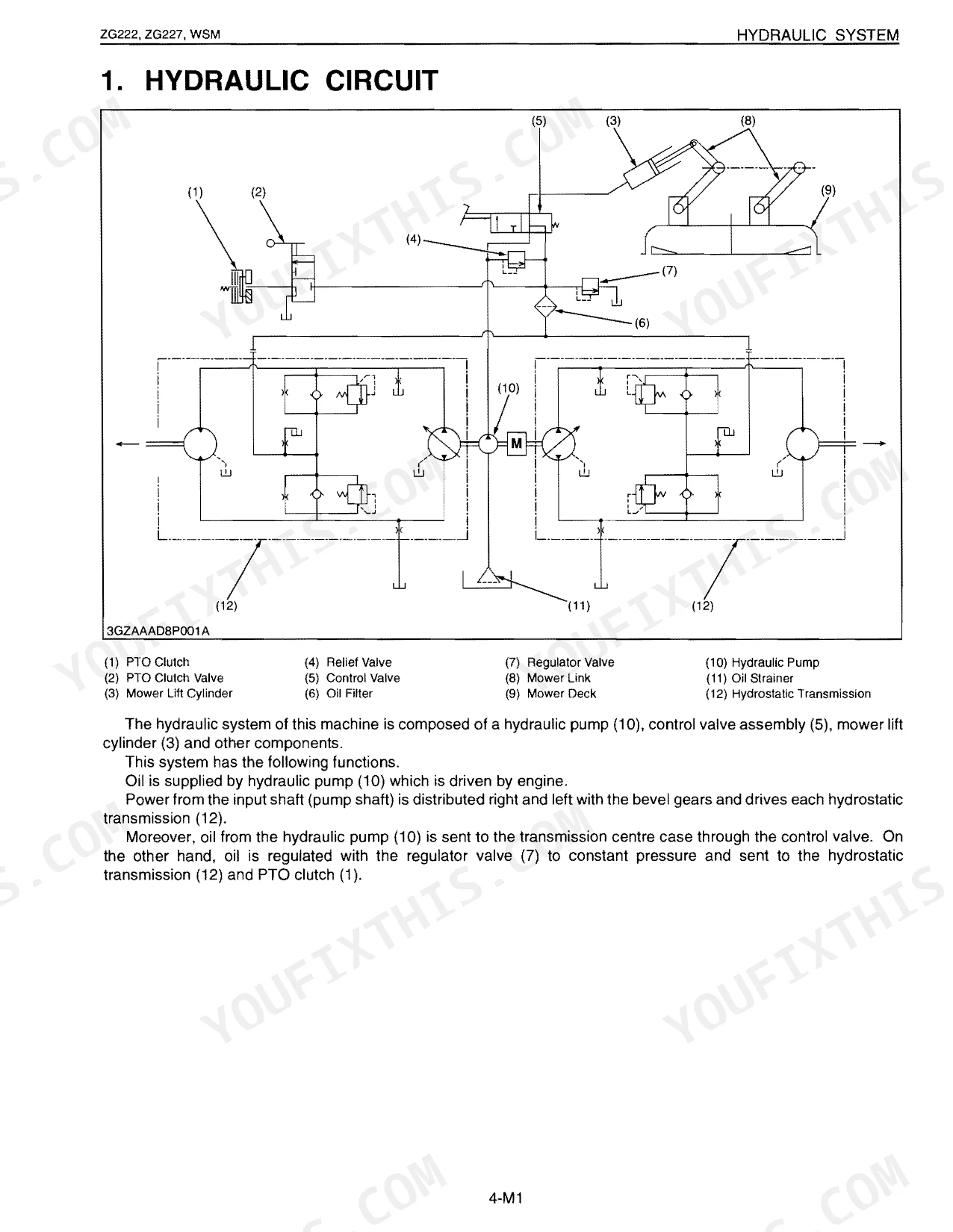

Are hydraulic diagrams part of this Kubota ZG222 Workshop Manual?
Yes, this Kubota ZG222, ZG227, ZG222S Workshop Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
