This is the factory service manual for the Kubota B9200 compact diesel tractor, covering the B9200HST-E (2WD), B9200HST-D (4WD), B9200DC-E (2WD), and B9200DC-D (4WD) variants. All are built around the four-cylinder V1200-A diesel engine and a hydrostatic transmission with a three-speed range shift.Across 385 pages the manual works through every major system: engine overhaul, clutch, hydrostatic transmission, front and rear axles, brakes, steering, hydraulics, and the electrical system, each with servicing specifications and tightening torques. Troubleshooting tables and step-by-step disassembly and assembly procedures accompany every section.Whether you are rebuilding the engine, chasing a drive or hydraulic fault, or setting clutch and brake adjustments, this PDF gives you the specs and procedures a dealer technician relies on. A separate supplement documents the B9200DC differences.
What's Inside This Kubota B9200 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Mechanism | - | Features, Clutch (Dry Type, Dual Stage Clutch), Transmission (Travelling System, PTO System) |

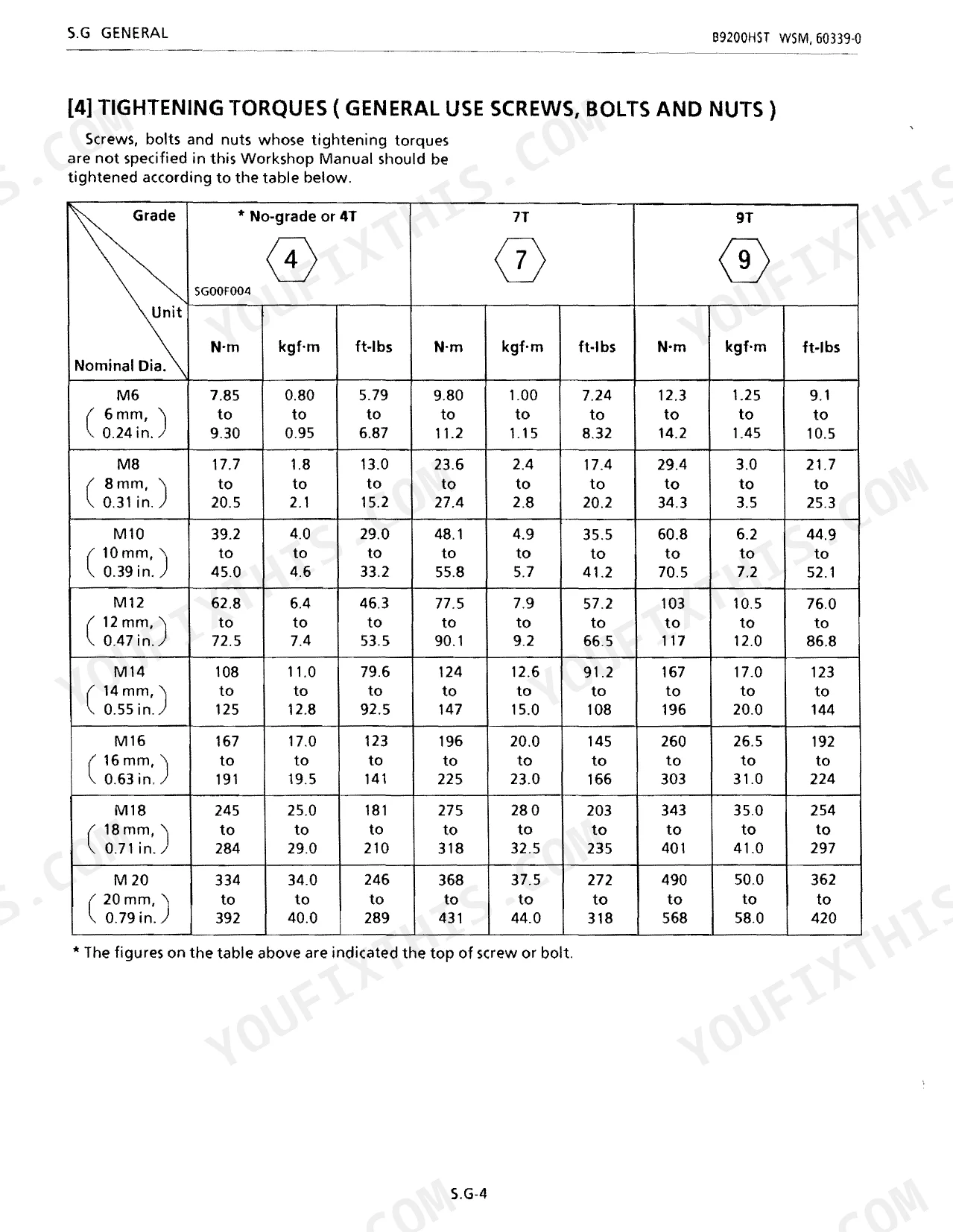

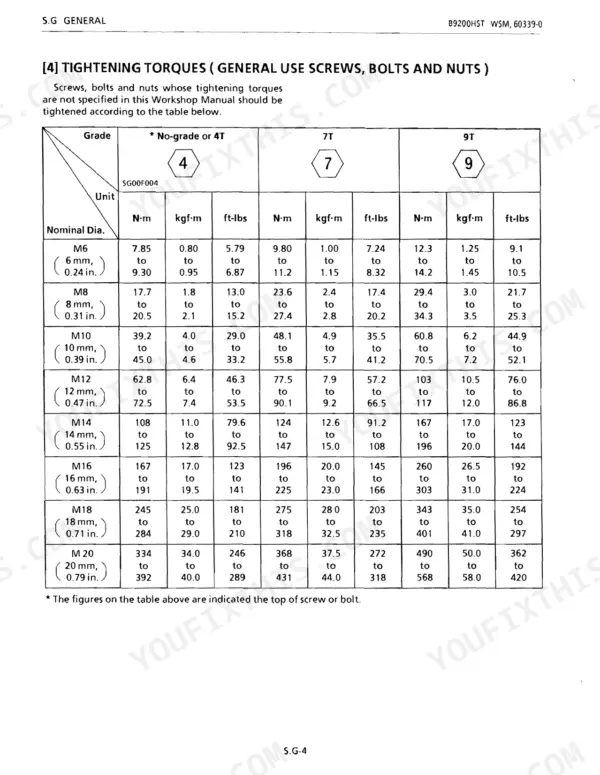

| General | - | Tractor Identification, Lubricants, Tightening Torques, Maintenance Check List |
| Seperation | - | Tightening Torques |
| Sect 1 Engine | - | Engine Body, Lubricating System, Cooling System, Fuel System |
| Sect 2 Clutch | - | - |
| Sect 3 Transmission | - | Speed Set Device, Hydrostatic Transmission |
| Sect 4 Rear Axle | - | Differential Gear, Axle Case |
| Sect 5 Brakes | - | Brake Pedal, Brake Case |
| Sect 6 Front Axle | - | 2WD Type, 4WD Type |
| Sect 7 Steering | - | Manual Steering, Power Steering |
| Sect 8 Hydraulic | - | - |
| Sect 9 Electrical | - | Battery, Starting System, Charging System |
| Supplement B9200Dc | - | Specifications, Dimensions, Features, Clutch (Dry Type, Dual Stage Clutch), Transmission (Travelling System, PTO System) |
Every section also covers troubleshooting, servicing specifications, tightening torques, checking, and disassembling and servicing.

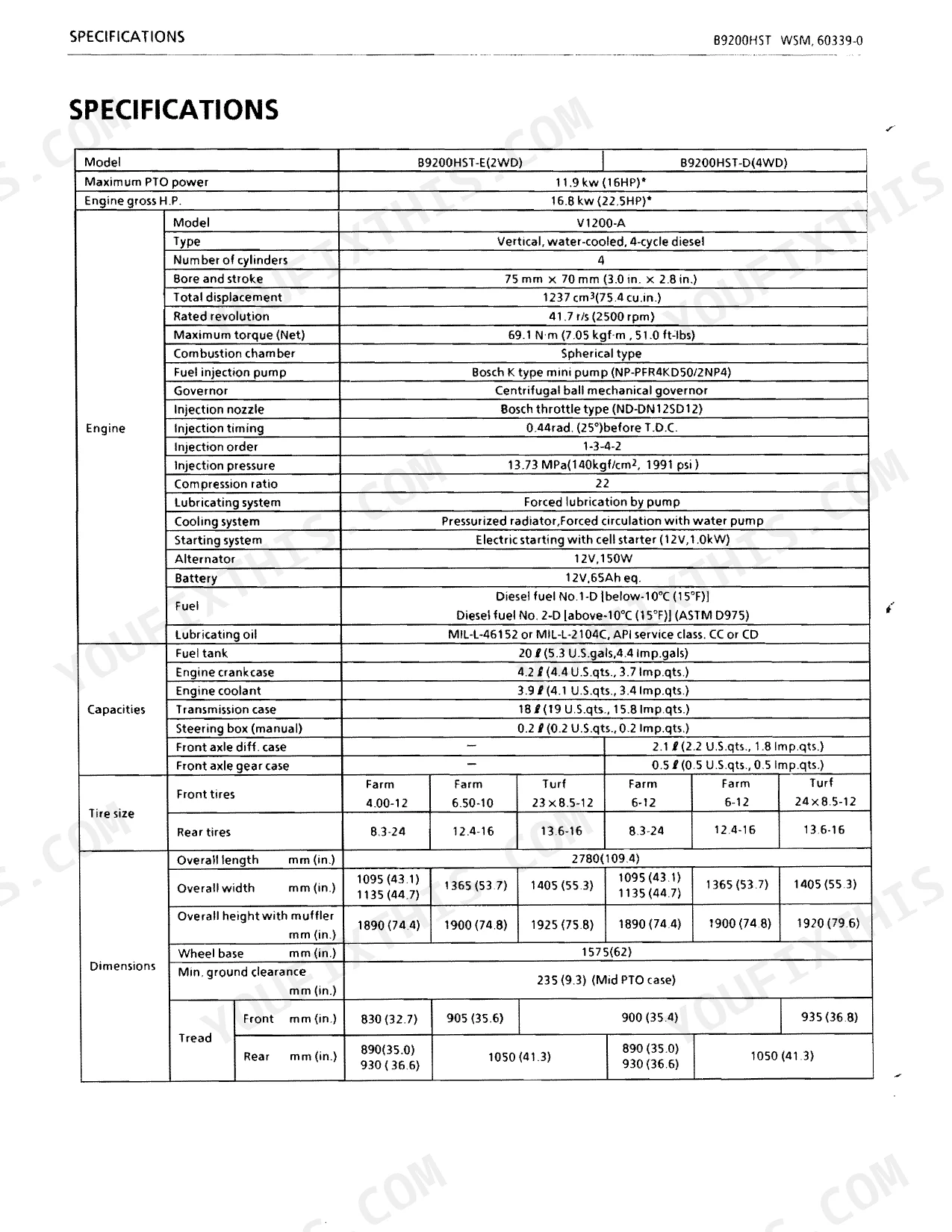

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter element type | Accodion-pleated paper type | p. 21 |
| Fuel filter element material | Cotton fiber | p. 21 |
| Seat adjustment range | 60 mm (2.36 in.) | p. 4 |
| Seat locking positions adjustment | 20 mm (0.79 in.) | p. 4 |
| Fuel pipe replacement interval | Every two years | p. 107 |
| Injection pipe retaining nuts torque | 14.7 to 24.5 N·m (1.5 to 2.5 kgf·m, 10.8 to 18.1 ft-lbs) | p. 161 |
| Pump Element Fuel Tightness (Factory Spec) | 60 seconds or more (39.23 MPa ~ 34.32 MPa, 400 kgf/cm² ~ 350 kgf/cm², 5689 psi ~ 4978 psi) | p. 160 |
| Pump Element Fuel Tightness (Allowable Limit) | 30 seconds (39.23 MPa ~ 34.32 MPa, 400 kgf/cm² ~ 350 kgf/cm², 5689 psi ~ 4978 psi) | p. 160 |
| Fuel filter mesh | 10 to 20 µm, 400 to 800 µin. | p. 21 |
| Fuel filter replacement interval | Every 400 hours | p. 114 |
| Engine gross H.P. | 16.8 kw (22.5HP) | p. 1 |
Kubota B9200 Series Common Problems This Manual Covers
Hard starting or power loss under load

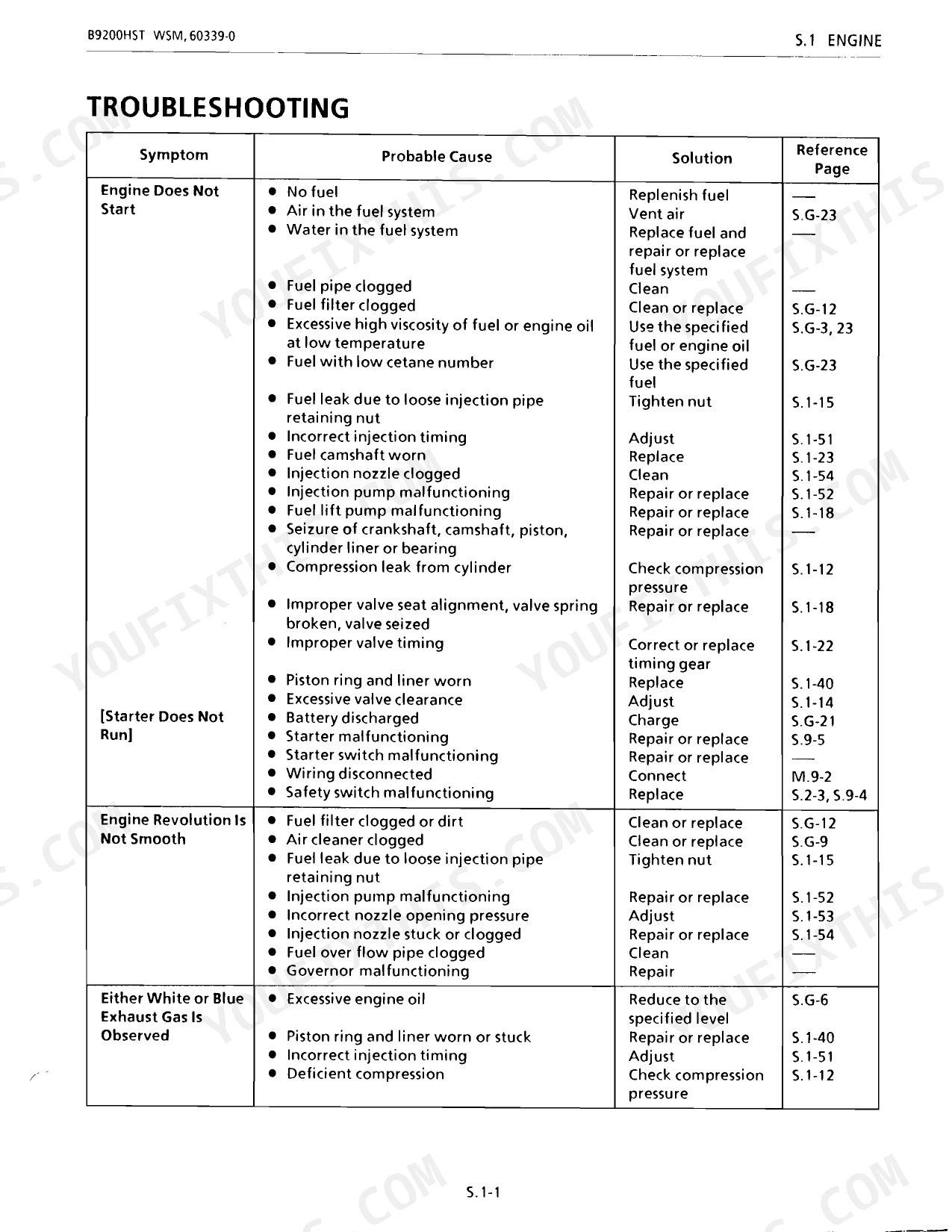

These small diesels often stumble, lose power, or stall under load when fuel is contaminated or the fuel filter is restricting flow. The engine section covers fuel system servicing specifications and the troubleshooting steps to trace the fault.
Manual Section: Sect 1 Engine p. 151Weak uphill drive or HST performance
Owners report the tractor struggling to climb or losing drive under heavier pull, which points to hydrostatic transmission wear or low output. The transmission section gives troubleshooting, servicing specs, and disassembly of the hydrostatic unit.
Manual Section: Sect 3 Transmission p. 211Rough running after long storage
Left sitting, these tractors develop stale fuel and clogged filters that cause intermittent running. The general section lists the maintenance check list and fuel filter service intervals for restoring reliable operation.
Manual Section: General p. 97Clutch drag or excessive pedal play

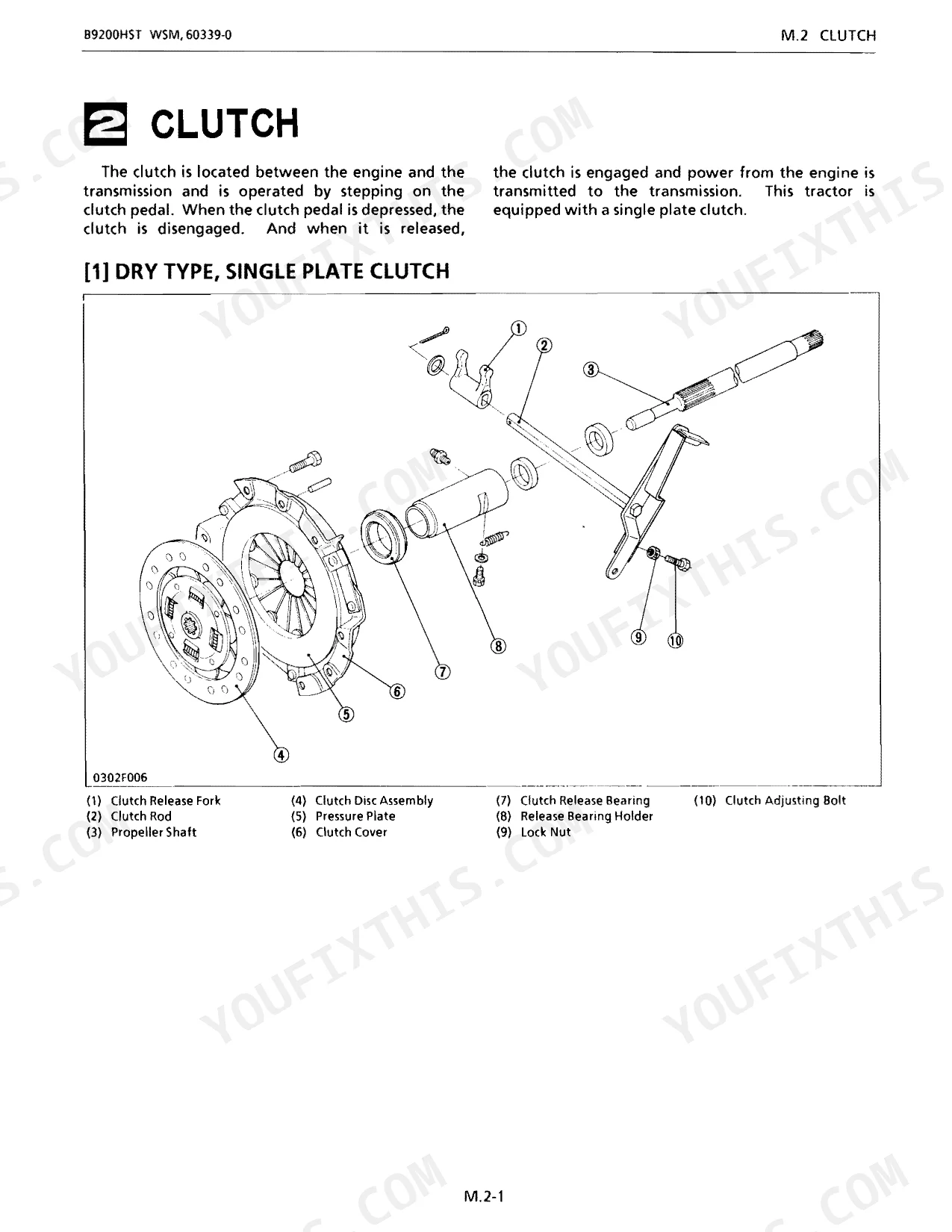

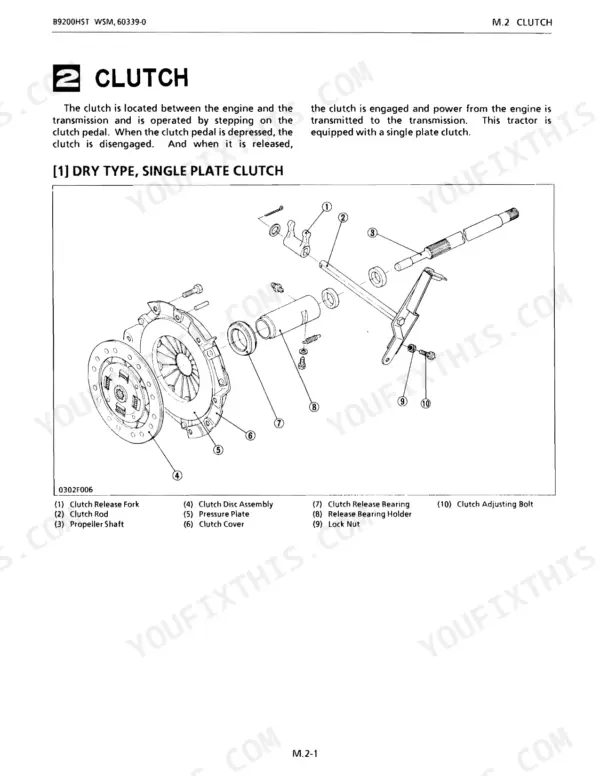

The dry dual-stage clutch can drag or feel wrong when free play drifts out of spec. The clutch section provides the servicing specifications, pedal play figures, and disassembly procedure.
Manual Section: Sect 2 Clutch p. 205Uneven or weak braking
The independent drum brakes lose bite as the pedals and brake case wear. The brakes section covers troubleshooting, checking, and disassembly of the brake pedal and case.
Manual Section: Sect 5 Brakes p. 251Slow or weak hydraulic lift

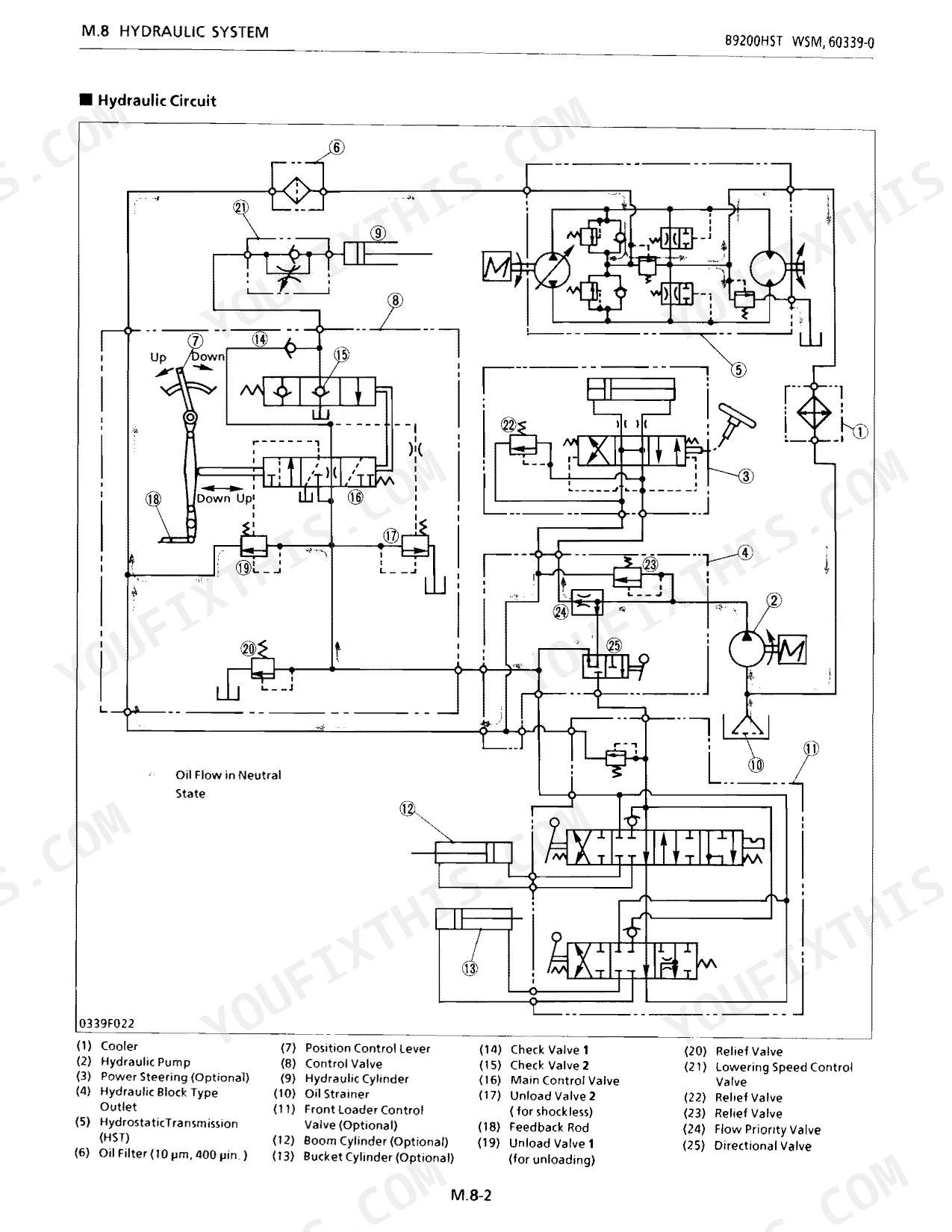

A three-point hitch that lifts slowly or lacks force usually traces to the hydraulic pump or control system. The hydraulic section provides troubleshooting, servicing specifications, and checking procedures.
Manual Section: Sect 8 Hydraulic p. 295Battery not charging
A battery that will not hold charge often comes down to the charging or starting circuit. The electrical section covers the battery, starting system, and charging system with troubleshooting and servicing specs.
Manual Section: Sect 9 Electrical p. 317Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota B9200HST-E (2WD), B9200HST-D (4WD), B9200DC-E (2WD), and B9200DC-D (4WD), all powered by the V1200-A four-cylinder diesel. A dedicated supplement documents the B9200DC variants.
Does it cover a full V1200-A engine rebuild?

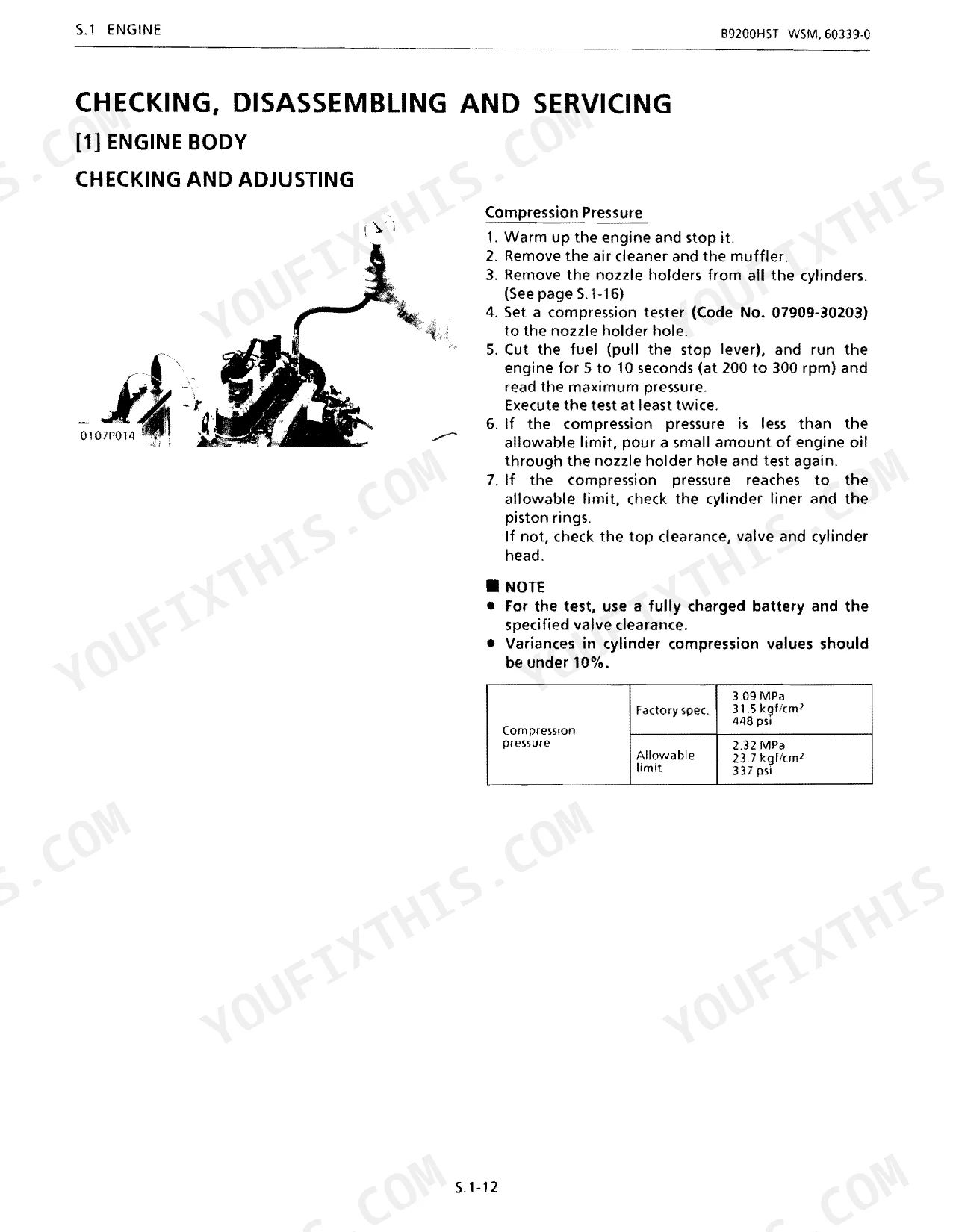

Yes. The engine section provides troubleshooting, servicing specifications for the engine body, lubricating, cooling, and fuel systems, tightening torques, and complete disassembly and servicing steps. p. 151
Are both the 2WD and 4WD front axles covered?
Yes. The front axle section separates 2WD and 4WD types, with troubleshooting, servicing specifications, tightening torques, and disassembly and servicing for each. p. 257
Does it explain servicing the hydrostatic transmission?
Yes. The transmission section covers the speed set device and hydrostatic transmission, with troubleshooting, servicing specifications, tightening torques, and disassembly and servicing procedures. p. 211
How will I receive this Service Manual?
Instant PDF download. The full 385-page searchable Service Manual is yours right after payment. Open it on a laptop, tablet, or phone in the shop.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

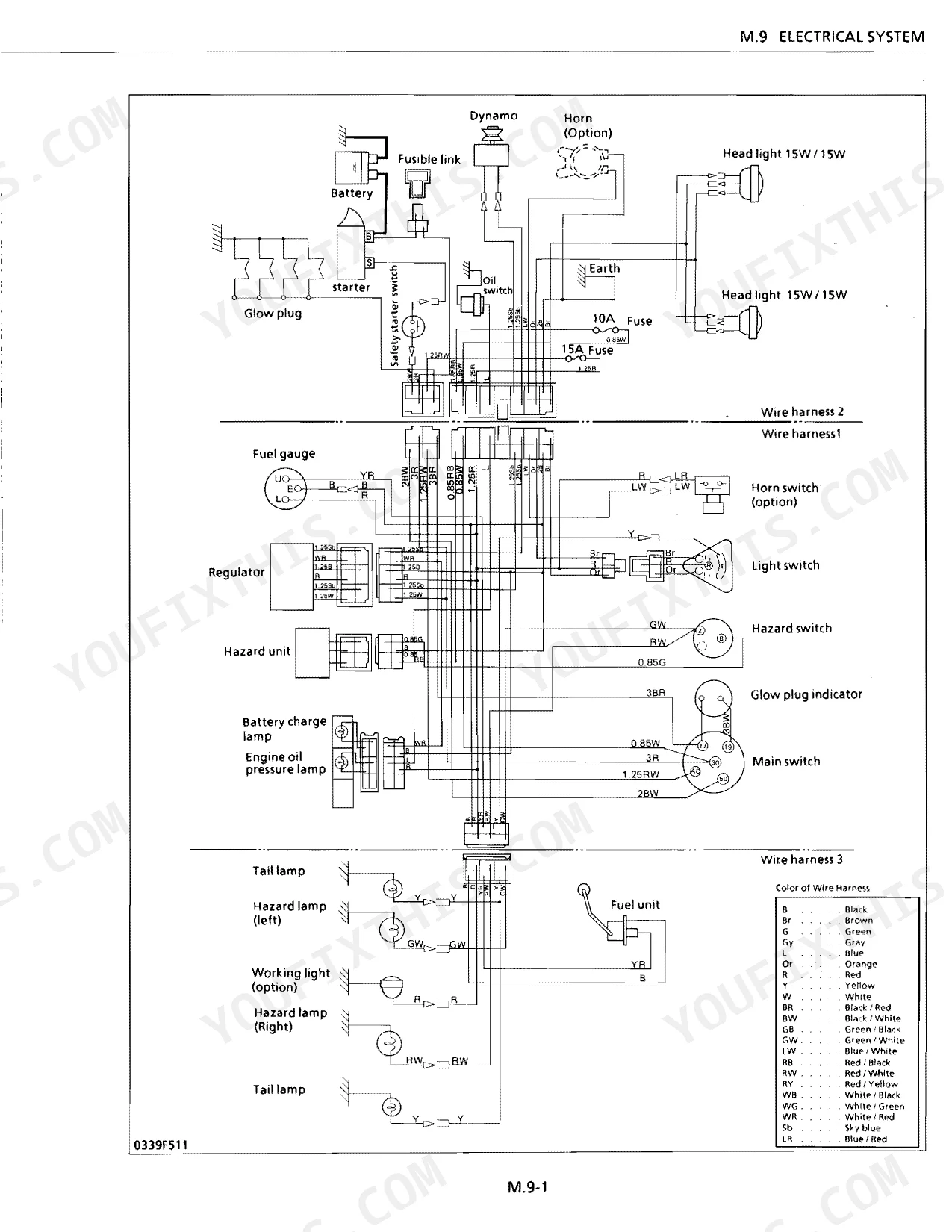

Are electrical wiring diagrams included in this Kubota B9200 Series manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
