This is the factory operator manual for the Kubota B9200HST-E (2WD) and B9200HST-D (4WD) compact diesel tractors, both built around the V1200-A engine. Across 56 pages it walks an owner through safe operation, the instrument panel and controls, break-in of a new tractor, and the routine service that keeps these machines running.You get the full specification table, lubricant and capacity figures, wheel and ballast setup, and step-by-step check-and-maintenance procedures for fuel, engine oil, transmission fluid, and the cooling system. A troubleshooting section covers engine, tractor, and battery symptoms, and a wiring diagram maps the electrical harness.For anyone maintaining a B9200HST, this PDF download gives you the correct intervals, capacities, and adjustment specs in one place, searchable and printable on any device.
What's Inside This Kubota B9200HST-E (2WD), B9200HST-D (4WD) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviations List | 2 | - |
| Foreword | 3 | - |
| Contents | 4 | - |

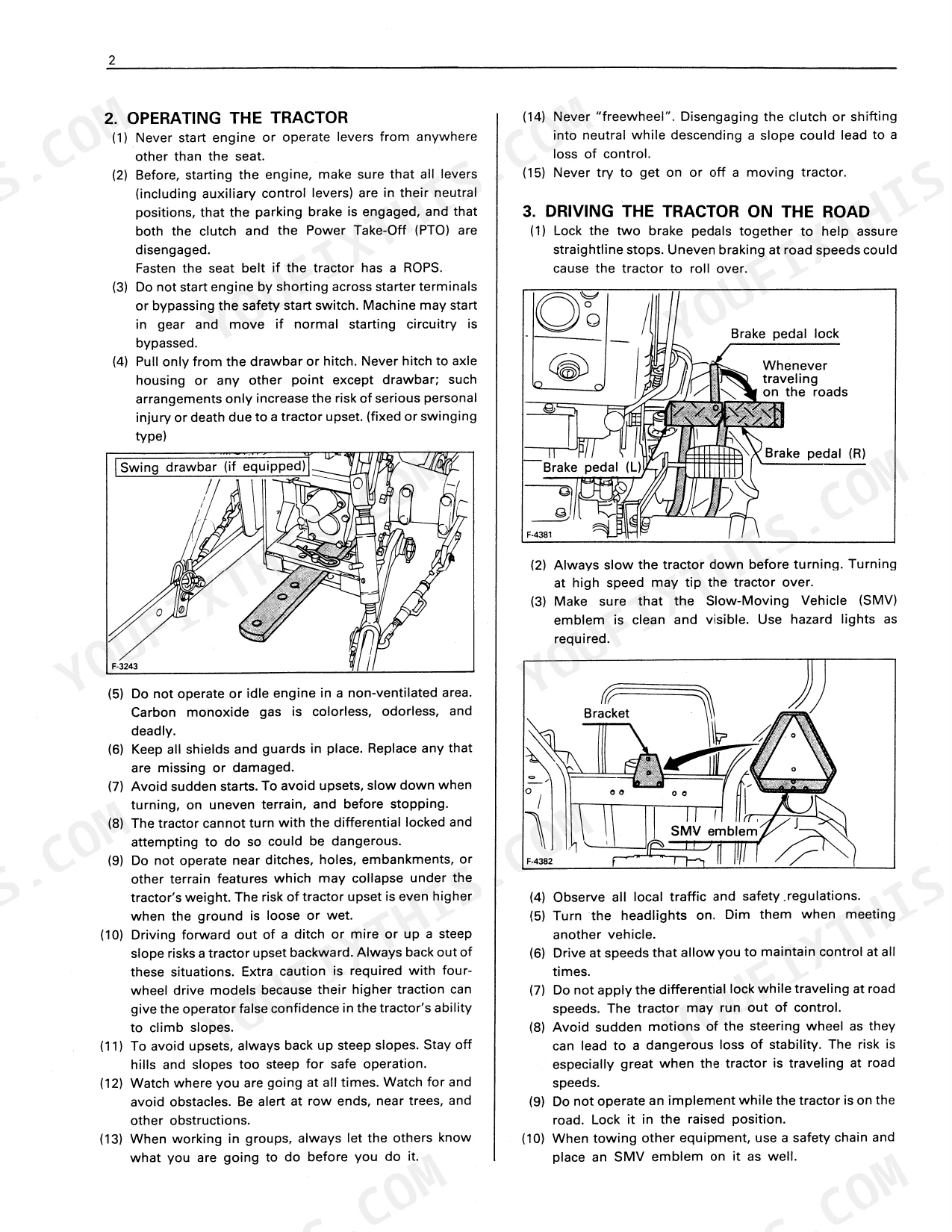

| Safe Operation | 5-9 | - |
| Servicing of Tractor | 10 | Identification Plate, Tractor Serial Number, Engine Serial Number, Transmission Housing, Engine Crankcase |

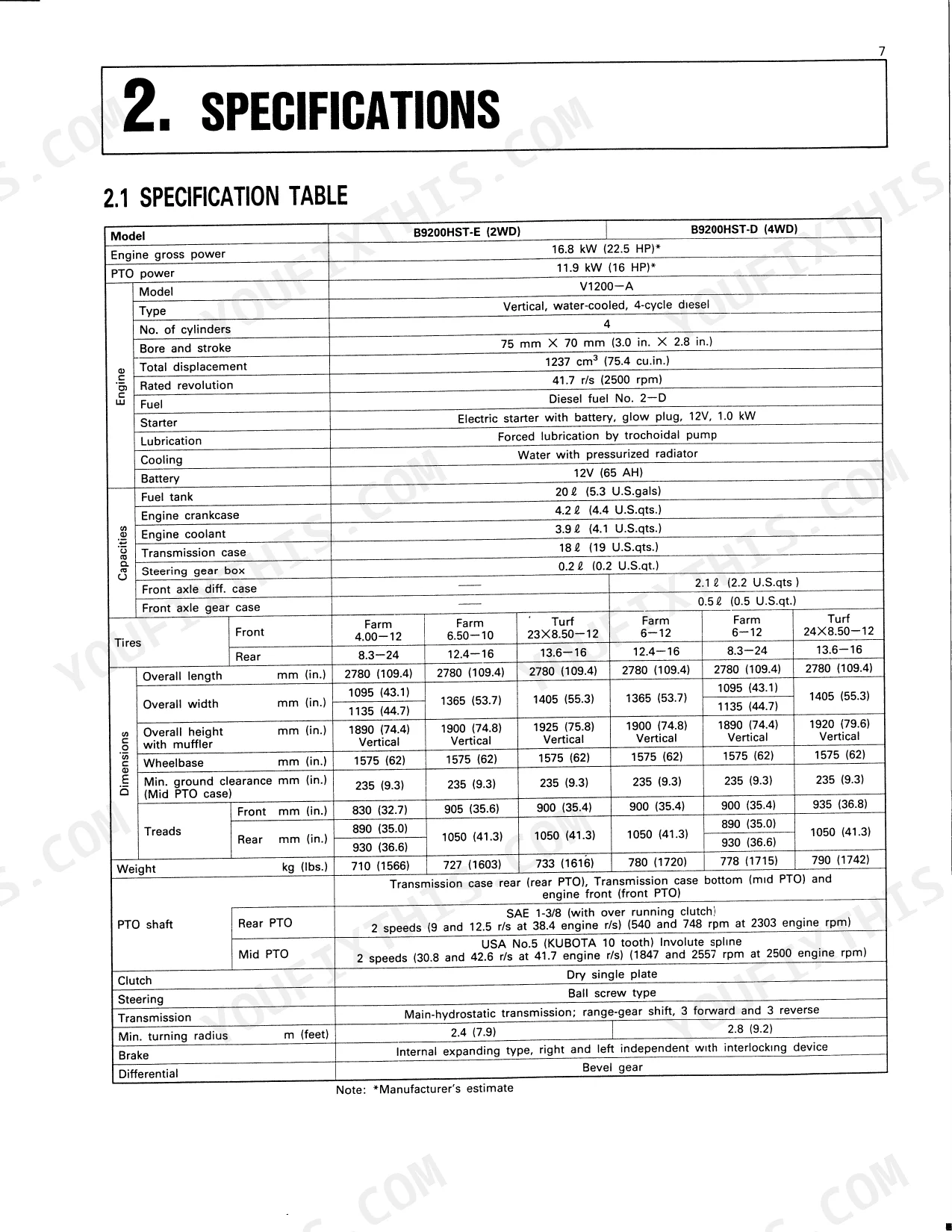

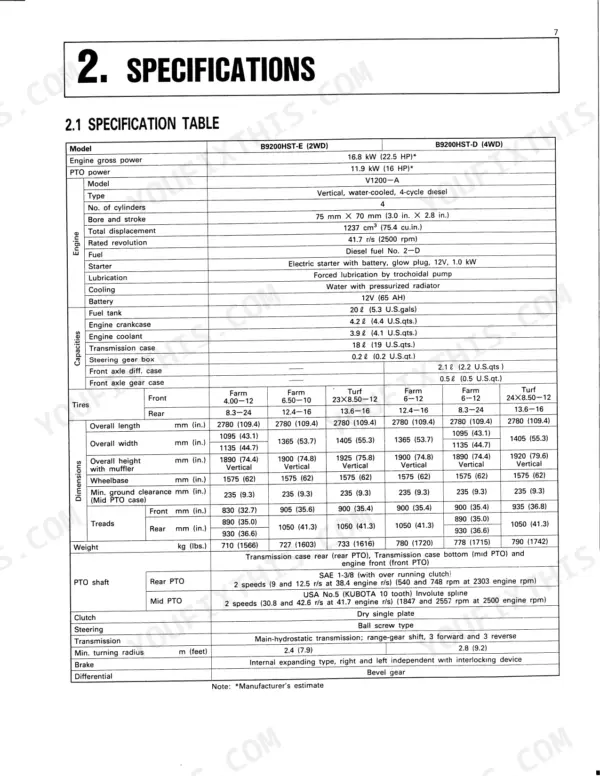

| Specifications | 11-12 | Specification Table, Traveling Speeds |
| Specifications of Implement Limitations | 13-14 | Rotary Mower, Rotary Tiller, Bottom Plow, Disc Plow, Cultivator, Disc Harrow, Sprayer, Front Blade |
| Operating New Tractor | 15 | Loading and Unloading |

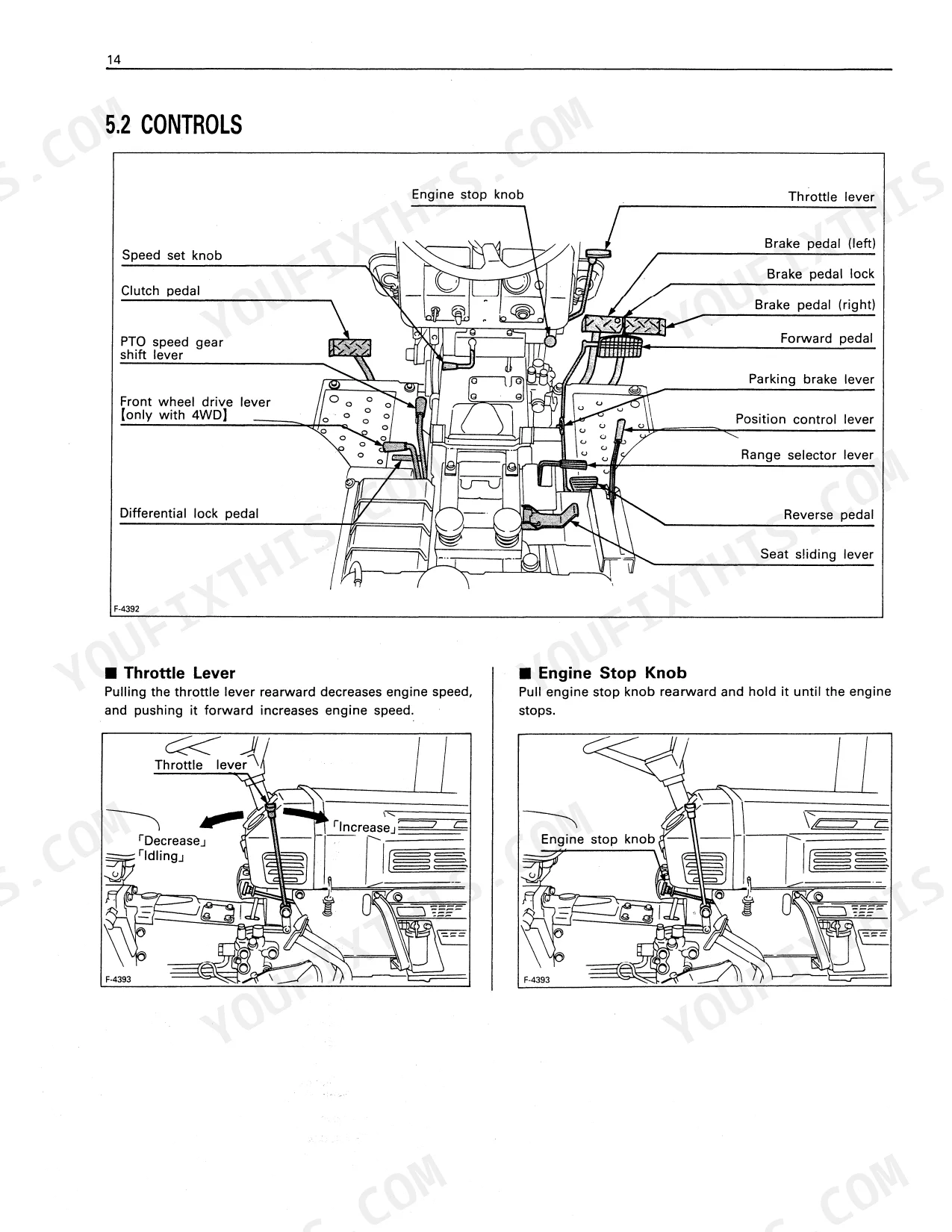

| Instrument Panel and Controls | 16-24 | Switches, Controls, Auxiliary Hydraulics |
| Three-Point Hitch & Drawbar | 25 | Top Link, Lifting Rod, Check Chains, Turnbuckle, Lower Link, Swing Drawbar |
| Wheels, Tires and Ballast | 26-29 | Treads, Tires, Toe-In |
| Operating Instructions | 30-32 | Operating the Engine, Operating the Tractor, Check During Driving |

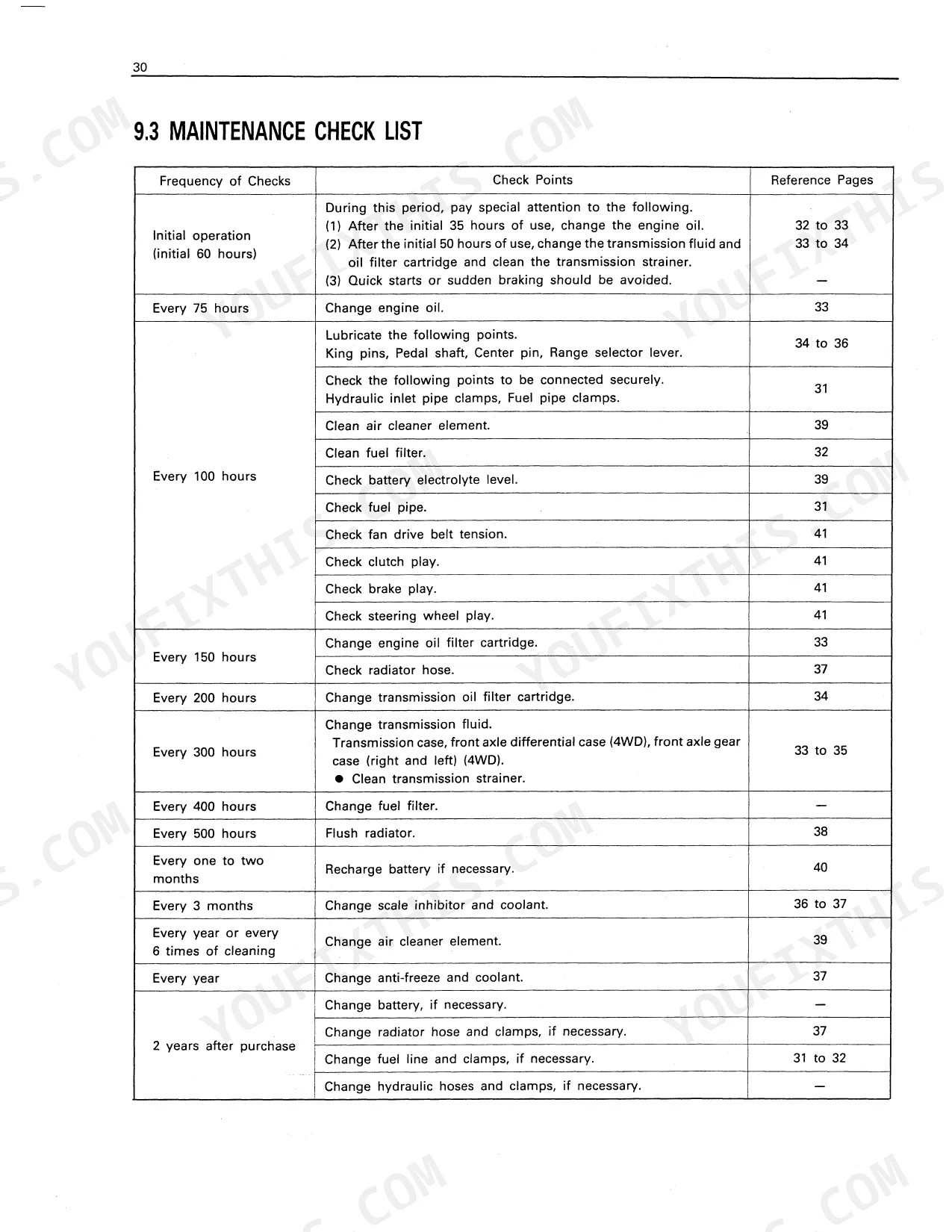

| Maintenance | 33-34 | Daily Check, Maintenance Check List |
| Check and Maintenance | 35-44 | Fuel, Engine Oil, Transmission Fluid, Radiator, Air Cleaner |
| Adjustments | 45 | Fan Drive Belt |
| Troubleshooting | 46-48 | Engine Troubleshooting, Tractor Troubleshooting, Battery Troubleshooting |
| Long-Term Storage | 49 | - |
| Options | 50 | - |
| Lubricant Specifications | 51 | - |
| Wiring Diagram | 52 | - |
| Index | 53-56 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel bolt torque | 20-23 kgf·m (145-165 ft-lbs.) | p. 26 |
| Rear wheel bolt torque | 7.9-9.2 kgf·m (57-67 ft-lbs.) | p. 26 |
| Fuel filter cleaning interval | Every 100 hours | p. 36 |
| Fuel filter change interval | Every 400 hours | p. 34 |
| Adjustable sliding seat range | 60 mm (2.4 in.) | p. 21 |
| Fuse rating | 15 ampere | p. 17 |
| Fusible link rating | 200 ampere | p. 17 |
| Engine gross power | 16.8 kW (22.5 HP) | p. 11 |
| PTO power | 11.9 kW (16 HP) | p. 11 |
| Engine total displacement | 1237 cm³ (75.4 cu.in.) | p. 11 |
| Fuel tank capacity | 20 l (5.3 U.S.gals) | p. 11 |
| Engine crankcase oil capacity | 4.2 l (4.4 U.S.qts.) | p. 11 |
Kubota B9200HST-E (2WD), B9200HST-D (4WD) Common Problems This Manual Covers
Rough running, power loss, or stalling
Small Kubota diesels are sensitive to dirty fuel, so water or debris in the tank and a clogged fuel filter show up as rough running, lost power, and stalling. The troubleshooting section lists the engine symptoms and likely causes to check first.
Manual Section: Troubleshooting p. 46Hard starting after long storage
A tractor left sitting develops fuel degradation and condensation in the lines, then starts and runs poorly when brought back into use. The storage procedures cover how to lay the machine up and prepare it so it starts cleanly again.
Manual Section: Long-Term Storage p. 49Charging faults or intermittent electrics
Owners report charging irregularities and abnormal lights traced to the regulator or a blown fuse. The wiring diagram gives the harness layout, wire color legend, and connections needed to trace the fault.
Manual Section: Wiring Diagram p. 52Clutch or brake pedal free travel drifts
Pedal free travel changes as linkages wear, softening the clutch or brake feel. The adjustments section gives the correct free-travel spec of 20 to 30 mm and how to reset it.
Manual Section: Adjustments p. 45Overheating or low coolant
Clogged radiator fins or low coolant lead to overheating under load. The check-and-maintenance section covers radiator service and the 3.9 liter coolant capacity.
Manual Section: Check and Maintenance p. 35Loose wheel hubs or poor ballast
Wheel hub bolts can loosen and tire and ballast setup affects stability. This section gives the rear hub torque of 20 to 23 kgf.m (145 to 165 ft-lbs), front hub torque of 7.9 to 9.2 kgf.m (57 to 67 ft-lbs), plus tread and ballast setup.
Manual Section: Wheels, Tires and Ballast p. 26Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota B9200HST-E (2WD) and B9200HST-D (4WD) compact tractors, both powered by the V1200-A diesel engine.
Is this an operator manual or a full service manual?
This is the 56-page operator manual. It covers safe operation, controls, break-in, routine check-and-maintenance, adjustments, and troubleshooting, not full engine or transmission overhaul work.
Does it list capacities and specifications?
Yes. The specifications section gives engine gross power of 16.8 kW (22.5 HP), a 20 liter fuel tank, 4.2 liter crankcase, 3.9 liter coolant, and 18 liter transmission case capacity. p. 11
What are the wheel bolt torque figures?
The wheels, tires and ballast section lists rear wheel hub torque of 20 to 23 kgf.m (145 to 165 ft-lbs) and front wheel hub torque of 7.9 to 9.2 kgf.m (57 to 67 ft-lbs). p. 26
Is this manual a digital download?
Yes. The full 56-page searchable Operator Manual downloads as a PDF right after payment, ready to open on a laptop, tablet, or phone out in the shop.
Is this Kubota B9200HST-E (2WD) manual print-friendly?
Yes. The PDF is DRM-free, so print whatever sections you want to carry into the shop. Standard letter or A4 paper works fine.
