Rebuilding or servicing Kubota's four-cylinder diesel engine requires exact factory data. This 128-page workshop manual covers both standard V3300-B and turbocharged V3300-TB configurations. It features 22 pages of tightening torques for every fastener, alongside 10 pages of clearance limits and test values directly from the manufacturer. Mechanics will find 15 pages of exploded views detailing the engine body, lubrication, cooling, fuel, turbocharger, and electrical subsystems. The guide also includes a maintenance schedule mapping service tasks from daily checks up to 1,500 operating hours.
What's Inside This Kubota V3300-B, V3300-TB Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-5 | - |

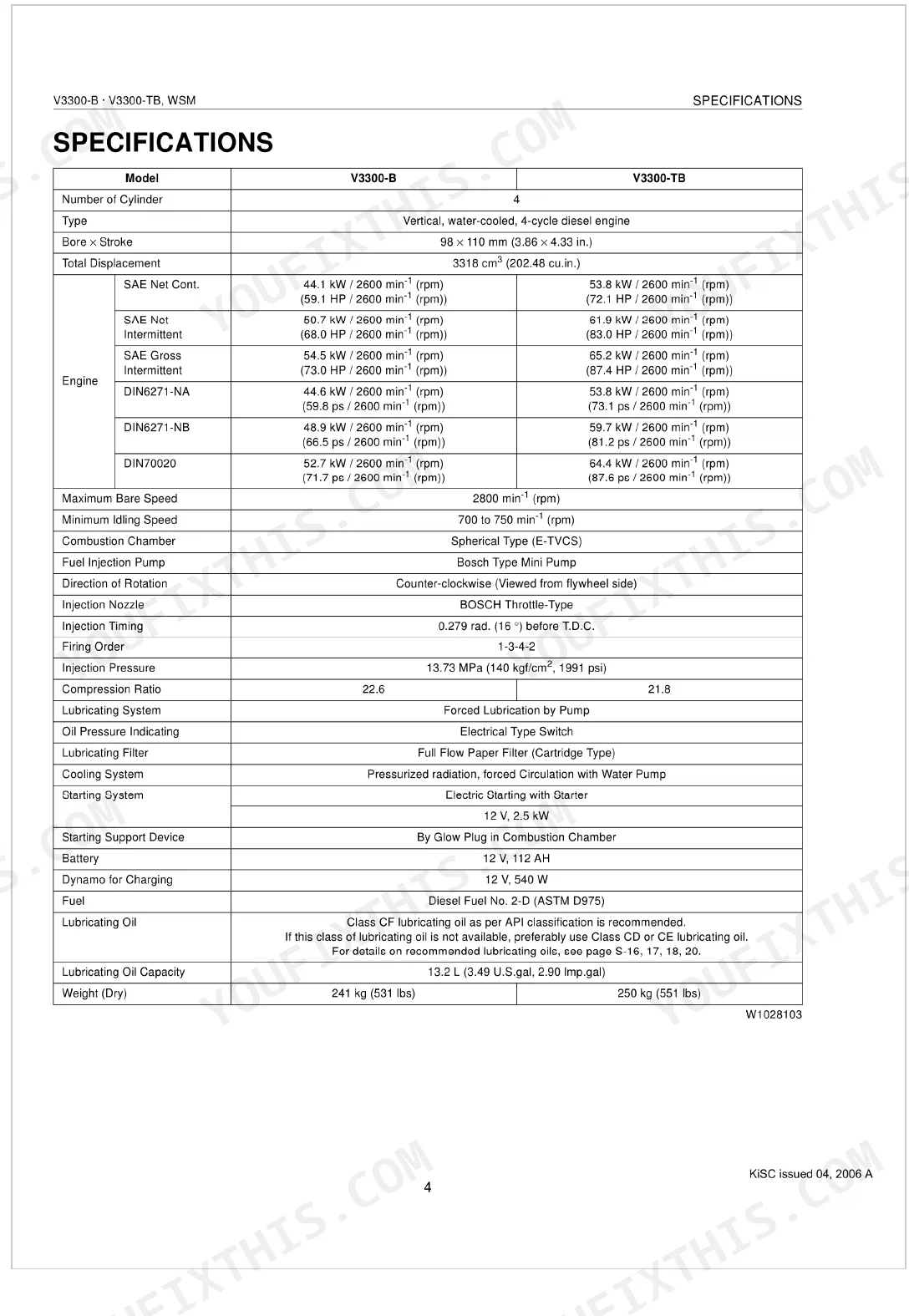

| Specifications | 6 | Engine General Specifications, Performance Specifications, Fuel System Specifications, Lubricating System Specifications, Cooling System Specifications |
| Performance Curves | 7-8 | V3300-B Performance Data, Performance Curve Legend, V3300-TB Performance Data |
| Dimensions | 9 | V3300-B Engine Dimensions, V3300-TB Engine Dimensions |

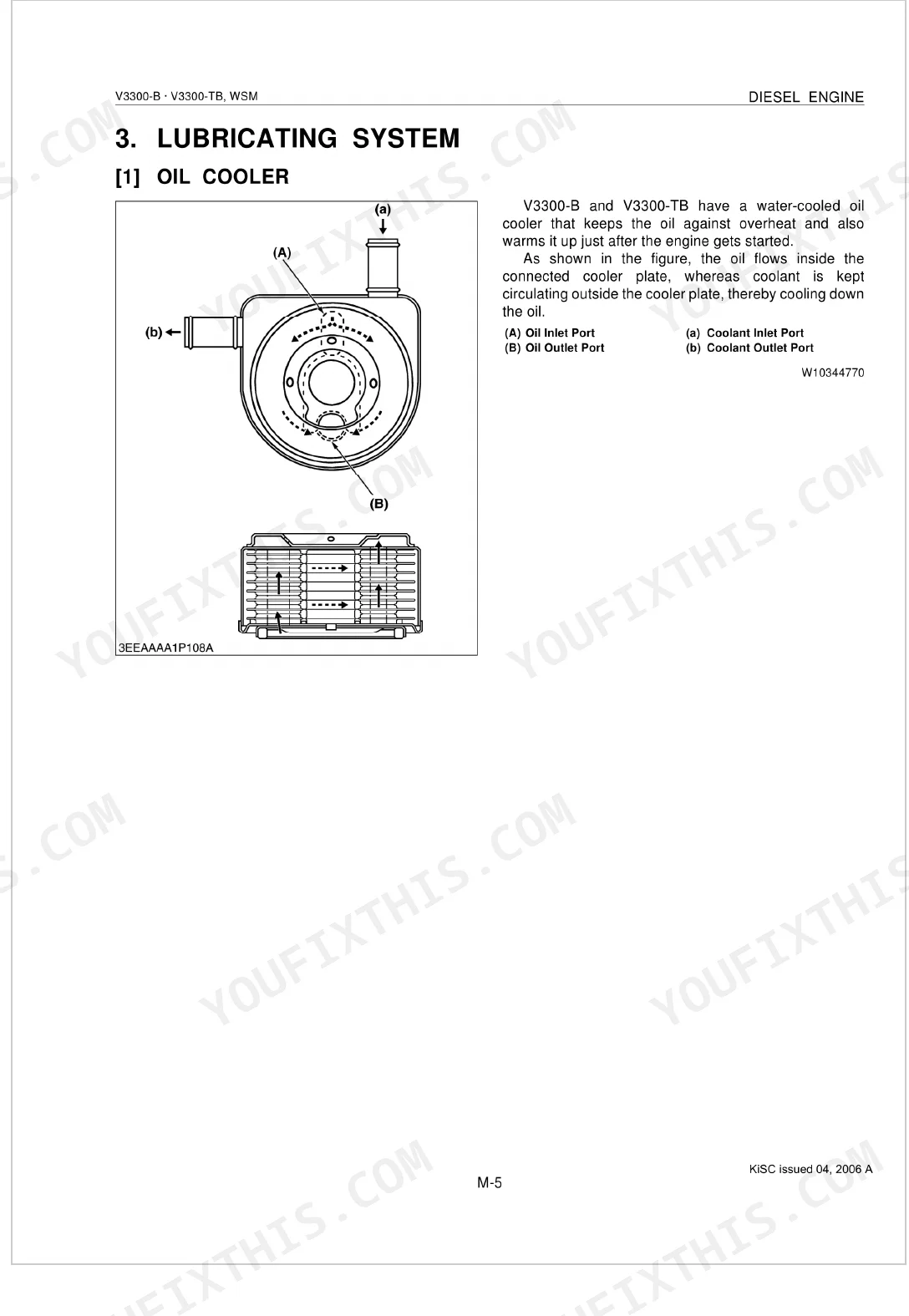

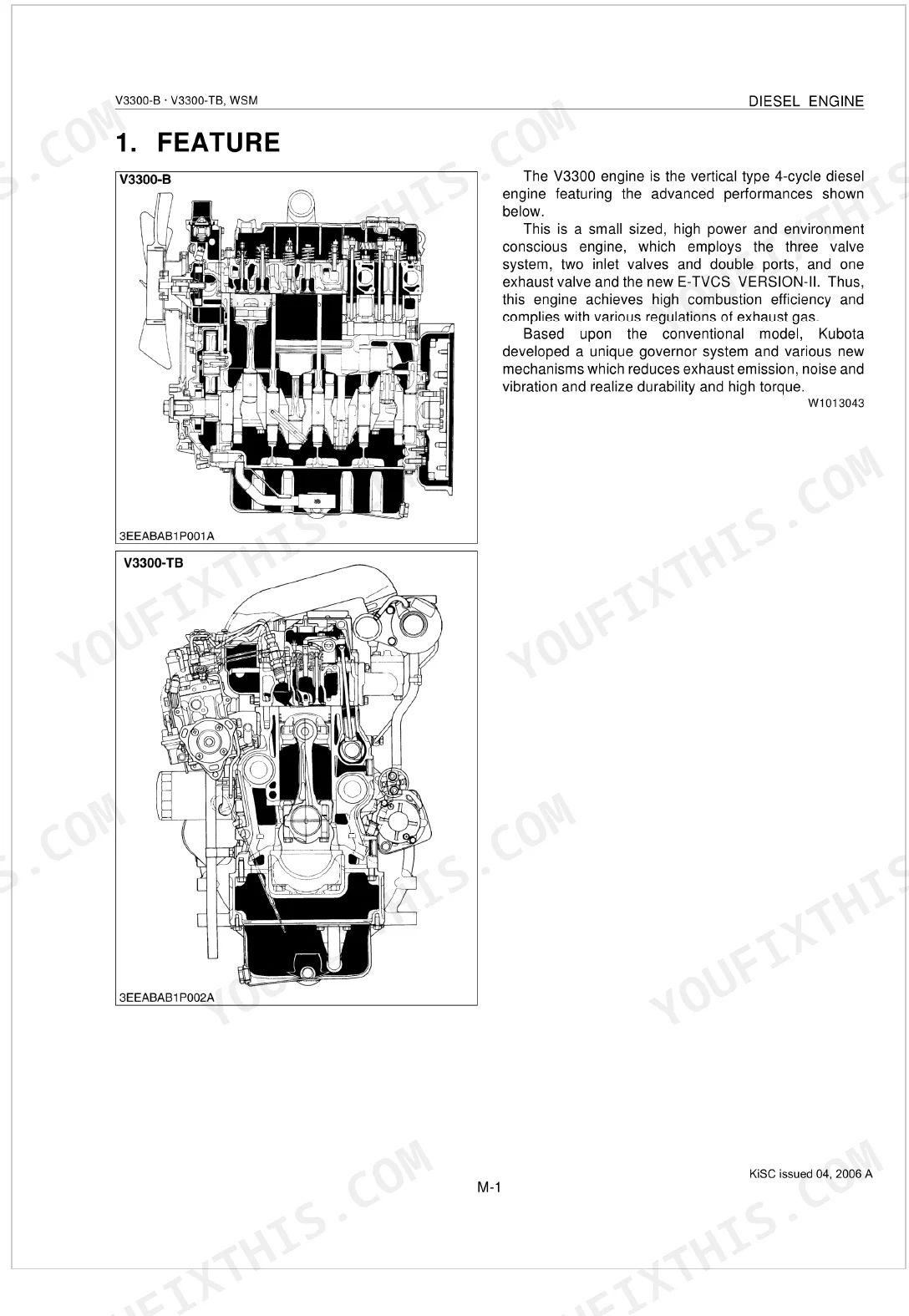

| Mechanism | 10-21 | Feature, Engine Body (Cylinder Block, Half-Floating Head Cover, Cylinder Head, Piston And Piston Rings, Built-In Dynamic Balancer), Lubricating System (Oil Cooler) |

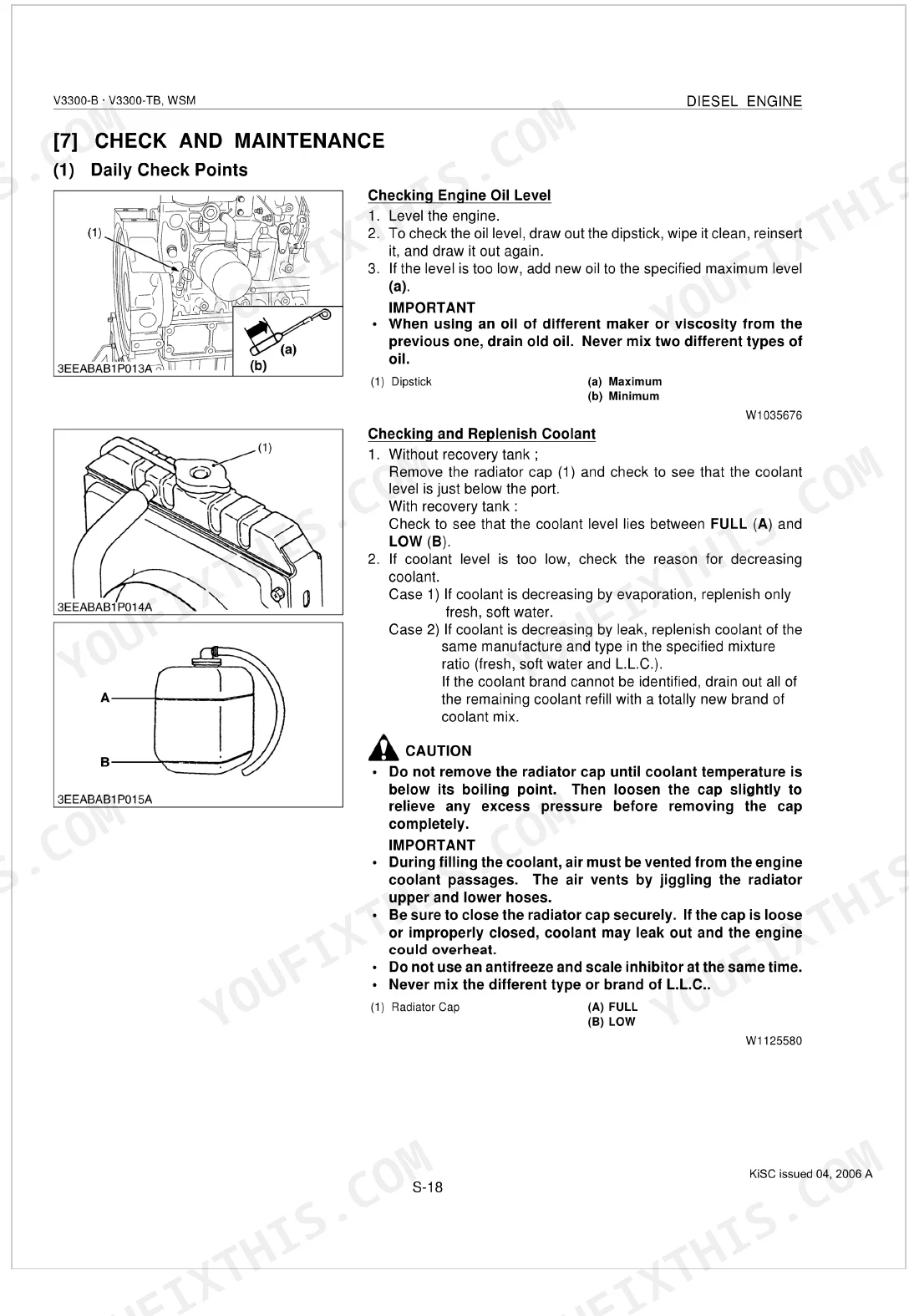

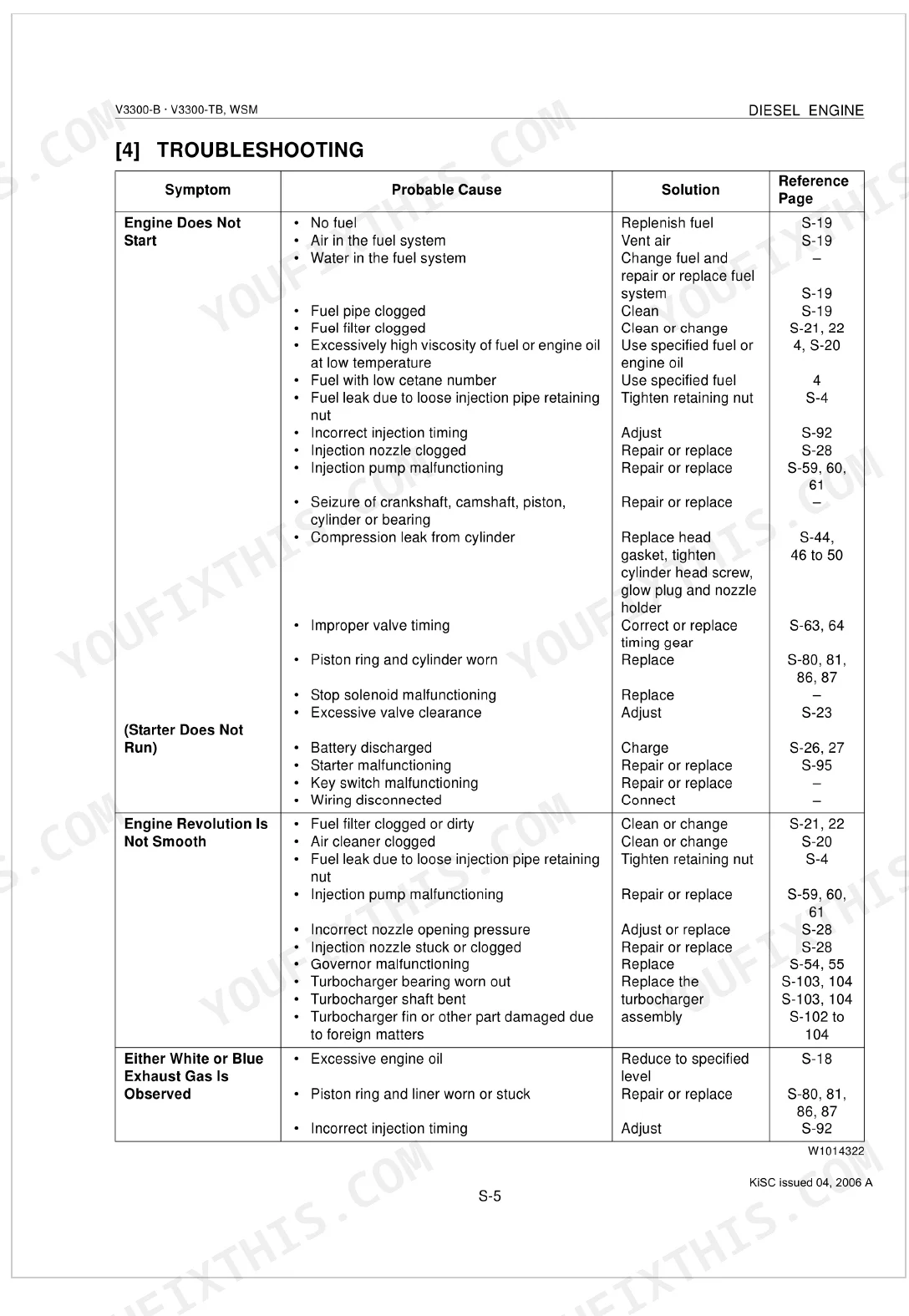

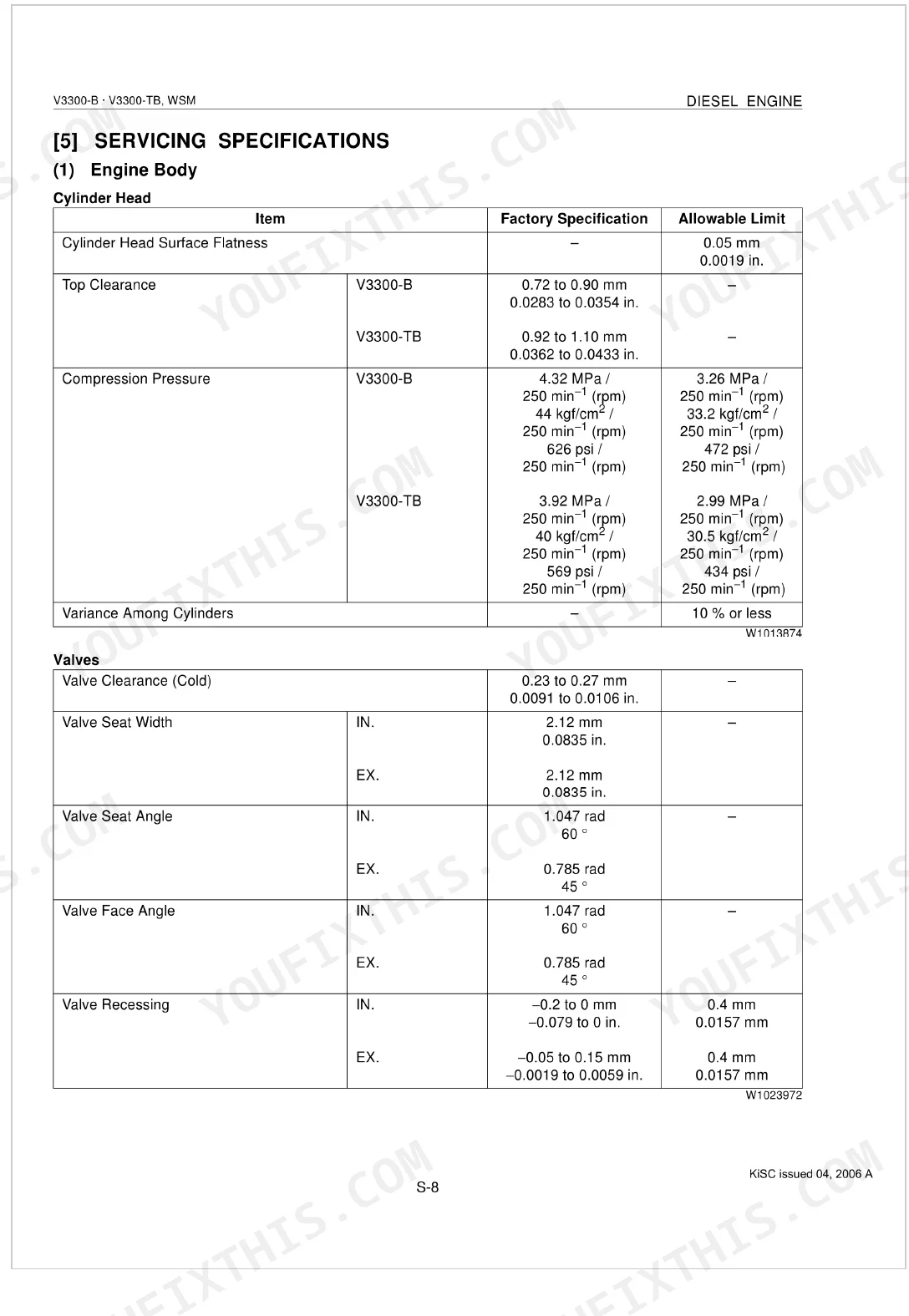

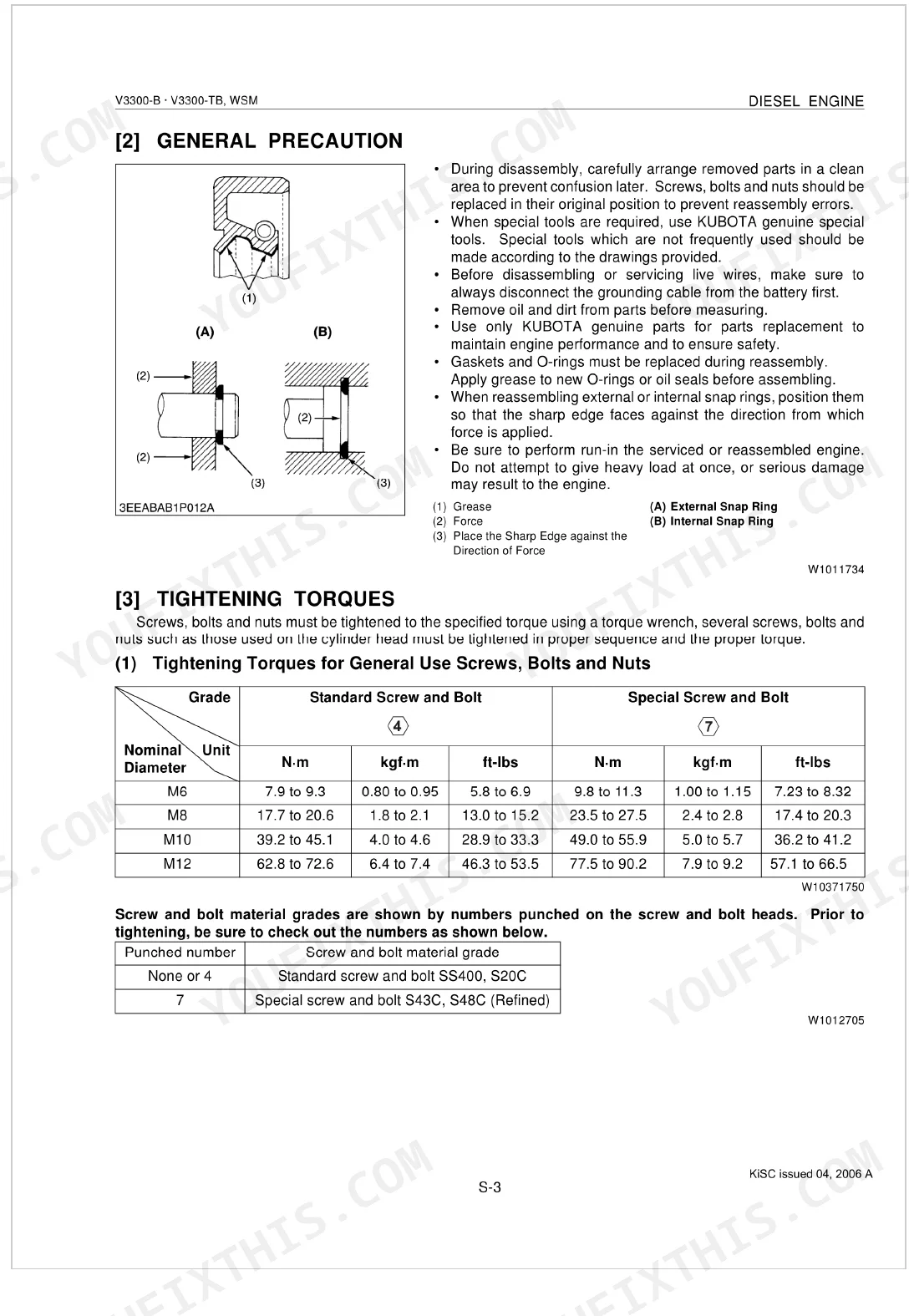

| Maintenance & Specifications | 22-66 | Engine Identification, Tightening Torques, Servicing Specifications, Troubleshooting, Maintenance Check List, Check And Maintenance, Special Tools |
| Engine Body | 67-110 | Cylinder Head And Valves, Gear Case, Piston And Connecting Rod, Flywheel And Crankshaft, Timing Gear And Camshaft, Balancer Shaft, Crankshaft, Cylinder Bore |
| Lubricating System | 111-112 | Oil Pump, Relief Valve |
| Cooling System | 113-114 | Fan Belt, Radiator |
| Fuel System | 115-117 | Injection Pump, Injection Nozzle |
| Electrical System | 118-124 | Starter, Glow Plug, Alternator |
| Turbo Charger System | 125-127 | Turbocharger, Boost Compensator |
| Editor | 128 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screw torque | 98.1 to 107.9 N·m (10.0 to 11.0 kgf·m, 72.3 to 79.6 ft-lbs) | p. 71 |
| Main bearing case screw torque | 123.5 to 132.4 N·m (12.6 to 13.5 kgf·m, 91.1 to 97.6 ft-lbs) | p. 93 |
| Valve clearance (cold) | 0.23 to 0.27 mm (0.0091 to 0.0106 in.) | p. 31 |
| Fuel filter element cleaning interval | Every 200 hrs | p. 39 |
| Fuel filter cartridge replacement interval | Every 200 hrs | p. 39 |
| Air filter element cleaning interval | Every 200 hrs | p. 39 |
| Air filter element replacement interval | Every 1000 hrs | p. 39 |
| Fuel pipe and clamp replacement interval | Every 2 years | p. 39 |
| Fuel clamp tightening | securely retighten it | p. 42 |
| Radiator cap air leakage test pressure | 88 kPa (0.9 kgf/cm², 13 psi) | p. 37 |
| Radiator cap air leakage allowable drop | less than 59 kPa (0.6 kgf/cm², 9 psi) in 10 seconds | p. 37 |
| Glow plug resistance | Approx. 1.0 Ω | p. 38 |
Kubota V3300-B, V3300-TB Common Problems This Manual Covers
Kubota V3300-B engine experiences hard starting, rough running, or loss of power under load.
Inspect the fuel system for air ingress or restrictions. Check the troubleshooting chart. Bleed the fuel lines completely. Securely retighten all fuel clamps as outlined on page 42. Replace the air filter element once a year or every 6th cleaning per page 43.
Manual Section: Engine Does Not StartContinuous operation under heavy loads results in rapid coolant loss or severe engine overheating.
Check the cooling system components if temperatures rise excessively. Verify the thermostat valve opening temperature is between 74.5 to 78.5 °C as specified on page 38. Inspect the radiator fins for dirt buildup and securely tighten the radiator cap following page 47 instructions.
Manual Section: Engine OverheatingWarning light stays illuminated due to abnormal oil pressure or significant drops in oil pressure.
Measure the engine oil pressure at rated speed. Verify the pressure falls between 196 to 392 kPa as detailed on page 37. Inspect the oil strainer for clogs and check the relief valve spring. If pressure remains low, examine the crankshaft bearing oil clearance.
Manual Section: Abnormal Oil PressureCold starts produce white smoke or the exhaust emits heavy black smoke and poor combustion.
Inspect the injection timing and nozzle opening pressure. Check for abnormal exhaust gas troubleshooting steps. Verify cylinder compression is adequate. Torque the cylinder head screws to 98.1 to 107.9 N·m as specified on page 71 to prevent compression leaks.
Manual Section: Abnormal Exhaust GasFrequently Asked Questions
What are the torque specs for Kubota V3300 head bolts?
The torque specification for the cylinder head screws (bolts) on Kubota V3300 engines (both below and above serial number YY0470/YY0471) is 98.1 to 107.9 N·m (10.0 to 11.0 kgf·m, 72.3 to 79.6 ft-lbs). This is crucial for proper engine assembly and sealing.
What are the torque specs for Kubota V3300 connecting rod bolts?
The torque specification for the connecting rod screws on a Kubota V3300 engine is 78.5 to 85.3 N·m (8.0 to 8.7 kgf·m, 57.9 to 61.5 ft-lbs). This torque is applied during the reassembly of the piston and connecting rod components.
How do I set injection timing on a Kubota V3300?
To set the injection timing, align the injection timing mark of the pump unit with the plate (gearcase). Rotate the flywheel counterclockwise to approximately 20° BTDC. If the timing is not within the specified range of 0.26 to 0.30 rad (15° to 17°) Before T.D.C., rotate the injection pump unit to adjust it.
What are the replacement specifications for Fuel filter?
The fuel filter cartridge should be changed every 200 hours of service. This is a critical maintenance item to ensure proper fuel system operation and engine longevity.
What are the replacement specifications for Air filter?
The air cleaner element should be cleaned every 200 hours. For replacement, it should be changed once a year or every 6th cleaning, whichever comes first, to maintain optimal engine performance.
Is this Kubota V3300-B, V3300-TB Workshop Manual a digital download?
Instant PDF download. You get the full 128-page searchable Workshop Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Kubota V3300-B, V3300-TB Workshop Manual?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a native digital PDF document, allowing you to search and copy text throughout. All text is crisp, clear, and very easy to read on every page. Diagrams and illustrations are presented as sharp line art, with all labels perfectly readable at any zoom level. The pages are uniformly clean, free from any scan artifacts, stains, or skewed content, and there are no notable blank pages.
