Part of the Kubota Parts Manuals.
This is the Kubota RC60-82H parts catalog, a 15 page illustrated parts book for the RC60-82H mower deck. It pairs exploded diagrams with Kubota part numbers, quantities, and serial number ranges so you can order the exact belt, blade, or bearing you need.Sections cover the universal joint, the gear box, the spindle and blade, the deck and front wheel, the rear wheel, and the main stay lift linkage. Verified details include the mower blade (part 70722-34330) and the deck belt, with weights listed for many components.Owners, independent mechanics, and restorers use it to source blades, belts, spindle parts, and deck hardware without guessing at fitment. The PDF downloads instantly and prints on standard paper for the workshop.
What's Inside This Kubota RC60-82H Parts Manual
| System | Pages | Key Topics |
|---|---|---|

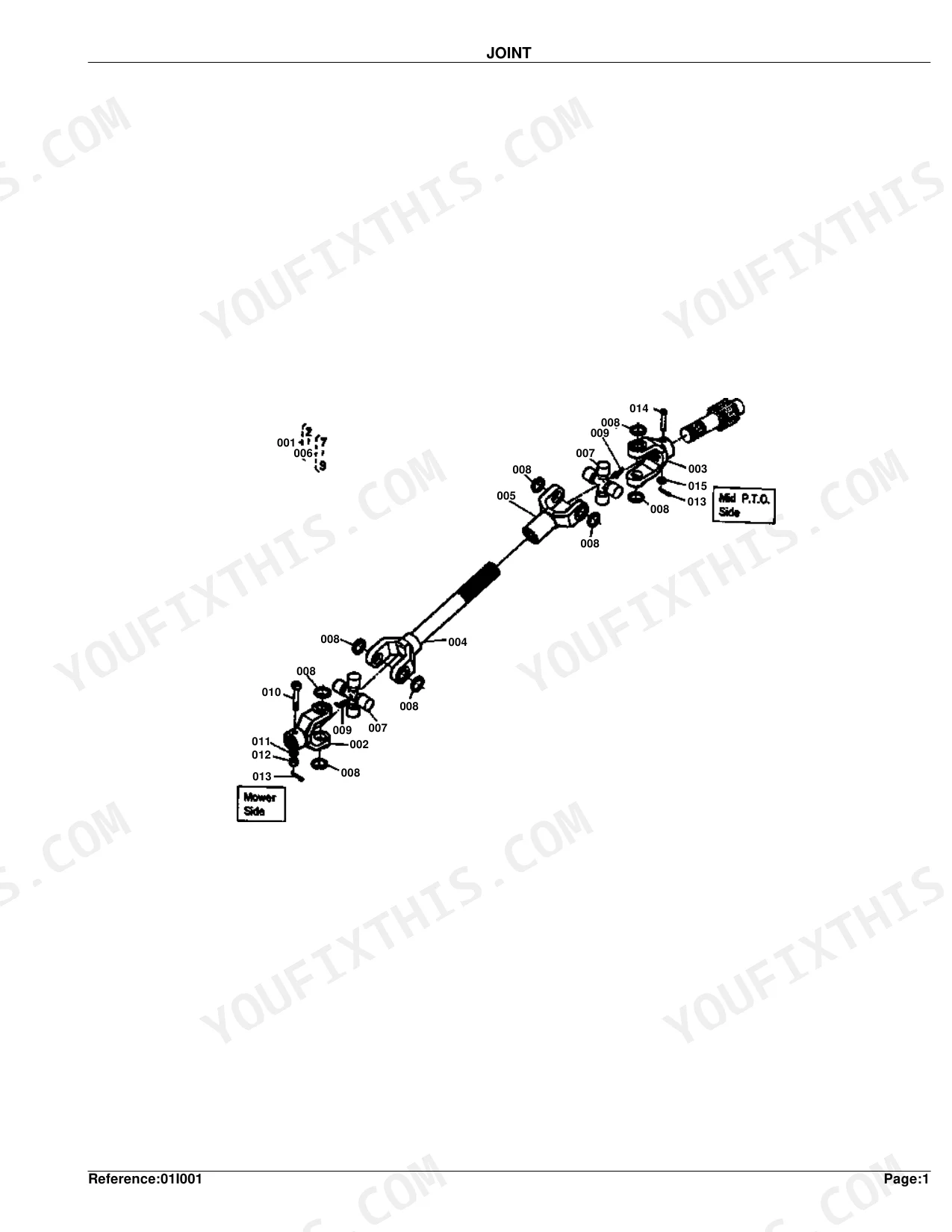

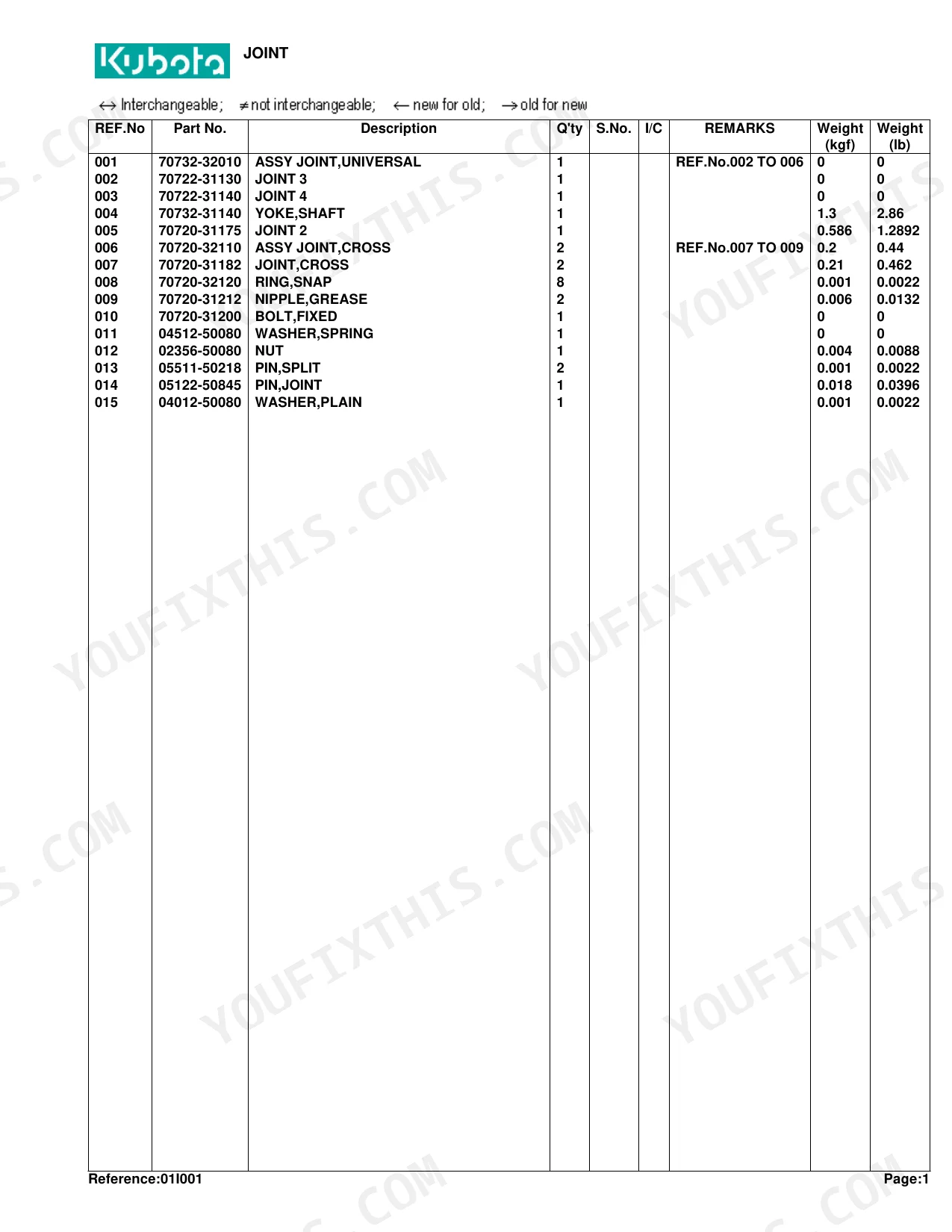

| Joint | 4-5 | Universal Assy Joint, Shaft Yoke, Cross Assy Joint, Snap Ring, Grease Nipple |

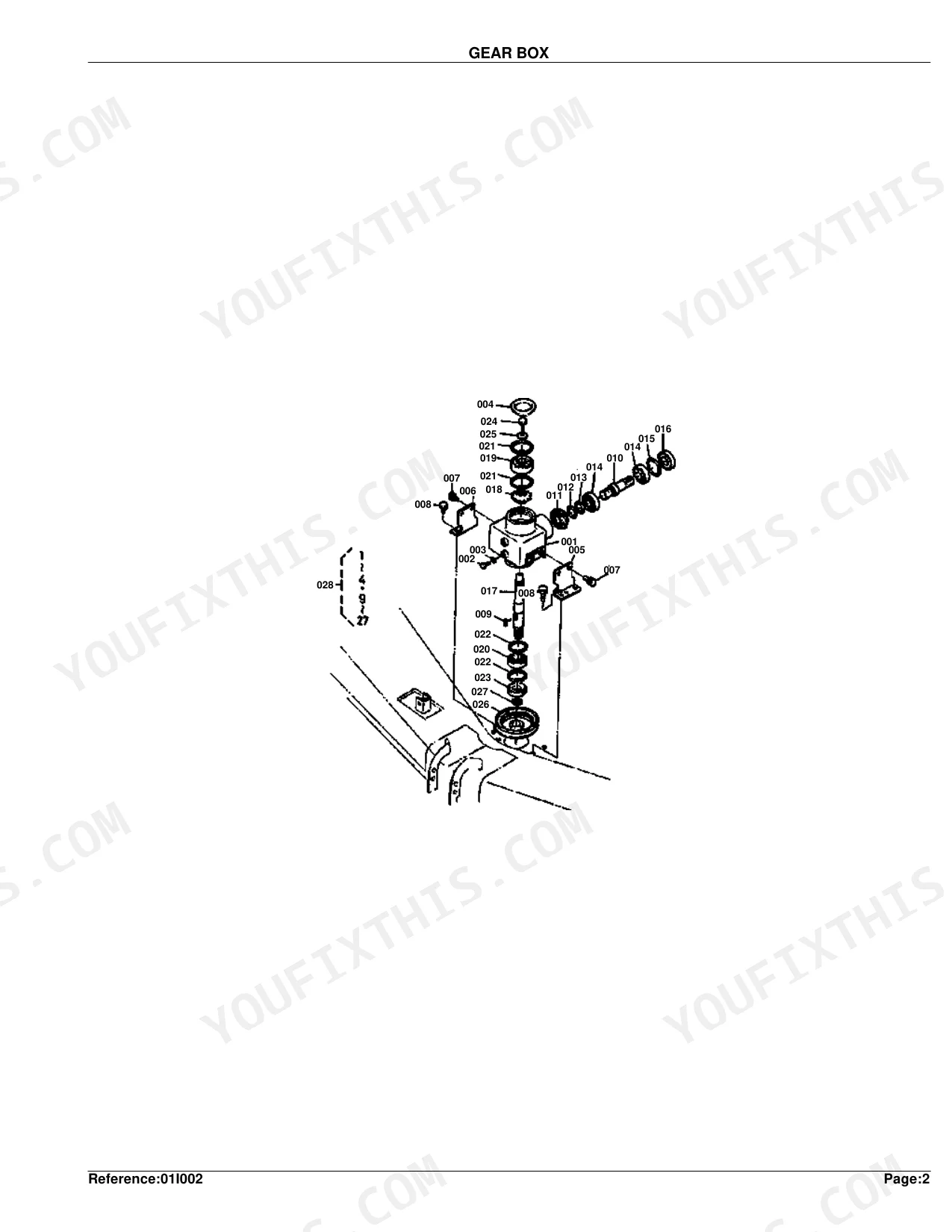

| Gear Box | 6-7 | Bevel Case, Bevel Case LH Stay, Bevel Case RH Stay, Pinion Shaft, Bevel Gear, Oil Seal, Bevel Gear Shaft, Pulley |
| Spindle and Blade | 8-9 | Pulley Holder, Tension Spring, Oil Seal, Extension Pipe, Blade Boss, Plate, Blade, Low Suction Service Parts Blade |

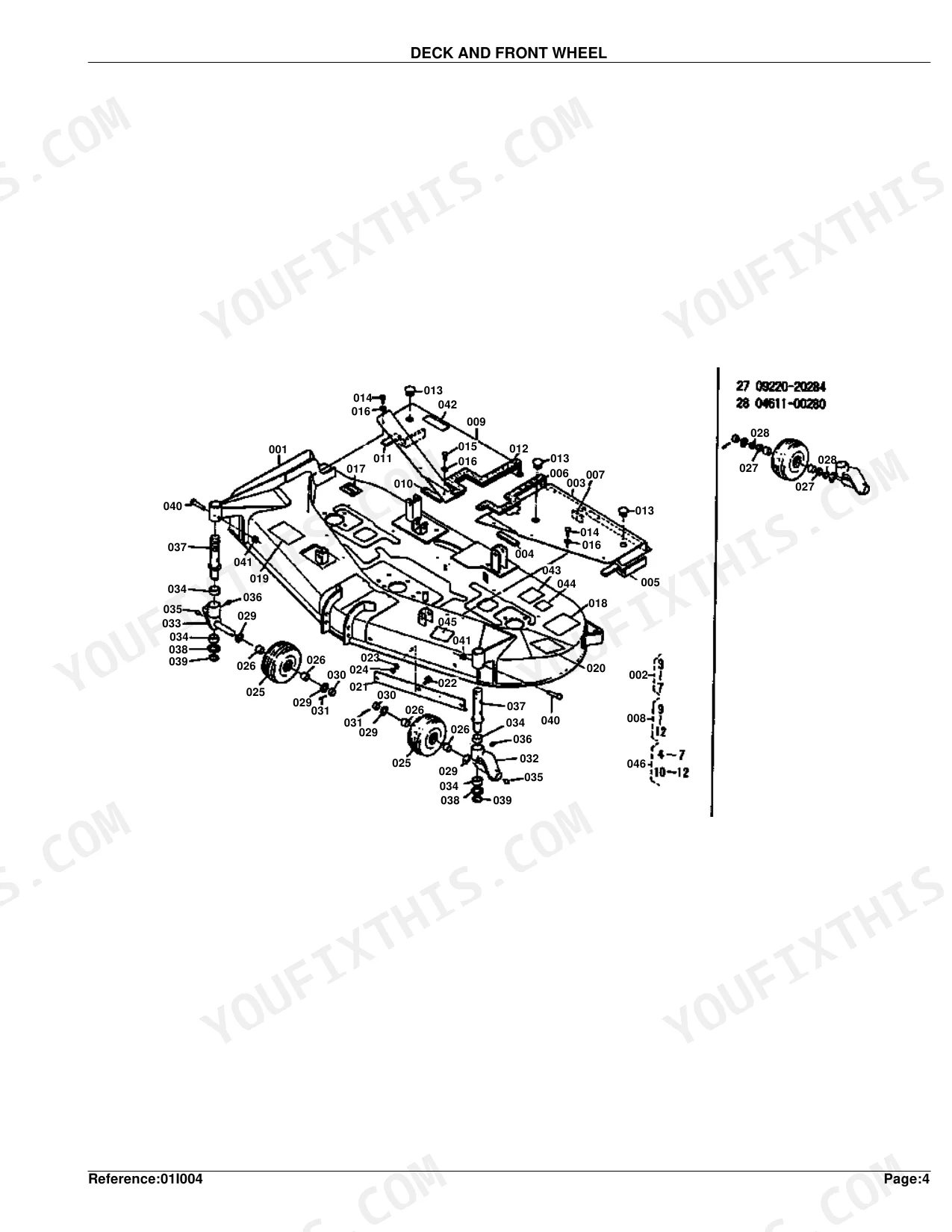

| Deck and Front Wheel | 10-11 | Mower Deck, LH Assy Cover, Blank Order by, Dust Seal, RH Assy Cover, Blind Cap, Model Label, Attention Label |
| Rear Wheel | 12-13 | Rear Wheel Arm, Rear Wheel Bracket, Wheel Rear, Bush, Oil Seal, Rear Wheel Shaft, Grease Nipple, Rear Wheel Guide |
| Main Stay | 14-15 | LH Front Stay, LH Rear Stay, RH Front Stay, RH Rear Stay, Lift Link Holder, Support Rod, Lift LH Stay, Lift RH Stay |
Every system also includes shaft.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade Part Number | 70722-34330 | p. 9 |
| Blade Weight | 0.99 kgf | p. 9 |
| Arm, Lift Part Number | 70722-61170 | p. 15 |
| Arm, Lift Weight | 1 kgf | p. 15 |
| Shaft, Blade Part Number | 70722-34530 | p. 9 |
| Shaft, Blade Weight | 0.52 kgf | p. 9 |
| Belt 110 Part Number | 70722-34710 | p. 9 |
| Belt 110 Weight | 0.47 kgf | p. 9 |
| Deck Belt Part Number | 70722-34710 | p. 9 |
| Deck Belt Weight | 0.47 kgf | p. 9 |
| Front Wheel Part Number | 70722-42110 | p. 11 |
| Front Wheel Weight | 1.9 kgf | p. 11 |
Kubota RC60-82H Common Problems This Manual Covers
Middle strip left uncut
A strip of uncut grass down the middle usually means dull or bent blades or a spindle issue rather than a hydraulic fault. The spindle and blade section lists the blades, holders, pulleys, and belt.
Manual Section: Spindle and Blade p. 8PTO or blades will not engage
Intermittent engagement often traces to the lift and control linkage rather than a simple electrical fix. The main stay section shows the lift link, rod, support, and joint parts.
Manual Section: Main Stay p. 14Streaking or scalping
Streaks, stingers, and scalping come from buildup under the deck, worn blades, or a deck that is not level. This section identifies the deck, cover, and front wheel hardware.
Manual Section: Deck and Front Wheel p. 10Gear box noise or wear
A worn bevel gear box gets noisy and can stop the deck cutting or throw the belt. The gear box section breaks down the bevel case, pinion, gears, bearings, and seals.
Manual Section: Gear Box p. 6Belt slips or breaks
A worn or loose belt slips, burns, or breaks and stops the blades engaging. The spindle and blade section lists the belt, tension pulleys, and spring for the drive path.
Manual Section: Spindle and Blade p. 8Rear wheel and gauge wheel wear
Worn rear and gauge wheel hardware lets the deck ride unevenly. This section shows the bracket, lever, gauge, cover, arm, and wheel parts.
