All 27 pages of this Kubota LA364 Parts Catalog focus on one task: finding the right tractor loader part fast, without second-guessing yourself. You get labeled exploded views and OEM part numbers across Main Frame, Side Frame, Front Guard, Boom, and Bucket assemblies, plus dedicated hydraulic sections covering cylinder hoses, the hydraulic outlet block, hydraulic tube routing, and component-level part breakdowns for both boom and bucket cylinders. Cross-reference by assembly, confirm the part number, and order without a callback to the dealer. Frame hardware is specified down to individual fasteners: M14*25 mounting bolts, plain washers, and stud dimensions listed by reference number. Wrong parts waste days. Jump to any section with built-in bookmarks, search by part name or number, and bring the right answer to the counter on the first trip.
What's Inside This Kubota LA364 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

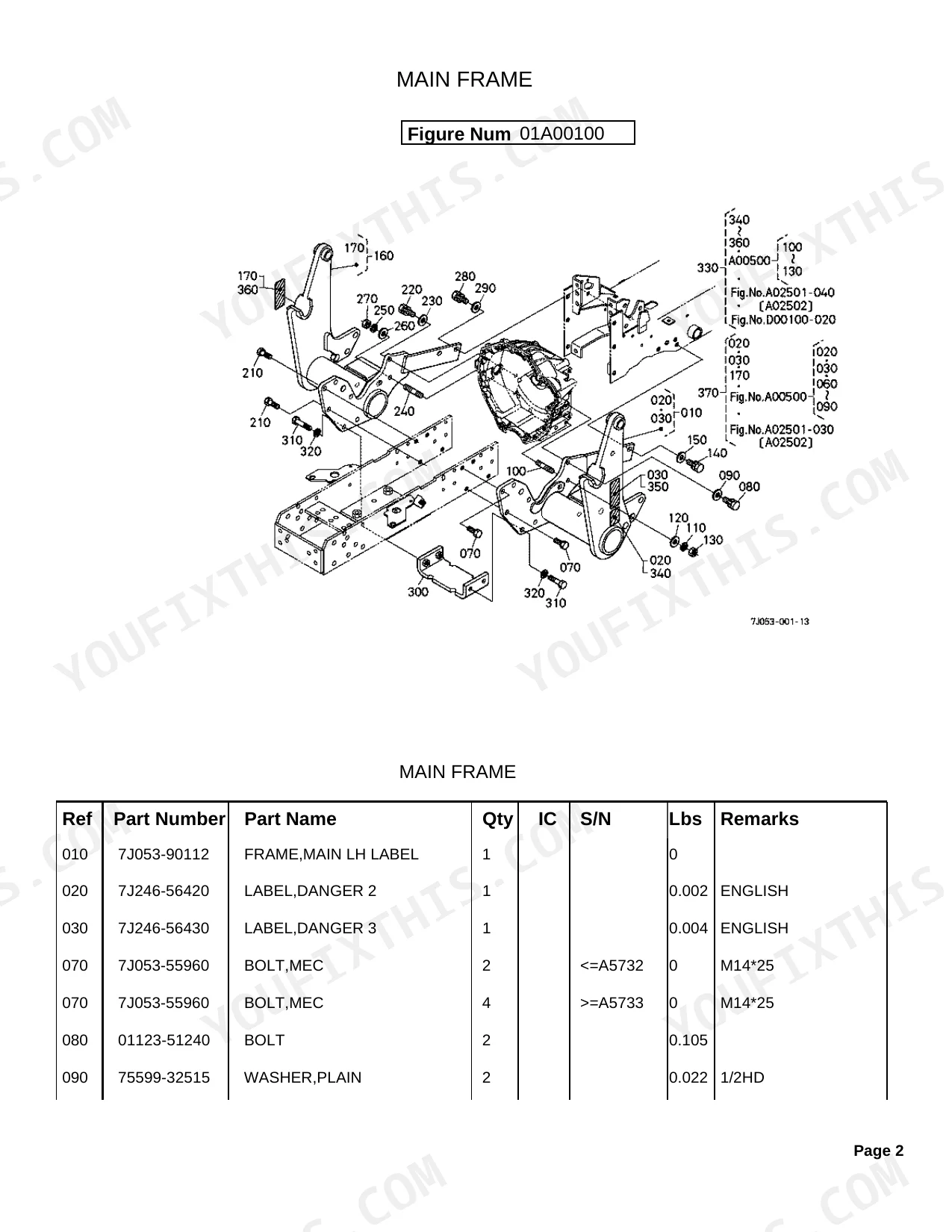

| Main Frame | 3-7 | Frame, Main LH Label, Label, Danger, Bolt, Washer, Plain, Stud |
| Side Frame | 8-9 | Frame Side LH Label, Label Warning, Label Caution, Pin Mount, Label Lubricate |
| Front Guard | 10 | Guard Front, Bolt, Nut, Washer Spring |

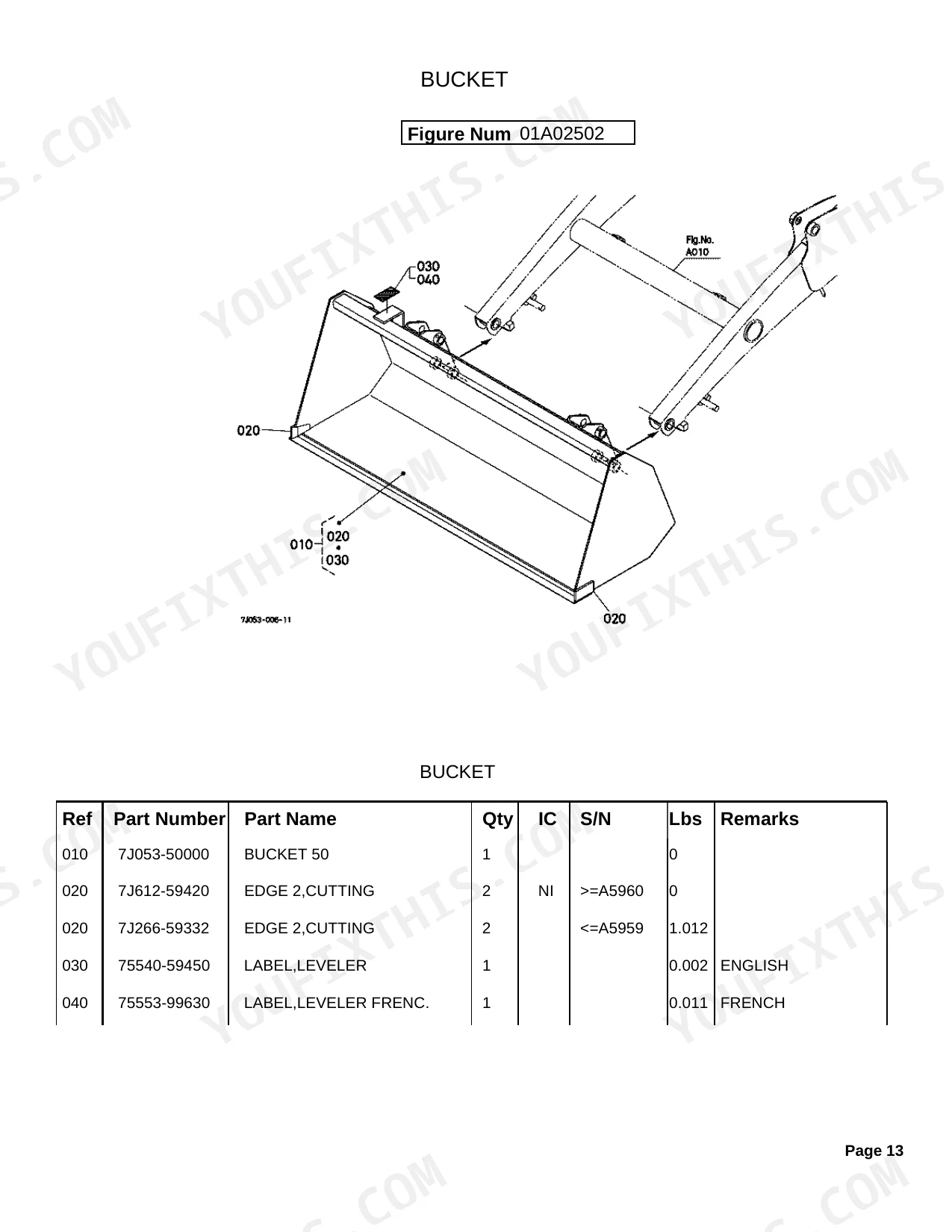

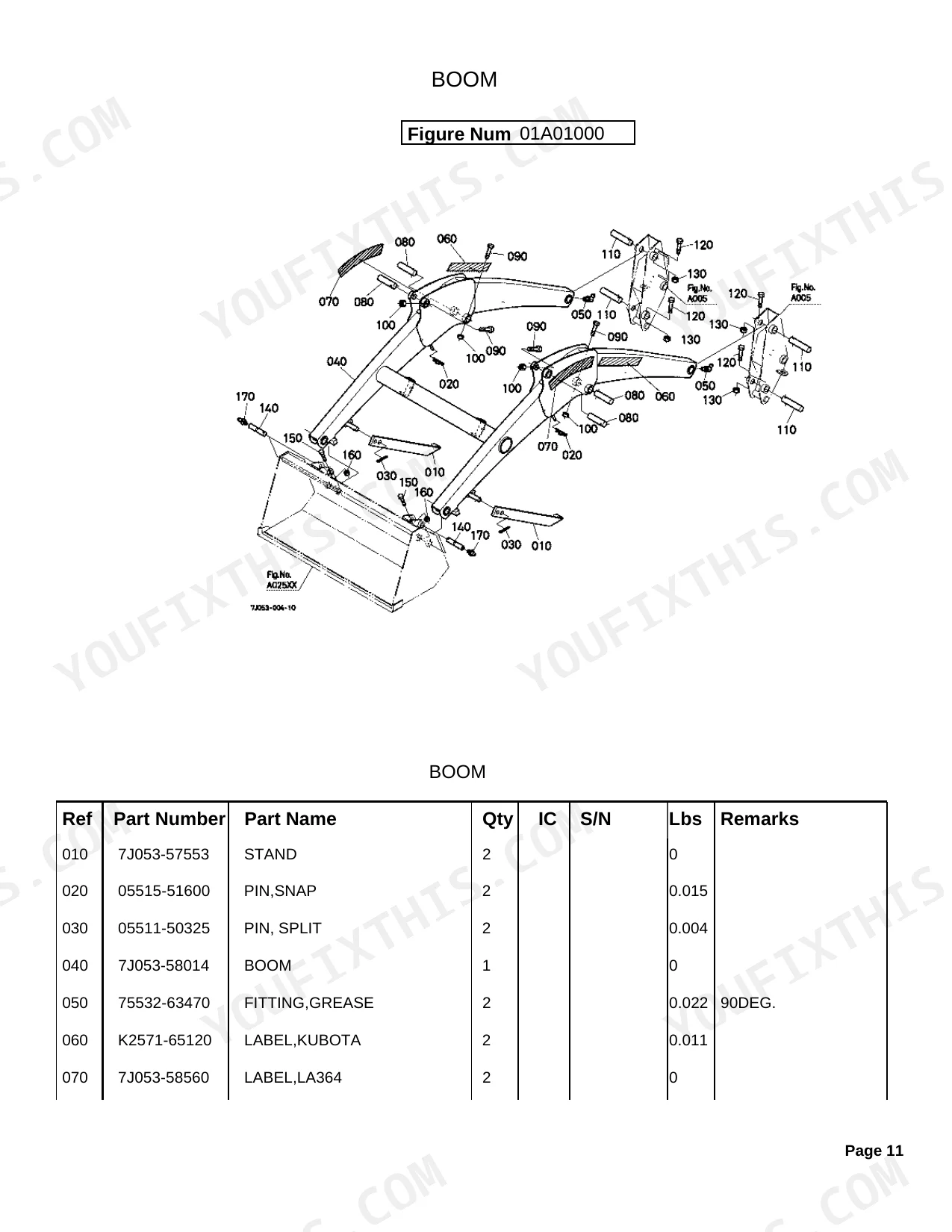

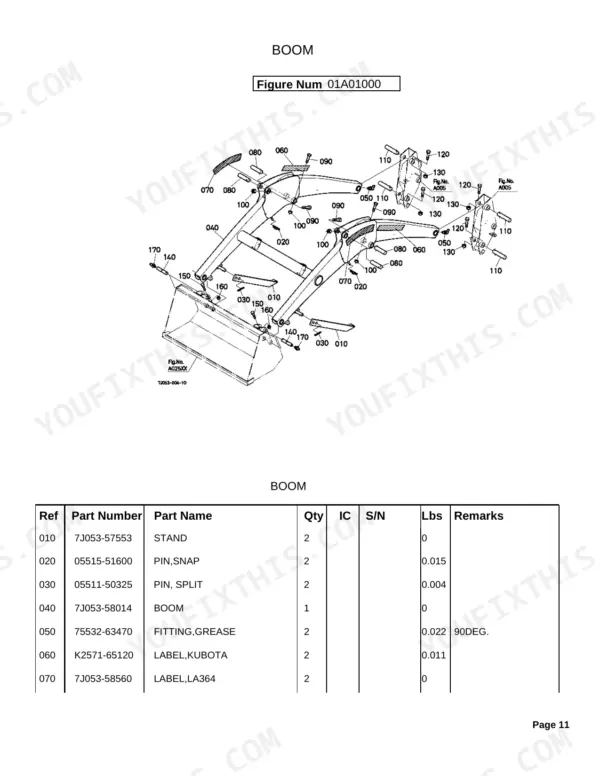

| Front Attachments | 11-14 | Boom, Bucket |

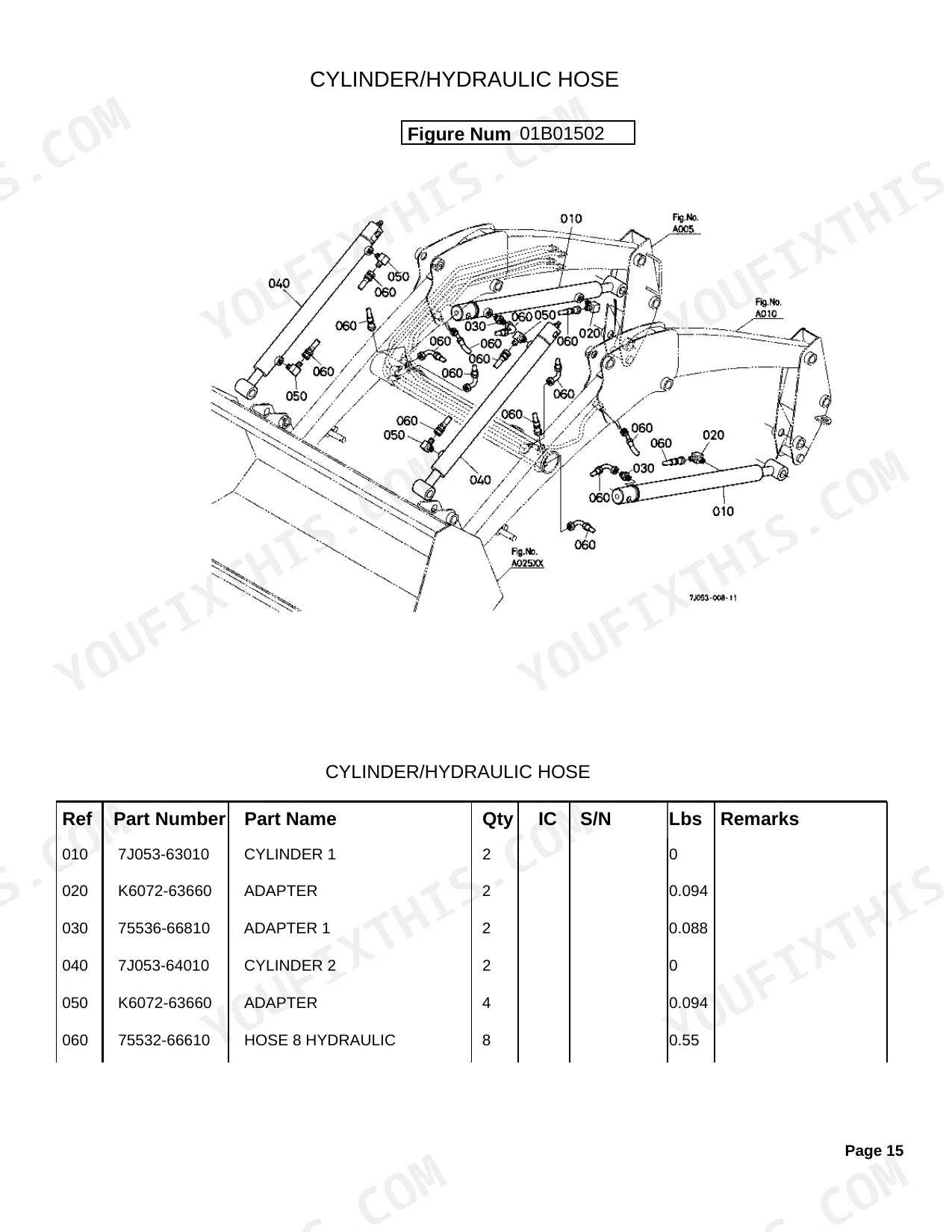

| Cylinder/Hydraulic Hose | 16 | Hydraulic Cylinder Hoses, Hose Assemblies, Hose Fittings |
| Hydraulic Hose (Hyd.Outlet Block) | 17-18 | Hose Routing, Outlet Block Connections, Couplers, Grease Fittings, J041-76110, 7J612-66323 |
| Hydraulic Tube | 19-21 | Hydraulic Tubes, Tube Routing, Tube Connections |
| Cylinder (Boom) Component Parts | 22-23 | Boom Cylinder Rod, Piston Assembly, Seal Kit 7J053-63400, Retaining Nut M8x1.5, Grease Fitting 75532-63470 |
| Cylinder (Bucket) Component Parts | 24-25 | Bucket Cylinder Components, Seals, Fittings |
| Accessories | 26-27 | Service Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LABEL, DANGER 2 weight | 0.002 Lbs | p. 3 |
| BOLT (Ref 070) dimension | M14*25 | p. 3 |
| STUD (Ref 100) weight | 0.088 Lbs | p. 4 |
| BOLT (Ref 140) weight | 0.094 Lbs | p. 4 |
| WASHER, PLAIN (Ref 150) weight | 0.022 Lbs | p. 4 |
| PIN 1 (Ref 080) weight | 0.803 Lbs | p. 13 |
| HEX.BOLT (Ref 090) dimension | M6*1.00*55 | p. 13 |
| PIN 2 (Ref 110) weight | 0.935 Lbs | p. 13 |
| FITTING,GREASE (Ref 170) dimension | 1/4-28T.T.*.68 | p. 13 |
| HOSE 1,HYDRAULIC (Ref 010) weight | 1.034 Lbs | p. 17 |
| SLEEVE (Ref 080) weight | 0.246 Lbs | p. 18 |
| NUT (Ref 060) dimension | M8*1.5 | p. 23 |
Kubota LA364 Common Problems This Manual Covers
Need the exact part number for Kubota LA364 leaking hydraulic hose assemblies at the outlet block p. 17
Check the hydraulic parts diagram on page 16 for the outlet block hose routing. Locate Ref 010, Hose 1 Hydraulic, which weighs exactly 1.034 Lbs according to the specs on page 17. Verify the correct fittings match your machine before ordering replacement lines to stop the leak.
Manual Section: Hydraulic SystemCannot locate the correct replacement boom attachment pins for worn loader arm pivot points p. 13
Inspect the front attachments exploded view to identify the worn pivot components. Find Pin 1 at Ref 080 on page 13, noting its shipping weight is 0.803 Lbs. Cross-reference the M6*1.00*55 hex bolt at Ref 090 to ensure you order the right retaining hardware for the new pins.
Manual Section: Front AttachmentsMissing threaded hardware on the main frame causing the loader bracket to feel unstable p. 3
Review the chassis parts diagram on page 3 to find the exact replacement fasteners. Match the missing component to the Ref 070 bolt, which has an M14*25 dimension. Order the corresponding plain washers at Ref 150 on page 4, weighing 0.022 Lbs, to properly secure the frame bracket.
Manual Section: Main FrameStripped retaining nut on the boom cylinder rod preventing proper seal kit installation p. 23
Locate the hydraulic parts diagram on page 22 to find your stripped hardware. Identify the Ref 060 replacement nut on page 23 to secure the piston assembly correctly. The required thread dimension is M8*1.5.
Manual Section: Hydraulic SystemFrequently Asked Questions
What are the replacement specifications for hydraulic hoses?
For hydraulic hoses, you can find part numbers and associated fitting specifications. For example, "HOSE 1,HYDRAULIC" has part number 7J041-76110. Couplers like part number 7J612-66323 are specified as 1/4(72C4-4F), and grease fittings like part number 75599-81521 are 1/4-28T.T.*.68.
What are the replacement specifications for fittings and O-rings?
For fittings, you can find part number 75532-63470 for a 90-degree grease fitting. For O-rings, the manual lists "KIT 1,SEAL" with part number 7J053-63400, which is used in both boom and bucket cylinders.
What fastener specifications does the manual list for the Kubota LA364 main frame?
For main frame fasteners, the manual specifies a Ref 070 bolt with M14*25 dimensions and plain washers at Ref 150 on page 4, weighing 0.022 Lbs. These are listed by reference number in the chassis parts diagram on page 3.
What parts are listed for the boom cylinder rod and piston assembly in the LA364 catalog?
The boom cylinder rod retaining nut is listed at Ref 060 on page 23, with thread dimension M8*1.5. The piston assembly seal kit is part number 7J053-63400 (KIT 1,SEAL). These components are detailed in the Cylinder (Boom) Component Parts section.
How quickly can I access this manual after buying?
Instant PDF download. You get the full 27-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this manual?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
