This is the Kubota B2410HSD parts catalog, a 334-page illustrated breakdown of the four-wheel-drive compact tractor and its Kubota diesel engine. It pairs exploded diagrams with part number pages so you can pinpoint the exact component you need.The catalog is arranged by system, from the engine, fuel, and cooling groups through the electrical system, clutch, transmission and rear axle, HST, front axle, steering, and hydraulics. Each assembly lists reference numbers, part numbers, quantities, and serial-number ranges so you can confirm a part fits your machine.If you are ordering parts or rebuilding a B2410HSD, this catalog is the factory reference for correct part numbers and how the assemblies go together. It is delivered as a searchable PDF you can keep on any device and print when you are at the bench.
What's Inside This Kubota B2410HSD Parts Manual
| System | Pages | Key Topics |
|---|---|---|

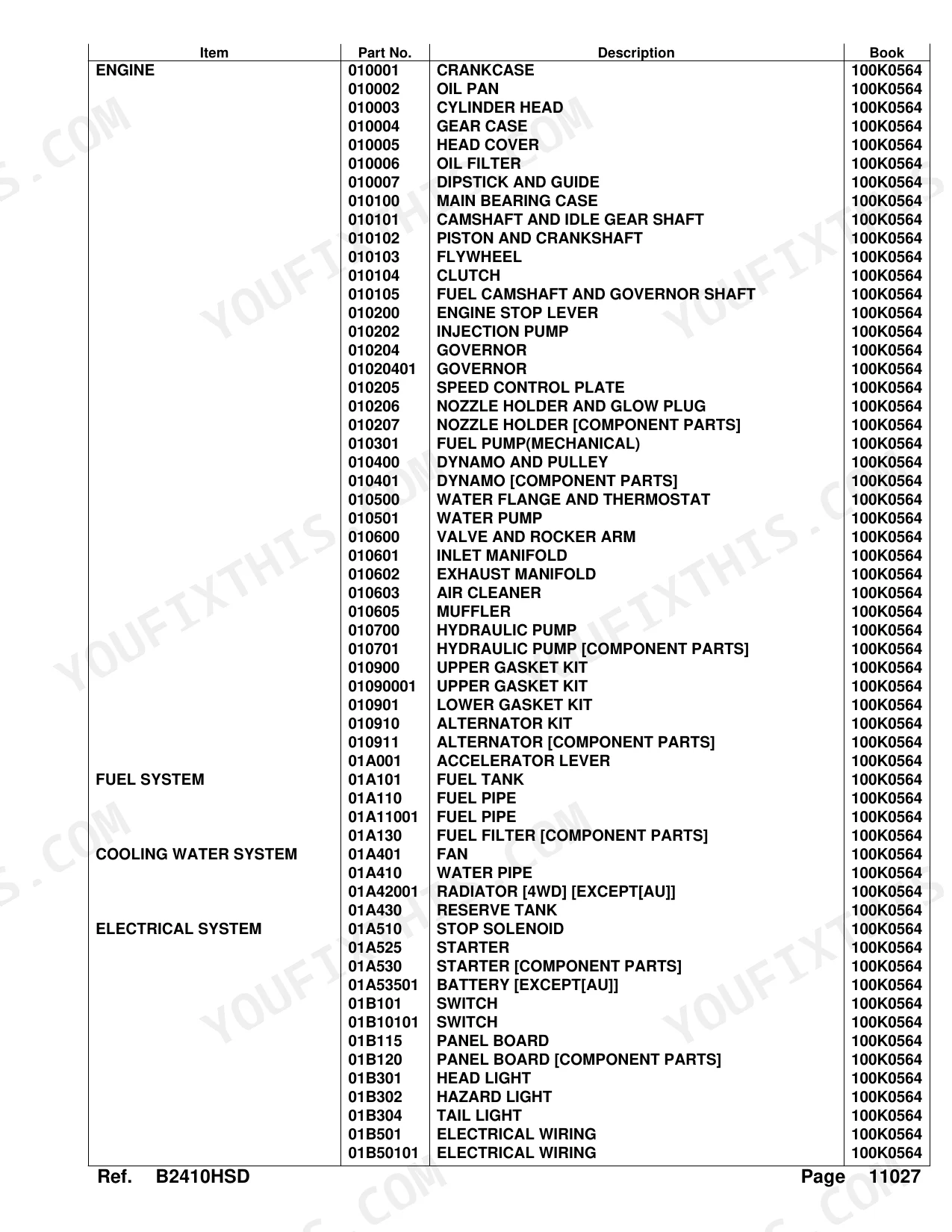

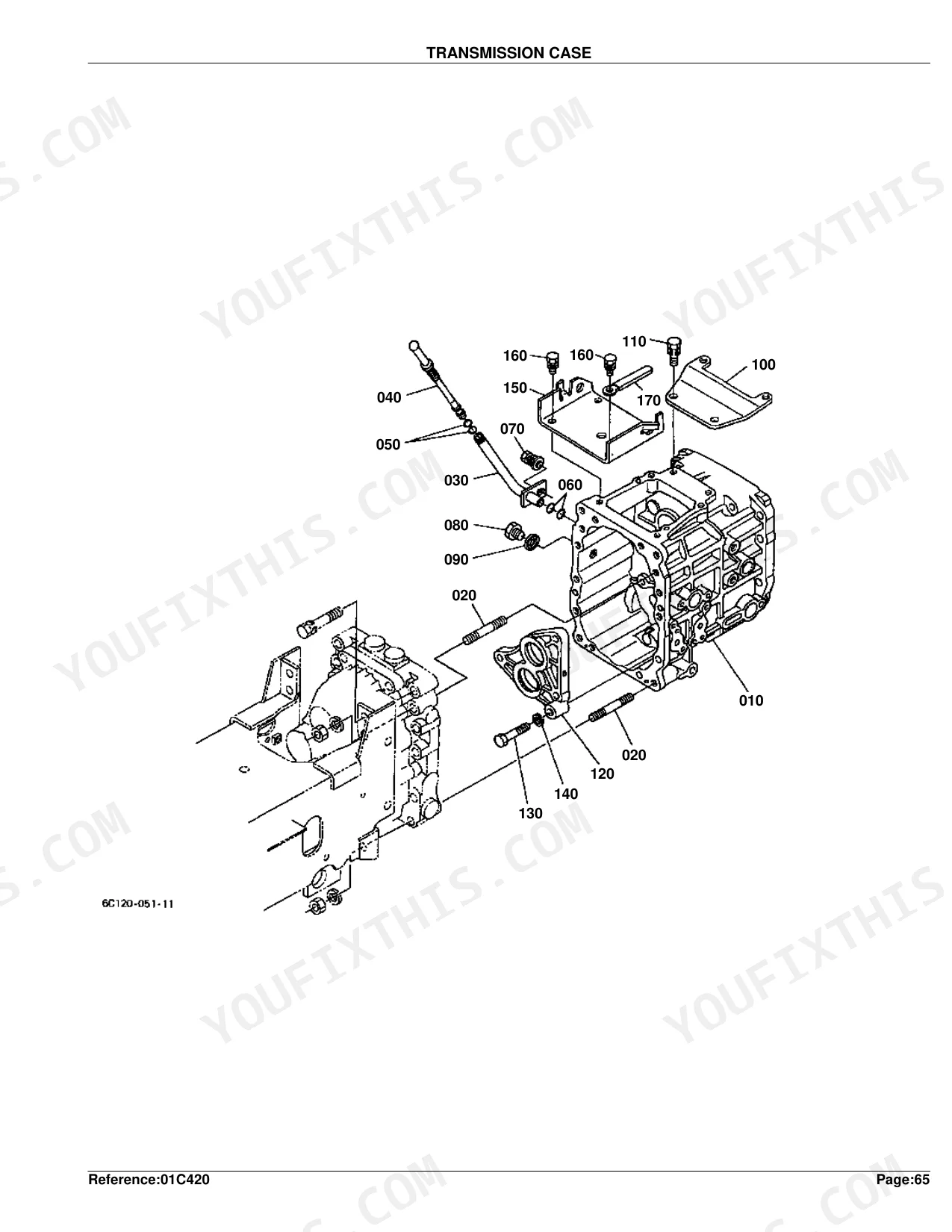

| Clutch & Transmission | Clutch, Clutch Rod, Clutch Pedal, Clutch Housing, Transmission Case, Clutch Shaft, HST, 2Nd Shaft, 3Rd Shaft, 4Th Shaft, Range Gear Shift Fork, PTO Gear Shift Fork, Differential Lock Shift Fork, Neutral Holder Link, Range Gear Shift Lever, PTO Gear Shift Lever | |
| Fuel System | Fuel Camshaft and Governor Shaft, Engine Stop Lever, Injection Pump, Governor, Speed Control Plate, Nozzle Holder and Glow Plug, Nozzle Holder, Fuel Pump, Air Cleaner, Accelerator Lever, Fuel Tank, Fuel Pipe, Fuel Filter, Stop Solenoid, Speed Control Pedal | |
| Cooling System | Water Flange and Thermostat, Water Pump, Fan, Water Pipe, Radiator, Reserve Tank | |

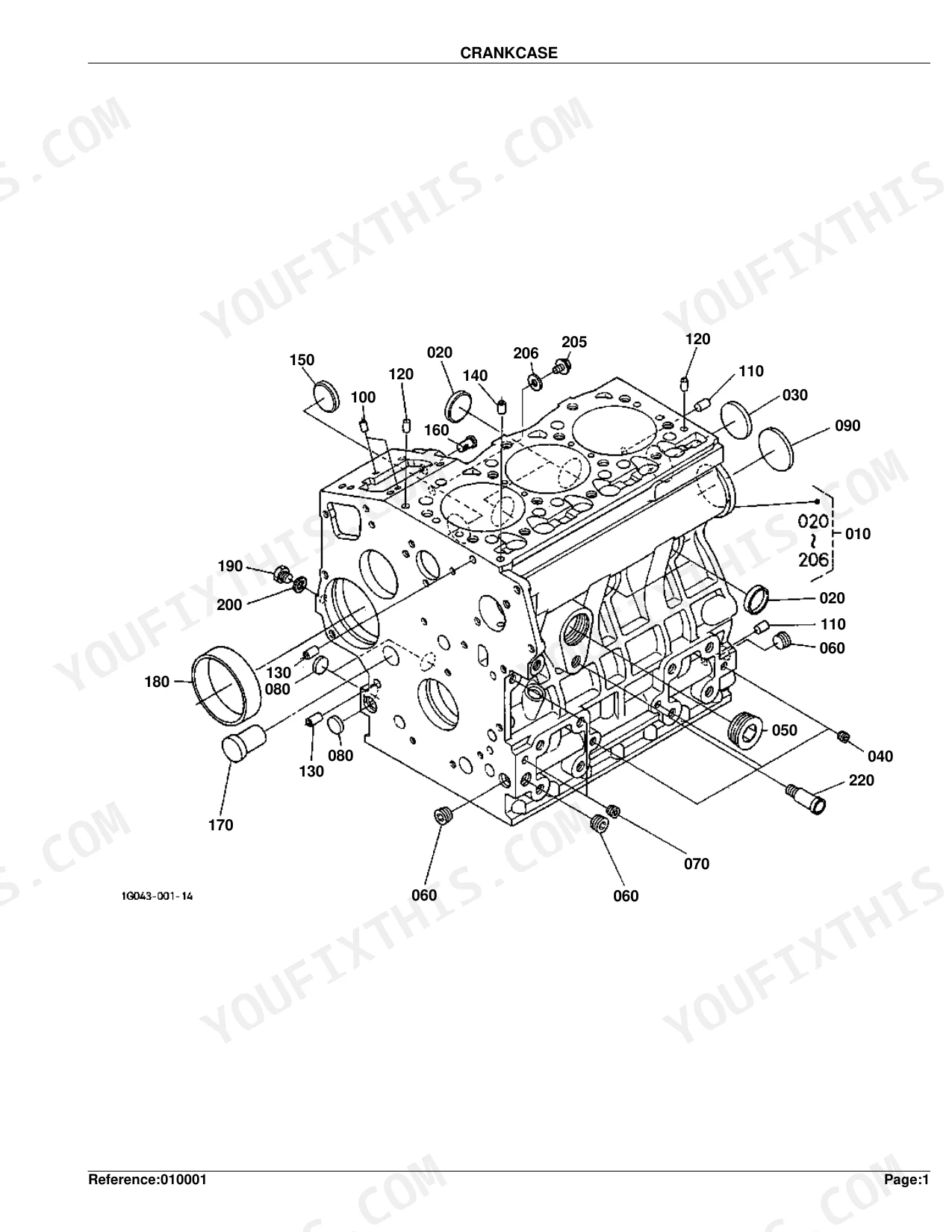

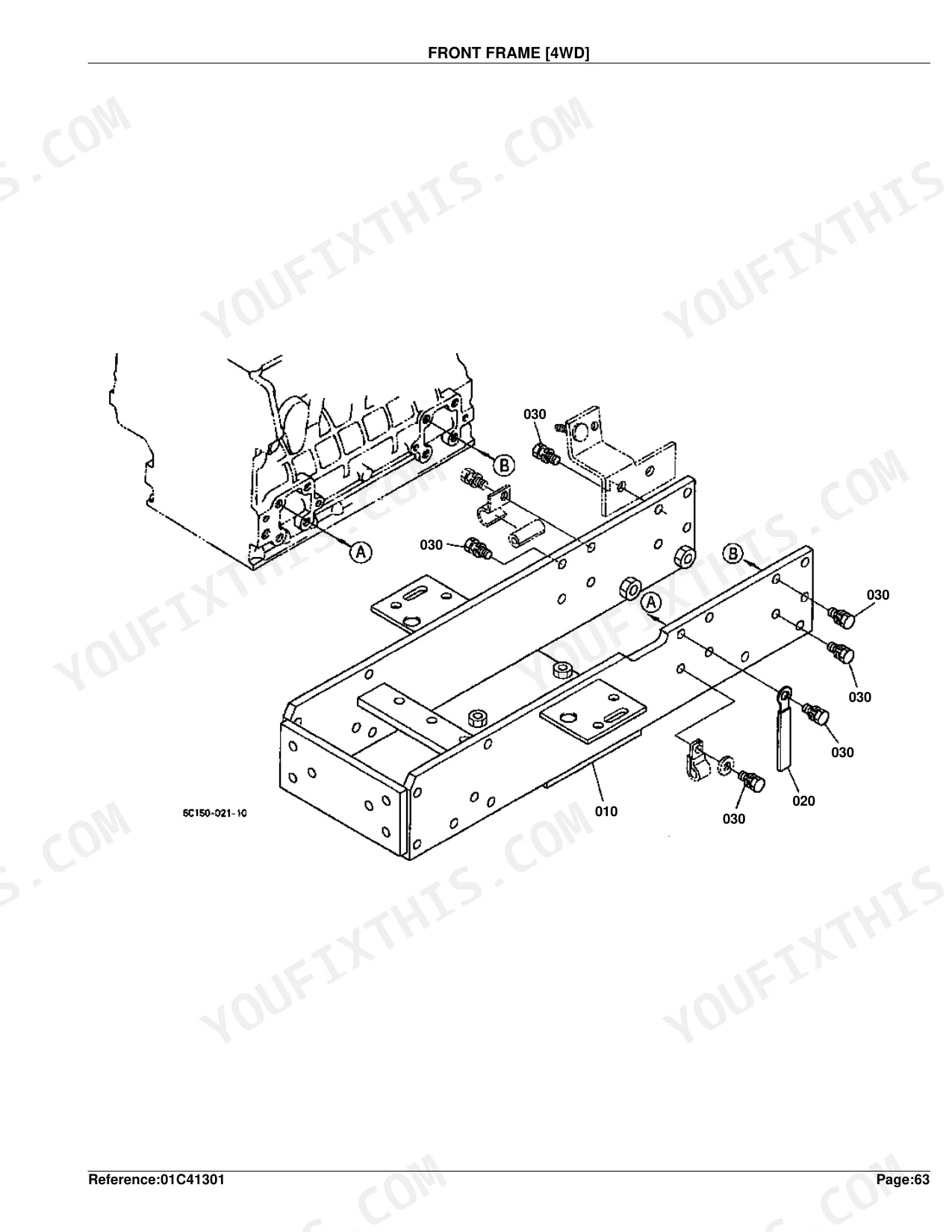

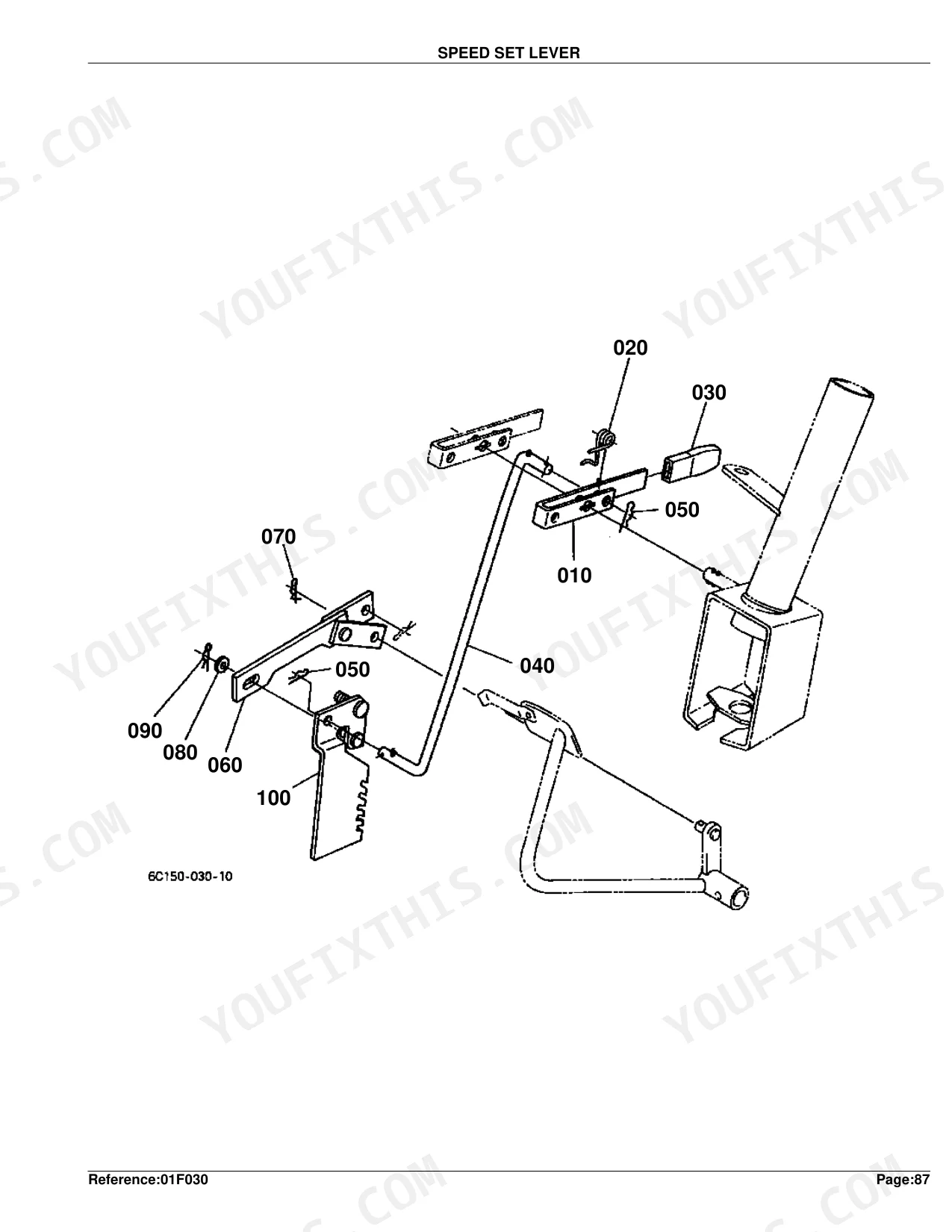

| Engine | Crankcase, Oil Pan, Cylinder Head, Gear Case, Head Cover, Oil Filter, Dipstick and Guide, Main Bearing Case, Camshaft and Idle Gear Shaft, Piston and Crankshaft, Flywheel, Valve and Rocker Arm, Inlet Manifold, Exhaust Manifold, Muffler, Upper Gasket Kit | |
| Electrical System | Dynamo and Pulley, Dynamo, Alternator Kit, Alternator, Starter, Battery, Switch, Panel Board, Head Light, Hazard Light, Tail Light, Electrical Wiring, Warking Light Kit | |
| PTO | PTO Shaft, Mid PTO, PTO Protector | |
| Rear Axle, Differential & Brakes | Rear Axle Case, Rear Differential, Rear Axle, Brake, Brake Rod 1, Parking Brake Lever, Brake Pedal, Differential Lock Pedal, Front Axle Case, Differential Gear Shaft, Rear Wheel | |
| Front Axle & Steering | Propeller Shaft, Front Wheel Propeller Shaft, Front Wheel Drive Lever, Front Differential, Front Axle, Front Drive Shaft, Knuckle Arm, Drag Link, Tie Rod, Steering Handle, Steering Post, Front Wheel, Power Steering Hose Kit | |
| Hydraulics & 3-Point Hitch | Hydraulic Pump, Hydraulic Control Lever, Hydraulic Oil Line, Hydraulic Cylinder, Feed Back Lever, Control Valve, 3-Point Linkage 2, Lower Link, 3-Point Linkage 1, Drawbar, Hitch | |
| Body & Operator Station | Front Frame, Center Frame, Front Grille, Bonnet, Panel Cover, Side Cover, Shutter Plate, Fender, Fender Stay, Floor Seat, Seat Support, Step, ROPS Kit, Smv Emblem | |
| Decals & Accessories | Label, Accessories and Service Parts | |
| Other Components | Front Shaft, Speed Set Lever, Check Chain |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| FUSE current rating | 30A | p. 133 |
| FUSE AUTO current rating | 5A | p. 133 |
Kubota B2410HSD Common Problems This Manual Covers
Cranks but will not start
On the B2410HSD, a crank-no-start often points to the fuel shutoff solenoid. The stop solenoid diagram identifies the solenoid and its mounting parts so you can order the right unit.
Manual Section: Stop Solenoid p. 106Starter will not crank
A no-crank problem frequently traces to a failing starter or its internal components. This section breaks down the starter assembly so you can match the correct part.
Manual Section: Starter p. 109Blown fuse or wiring fault

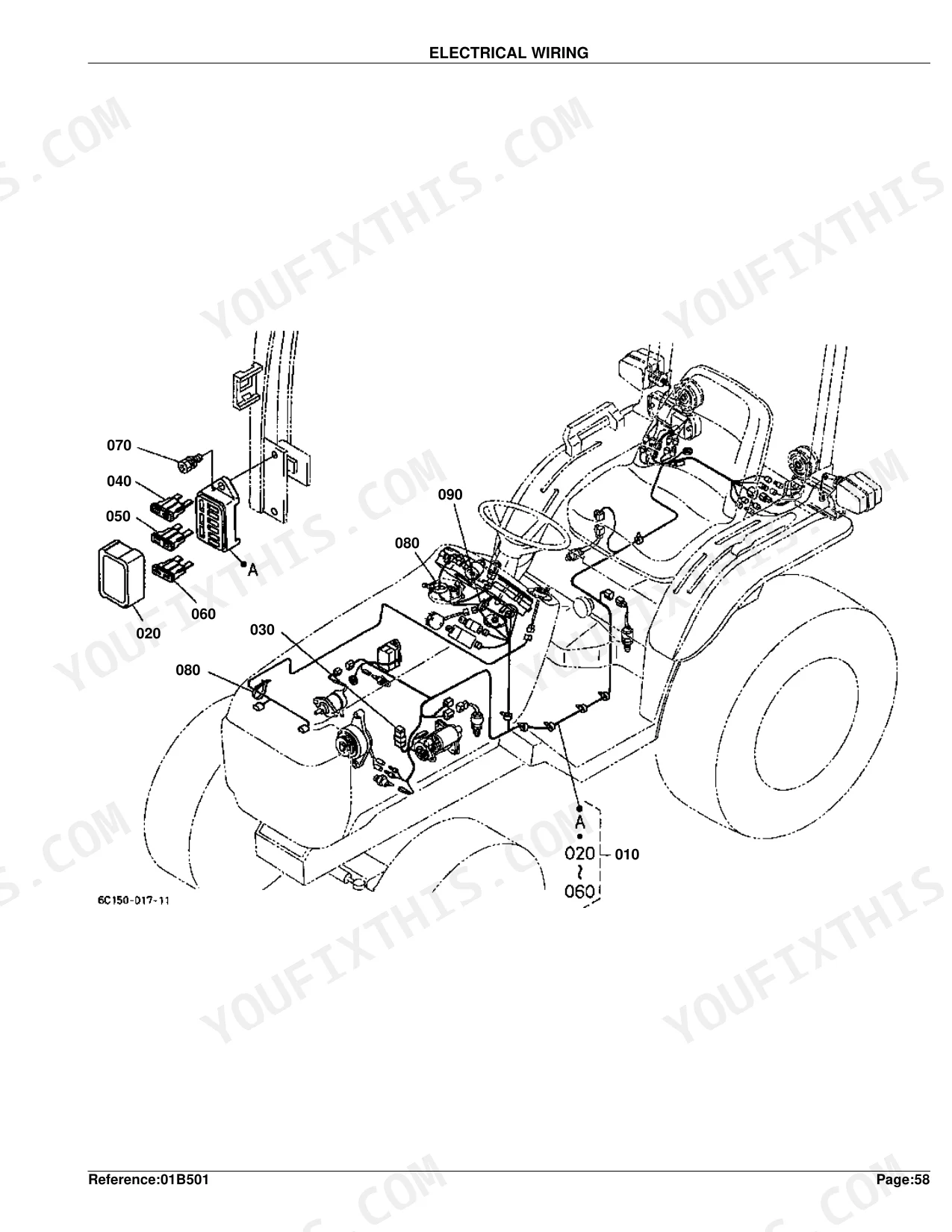

Electrical faults on these tractors commonly come down to a blown fuse or damaged wiring. The electrical wiring section shows the harness and the 5A, 10A, 20A, and 30A fuse ratings used on the machine.
Manual Section: Electrical Wiring p. 131HST will not propel tractor
Weak or missing hydrostatic drive is a recurring issue owners report. The HST section diagrams the unit so you can identify seals, pumps, and related parts when service is required.
Manual Section: HST p. 157Overheating under load
Rising coolant temperature can follow radiator or cooling-component damage. The radiator diagram identifies the core, mounts, and hardware so you can order the correct cooling parts.
Manual Section: Radiator [4Wd] [Except[Au]] p. 101Weak battery or charging
A battery that repeatedly runs down often reflects a charging or connection fault. The battery section breaks down the battery and bracket parts so you can confirm the right components.
Manual Section: Battery [Except[Au]] p. 114Frequently Asked Questions
Which model does this parts catalog cover?
It covers the Kubota B2410HSD four-wheel-drive compact tractor, with illustrated parts breakdowns for the engine and every major system on the machine.
Does it list the fuse ratings?
Yes. The electrical wiring section diagrams the harness and lists the fuse ratings used on the tractor, including 5A, 10A, 20A, and 30A fuses, so you can order the right parts. p. 131
Can I find the HST internal components?
Yes. The HST component parts section provides an exploded view of the hydrostatic unit so you can identify seals, plates, and internal pieces by part number. p. 159
How will I receive this Kubota B2410HSD Parts Catalog?
This is a 334-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
The PDF is DRM-free, so print whatever sections you want to take out to the shop. Standard letter or A4 paper works.
Does this Kubota B2410HSD manual include hydraulic diagrams?

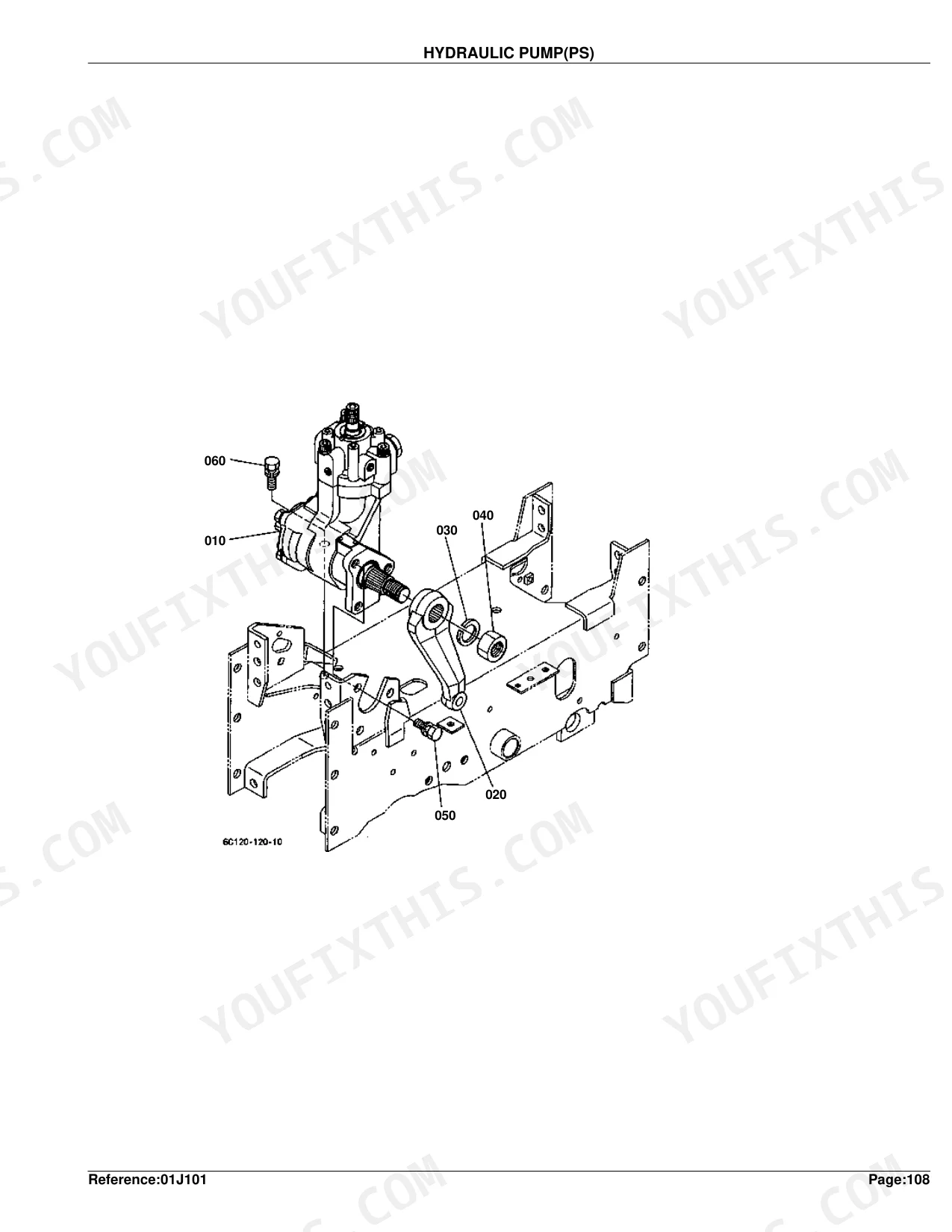

This is a parts catalog, not a workshop manual. It contains exploded-view diagrams with OEM part numbers for the hydraulic pump, control valve, cylinder, and oil lines — organized so you can find and order the exact part you need.
