Part of the Kubota Parts Manuals.
The B7410D parts catalog runs 338 pages, mapping one tractor from crankcase to ROPS with factory-correct part numbers. More than 150 of those pages are indexed parts lists covering every major system: injection pump, hydraulic cylinder, front axle, transmission shafts, and PTO. Each section pairs an exploded view with a numbered parts list and interchangeability data, and serial number split coverage at S.No. 4Z9999/5A0001 lets you match parts to your specific build. Part-level specs sit throughout the book: the battery replacement is model 55B24L, switch gasket thickness is 1.0mm, and the starter assembly weighs 3.7 kgf. Order the wrong part once and you remember how long that wait costs you. Everything is bookmarked by system and keyword-searchable, so you can find the exploded view, confirm the number, and order.
What's Inside This Kubota B7410D Parts Manual

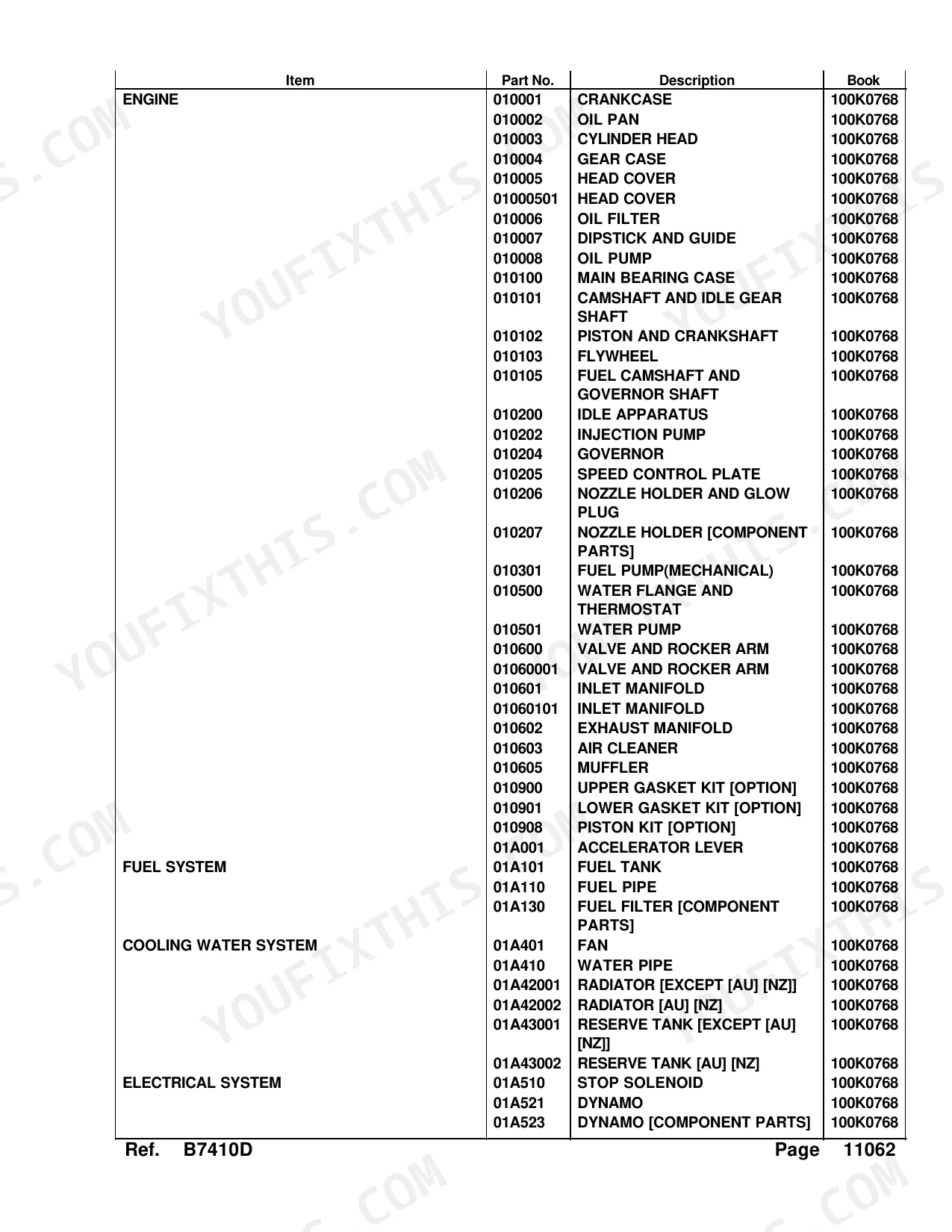

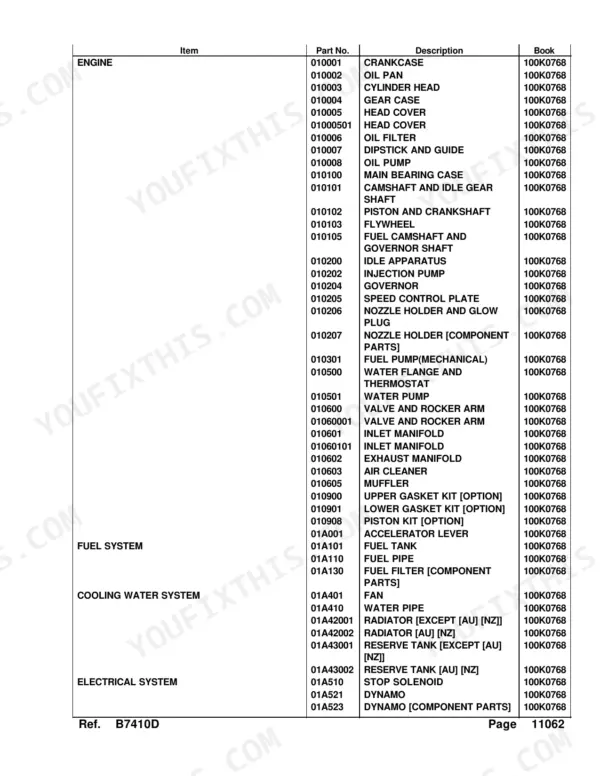

| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Camshaft and Governor Shaft, Injection Pump, Governor, Speed Control Plate, Nozzle Holder and Glow Plug, Nozzle Holder, Fuel Pump, Air Cleaner, Accelerator Lever, Fuel Tank, Fuel Pipe, Fuel Filter, Stop Solenoid | |
| Cooling System | Water Flange and Thermostat, Water Pump, Fan, Water Pipe, Radiator, Reserve Tank | |

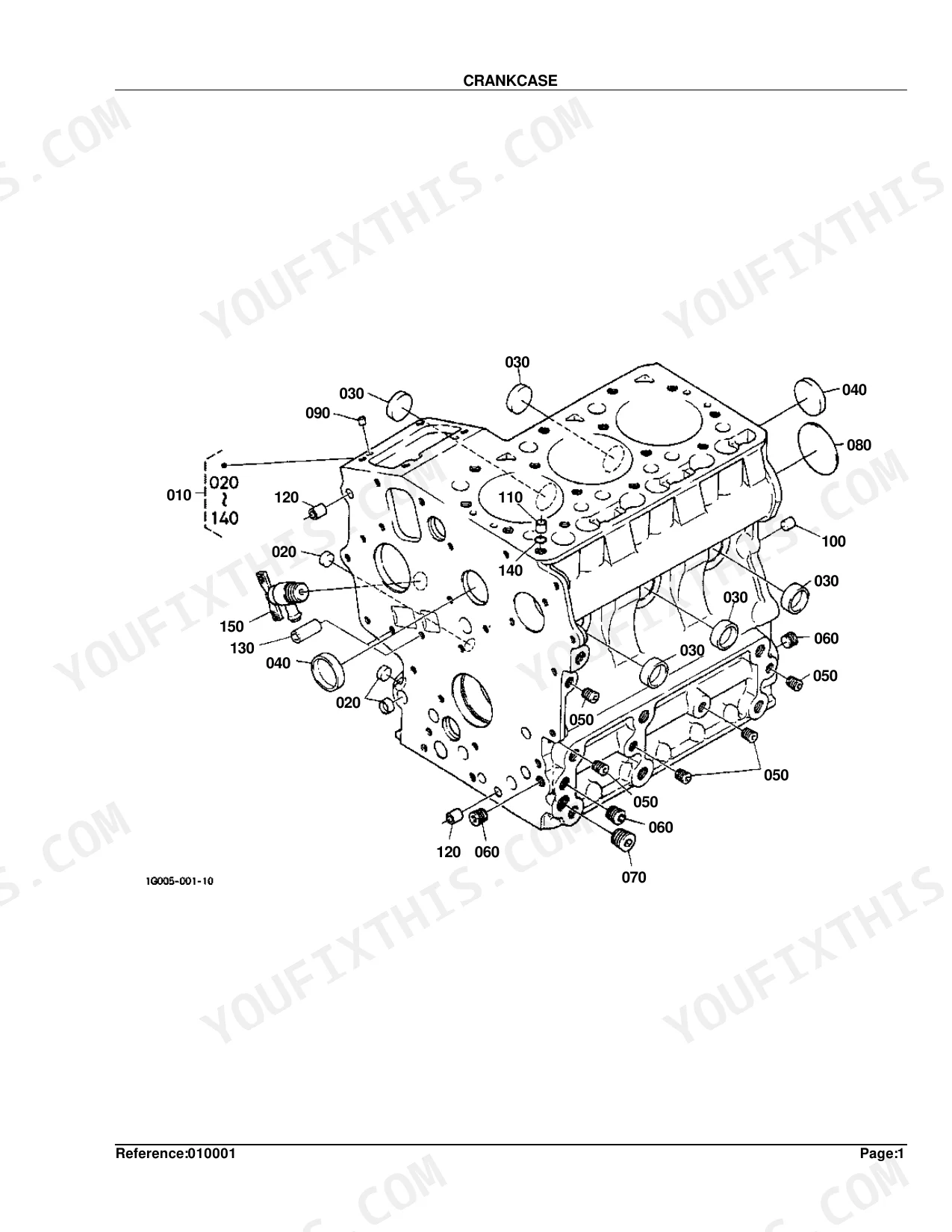

| Engine | Crankcase, Oil Pan, Cylinder Head, Gear Case, Oil Filter, Oil Pump, Main Bearing Case, Camshaft and Idle Gear Shaft, Piston and Crankshaft, Flywheel, Valve and Rocker Arm, Inlet Manifold, Exhaust Manifold, Muffler, Upper Gasket Kit, Lower Gasket Kit | |
| Electrical System | Dynamo, Starter, Battery, Switch, Panel Board, Hazard Light, Tail Light, Winker Lamp, Electrical Wiring, Working Light Kit | |
| Clutch & Transmission | Clutch, Clutch Rod, Clutch Pedal, Clutch Housing, Clutch Dipstick and Guide, Transmission Case, Clutch Shaft, Main Gear Shift Fork, Range Gear Shift Fork, PTO Gear Shift Fork, Differential Lock Shift Fork, Main Gear Shift Lever, Range Gear Shift Lever, PTO Gear Shift Lever | |
| PTO | PTO Shaft, PTO Protector | |
| Rear Axle, Differential & Brakes | Rear Axle Case, Rear Differential, Rear Axle, Brake, Brake Rod, Parking Brake Lever, Brake Pedal, Differential Lock Pedal, Rear Wheel | |

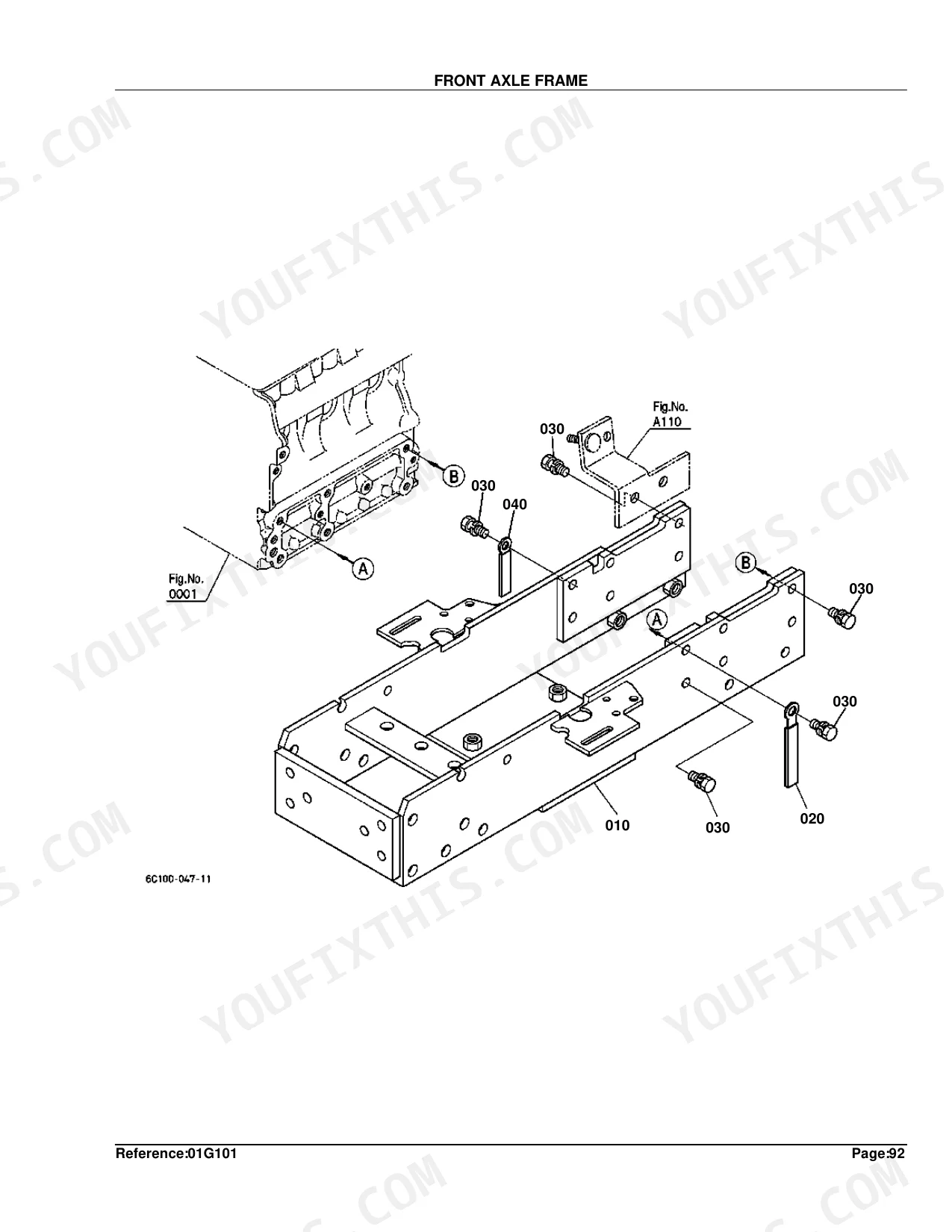

| Front Axle & Steering | Propeller Shaft, Front Wheel Propeller Shaft, Front Wheel Drive Lever, Front Axle Frame, Front Axle Case, Front Differential, Differential Gear Shaft, Front Axle, Tie Rod, Steering Handle, Steering Post, Steering Controller, Front Wheel | |

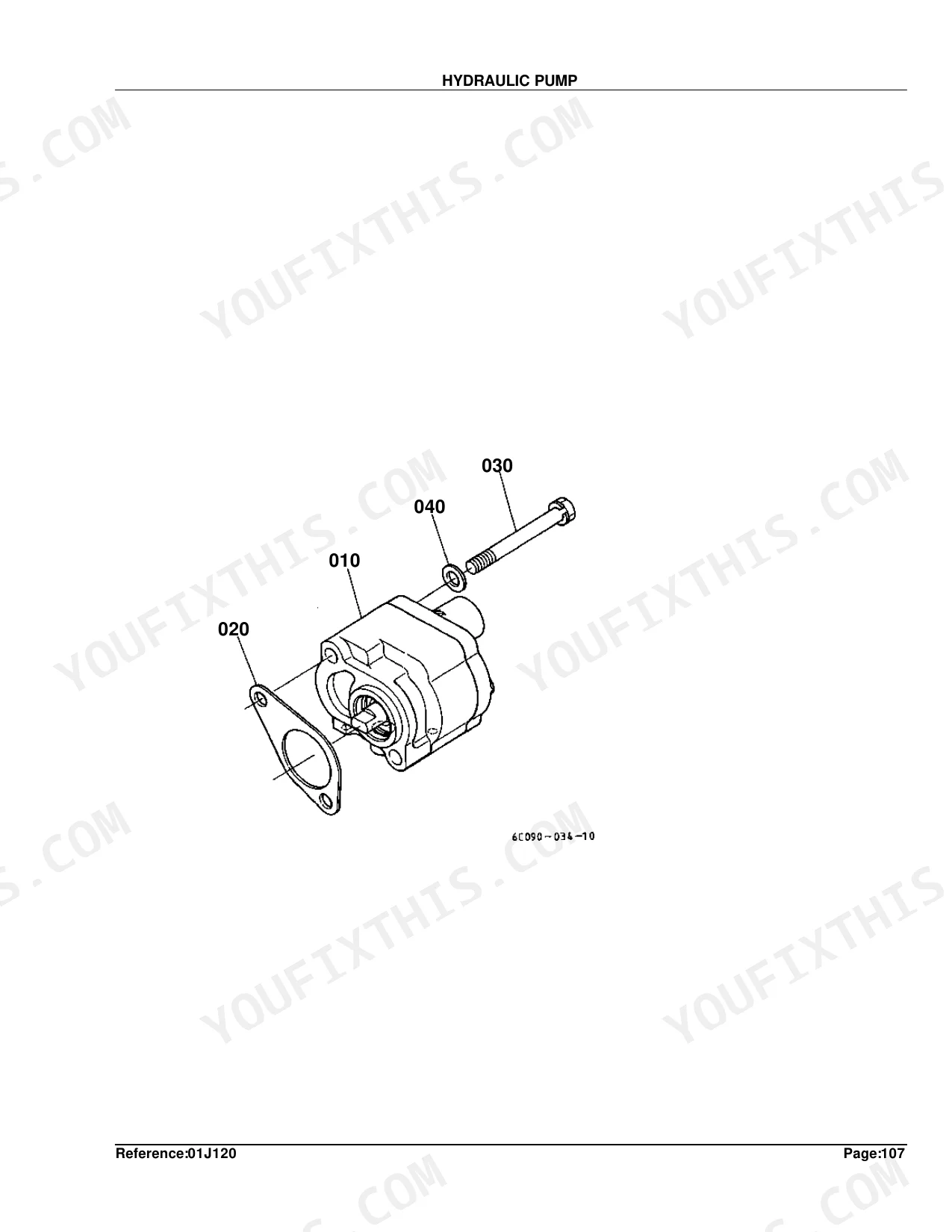

| Hydraulics & 3-Point Hitch | Hydraulic Control Lever, Hydraulic Pump, Hydraulic Oil Line, Hydraulic Cylinder, Feed Back Lever, Control Valve, Point Linkage 2, Point Linkage 1, Drawbar | |

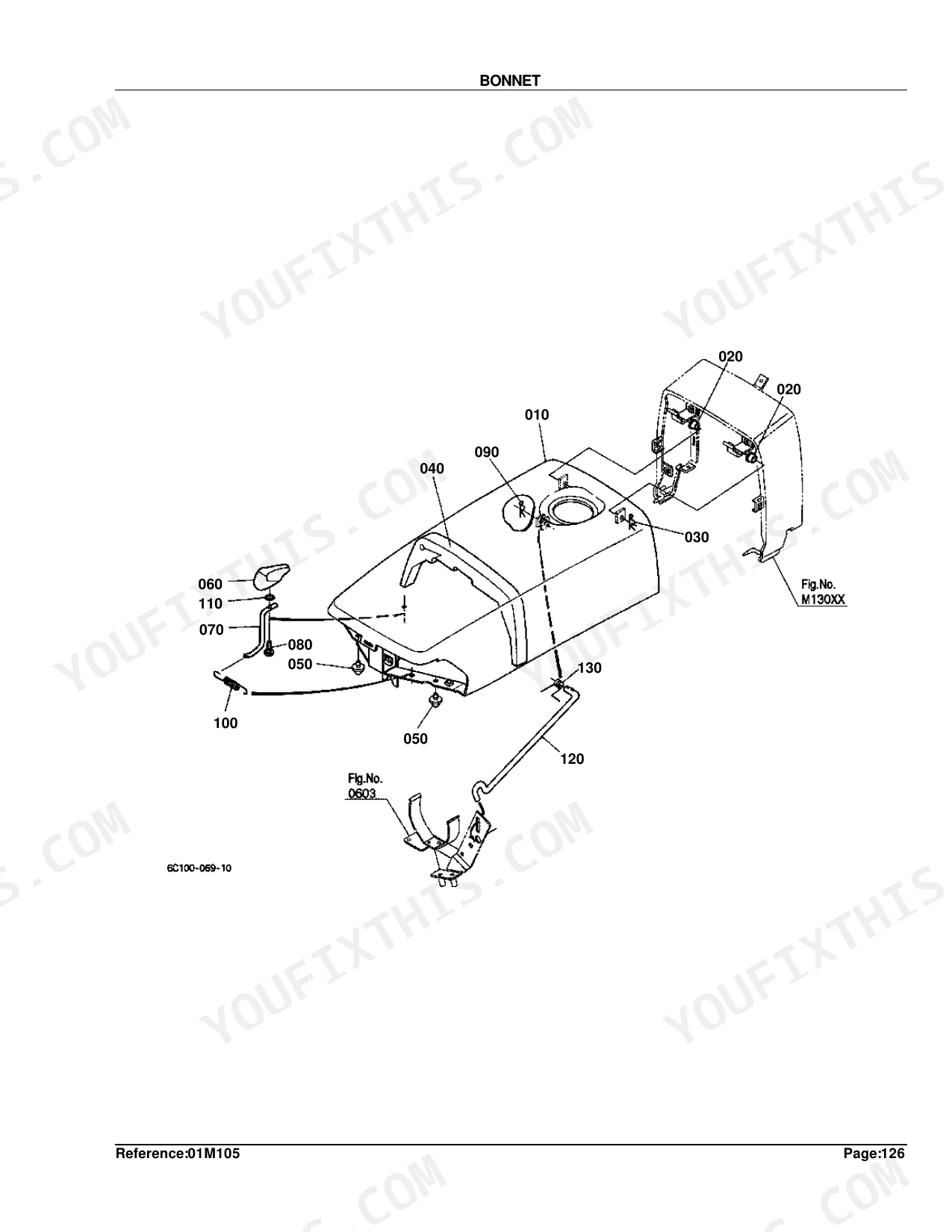

| Body & Operator Station | Head Cover, Center Frame, Front Grille, Bonnet, Panel Cover, Side Cover, Shutter Plate, Fender, Fender Stay, Floor Seat, Seat Support, Step, ROPS | |

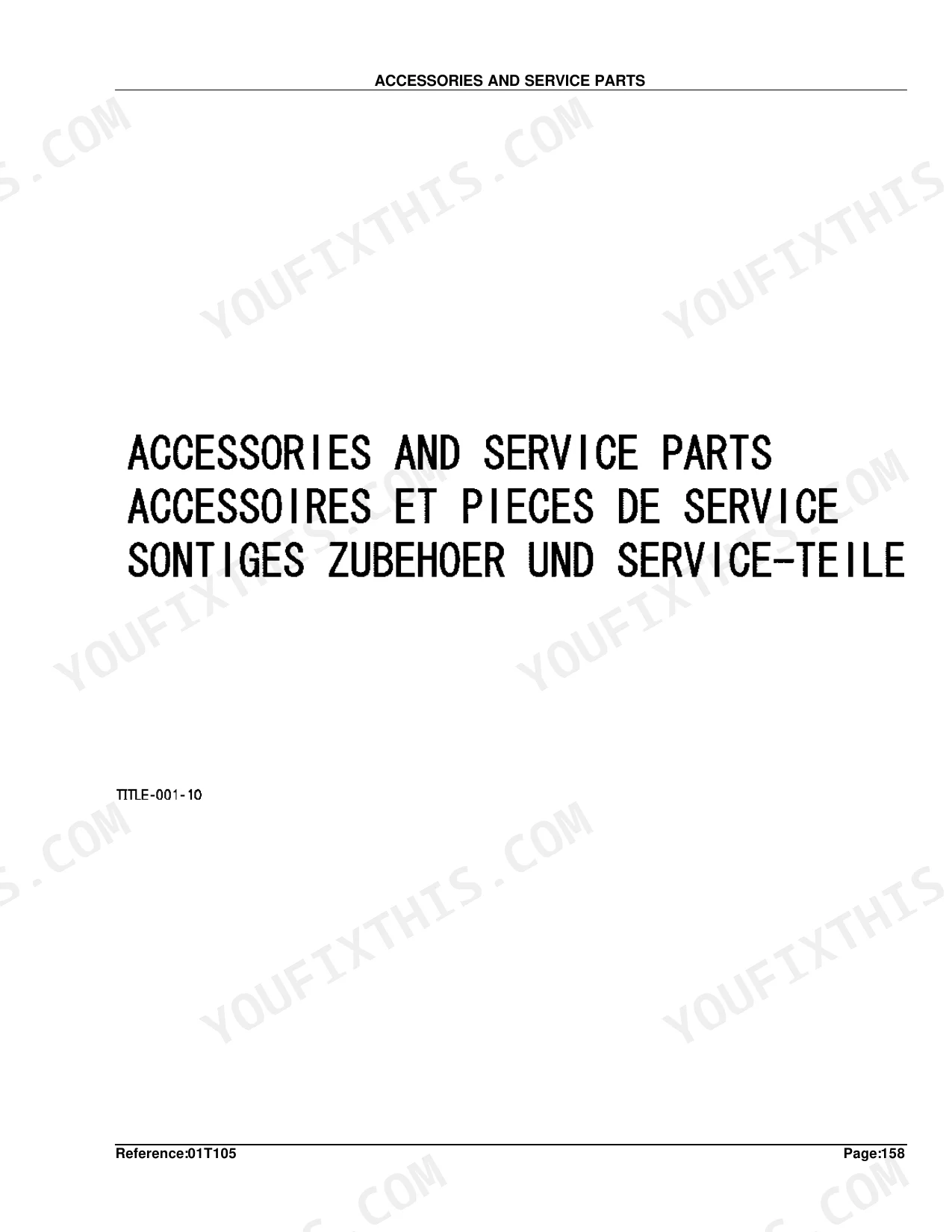

| Decals & Accessories | Label, Accessories and Service Parts | |
| Other Components | Dipstick and Guide, Idle Apparatus, Head Right, Front Shaft, 2nd Shaft, 3rd Shaft, 4th Shaft, Front Drive Shaft, Knuckle Arm, Drag Link, Lower Link, Check Chain, Rear Hitch, Lever Guide, Smv Emblem |
Every system also includes an exploded view diagram, interchangeability information, and a parts list table.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| CARTRIDGE OIL FILTER weight | 0.195 kgf | p. 21 |
| ASSY STARTER weight | 3.7 kgf | p. 104 |
| ASSY BATTERY model | 55B24L | p. 108 |
| GASKET thickness | 1.0mm | p. 110 |
| KEY STARTER type | 2P/SET | p. 112 |
| ASSY BULB wattage | 1.7W | p. 114 |
| Gasket thickness (Switch) | 1.0mm | p. 110 |
| Fuse rating (Switch) | 30A | p. 110 |
| Bulb power (Panel Board) | 1.7W | p. 114 |
| Gear teeth count (Clutch Shaft) | 15T | p. 144 |
| Shim thickness (PTO Shaft) | 1.4mm | p. 150 |
| Pinion Differential teeth count (Rear Differential) | 12T | p. 152 |
Kubota B7410D Common Problems This Manual Covers
Kubota B7410D no-start condition, trying to identify correct starter assembly and battery replacement parts
Open the Starter diagram on page 103 and the Starter Component Parts list on page 105 to identify all sub-assemblies by item number. The complete starter assembly weighs 3.7 kgf (page 104), which helps confirm the correct unit. For the battery, turn to page 107: the specified replacement is model 55B24L, confirmed on page 108.
Manual Section: Starter p. 103Can't identify correct switch gasket thickness or fuse rating for electrical panel rebuild
Expand the Switch exploded view on page 109. Multiple gasket thicknesses appear in the parts list; the primary gasket is 1.0mm, confirmed on page 110. The fuse shown is rated 30A. Cross-reference Panel Board Component Parts on page 113 and the Electrical Wiring diagram on page 123 to capture any additional switch circuit parts before ordering.
Manual Section: Switch p. 109Hitch lifts slowly or sticks, can't match correct control valve and hydraulic cylinder parts
Start with the Control Valve exploded view on page 237. The Component Parts list on page 239 breaks out every seal, spool, and shim; the control valve shim thickness is 0.4mm (page 240). Also pull the Hydraulic Cylinder diagram on page 231 and the Feed Back Lever parts on page 235 to capture all hitch circuit components before ordering.
Manual Section: Control Valve p. 237Routine service due, can't confirm correct oil filter and fuel filter part numbers
Bring up the Oil Filter diagram on page 20. The cartridge oil filter assembly weighs 0.195 kgf (page 21), useful for confirming the correct part is in hand. For fuel filtration, turn to Fuel Filter Component Parts on page 83. Cross-reference the Oil Pan diagram on page 9 and Fuel Tank parts on page 79 to complete the full service kit list.
Manual Section: Oil Filter p. 20HST pedal worn or sloppy, need part numbers for transmission shift fork components

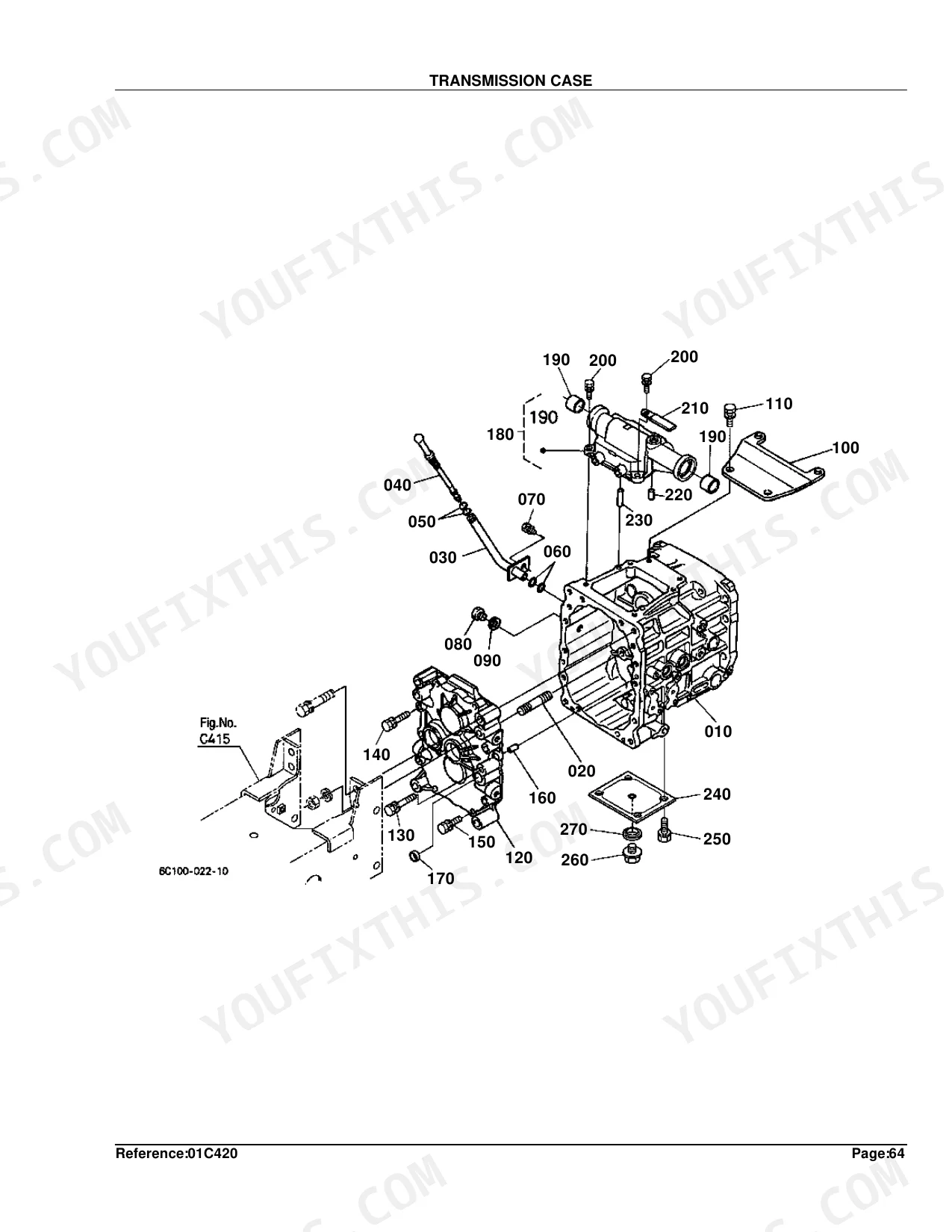

Pull the Transmission Case diagram on page 137 for overall layout. Turn to Main Gear Shift Fork on page 161 and Range Gear Shift Fork on page 163 to identify worn shift components. The PTO Shaft section on page 149 covers shim specs; correct shim thickness is 1.4mm (page 150). Check the Clutch Shaft diagram on page 143 to match any gear components.
Manual Section: Transmission Case p. 137Frequently Asked Questions
What are the replacement specifications for engine oil filter?
Use Part No. 15853-32430, listed as a CARTRIDGE OIL FILTER. Quantity is 1, and it weighs 0.195 kgf (0.429 lb). p. 21
How do I find the correct starter assembly and battery replacement parts for the Kubota B7410D?
Open the Starter exploded diagram on page 103 and the Starter Component Parts list on page 105 to identify all sub-assemblies by item number. The complete starter assembly weighs 3.7 kgf (page 104). For the battery, the specified replacement is model 55B24L, confirmed on page 108. p. 103
Which pages cover the hydraulic hitch control valve and cylinder parts?
Start with the Control Valve exploded view on page 237. The Component Parts list on page 239 breaks out every seal, spool, and shim; the control valve shim thickness is 0.4mm (page 240). Also pull the Hydraulic Cylinder diagram on page 231 and the Feed Back Lever parts on page 235. p. 237
Where are the transmission shift fork and PTO shaft part numbers in the Kubota B7410D Parts Catalog?
Pull the Transmission Case diagram on page 137 for overall layout. Turn to Main Gear Shift Fork on page 161 and Range Gear Shift Fork on page 163 to identify worn shift components. The PTO Shaft section on page 149 covers shim specs; correct shim thickness is 1.4mm (page 150). p. 161
