Part of the Kubota Parts Manuals.
This is the Kubota LA240 loader parts catalog, a 19 page illustrated PDF with exploded diagrams and Kubota part numbers for the loader assemblies. Each section shows the picture page alongside the numbered parts list, so you can find and order the exact component.It covers the main frame, the boom, the bucket with its cutting edge, the cylinder and hydraulic hoses, the outlet block hoses, the hydraulic tube, and the boom and bucket cylinder component parts. The cylinder breakdowns list the tube, rod, head, piston and seal kit separately, which makes seal replacement and rebuilds easier to plan.Buy once and download the PDF right away. Open it on a phone, tablet or shop computer, or print any diagram page you need at the parts counter.

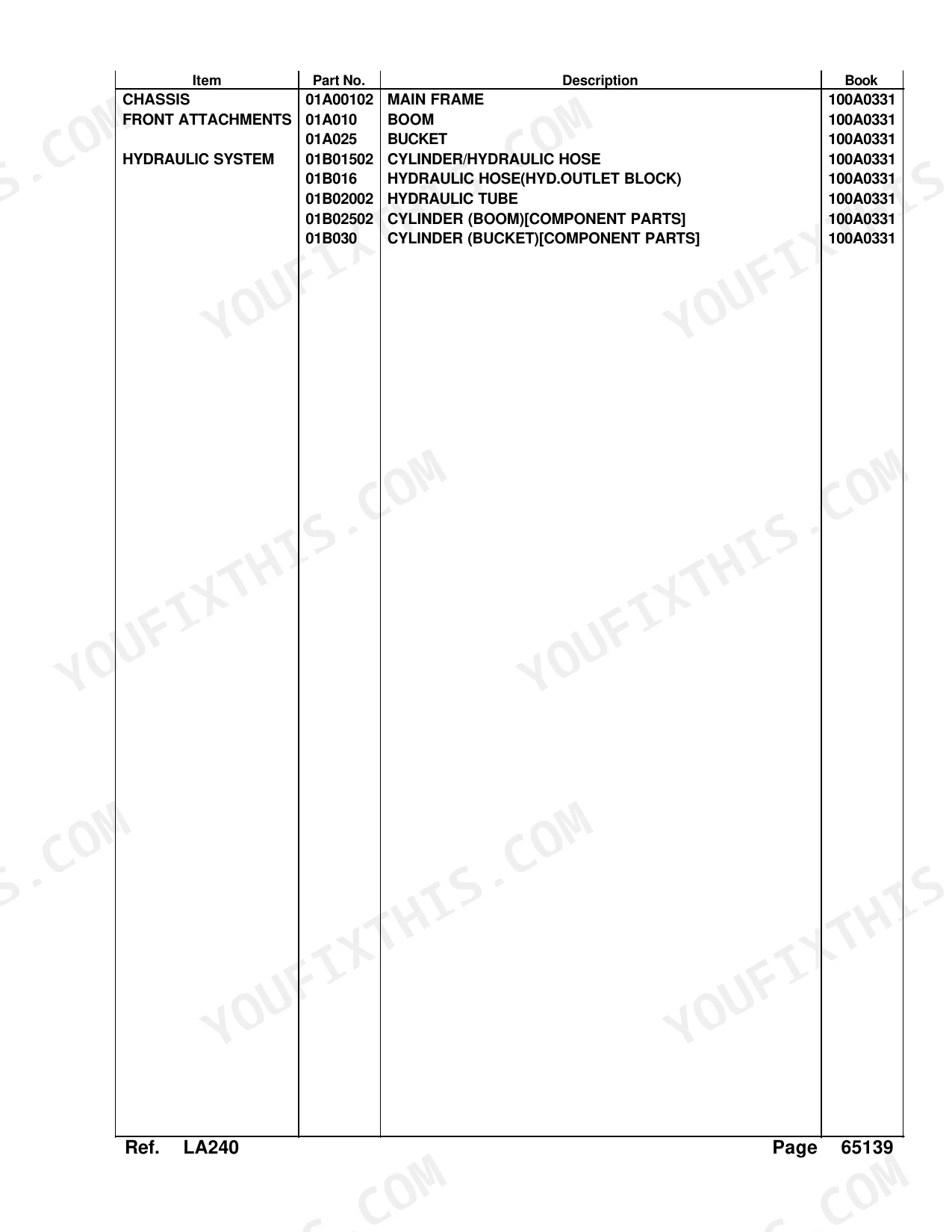

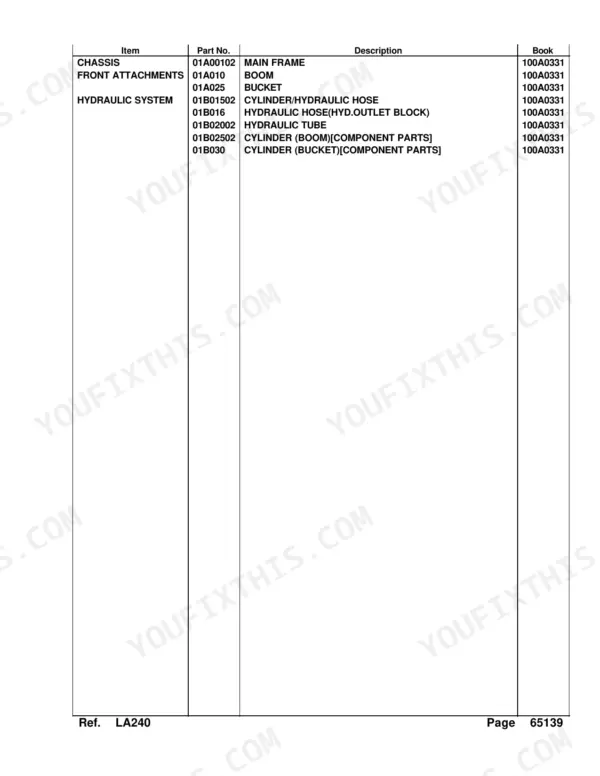

What's Inside This Kubota LA240 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

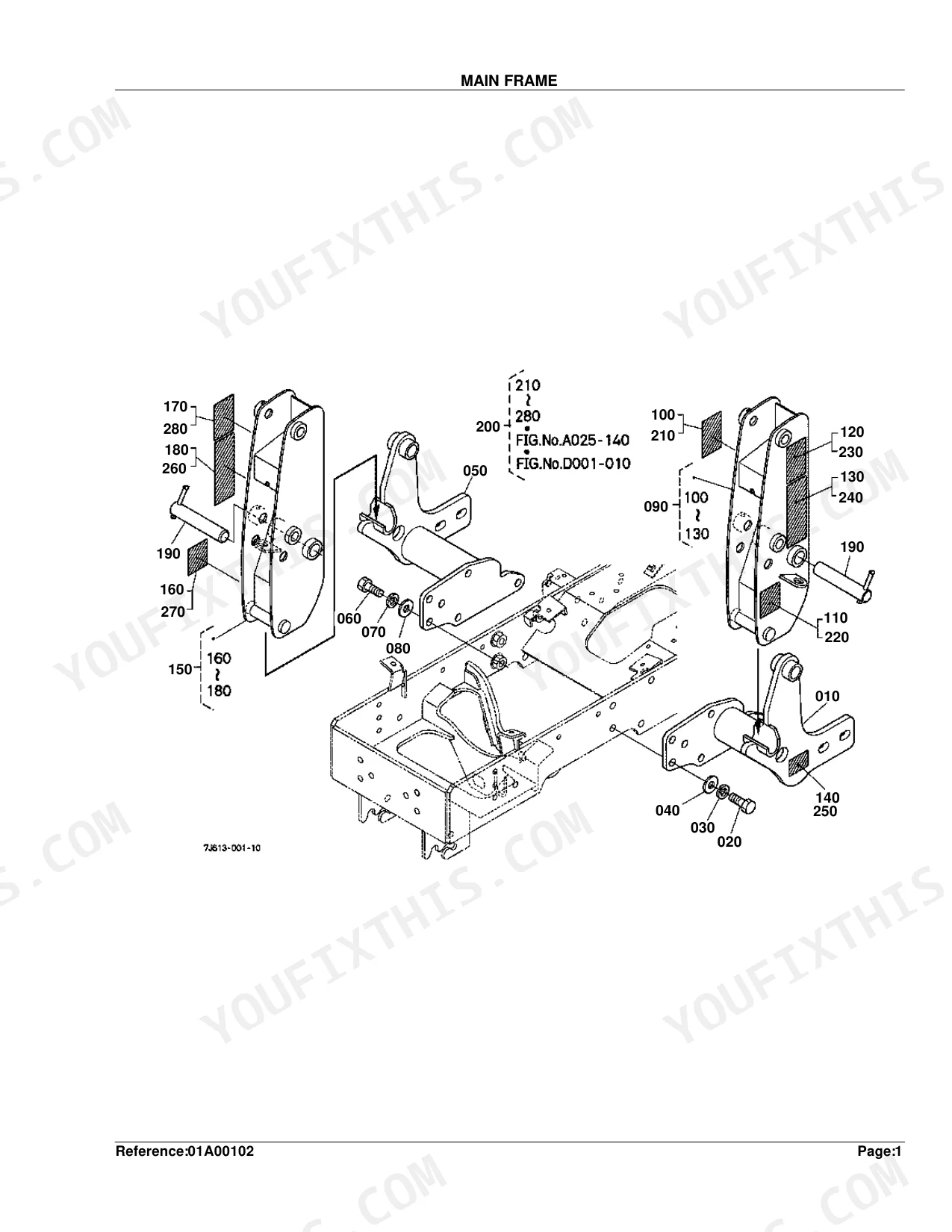

| Main Frame | 4-5 | Frame Main LH, Bolt, Washer Spring, Washer Plain, Frame Main RH, Pin Mount |

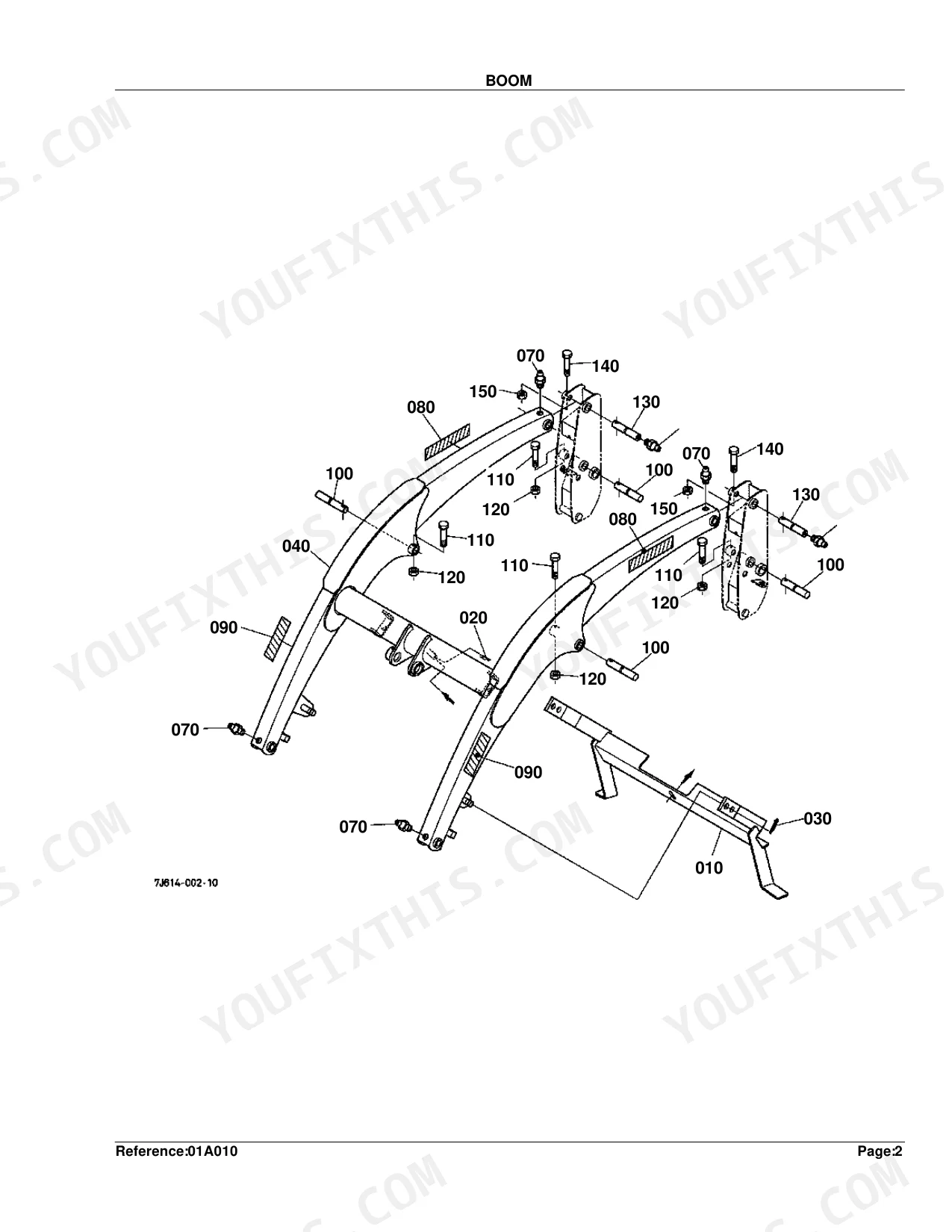

| Boom | 6-7 | Stand, Pin Snap, Pin Cotter, Stay Comp.Stand, Fitting Grease |

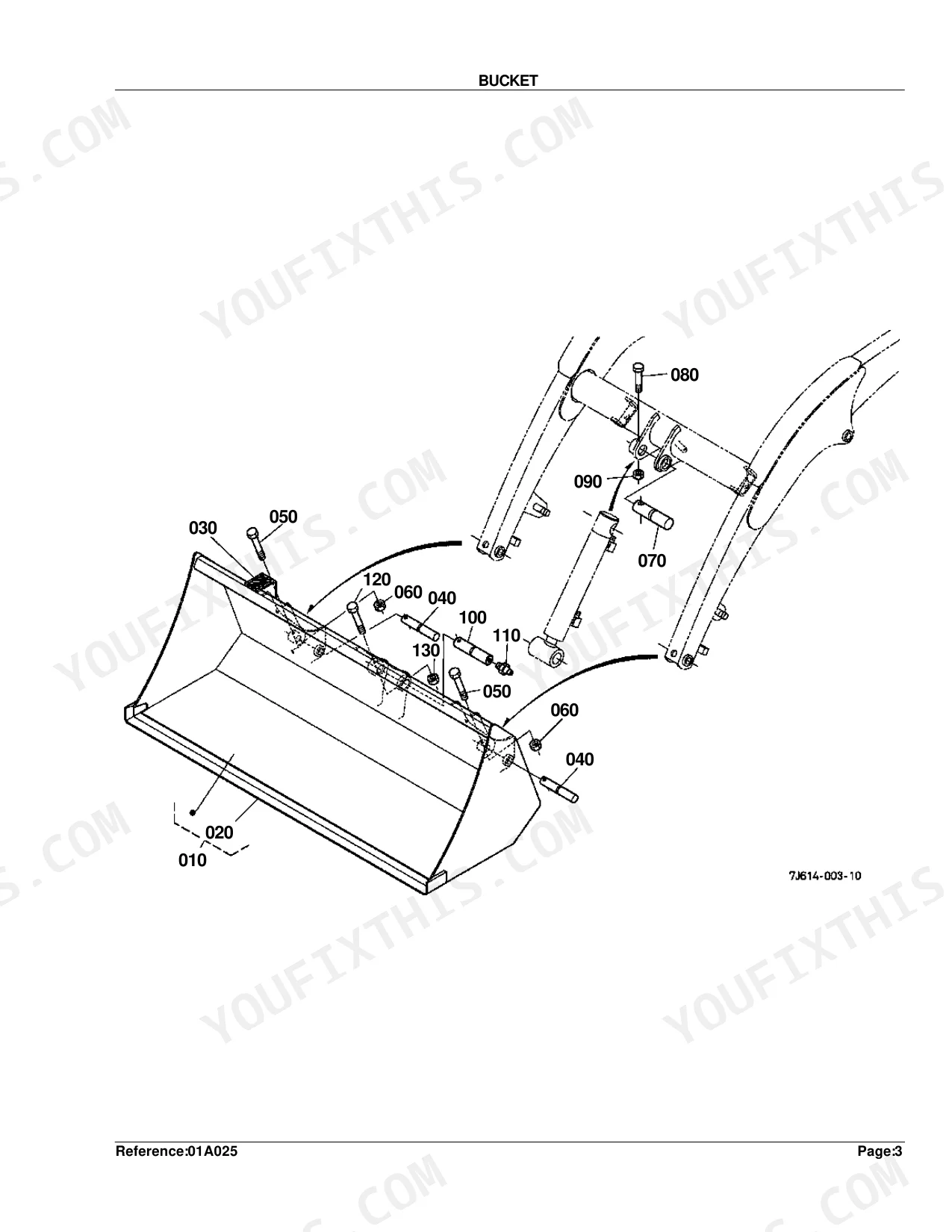

| Bucket | 8-9 | Edge Cutting, Pin 4, Bolt, Nut Lock, Fitting Grease |

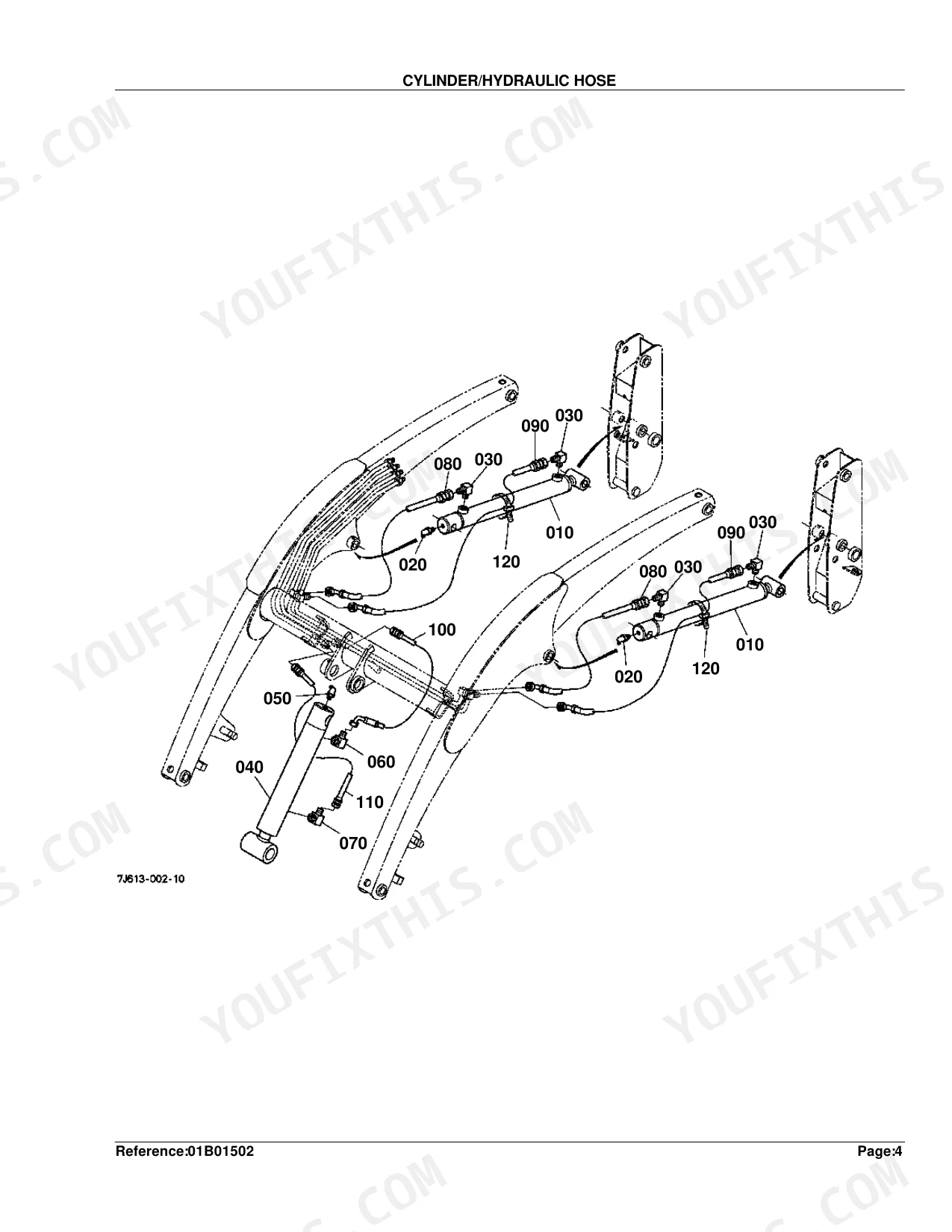

| Cylinder/Hydraulic Hose | 10-11 | Cylinder 1, Fitting Grease, Adapter, Cylinder 2, Hose 8 RH Hydraulic, Hose 9 RH Hydraulic |
| Hydraulic Hose(Hyd.Outlet Block) | 12-13 | Hose 2 Hydraulic, Coupler, Plug Dust, Sleeve |
| Hydraulic Tube | 14-15 | Tube 1 Hydraulic, Tube 2 Hydraulic, Clamp 1, Bolt, Clamp 2 |
| Cylinder (Boom)[Component Parts] | 16-17 | Tube 1 Comp., Rod 1 Comp., Head 1, Piston 1, Seal Kit.1 |
| Cylinder (Bucket)[Component Parts] | 18-19 | Tube 2 Comp., Rod 2 Comp., Head 2, Piston 2, Seal Kit.2 |
Kubota LA240 Common Problems This Manual Covers
Loader lift or curl is weak
Weak or jerky lift and curl usually comes from a hydraulic leak or worn cylinder seals. The cylinder and hydraulic hose section identifies the cylinders, hoses and fittings involved.
Manual Section: Cylinder/Hydraulic Hose p. 10Bucket or arms drift down
A loader that settles after lifting has oil bypassing worn cylinder seals. The boom cylinder component parts breakdown lists the tube, rod, head, piston and seal kit.
Manual Section: Cylinder (Boom)[Component Parts] p. 16Hydraulic function loss under load
Loose fittings, a failed hose or a leaking coupler can drop hydraulic power under load. The outlet block hose section maps the hoses, couplers and dust plugs to check.
Manual Section: Hydraulic Hose(Hyd.Outlet Block) p. 12Play or binding at loader mounts
Worn pins and bushings cause slop and misalignment at the loader and bucket pivots. The boom section shows the pins, stands and grease fittings for these joints.
Manual Section: Boom p. 6Worn bucket cutting edge
A rounded or cracked cutting edge reduces digging and scraping performance. The bucket section lists the cutting edge, pins and hardware for replacement.
Manual Section: Bucket p. 8Cracked hydraulic tube
A split or cracked steel tube leaks oil and drops pressure. The hydraulic tube section identifies each tube, clamp and bolt in the circuit.
Manual Section: Hydraulic Tube p. 14Frequently Asked Questions
Which loader does this catalog cover?
It covers the Kubota LA240 loader, including the LA240A variant, with exploded diagrams and part numbers for each assembly.
Is this a service manual or a parts catalog?
It is a parts catalog. It provides picture pages and numbered parts lists for ordering, not repair procedures.
Does it list the cylinder seal kit parts?
Yes. The boom cylinder component parts section separates the tube, rod, head, piston and seal kit for rebuild work. p. 16
How does it handle part identification by serial number?
The parts lists note serial number ranges and interchange details so you can order the correct component. The main frame section shows this layout. p. 4
How quickly can I access this Kubota LA240 manual after buying?
Your 19-page searchable PDF downloads the moment checkout completes. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print this Kubota LA240 manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works fine.
