Part of the Kubota Parts Manuals.
Every assembly on the 54-inch RCK54-24G(G2460G) deck gets an exploded view here, matched to a numbered parts list. Coverage runs across the universal joint, bevel gear case, input shaft, center/left/right pulley holder blades, tension pulley, mower belt, deck and cover, discharge cover, gauge wheel, and front link lever. Each parts page carries the same columns Kubota dealers read at the counter: REF.No., Part No., Description, Qty, S.No., I/C, and Remarks. Factory weights let you confirm the sub-assembly before you commit: the bevel gear case lists at 3.82 kgf, the universal joint assembly at 3.05 kgf. Cross-reference one against the part in your hand and a mismatch shows up fast. Bookmarks by section let you jump to the assembly you need, read the reference number, and order it. Wrong part, wasted week. This catalog closes that gap.
What's Inside This Kubota RCK54-24G(G2460G) Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Joint | 4-5 | Fig.No. C600, Fig.No. H015, Fig.No. H010 |
| Bevel Gear Case | 6-7 | Fig.No. H020, Fig.No. H200XX |
| Input Shaft/Center Pulley | 8-9 | Fig.No. H010 |
| Tension Pulley/Mower Belt | 16-17 | Fig.No. H040, Fig.No. H030, Fig.No. H015, Fig.No. H200XX |
| Mower Deck and Cover [Rck54-24G] | 18-19 | Assy Mower Deck, Rubber Stopper, Cover Left, Cover Right, Plate Rubber, Plate Front LH |
| Discharge Cover | 20-21 | Fig.No. H200XX |
| Gauge Wheel | 22-23 | Fig.No. H200XX |
| Front Link Lever [Rck54-24G] | 24-25 | Fig.No. E500, Fig.No. H200XX |
| Mower Label | 26-27 | Fig.No. G10002, Fig.No. H200XX |
Every system also includes ref.no part no description q'ty s.no. i/c remarks weight weight.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ASSY JOINT UNIVERSAL Weight | 3.05 kgf | p. 5 |
| YOKE QUICK Weight | 0.55 kgf | p. 5 |
| CASE BEVEL GEAR Weight | 3.82 kgf | p. 7 |
| STAY CASE LH Weight | 0.66 kgf | p. 7 |
| SHAFT PINION Weight | 0.66 kgf | p. 9 |
| PULLEY CENTER Weight | 1.78 kgf | p. 9 |
| HOLDER PULLEY CENTER Weight | 1.2 kgf | p. 11 |
| BLADE Weight | 1.4 kgf | p. 11 |
| BELT POLY Weight | 0.93 kgf | p. 17 |
| COVER LEFT Weight | 1.37 kgf | p. 19 |
| COVER DISCHARGE Weight | 4.8 kgf | p. 21 |
| ASSY GAUGE WHEEL Weight | 1.25 kgf | p. 23 |
Kubota RCK54-24G(G2460G) Common Problems This Manual Covers
Kubota RCK54-24G mower deck assembly apart, can't identify correct left or right cover part number
Open the Mower Deck and Cover exploded view on page 18. Identify Cover Left and Cover Right in the parts list on page 19. Cover Left weighs 1.37 kgf; use that weight as a physical cross-check when comparing parts on the bench. Confirm your serial number range matches the Fig.No. H200XX callout before ordering.
Manual Section: Mower Deck and Cover [Rck54-24G] p. 18Mower belt needs replacing, can't match the correct poly belt part number to the tension pulley system
Turn to the Tension Pulley/Mower Belt diagram on page 16. Locate BELT POLY in the parts list on page 17. At 0.93 kgf, the belt weight gives you a quick bench check against a supplier part. Cross-reference Fig.No. H040 and H030 callouts to confirm the belt and tension pulley are ordered as separate line items.
Manual Section: Tension Pulley/Mower Belt p. 16Universal joint assembly worn, need the correct part number for yoke replacement or full assembly

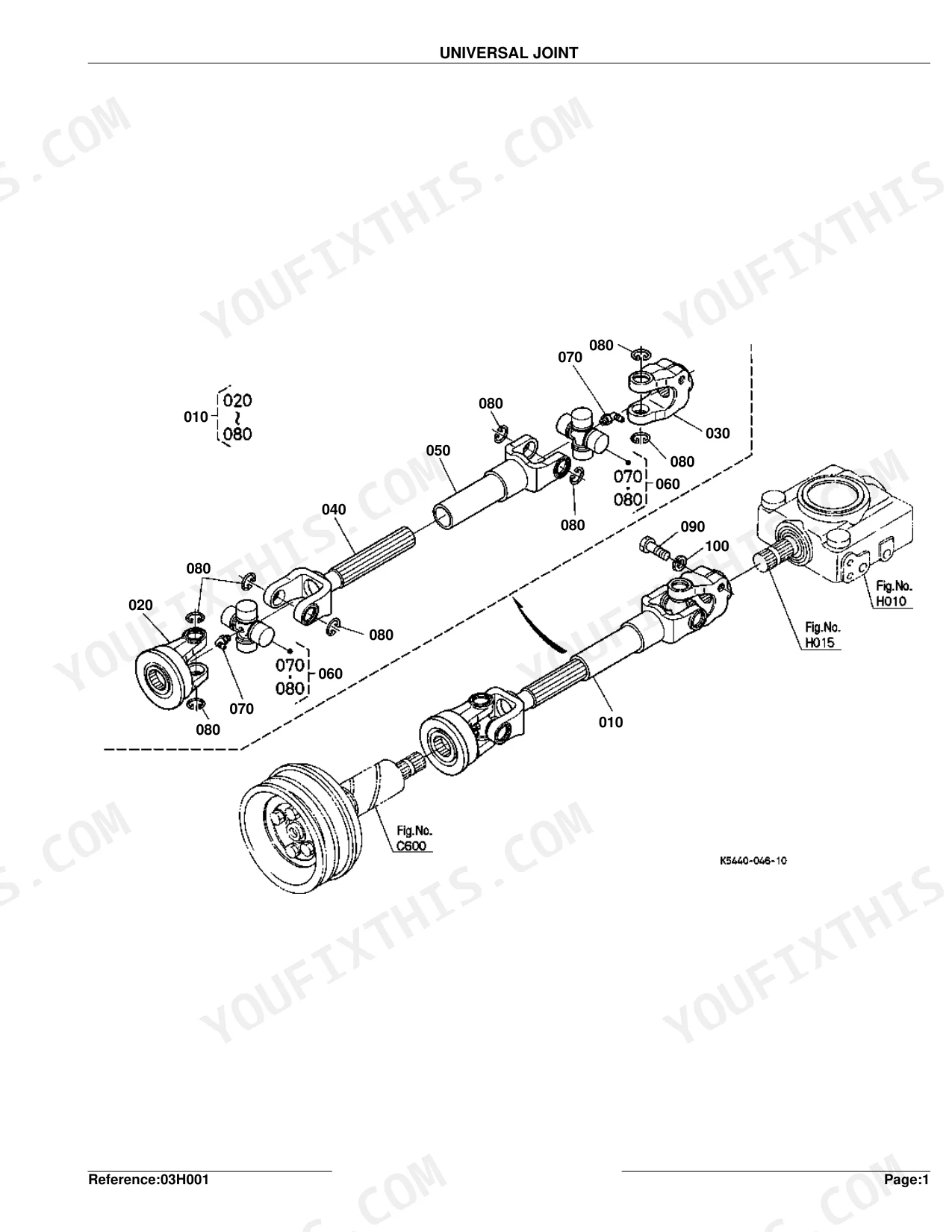

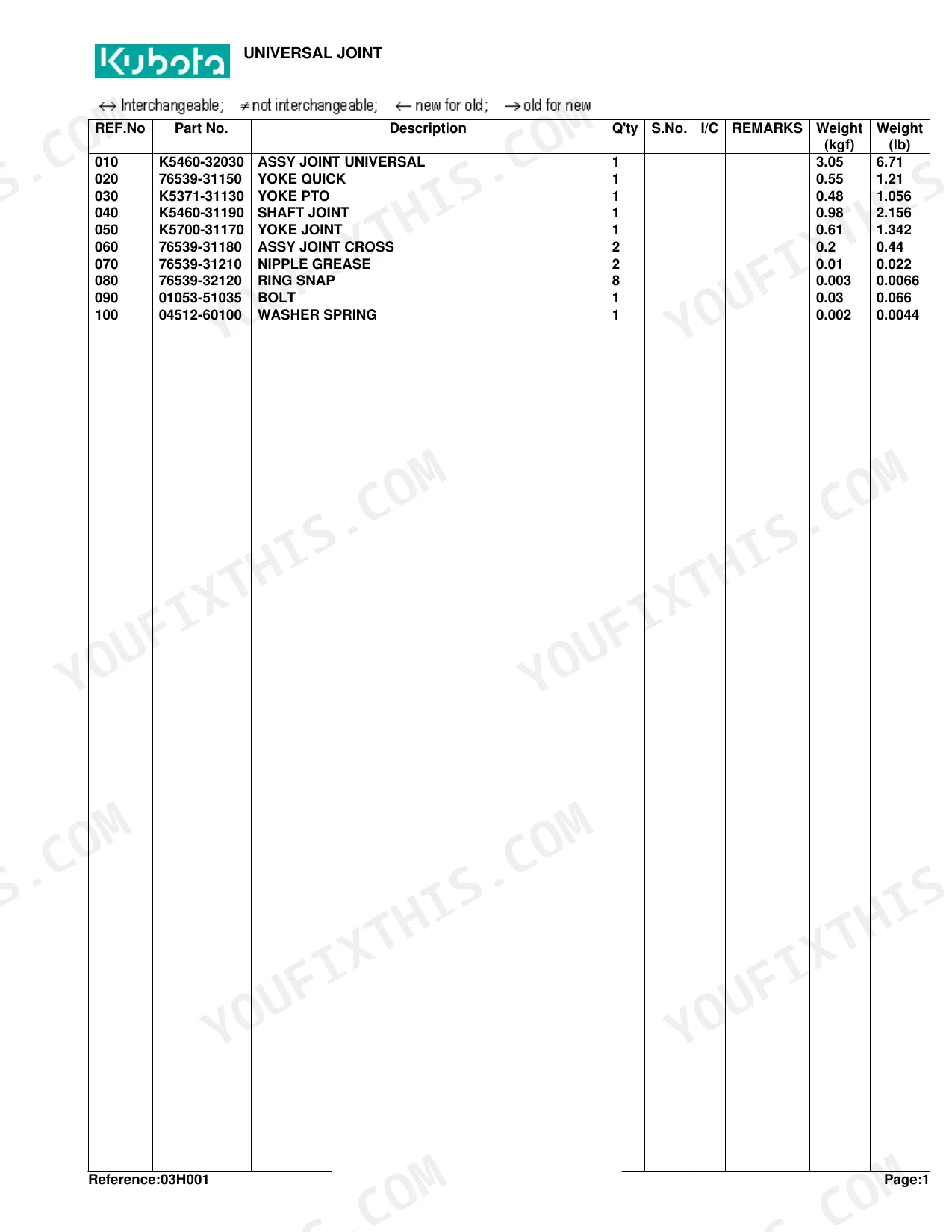

Check the Universal Joint drivetrain diagram on page 4 and the parts list on page 5. ASSY JOINT UNIVERSAL weighs 3.05 kgf total; YOKE QUICK is a separate line item at 0.55 kgf. Order only the yoke if the main shaft is undamaged. Verify Fig.No. C600 or H010 matches your attachment configuration before placing the order.
Manual Section: Universal Joint p. 4Gauge wheel cracked or missing, unclear which assembly part number fits this 54-inch deck
Find the Gauge Wheel exploded view on page 22. ASSY GAUGE WHEEL lists at 1.25 kgf on page 23; match that weight against any supplier quote as a quick verification. Check the Fig.No. H200XX callout to confirm the wheel and bracket combination suits this deck before you contact the dealer.
Manual Section: Gauge Wheel p. 22Discharge cover cracked or broken, need to confirm the correct replacement part number
Reference the Discharge Cover diagram on page 20. The parts list on page 21 shows COVER DISCHARGE at 4.8 kgf, the heaviest cover assembly on this deck; flag any supplier quoting a lighter part as a mismatch. Match Fig.No. H200XX to your serial number range so the part number lines up.
Manual Section: Discharge Cover p. 20Bevel gear case damaged, need to identify correct housing and stay bracket part numbers

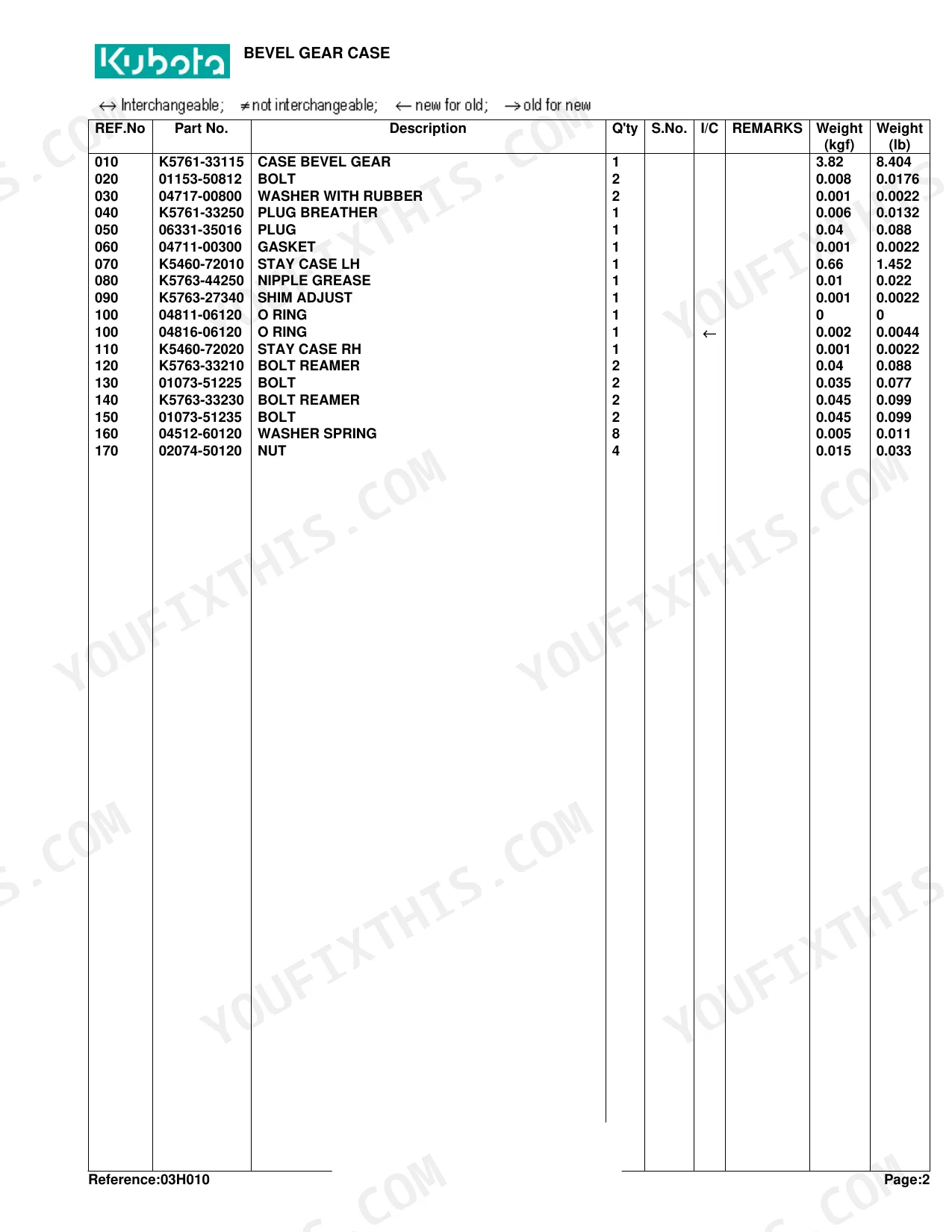

Pull up the Bevel Gear Case diagram on page 6. The parts list on page 7 shows CASE BEVEL GEAR at 3.82 kgf and STAY CASE LH at 0.66 kgf as separate line items. Order both stay brackets if mounting tabs are damaged. Fig.No. H020 and H200XX callouts identify left and right variants; confirm your figure number first.
Manual Section: Bevel Gear Case p. 6Frequently Asked Questions
What are the replacement specifications for mower deck and cover?
On the RCK54-24G deck, COVER LEFT (Part No. K5440-41180) weighs 1.37 kgf (3.014 lb) and COVER RIGHT (Part No. K5351-41200) weighs 1.05 kgf (2.31 lb). The mounting hardware includes the BOLT SHORT SQU.NECK (Part No. K1122-91320), quantity 3, at 0.01 kgf (0.022 lb). p. 19
What are the replacement specifications for frequently used items in the deck assembly?
Key wear items in this section: the BLADE (Part No. K5351-34340) at 1.4 kgf (3.08 lb) each. The BEARING BALL (Part No. 08101-06205) weighs 0.14 kgf (0.308 lb), the SEAL OIL (Part No. 70722-34120) 0.025 kgf (0.055 lb), and the BOLT BLADE (Part No. K5371-34370) 0.078 kgf (0.1716 lb). p. 11
What are the part weights for the universal joint assembly?
The ASSY JOINT UNIVERSAL (page 5) weighs 3.05 kgf. YOKE QUICK is a separate line item at 0.55 kgf. Verify Fig.No. C600 or H010 matches your attachment configuration before ordering either part. p. 5
What are the replacement part specifications for the bevel gear case?
The CASE BEVEL GEAR (page 7) weighs 3.82 kgf; STAY CASE LH weighs 0.66 kgf, listed as a separate line item. Fig.No. H020 and H200XX callouts identify left and right variants. Order both stay brackets if the mounting tabs are damaged. p. 7
