This is the Kubota operator's manual for the L3710, L4310 and L4610 cab tractors, a 24 page PDF for the V1903-EA, V2203-EA and V2203-EHA diesel models. It focuses on running and maintaining the cab equipped versions of these machines.The manual walks through safe operation and the danger, warning and caution labels, then the full specifications page covering engine data, fluid capacities, dimensions and hydraulic system pressure. Cab operation covers the doors and windows, dome and work lights, wipers and washer, and the air conditioner controls. The maintenance section explains the service intervals for the condenser mesh, inner and fresh air filters, air conditioner drive belt and refrigerant.Buy once and download the PDF immediately. Read it on a phone, tablet or computer, or print the pages you need.
What's Inside This Kubota L3710, L4310, L4610 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviation List | 3-4 | Abbreviations and Definitions, California Proposition 65, Warning |
| Safe Operation | 7-8 | Danger, Warning and Caution Labels (Caution Label Part No 35260-3491-3, Warning Label Part No TA040-4902-1), Care of Danger |
| Specifications | 9 | Model, Engine, Capacities, Dimensions, Tread, Traveling System, Hydraulic Unit, PTO |

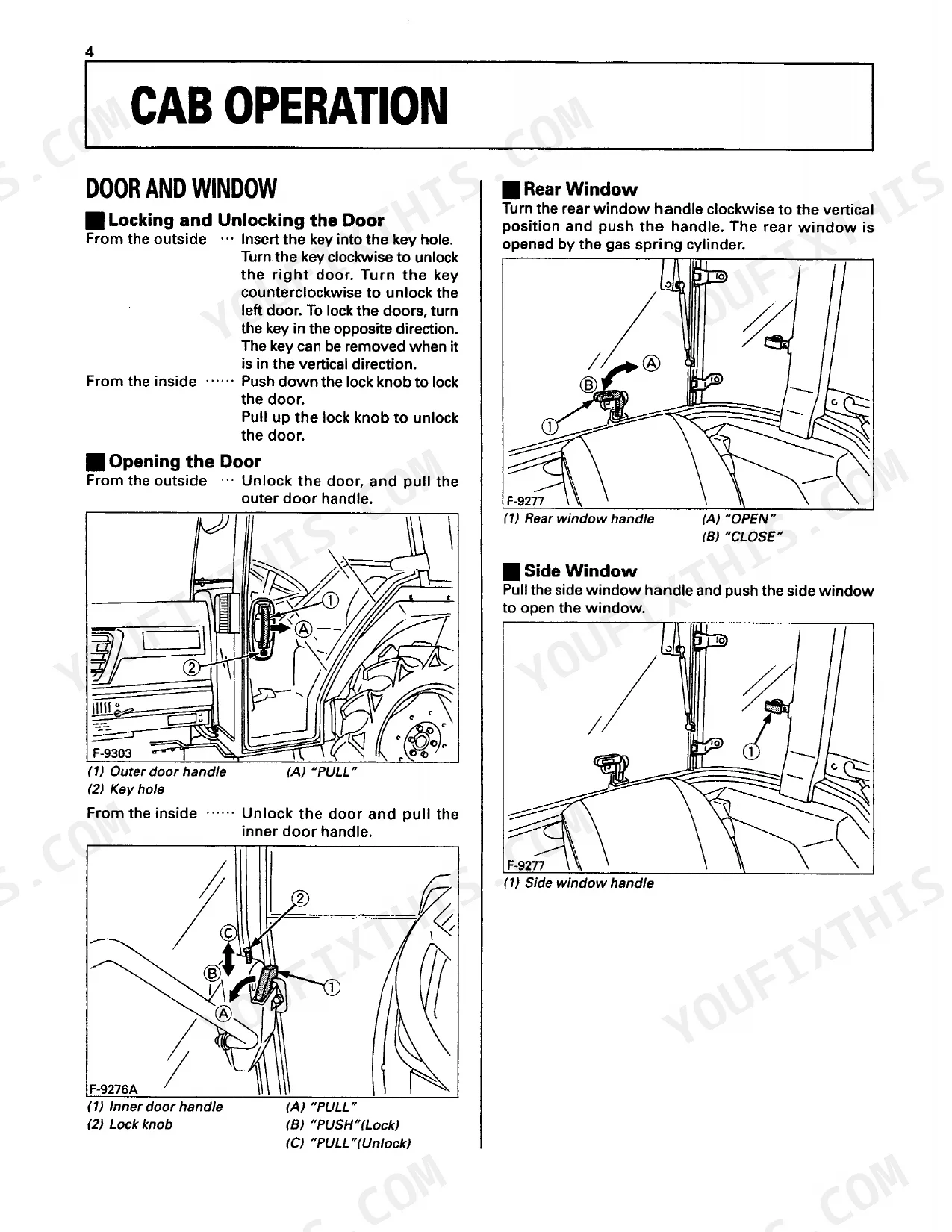

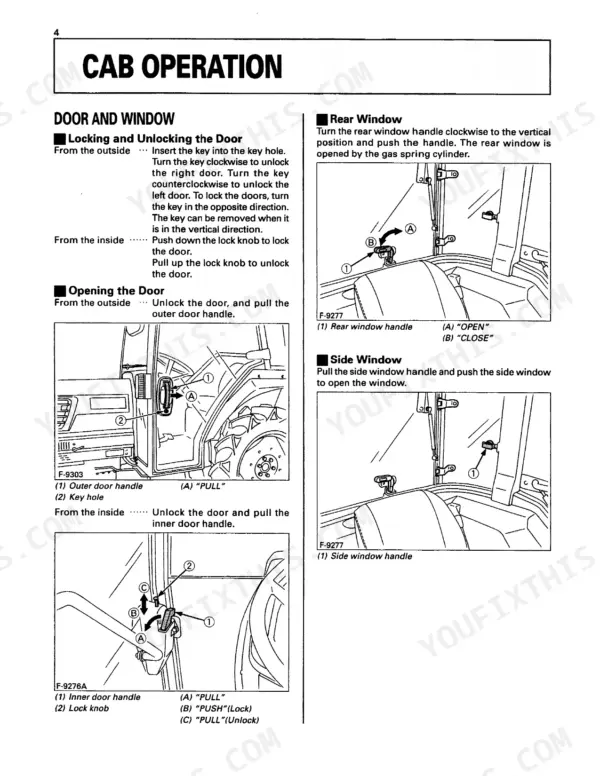

| Cab Operation | 10-15 | Door and Window (Locking and Unlocking the Door, Opening the Door, Rear Window, Side Window), Dome Light, Work Light (Front Work Light, Rear Work Light) |

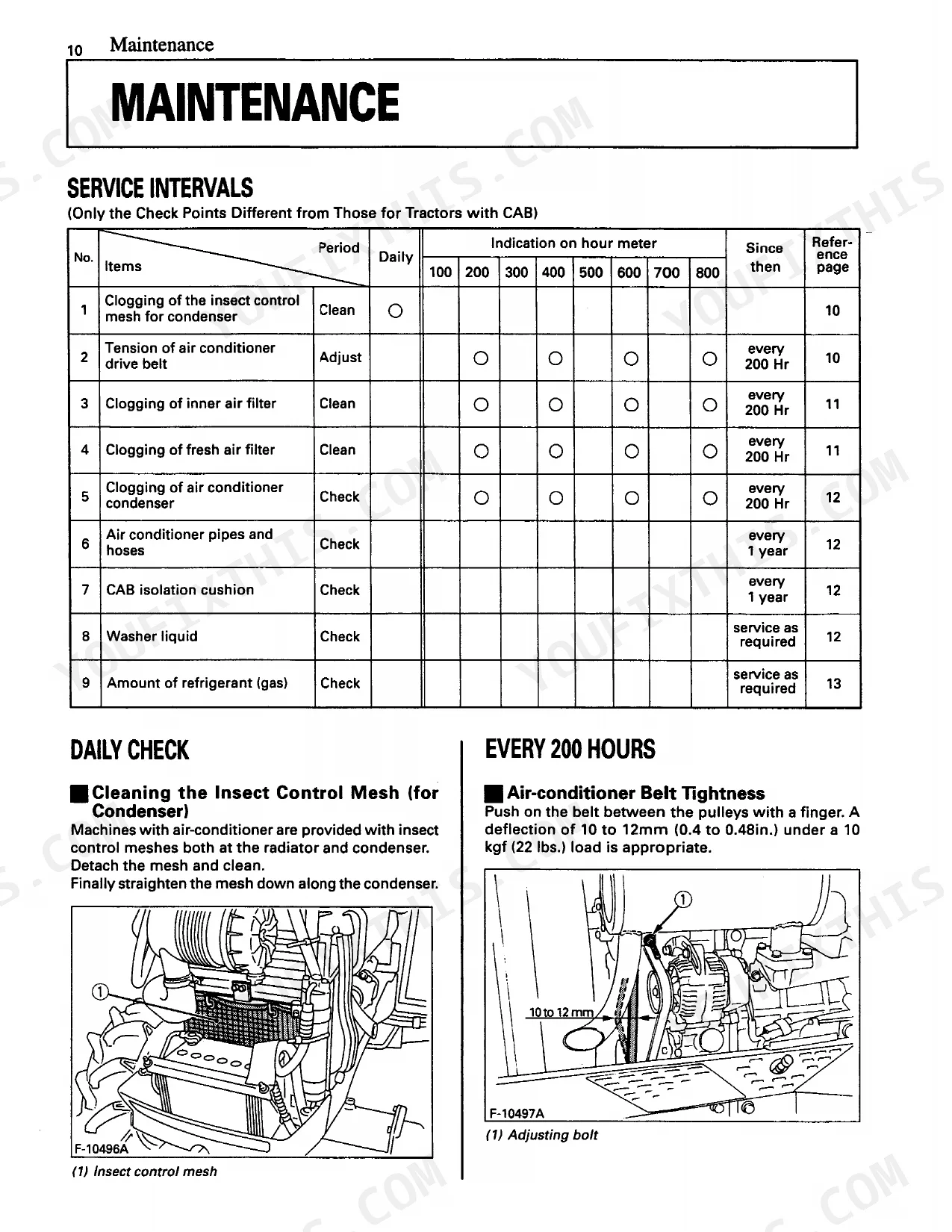

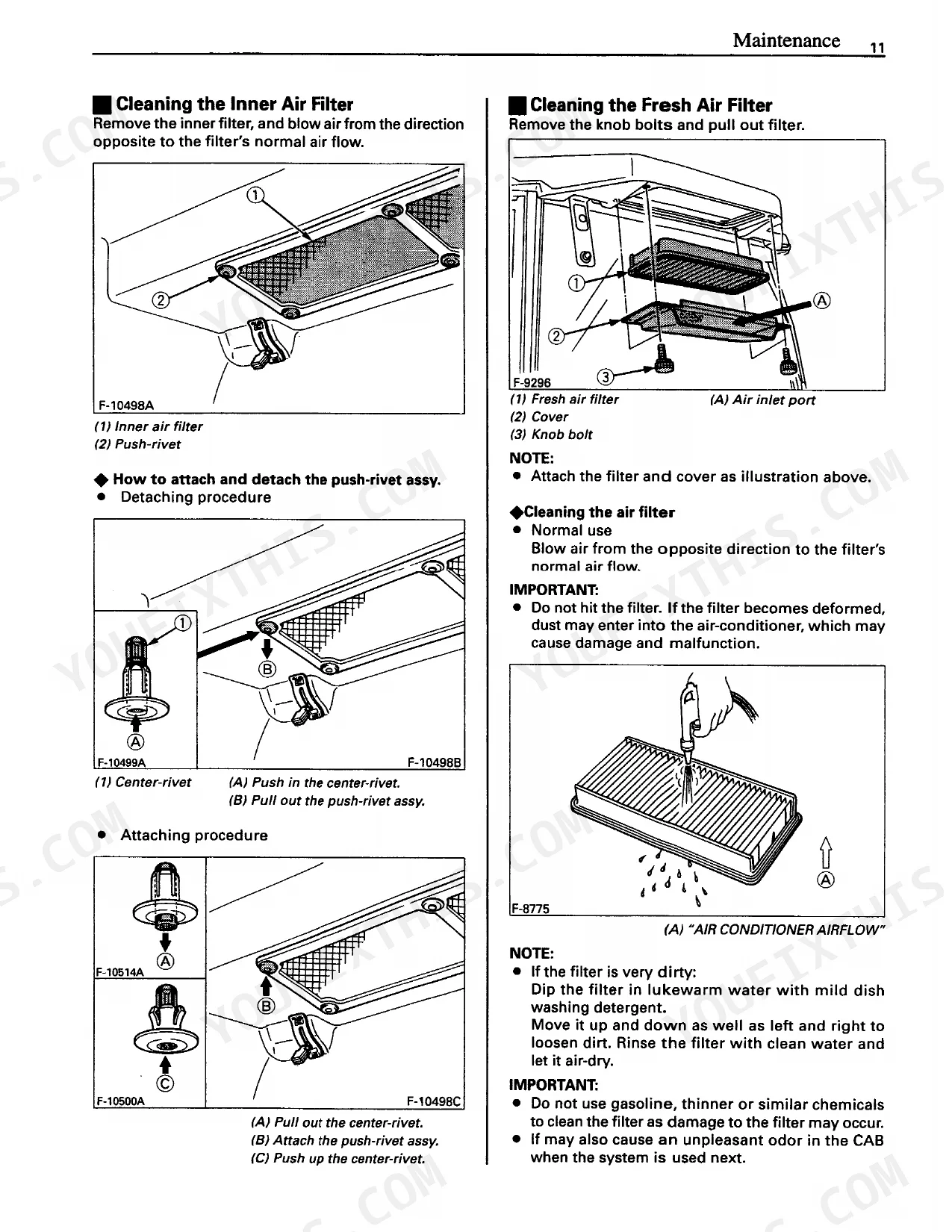

| Maintenance | 16-20 | Service Intervals (Clogging of the Insect Control Mesh for Condenser, Tension of Air Conditioner Drive Belt, Clogging of Inner Air Filter, Clogging of Fresh Air Filter, Clogging of Air Conditioner Condenser, Air Conditioner Pipes and Hoses, Cab Isolation Cushion, Washer Liquid, Amount of Refrigerant) |
| About Kubota Corporation | 21-23 | Company History and Diversification, Products and Central Commitment, Global Impact and Customer Service |
| Kubota Contact Information | 24 | Corporate Office, Divisional Offices, Publication Details |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery capacity | 12V, RC:133 min, CCA:582A | p. 9 |
| Air-conditioner drive belt tension | A deflection of 10 to 12mm (0.4 to 0.48in.) under a 10 kgf (22 lbs.) load | p. 16 |
| Number of cylinders | 4 | p. 9 |
| Fuel tank capacity | 35.0 L | p. 9 |
| Engine crankcase capacity (with filter) | 7.6 L | p. 9 |
| Engine coolant capacity | 7.5 L | p. 9 |
| Transmission case capacity | 39.0 L | p. 9 |
| L3710HST | ||
| Total displacement | 1.857 L | p. 9 |
| Net power | 27.3 kW | p. 9 |
| Maximum torque | 120.3 N-m | p. 9 |
| Minimum ground clearance | 350 mm | p. 9 |
| L4310HST, L4610HST | ||
| Total displacement | 2.197 L | p. 9 |
