Part of the Kubota Parts Manuals.
This is the Kubota LA211 parts catalog, a 56 page illustrated PDF covering the front loader that mounts to the compact tractor. Each section pairs an exploded diagram with Kubota part numbers, so you can identify and order the exact component you need.It documents the main frame, the boom, the three and four position control valves and their component parts, the control lever, the cylinder and hydraulic hoses, the hydraulic tube and hydraulic block, the boom and bucket cylinder component parts, and the optional front guard. Part numbers are broken out by serial number range, including the BX2013 and BX2014 valve variants.Buy once and download the PDF right away. Open it on a phone, tablet or shop computer, or print the pages you need for the workbench.
What's Inside This Kubota LA211 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

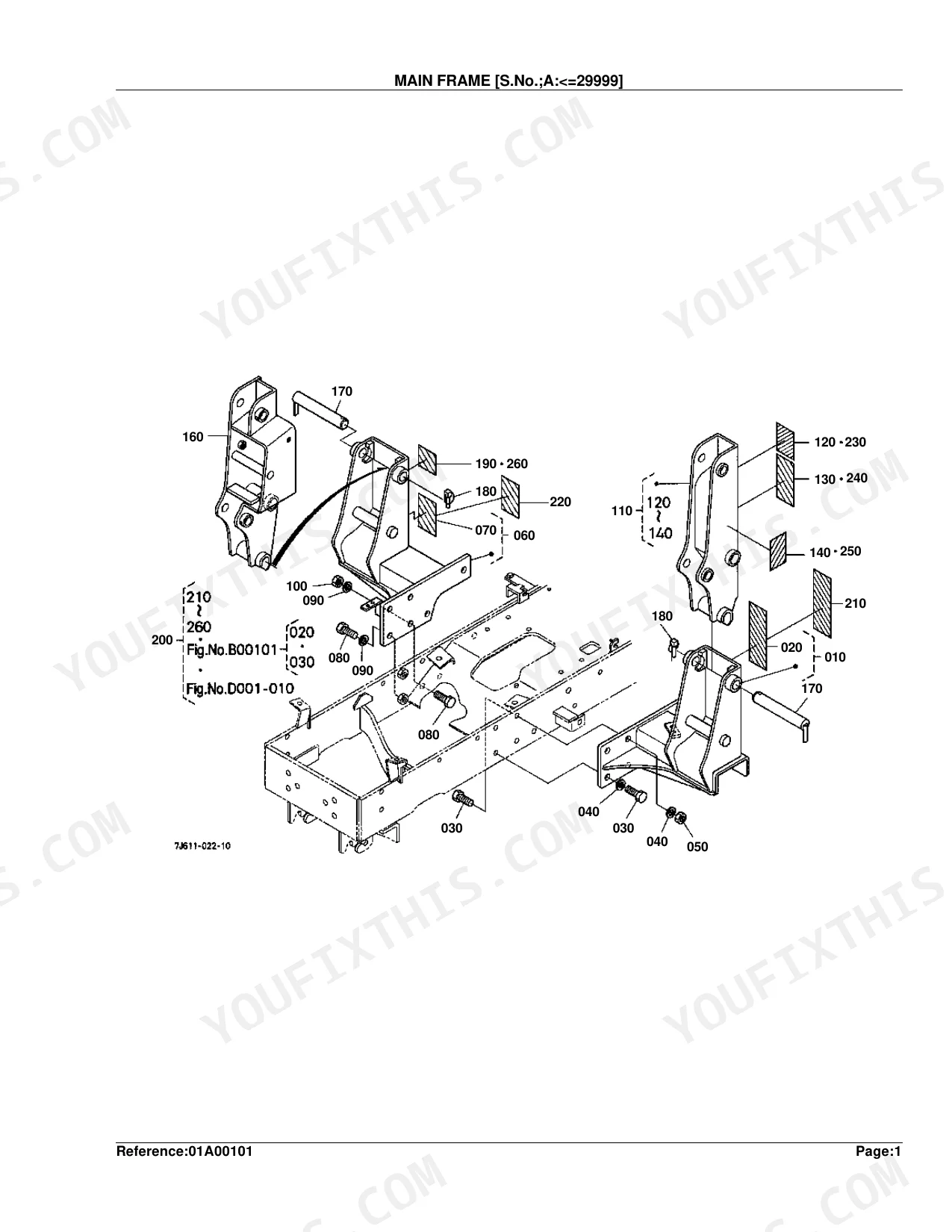

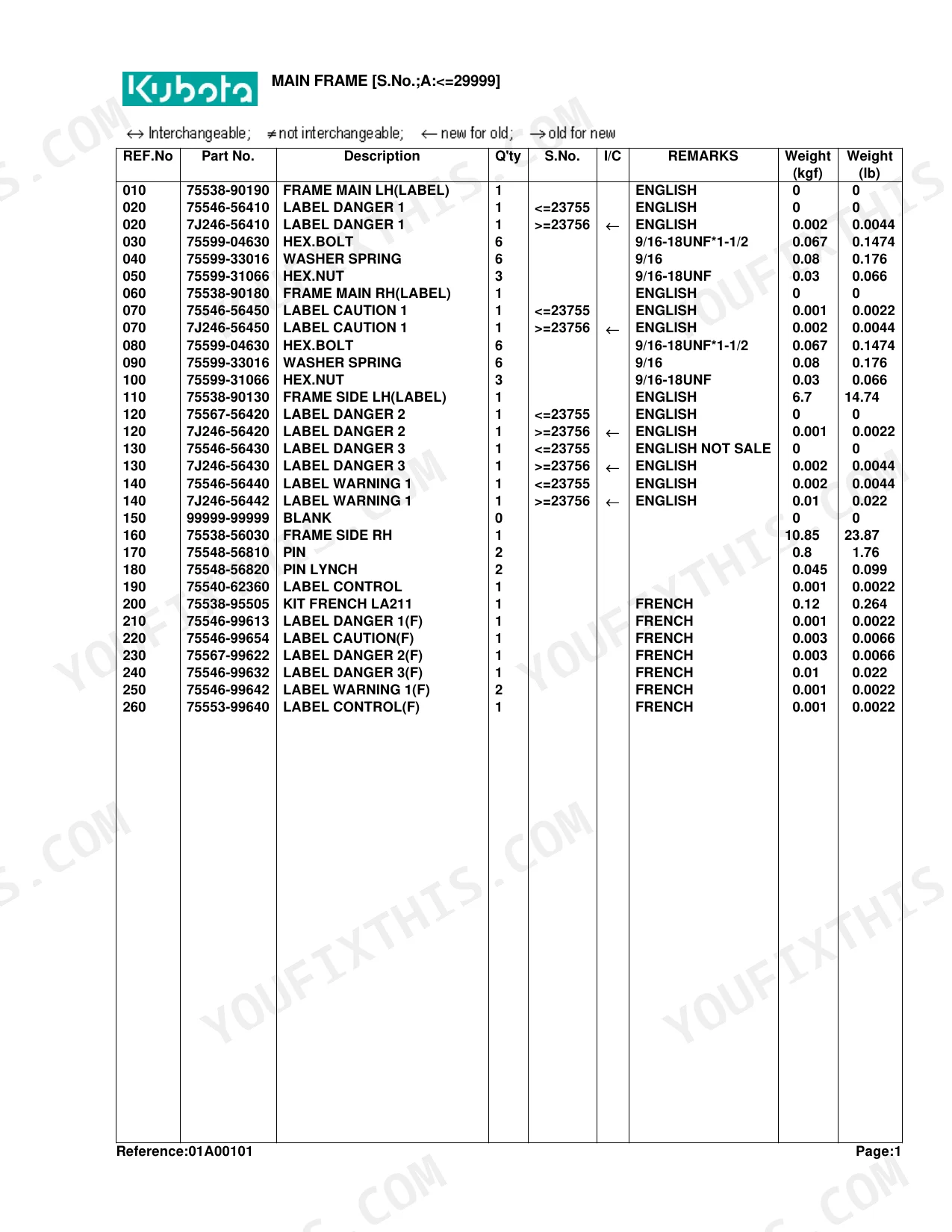

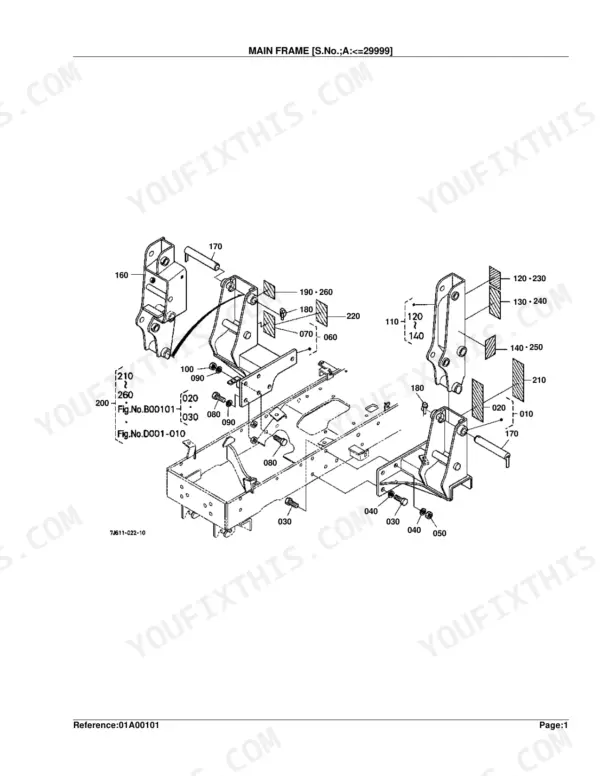

| Main Frame [S.No.;A:<=29999] | 4-5 | Main Frame Diagram, Main Frame Parts List, Weight Information, S.No. A:<=29999 |
| Main Frame [S.No.;4-Position C/V:>=30001 to 59999] | 6-7 | Main Frame Diagram, Main Frame Parts List, Weight Information, S.No. >=30001 to 59999 |
| Main Frame [3-Position C/V:S.No.;A:>=60001] | 8-9 | Main Frame Diagram, Main Frame Parts List, Weight Information, S.No. A:>=60001 |
| Boom | 10-11 | Boom Diagram, Boom Parts List, Weight Information |

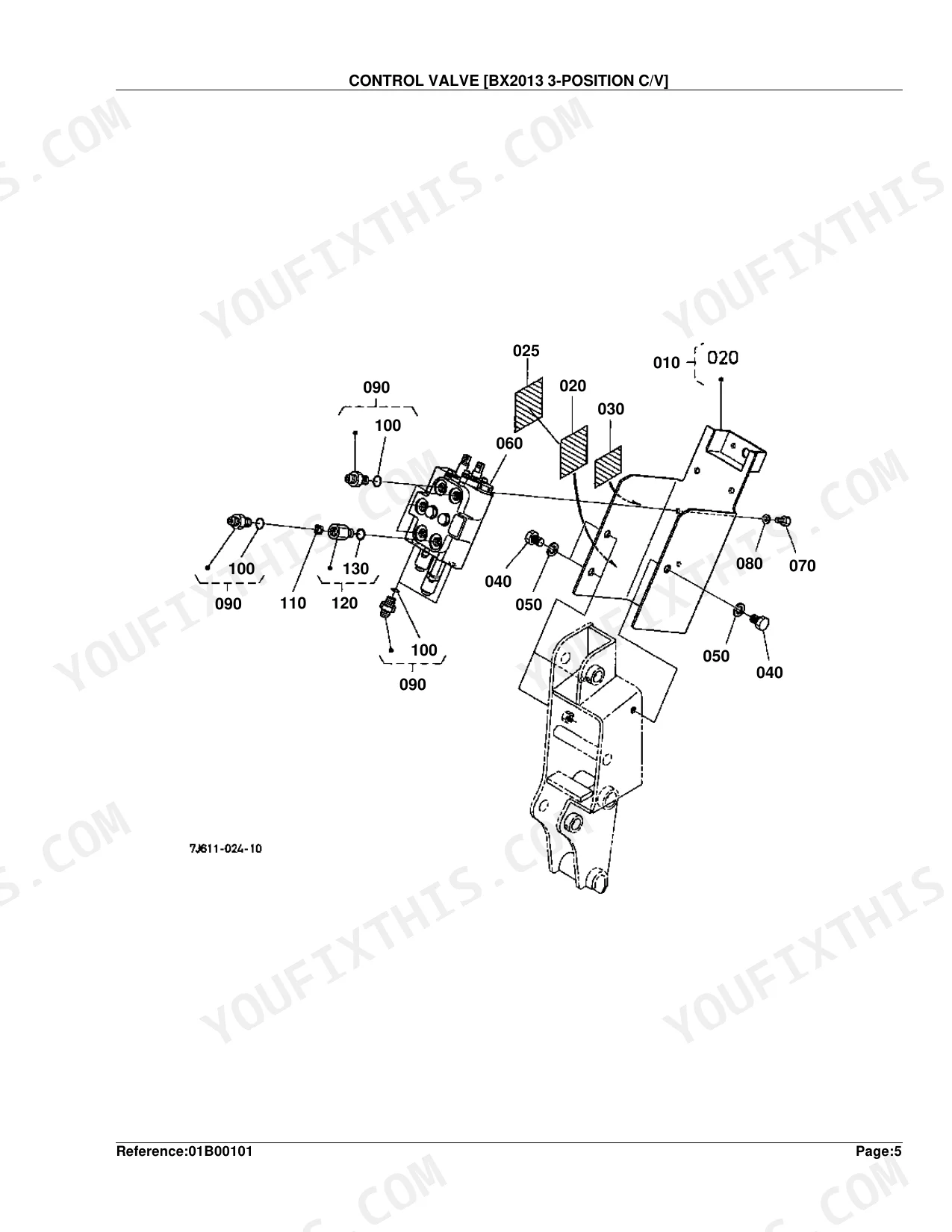

| Control Valve [Bx2013 3-Position C/V] | 12-13 | BX2013 Parts List S.No.;<=29999 |
| Control Valve [3-Position C/V] | 14-15 | Parts List S.No.;>=60001 |
| Control Valve [Bx2014 4-Position C/V] | 16-17 | BX2014 Parts List S.No.;<=29999 |
| Control Valve | 18-19 | Control Valve Diagram, Control Valve Parts List S.No., >=30001 to 59999, Weight Information |
| Control Valve [Component Parts][3-Position C/V] | 20-21 | Control Valve Component Parts Diagram, Control Valve Component Parts List, Weight Information |
| Control Valve [Component Parts] [4-Position C/V] | 22-25 | Component Parts List S.No.;<=29999, Component Parts List S.No.;>=30001 to 59999 |

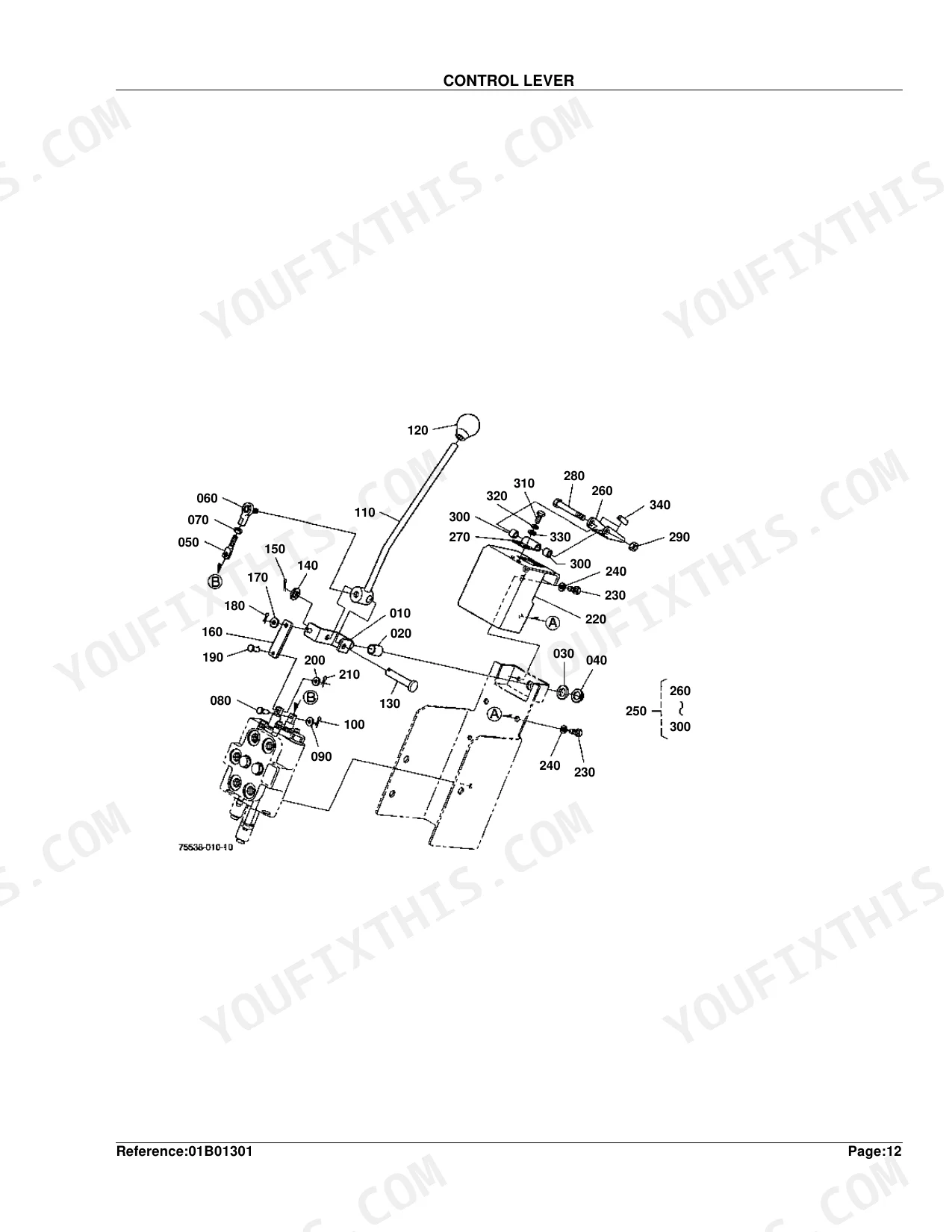

| Control Lever | 26-31 | Parts List S.No.;<=29999, Parts List S.No.;>=30001 to 59999 |

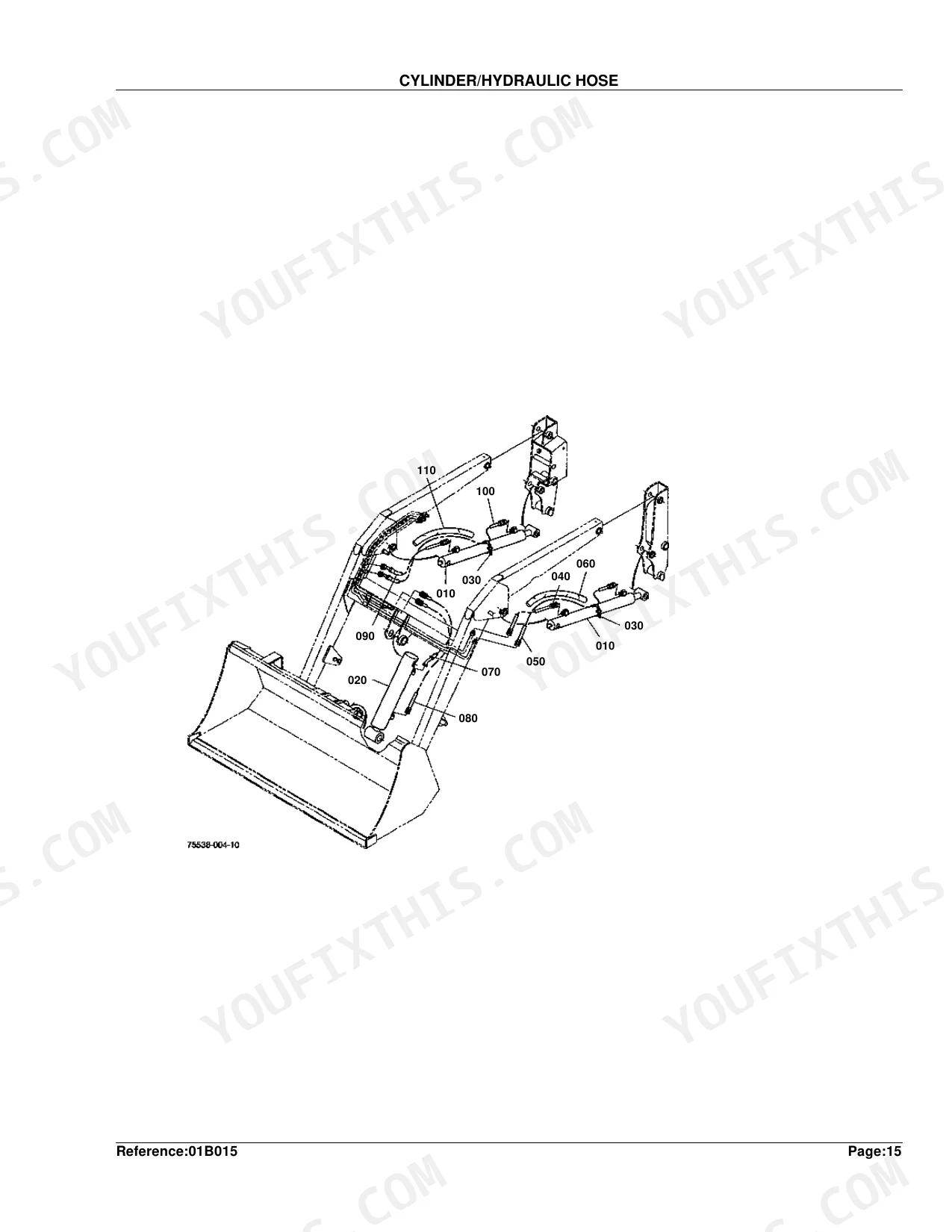

| Cylinder/Hydraulic Hose | 32-33 | Cylinder/Hydraulic Hose Diagram, Cylinder/Hydraulic Hose Parts List, Weight Information |
| Hydraulic Hose 1 [3-Position C/V] | 34-35 | Hydraulic Hose 1 Diagram, Hydraulic Hose 1 Parts List, Weight Information |
| Hydraulic Hose 1 [Bx2014 4-Position C/V] | 36-37 | Parts List S.No.;<=26670 |
| Hydraulic Hose 2 | 38-40 | Hydraulic Hose 2 Diagram, Old Part Diagram, Hydraulic Hose 2 Parts List, Weight Information |
| Hydraulic Hose [4-Position C/V] | 41-42 | Hydraulic Hose Diagram, Hydraulic Hose Parts List S.No., >=30001 to 59999, Weight Information |

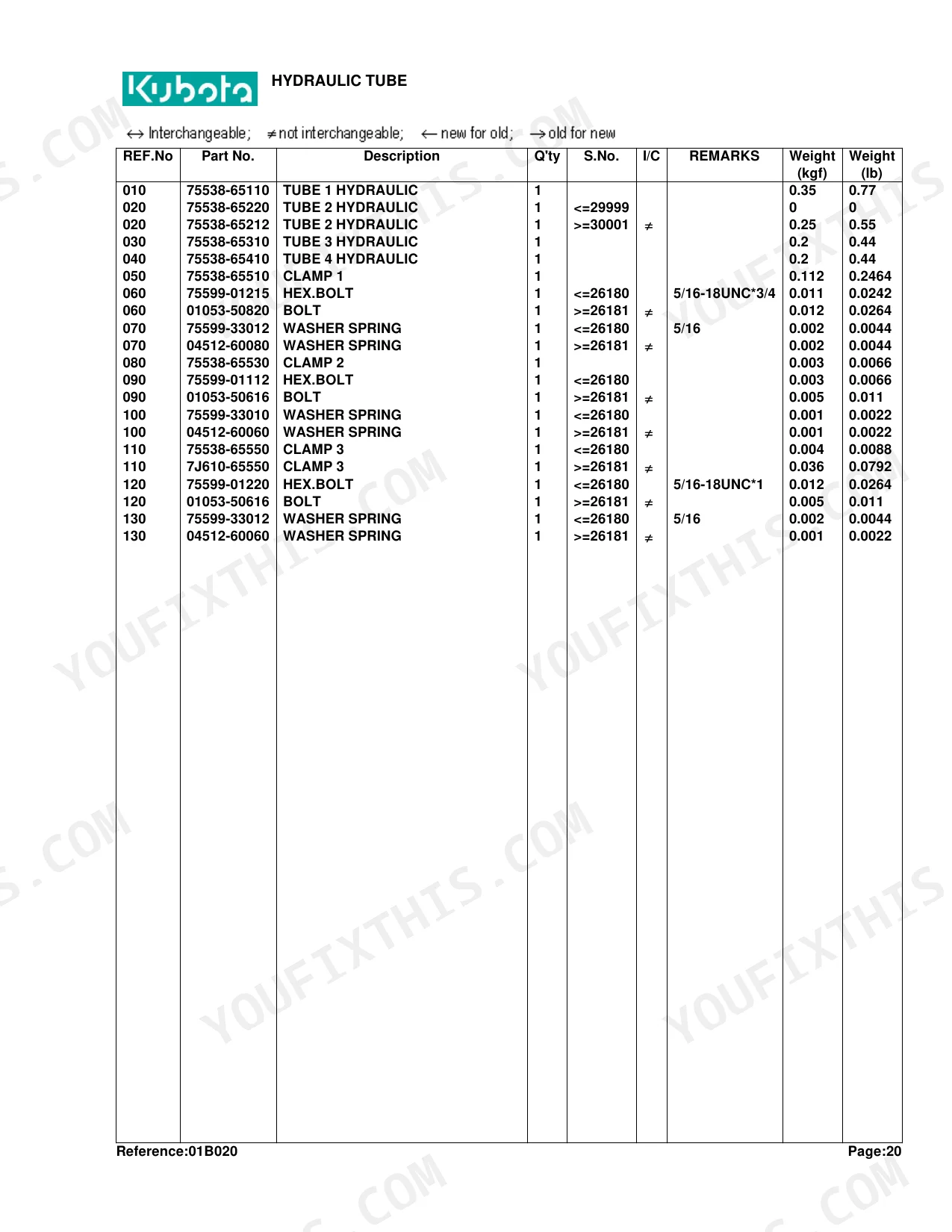

| Hydraulic Tube | 43-44 | Hydraulic Tube Diagram, Hydraulic Tube Parts List, Weight Information |

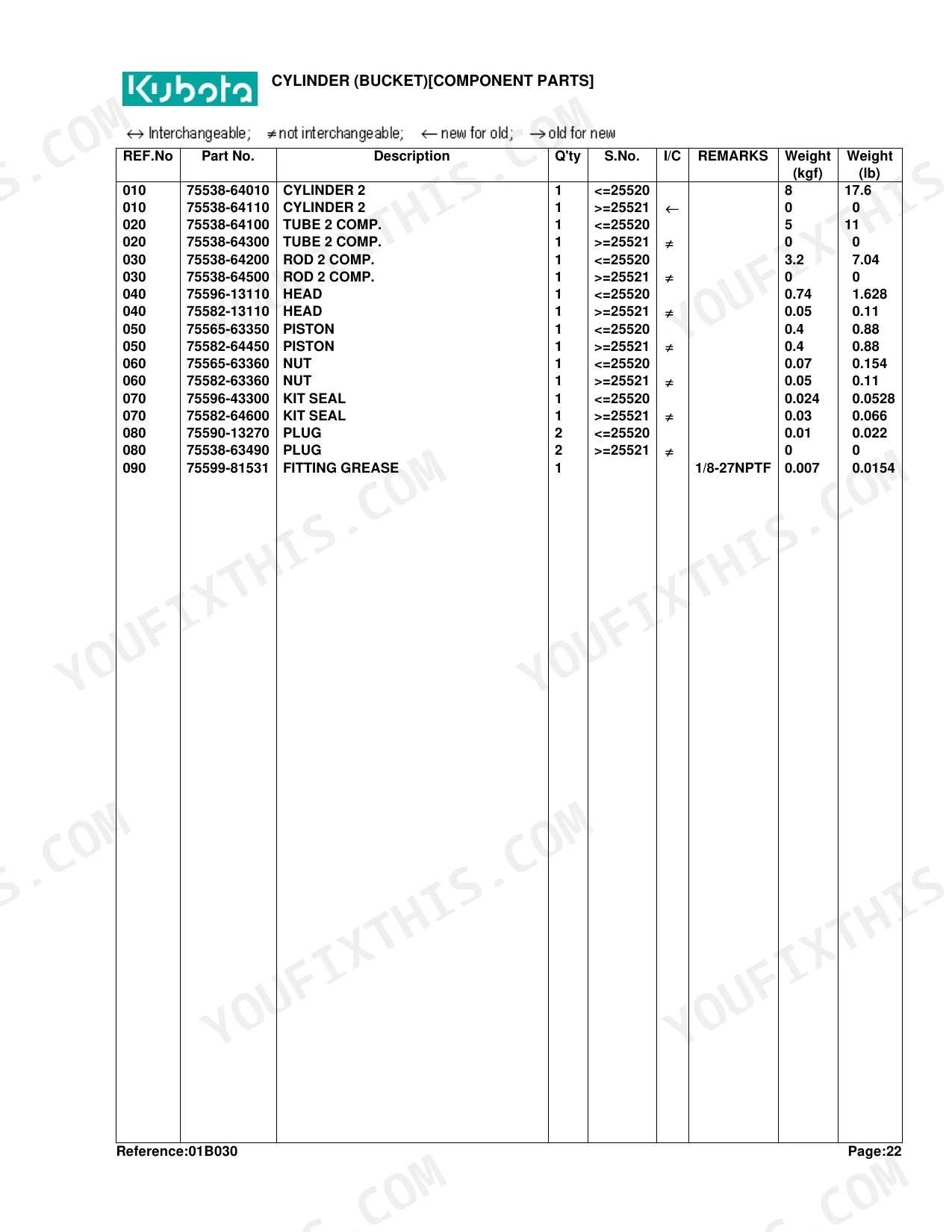

| Cylinder (Boom)[Component Parts] | 45-46 | Cylinder (Boom) Component Parts Diagram, Cylinder (Boom) Component Parts List, Weight Information |
| Cylinder (Bucket)[Component Parts] | 47-48 | Cylinder (Bucket) Component Parts Diagram, Cylinder (Bucket) Component Parts List, Weight Information |
| Hydraulic Block | 49-53 | Parts List 3-Position C/V: All4-Position C/V:S.No.;<=29999, Parts List S.No.;>=30001 to 59999 |
| Front Guard [Option] | 54-56 | Accessories and Service Parts |
Every system also includes part number details, weight information, and a diagram.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Boom Fitting Grease thread | 1/4-28T.T. | p. 11 |
Kubota LA211 Common Problems This Manual Covers
One loader function weak or dead
When the loader raises and lowers but one motion is weak or missing, the control valve spool or its supply is usually at fault. This section identifies the valve body and mounting parts for the three position control valve.
Manual Section: Control Valve [Bx2013 3-Position C/V] p. 12Loader motion sticks or is intermittent
A spool that sticks from wear or contamination makes one function cut in and out. The control valve component parts breakdown lists the spool, detent kit and seals inside the valve.
Manual Section: Control Valve [Component Parts][3-Position C/V] p. 20Bucket drops when lowering
Internal leakage past the bucket cylinder seals lets the load settle instead of holding. The bucket cylinder component parts page separates the tube, rod, piston and seal kit for a rebuild.
Manual Section: Cylinder (Bucket)[Component Parts] p. 47Fluid leaking at hoses or fittings
Aged seals and loose fittings are the most common source of loader oil leaks. The cylinder and hydraulic hose section maps the hoses, couplers and fittings you need to replace.
Manual Section: Cylinder/Hydraulic Hose p. 32Slow or jerky loader under load
A restriction or air in the supply lines makes the loader slow and jumpy when loaded. The hydraulic hose diagrams identify each hose and sleeve in the circuit.
Manual Section: Hydraulic Hose 2 p. 38Twisted or misaligned loader arm
Overload or an unsecured mounting pin can distort the loader frame. The main frame section shows the frame parts, pins and hardware for inspection and replacement.
Manual Section: Main Frame [S.No.;A:<=29999] p. 4Frequently Asked Questions
Which machine does this catalog cover?
It covers the Kubota LA211 front loader that mounts to the compact tractor, with exploded diagrams and part numbers for every assembly.
Is this a parts catalog or a service manual?
It is a parts catalog for identifying and ordering components, not a repair procedure manual.
Does it list cylinder rebuild parts?
Yes. The boom cylinder component parts section separates the tube, rod, piston and seal kit for a rebuild. p. 45
How are serial number differences handled?
Part numbers are broken out by serial number range, including the BX2013 and BX2014 valve variants. The main frame section shows which parts fit each S.No. range. p. 4
How quickly can I access this manual after buying?
Download lands the moment payment clears. The full 56-page searchable Parts Manual is yours instantly, ready to open on a laptop, tablet, or phone right at the workbench.
Can I print specific sections of this Kubota LA211 Parts Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
