This is the Kubota factory parts catalog for the RCK54-24B mid-mount mower deck, the 54 inch deck fitted to Kubota compact tractors. Its 29 pages present exploded diagrams with reference numbers, Kubota part numbers, quantities, and serial ranges so you can pin down the right component before you buy.The catalog walks through every subassembly on the deck: the universal joint driveline, the bevel gear case, the pulley holder and spindle, the blades, the tension pulley and drive belt, the mower deck shell, the front gauge wheels and rear wheel, the linkage, the discharge cover, and the lift linkage and lift arm that raise and lower the deck.It is built for parts identification rather than step by step repair, which makes it the fast way to order blades, spindle bearings, belts, and gearbox parts without guessing between similar Kubota deck numbers.
What's Inside This Kubota RCK54-24B Parts Manual
| System | Pages | Key Topics |
|---|---|---|

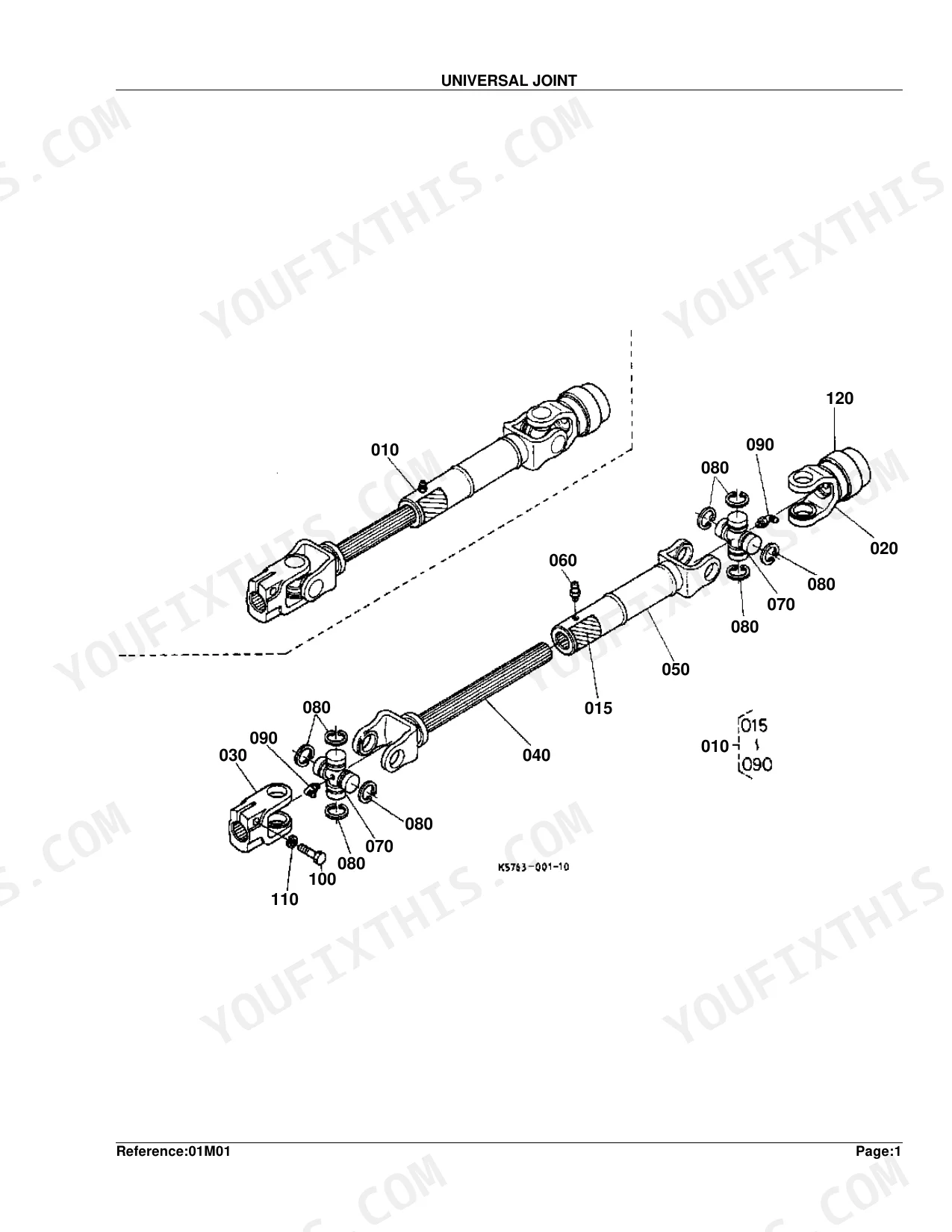

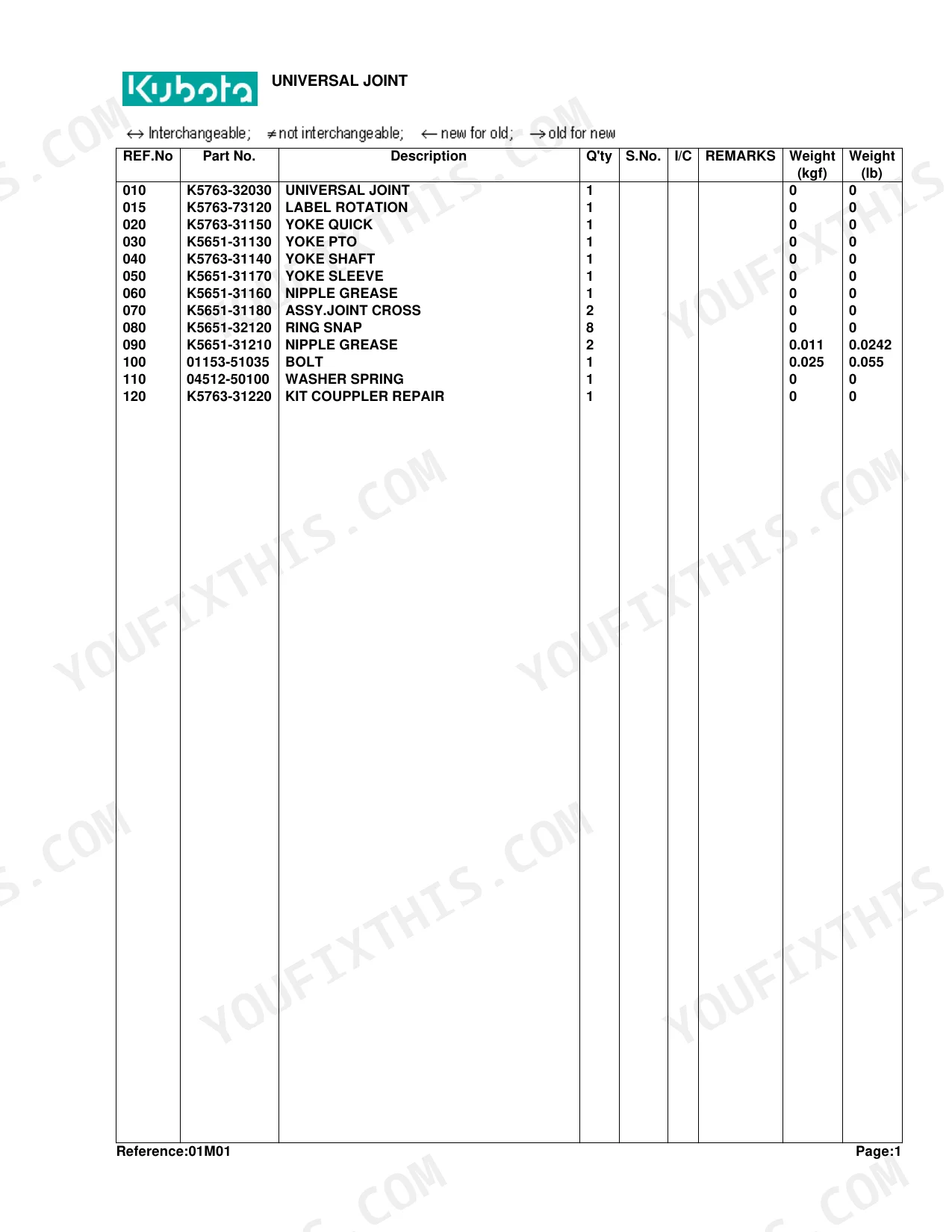

| Universal Joint | 4-5 | Label Rotation, Yoke Quick, Yoke PTO, Yoke Shaft, Yoke Sleeve, Nipple Grease, Assy.joint Cross |
| Bevel Gear Case | 6-7 | Case Bevel Gear, Gasket, Stay Case LH, Stay Case RH, Shaft Pinion, Kit Gear Bevel, Bearing, Seal Oil |
| Pulley Holder | 8-9 | Holder Pulley Center, Bearing, Oil Seal Upper, Oil Seal Lower, Pipe Extension, Nipple Grease 45DEG, Boss Spline, Cover Dust |
| Blade | 10-11 | Holder Pulley Side, Holder Pulley RH, Shaft Spindle, Bearing, Oil Seal Upper, Oil Seal Lower, Nipple Grease, Pulley Side RH |
| Tension Pulley | 12-13 | Multi Belt, Arm Tension, Bushing Tension, Collar Tension, Pulley Tension, Cover Tension, Seal Bearing, Nipple Grease 45DEG |

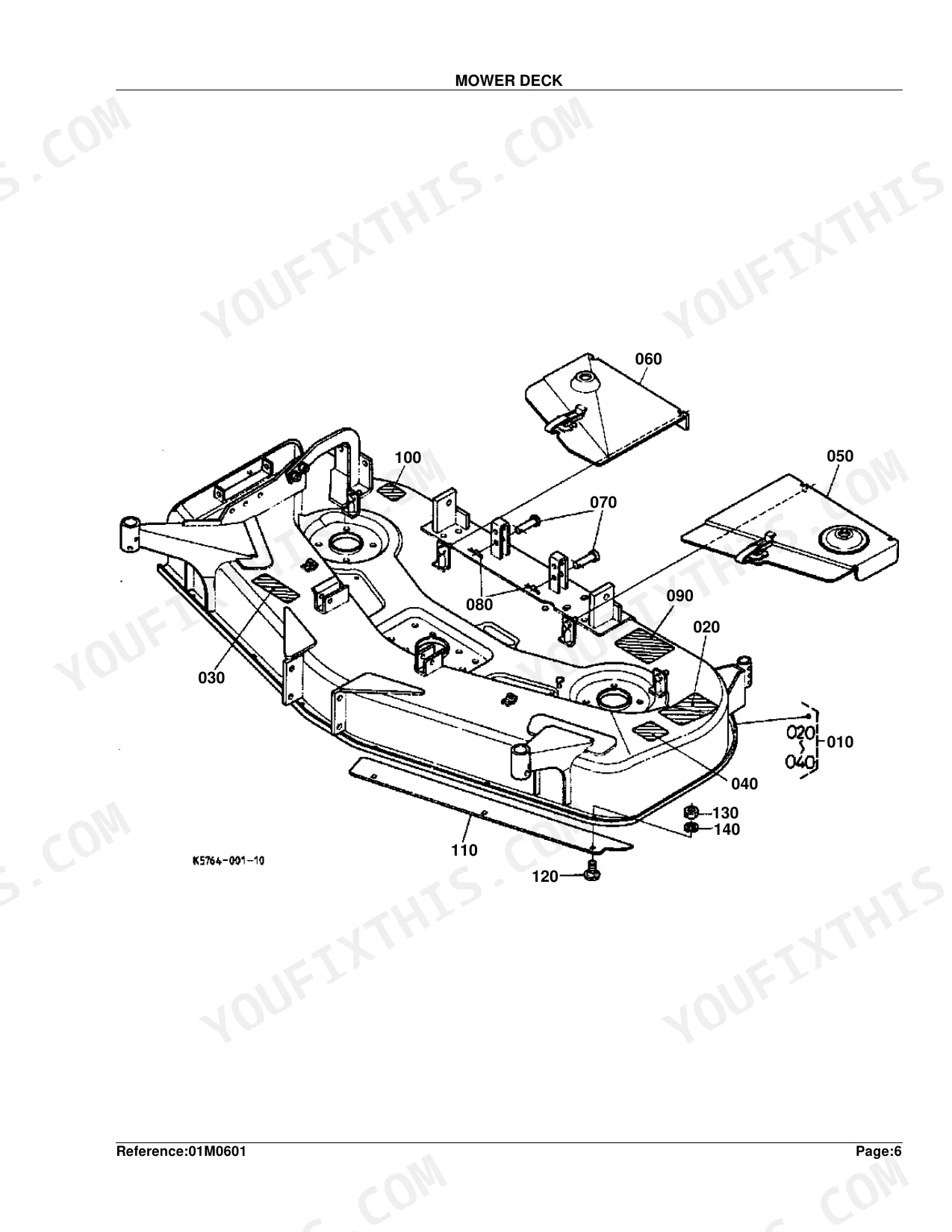

| Mower Deck | 14-15 | Assy Mower Deck, Label Caution, Label Danger, Cover Left, Cover Right, Label Height, Name Plate, Plate Frontlh |
| Front Gauge Wheel | 16-17 | Assy Wheel Gauge, Bushing I.d, Nipple Grease, Collar Wheel, Holder Gauge, Bushing Gauge Holder, Shaft Holder, Collar Holder |

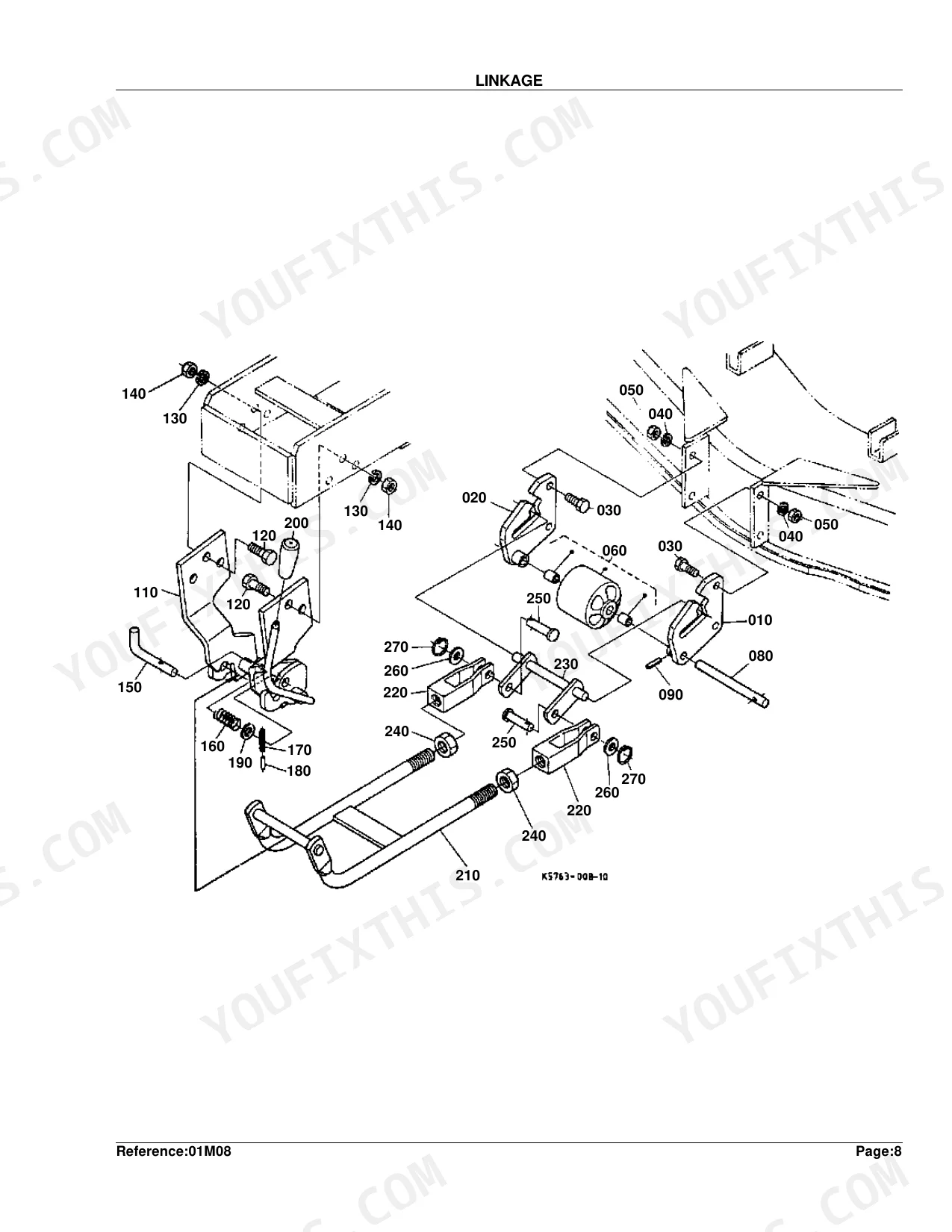

| Linkage | 18-19 | Bracket LH B, Bracket RH B, Assy Roller .0S, Stay Front, Spring Pin Front, Grip Lever, Link Front, Hex.nut |

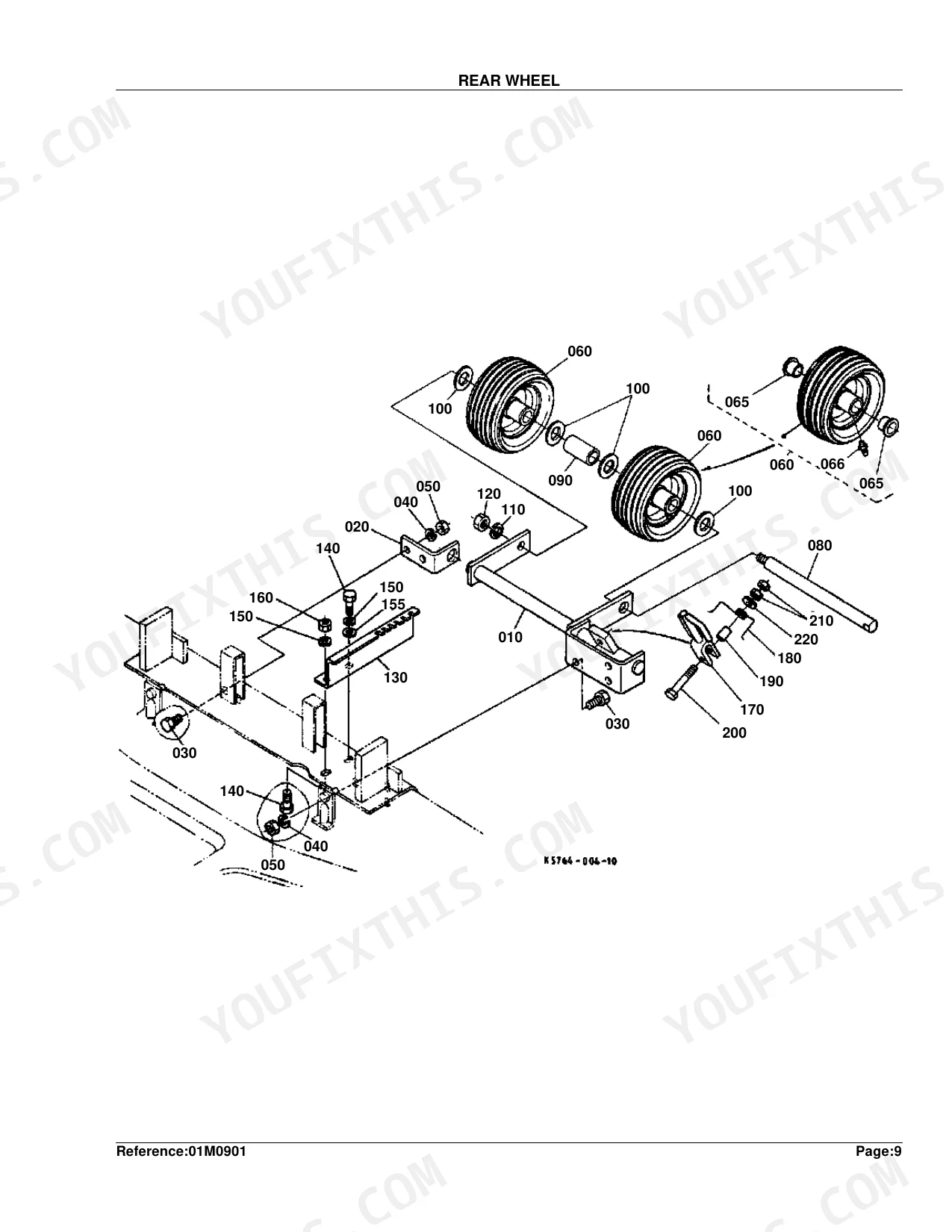

| Rear Wheel | 20-21 | Arm Rear Wheel, Bracket Rear Wheel, Assy.wheel Gauge, Bushing I.d, Nipple Grease, Shaft Rear Wheel, Collar Rear Wheel, Plate Guide |
| Discharge Cover | 22-23 | Support Stay Roller, Assy Roller .0S, Shaft Roller LH, Roller, Ring Snap, Cover Discharge, Spring Discharge |
| Lift Linkage | 24-25 | Stay Mid LH, Stay Mid RH, Shaft Lift, Arm Lift LH, Arm Lift RH, Nipple Grease 45DEG, Plate Stopper, Ring Snap |
| Lift Arm | 26-28 | Rod Lift L, Rod Lift S, Turnbuckle, Arm Lift LH, Arm Lift RH |
| Accessories and Service Parts | 29 | - |
Kubota RCK54-24B Common Problems This Manual Covers
Deck belt breaks or comes off
The deck belt shredding or throwing off is a common RCK54-24B complaint. A worn belt, a misrouted belt, a crooked idler, or debris around the pulleys are typical causes, all shown in the tension pulley diagram.
Manual Section: Tension Pulley p. 12Uneven cut, streaks, or scalping
Streaks, stingers, or a scalped lawn usually mean dull or bent blades, or the wrong blade fitted. This section identifies the blades and spindle so you can order correct replacements.
Manual Section: Blade p. 10Spindle noise and vibration
Excessive noise or vibration from the deck points to worn spindle bearings or a damaged spindle. The pulley holder diagram lists the bearings and seals needed for a rebuild.
Manual Section: Pulley Holder p. 8Gearbox needs service or fails early
The deck gearbox can wear or fail from low or degraded oil and missed lubrication. This section breaks down the case, pinion shaft, gear kit, shims, and seals.
Manual Section: Bevel Gear Case p. 6Poor cut in thick grass
Underpowered performance in heavy grass often comes from a clogged deck or airflow restriction rather than the engine. The mower deck section identifies the shell and covers for cleaning and repair.
Manual Section: Mower Deck p. 14Gauge wheel wear or wrong height
Worn gauge wheels or bushings let the deck scalp or ride unevenly. This diagram covers the gauge wheels, bushings, collars, and holders that set deck height.
Manual Section: Front Gauge Wheel p. 16Frequently Asked Questions
Which machine does this manual cover?
It is the factory parts catalog for the Kubota RCK54-24B mower deck, a 29 page document with exploded diagrams and Kubota part numbers for that specific deck.
Does it include part numbers and exploded diagrams?
Yes. Each section pairs an exploded illustration with reference numbers, Kubota part numbers, quantities, and serial ranges, so you can identify and order the exact part.
Can I rebuild the deck spindles with this catalog?
Yes. The pulley holder section identifies the spindle, bearings, and oil seals so you can order a full set of parts for a noisy or worn spindle. p. 8
Does it cover the deck gearbox parts?
The bevel gear case section breaks down the housing, pinion shaft, bevel gear kit, shims, bearings, and seals for gearbox service. p. 6
How quickly can I access this Kubota RCK54-24B manual after buying?
Download is immediate: a 29-page searchable PDF, no shipping and no waiting. It works on any device, so you can pull it up on your phone right under the hood.
Can I print specific sections of this Kubota RCK54-24B Parts Catalog?
Yes. Print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
